ISUZU FVR 4x2 foam water dry powder fire rescue truck is a special vehicle designed to respond to fire and other emergencies. Its main uses include quickly reaching the fire scene, spraying high-pressure water or fire extinguishing agents to extinguish the fire, rescuing trapped people, and providing necessary equipment and supplies to firefighters.
Isuzu foam dry powder fire rescue truck has significant features and is usually equipped with a powerful water pump system, demolition tools and first aid equipment to cope with a variety of complex rescue scenarios. Its body is sturdy and durable, can operate stably in harsh environments, and is equipped with eye-catching warning lights and sirens to ensure fast and safe passage in emergency situations.

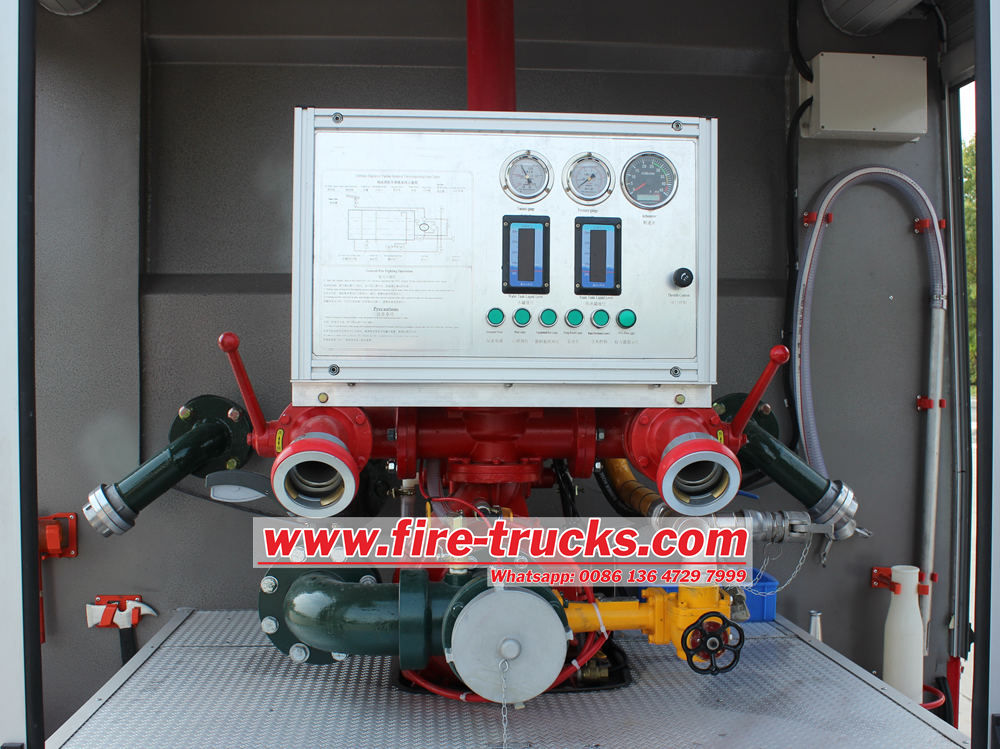

The Isuzu foam fire truck is modified on the Isuzu FVR 4x2 chassis,with 4500mm wheelbase,6HK1-TCL 240HP diesel engine,Isuzu MLD 6speed gearbox,the cabin 2+3 person,with A/C,USB,direction assistance.The truck equipped with 10cbm water tank and 2cbm foam tank,has a pump room(CB10/60 fire pump,fire equipment) a tool room,witch can assist firefighting operations.
|
ISUZU foam water dry powder fire rescue truck |
||
|
Manufacturer |
POWERSTAR |
|
|
Chassis |
Chassis model |
Isuzu FVR |
|
Drive model |
4X2,left hand drive |
|
|
Wheel Base |
4500mm |
|
|
Tyre size & number |
295/80R22.5,6+1 wheel |
|
|
Transmission |
ISUZU MLD Manual, 6-speed forward, 1 reverse gears |
|
|
Color |
Red and white including tanker, standard. |
|
|
Engine |
Engine model |
6HK1-TCL |
|
Horse power |
240HP/177KW |
|
|
Displacement |
7.79L |
|
|
Rotating speed |
2400rpm |
|
|
Emission |
EURO 5 |
|
|
Fire performance |
Tank capacity |
water tank capacity:3000L |
|
foam tank capacity:1000L |
||
|
Dry powder capacity:1000L |
||
|
Fire pump |
Brand: Shanghai Xiongzhen |
|
|
Model: CB10/30 |
||
|
Low-pressure:30L/S |
||
|
Fire monitor |
Brand: ChengDU West |
|
|
Model:PL24 |
||
|
Flow:24L/S |
||
|
Water jet distance:≥50m |
||
|
Foam jet distance:≥45m |
||
|
Standard configuration |
Have alarm rotating light and which is mounted on top of the cabin , have ladder , have manhole |
|
1. Versatility and efficient fire extinguishing capability
Isuzu foam water dry powder fire rescue truck is an efficient firefighting vehicle that integrates multiple fire extinguishing functions and is widely used in various fire rescue scenarios. It is equipped with three fire extinguishing media: foam, water and dry powder, and can deal with different types of fires.
The foam fire extinguishing system isolates oxygen and reduces the temperature by covering the surface of the burning object; the water fire extinguishing system controls the fire through cooling and dilution; and the dry powder fire extinguishing system can quickly suppress the chemical reaction. This multifunctional design enables the fire truck to respond quickly in complex and changing fire environments, significantly improving the fire extinguishing efficiency.
2. Efficient hydraulic and power systems
Isuzu foam powder fire truck is equipped with high-power water pump and high-pressure water cannon, which can spray water or foam to a long distance and cover a wide range. The power system of the vehicle is specially designed to operate stably in harsh environments, ensuring that firefighters are not restricted during the rescue process.
In addition, Isuzu fire truck is also equipped with large water tanks and foam liquid tanks, which can store a large amount of fire extinguishing media to meet the needs of long-term fire fighting. The dry powder system uses high-pressure gas to quickly spray dry powder to the fire source and quickly control the fire. This efficient system design enables the fire truck to complete the fire extinguishing task in a short time and reduce the losses caused by the fire.
3. Wide application and emergency rescue capabilities
Isuzu fire fighting truck is not only suitable for urban building fires, but also plays an important role in high-risk places such as industrial areas, chemical plants, oil depots, and airports. For example, in chemical plant fires, dry powder fire extinguishing systems can effectively extinguish flammable gas and liquid fires; in airport accidents, foam fire extinguishing systems can quickly cover fuel fires and prevent the spread of fire.
Isuzu fire fighting truck also has emergency rescue functions, such as equipped with demolition tools, lighting equipment, first aid equipment, etc., which can search and rescue personnel and deal with emergencies at the fire scene. Its strong adaptability and versatility make it an indispensable and important equipment in the modern fire rescue system, providing a solid guarantee for protecting people's lives and property.
