ISUZU FTR-FVR custom fire trucks

Isuzu FVZ CXA 3000-gallon fire tanker is a purpose-built emergency vehicle designed to deliver exceptional performance and reliability in firefighting operations. At its core lies the 6HK1-TCG60 engineThe 3,000-gallon (11,356-liter) water tank is constructed from corrosion-resistant materials, ensuring longevity and safe water storage. Integrated with a high-capacity pump system, the tanker supports multiple discharge configurations, including adjustable flow rates and remote-controlled monitors for precision firefighting.

Isuzu fire fighting truck modify based on Japanese ISUZU GIGA 4x2 truck chassis applied with water and foam tanker body with loading capacity of 4m³ water and 1m³ foam. It’s powered by engine 6UZ1-TCG61 with 380HP and emission can be 9839cc. Isuzu fire pumper is widely used in urban fire brigades, petrochemical field, industrial factory and mining enterprises. Isuzu fire engine used to transport firemen and fire equipment to fire scene to carry out fire extinguishing work.

2025 New Fire-Fighting Foam Truck Isuzu have unique advantages in flammable liquid fires. The foam layer forms a physical barrier through low-density continuous coverage (0.2-0.4g/cm³), completely blocking the contact between the burning material and oxygen. EThe unique bipolar molecular structure of fluoroprotein foam can form a nanoscale water film on the surface of oil, reducing the volatilization of oil vapor by more than 80%. It is particularly suitable for extinguishing volatile liquids such as gasoline and aviation kerosene.

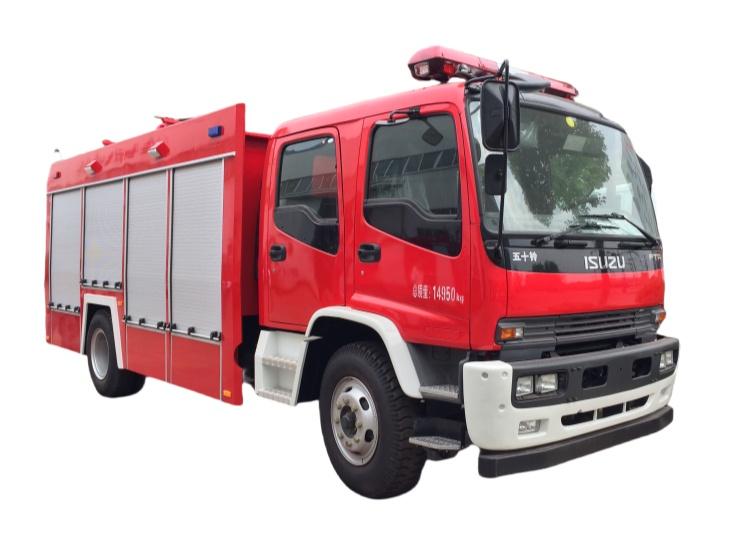

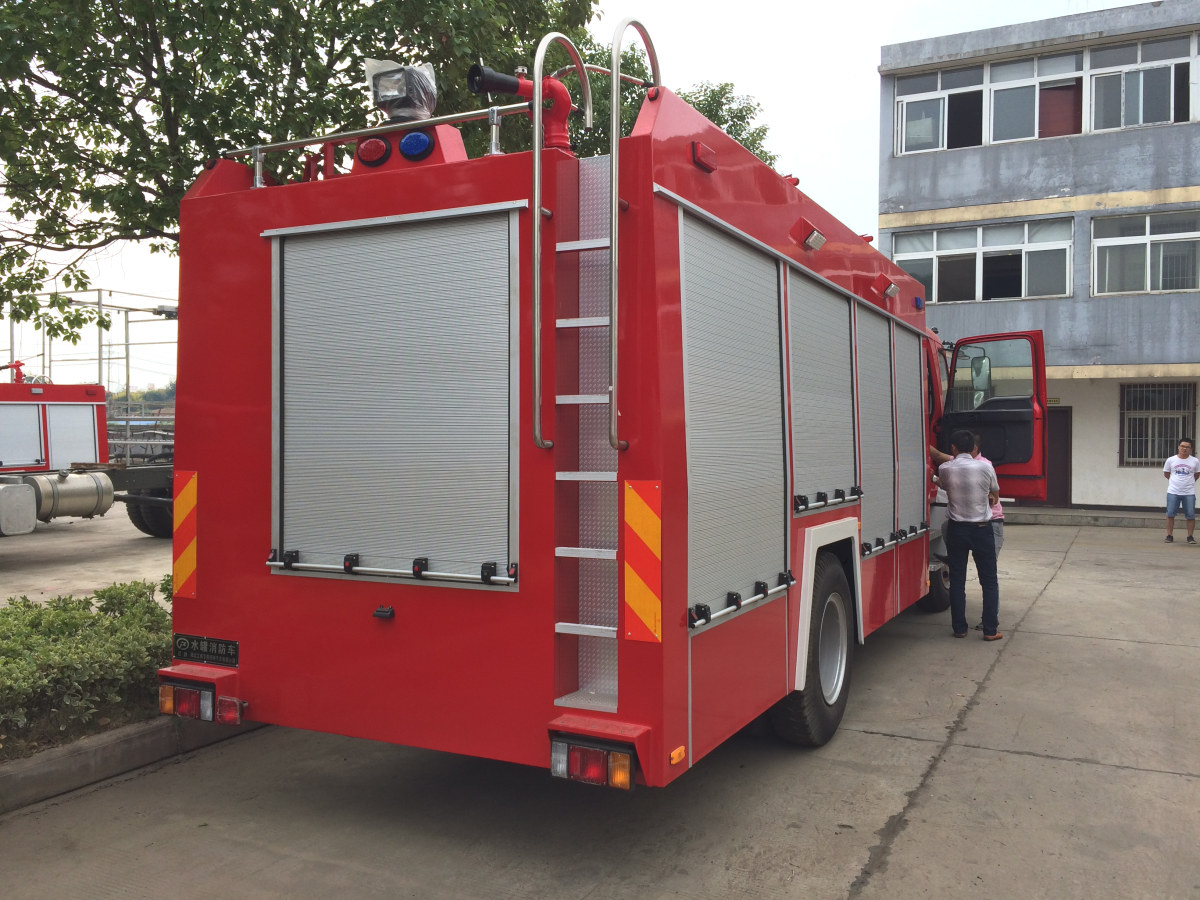

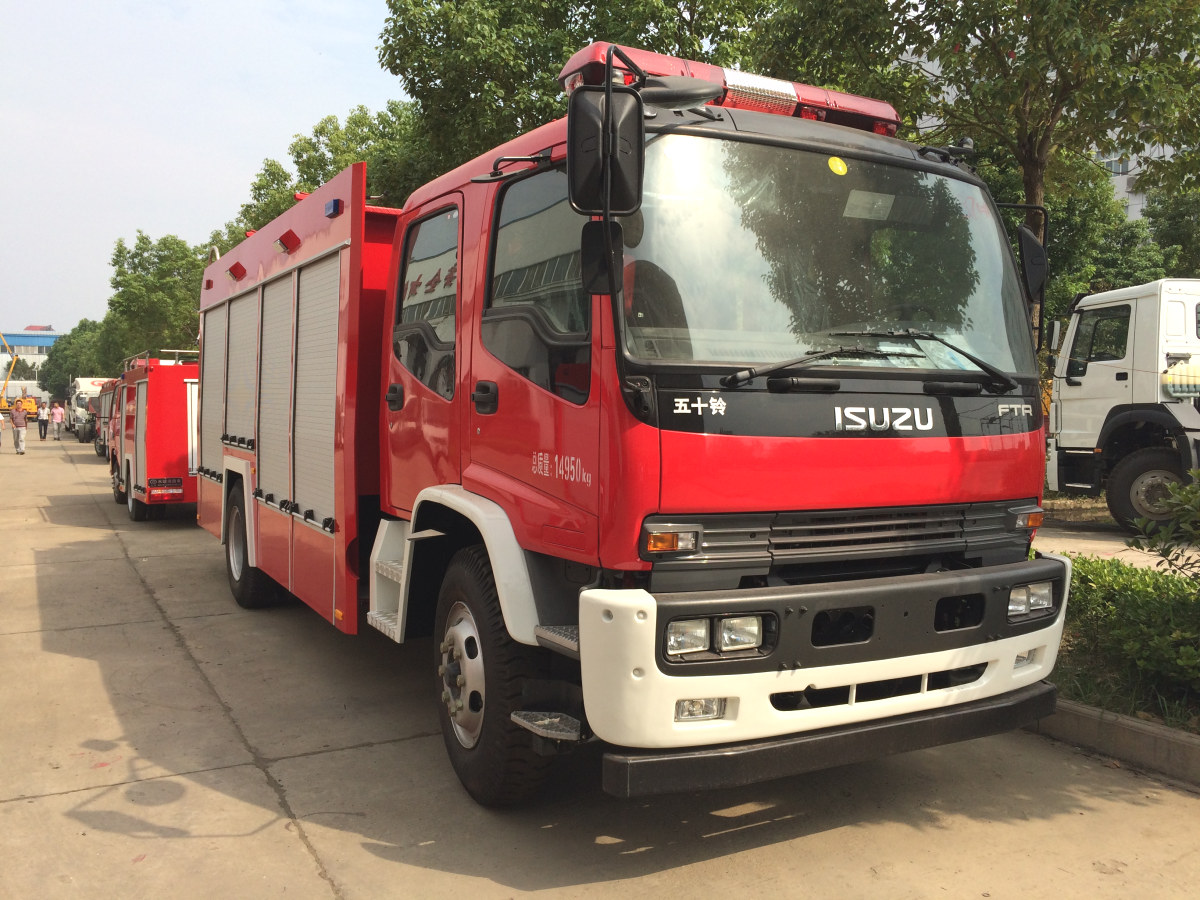

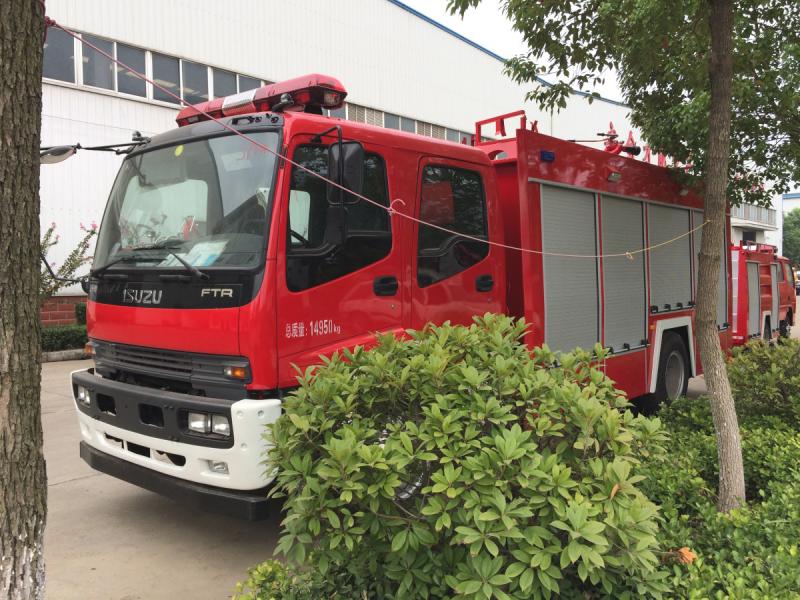

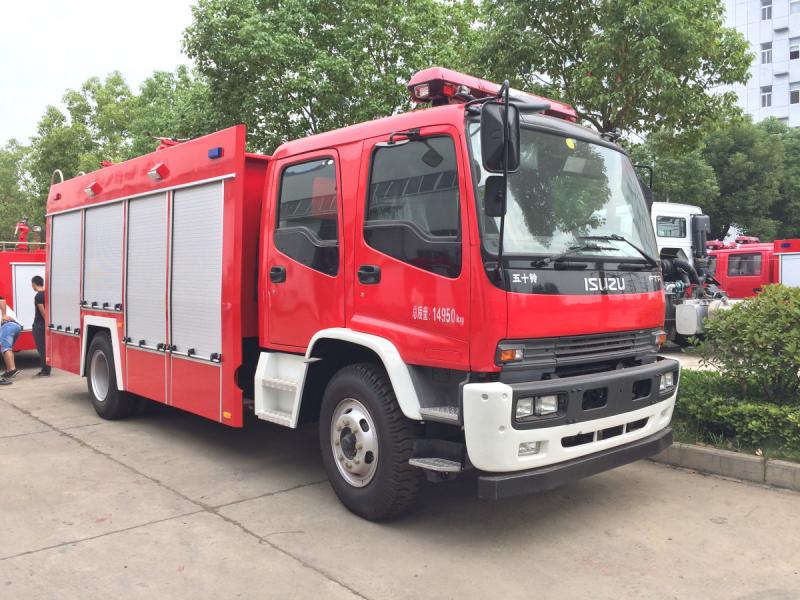

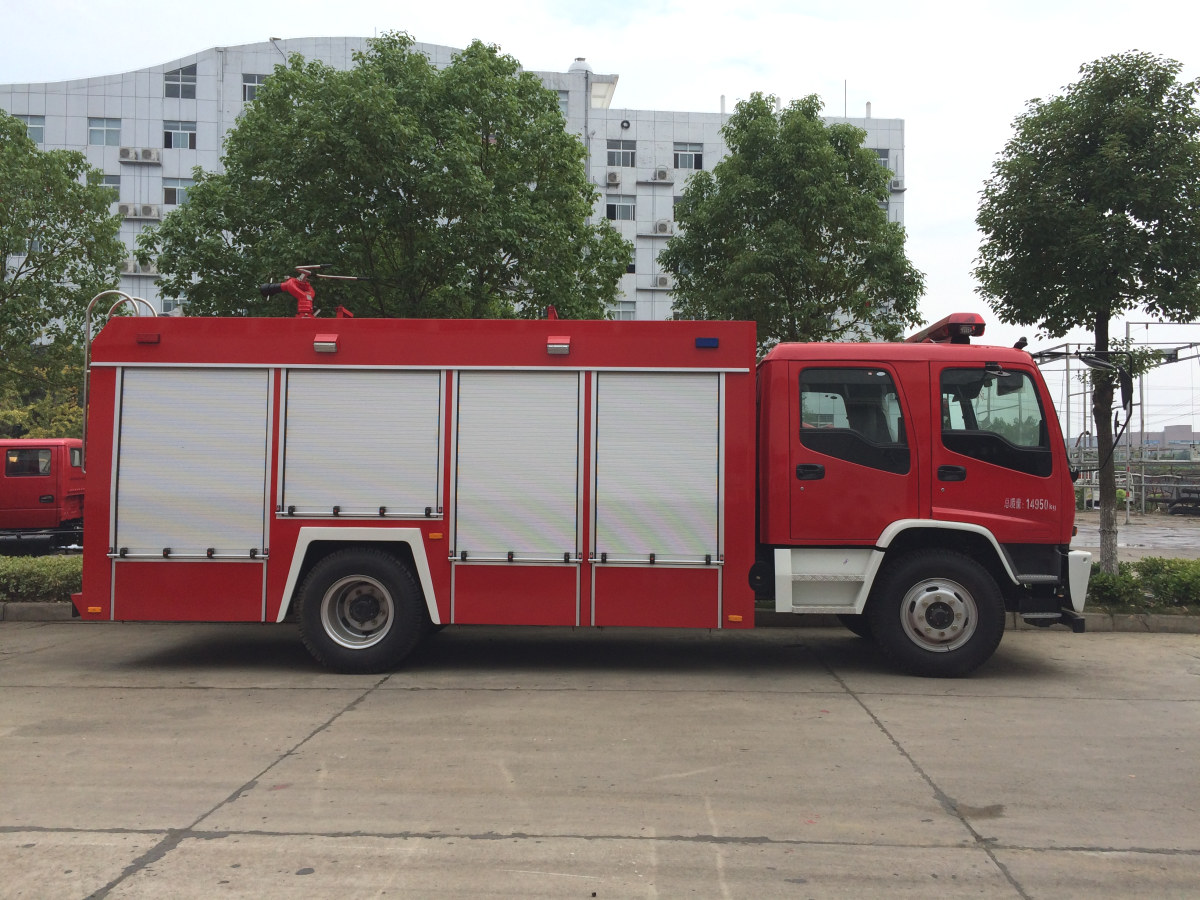

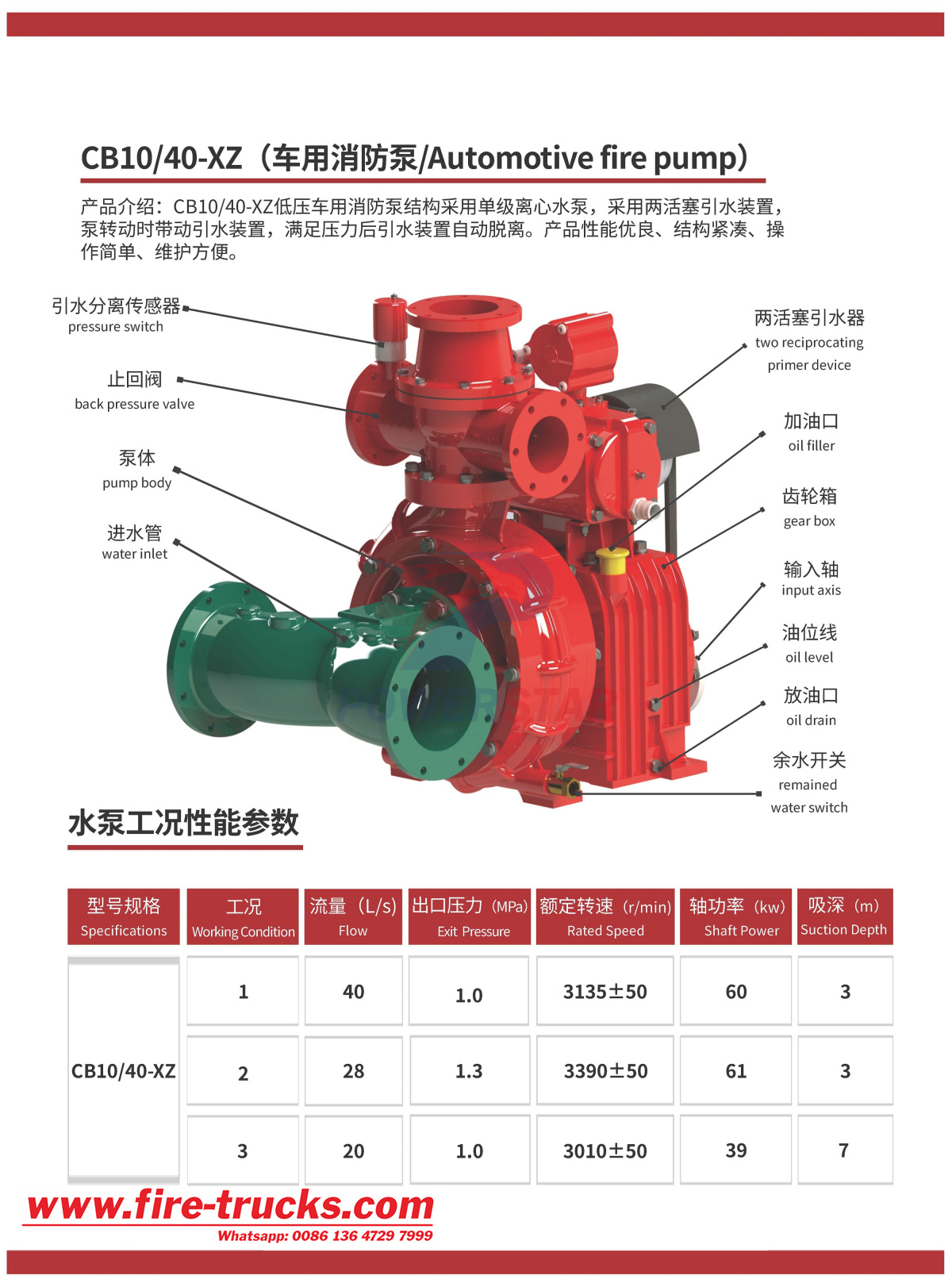

Isuzu FTR 6 cbm foam water fire truck is modified on the basis of the new FTR GIGA 4X chassis, with a 4500mm wheelbase, A/C, USB, power steering, equipped with 4HK1-TCG60 205HP engine, Isuzu MLD 6-speed gearbox, equipment box behind the cab, central 5 cubic water tank and 1 cubic foam tank, pump room at the rear of the car, loaded with CB10/40 fire pump to provide a stable water source and some fire fighting equipment, the top of the vehicle is equipped with PL8/32 fixed water-foam dual-purpose fire monitor, which can spray water or foam mixture to achieve remote fire suppression.

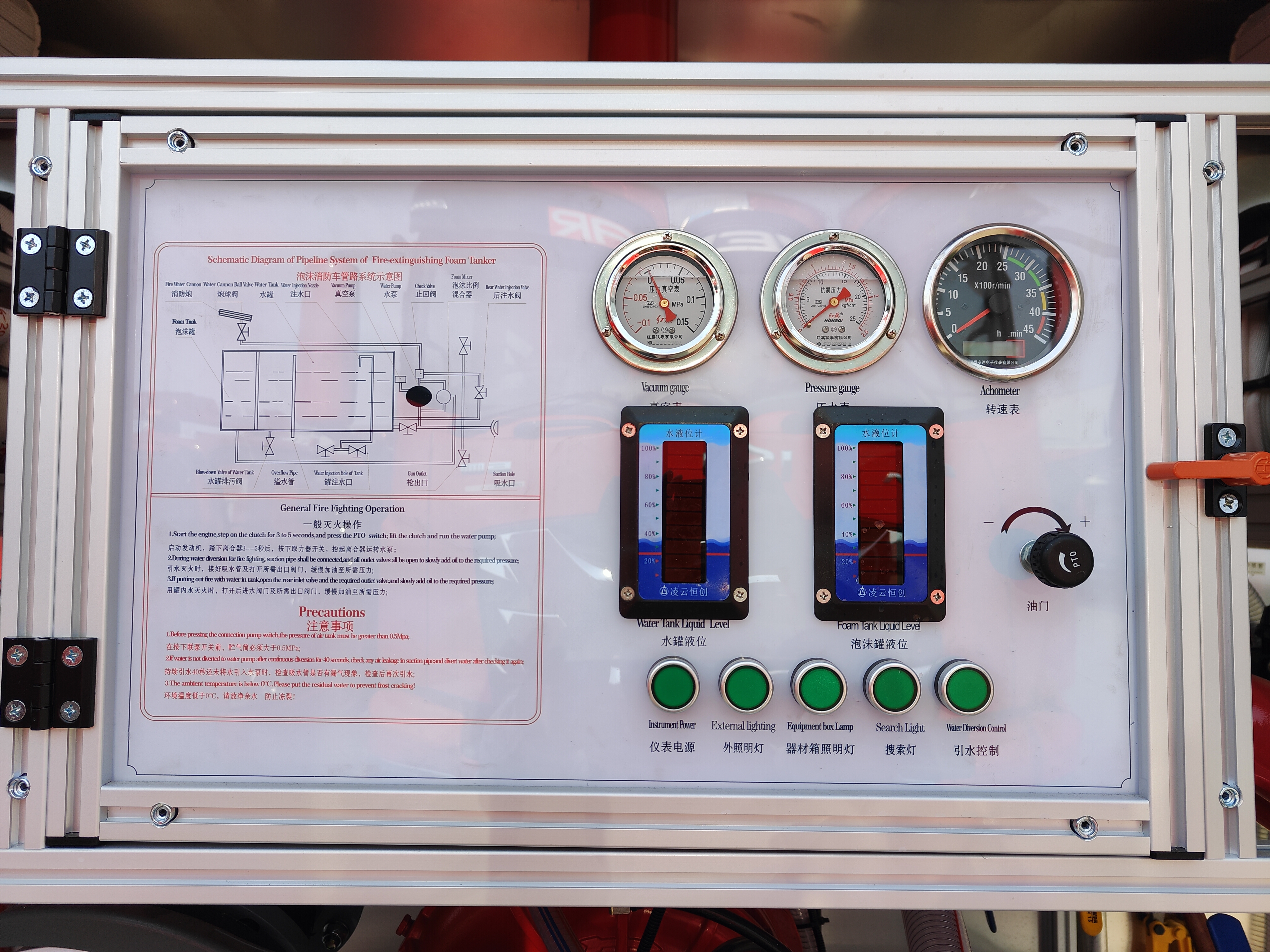

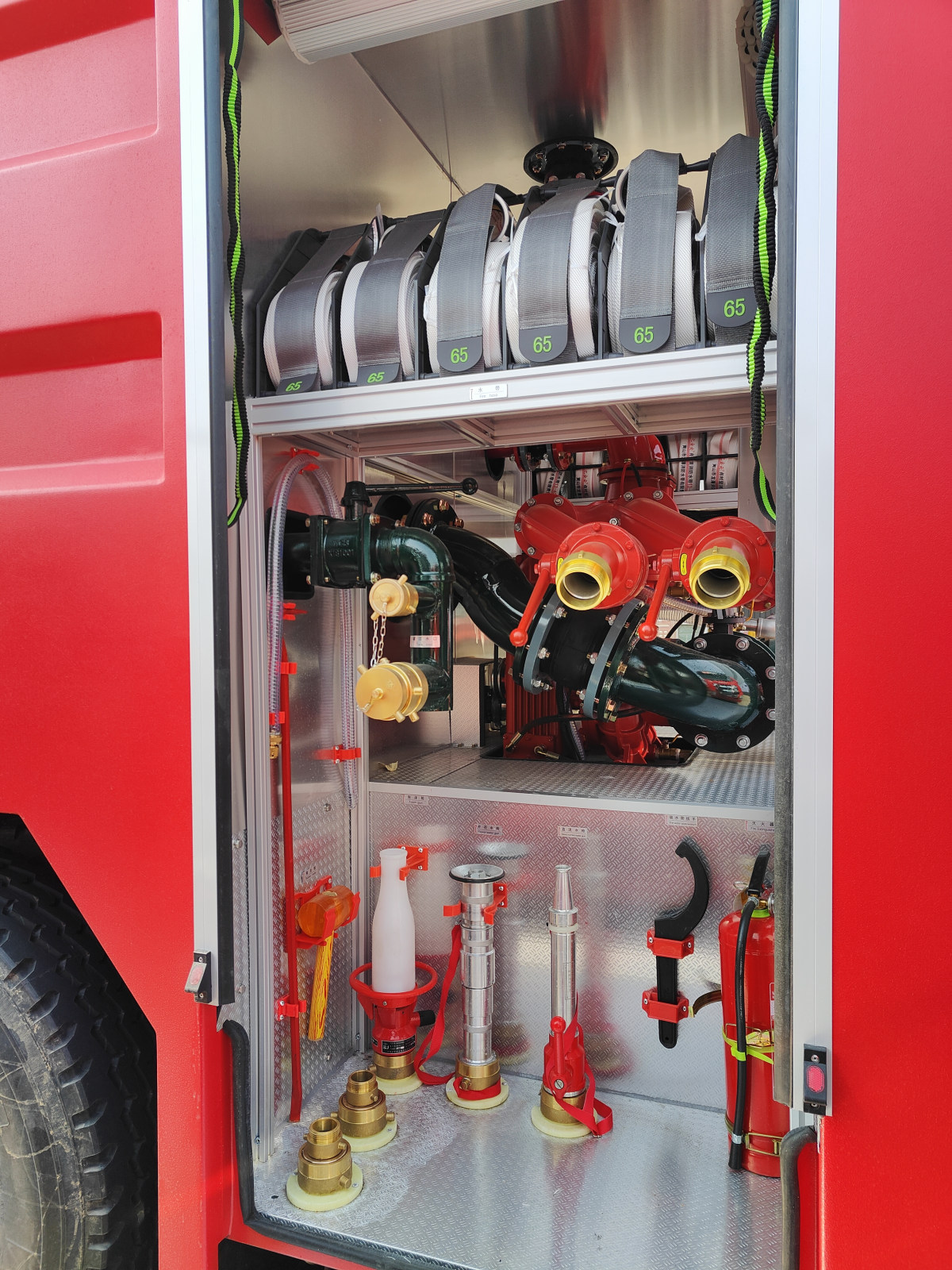

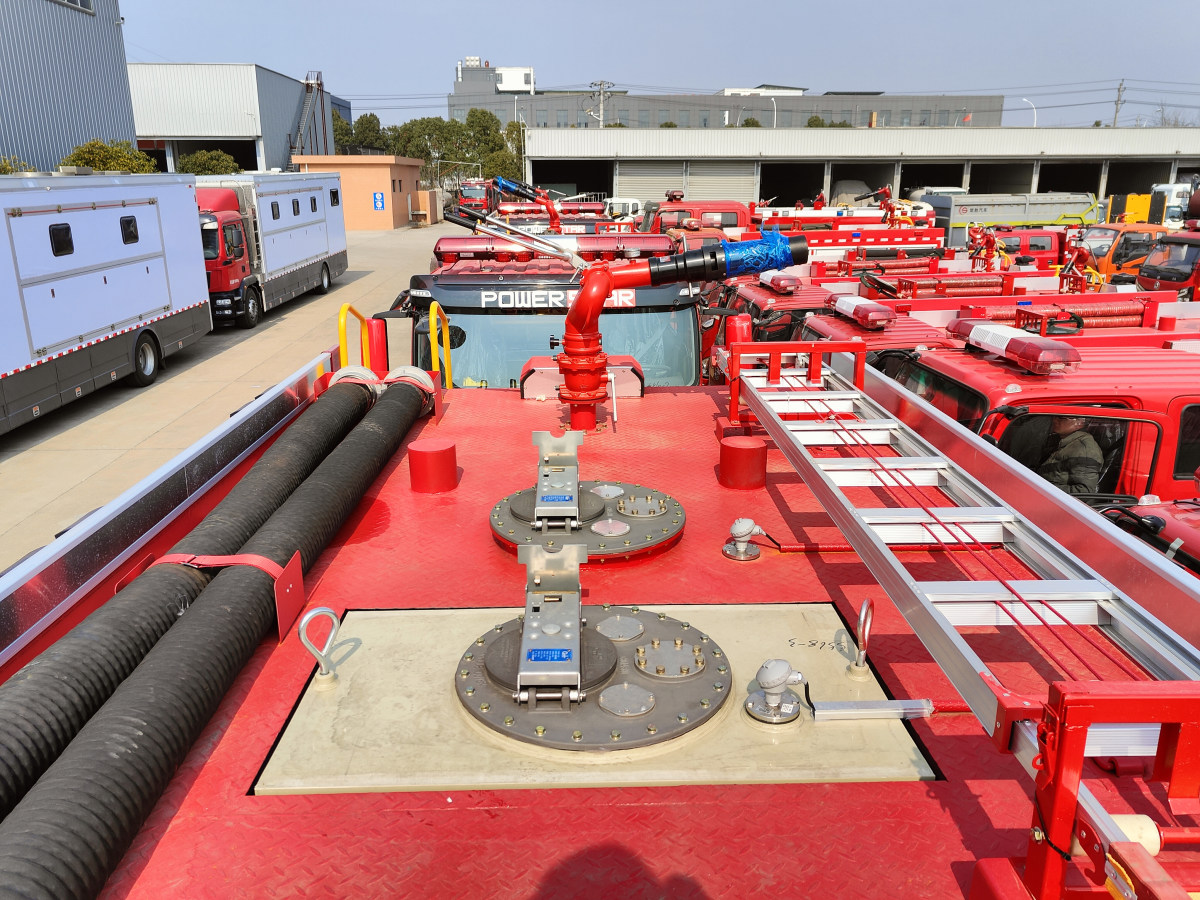

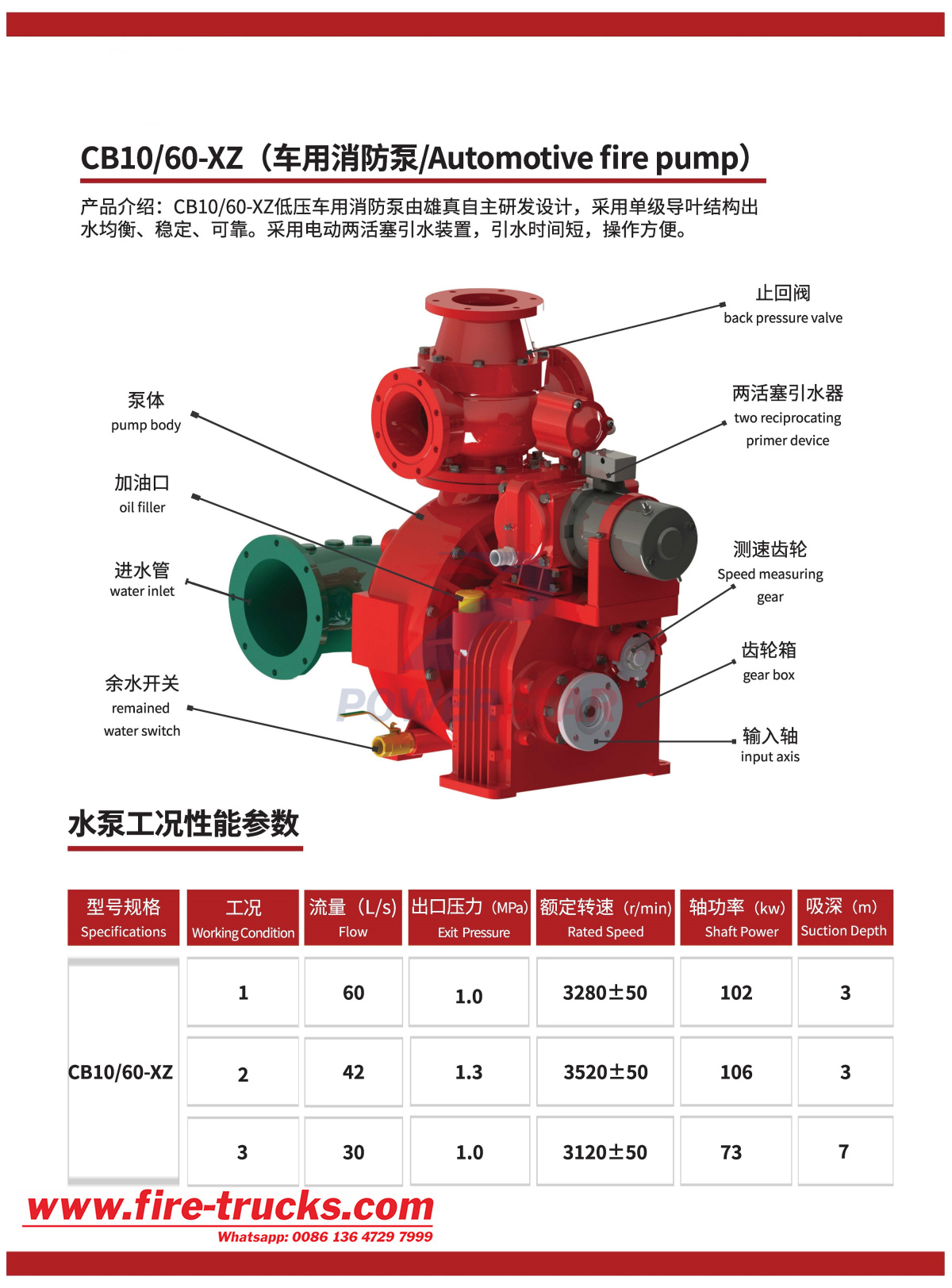

Isuzu FVR 6cbm water foam fire truck, it is modified on the basis of Isuzu FVR Euro5 chassis, equipped with Isuzu 6HK1-TCL 240HP 176KW National Five engine, matched with ISUZU MLD 6-speed gearbox, the vehicle upper is equipped with a 5-cubic carbon steel water tank and a 1-cubic stainless steel foam water tank. On both sides of the tanks are equipment rooms equipped with a variety of fire-fighting equipment and fire-fighting spare parts. There is a pump room at the tail, which is equipped with a CB10/60 fire pump, a control panel (which can monitor the foam level gauge, water level gauge, vacuum gauge, pressure gauge, and a variety of control buttons in real time), a water collector, a water distributor, a water filter, a fire hose, a foam gun, etc. There is a PL8/48 fire monitor on the top of the vehicle.

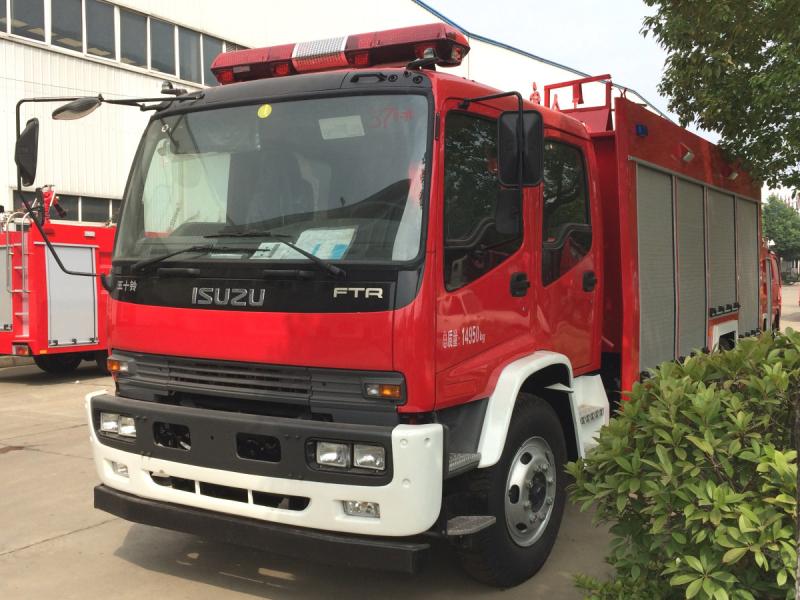

In the field of fire rescue, choosing a fire truck with outstanding performance and reliable stability is crucial. The ISUZU FTR Foam Tender Fire Truck, equipped with a 4HK1-TCG60 engine, CB10/40 fire pump, and user-friendly design, delivers rapid response and efficient fire suppression even in challenging terrains. Widely applicable in urban areas, chemical plants, and forest fires, it has become a trusted "firefighting weapon" for numerous fire brigades.

In modern fire rescue systems, the ISUZU FTR foam fire truck (model PT5180GXFPM40) has become the preferred equipment for many professional firefighting teams due to its outstanding performance and reliable quality. Built on ISUZU's proven commercial chassis, this fire truck perfectly integrates ISUZU's chassis manufacturing technology with professional firefighting systems, providing robust support for various fire rescue scenarios.

The ISUZU FVR water/foam fire truck is a professional-grade firefighting vehicle equipped with a 6HK1-TCG61 diesel engine delivering a maximum power of 177 kW, paired with an 8-speed manual transmission for robust performance. It features a 6,000L carbon steel water tank and a 2,000L stainless steel foam tank, along with a CB10/40 fire pump (40L/S flow rate) and a PL8/32 fire monitor (range ≥60 meters), enabling efficient suppression of oil-based and general material fires. The double-row cabin accommodates six personnel and includes comfort features such as air conditioning, making it ideal for fire brigades, petrochemical plants, and other critical sites. Its key advantages include large liquid capacity, user-friendly operation, and easy maintenance.
