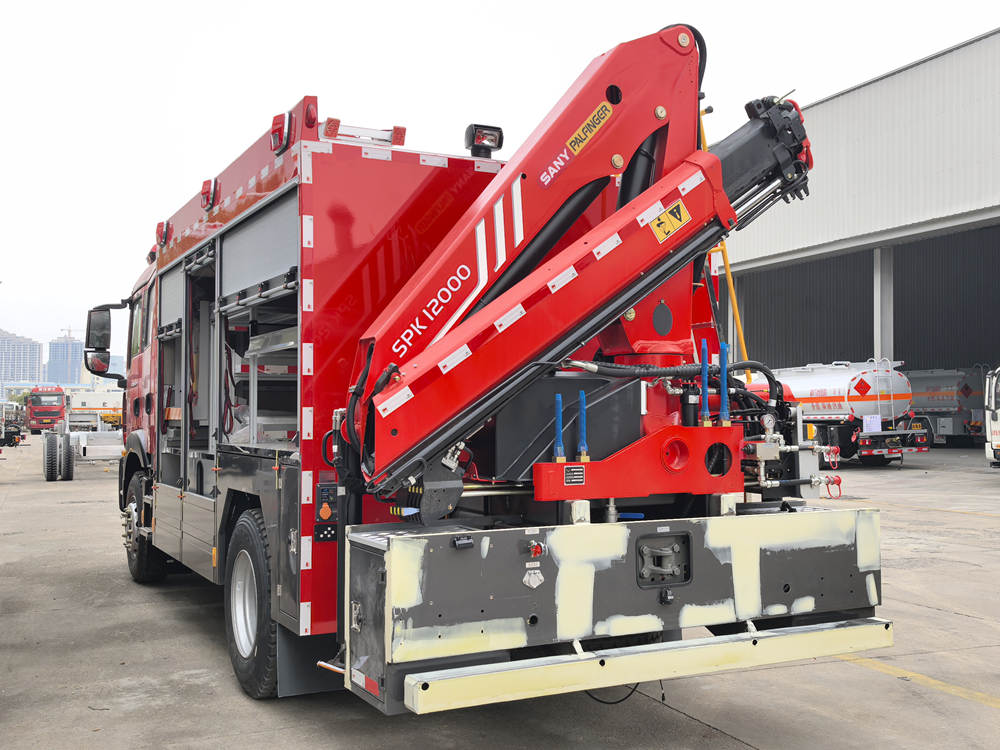

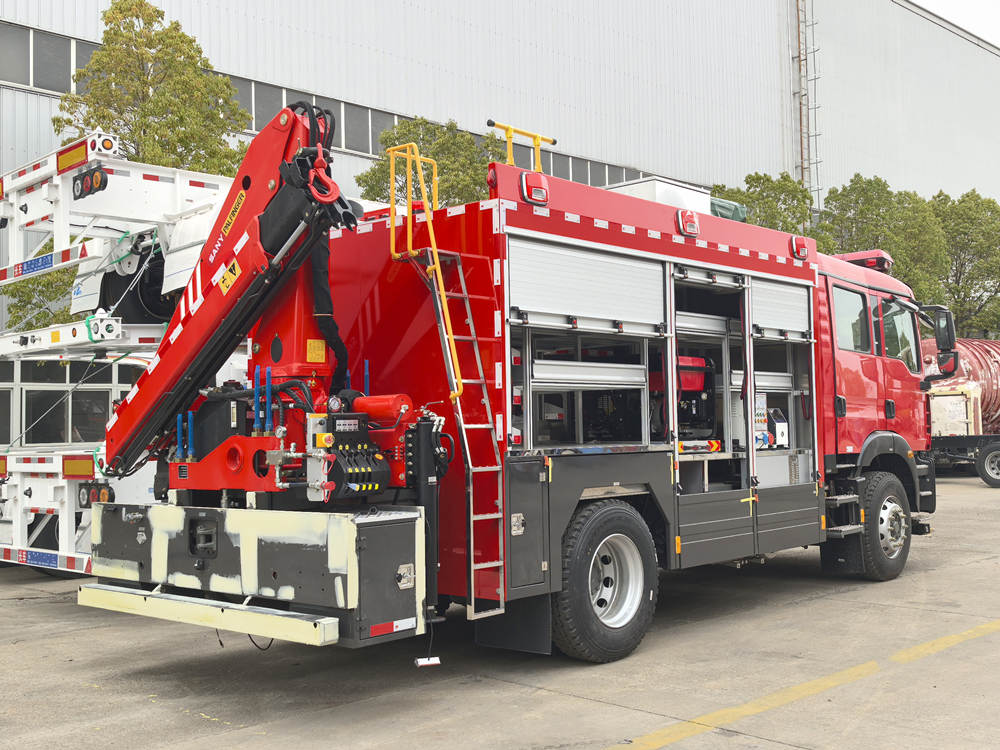

Sinotruk emergency rescue fire truck with PALFINGER crane

Isuzu 4,000L foam firefighting truck is engineered to combat Class B fires involving flammable liquids (e.g., petroleum, chemicals). Its foam projection system mixes water with fire-suppressing foam at precise ratios, forming an oxygen-blocking blanket to rapidly extinguish liquid fuel blazes.  Equipped with a high-capacity 4,000-liter tank and a high-pressure pump, Isuzu 4,000L foam firefighting truck delivers sustained foam discharge rates up to 4,000 L/min, enabling swift control of expansive fire incidents. Its extended-range monitor nozzle projects foam over 60 meters, ensuring operator safety during refinery, warehouse, or wildfire emergencies. Operational Guide for Isuzu 4,000L Foam Firefighting Truck: Technical Parameters and Procedures 1. Vehicle OverviewThe Isuzu 4,000L foam firefighting truck is engineered for rapid response to Class B (flammable liquids) and Class A (solid combustibles) fires. Built on a heavy-duty Isuzu FVR chassis, it features a 6HK1-TCG61 diesel engine with a power output of 176 kW (240 hp) at 2,200 rpm, generating 981 N·m torque. The chassis complies with Euro V emission standards and includes a 9-speed manual transmission for optimal off-road maneuverability. 2. Firefighting System Specifications Water Tank: 4,000-liter capacity, constructed from corrosion-resistant 304 stainless steel with internal baffles for stability. Foam Tank: 500-liter polyethylene tank, compatible with AFFF (Aqueous Film-Forming Foam) or AR-AFFF (Alcohol-Resistant) concentrates. Proportioning System: Electronically controlled foam induction system with adjustable ratio (1–10%) via a rotary dial on the pump panel. Pump Unit: Mid-ship-mounted centrifugal pump (Model NH30), delivering 4,000 L/min at 1.0 MPa pressure. Maximum suction lift: 7 meters. 3. Discharge Equipment Roof-Mounted Monitor: Remote-controlled telescopic monitor with 360° rotation, 70-meter range (water), and 55-meter range (foam). Flow rate adjustable from 100–3,800 L/min. Handline Reels: Two 30-meter Class B rubber-lined hoses (Φ65 mm) with adjustable fog/straight stream nozzles (500 L/min max). Rear Bumper Reel: 20-meter high-pressure hose (Φ25 mm) for auxiliary operations (200 L/min).   4. Control and Monitoring Systems Pump Panel: Centralized interface with analog pressure gauges, tachometer, and digital foam ratio display. Includes manual override for pump RPM (0–2,500). Cabin Display: 7-inch LCD screen for real-time monitoring of water/foam levels, pump status, and engine diagnostics. Lighting: Four 500W LED floodlights (360° rotation), two rear warning beacons, and scene lighting compliant with NFPA 1901 standards. 5. Operational ProcedureStep 1: Pre-Deployment Checks Verify water/foam tank levels and inspect hose integrity. Ensure pump priming valve is closed and suction strainer unobstructed. Step 2: Engine and Pump Activation Start the chassis engine; engage PTO (Power Take-Off) to activate the pump. Graduall...

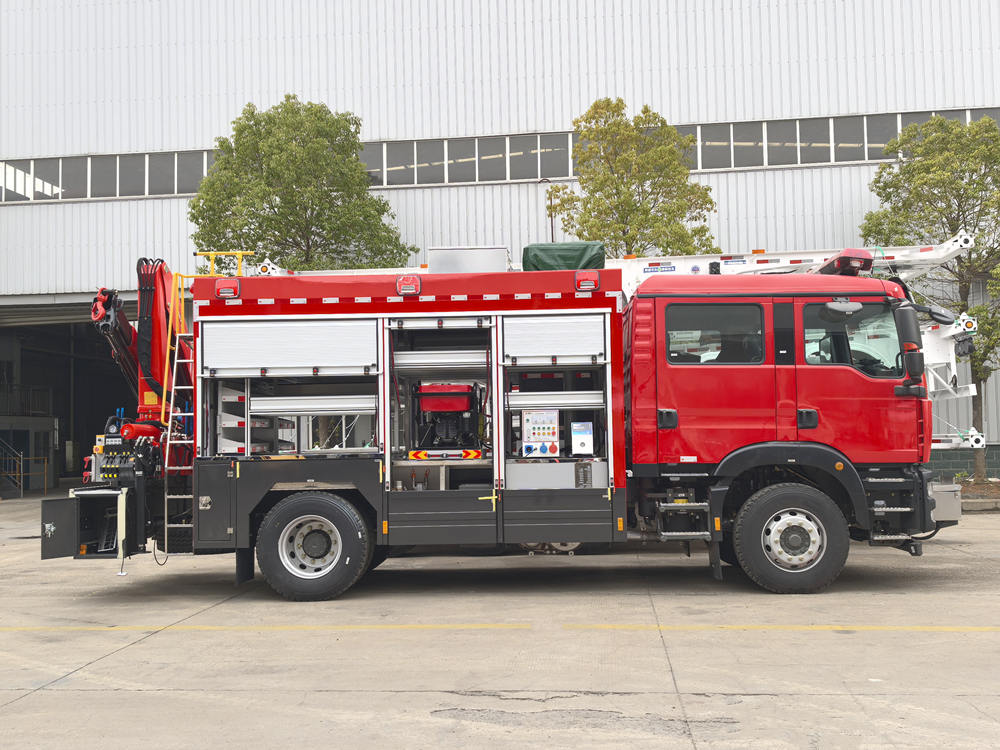

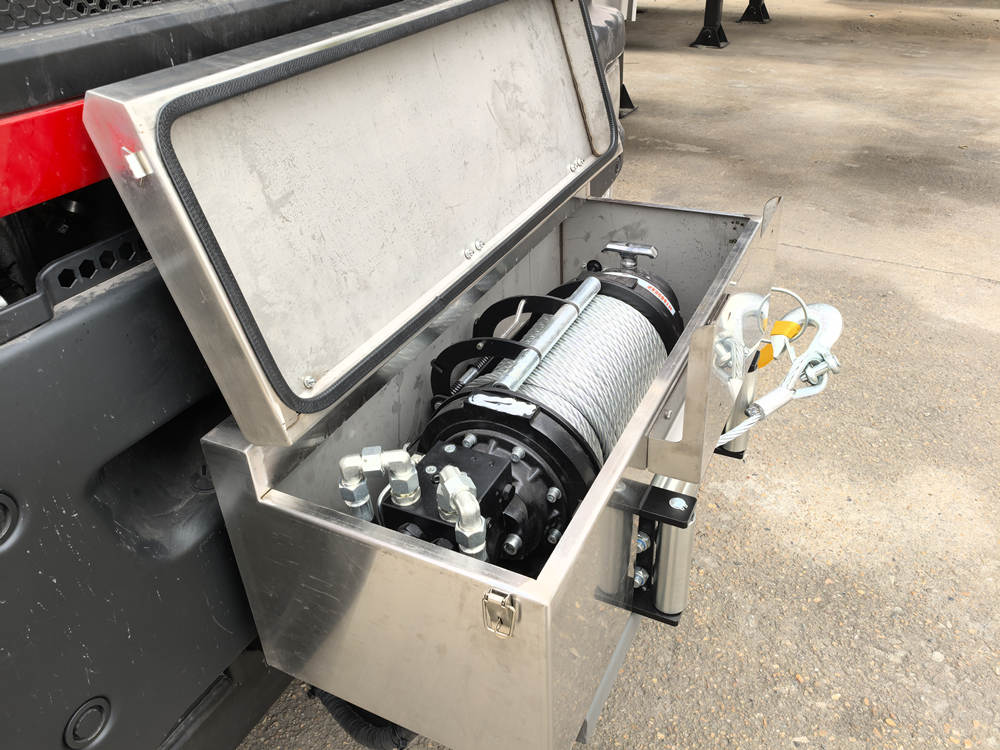

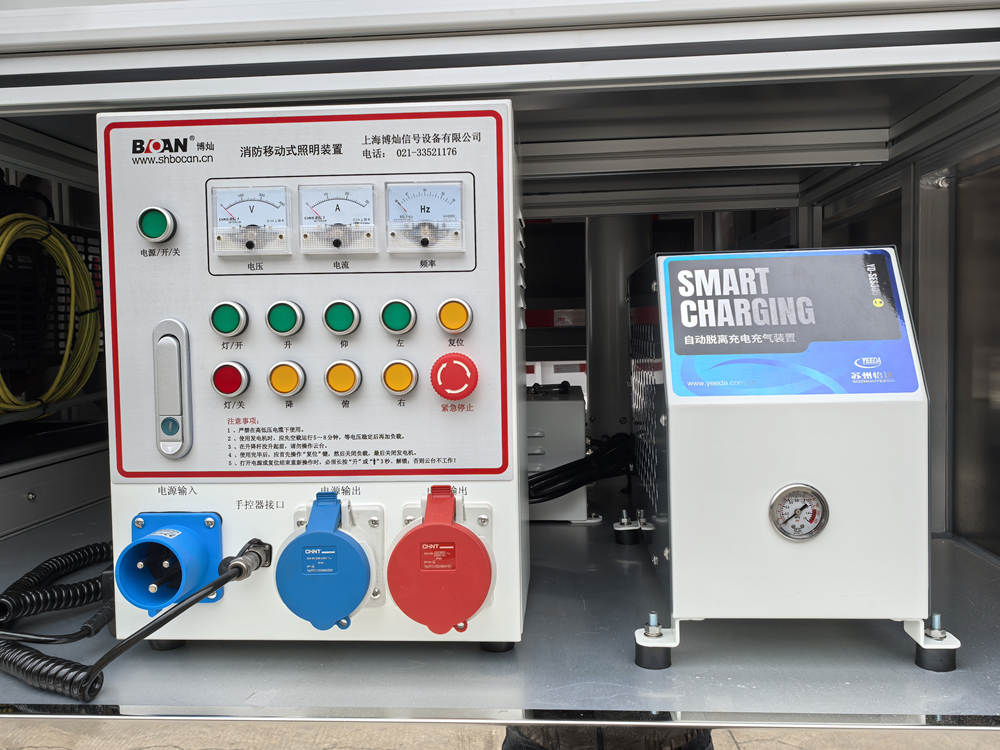

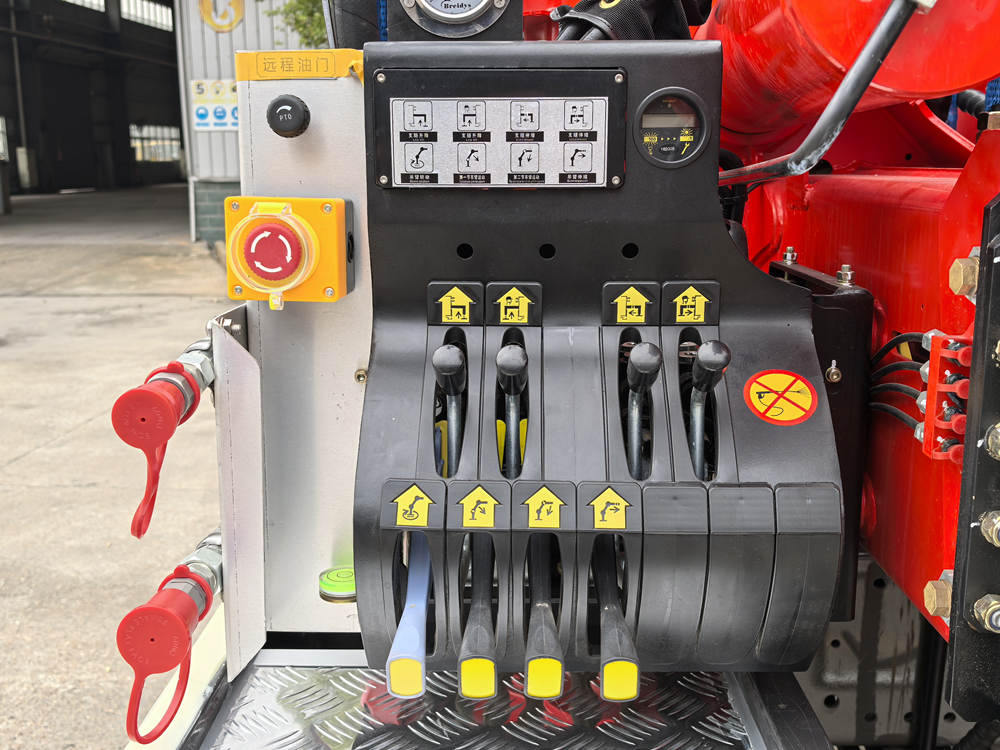

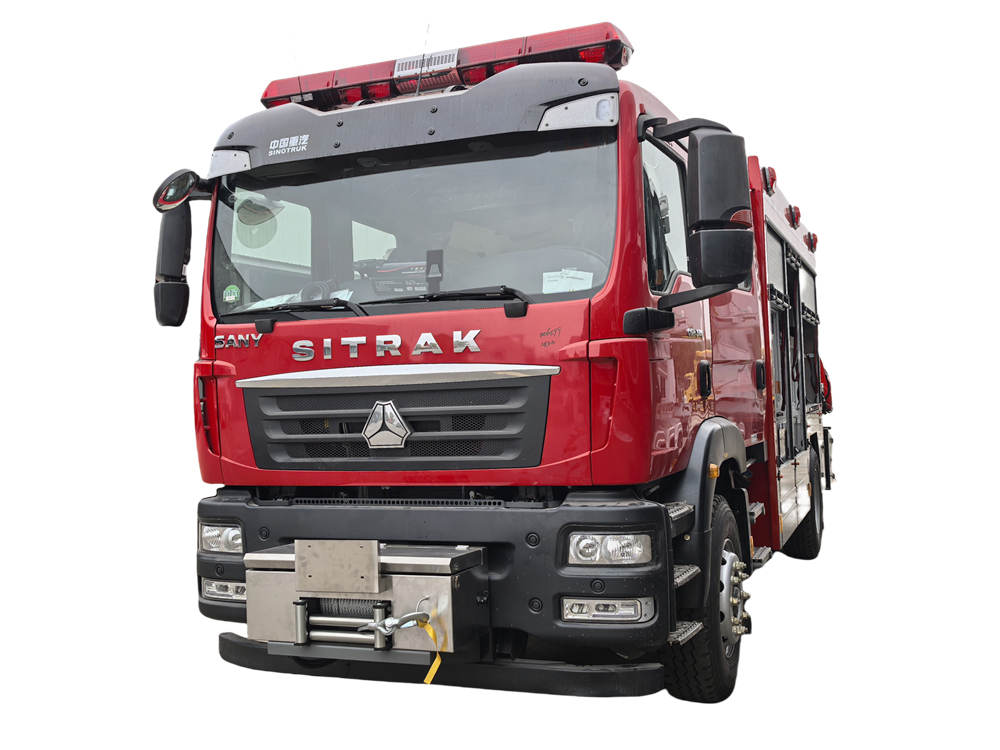

Sinotruk emergency rescue fire truck is a special vehicle designed to quickly respond to various emergency rescue tasks. It integrates multiple functions such as rescue and emergency relief, and is equipped with various rescue equipment. It can quickly take action at the scene of disasters such as fire, traffic accidents, earthquakes, and floods. Its characteristics are strong mobility, complete equipment, and diverse functions. It can efficiently carry out personnel search and rescue, fire extinguishing, obstacle removal, etc. It is an important force to protect the safety of people's lives and property.     Sinotruk emergency rescue fire truck PRODUCT FEATURE： Combined with the advanced concept of domestic and foreign fire trucks and fire fighting practical innovation design, the vehicle is equipped with fire pumps, cannons, liquid tanks, winches, power generation lighting systems, hoists, hydraulic demolition tool sets, detection instruments, life-saving appliances and other of rescue equipment, is a collection of fire extinguishing, lighting, power supply, traction, lifting, demolition, investigation, rescue and other functions in one of the multi-functional fire trucks, with strong rescue functions and comprehensive rescue capabilities, is fire, earthquake, flood resistance, The main model of rescue and rescue of various disasters such as car accidents.     The rescue fire truck is modified from the chassis of Sinotruk, which integrates many functions such as lifting, dismantling, towing, lighting, and power generation. With reasonable layout, reliable performance and applicable functions, it is an ideal vehicle for fire brigade and can provide good rescue methods for emergency rescue, handling of traffic and disaster accidents.The detailed parameters are as follows.   Main Items Technical Parameters Cabin Structure Double row cabin with 4 doors Seats 2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats Standardized Sub-frame Material High-strength rectangular tube made of special steel Performance The liquid tank and the sub-frame are connected by elastic connecting seats Compartment Material High-strength aluminum alloy profiles (Never Rust) Structure Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear Roller Shutter Door Material Aluminum alloy profiles with anodized surface Structure With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. Foot Pedals Material High quality aluminum alloy Structure 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. Superstructure Electric Appliance Warning Light and Siren Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. Strobe Light Mounted on the both sides of the c...
