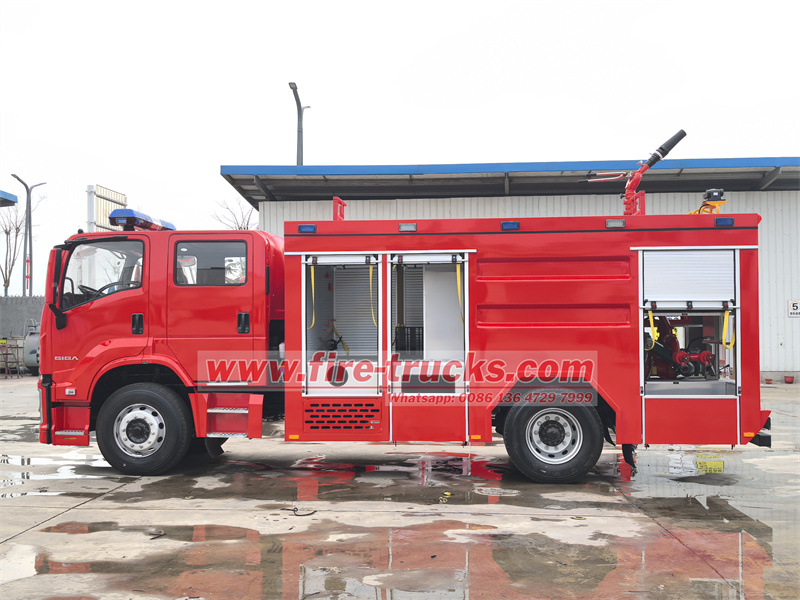

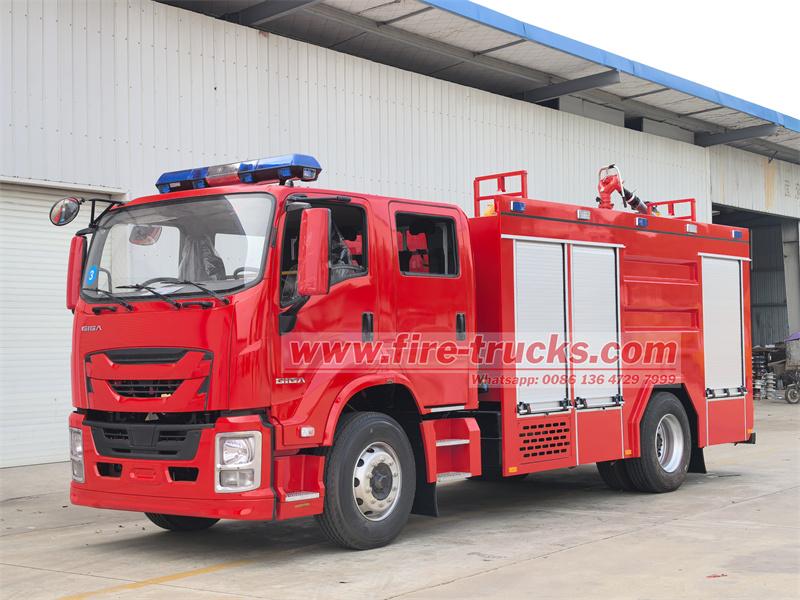

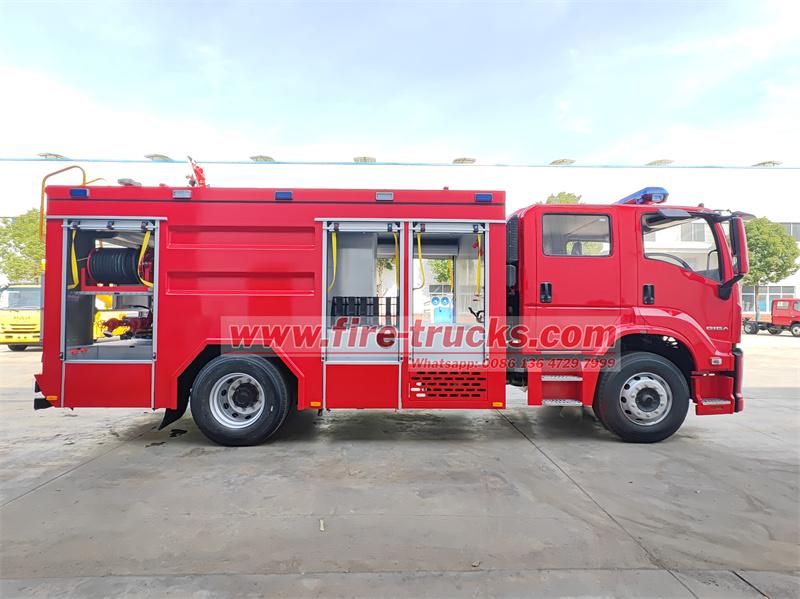

Isuzu water tender fire engine truck

Isuzu water tender fire engine truck is a medium-sized fire truck modified based on the FTR GIGA 4X chassis. It is equipped with a 205-horsepower 4HK1-TCG60 engine and a MLD 6-speed gearbox, which is highly maneuverable. Its core configuration includes a 5m³ water tank + 1m³ foam tank, which realizes water/foam dual-mode fire extinguishing through an intelligent proportional mixing system, and is suitable for Class A (solid) and Class B (liquid) fires. The on-board CB10/40 fire pump (flow rate 40L/s) provides a stable high-pressure water source, and the tail pump room integrates a control valve group to support rapid switching of operating modes.

The roof is equipped with a PL8/32 fixed fire monitor with a range of ≥60 meters, which can spray water or foam mixture to achieve remote fire suppression. The equipment box is equipped with a fire hose, a water distributor, demolition tools (axe, pickaxe, shovel) and maintenance equipment, supporting multi-way water supply and close combat coordination. The vehicle uses the "pump-gun-foam" intelligent linkage system, combined with remote spraying and manually laid water hoses to form a three-dimensional fire-fighting network. It is suitable for urban, factory and oil fire fighting, and has high efficiency, flexibility and reliability.

● China best fire emergency truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery any order is welcome

● 24 month quality guarantee term

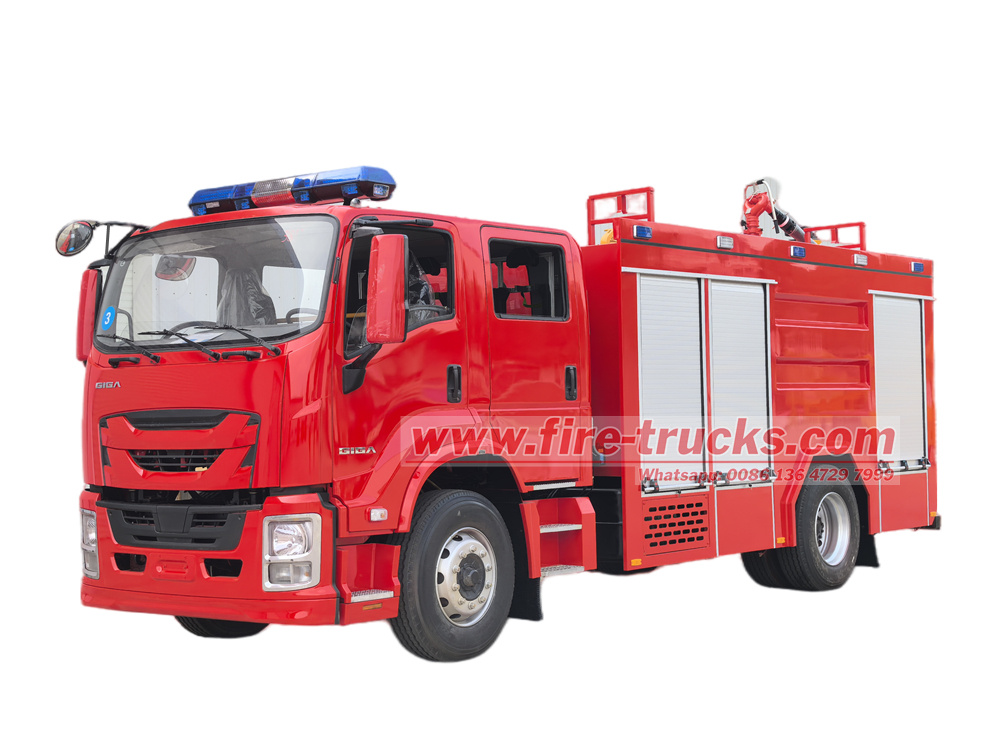

Isuzu FTR 6 cubic foam water fire truck, as a professional fire truck carefully modified based on the new FTR GIGA 4X chassis, is designed to fully integrate efficiency, practicality and advancement, and is an ideal choice for urban firefighting, forest firefighting and industrial emergency response. Its core firefighting system consists of a modular combat unit consisting of a tank, a pump group, a fire cannon and on-board equipment, which achieves rapid response and precise firefighting through intelligent linkage design. The following is a technical analysis of its core components and a coordinated combat process:

Chassis configuration

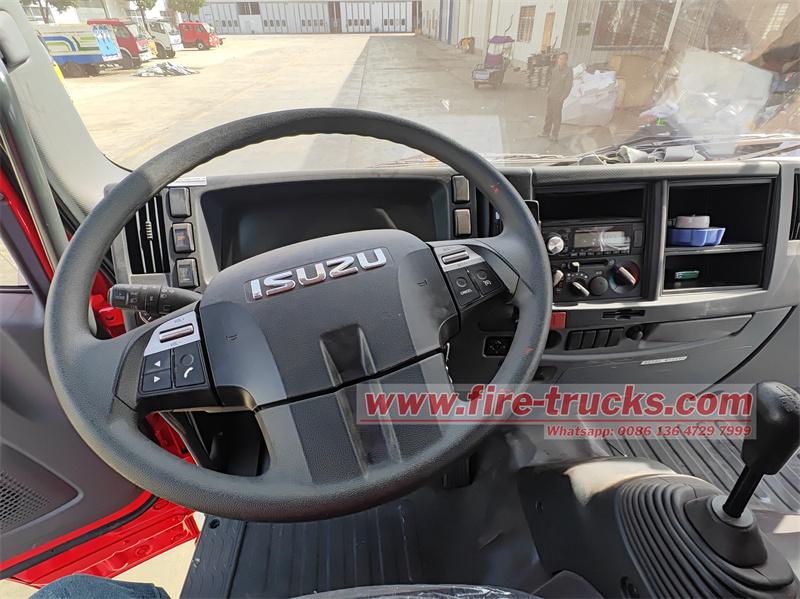

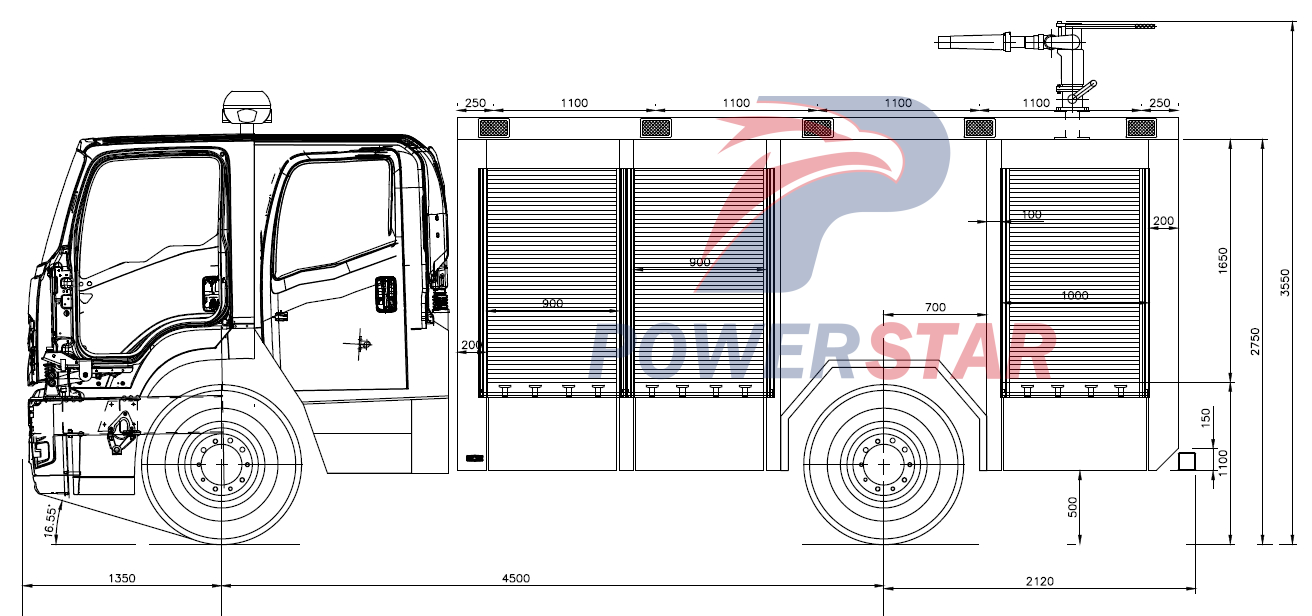

Based on the Isuzu FTR GIGA 4X4 chassis, the wheelbase is 4500mm, equipped with a 4HK1-TCG60 turbocharged diesel engine (205 horsepower), matched with an MLD 6-speed gearbox, and has high maneuverability and adaptability to complex road conditions.

Fire tank system: modular liquid carrier and mixed supply

The fire truck is equipped with a centrally mounted 5 cubic water tank and 1 cubic foam tank. This design not only optimizes the center of gravity distribution of the vehicle, improves driving stability, but also ensures sufficient fire extinguishing medium reserves.

● Double tank packaging design

5m³ water tank: made of carbon steel, with internal anti-corrosion treatment, and equipped with wave-breaking plates to ensure driving stability; a quick water injection port is set on the top to support dual-channel water injection (pump suction water injection/external direct injection).

1m³ foam tank: an independent stainless steel tank body, equipped with an electric foam proportion mixer, adjustable mixing ratio (3%-6%), compatible with Class A/Class B foam, linked with the water tank, automatically mixed according to the preset ratio during fire extinguishing, ensuring accurate delivery of foam liquid.

Intelligent liquid level control: Both tanks are equipped with accurate liquid level indication systems, allowing operators to grasp the remaining medium volume in real time, providing reliable protection for fire fighting operations.

● Pipeline optimization

The tank body outlet and the fire pump inlet pipe adopt a hard connection + rubber shock absorption design to reduce pressure loss; the foam pipeline has a built-in check valve to prevent backflow and ensure mixing accuracy.

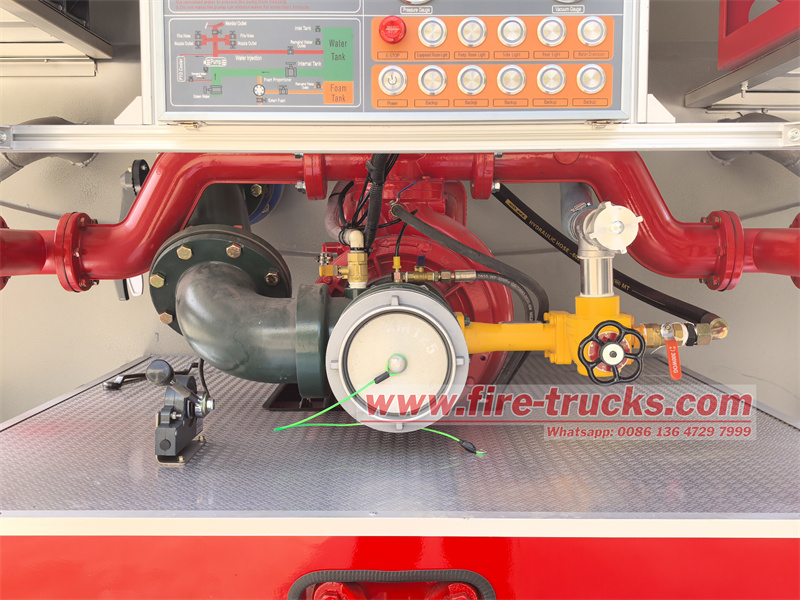

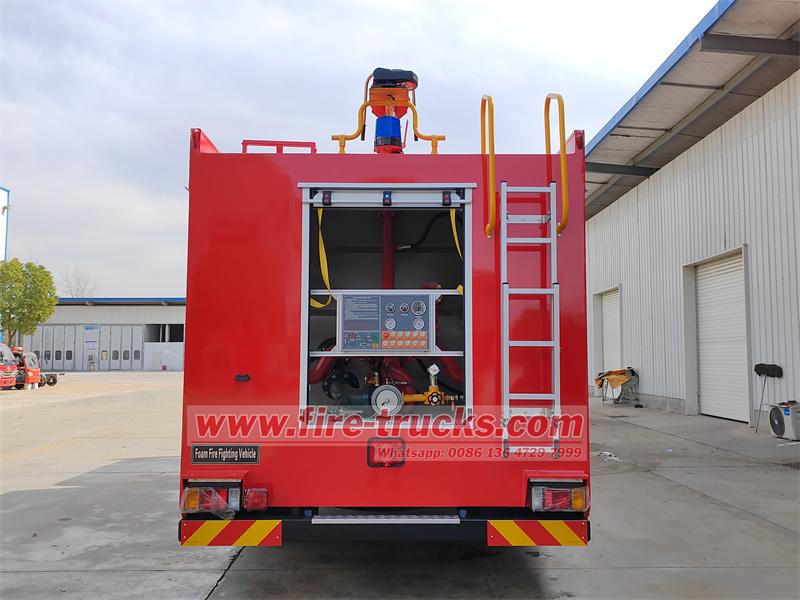

CB10/40 fire pump: medium and low pressure all-round power core

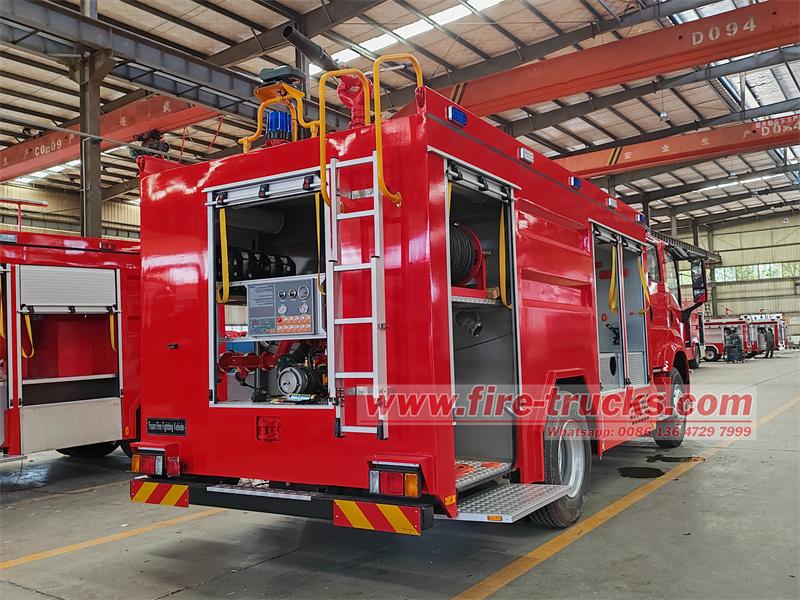

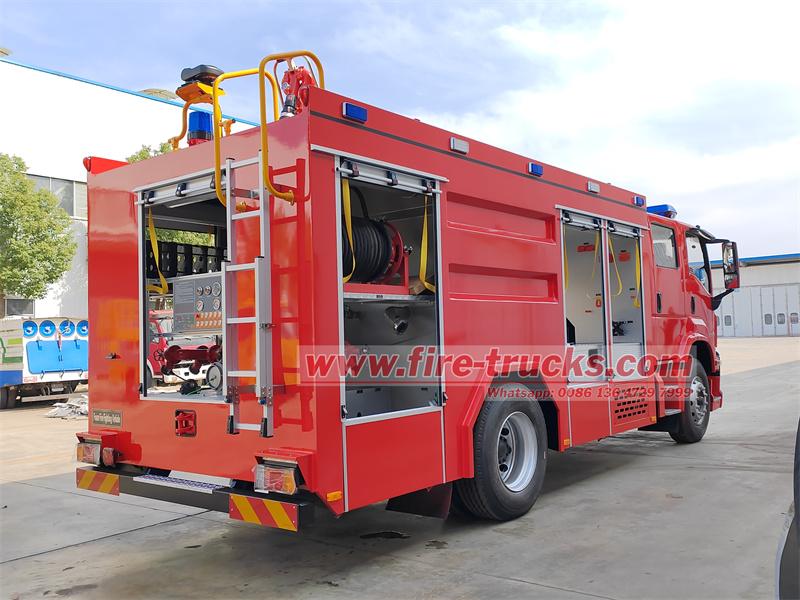

The CB10/40 fire pump installed in the pump room at the rear of the vehicle is the core power source of this fire truck. The pump has strong water absorption capacity and high-pressure output characteristics, and can quickly establish the water pressure and flow required for fire extinguishing in a short time. The CB10/40 pump is designed with multiple outlets, which can flexibly adjust the output and pressure of water flow or foam mixture according to the actual needs of the fire extinguishing site to ensure the efficiency and accuracy of fire extinguishing operations. The pump body has a compact structure, easy maintenance, and good self-priming ability. It can be quickly put into battle even in environments with far water sources or harsh conditions.

• Performance parameters

Rated flow 40L/s@1.0MPa (low pressure mode), 28L/s@1.3MPa (high pressure mode), maximum suction depth 7m, supports self-priming/water diversion dual mode.

• Intelligent control

The pump room is equipped with an electronically controlled throttle, pressure regulating valve and working condition display screen. The driver can adjust the output pressure through a wireless remote control or pump room panel, and the response time is less than 3 seconds.

• Multi-outlet configuration

The main outlet (Ø80mm) is connected to the fire monitor, and the auxiliary outlets (Ø65mm) on both sides are used for fire hoses. The valve group adopts pneumatic control to avoid manual operation delays.

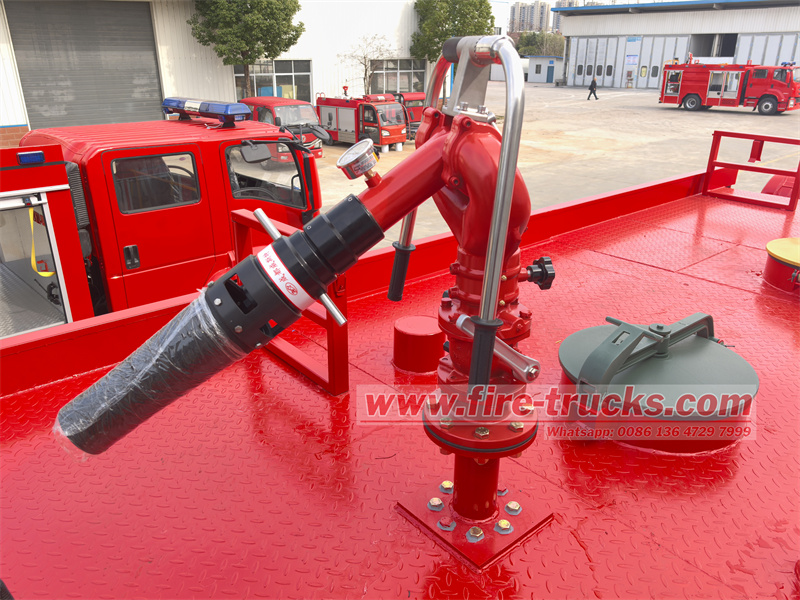

PL8/32 fire monitor: long-range precision strike unit

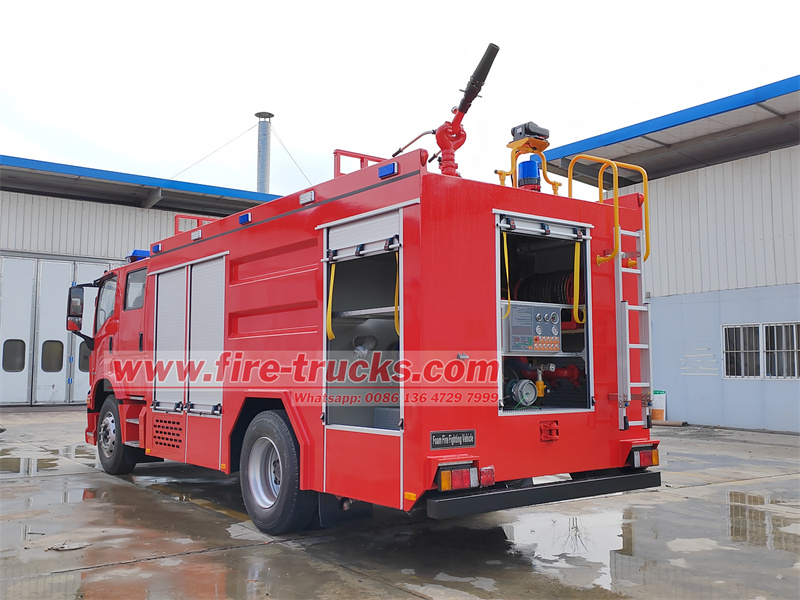

The PL8/32 fixed water-foam dual-purpose fire monitor equipped on the top of the vehicle is a "sharp sword" in firefighting operations. The fire cannon can be remotely controlled to achieve rapid switching between water column and foam flow to meet the needs of different fire conditions. The PL8/32 fire monitor has a wide spray range and a high range. It can effectively cover the fire source in complex terrain and narrow space and quickly control the fire. Its precise directional spraying capability, combined with a strong water flow or foam flow, can quickly reduce the temperature of the fire scene, isolate oxygen, and effectively extinguish all kinds of fires.

• Spray performance

Flow rate 32L/s@0.8MPa, range ≥60m (water), ≥48m (foam), elevation angle -45°~+70°, horizontal rotation 360°, the gun head is a diversion design to reduce recoil.

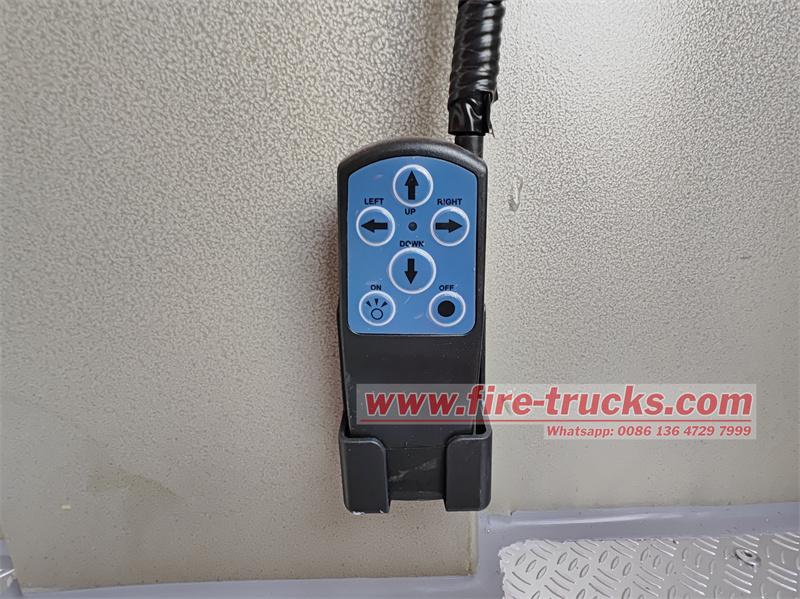

• Linkage control

The gun position joystick integrates electronic proportional adjustment and is interlocked with the foam system: the mixer is automatically started when the foam mode is selected, and the flow rate changes synchronously with the muzzle opening.

Firefighting equipment

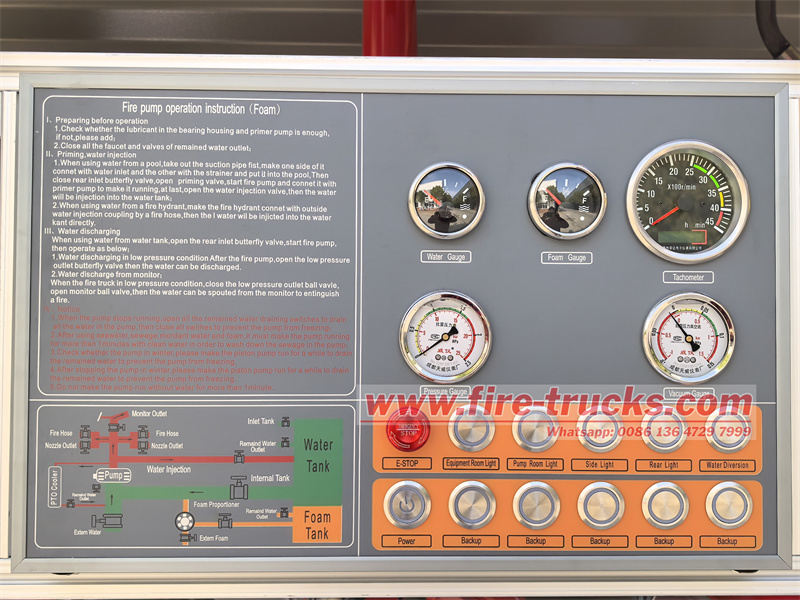

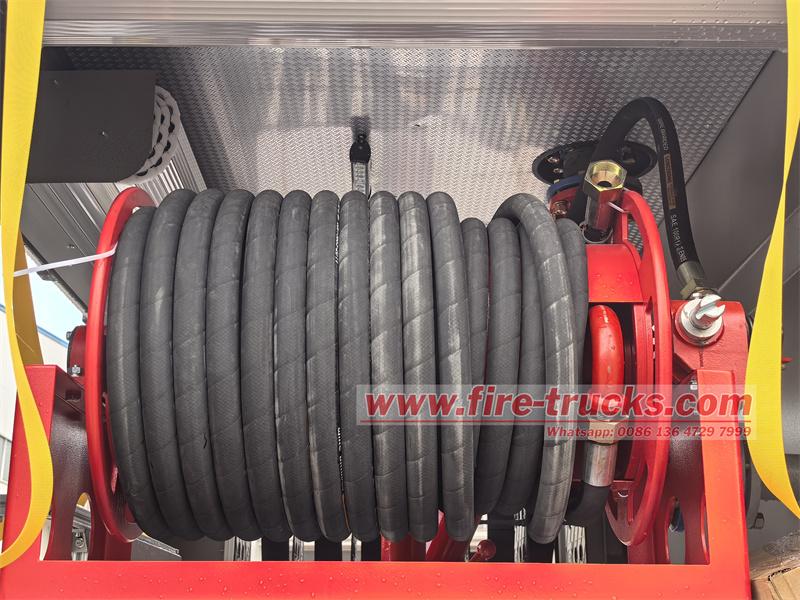

The firefighting equipment of the Isuzu FTR GIGA 6cbm multipurpose fire tender is complete and practical. The pump room is equipped with a fire hose, which is long enough to cover a wide fire scene, ensuring that the water source can quickly reach the firefighting front line. At the same time, it is also equipped with a water collector and a water filter to ensure the cleanliness of the water quality and the efficiency of firefighting. The water distributor can flexibly distribute the water flow to meet the needs of multiple firefighting at the same time. In addition, the equipment box is also equipped with fire axes, picks, shovels, wrenches and other tools to facilitate firefighters to break obstacles and repair equipment. In addition to the powerful CB10/40 fire pump, the pump room is also equipped with pressure gauges, vacuum gauges, water level gauges, foam level gauges, tachometers, etc., which can monitor relevant data in real time.

The fire truck adopts **"water + foam" dual-media fire extinguishing system**, combining remote spraying and close combat equipment to work together to achieve efficient fire suppression.

1. Water fire extinguishing (cooling)

● The 5m³ water tank provides high-pressure water flow, which is pressurized by the CB10/40 fire pump (40L/s), sprayed by the PL8/32 fire monitor or water hose, and uses the heat absorption and cooling effect of water to extinguish solid fires (such as buildings, wood, etc.).

2. Foam fire extinguishing (asphyxiation isolation)

● The 1m³ foam tank stores Class A/Class B foam liquid, which is mixed with water through a proportioning mixer (3%-6% adjustable) to form a foam solution.

● After the foam monitor is sprayed, it covers the surface of the burning object, isolates oxygen and suppresses combustible vapors, which is especially suitable for liquid fires such as oils and chemicals.

3. Firefighting equipment coordinated firefighting linkage

In firefighting operations, the various components of the Isuzu GIGA 6cbm foam fire fighting truck work closely together to form an efficient firefighting system. When receiving a fire alarm, the driver quickly drives the vehicle to the scene, starts to absorb water through the CB10/40 fire pump in the pump room, or directly extracts fire extinguishing agents from water tanks and foam tanks and pressurizes them to the fire monitor. The operator selects the appropriate firefighting mode and spray angle according to the fire situation, and the PL8/32 fire monitor immediately launches a fierce attack. The auxiliary equipment such as fire hoses, fire extinguishers, and demolition tools equipped in the equipment box can be quickly deployed on site as needed, forming a linkage with the fire pump and fire monitor to jointly build a three-dimensional firefighting network.
