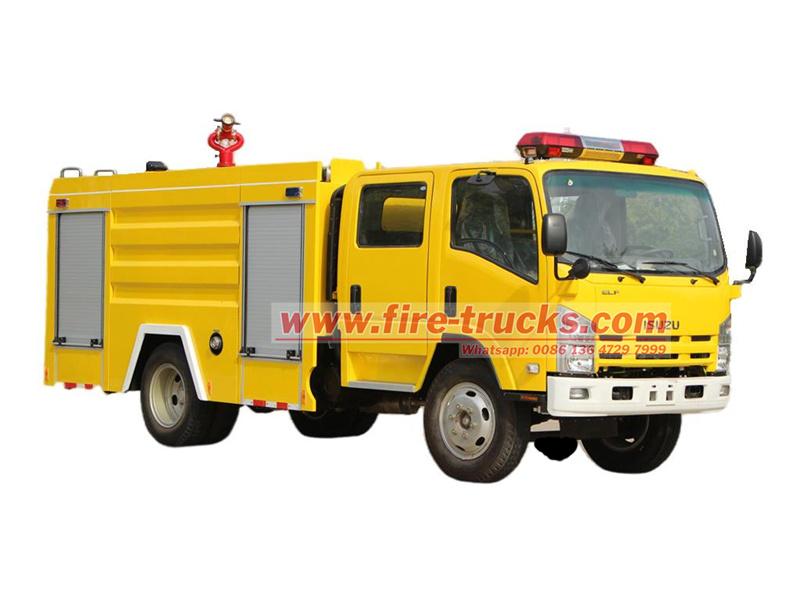

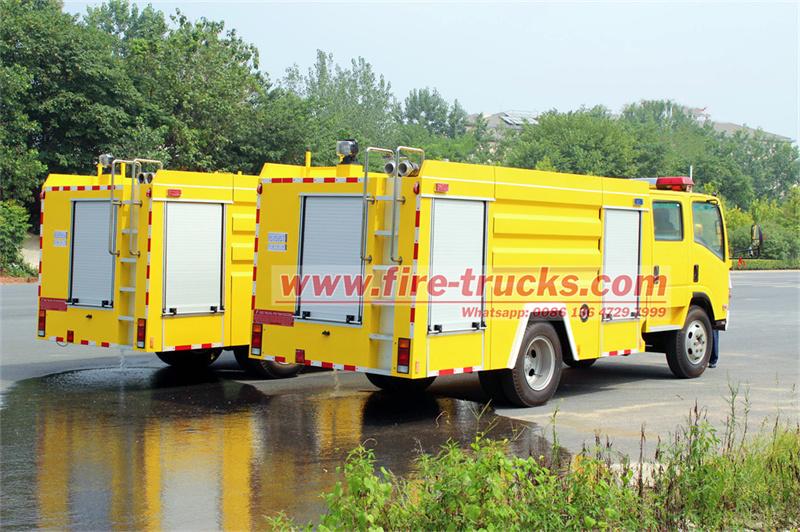

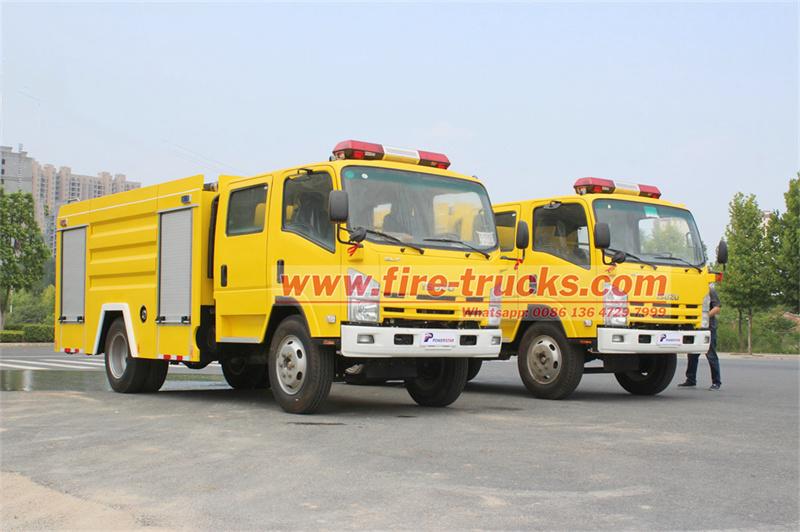

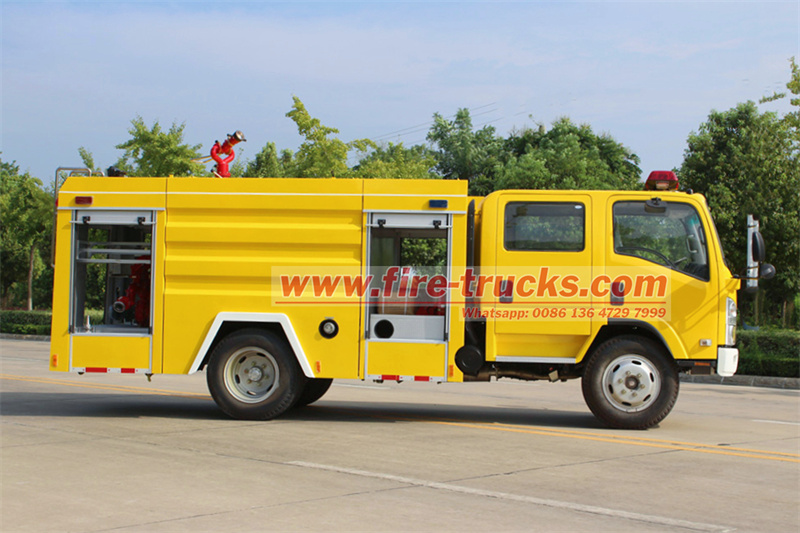

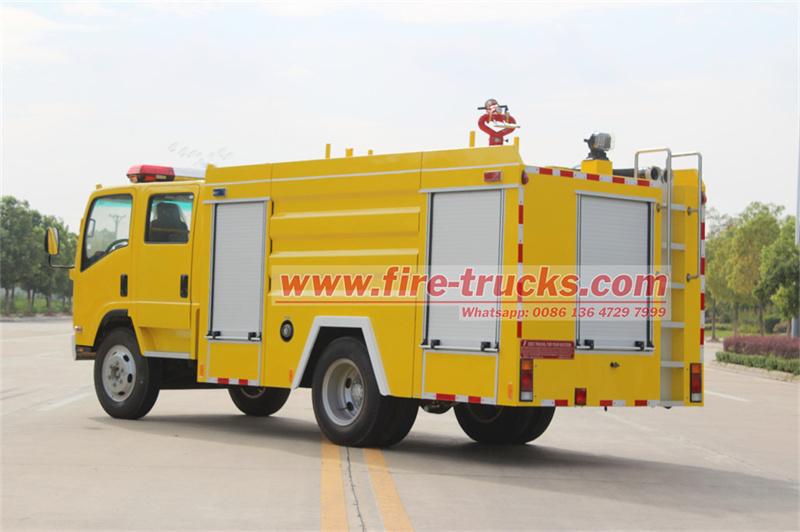

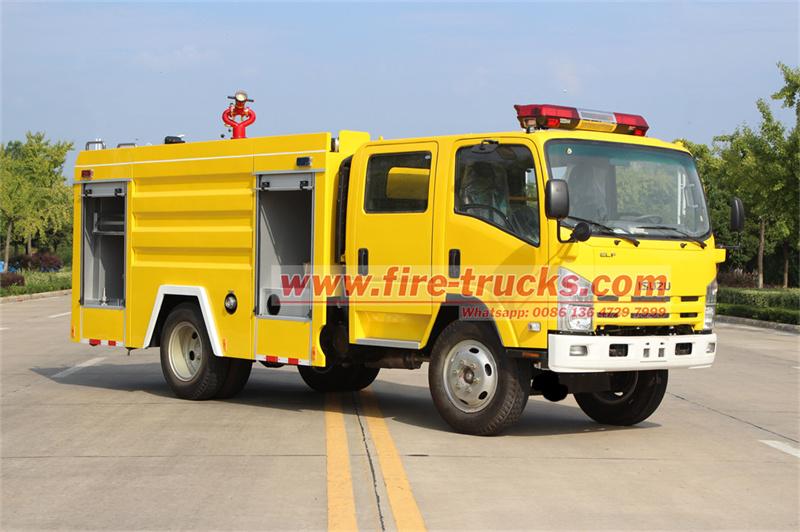

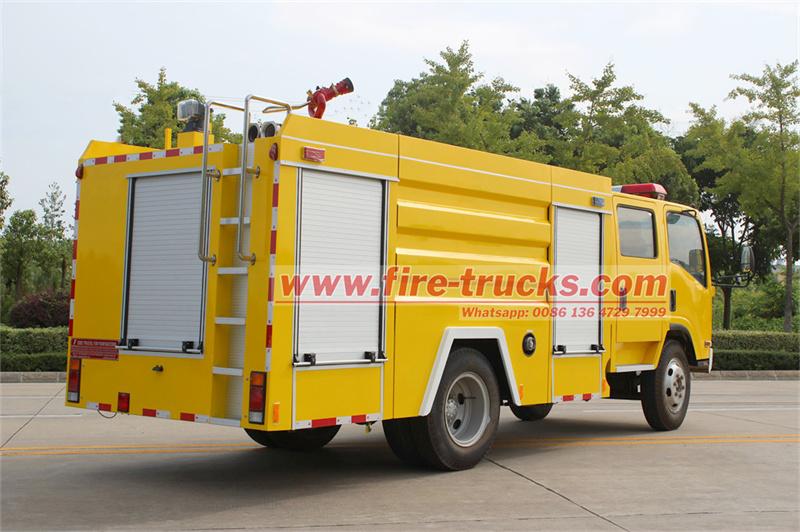

The Isuzu NPR Small fire fighting truck is built on the sturdy ISUZU NPR light-duty chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of bad roads. It is equipped with a 4000-liter large-capacity tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu mini all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility.
Truck Model:
PST51103SXFTanker Structure:
High quality stainless steelWork capacity :
3000L Water + 1000L FoamWheelbase:
4175mmAxle drive:
4x4Engine Power:
190HPEngine Model:
4HK1-TCG61Fire Pump:
CB10/30, 1600L/minFire Monitor:
PL24， Flow Rate 24L/SRemark:
Off-road system, light-duty

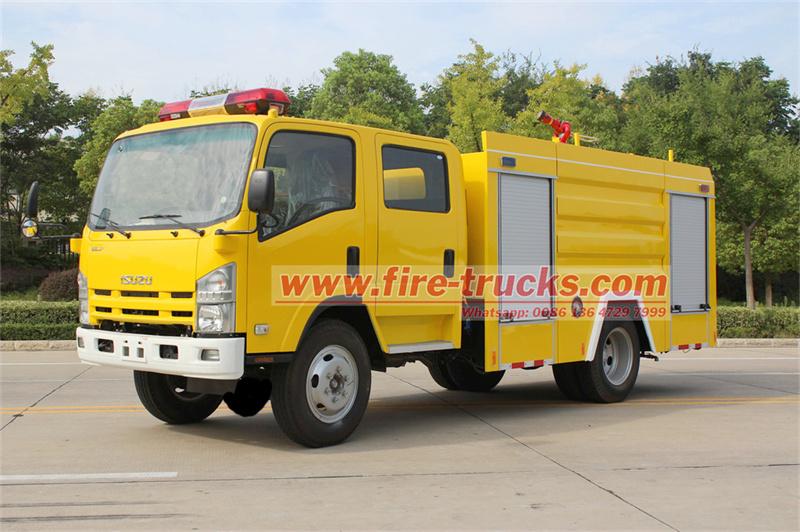

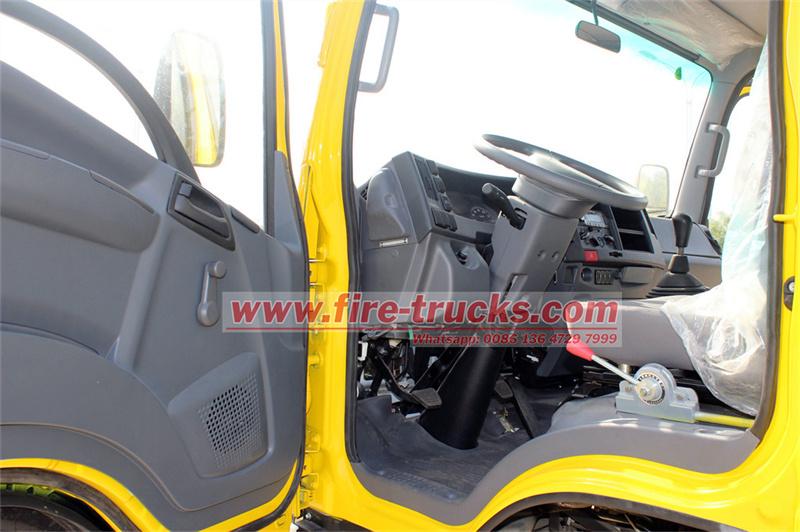

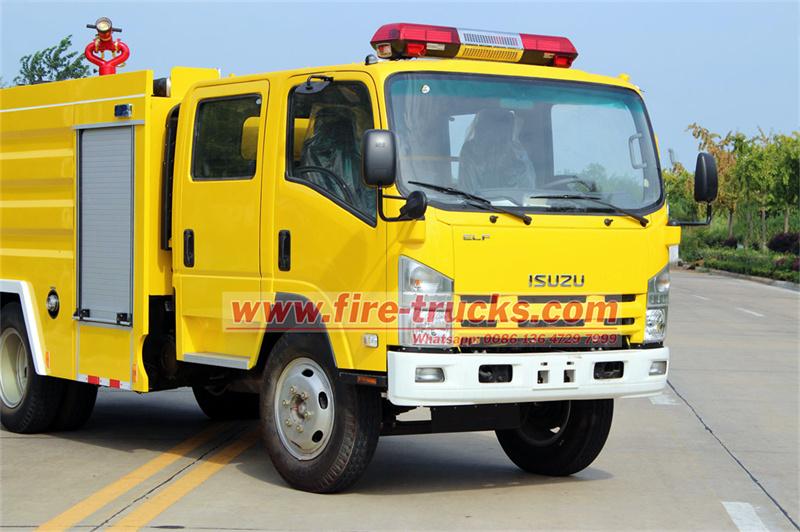

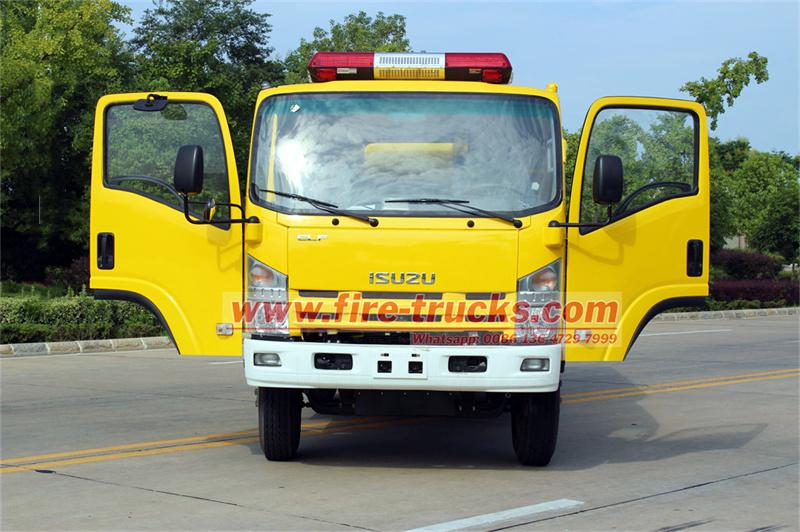

The Isuzu NPR Small fire fighting truck is built on the sturdy ISUZU NPR light-duty chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of bad roads. It is equipped with a 4000-liter large-capacity tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu mini all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu NPR mini fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.
● China best fire fighting truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Specification:
|
Isuzu light-duty NPR fire water truck |
||
|
General |
Vehicle Brand |
Powerstar TRUCKS |
|
Chassis Model |
Isuzu NPR |
|
|
Overall Dimension |
7300 * 2350 * 3150 mm |
|
|
GVW / Kerb Weight |
10,055kg / 5,300kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Model |
4HK1 |
|
|
Power |
190 HP (139 KW) |
|
|
Displacement |
5197 ml |
|
|
Emission Standard |
Euro 6 |
|
|
Chassis |
Drive Type |
4X4 (left or right hand drive) |
|
Transmission |
6-speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4175 mm / 2 |
|
|
Tire Specification |
235/75R17.5 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Tank Capacity |
3,000 L Water tank |
|
1,000L Foam tank |
||
|
Tanker Material |
Stainless Steel |
|
|
Fire pump |
CB10/30, 30L/S |
|
|
Fire pump location |
Center or rear |
|
|

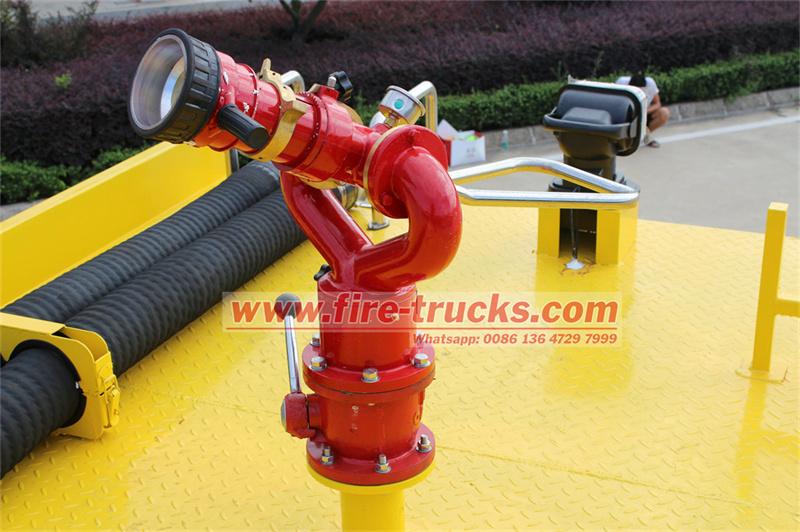

Fire monitor |
Water jet distance: ≥45m / Foam jet distance: ≥40m |
|
|

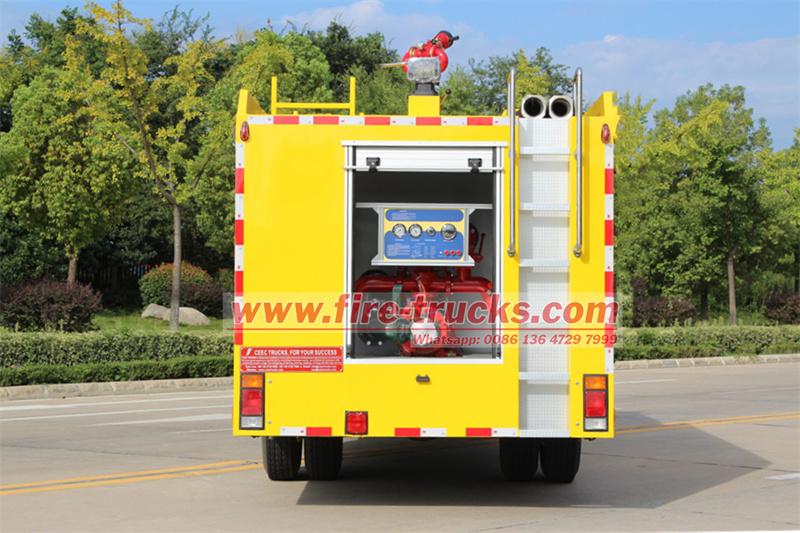

Control panel |
English or Your language |
|
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… |
||
|
Optional |
** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** USA or Germany fire pump can be optional |
|
Feature:
Powerful power system:
Equipped with a high-power engine(4HK1) to ensure rapid response under complex road conditions.
Isuzu All-wheel drive system improves passability on rugged or slippery roads.
Efficient firefighting equipment:
Large-capacity water tank to meet long-term firefighting needs.
High-pressure water pump to provide strong water flow and range.
Strong body structure:
Adopt high-strength materials to improve impact resistance and fire resistance.
Roll cage and seat belts to ensure passenger safety.
Multifunctional rescue equipment:
Equipped with hydraulic shears, expanders and other demolition tools for rescuing trapped people.
Lighting equipment, such as liftable lighting, ensures operation at night or in low-light environments.
Humanized design:
Comfortable cab to reduce fatigue from long-term operation.
Easy-to-operate equipment layout to improve emergency response speed.
Advantage:
1.Firefighting efficiency: Tactical advantages of high flow and long range

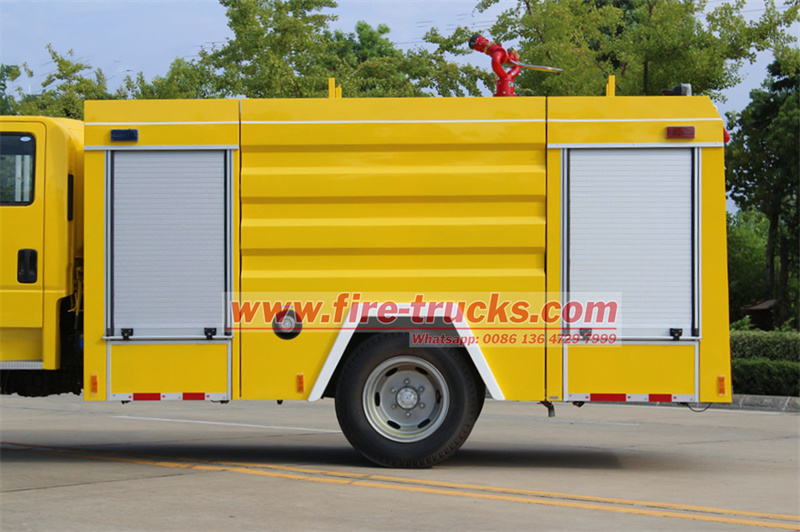

Large-capacity water storage system:
The 3000L stainless steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

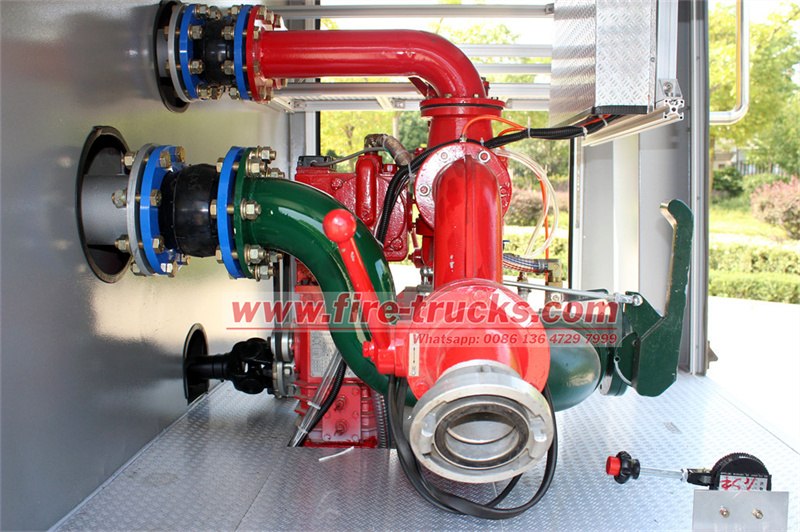

Efficient pump system:
Standard CB10/30 mid-mounted centrifugal pump (30L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 60L/s), water cannon range of 55m (DC)/28m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
2.Comprehensive application scenario advantages
Urban firefighting: compact wheelbase (4175mm) supports 9m turning radius, suitable for narrow streets.
Industrial fires: The foam system is compatible with AFFF/AR-AFFF and can cope with fires in petrochemical facilities. It is suitable for extinguishing various oil fires and polar solvent fires such as alcohols, ketones, and esters.
Field rescue: all-wheel drive system + wading hose (800mm depth) to achieve multi-terrain coverage.
