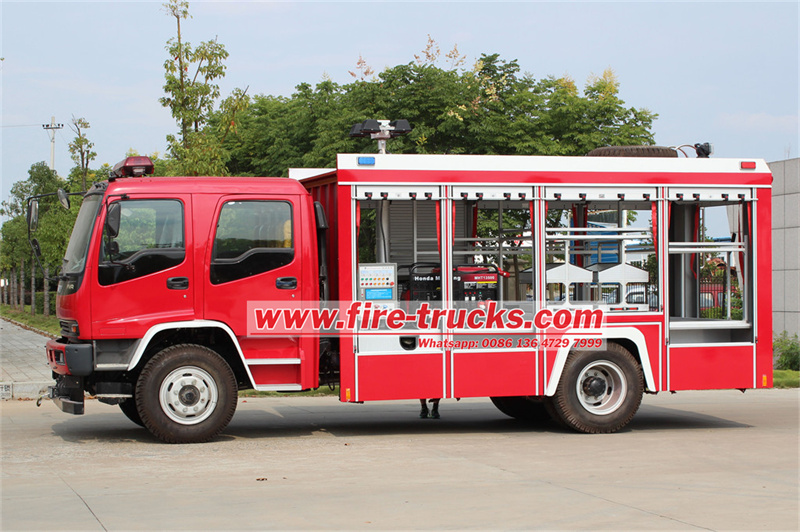

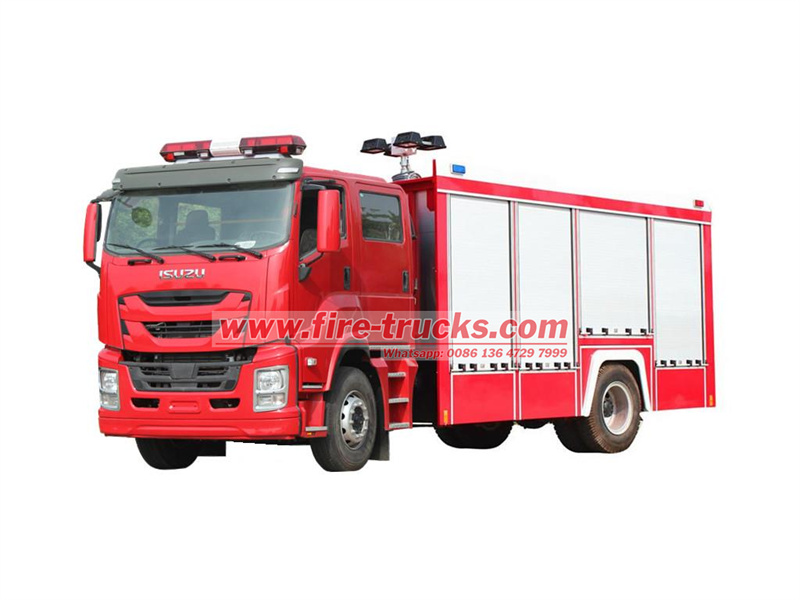

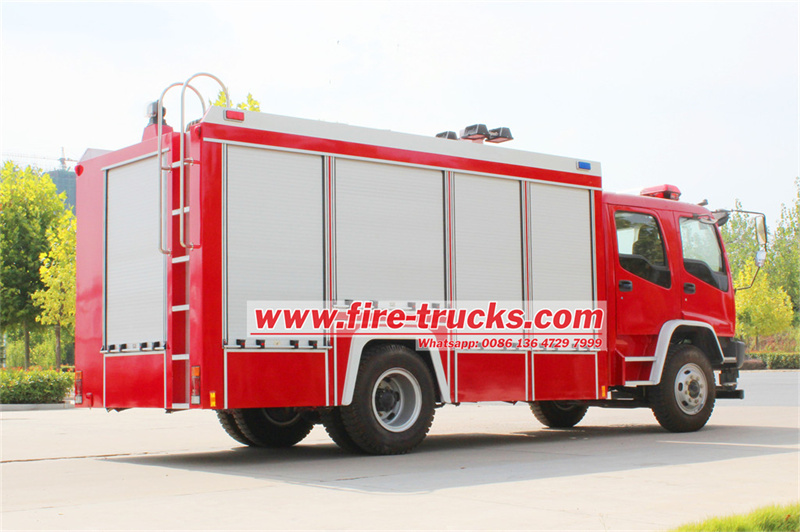

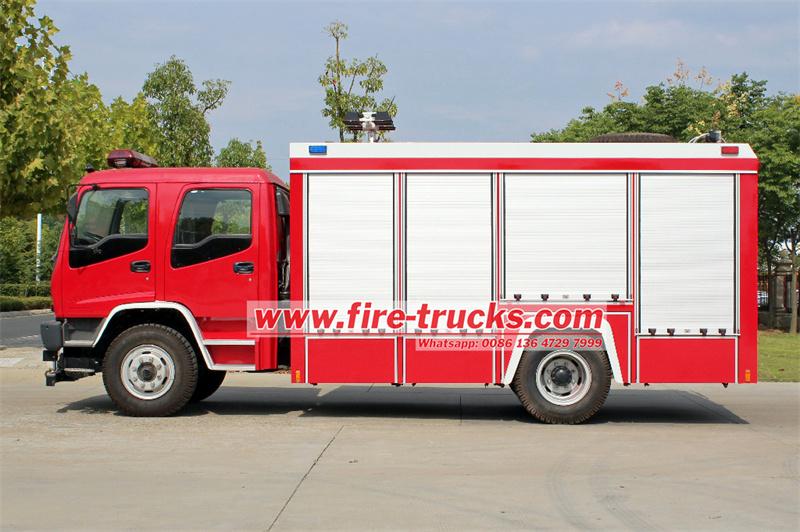

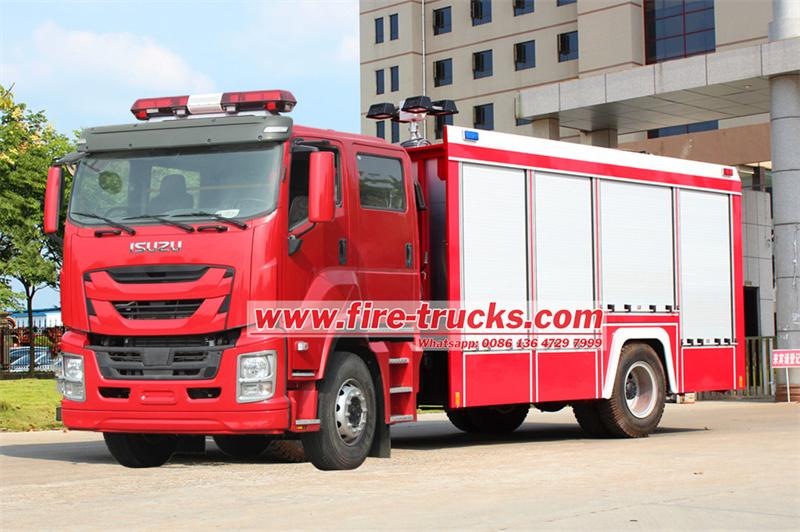

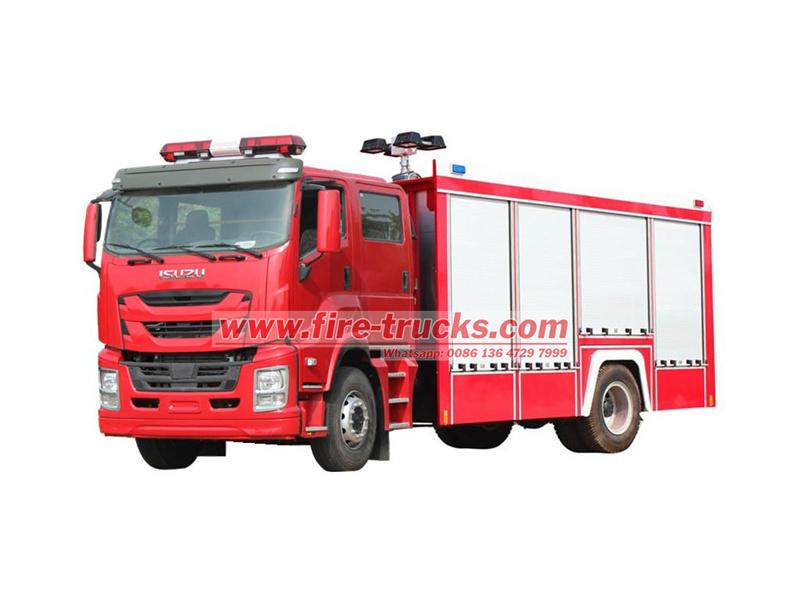

Isuzu GIGA emergency lighting fire truck is built on the high-quality ISUZU GIGA chassis, combining excellent power and environmentally friendly emissions. It has 380 horsepower and can challenge all kinds of difficult roads. It is equipped with an independent power generation system and emergency lighting system. It is multi-angle and all-round, and can quickly achieve the purpose of lighting the rescue channel when a fire breaks out. The control panel language is optional, and a variety of optional configurations are provided to meet different needs. This Isuzu GIGA fire rescue lighting truck provides solid protection for fire emergencies and demonstrates outstanding performance and flexibility. The Isuzu GIGA classical cabin is equipped with air conditioning to ensure that the driver and emergency personnel can remain comfortable in any weather conditions.
Truck Model:
PST52501YJXFWork capacity :
10tonsWheelbase:
4600mmAxle drive:
4x2Engine Power:
380HPEngine Model:
6UZ1Remark:
Lighting SystemIsuzu GIGA emergency lighting fire truck is built on the high-quality ISUZU GIGA chassis, combining excellent power and environmentally friendly emissions. It has 380 horsepower and can challenge all kinds of difficult roads. It is equipped with an independent power generation system and emergency lighting system. It is multi-angle and all-round, and can quickly achieve the purpose of lighting the rescue channel when a fire breaks out. The control panel language is optional, and a variety of optional configurations are provided to meet different needs. This Isuzu GIGA fire rescue lighting truck provides solid protection for fire emergencies and demonstrates outstanding performance and flexibility. The Isuzu GIGA classical cabin is equipped with air conditioning to ensure that the driver and emergency personnel can remain comfortable in any weather conditions.
● China best fire emergency truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery any order is welcome
● 24 month quality guarantee term
Specification:
Isuzu GIGA Emergency Rescue Fire Truck |
||
General |
Vehicle Brand |
Powerstar TRUCKS |
Chassis Model |
Isuzu GIGA |
|
Overall Dimension |
8600 * 2550 * 3150 mm |
|
GVW / Kerb Weight |
25,600kg / 12,300kg |
|
Cab |
Cab Capacity |
3 persons allowed |
Air Conditioner |
Heating/cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
ISUZU |
|
Model |
6UZ1 |
|
Power |
380 HP (279kW) |
|
Displacement |
9.839L |
|
Emission Standard |
Euro 6 |
|
Chassis |
Drive Type |
4X2 |
Transmission |
12-speed levers with 2 reverse |
|
Wheelbase/No. of axle |
4600 mm / 2 |
|
Tire Specification |
295/80R22.5 |
|
Tire Number |

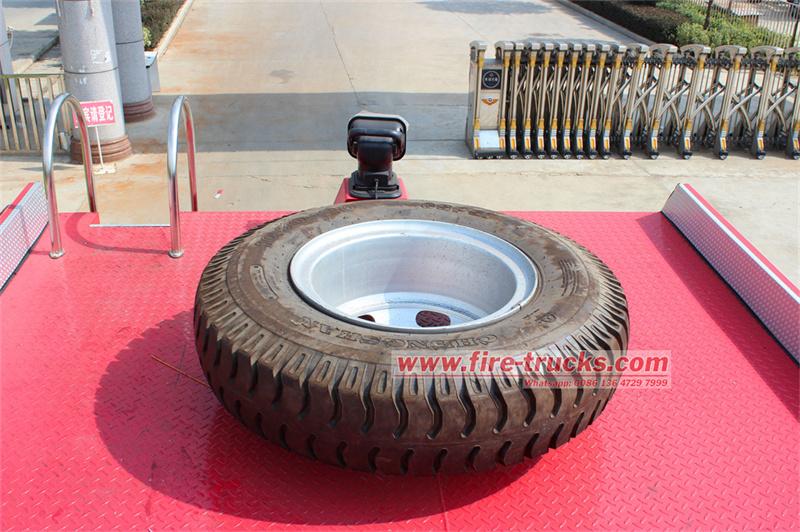

6 tires and 1 spare tire |
|
Max Speed |
90 km/h |
|
Paint |
Metallic paint |
|
Lighting system technology |
Light source type |
LED and other high brightness, low energy consumption light sources |
Color Temperature |
>2700K |
|
Luminous flux |
Evacuation passage ground illumination ≥1.5 lx |
|
Stairwell ≥6.0 lx |
||
Coverage |
Center or rear |
|
Adjustable angle robotic arm (horizontal ±180°, vertical ±90°) |
||
Multi-directional lighting,the coverage radius can reach more than 100m |
||
Centralized power supply |
Continuous lighting time ≥ 90 minutes |
|

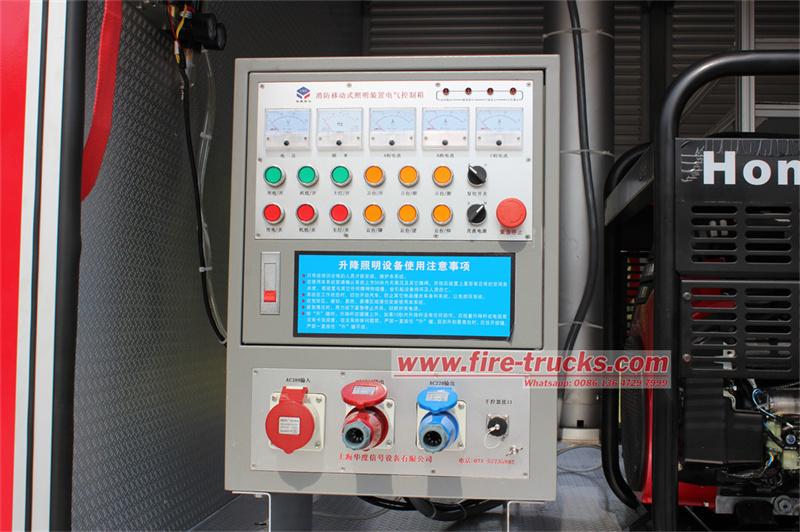

Control panel |
English or Your language |
|
Electrical System |
Battery |
Lithium iron phosphate battery |
Capacity |
100 minutes |
|
Security |
Fireproof and anti-leakage design |
|
Voltage |
Converted to 220V AC through inverter |
Adavantage:
1. Chassis performance: reliable power and high passability
Engine and power system:The Isuzu GIGA chassis is equipped with a 6UZ1-TCG61 diesel engine (National VI emission standard), with a maximum power of 279kW (about 380 horsepower) and a torque of 510N·m. It has stable power output and excellent fuel economy, and is suitable for long-term high-intensity operations. The dual-battery design ensures the stable operation of electrical equipment under extreme conditions.
Passability parameters:Equipped with 295/80R22.5 tires and high quality drive capability, the minimum turning radius is ≤13 meters, and the wading depth is ≥900mm, which can adapt to complex terrain and severe weather conditions.
2. Modification adaptability: modular and multifunctional integration

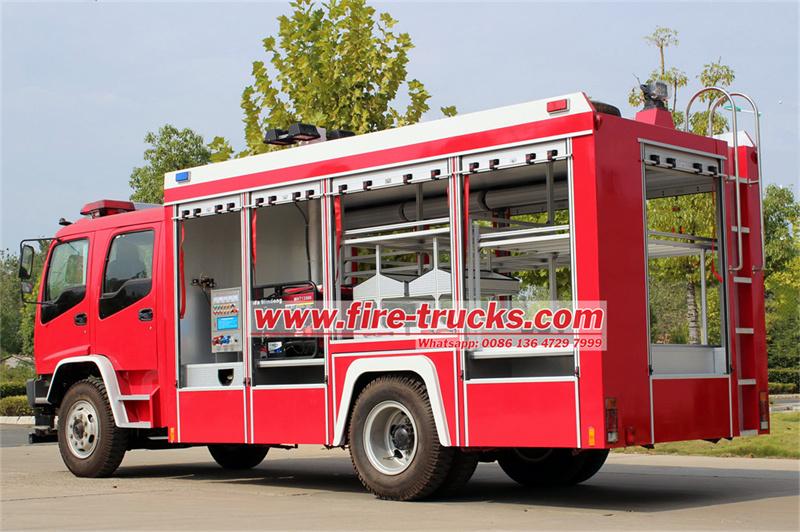

Structural design:The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools; the interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.

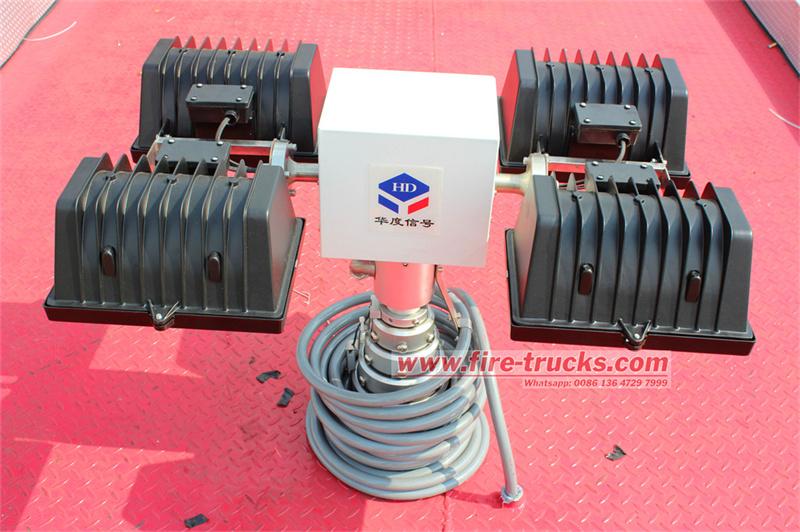

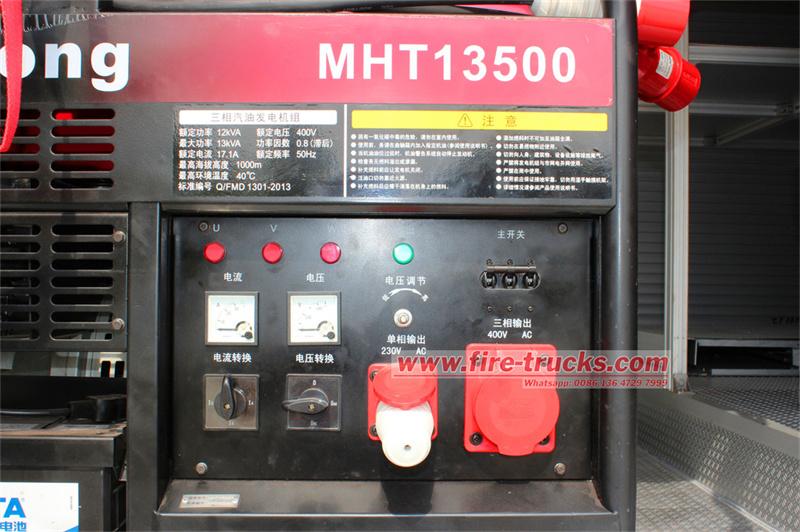

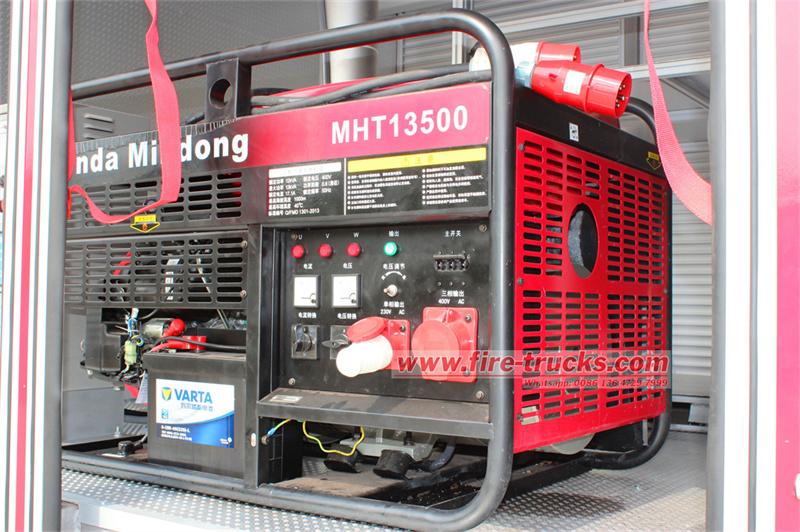

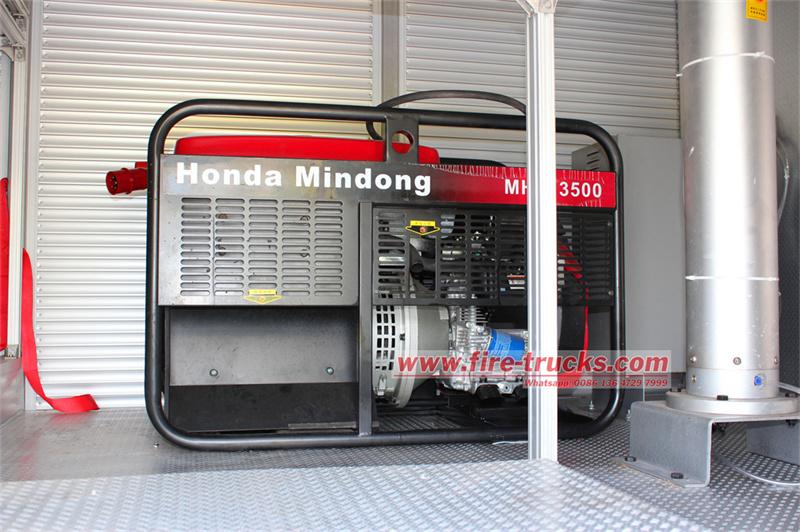

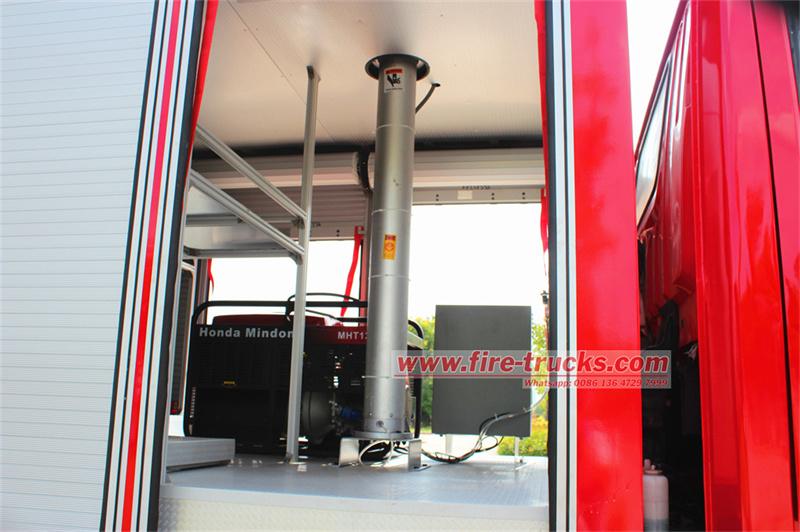

Emergency lighting system:Integrated with 30kW generator set and lifting lighting, mast height ≥ 7 meters, support 360° pan-tilt rotation and wireless remote control, coverage radius over 100 meters, to meet large-scale lighting needs. The lamp protection level reaches IP67, suitable for high humidity and dusty environments such as tunnels and chemical areas.
Multi-task expansion capability:It can carry rescue equipment such as hydraulic demolition tool sets and life detectors, and reserved interfaces to support drone collaborative reconnaissance or remote water supply system linkage.
3. Safety and intelligence: risk control and operational efficiency
Safety protection design:The cab is equipped with a self-protection sprinkler system, which can automatically cool down in high-temperature fire scenes; the battery compartment is independently sealed and equipped with a leak-proof tray, and the flame-retardant material shell reduces the risk of fire.
Remote control and intelligence:Supports 150-meter remote control driving function, and switches to unmanned mode in 5-10 seconds. Firefighters can complete the laying of water hoses and firefighting operations without approaching the fire source, significantly reducing the risk of heat radiation damage. The on-board intelligent control system integrates fault self-detection, lighting power adjustment and remote monitoring functions.
