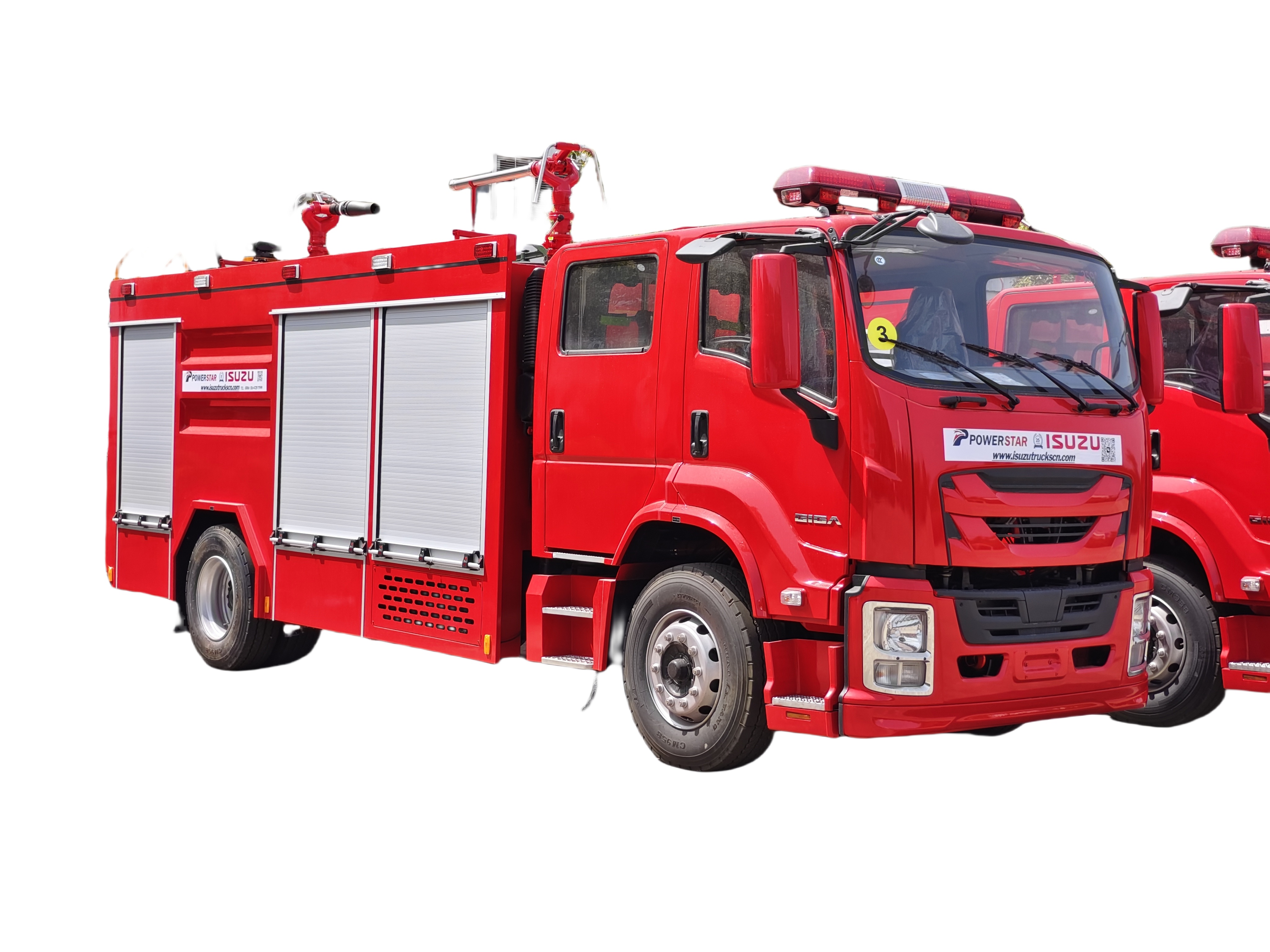

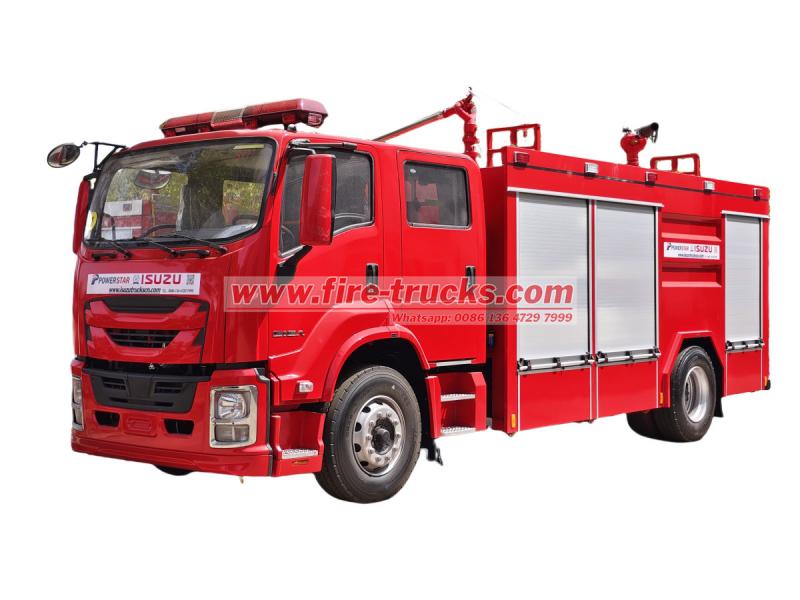

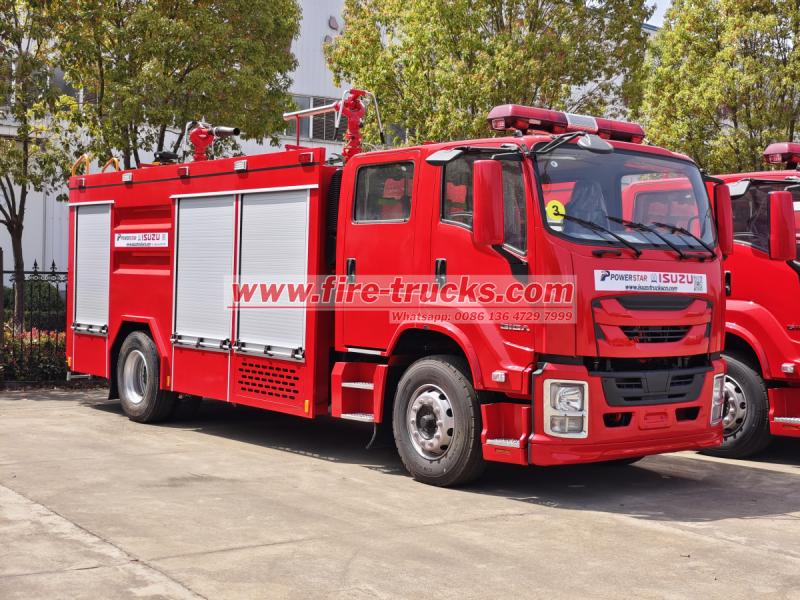

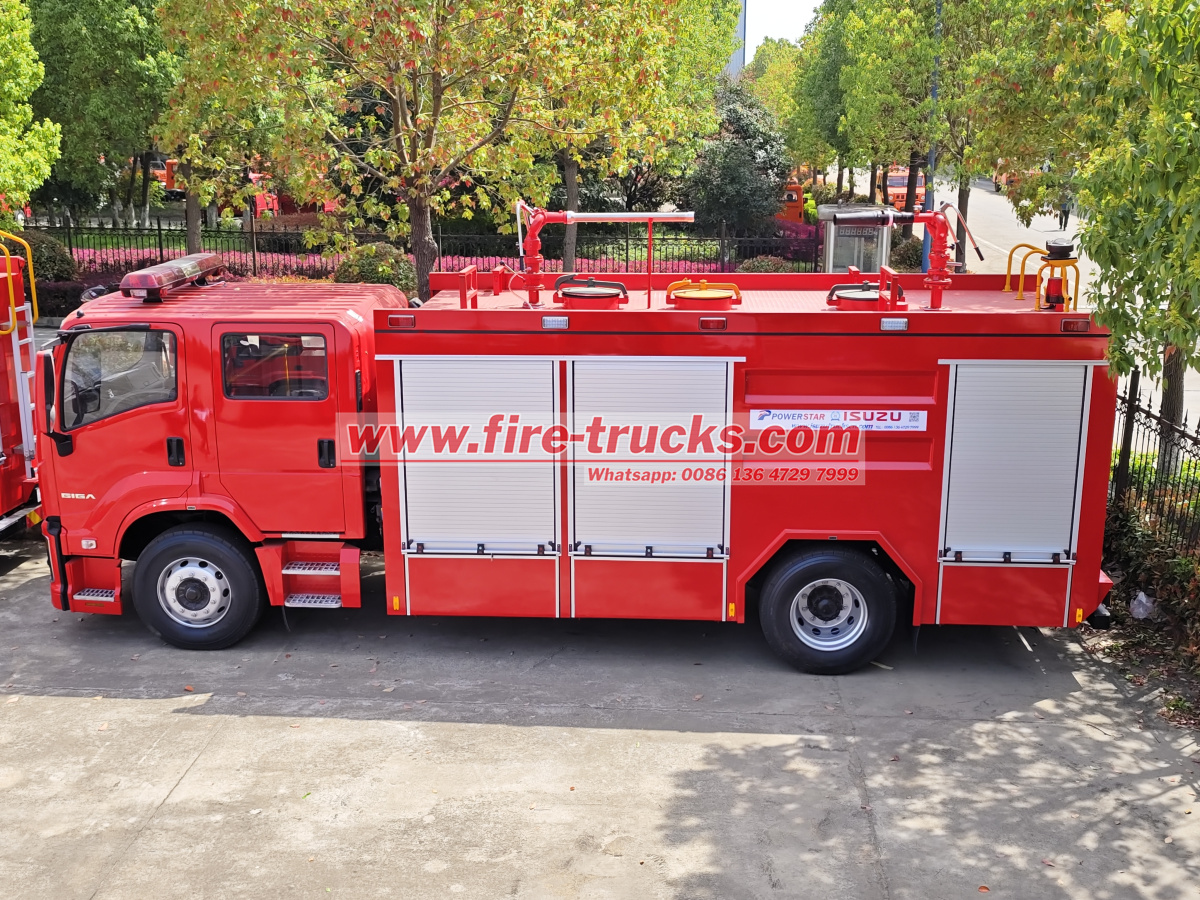

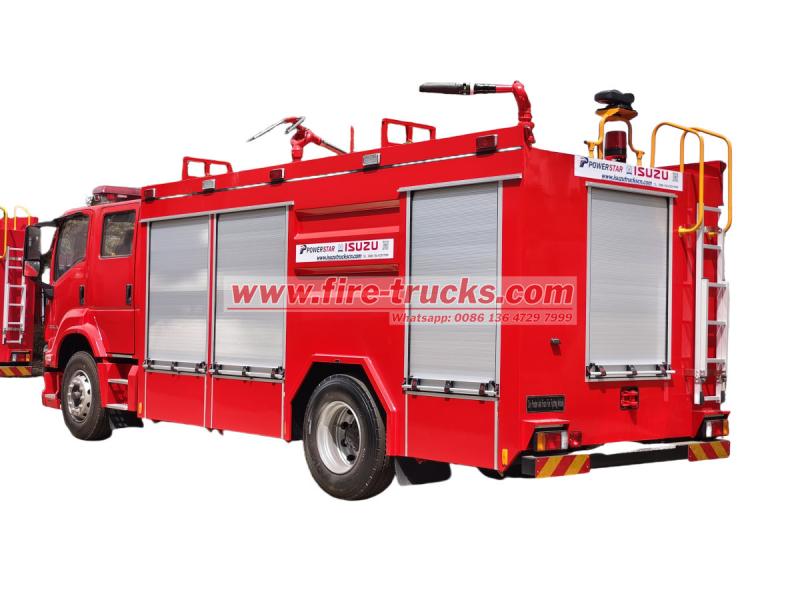

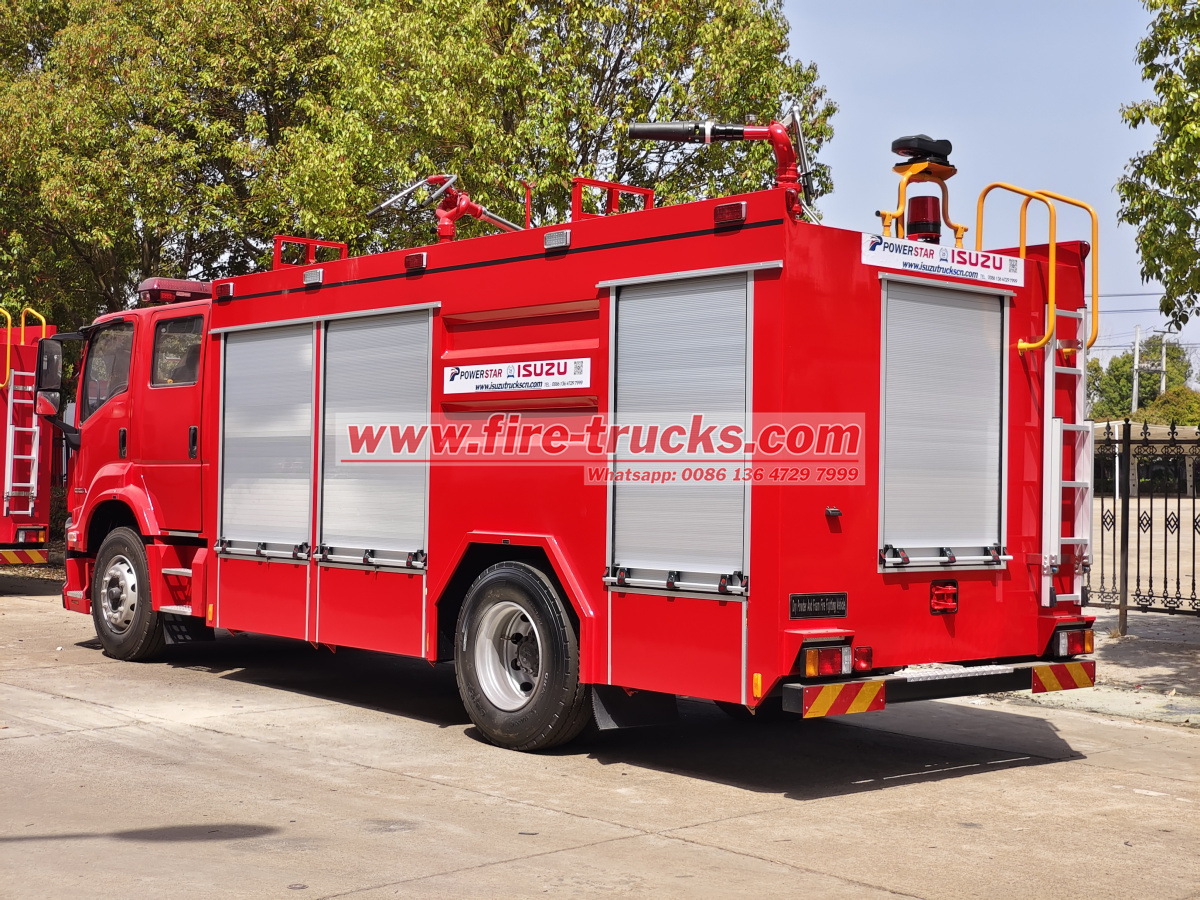

Isuzu giga Water Foam Dry Powder Com bination Fire truck,As a special fire fighting equipment, dry powder fire trucks can spray dry powder and water independently or synchronously. Dry powder can quickly suffocate the flame, and water/foam can prevent re-ignition. It is especially suitable for Class B fires such as chemical and oil. Dry powder tanks (usually 1000kg capacity) and liquid fire extinguishing tanks (such as 3m³ water + 2m³ foam) are configured independently, and the fire extinguishing mode can be flexibly switched. Most of them use commercial chassis such as Isuzu (such as 205 horsepower 4x2 drive), taking into account both power and passability, suitable for urban and industrial operations 26.
Truck Model:
PST5195GXFTanker Structure:
Stainless stellWork capacity :
3,000L water +2,000L Foam, +1000Kg powderWheelbase:
5000mmAxle drive:
4X2Engine Power:
205HPEngine Model:
ISUZU 4HK1Fire Pump:
CB10/40Fire Monitor:
PL32Remark:

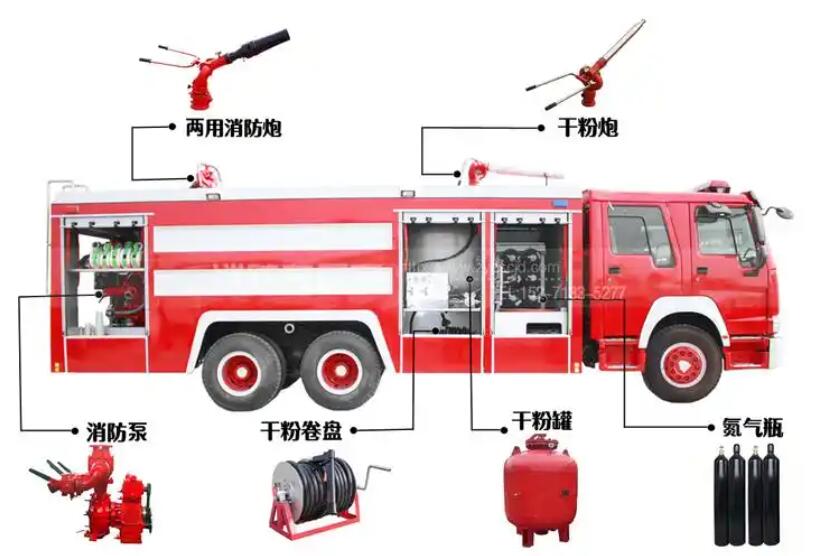

Fire equipment can be optionalCustom Isuzu Powder Fire Engine Trucks, also named Isuzu GIGA dry powder fire resuce truck or Isuzu emergency powder water foam fire vehicle, Using the Isuzu GIGA 205 horsepower 4x2 chassis as the basis, the double-row cab is first modified to meet the firefighters' carrying needs. A power take-off (PTO) and a drive shaft are installed to transmit the chassis engine power to the fire pump system. Water tank (3m³) and foam tank (2m³): Welded with carbon steel or stainless steel, the interior is treated with anti-corrosion, and the tank strength must pass the pressure test. Dry powder system (1000kg): An independent steel tank is equipped with a high-pressure nitrogen drive device, and the dry powder injection pipeline is designed in parallel with the fire pump. The fire pump is installed at the rear of the chassis, and the fire extinguishing function is realized while moving through the sandwich power take-off.
In Moldova, known as the "European wine cellar", the long vineyards and ancient wineries are welcoming a special guardian - Custom Isuzu Powder Fire Engine Trucks (also known as Isuzu dry powder and foam combined fire trucks or multifunctional dry powder fire trucks) customized by POWERSTAR TRUCKS, a well-known Chinese fire truck manufacturer. This special vehicle, which combines the wisdom of oriental manufacturing with the disaster prevention needs of Eastern Europe, is about to inject new momentum into the fire prevention and control system of this agricultural country.
Customized firefighting weapon: Decoding Isuzu dry powder fire trucks
This model is based on the Isuzu GIGA 205 horsepower 4x2 chassis, equipped with a 3 cubic meter water tank, a 2 cubic meter foam tank and a 1,000 kg dry powder fire extinguishing system, forming a "three-in-one" composite fire extinguishing capability. Its modular design can quickly switch between water mist, foam and dry powder spraying modes, which is especially suitable for villages and wine cellars in Moldova, which are mainly brick-and-wood structures and prone to re-ignition. The local fire department affectionately calls it "The Fire Magician".
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

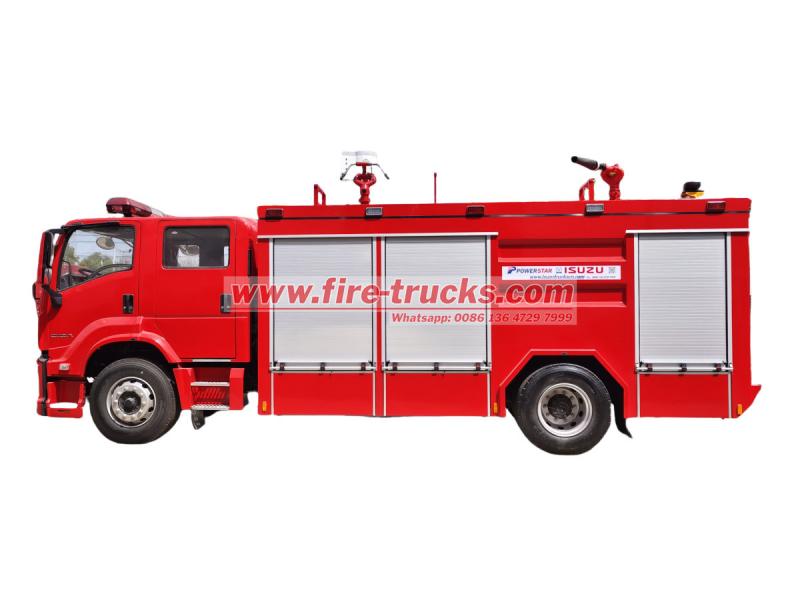

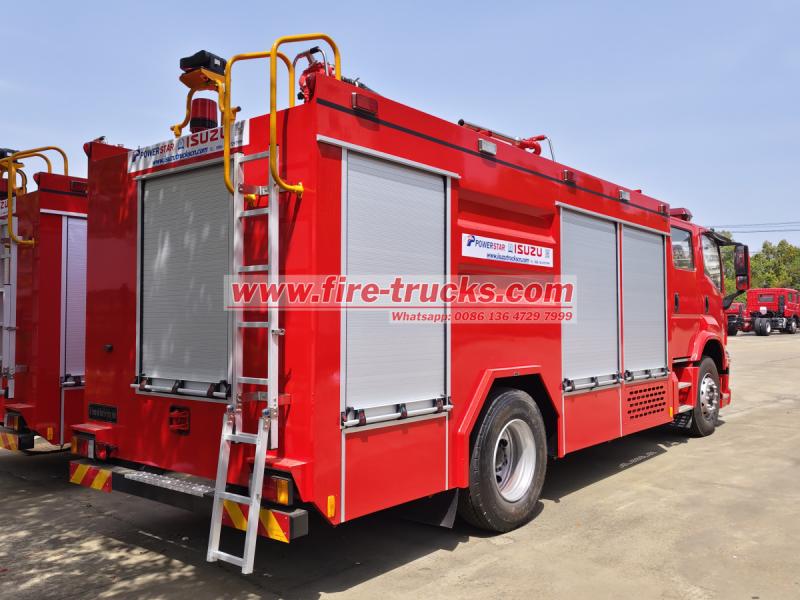

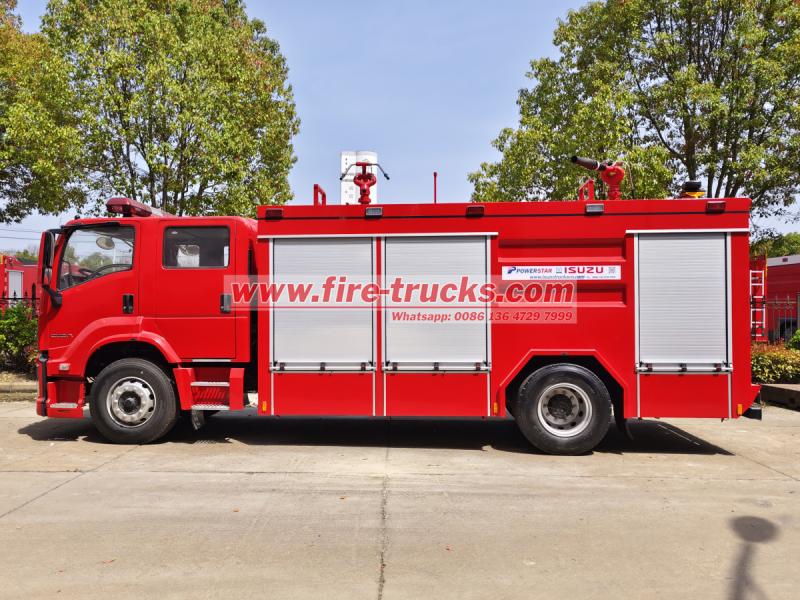

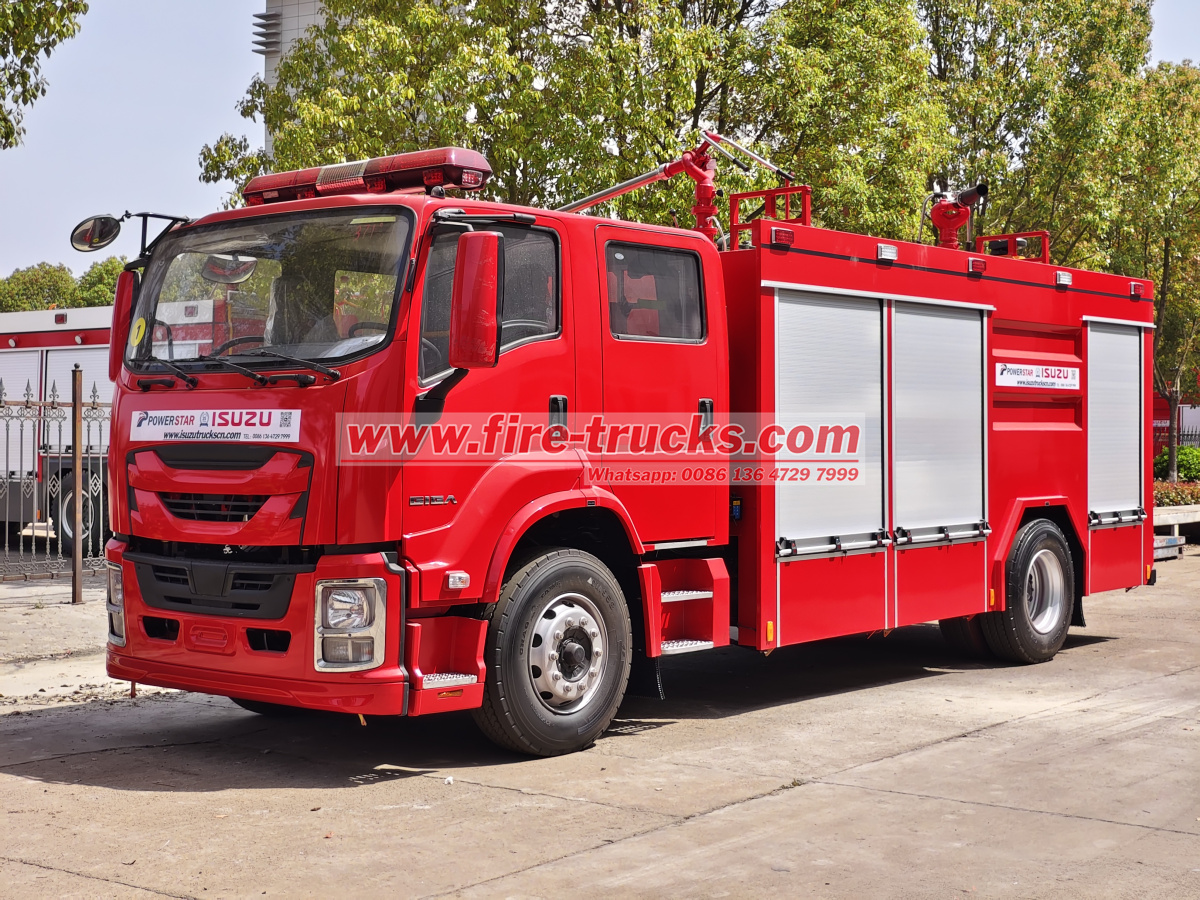

ISUZU GIGA brand Water foam dry powder combination fire truck
|
|||||
Vehicle Parameters
|
|||||
Vehicle Brand
|
POWERSTAR
|
||||
Chassis Brand
|
ISUZU GIGA
|
||||
Overall Dimension(mm)
|
7925×2505×3450
|
||||
GVW/Curb Weight(kg)
|
15000/8650
|
||||
Chassis Parameters
|
|||||
Cab
|
Cab Seat
|
2+4
|
|||
Air Conditioner
|
Equipped
|
||||
Engine
|
Fuel Type
|
diesel
|
|||
Engie Model
|
ISUZU 4HK1
|
||||
Engine Brand
|
ISUZU
|
||||
Power(kw/hp)
|
205
|
||||
Displacement(L)
|
5200
|
||||
Emission Standard
|
Euro6
|
||||
Chassis
|
Drive Type
|
4*2
|
|||
Transmission
|
6speed, Manual
|
||||
Wheelbase(mm)
|
4600
|
||||
Tire Specification
|
10.00R20
|
||||
Tire No.(pcs)
|
6+1
|
||||
Max Speed(km/h)
|
95
|
||||
Paint
|
Metallic paint
|
||||
Fire Truck Water Tank Structure Parameters
|
|||||
Water Tank Volume
|
4000L
|
Tank Material
|
Carbon Steel
|
||
Foam Tank Volume
|
2000L
|
Tank Material
|
Carbon Steel
|
||
Dry Powder Volume
|
1 ton
|
Nitrogen Cylinder
|
70L/pcs,in total 3pcs
|
||
Tank Thickness
|
4/3/3mm
|
Fire pump
|
CB10/60
|
||

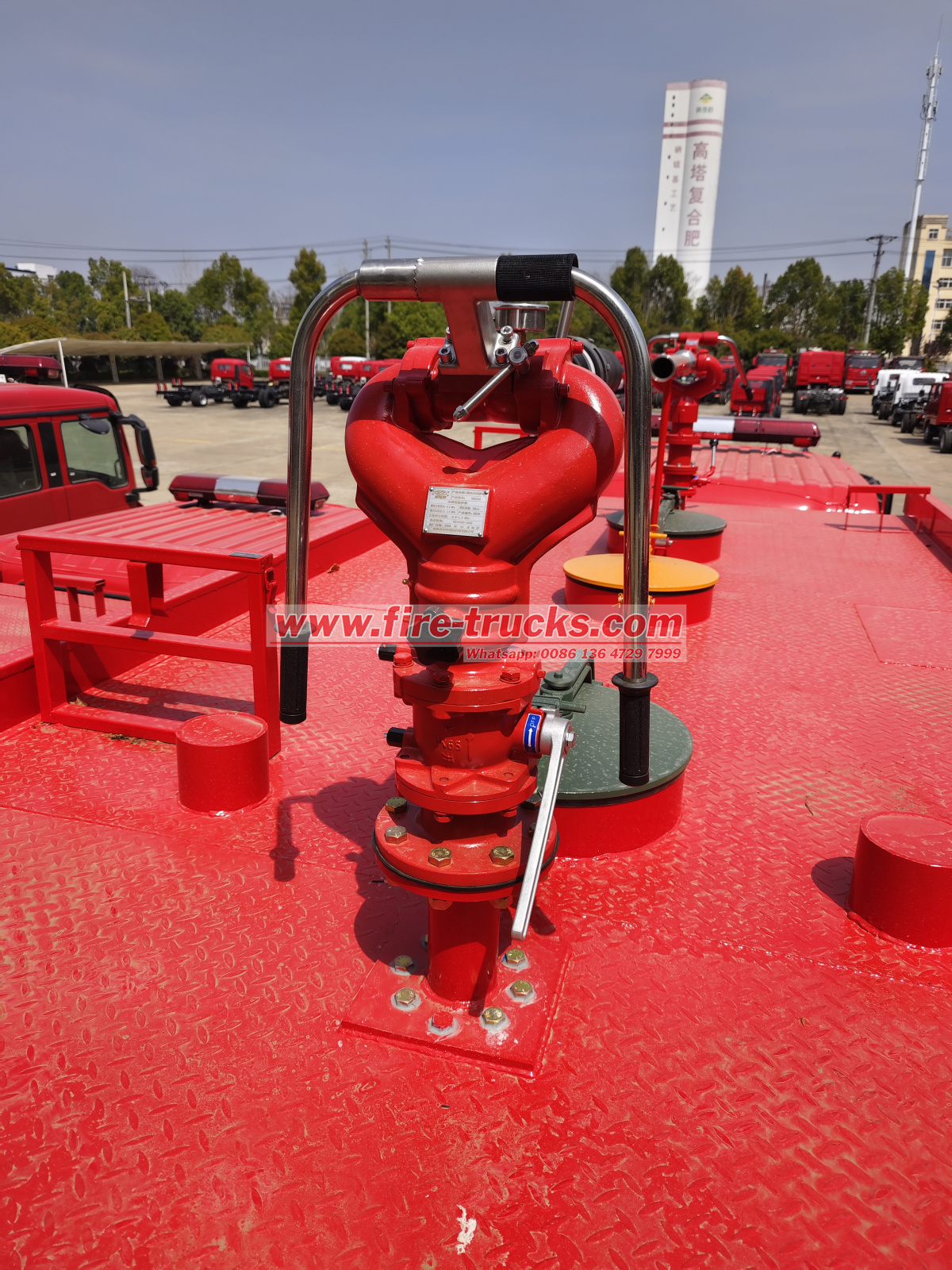

Fire monitor
|
PL48
|
Color and Logo
|
Optional
|
||
Standard configuration
|
Chassis,sub frame, van body, national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/60according to the capacity), fire canon (PL48 according to the capacity),fire power take off, sliding gate, row type lights, reel,common tools, rear climbing ladder, water tank, foam tank, dry powder tank, nitrogen system
|
Sunflower processing plant escort
As the main producer of sunflower oil in Europe, the dry powder spraying function of this vehicle can effectively deal with grease fires and avoid the spread of oil pollution caused by traditional water fire extinguishing.
Danube Delta Emergency
For reed wetland fires, 3-cubic-meter water tanks combined with a remote spray system can achieve a three-dimensional tactic of "cutting off the fire with water and extinguishing open flames with dry powder".
Potential for development of derivative models
POWERSTAR TRUCKS can be expanded based on this platform:
"Shepherd" Plateau Edition: Add turbocharging to adapt to the hilly terrain in northern Moldova
"Dionysus" Cold Chain Edition: Integrated refrigeration unit for chemical transportation in wineries
"Sunflower" Detection Edition: Add infrared thermal imager for agricultural storage fire warning
This cooperation marks the first time that China's special vehicle manufacturing has deeply connected with the agricultural firefighting needs of Eastern Europe. As an official from the Ministry of Emergency Situations of Moldova said: "These red steel horses will protect our land like grapevines." In the future, the two sides also plan to jointly develop a six-wheel drive firefighting vehicle model adapted to the Carpathian Mountains, continuing the "Belt and Road" emergency equipment cooperation. A new chapter.
