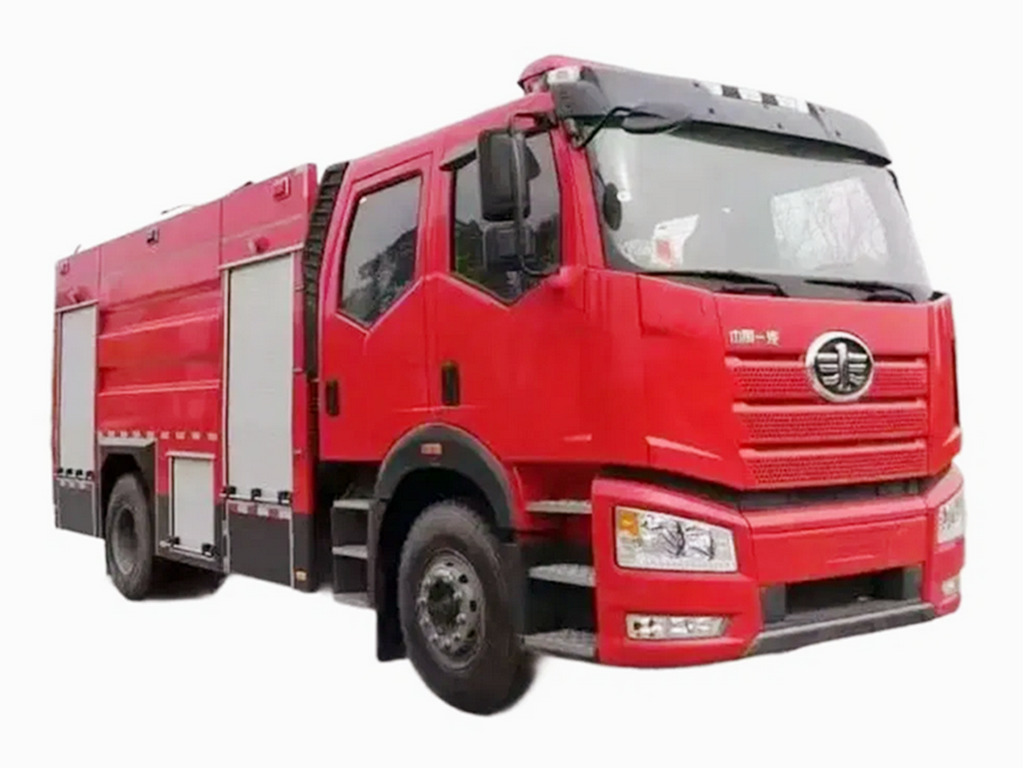

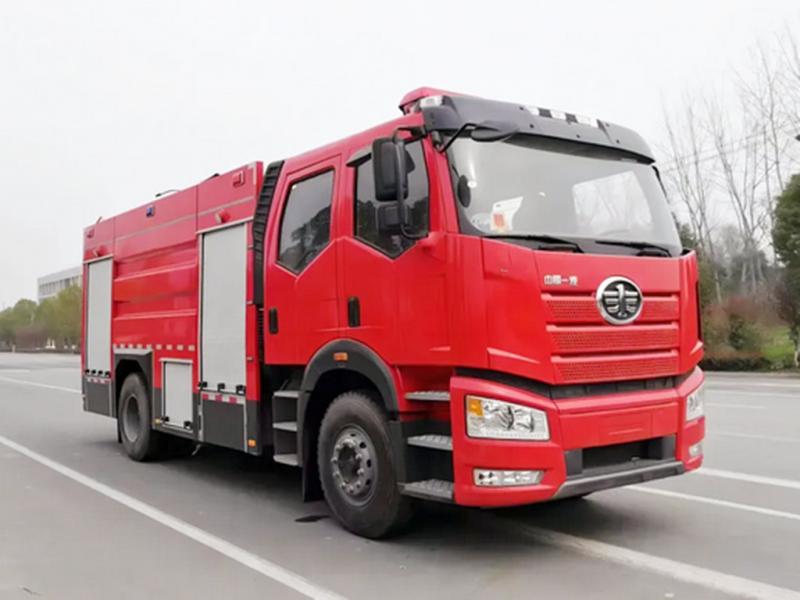

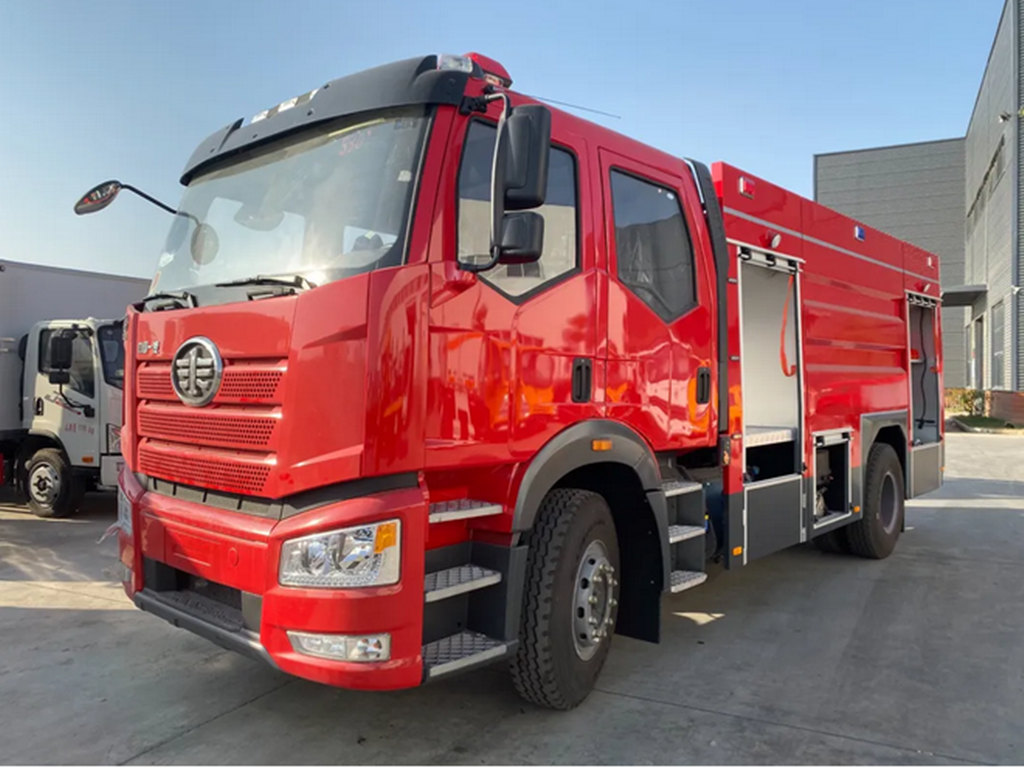

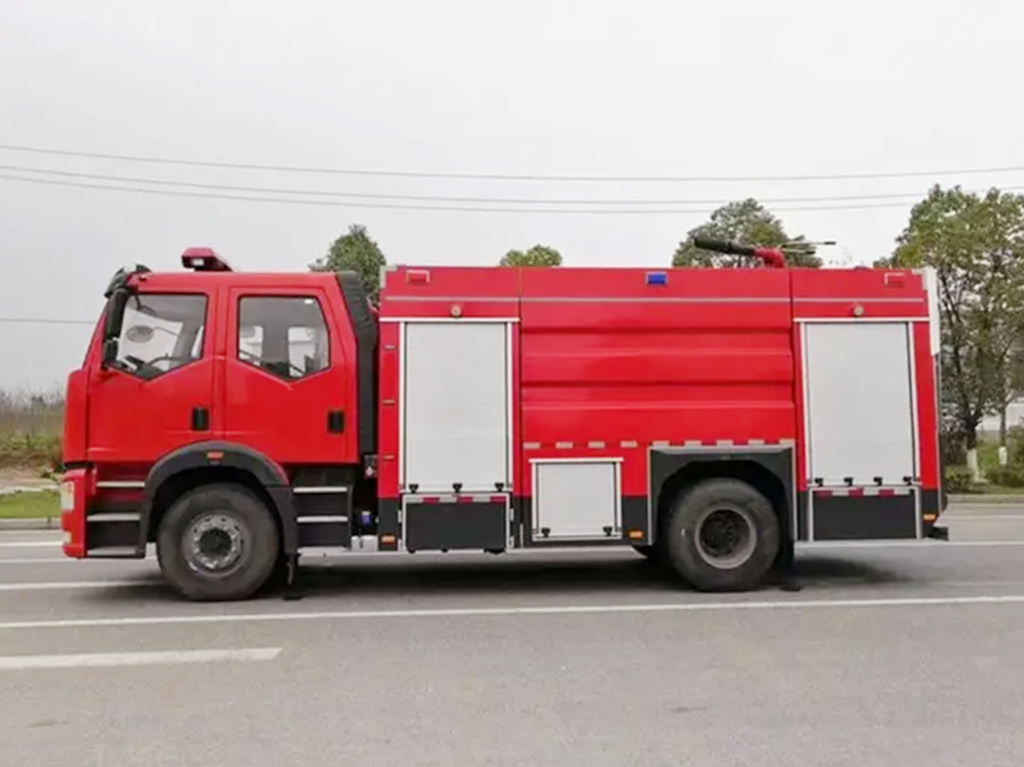

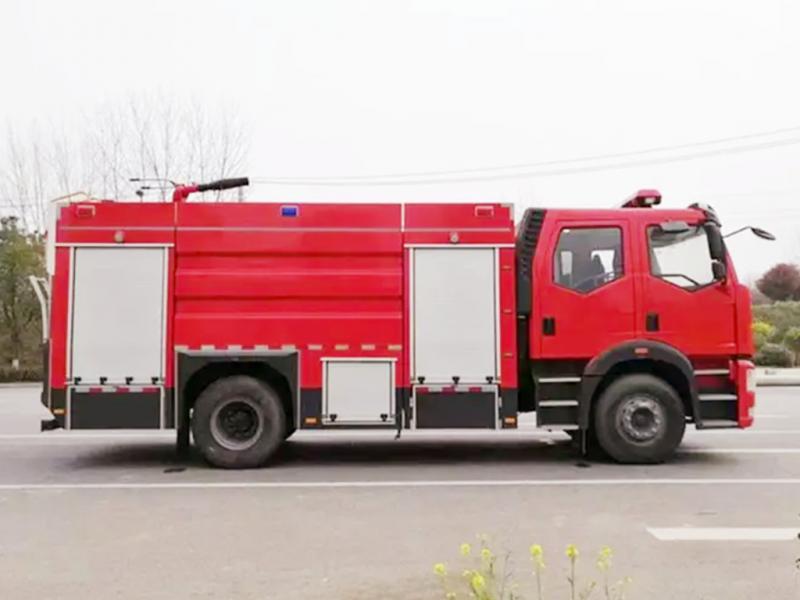

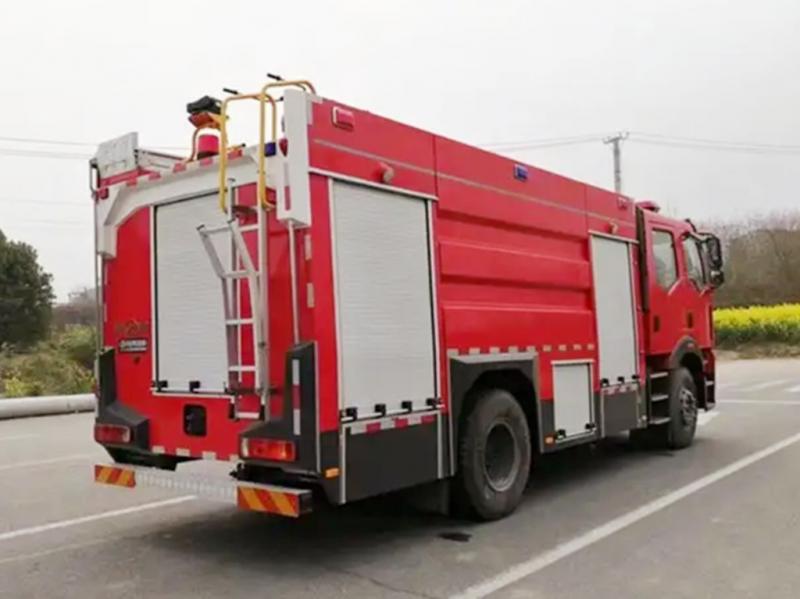

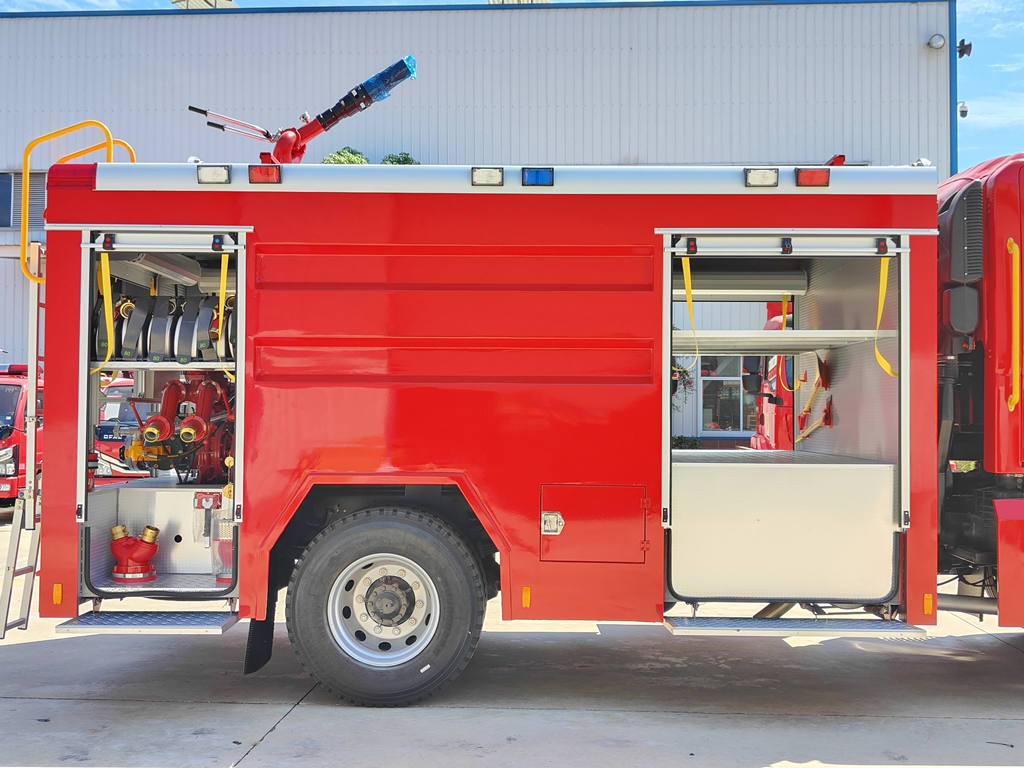

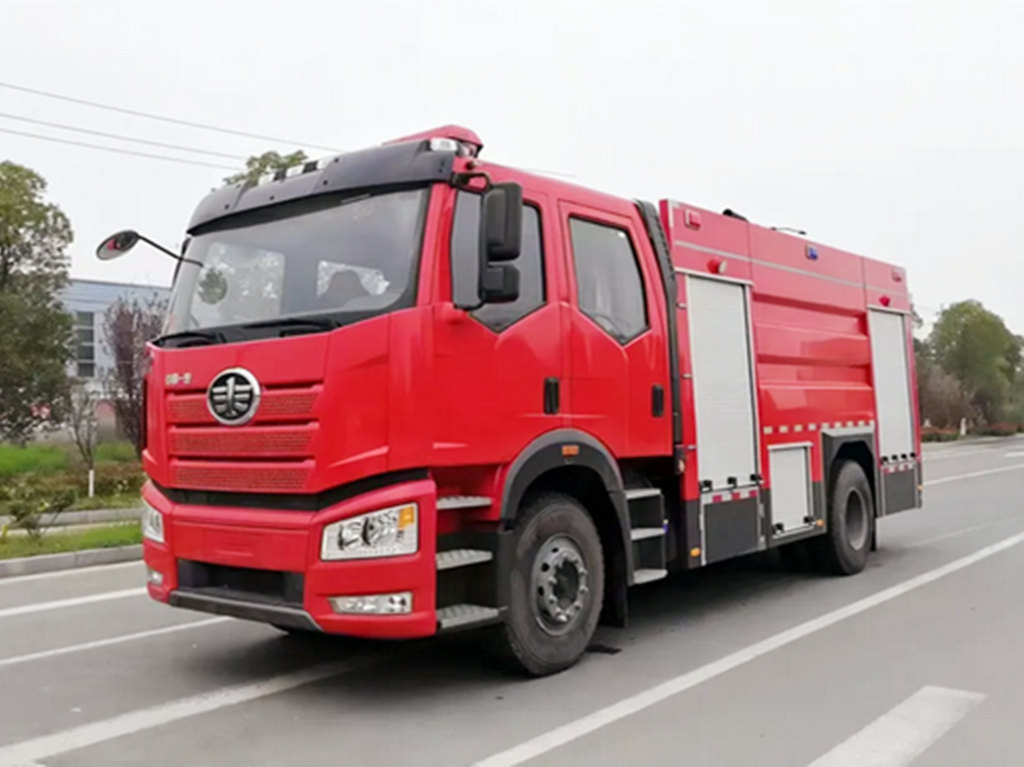

The FAW 4×2 8000L foam fire tender truck is a high-performance firefighting vehicle specifically designed to respond to fires and other emergency situations. Built on the FAW 4×2 heavy-duty chassis, it is equipped with advanced firefighting equipment and a powerful powertrain system, enabling it to quickly reach fire scenes and carry out effective firefighting operations. With a total capacity of 8000 liters (6000 liters for the water tank and 2000 liters for the foam tank), it excels in handling medium to large-scale fires, making it particularly suitable for high-risk locations such as chemical plants, oil depots, and airports.
Truck Model:
PT5190GXFPMTanker Structure:
Carbon steel and stainless steelWork capacity :
70 metersWheelbase:
4600 mmAxle drive:
4x2Engine Power:
220 HPEngine Model:
CA4DK1-22E51Fire Pump:
CB10/40Fire Monitor:
PL8/48, 48 L/S at 0.8 MpaRemark:

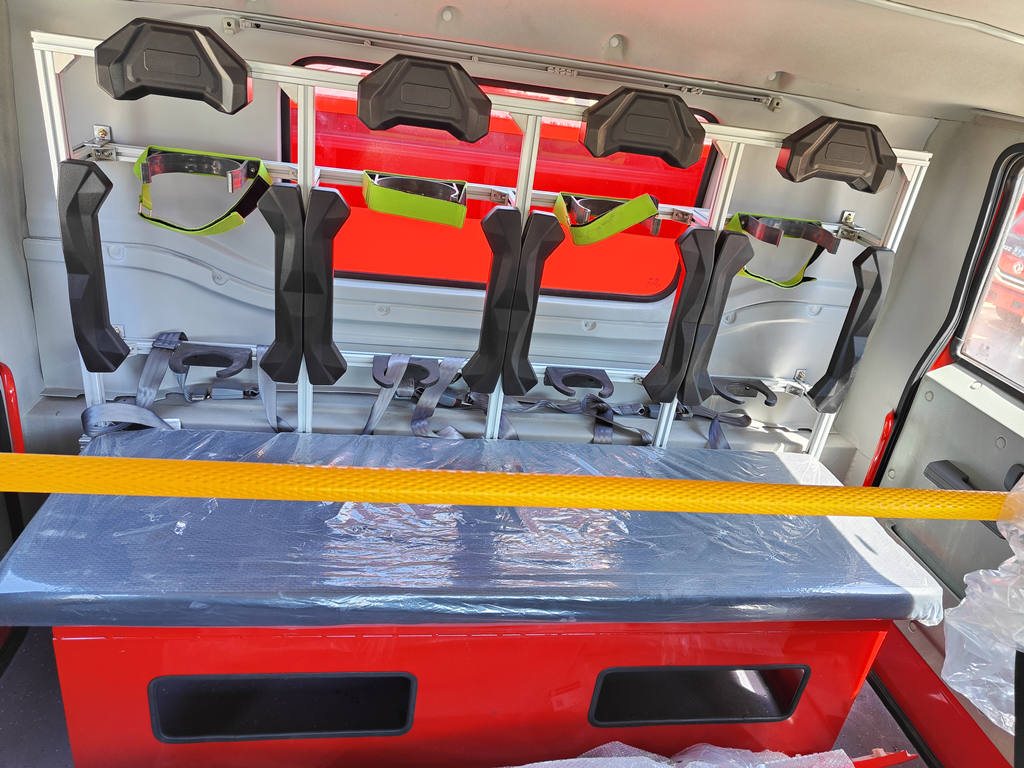

Capacity of water and foam tank is optionalThe FAW 4×2 8000L foam fire tender truck is a high-performance firefighting vehicle specifically designed to respond to fires and other emergency situations. Built on the FAW 4×2 heavy-duty chassis, it is equipped with advanced firefighting equipment and a powerful powertrain system, enabling it to quickly reach fire scenes and carry out effective firefighting operations. The structural design of the vehicle fully considers the practical needs of firefighting operations. It features an FAW J6L double-row cab that can accommodate 2 drivers and 4 firefighters, ensuring sufficient manpower in emergencies. The cab is equipped with an air conditioning system, providing a comfortable working environment for firefighters.
One of the core firefighting features of the FAW foam firefighting truck is its large-capacity water and foam tanks. The water tank has a capacity of 6000 liters and is made of carbon steel, offering high strength and corrosion resistance, enabling long-term storage of a large water supply to ensure sufficient water availability at fire scenes. The foam tank has a capacity of 2000 liters and is made of stainless steel, providing excellent chemical corrosion resistance, making it suitable for storing various types of foam firefighting agents.

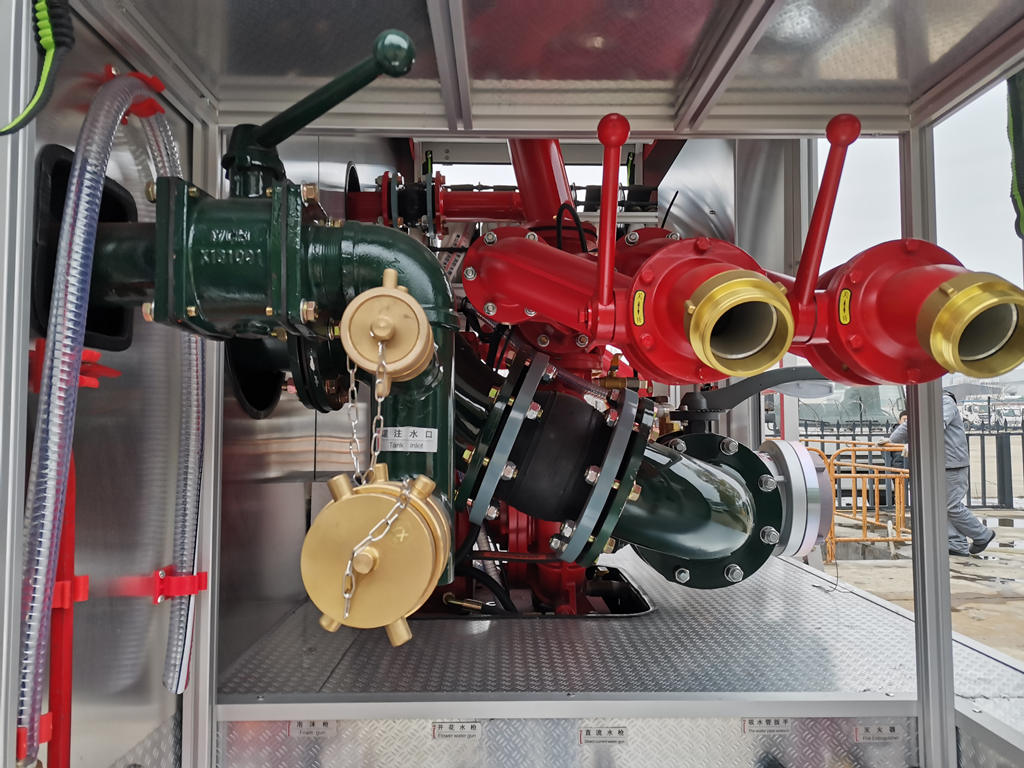

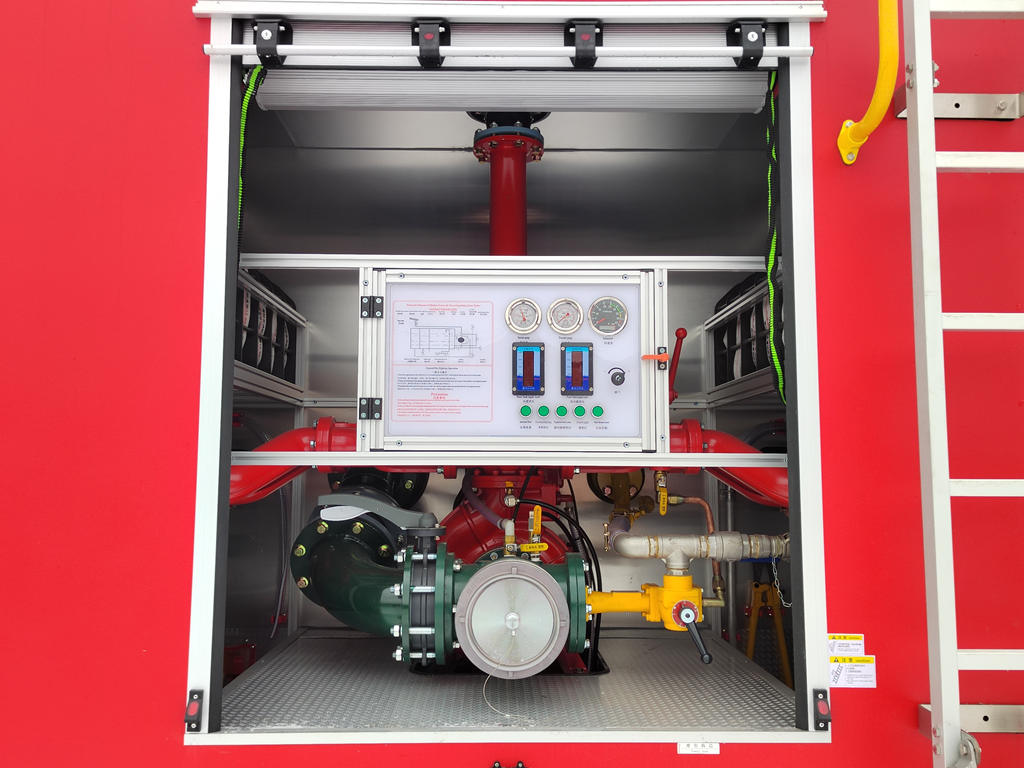

The FAW fire tender truck is equipped with a CB10/40 fire pump, which is a normal-pressure centrifugal pump known for its efficiency and stability. The fire pump has a rated flow of 40 liters per second and a rated pressure of 1.0 MPa, capable of delivering a large volume of water in a short time to meet the demands of medium to large-scale fires. The fire pump has a maximum suction depth of 7 meters, allowing it to draw water from deep sources and adapt to various complex environments.

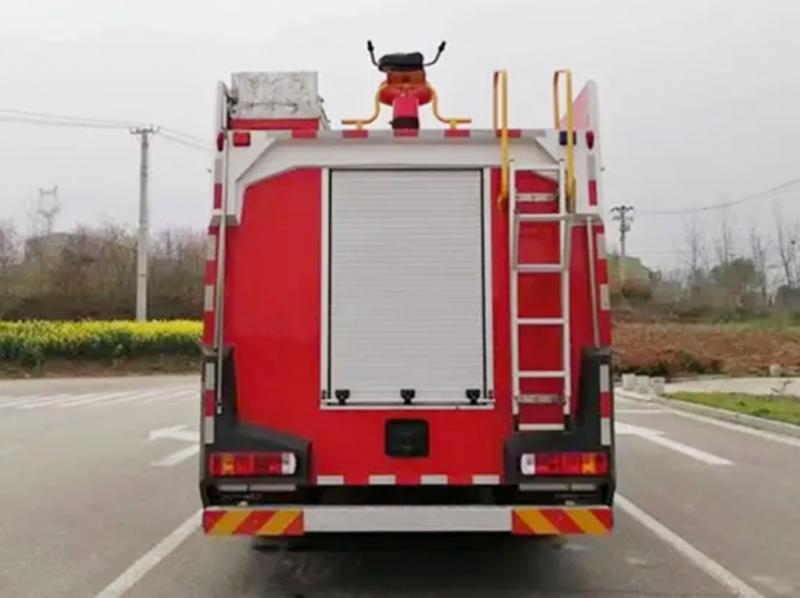

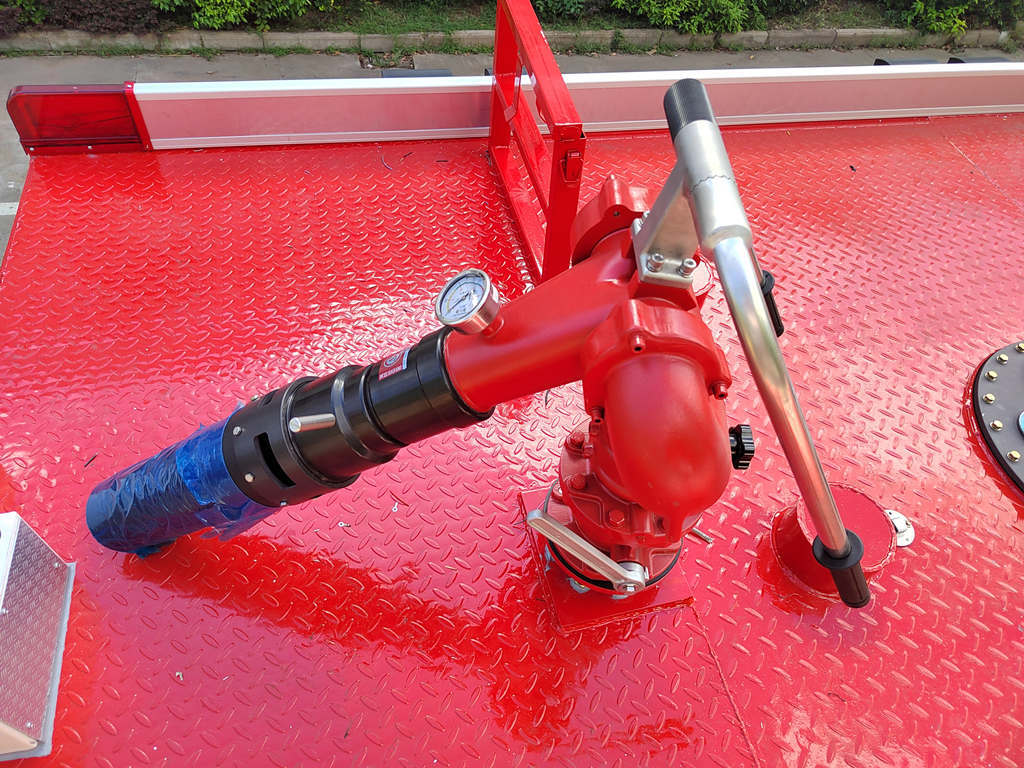

Another core feature of the FAW foam fire tender truck is its fire monitor, model PL8/408. This is a dual-purpose fire monitor for both water and foam, featuring 360-degree horizontal rotation and a pitch angle range of -15 to +45 degrees, enabling full-coverage firefighting. The water jet can reach over 70 meters, and the foam jet can reach over 60 meters, ensuring precise targeting even during long-distance firefighting operations.
● China best firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
Product Specifications
FAW 4×2 8000L foam fire tender truck specifications |
||
Chassis |
FAW 4×2 heavy duty type |
|
Cab |
FAW J6L double cabin, with A/C |
|
Number of seats |
2+4 |
|
Gross Vehicle Weight |
19000 kg |
|
Curb Weight |
11000 kg |
|
Overall Dimensions |
8360×2530×3600mm |
|
Wheelbase |
4600 mm |
|
Front/Rear Suspension |
1500/2260 |
|
Steering |
Power steering |
|
Approach/departure angle |
18°/11° |
|
Wheels & tire |
10.00R20 |
|
Tire number |
6+1 |
|
Engine |
Model |
CA4DK1-22E51 |
Horsepower |
220 |
|
Maximum output Kw |
165 |
|
Maximum torque N.m |
820 |
|
Type |
4cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine |
|
Displacement |
4.764L |
|
Transmission |
CA6T138, 6 forwards,1 reverse |
|
Front Axle |
6.5T |
|
Rear Axle |
13T |
|
Brake System |
Air brake |
|
Electric System |
24V |
|
Tank |
Water tank |
6000 liters |
Foam tank |
2000 liters |
|
Material |
Water tank: carbo steel; Foam tank: stainless steel |
|
Fire Pump |
Model |
CB10/40 |
Type |
Atmospheric centrifugal pump |
|
Rated flow |
40L/s @1.0MPa |
|
Outlet rated pressure |
1.0 Mpa |
|
Max. suction depth |
7m |
|
Fire monitor |
Model |
PL8/48 |
Rotation angle |
360 ° horizontal rotation |
|
Max. pitch angle |
Depression angle ≤ -15 °, elevation angle ≥+45 ° |
|
Range |
Water: ≥70m; Foam≥60m |
Product Advantages
1. Efficient Firefighting: By mixing foam concentrate with water, it forms a stable foam layer that covers the fire source, quickly cutting off air supply to achieve suffocation-based fire suppression. Additionally, the foam layer effectively cools the surface of burning materials, preventing the spread of fire.
2. High Mobility: Built on the FAW 4×2 heavy-duty chassis, it offers excellent off-road capability and stability. Whether in urban streets or rural paths, it can quickly reach fire scenes.
3. User-Friendly Operation: The cab is ergonomically designed with excellent visibility. Key equipment such as the fire pump and fire monitor are easy to operate, requiring only minimal training for firefighters to master.
4. Safety and Reliability: The vehicle is equipped with advanced safety protection devices and firefighting equipment, ensuring the safety of firefighters during operations. Additionally, the vehicle undergoes rigorous quality inspections and performance tests, guaranteeing its reliability and durability.
Product Details
