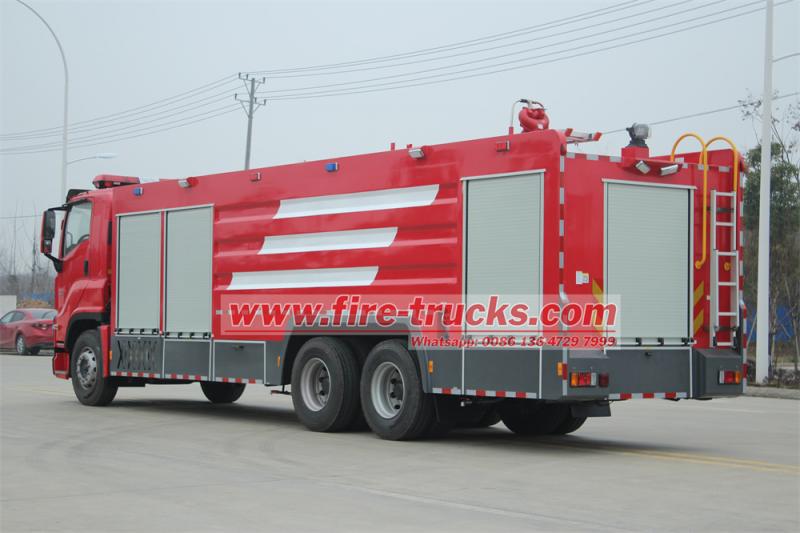

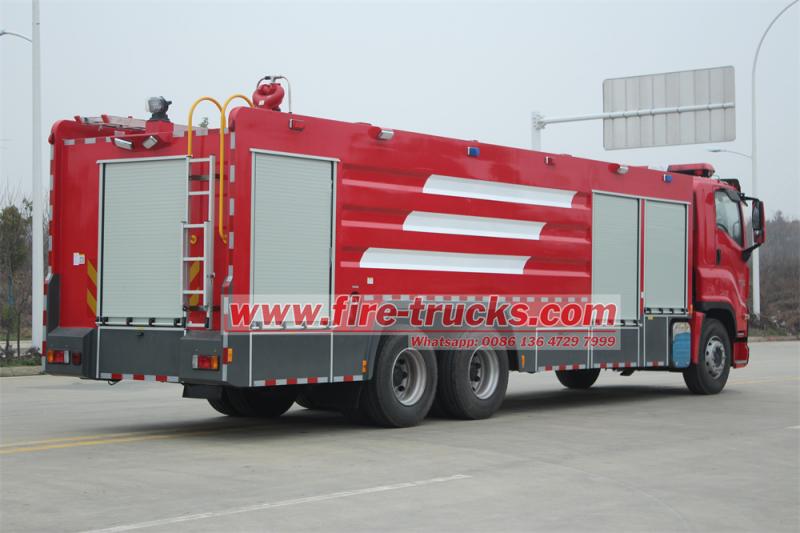

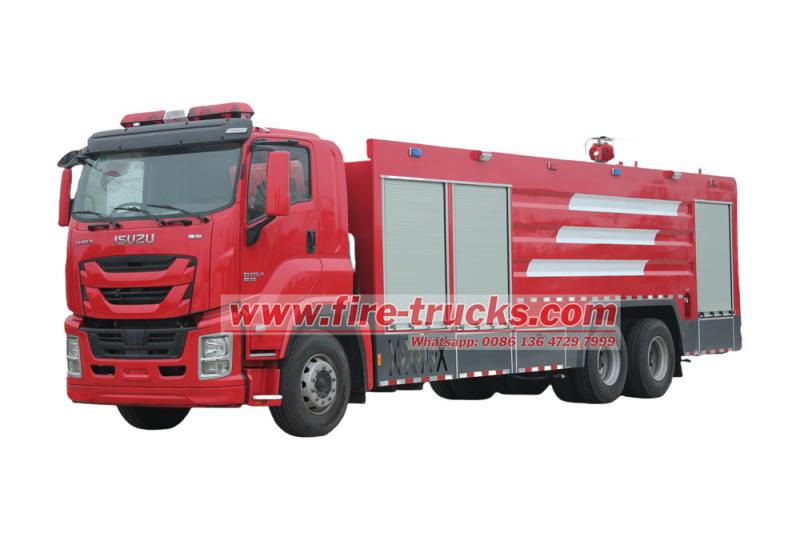

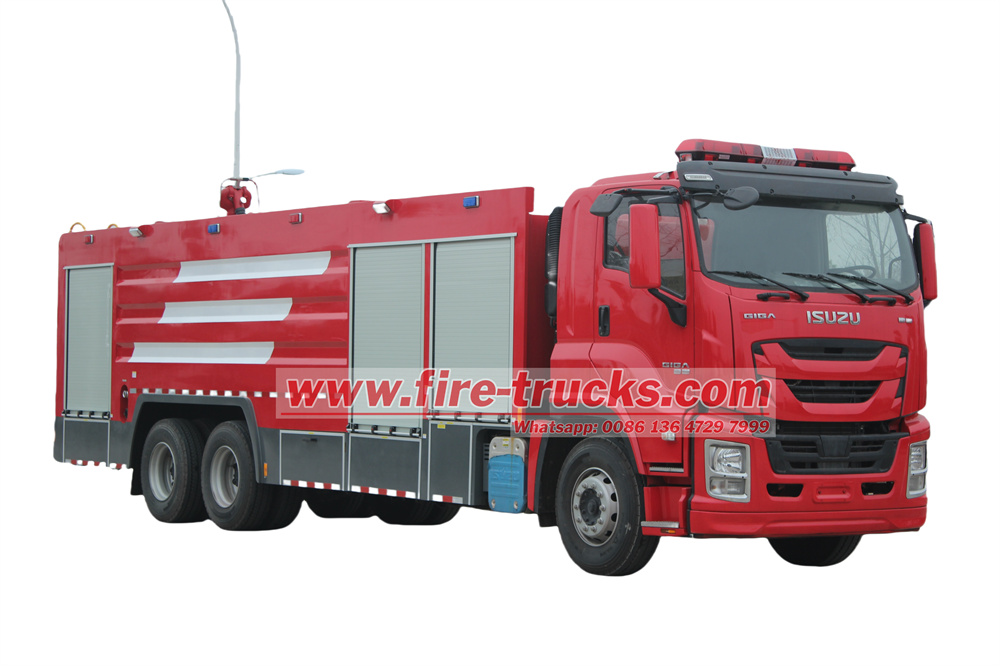

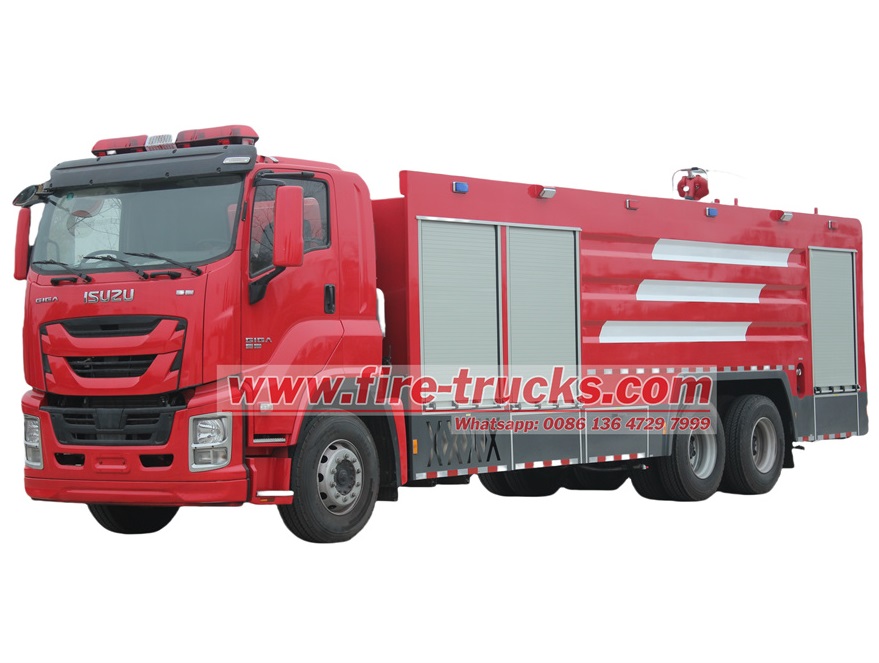

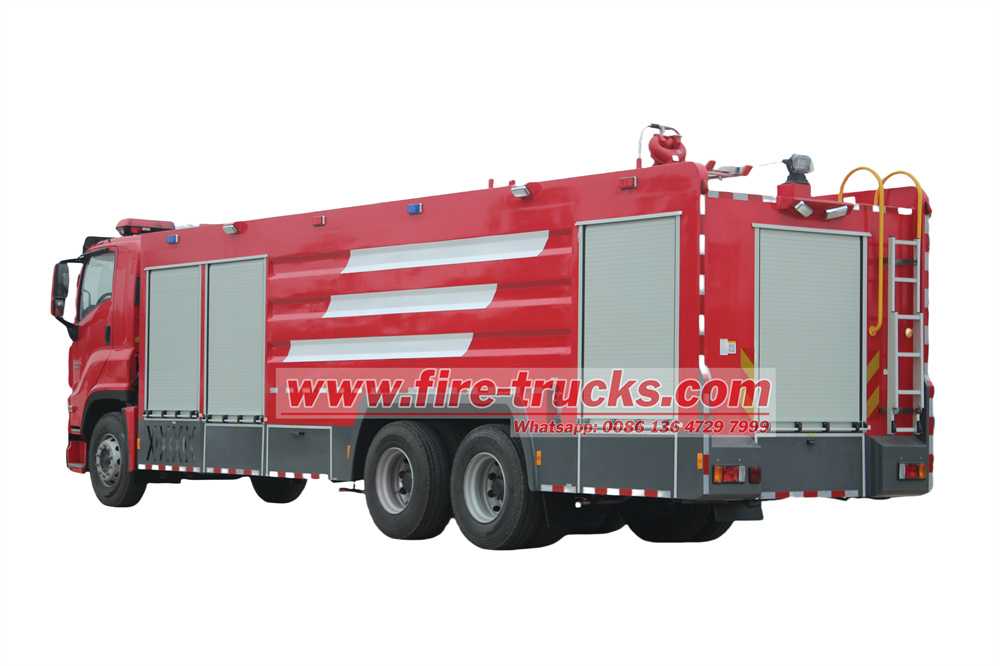

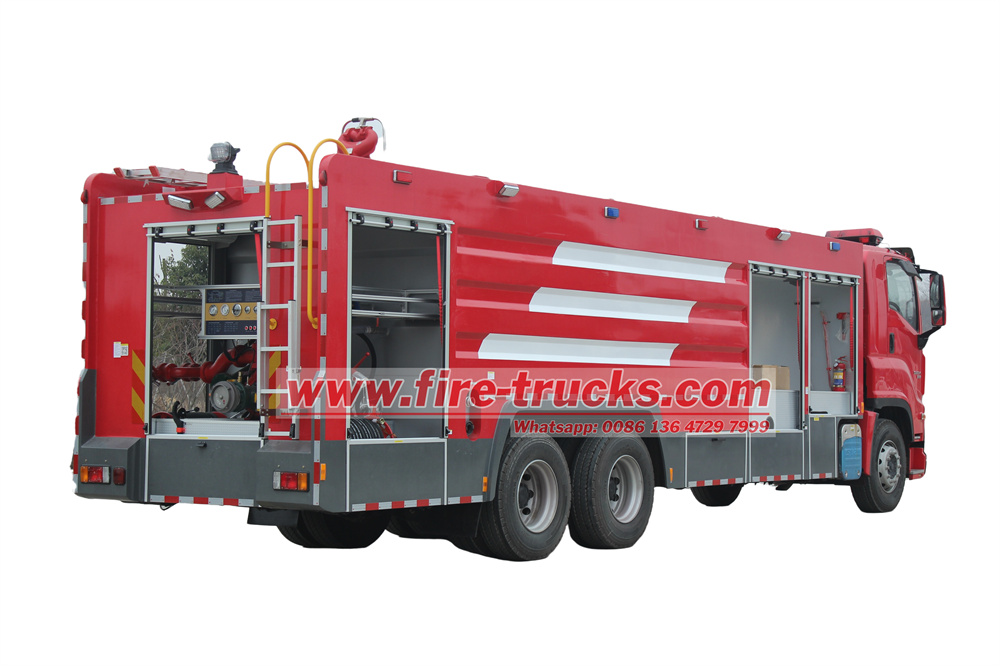

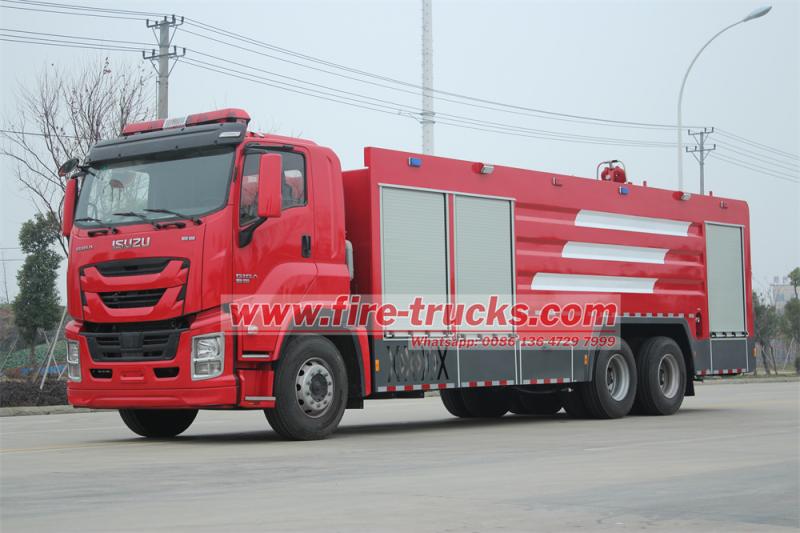

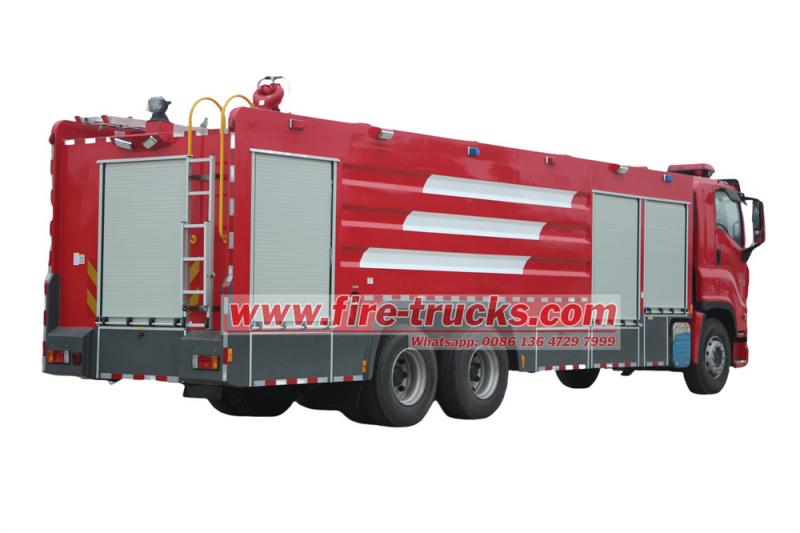

ISUZU 3000-gallon fire tanker is a robust emergency response vehicle engineered for rapid fire suppression and large-scale incident management. Powered by the high-performance 6WG1-TCG60 diesel engine, this unit delivers a formidable 520 horsepower, optimized for torque-intensive operations in urban and off-road environments. aircraft-grade aluminum water tank maintains a 3000-gallon (11,356-liter) capacity with reinforced baffle systems to minimize fluid shift during high-speed maneuvers. Integrated with a dual-stage centrifugal pump rated at 1,500 GPM (5,678 LPM), the system achieves 300 PSI operational pressure through stainless-steel impellers and corrosion-resistant manifolds.
Truck Model:
PT5250GXFPMTanker Structure:
Aluminum Alloy materialWork capacity :
10000 litersWheelbase:
4600+1370 mmAxle drive:
6×4Engine Power:
520 HPEngine Model:
6WG1-TCG61Fire Pump:
CB10/60Fire Monitor:
PL48, 48L/SRemark:
Polypropylene tank optional
ISUZU 3000-gallon fire tanker is a robust emergency response vehicle engineered for superior firefighting efficiency. Powered by a 6WG1-TCG60 diesel engine generating 520 horsepower, isuzu 3000 gallons fire tanker delivers exceptional torque and acceleration, ensuring rapid deployment in critical scenarios. Equipped with a 3000-gallon polypropylene water tank, the tanker supports large-scale firefighting operations. The integrated pump system delivers a flow rate of up to 1,500 gallons per minute, compatible with both foam and water applications. Auxiliary components include a front-mounted monitor nozzle, rear suction ports, and multiple discharge outlets for versatile hose deployment.
Structural Overview of ISUZU 520 HP Fire Tanker Truck
Chassis and Powertrain
The truck is built on a reinforced ISUZU commercial chassis, engineered for heavy-duty operations. It integrates a 520-horsepower diesel engine compliant with Euro V emission standards, paired with a robust automatic transmission system.
Water Tank and Pump System
A corrosion-resistant polypropylene water tank, with a capacity of 6,000–10,000 liters, forms the core of the firefighting unit. It is linked to a high-pressure centrifugal pump capable of discharging 3,000–4,000 liters per minute at 8–10 MPa pressure.
Firefighting Equipment Configuration

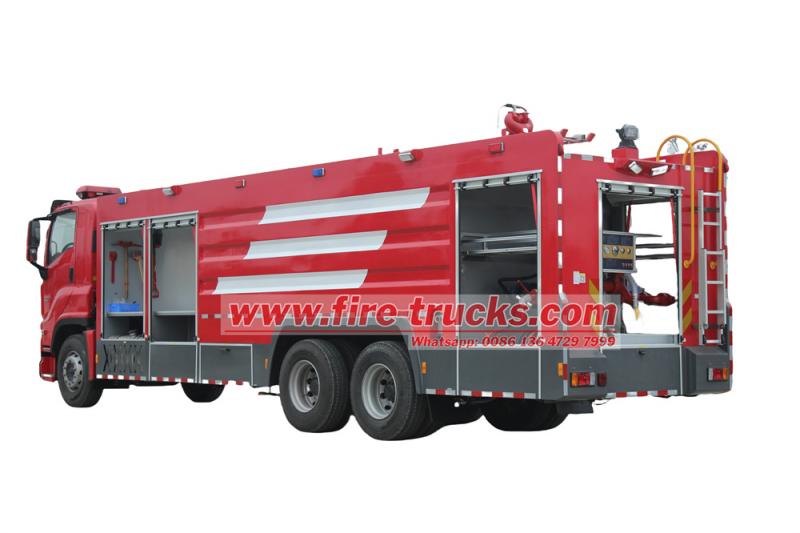

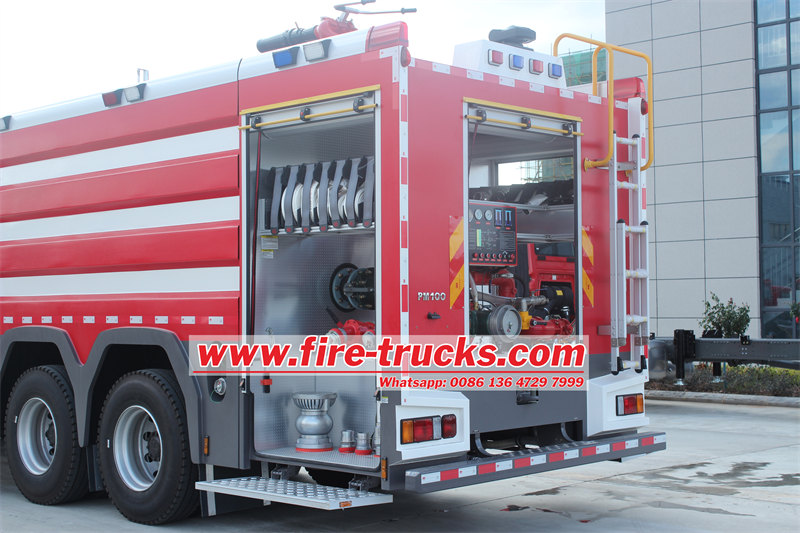

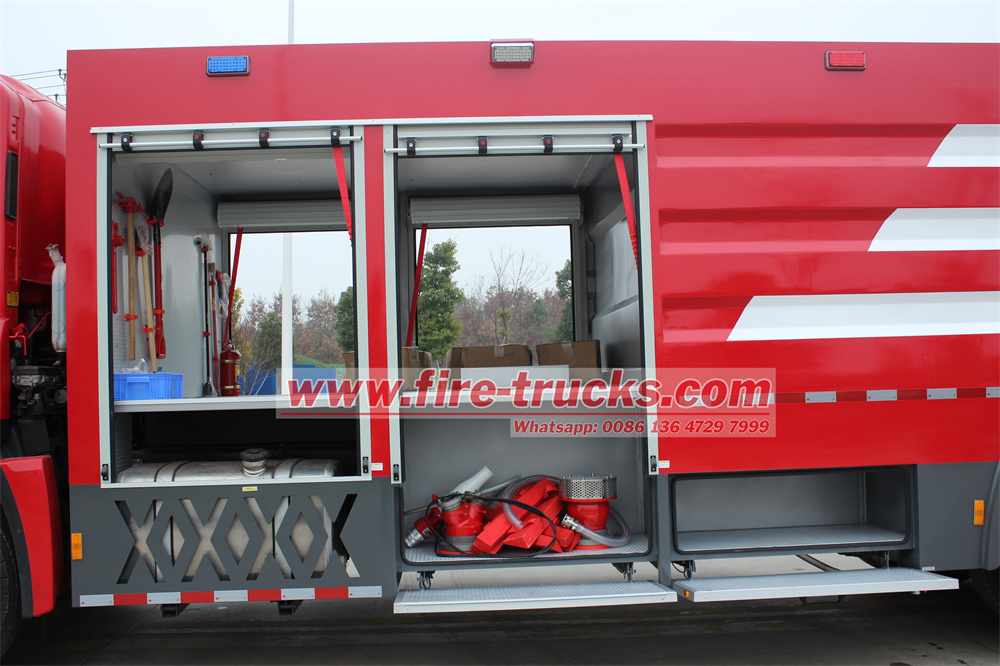

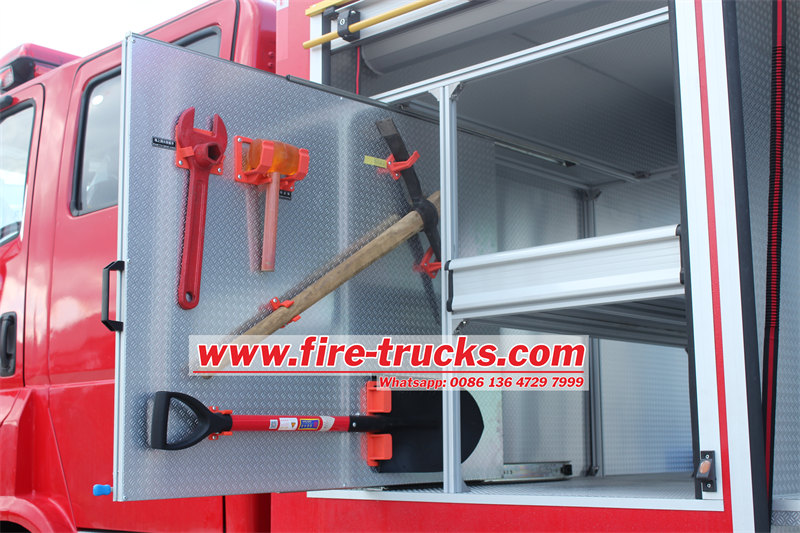

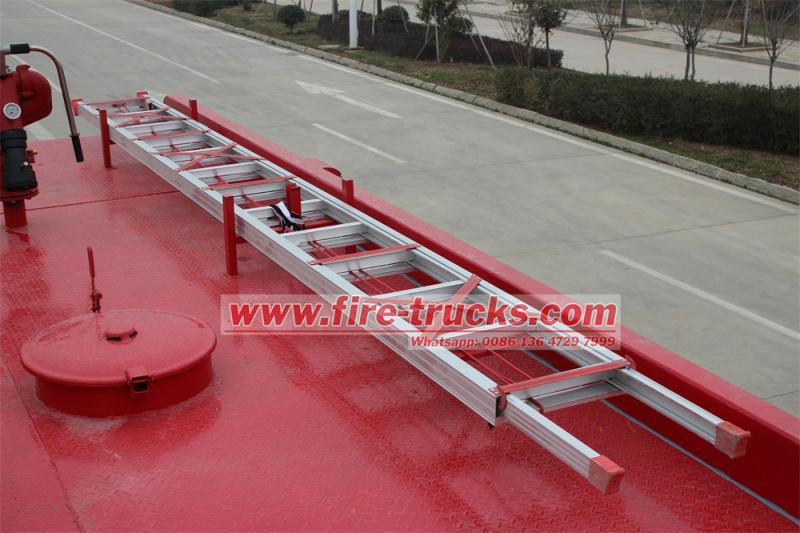

The truck features roof-mounted remote-controlled monitors with 360-degree rotation and elevation up to 60 degrees. Integrated compartments store auxiliary tools: fire-resistant hoses (20–30 meters), breathing apparatus, hydraulic rescue tools, and extendable ladders. An onboard generator (15–20 kW) powers emergency lighting and electronic equipment
●No 1 fire trucks manufacturer in china
● 30 years professional experience DESIGN & PRODCUTION
●24 months long guarantee time
● Quick delivery time, fast shipping.
Product Specifications
|
ISUZU GIGA 6×4 Heavy Fire Engine Technical Specification |
|||
|
|
Item |
Unit |
Parameters |
|
Chassis |
Chassis brand |
/ |
ISUZU |
|
Model |
/ |
PT 5350 |
|
|
Drive type |
/ |
6x4 left hand drive |
|
|
Cabin |
/ |
ISUZU GIGA VC61, double row, 2+4 seats |
|
|
Overall dimension(L*W*H) |
mm |
10800*2550*3580 |
|
|
GVW |
kg |
35000 |
|
|
Curb weight |
kg |
17500 |
|
|
Wheel Base |
mm |
4600+1370 |
|
|
Front /rear suspension |
mm |
1015/1890 |
|
|
Approach/departure angle |
(°) |
24/12 |
|
|
Spring No. |
/ |
8/6+5 |
|
|
Tyre No. |
pcs |
10+1 |
|
|
Type & Size of Tyre |
/ |
315/80R22.5 |
|
|
Axle No. |
/ |
3 |
|
|
Steering wheel |
/ |
left hand drive |
|
|
Gear box |
/ |
FAST, 12 speed forward and 2 reverse, manual |
|
|
Engine |
Engine model |
/ |
6WG1-TCG61 |
|
Engine brand |
/ |
ISUZU |
|
|
Engine type |
/ |
6 cylinders in line |
|
|
Maximum power |
HP/kw |
520/382 |
|
|
Fuel type |
/ |
Diesel |
|
|
Displacement |
ml |
11,939 |
|
|
Emission Standard |
/ |
Euro VI |
|
|
Tanker |
Water tanker |
/ |
10000 liters, carbon steel |
|
Foam tanker |
/ |
2000 liters, stainless steel |
|
|
Fire pump |
Model |
/ |
CB10/60, Normal pressure pump |
|
Outlet Rated Pressure |
Mpa |
1.0 |
|
|
Max suction height |
m |
7 |
|
|
Flow |
L/S |
60 |
|
|
Rated speed |
r/min |
3280 |
|
|
Priming time (s) |
s |
≤50 |
|
|
Fire monitor |
Model |
/ |
PL48 |
|
Range |
m |
Water ≥70 |
|
|
m |
Foam ≥60 |
||
|
Flow |
L/S |
48 |
|
|
Rated Working pressure |
Mpa |
0.8 |
|
|
|
Pitching rotation |
° |
-45～+70 |
|
|
Horizontal rotation |
° |
0～360 |

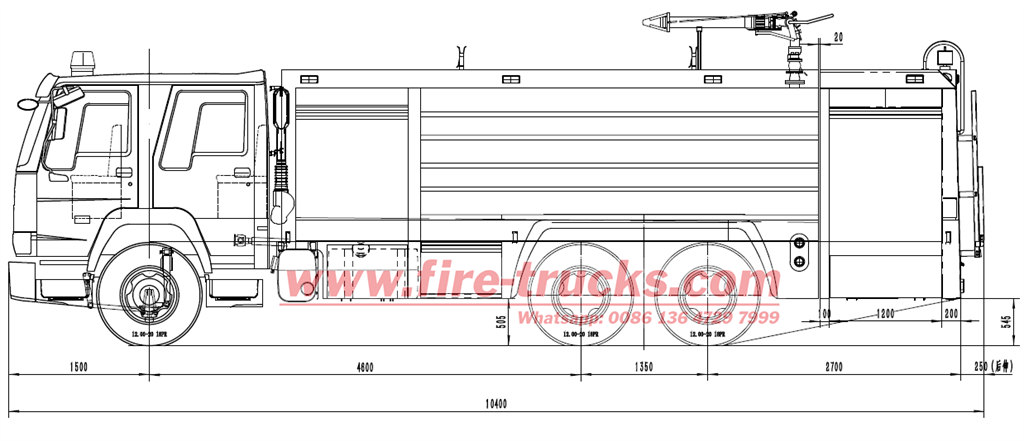

Technical Drawing
ISUZU 520 HP fire tanker truck employs a multi-phase approach to combat fires efficiently. Below is an overview of its operational mechanism divided into four key components:

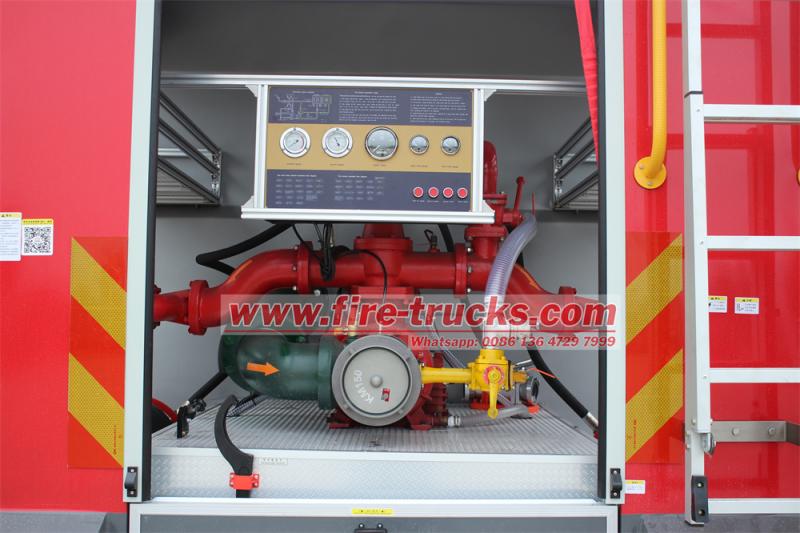

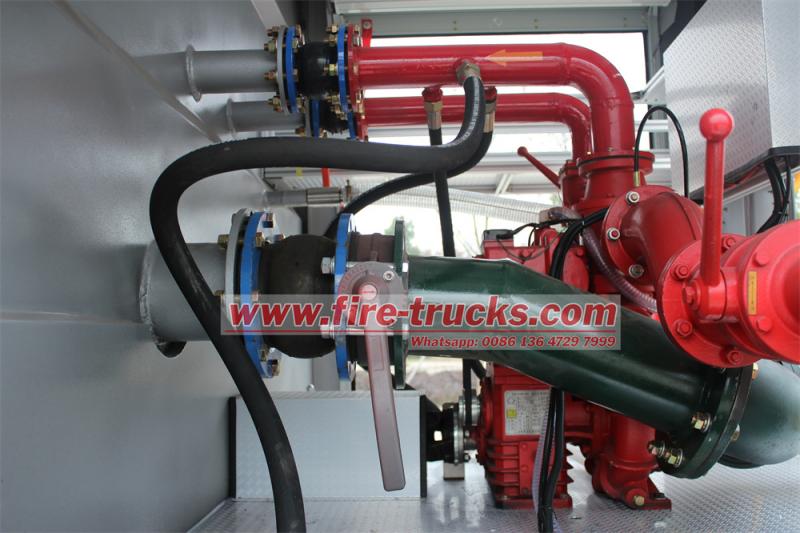

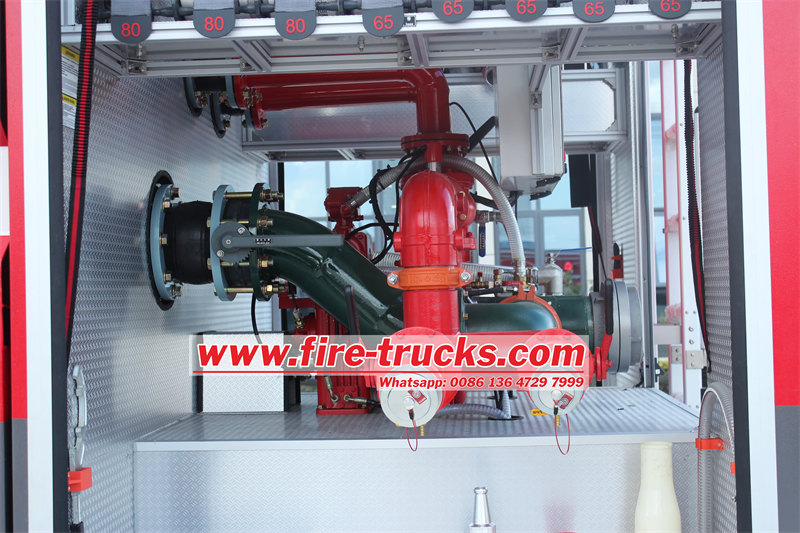

High-Pressure Water Pump System
Powered by a 520-horsepower engine, the truck’s centrifugal pump draws water from an onboard tank or external sources (hydrants, lakes) at rates up to 6,000 liters per minute. The pump pressurizes water through reinforced hoses, enabling rapid deployment.

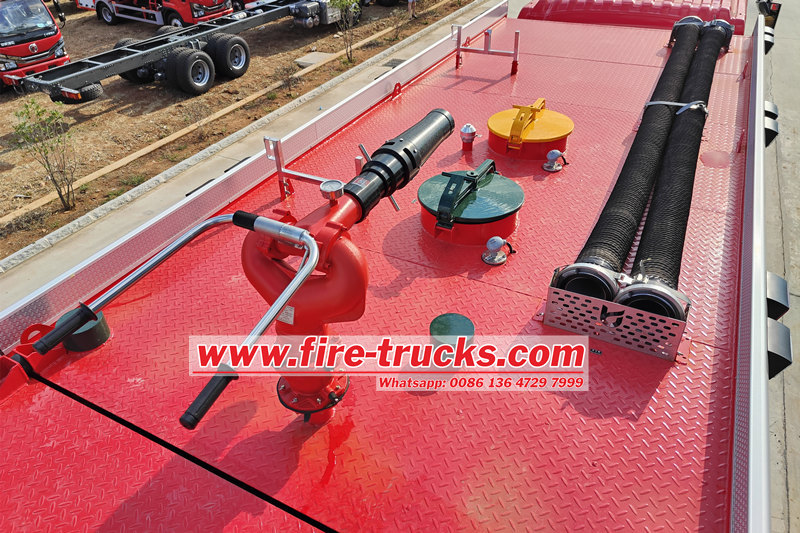

Adjustable Water Cannon Mechanism
A roof-mounted, 360-degree rotating cannon projects water or foam mixtures up to 80 meters. Operators control spray patterns (straight stream, fog, or hybrid) via an electronic joystick, adapting to fire types—Class A (solid combustibles) or Class B (flammable liquids).
Integrated Foam Induction System
For chemical or fuel-based fires, the truck mixes aqueous film-forming foam (AFFF) with water in a 1-3% concentration ratio. An automated proportioning valve ensures precise chemical blending, creating a vapor-suppressing layer that cools flames and prevents reignition.
Real-Time Monitoring and Mobility
Onboard thermal imaging cameras and gas detectors relay data to a central control panel, enabling dynamic strategy adjustments. The 6x4 all-terrain chassis allows access to confined urban or rural zones, while auxiliary lighting and stabilizer legs ensure operational stability during prolonged firefighting.
Product Details

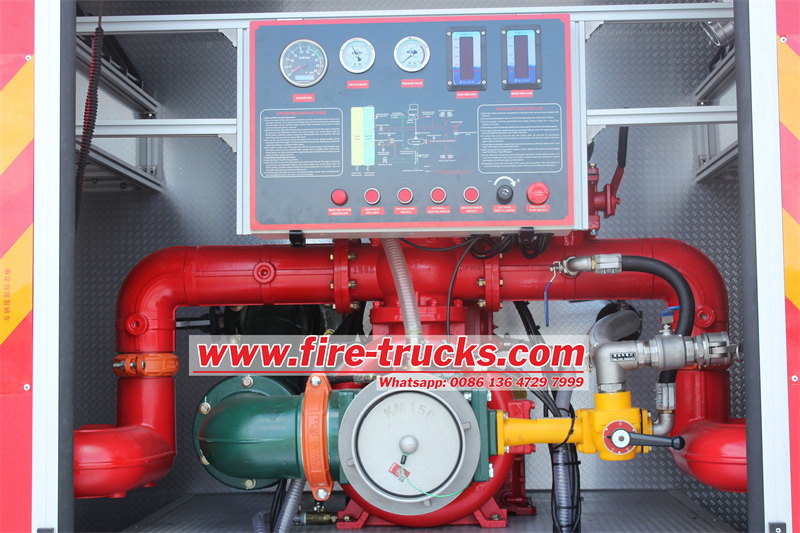

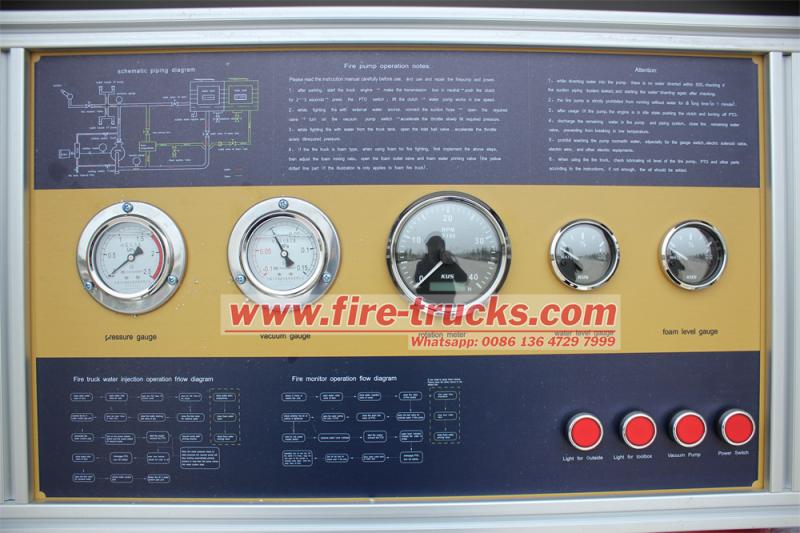

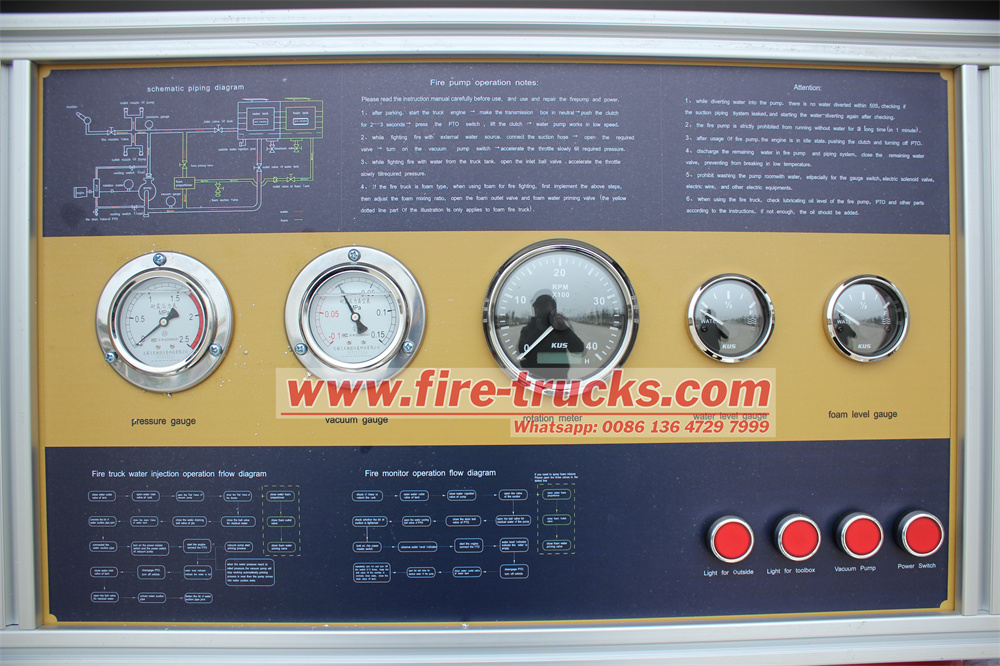

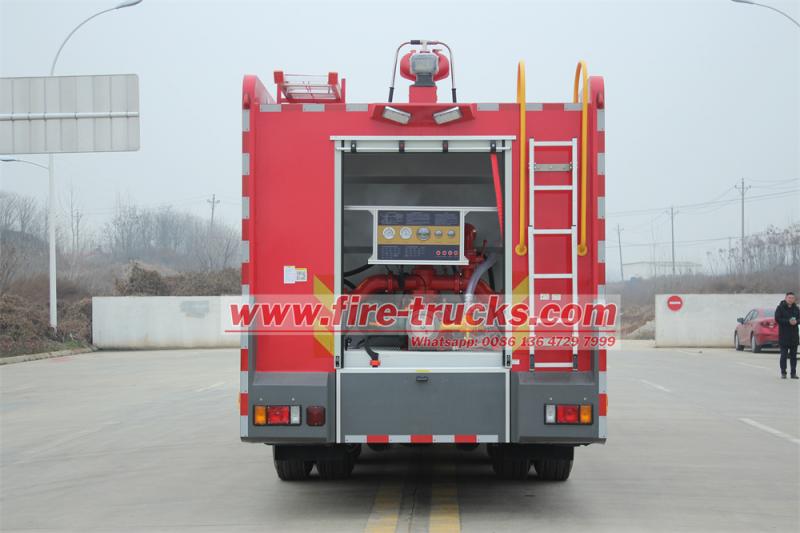

Isuzu GIGA 6X4 foam fire truck adopts Isuzu VC61 6x4 chassis, equipped with 4600+1370mm wheelbase, 6UZ1-TCG61 380HP engine, Fast 12-speed gearbox, and the upper is equipped with an 8-cubic carbon steel water tank and a 2-cubic stainless steel foam tank. It uses CB10/60 fire pump and PL8/48 water-foam dual-purpose fire monitor. The control panel at the rear of the vehicle can monitor the pressure gauge, tachometer, vacuum gauge, water level gauge, foam level gauge, etc. in real time. The vehicle is also equipped with a series of firefighting equipment for firefighting support.
Details

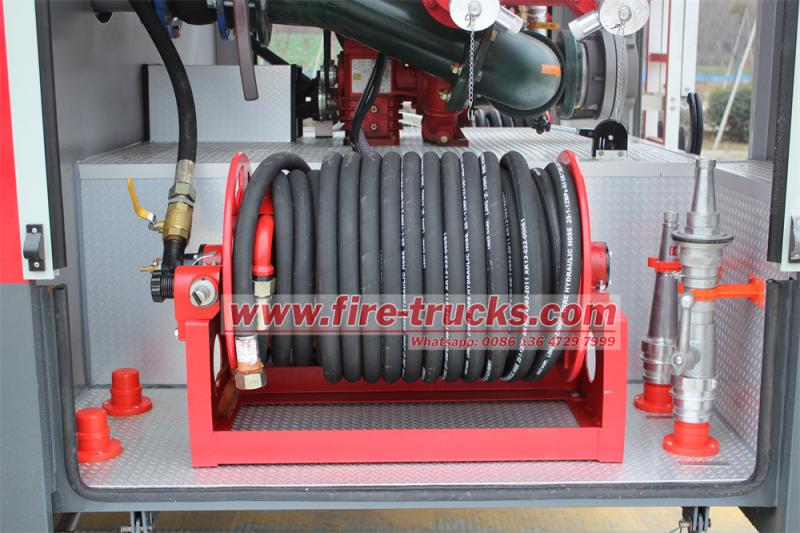

Isuzu FVR 6cbm foam fire truck adopts the old Isuzu FVR half-row cab chassis, 4500mm wheelbase, maximum speed 105Km/h, equipped with Isuzu 6HK1-TCG61 240HP diesel engine, FAST 8-speed gearbox, The upper installation is a 5-ton carbon steel water tank (tank body is treated with anti-corrosion), 1-ton 304 stainless steel foam tank, the front equipment box is a through warehouse, with an aluminum alloy equipment rack, the pump room is rear-mounted, equipped with CB10/40 low-pressure fire pump, 1 reel of 30 meters of medium-pressure reel,, the top of the body is equipped with PL8/32 fire monitor, with red warning lights, all red flashing lights, the rear of the vehicle is equipped with 360-degree rotating lighting, the warning lights/fire monitors/ladders are detachable.
Details
Isuzu ELF Police Fire Fighting Truck is special police emergency vehicle designed for rapid response. Built on Isuzu’s light duty ELF NPR chassis, it is powered by a 4HK1-TCS 5.2L turbocharged diesel engine 190 hp Equipped with a high-pressure centrifugal pump, it delivers a flow rate of 1,500–3,000 liters per minute at 8–10 bar pressure. The roof-mounted manual controlled fire monitor (water/foam compatible) offers a horizontal range of 50–70 meters and vertical reach of 30–45 meters
Details
The ISUZU GIGA Water/Foam Fire Truck is built on an ISUZU GIGA 4×2 chassis and equipped with a 380HP Euro VI engine, delivering powerful and eco-friendly performance. It features an 8,000-liter stainless steel water tank and a 2,000-liter foam tank to meet prolonged firefighting demands. The core components include a CB10/60 fire pump (60L/s flow rate) and a PL48 fire monitor (water range 70m/foam range 60m), ensuring outstanding fire suppression capabilities. The double-row cabin accommodates six firefighters and is equipped with an air conditioning system for enhanced operational comfort. With its modular design and compact structure, this truck is ideal for urban firefighting, industrial zones, and various fire scenarios, making it a perfect choice for professional fire brigades.
Details
new or used Isuzu Fire Rescue Truck mounted Crane is a specialized firefighting and rescue vehicle equipped with an integrated crane system, designed to handle heavy lifting and complex rescue operations during emergencies. The crane (typically ranging from 3 to 15 tons in capacity) enables lifting and moving debris, vehicles, or equipment at disaster sites.
Details
Moldova brand new 2025 Isuzu 4X GIGA fire pump fire truck quickly arrived at the fire scene with its powerful power system and stable chassis performance. The Isuzu 4KH1 205 horsepower engine equipped on the vehicle ensures rapid response capabilities under complex road conditions and buys precious time for rescue. In this fire rescue, the Moldovan fire department invested in the newly introduced Isuzu GIGA fire truck.
Details
The HOWO 6×6 off-road fire truck is a high-performance firefighting vehicle built on the HOWO 6×6 all-wheel-drive chassis, specifically designed to tackle complex terrains and extreme fire scenarios. Equipped with a WP10.380 engine, a CB10/60 high-flow fire pump, a PL8/48 dual-purpose foam-water monitor, and a remote-controlled monitor, this vehicle boasts powerful performance, efficient firefighting capabilities, and exceptional off-road mobility, making it suitable for firefighting operations in oil fields, mines, forests, and other challenging environments.
Details
Isuzu aerial ladder fire truck modify based on Japanese ISUZU GIGA 4x2 truck chassis equipped with high altitude aerial ladder and can be cusotmized to optional with water and foam tanker body. It’s powered by engine 6WG1-TCG61 with 460HP and emission can be 15681cc. The equipped ladder device with maximum working height can be 32m, which is widely used in urban fire brigades, petrochemical field, industrial factory and mining enterprises. Isuzu ladder fire truck used to transport firemen and fire equipment on high altitude to fire scene to carry out fire extinguishing work.
