Isuzu GIGA 32M fire ladder truck

Isuzu GIGA 32M fire ladder truck

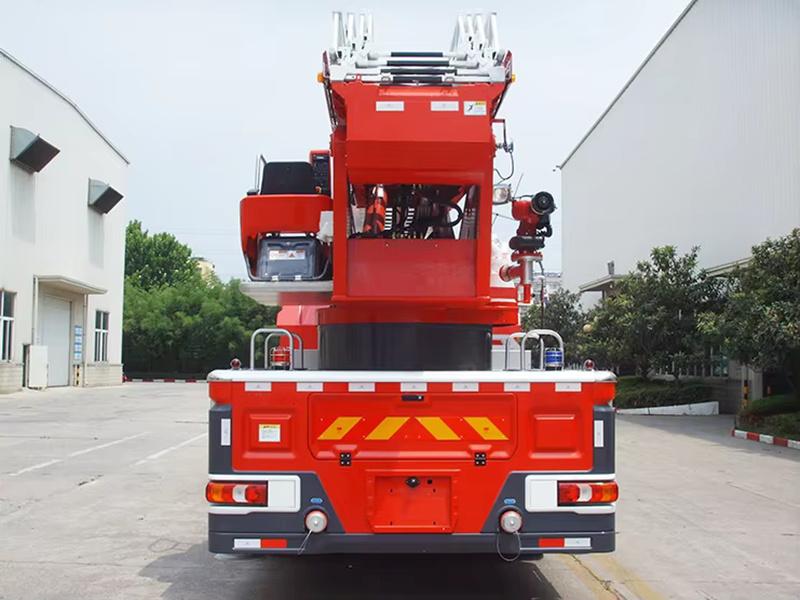

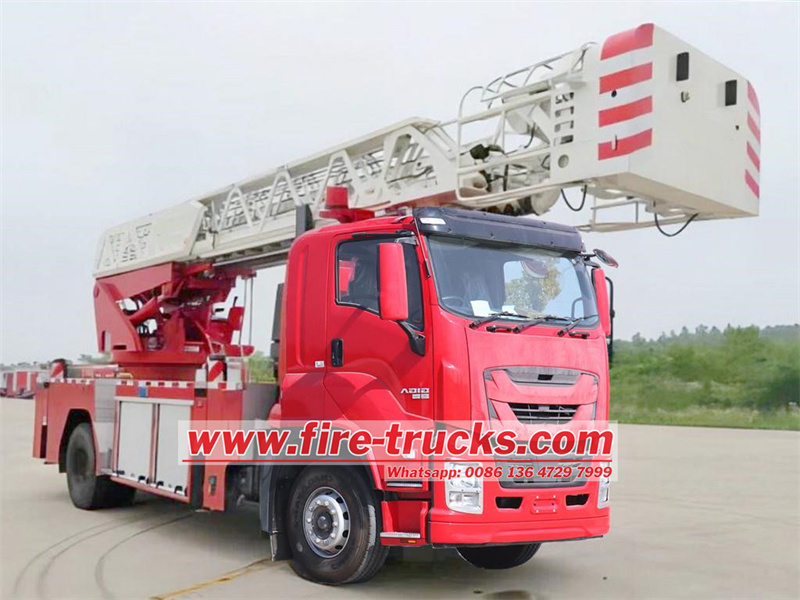

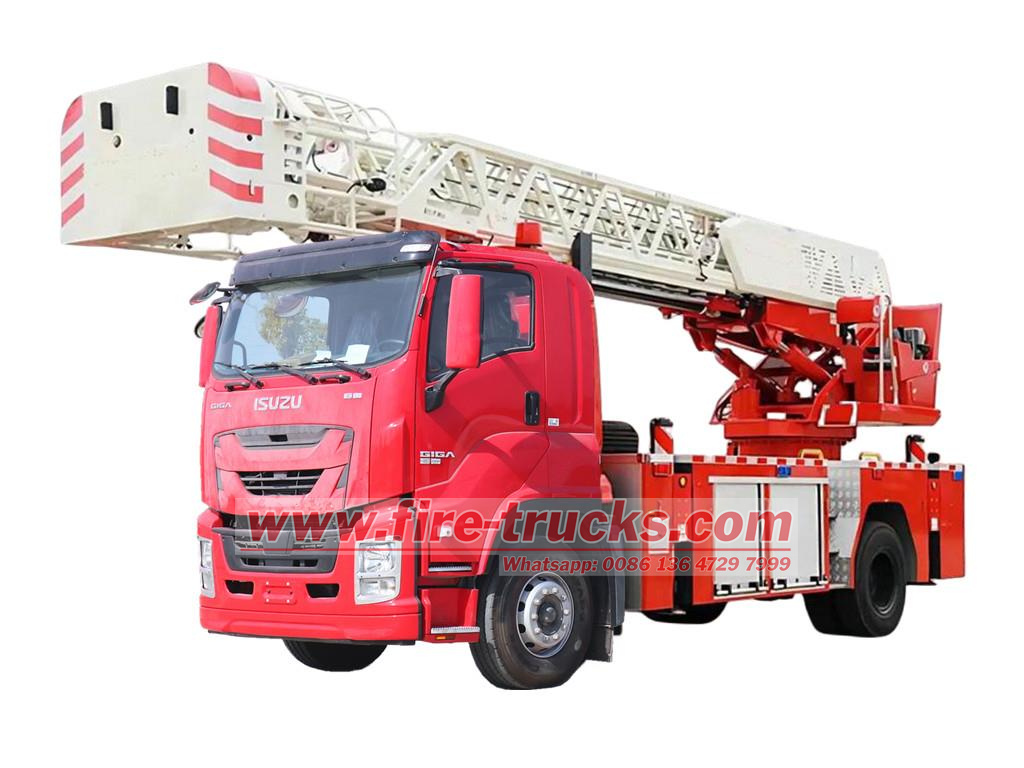

Isuzu aerial ladder fire truck modify based on Japanese ISUZU GIGA 4x2 truck chassis equipped with high altitude aerial ladder and can be cusotmized to optional with water and foam tanker body. It’s powered by engine 6WG1-TCG61 with 460HP and emission can be 15681cc. The equipped ladder device with maximum working height can be 32m, which is widely used in urban fire brigades, petrochemical field, industrial factory and mining enterprises. Isuzu ladder fire truck used to transport firemen and fire equipment on high altitude to fire scene to carry out fire extinguishing work.

  • Truck Model:

    PT5220GXFYT32
  • Tanker Structure:

    Optional to be 5000L
  • Work capacity :

    32m
  • Wheelbase:

    4600mm
  • Axle drive:

    4x2,LHD
  • Engine Power:

    460HP
  • Engine Model:

    Isuzu 6WG1-TCG61
  • Fire Pump:

    CB10/100, 100L/s
  • Fire Monitor:

    PL80
  • Remark:

    Customized aerial ladder with lifting height 32m
Facebook Linkedin Youtube Twitter Pinterest

Newly designed PT5220GXFYT32 model high altitude aerial ladder fire truck is based on the existing mature technology of our company, and produced based on original Japanese ISUZU GIGA 4x2 truck chassis, equipped with super powerful diesel engine 6WG1-TCG61, with 460HP and emission can be 15681cc. Isuzu Ladder Fire Truck is focuses on the design, development and manufacturing technology of upper structure ladders, leveling control technology of turntables, double helix twin-rotation winding and telescoping technology, multi-state operating curve control technologies, and independent work platform leveling control technologies, etc. , is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting. With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, ISUZU 32m aerial ladder platform truck is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.



Efficient rescue capabilities

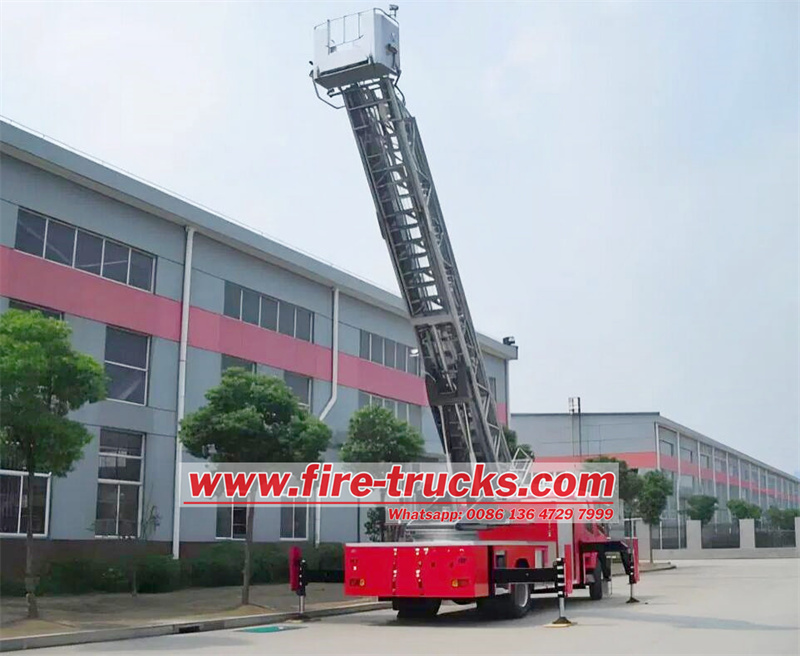

The Isuzu GIGA ladder fire truck working bucket load is 450kg (3~6 people), it only takes 30s for the vehicle to enter the combat state, and it only takes 60s for the ladder frame to extend to the highest and fastest; The ladder frame can achieve 360° continuous rotation; Strong wind resistance, up to 6 wind speed (125m/min).
Powerful fire extinguishing system
Isuzu ladder fire fighting truck is optional to be fully equipped with pumps, cannons, water tanks, B foam systems and telescopic water pipes, which have the characteristics of large flow, small loss and convenient operation, and can effectively deal with all kinds of solid and liquid fires. Also the Isuzu ladder fire truck can only equipped with customized 32m ladder and multiple working with Isuzu water tanker fire truck or Isuzu foam tanker fire truck.
Intelligent control system
Intelligent control system based on CAN BUS communication, high-precision sensors, advanced logic algorithms, humanized interactive interface, and fully automatic electronic control operation make the operation of the whole vehicle simple and reliable.



01, Truck chassis:

Model

Parameters

others

Chassis

ISUZU GIGA

Fire application

GVW

22000kg



Engine Model

6UZ1-TCG61

ISUZU

Engine Power

380 HP



Wheelbase

4600 mm



Driving Type

4x2/ 6 wheels

Left hand

Transmission

FAST 12-shift

Manual

Emission Standard

9839 ml

Euro 6



02, Fire Fighting System:

Fire Fighting Gun

PLKD48 electronically controlled fire monitor

Flow: 48L/s, working pressure≤0.8MPaFiring range≥60m Gun head swinging range: Pitch angel: -45°+60°

rotation angle: -85°+60°

Water line control

Water line control modes: manual

Fire-fighting pipeline

Superstructure: Aluminum alloy tube

Base: stainless steel telescopic water pipe + stainless steel knitted metal

corrugated hose + rubber hose

Fire coupling configuration

Interface

Specifications

valve

Position

Pressure water

interface (in)

2×DN80

——

2 at the rear of

the vehicle body

Pressure water interface (out) of

working platform

DN65

Manual gate valve

Front end face of platform

Coupling type of water inlet/outlet: standard quipped with snap-type(quick), and can be replaced with the hermaphroditic type coupling

Snap-type coupling is advised in cold area.



03, Electrical Control System:

Operating platform

Console position of the upper vehicle: Left side of the turntable (with seat) and working platform. There is a line calling device between the two operating stations.

Type of whole vehicle control; Operation interface, computer control at rear.

Computer display screen: Color LCD display screen. It can display the amplitude of the boom, the work curve of the telescopic work, the orientation of the boom and the cab, and can also display the data such as the working height of the boom, the angle of the amplitude change, and the working radius, and the fault can be queried through the display screen.

Outrigger leveling

Automatic leveling and manual leveling

Warning light

Two round warning lights are installed on the top of the cab; Alarm is installed inside driver’s cab;

1 red strobe light and 1 blue strobe light on the left and right of the rear.

Lighting

Bracket lighting of the arm rest Lighting of platform



04, The Working Platform:

Dimension.

Approx. 2000×900×1200mm, Loading weight 350-450kg

The working platform

Aluminum profile welding frame structure, the lower bolts are connected to the steel brackets, and the bottom plate adopts a protective pattern plate; Rear door is side placed to facilitate the operator to enter the working platform;

Devices

Anemometer is installed on the work platform; Anemometer is installed on platform;

An ultrasonic wave anti-collision device is installed in front of and below the platform.

Firefighting and self- protection system

It has a working platform spray protection, working platform control, and manual ball valve;

Work platform is equipped with a DN65 outlet and manual gate valve;



05, The Truck Body:

Enclosure of vehicle body

Ladder: each one at both sides of vehicle body; 1 for each side of vehicle body

Vehicle body frame: Profile frame

Enclosure of vehicle body: Paste aluminum plate

Upper walking plate of vehicle body: Laying with oxidized non-slip aluminum alloy

Storage compartment/toolbox: Aluminum frame, with lock. Aluminum-alloy roller shutter door

Vehicle body color

The color of superstructure is bright white;

The exterior surface of cab, tank body and housing is fire red.



06, Other Configuration:

Standard configuration

Traffic monitoring system (integration of navigation, driving record, reversing camera, and reversing radar)



07, Technical Parameter

Items

Parameters

Size parameters

Boundary dimension

Length

mm

10600

Width

mm

2500

Height

mm

3900

Wheel base

mm

4600

Quality parameters

Weight

Total mass

kg

22000

First shaft

kg

9000

Second shaft

kg

13000

Chassis parameters

Model

ISUZU GIGA

Drive type

4×2

Manufacturer

POWERSTAR

Engine

Model

6WG1-TCG61

Power

460HP



07, Operation Performance

Item

Parameters

OutOperation performance

Rated working height   m

32

Rated working range  m

20~23Rotational amplitude variable

Working platform dimensions (length × width × height)  m

2000×900×1200

Working platform rated load      kg

350-450

Leg span (vertical × horizontal) m

5200×5400

Outrigger unfolding time

25s

Time for boom raising to rated height and rotating 90°

55s

Arm rest actuation time     s

≤120

Spread time of outrigger    s

≤30

Maximum slewing speed   r/min

0.21.0

Maximum allowable slope  °

3

Maximum allowable operating force of and

working platform

450

Firefighting gun

Water shooting

Model

PLKD48

Rated flow   L/s

48

Rated pressure     MPa

≤0.8

Rated firing range     m

≥75

Swinging range of the head

Up and down      °

-45+60

Left and right      °

-85+60

Arm rest

Arm type

Material

Aluminum alloy material with telescopic ladder model

Working height

32m

Range of amplitude

Boom elevating range

Telescopic boom -12°~+75°

Slewing range

360° full-rotation

Max. slewing speed of turntable

0.5~1.5r/min
