ISUZU GIGA 8cbm Water Fire Truck Manual

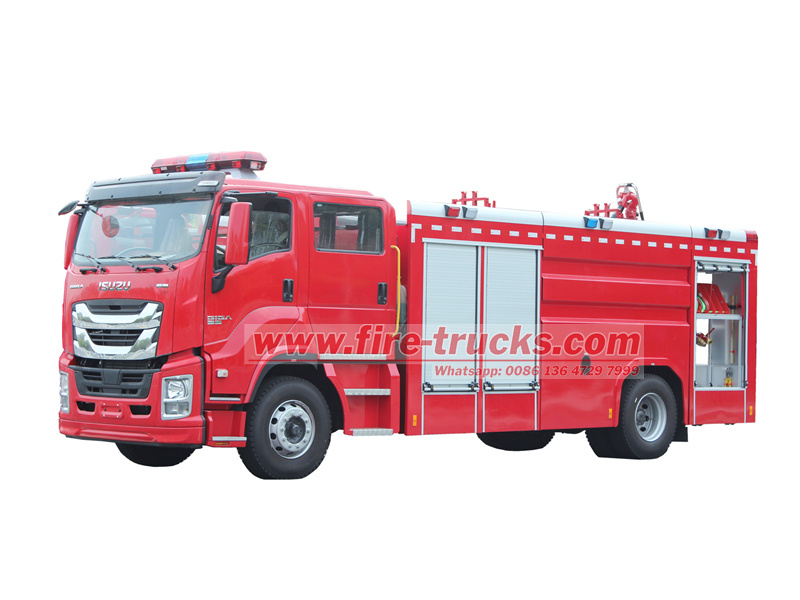

In the field of firefighting, an efficient and reliable fire truck is an indispensable and important equipment to ensure public safety. ISUZU GIGA 8cbm Water Fire Truck, as a special vehicle designed for firefighting and rescue, has become the first choice of many fire departments with its excellent performance and perfect configuration. This manual will introduce the main components, technical parameters, working principles, operation guidelines and maintenance points of this fire truck in detail, aiming to help users better understand the performance of the vehicle and ensure that they can perform tasks quickly and effectively in emergency situations.   ISUZU GIGA 4x2 8cbm Water Fire Tender is a special vehicle designed for firefighting tasks. The vehicle adopts the ISUZU GIGA heavy truck chassis with strong carrying capacity and excellent performance. It is equipped with a large-capacity water tank of 8000L, which provides sufficient water source guarantee for long-term and large-scale firefighting operations. The water tank is made of high-quality carbon steel material, and the interior is specially treated to ensure the strength of the structure and effectively prevent corrosion and pollution. In terms of fire pumps, the vehicle is equipped with a CB10/60 fire pump (60L/s, 1.0MPa), which has the characteristics of large flow and high pressure. It can quickly pump water from the water tank and spray it out through a high-pressure water gun or fire cannon to effectively control the fire source. The CB10/60 fire pump is easy to operate and has stable performance. It is one of the key equipment on the fire truck.   In addition to the powerful water tank and fire pump, the ISUZU GIGA 8cbm Water Fire Truck is also equipped with a PS40 fire monitor (40L/s, 0.8MPa, range ≥ 65 meters, pitch rotation -30～+70°). This fire cannon has the advantages of long range and wide coverage area. It can flexibly adjust the spray angle and flow according to different fire conditions to achieve precise fire extinguishing. At the same time, the operation of the fire cannon is also extremely simple. Firefighters can easily complete various spraying actions through a simple control handle.   In other configurations of the vehicle, the ISUZU GIGA 8cbm foam water fire rescue truck also performs well. The equipment box and pump room are equipped with complete firefighting equipment, including water collectors, water distributors, water filters, water hoses, water guns, fire axes, shovels, pickaxes, wrenches, fire suits, etc., which can meet the firefighting and rescue needs of various complex fire scenes. In addition, the vehicle body is made of high-strength materials and equipped with a variety of safety protection devices to ensure safety during firefighting and rescue.     When using ISUZU GIGA 8cbm Water Fire Truck, firefighters should be familiar with the various performance and operation methods of the vehicle. In particular, when pe...
