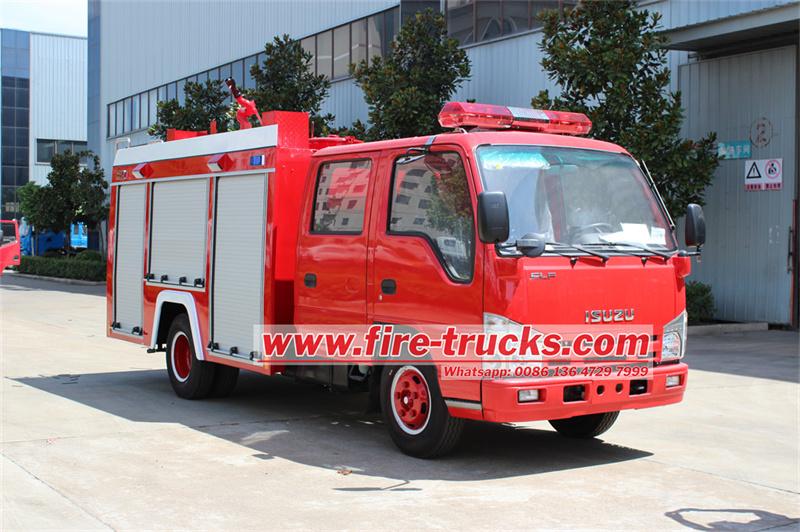

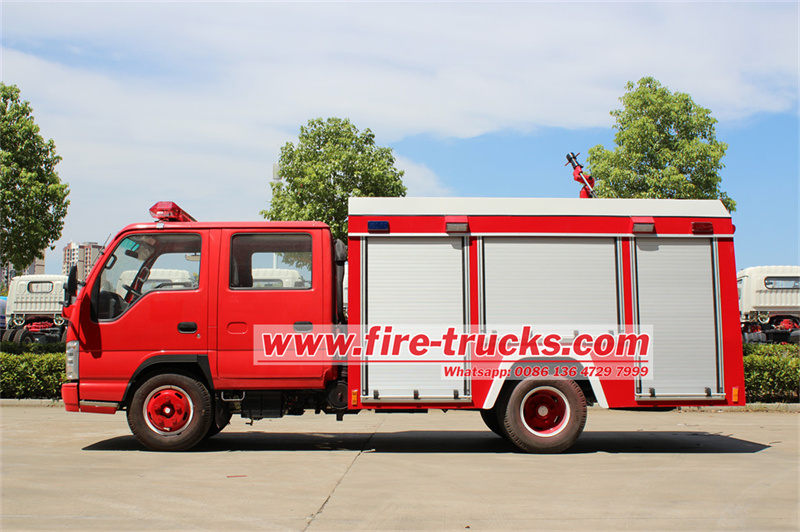

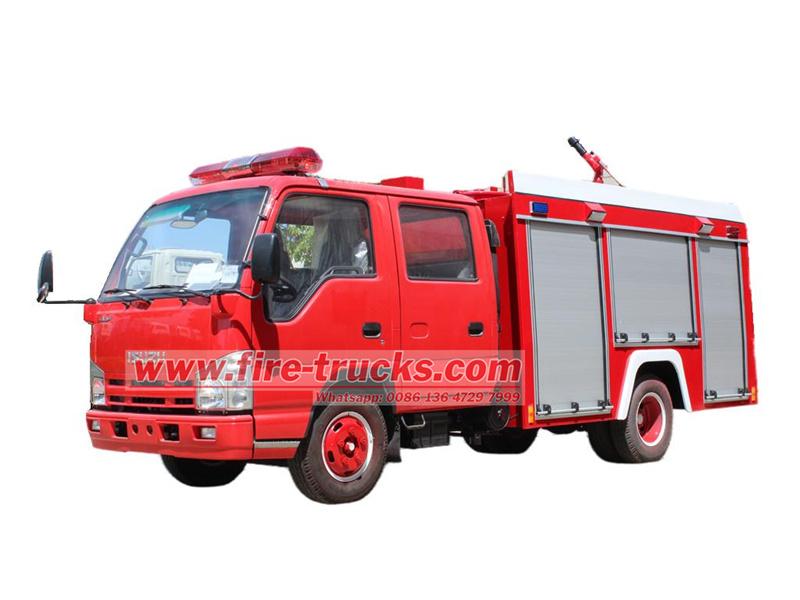

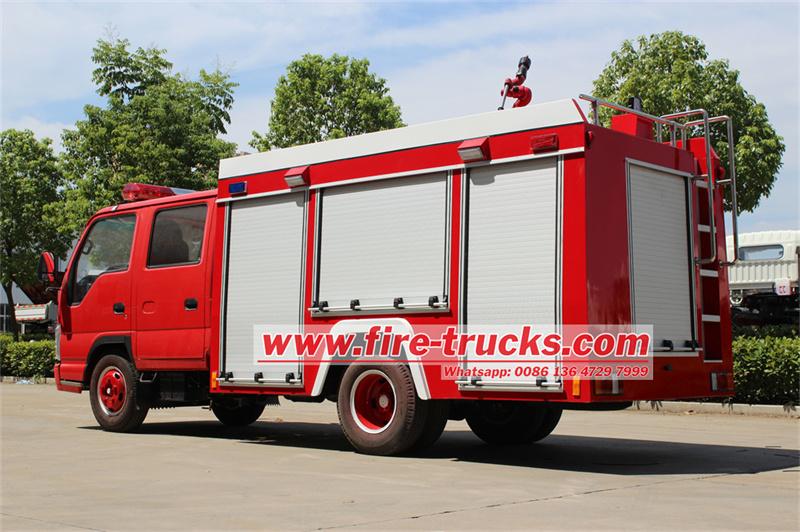

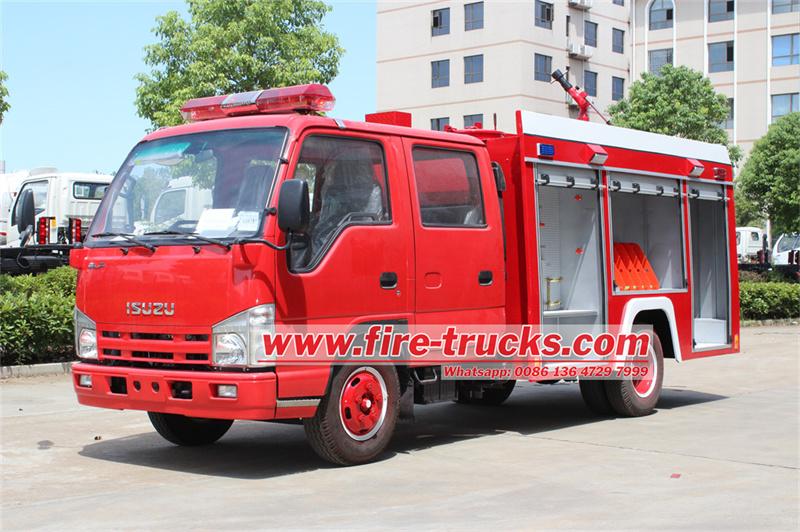

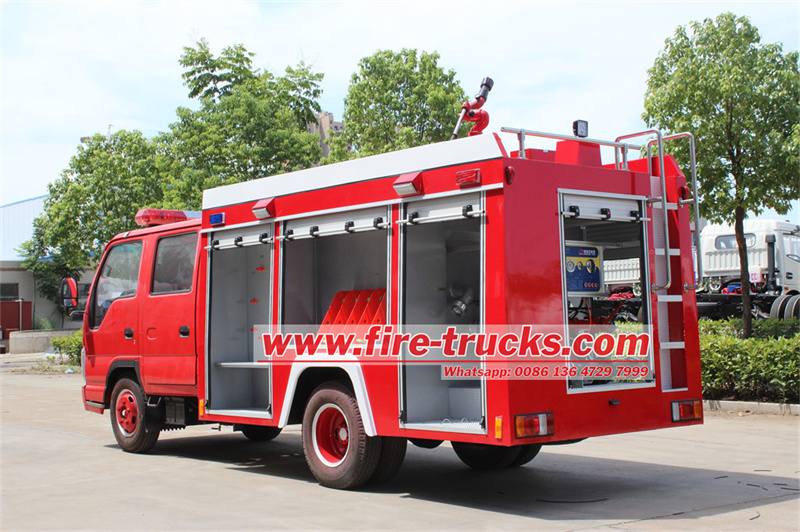

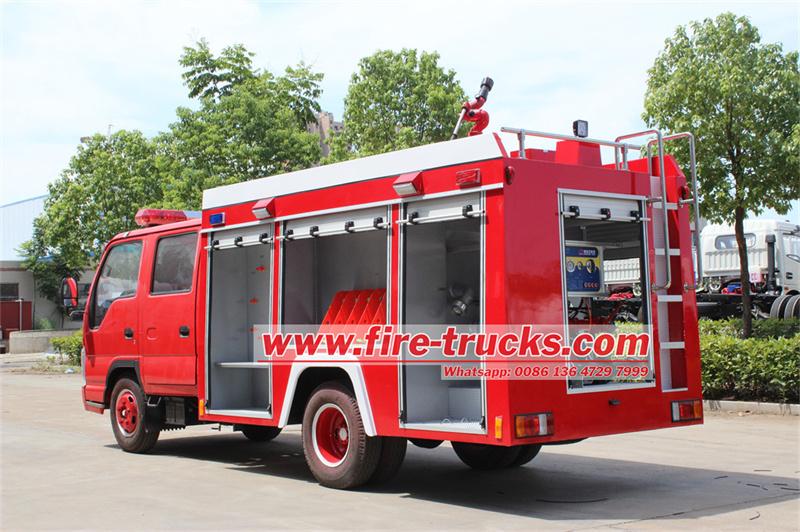

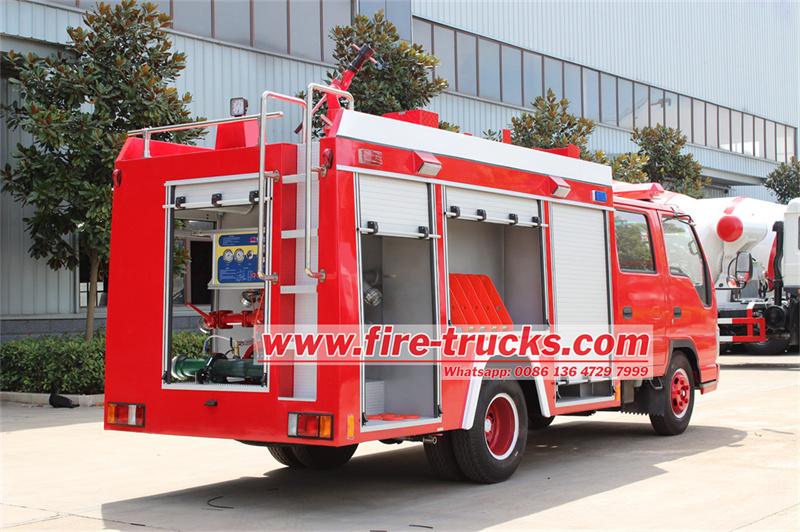

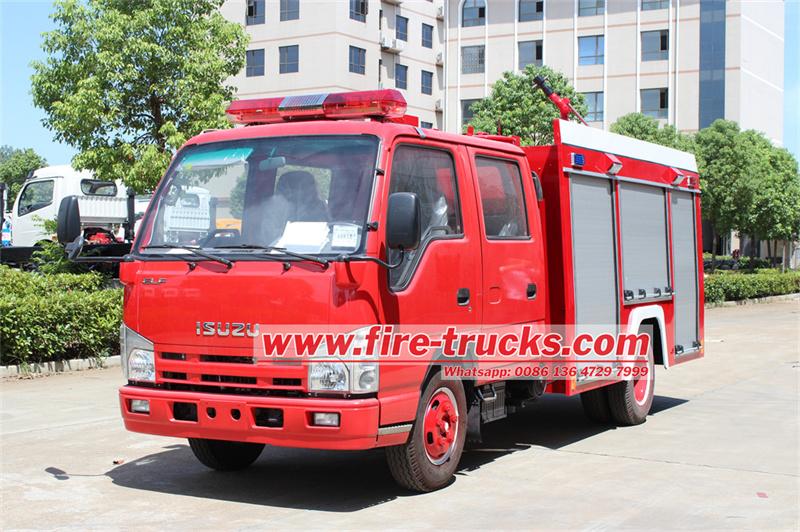

This is Isuzu NKR mini fire fighting truck built on the basis of ISUZU NKR Chassis. It is equipped with a powerful ISUZU 4KH1CN6LB engine with a displacement of 2.99L and an output power of 120 horsepower. The maximum speed can reach 95km/h. It is compact and flexible, and easy to operate to adapt to various complex road conditions.In terms of the fire fighting system, the vehicle is equipped with a 2600-liters carbon steel water tank. The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 36L/s. The fire cannon has a spray speed of 32L/s and a range of 45-55 meters, which can effectively deal with various fire situations. The Isuzu NKR fire truck is also equipped with a full set of standard firefighting and rescue equipment
Truck Model:
PST50401SXFTanker Structure:
High quality stainless steelWork capacity :
2600L WaterWheelbase:
3360mmAxle drive:
4x2Engine Power:
120HPEngine Model:
4KH1CN6LBFire Pump:
CB10/30, 1600L/minFire Monitor:
PS32, 32L /SRemark:
Stainless steel tank body, light-dutyThis is Isuzu NKR mini fire fighting truck built on the basis of ISUZU NKR Chassis. It is equipped with a powerful ISUZU 4KH1CN6LB engine with a displacement of 2.99L and an output power of 120 horsepower. It adopts a 4X2 drive mode and is equipped with an MSB 5 speed gearbox. The maximum speed can reach 95km/h. It is compact and flexible, and easy to operate to adapt to various complex road conditions.
In terms of the fire fighting system, the vehicle is equipped with a 2600-liters carbon steel water tank. The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 36L/s. The fire cannon has a spray speed of 32L/s and a range of 45-55 meters, which can effectively deal with various fire situations. The Isuzu NKR fire truck is also equipped with a full set of standard firefighting and rescue equipment, such as shovels, crowbars, axes and cutting equipment, etc., and ladders and floodlights are optional.
● China best fire fighting truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Specification:
ISUZU NKR mini fire fighting truck |
|||
General |
Vehicle Brand |
Powerstar |
|
Chassis Brand |
ISUZU |
||
Overall Dimension |
6300*2280*2750mm |
||
GWW/ Kerb Weight |
7,600kg/4,220kg |
||
Painting |
Red color |
||

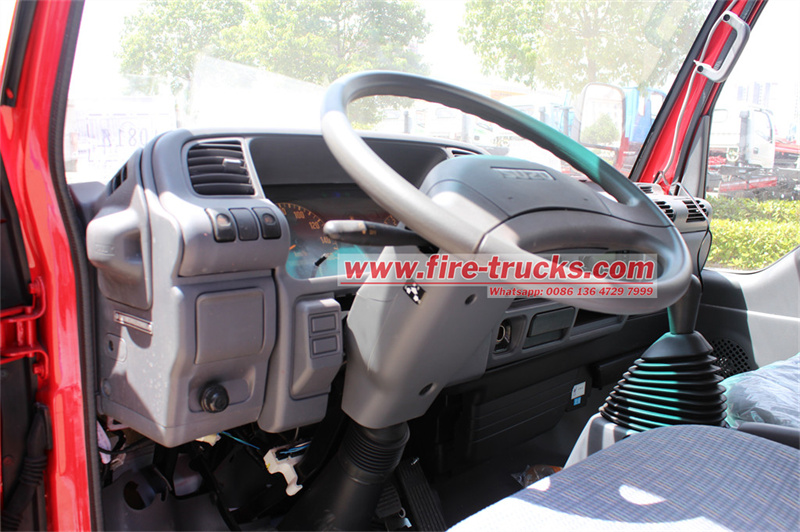

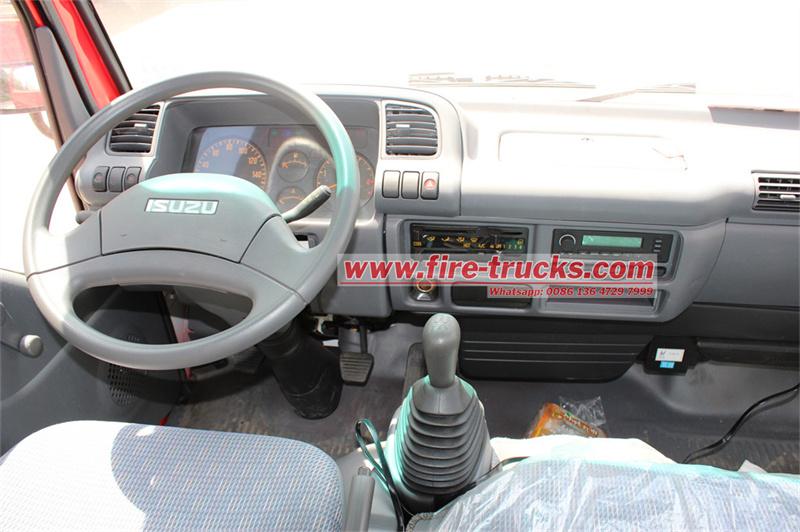

Cab |
Cab Capacity |
2+4 persons allowed |
|
Air Conditioner |
air conditioner |
||
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU engine ,4KH1CN6LB |
||
Engine type |
Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
||
Power |
120 HP |
||
Displacement |
2.99L |
||
Emission Standard |
Euro 6 |
||
Chassis |
Drive Type |
4X2,left hand drive |
|
Transmission |
MSB 5-speed forward, 1 reverse |
||
Wheelbase/No.of axle |
3360 mm/2 |
||
Tyre Specification |
700 R16 |
||
Tyre Number |
6 tyres and 1 spare tyre |
||
Max Speed |
95 km/h |
||
Fuel tank capacity |
70L |
||
PTO |
Full power sandwich type |
||

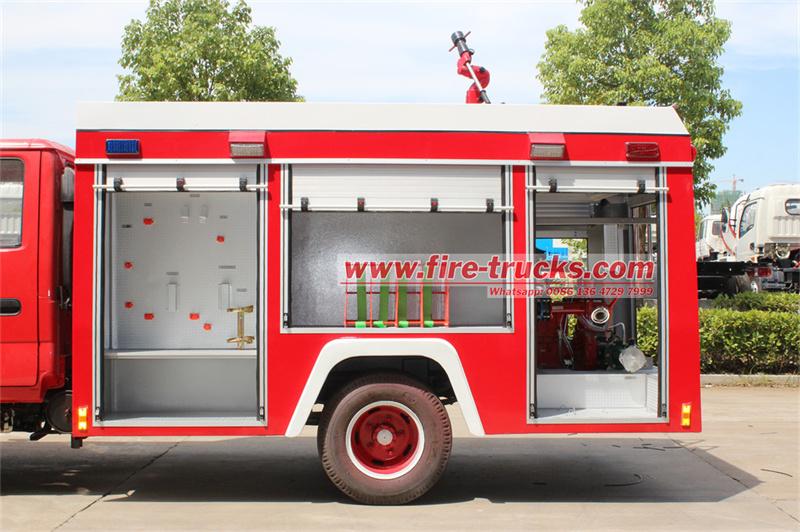

Superstructure |
Water Tank Capacity |
2,600 Litres |
|
Tank Material |
Stainless steel |
||
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
Structure |

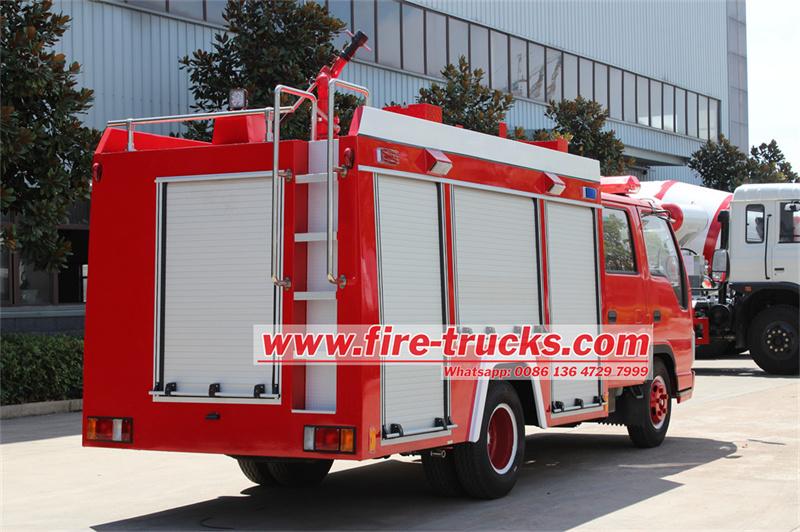

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||

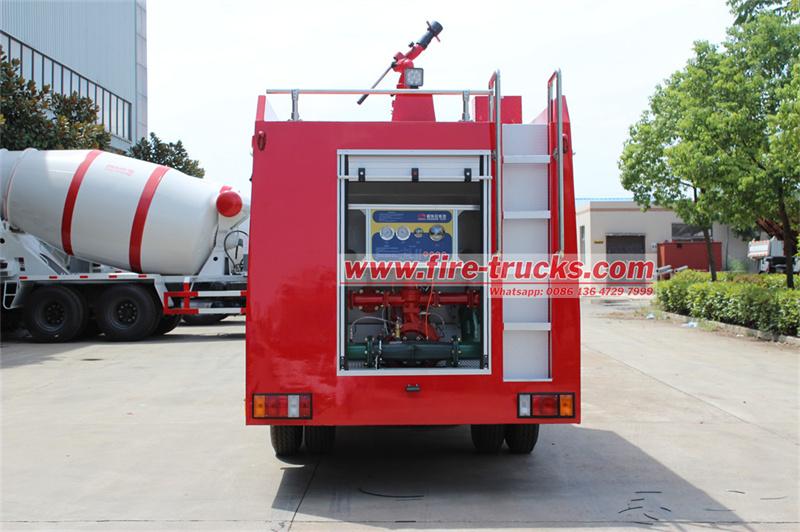

Fire Pump |
Brand |
China TOP brand |
|
Drive mode |
PTO |
||
Priming Manner |
Automatic |
||
Pressure range |
1.6-2.5 MPa |
||
Flow rate |
32L / s |
||
Suction Height |
7m |
||

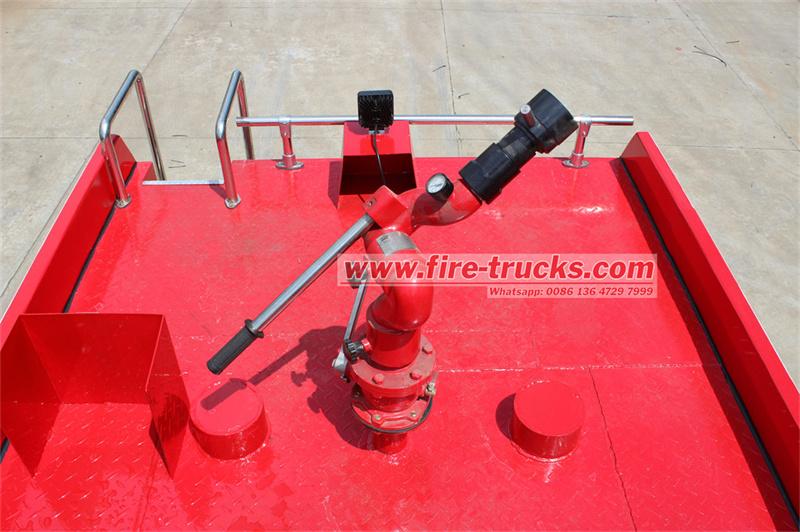

Fire Cannon |
Flow speed |
32L /s |
|
Range |
45-55 m |
||
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
Strobe Light |
Mounted on the both sides of the compartment |
||
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
Optional |
** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional |
Advantage:
1. Power and terrain adaptability: reliable mobility in complex
Isuzu NKR mini drive system: Adopting Isuzu non-load-bearing chassis, it can cope with extreme terrains such as mountains, mud, ice and snow. The minimum ground clearance is optimized to 250mm, and the approach angle/departure angle are 30° and 20° respectively, ensuring the vehicle's passability in collapsed buildings or wild fire scenes.
Power chain matching: Equipped with a 4KH1CN6LB turbocharged diesel engine (120PS/290N·m), matched with a 5-speed synchronous meshing gearbox, the low-speed torque distribution efficiency is improved by 15%, and it can still maintain a highway cruising speed of 80km/h under full load (GVW 7.5 tons) conditions to meet the needs of rapid response.
2. Firefighting efficiency: Tactical advantages of high flow and long range
Large-capacity water storage system: The 2600L carbon steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

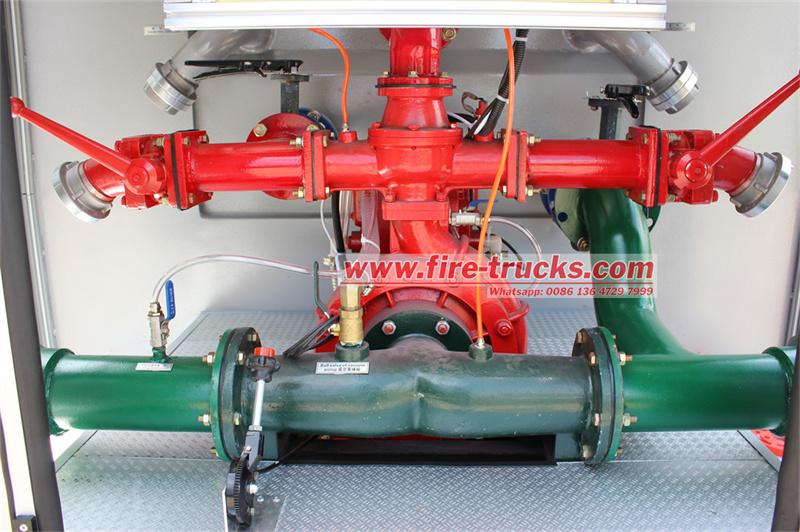

Efficient pump system: Standard CB10/30 mid-mounted centrifugal pump (30L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 40L/s), water cannon range of 45m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
3. Ergonomics and safety: continuous combat capability under high-intensity tasks
Double-row cab design: Complies with ECE R29 collision standards, the 5-person cabin layout integrates air suspension seats (shock absorption efficiency 60%), equipped with dual-zone automatic air conditioning and positive pressure fresh air system, ensuring that the CO concentration is less than 50ppm under 60 minutes of closed working conditions.
Intelligent control terminal: The 7-inch IP67 explosion-proof touch screen supports multi-language switching (including EN/FR/ES presets), real-time monitoring of pump pressure, liquid level, GPS positioning and fault diagnosis codes, and operation response delay <200ms.
Active safety configuration: Optional 360° surround view image (2 million pixel thermal imaging), AEBS automatic emergency braking and ESC body stability system, the braking distance is shortened by 12% (60km/h-0) compared with similar models.
4. Comprehensive application scenario advantages
Urban firefighting: compact wheelbase (3815mm) supports 7.5m turning radius, suitable for narrow streets.
Industrial fire: foam system is compatible with AFFF/AR-AFFF, which can cope with fires in petrochemical facilities.It is suitable for extinguishing various oil fires and polar solvent fires such as alcohols, ketones, and esters.
Field rescue: mini truck body achieve multi-terrain coverage.
