Powered by 4HK1CB6LB diesel engine, isuzu light water fire rescue truck delivers 120 hp at 2,800 rpm and a torque output of 375 Nm at 1,800–2,200 rpm. Compliant with Euro IV emissions standards, it integrates a 5-speed manual transmission and a double-range transfer case for optimized traction on rugged terrain. The integrated fire suppression system includes a 1,500-liter polypropylene water tank and a 20-liter foam tank, paired with a KM20-2/0.8 centrifugal pump capable of discharging 2,000 L/min at 0.8 MPa. The pump system supports dual discharge modes: direct water jet (40 m range) and foam-water mixture via an automatic proportioning module.
Truck Model:
PT5070GXFSGTanker Structure:
Stainless steelWork capacity :
3000 litersWheelbase:
3360 mmAxle drive:
4×2, left hand driveEngine Power:
120 HPEngine Model:
4KH1CN6LBFire Pump:
CB10/30Fire Monitor:
PS8/20WRemark:
PP composite material liquid tank optionalISUZU NKR Light Emergency Fire Truck is a compact yet highly efficient emergency response vehicle designed for rapid deployment in urban and industrial settings. Equipped with a 1,500-2,000 L/min water pump and 2,000-3,000L water tank, ISUZU light emergency fire truck effectively tackles early-stage fires in commercial complexes, residential areas, and manufacturing plants. Its high-pressure mist system excels in electrical and chemical fire scenarios.
Primary Applications:
Technical Rescue Operations: A 360° rotating floodlight tower (8,000-10,000 lumens) and hydraulic rescue tools (15-ton spreaders/cutters) enable nighttime operations at accident sites. The 1.5m³ equipment compartment stores medical kits, gas detectors, and thermal imaging cameras for multi-hazard responses.
Disaster Relief Support: With 4WD configuration and 3,500kg GVW capacity, it delivers emergency supplies and mobile command post capabilities during floods or earthquakes. The integrated communication system maintains real-time coordination with emergency centers.
Community Safety Services: Serves as a mobile education platform for fire drills and safety demonstrations through its retractable awning and PA system, particularly effective in schools and high-density neighborhoods.
ISUZU NKR Light-Duty Emergency Fire Truck: Technical Specifications and Features
The ISUZU NKR light emergency fire truck is a compact yet robust firefighting solution designed for rapid response in urban and industrial environments. Built on ISUZU’s NKR series chassis, this vehicle balances agility with performance, making it ideal for navigating narrow streets and confined spaces.
1. Chassis and Powertrain
2. Dimensions and Mobility
3. Firefighting Equipment
4. Auxiliary Systems
Product Specifications
Vehicle parameters |
||
Overall dimension |
6220*1960*2840(mm) |
|
GVW |
7300kg |
|
Curb weight |
4200kg |
|
Chassis brand |
ISUZU |
|
Traction type |
4*2, left hand drive |
|
Chassis parameters |
||
Chassis model |
ISUZU 600P |
|
Cab |

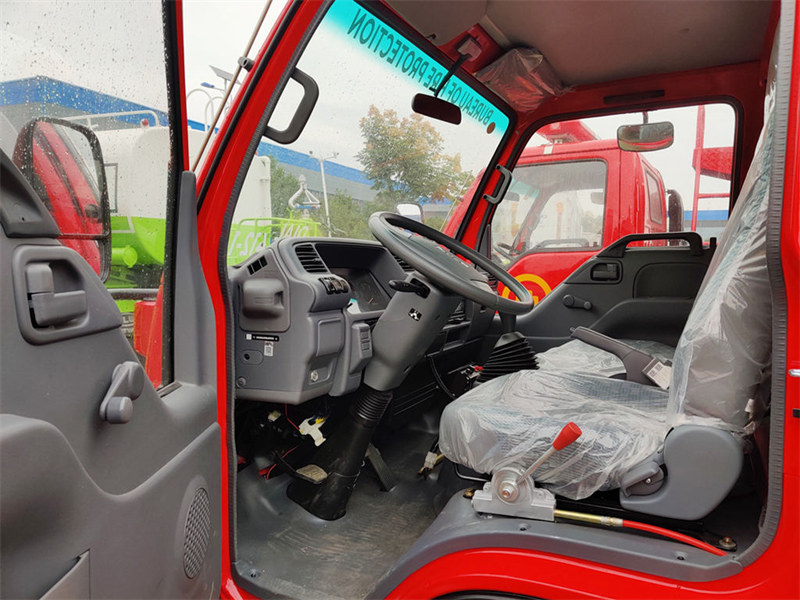

Structure: flat-head, double-row seat four-door passenger compartment. |
|
Wheelbase |
3360mm |
|
Tire specification |
7.00R16 |
|
Tire quantity |
6+1 |
|
Engine |
Engine model |
4KH1CB6LB |
Emission standard |
Euro 6 |
|
Displacement |
2999ml |
|
Output power |
88 kW |
|
Horsepower |
120 hp |
|
Max. torque |
290 N.m |
|
Gear box |
Model |
ISUZU - MSB |
Number of gears |
5 forward gears& 1 reverse |
|
Brake system |
Type |
Drum |
Service brake |
Dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting on rear wheel |
|
Auxiliary brake |
WEVB |
|
Axle |
Front |
2.5T |
Rear |
4.8T |
|
Suspension |
Front |
8- Leaf spring with shock absorber |
Rear |
6+5-Leaf spring |
|
Fuel tanker |
Type |
Steel fuel tanker |
Capacity |
100L |
|
Superstructure parameters |
||
Water Tanker |
Capacity |
3000 liters |
Material |
Stainless steel |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|

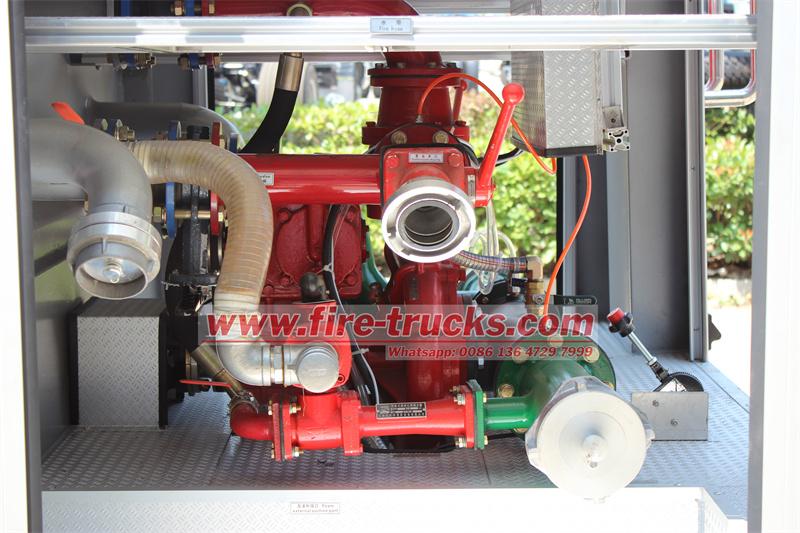

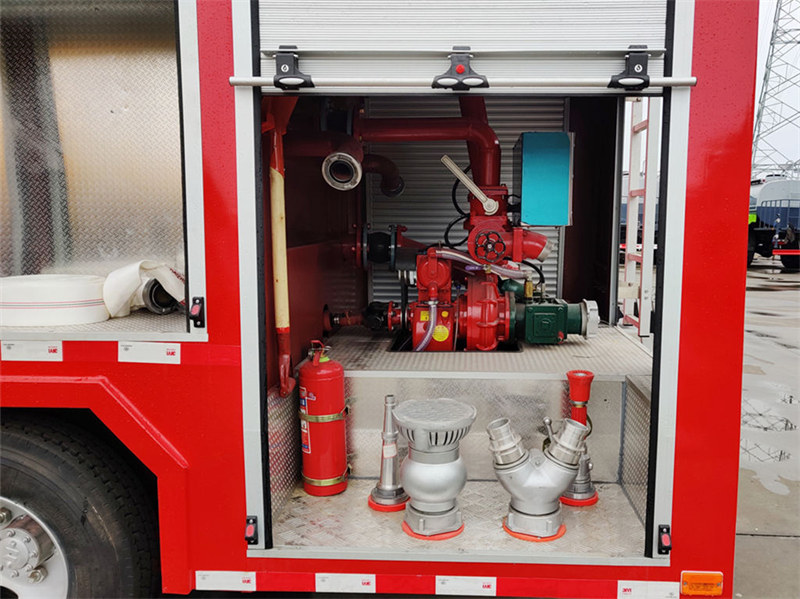

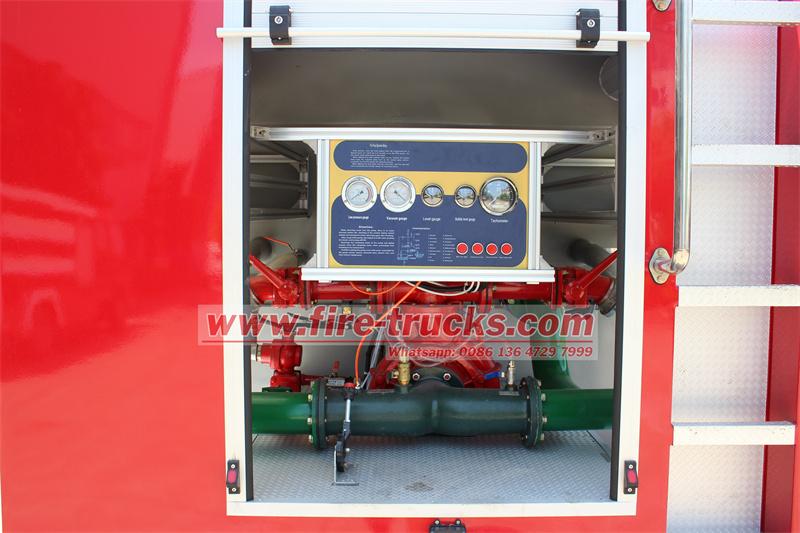

Fire pump |
Model |
CB10/30, normal pressure pump |
Flow |
30L/S |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|

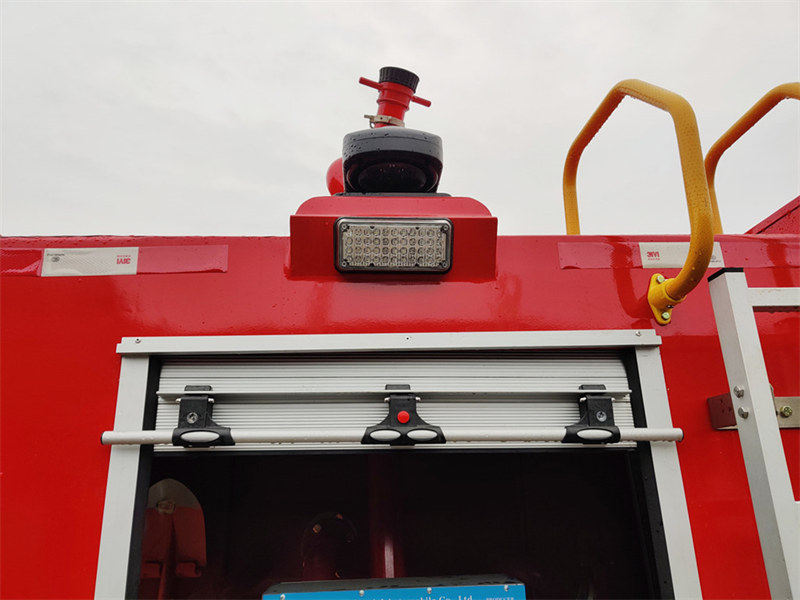

Fire monitor |
Model |
PS8/20W |
Flow |
20L/S |
|
Pressure |
0.8Mpa |
|
Range |
≥50m |
|
Rotation angle |
Horizontal 360° |
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |

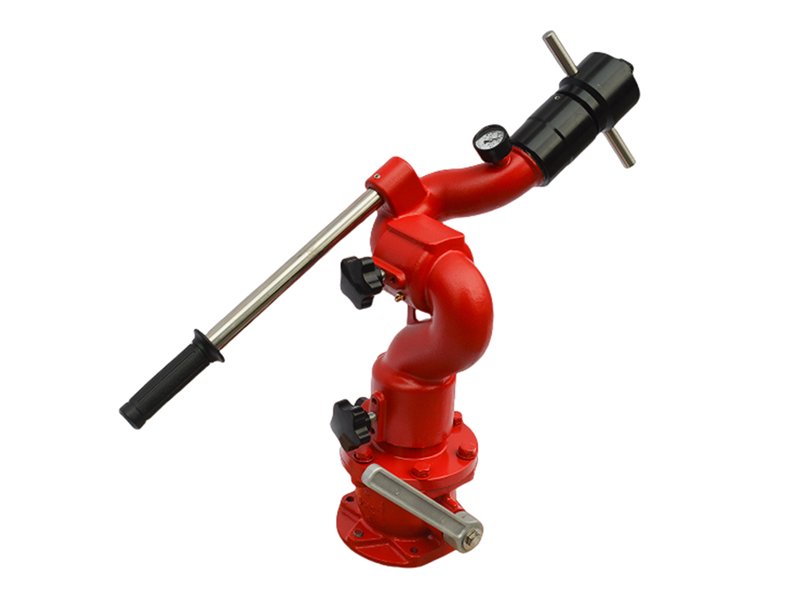

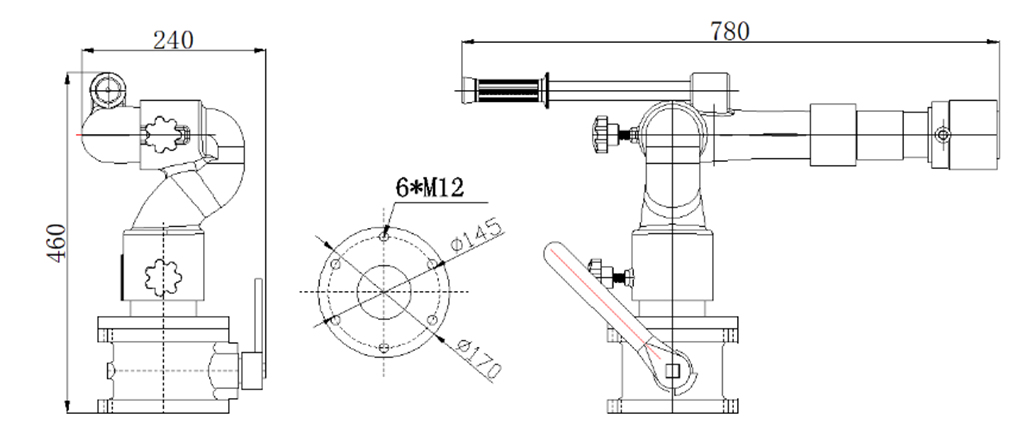

Features of the ISUZU NKR Fire Truck's Fire Monitor:
• Comprehensive functionality
• Simple and innovative structure
• Stable performance with easy maintenance
• Low inlet pressure requirement
• Dual spray patterns (fog/jet)
• Lightweight design
• Equipped with automatic drain valve
• Horizontal and elevation locking mechanisms
• Material: Precision-cast aluminum alloy
