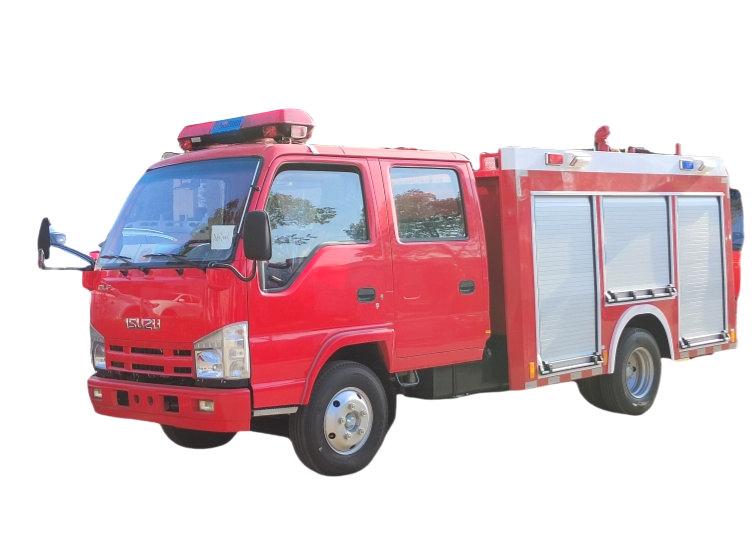

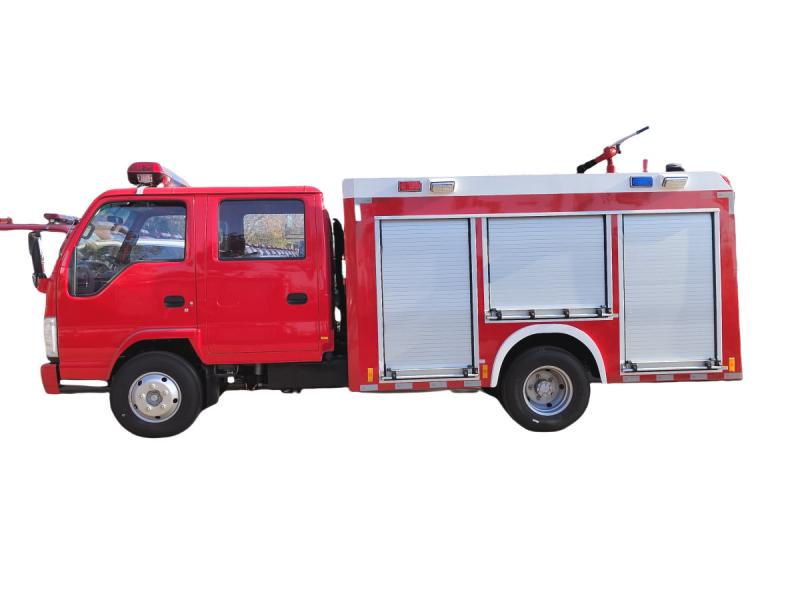

Mini Fire Truck Tender Isuzu

Mini Fire Truck Tender Isuzu

The 1500L Mini Fire Truck Tender Isuzu can quickly reach the fire source in narrow mine tunnels or open-pit mines, With its compact design (ISUZU 100P chassis) and maneuverability (120 hp engine),  and achieve efficient initial fire extinguishing with a 1500L water tank and CB10/30 fire pump. In view of the dust and low temperature environment of the Mongolian Plateau, the vehicle uses anti-corrosion materials and anti-freeze design. In addition to fire extinguishing, it can carry demolition tools or medical equipment, becoming a comprehensive emergency vehicle in the mining area.

  • Truck Model:

    PST5073GXF
  • Tanker Structure:

    PP tank
  • Work capacity :

    1500L water
  • Wheelbase:

    3360
  • Axle drive:

    4x2
  • Engine Power:

    120hp
  • Engine Model:

    ISUZU 4KH1
  • Fire Pump:

    CB10/30
  • Fire Monitor:

    PS20
  • Remark:

    carbon steel tank available
Facebook Linkedin Youtube Twitter Pinterest

Mini Fire Truck Tender Isuzu,also named Isuzu mini fire engine or Isuzu mini rescue fire vehicle, this mini fire truck adopt Isuzu 100p light duty truck chassis, special for fire rescue application, Isuzu 4HK1 120hp diesel engine, MSB 5-shift gearbox, CB10/30 fire pump and PS20 fire monitor, and huge fire rescue equipment on board. Mongolian OT Mining and POWERSTAR TRUCKS join forces: Customized 1500L Mini Fire Truck Tender Isuzu helps mining safety ‌.



The mini fire truck Isuzu PST5071GXFSG30 is composed of ISUZU mini elf chassis, compartment, fire power transmission system, fire hydraulic system, fire control system, bodywork electrical system, auxiliary lighting device, etc. It adopts advanced technologies such as elastic non-torque connection between the upper body and the frame, polymer composite upper body structure, and centralized control of upper body equipment. The vehicle has reasonable structure design, strong maneuverability, high fire-fighting efficiency, integrated fire-fighting and rescue functions, and can be widely used in rural villages and towns.



Mini Fire Truck Tender Isuzu● China No 1 fire rescue trucks manufacturer
● 30 years professional experience DESIGN &  PRODCUTION
● 24 months long guarantee time

● Free factory training
● Quick delivery time, fast shipping.







As a country rich in mineral resources, mining has always been one of the pillar industries of its economic development. As the largest copper and gold mine developer in Mongolia, OT Mining Company (Oyu Tolgoi) always puts production safety first. In order to further enhance the fire emergency response capabilities of the mine area, OT Mining once again chose to cooperate with POWERSTAR TRUCKS, a well-known Chinese fire truck supplier, to customize a batch of 1500L Mini Fire Truck Tender Isuzu fire trucks. This is the first time that OT Mining has purchased this model from POWERSTAR TRUCKS, which fully demonstrates its recognition of this fire solution.



What is 1500L Mini Fire Truck Tender Isuzu? ‌

The 1500L Mini Fire Truck Tender Isuzu, also known as the "small fire water tanker" or "ISUZU 100P fire truck", is a highly maneuverable fire truck designed for special environments such as mining areas and industrial parks. Its core configuration includes:

Chassis: ISUZU 100P 4X2 hook-arm garbage truck special chassis, with good load-bearing capacity and off-road adaptability.

Power: 120 horsepower engine, ensuring stable driving in complex terrain in mining areas.

Water tank capacity: 1500L, which can quickly respond to initial fires.

Fire pump: CB10/30 fire pump, providing stable water pressure.

Fire gun: PS20 fire gun, with long range and wide coverage.

This model has a compact structure and strong maneuverability, and is particularly suitable for firefighting tasks in narrow or rugged mining environments.





2. Vehicle Parameters
2.1 Dimensions: 6070mm×2050mm×3000mm
2.2 Total mass of full load: 7100kg
2.3 Number of crew: 5
2.4 Maximum speed: 90km/h
2.5 Emission Standard: Optional
2.6 Tank capacity: 2850L of water
2.7 Fire pump flow: 30L/s
2.8 Fire monitor flow: 30L/s



3. Main Components of the Small Fire Truck

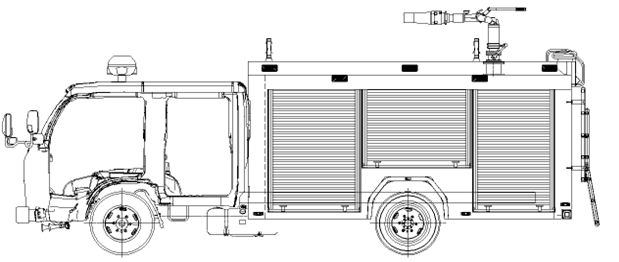

Design drawing for Mini Fire Truck Tender Isuzu



3.1 Fire Pump
3.1.1 Brand Optional
3.1.2 Model Optional
3.1.3 Rated Flow Rate 30L/s @ 10bar
3.1.4 Vacuum Pump Water ring vacuum pump
3.1.5 Priming Manner Automatic
3.1.6 Suction Height 7m
3.1.7 Priming Time ≤30s
3.1.8 Location Rear-mounted
3.2 Fire Monitor
3.2.1 Brand Optional
3.2.2 Model Optional
3.2.2 Flow Rate 30L/s @ 10bar
3.2.3 Shoot Range 55 m
3.2.4 Location On the top of the tank
3.2.5 Control Manner Manual
3.2.6 Horizontal Rotation Angle 0°~360°
3.2.7 Pitch Rotation Angle -15°~60°
3.3 Liquid Tank
3.3.1 Capacity 1500 Liters Water Tank
3.3.2 Material PP composite material and Never Rust
3.3.3 Structure 1 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 1 Liquid Level Indicators; 1 tank Drain Outlets with Valves.

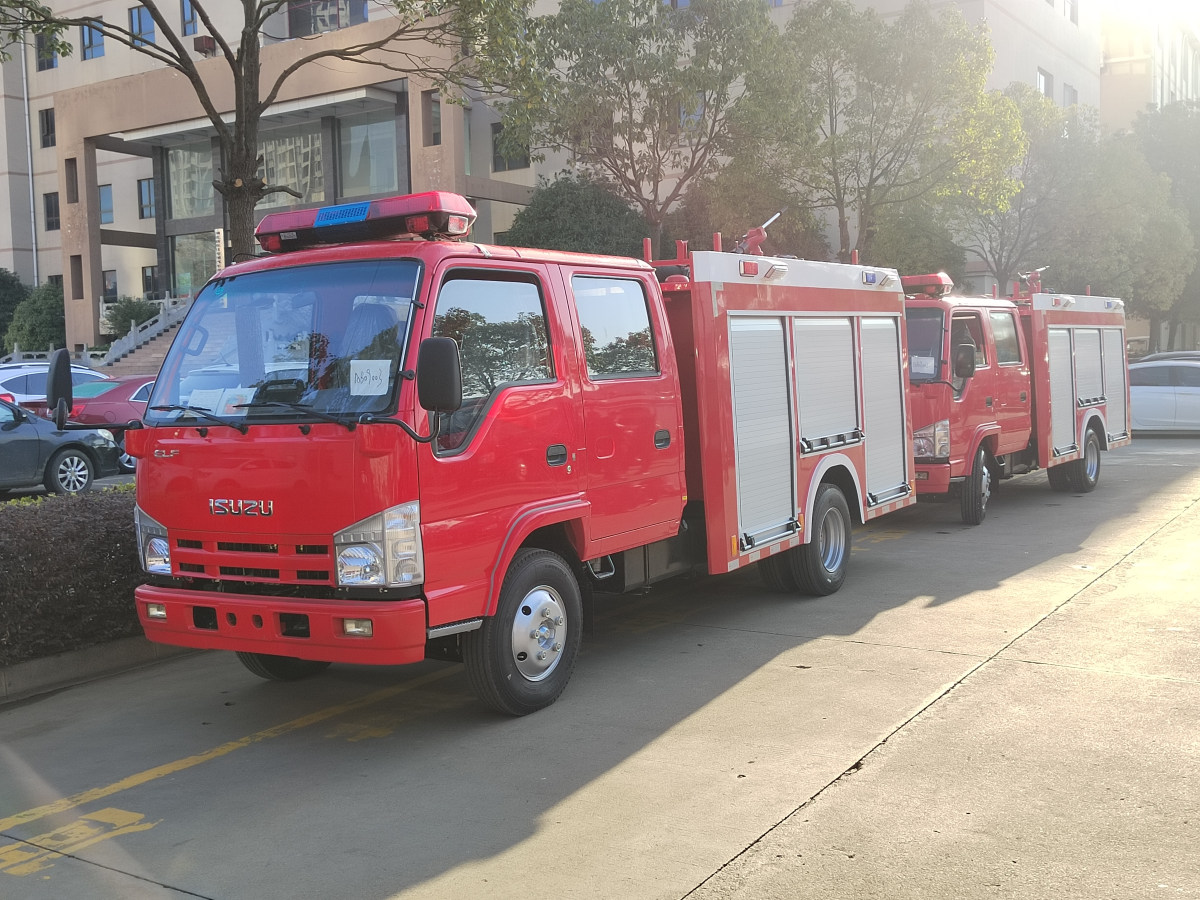

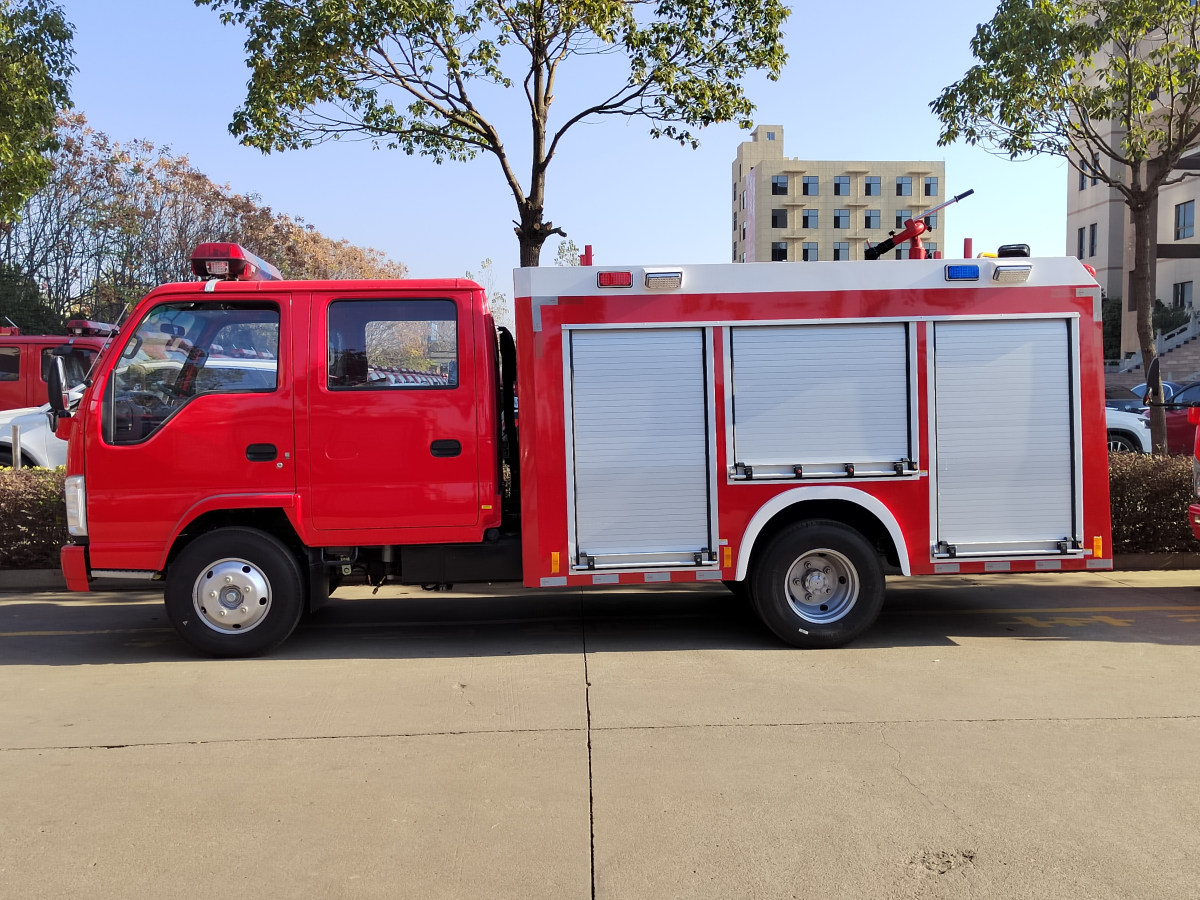

Mini Fire Truck Tender Isuzu

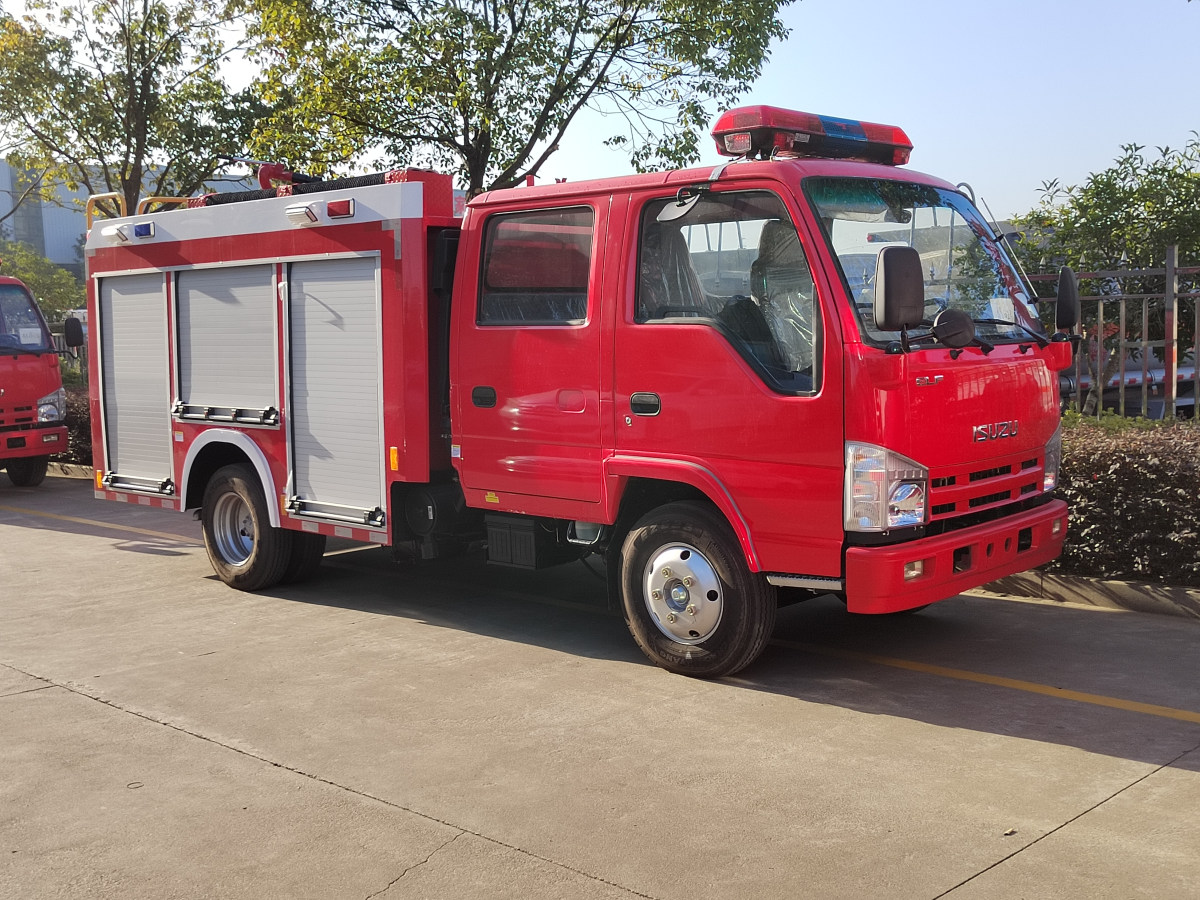

Mini Fire Truck Tender Isuzu

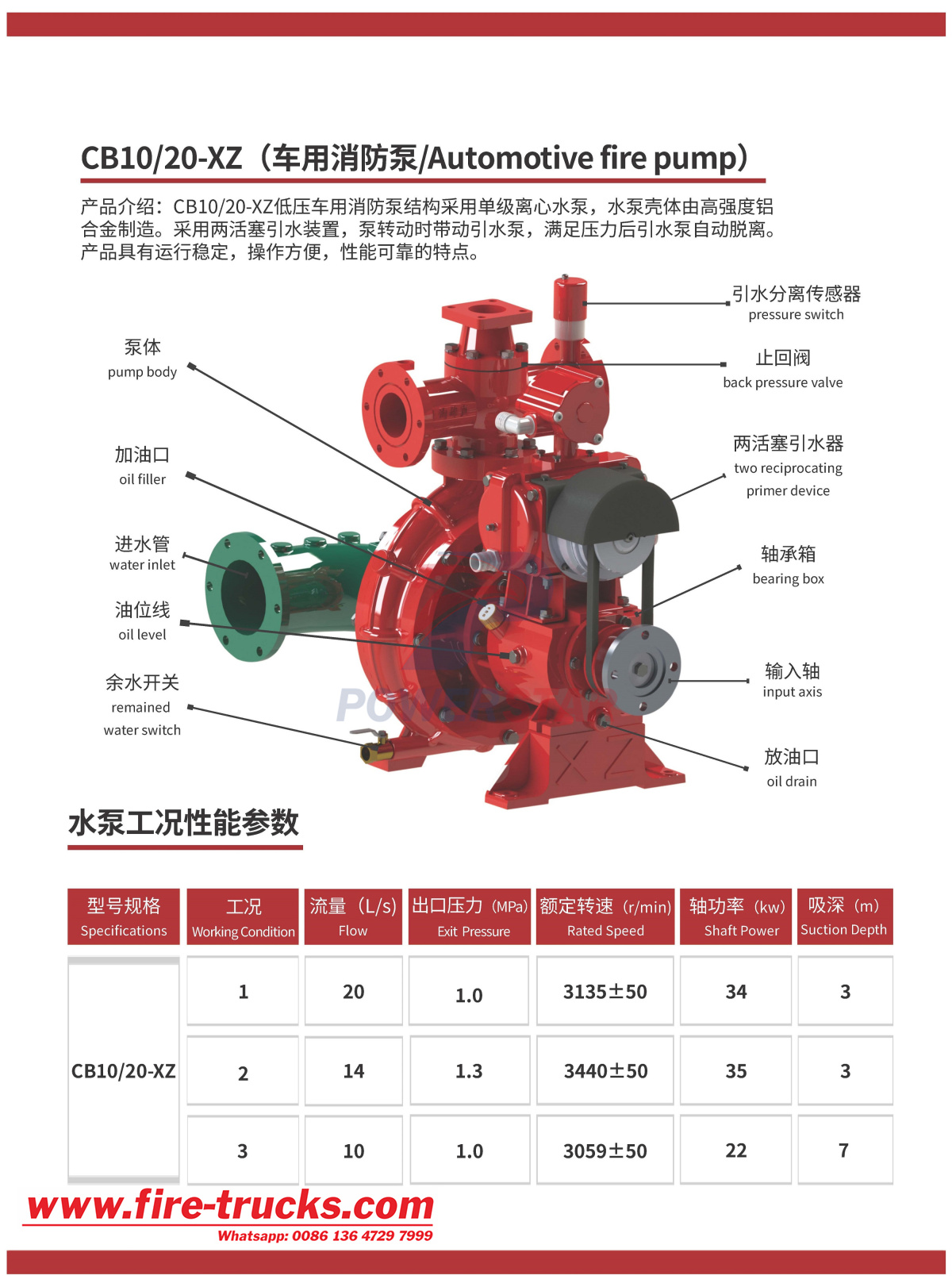

CB10/20 Fire pump Mini Fire Truck Tender Isuzu

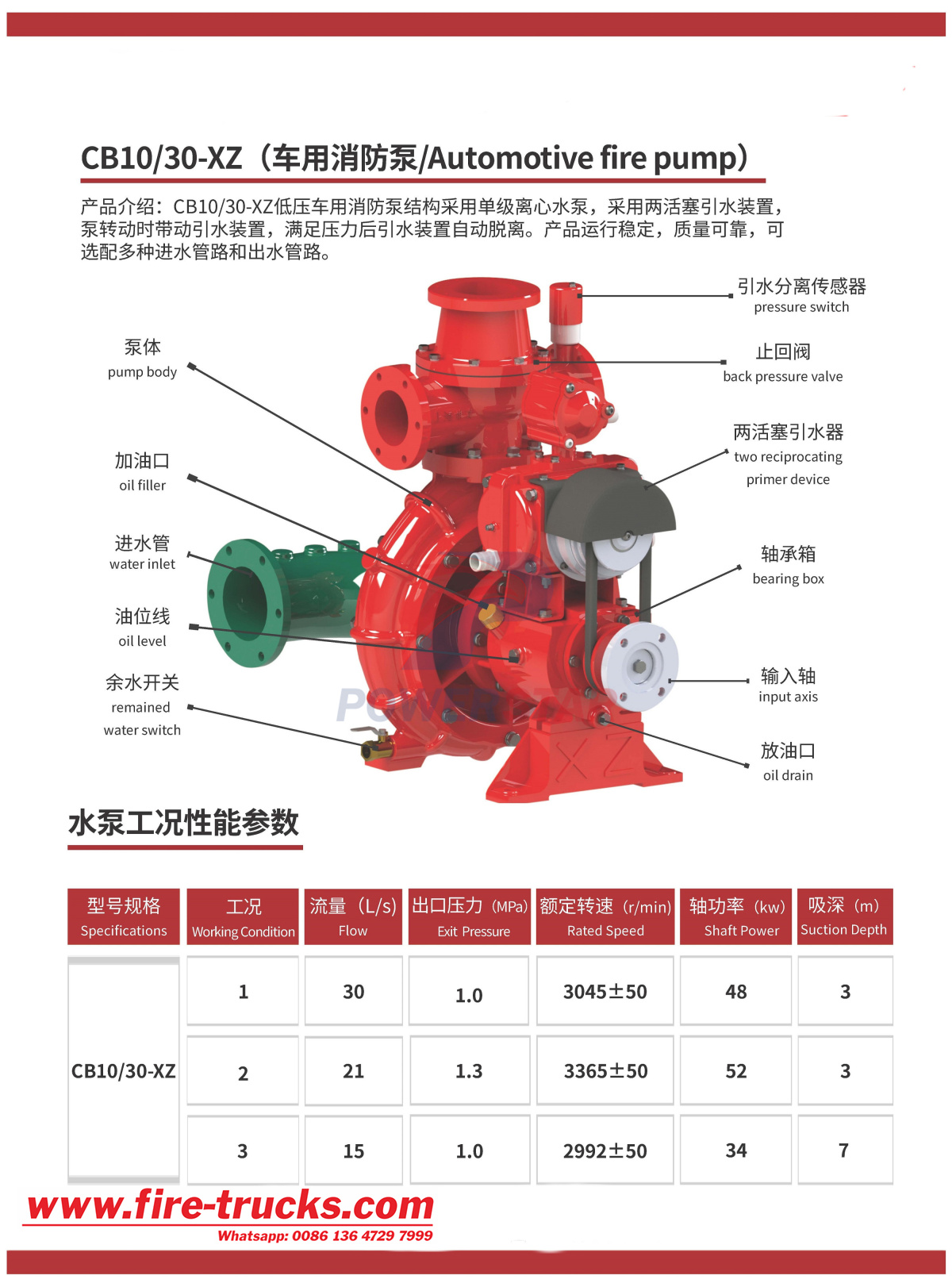

CB10/30 Fire pump Mini Fire Truck Tender Isuzu

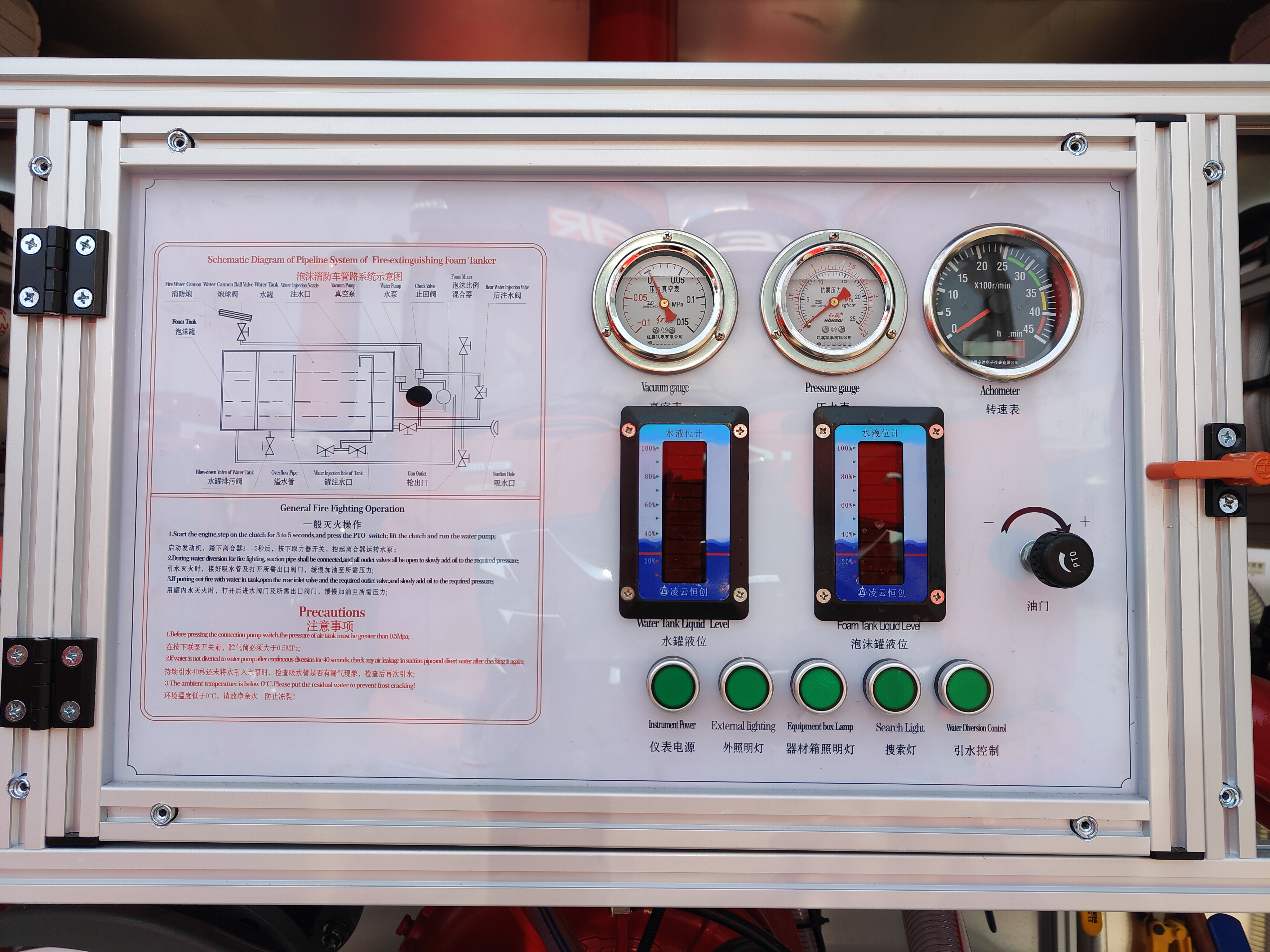

4. Control Panel for Fire Fighting System

4.1 Various types of control modules can be installed according to the vehicle configuration, and all fire-fighting components are fully electronically controlled, using PLC intelligent control; all buttons, switches and indicators on the control panel are marked with English signs; prominent locations are provided with piping layout and Brief operating instructions. The panel adopts a waterproof and dust-proof design mode, and the protection level can reach IP56.

4.2 Language: English

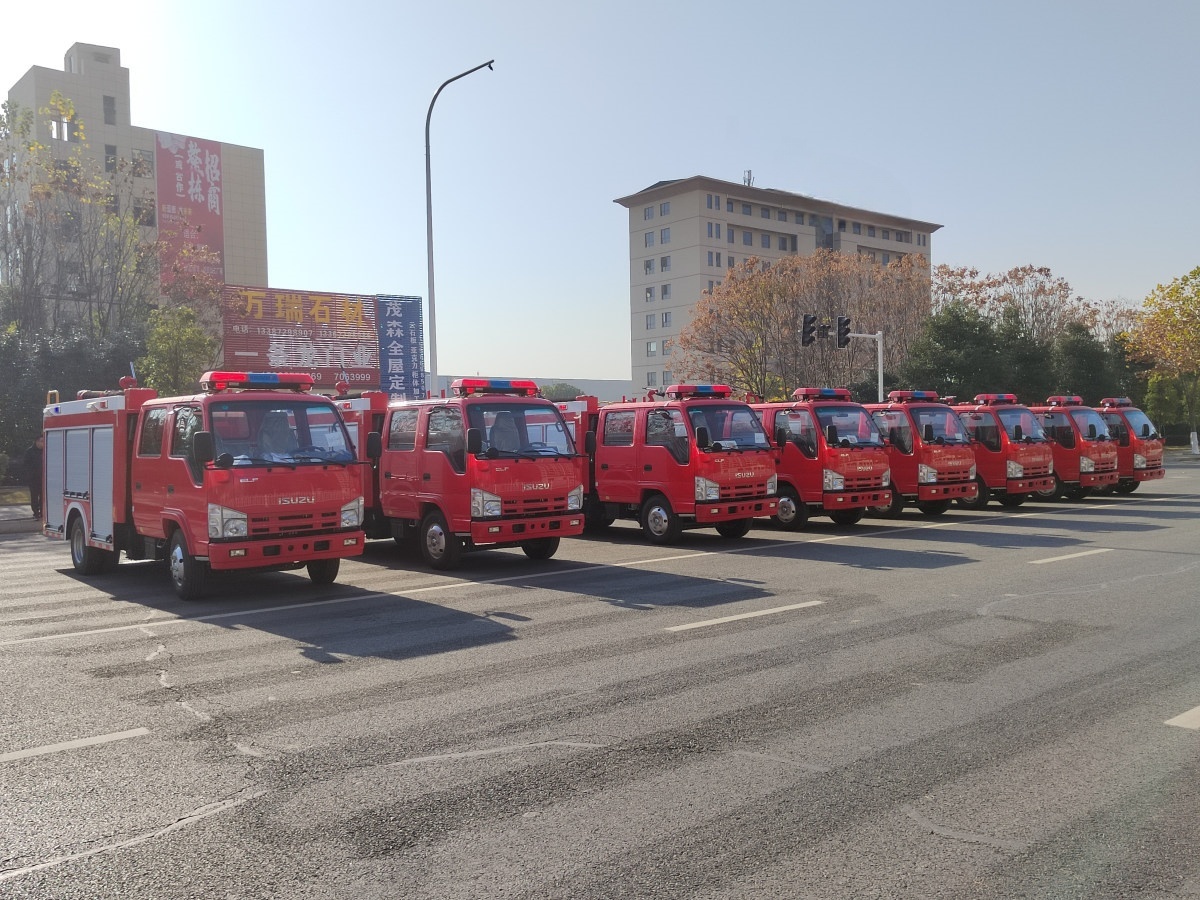

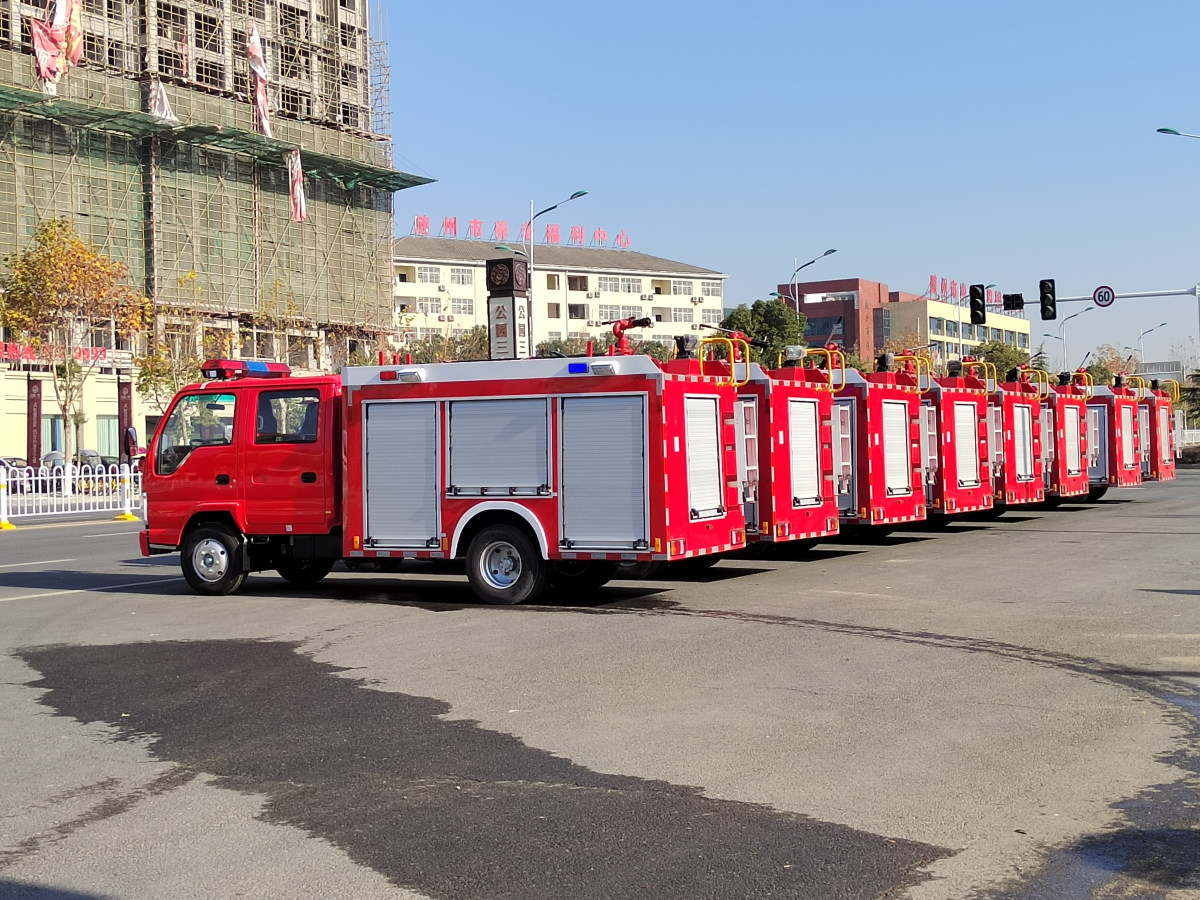

China factory Mini Fire Truck Tender Isuzu



China factory Mini Fire Truck Tender Isuzu



Actual application scenarios of OT mining

In open-pit mines and underground mines in OT mining, the risk of fire always exists, especially in electrical equipment, fuel storage areas and blasting operations. With its flexibility and efficiency, the 1500L Mini Fire Truck Tender Isuzu plays a key role in the following scenarios:

Rapid initial firefighting: Due to the vast area of ​​the mining area, it is difficult for large fire trucks to quickly reach the fire source, while this small fire truck can quickly shuttle between the mine tunnels and the working area to control the fire in the first time.

Assisting large firefighting systems: When a large fire occurs, the vehicle can be used as an auxiliary water supply equipment to cooperate with the fixed firefighting system for continuous firefighting.

Emergency rescue: In addition to firefighting, the vehicle can also be used for emergency water supply for sudden accidents in mining areas, such as chemical leakage dilution.

OT Mining has purchased this model many times because it adapts to the complex terrain of the Mongolian Plateau and meets the mining area's demand for efficient and reliable firefighting equipment.

Future development trends

With the continuous improvement of global mining safety standards, the market demand for small special fire trucks such as the 1500L Mini Fire Truck Tender Isuzu will continue to grow. Possible future development directions include:

Intelligent upgrade: Add Internet of Things (IoT) devices to achieve remote monitoring and automated firefighting, and improve response speed.

New energy adaptation: With the trend of electrification, electric or hybrid versions may be launched in the future to reduce carbon emissions.

Multifunctional: In addition to firefighting, emergency rescue equipment such as demolition tools and medical cabins can also be integrated to become a "multi-functional emergency vehicle" in the mining area.
