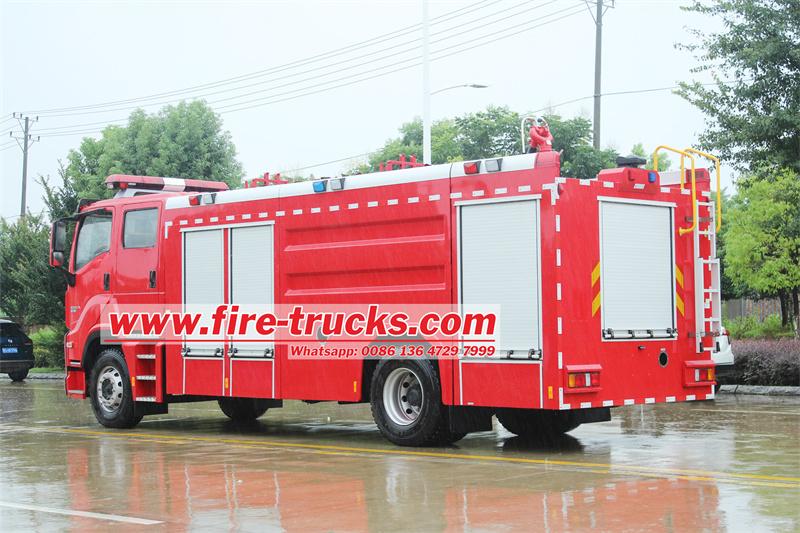

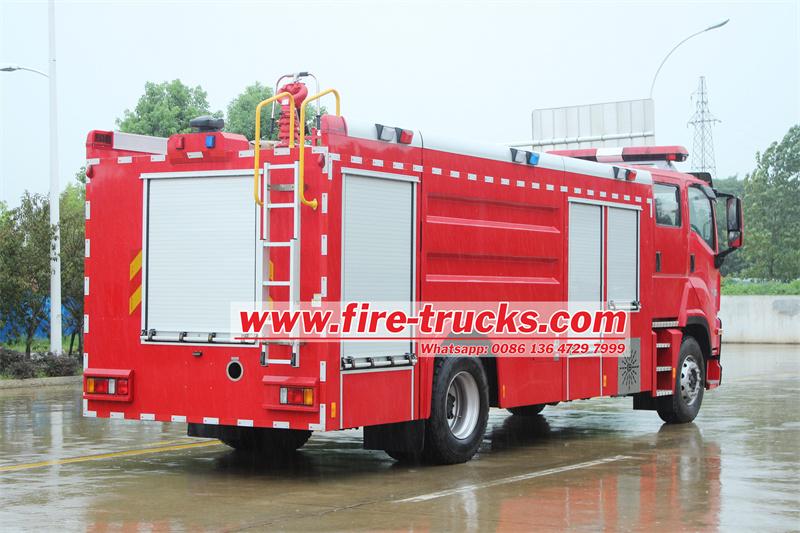

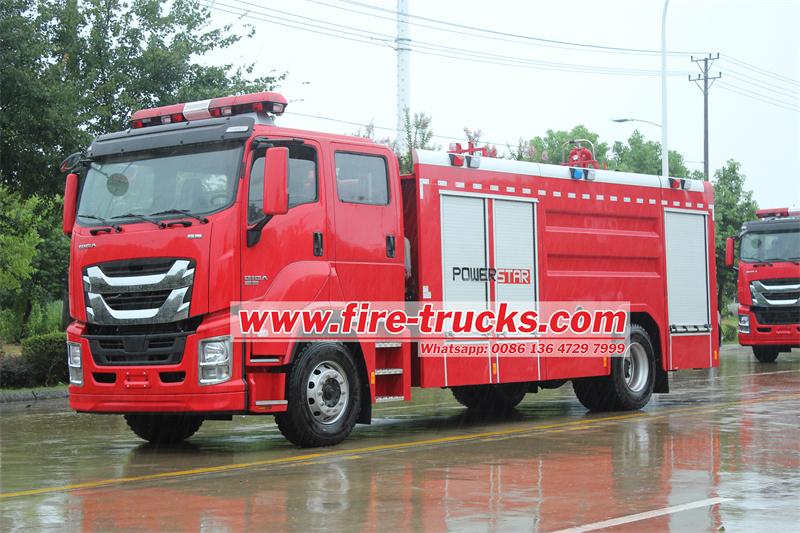

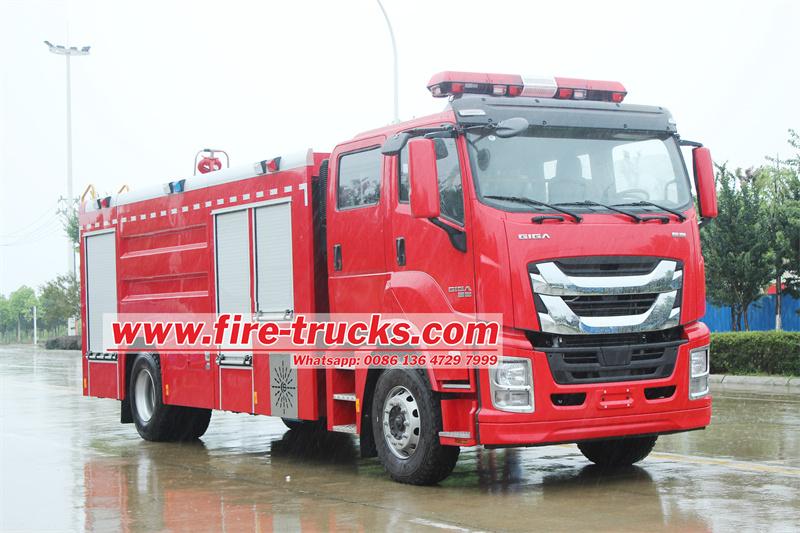

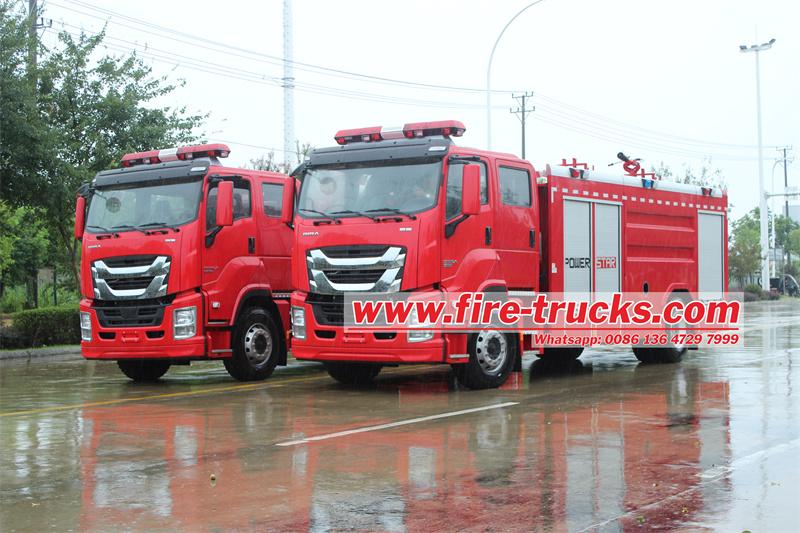

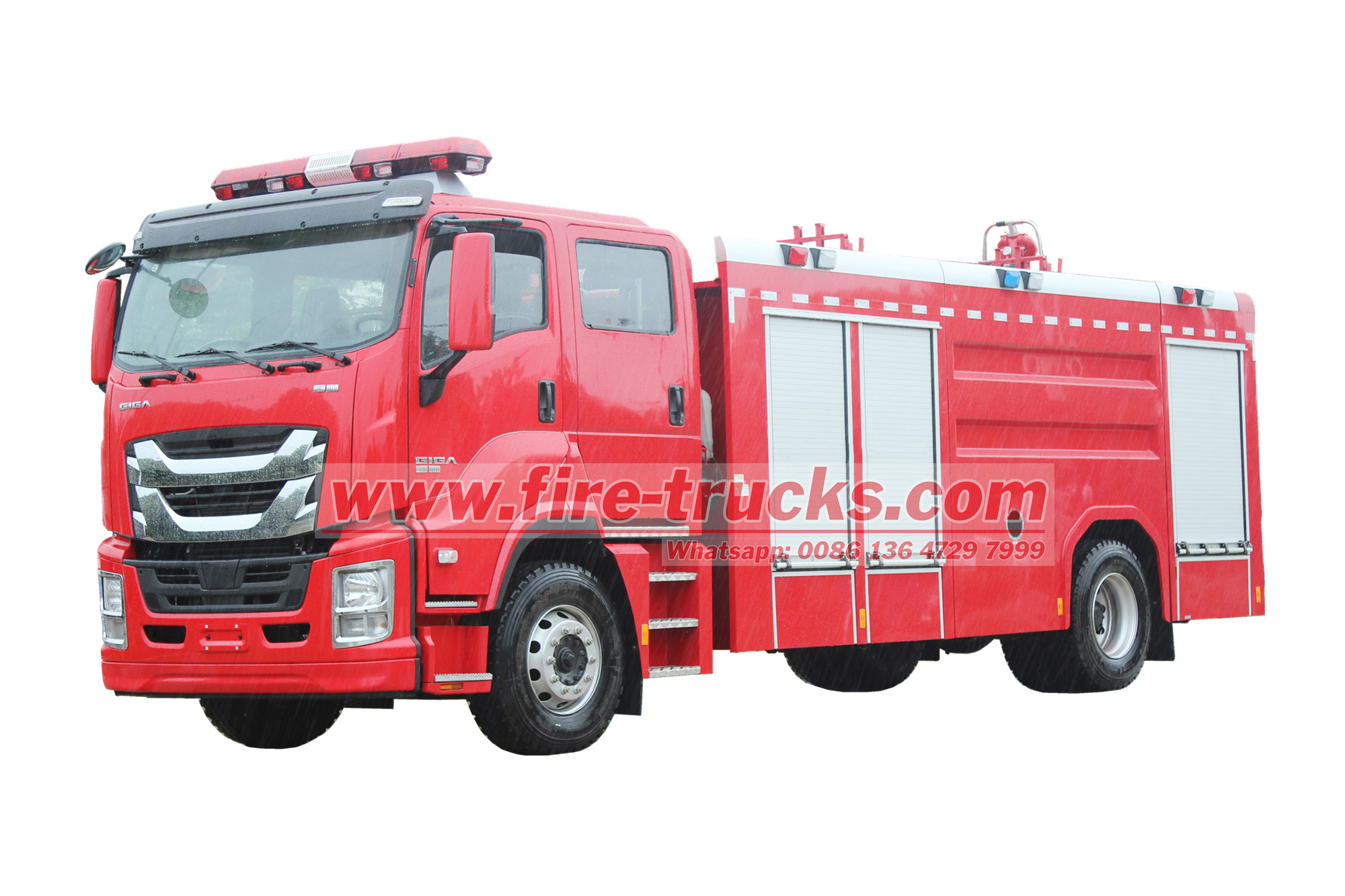

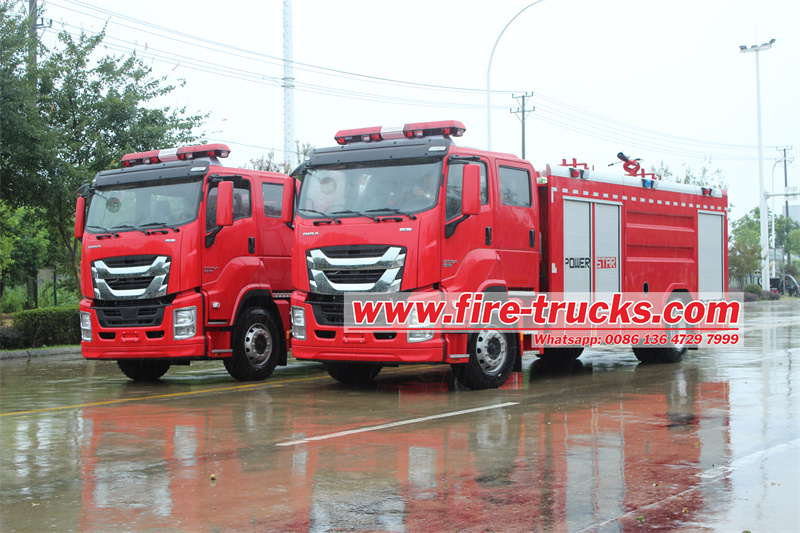

Isuzu FVR pumper emergency fire truck

This Isuzu FVR pumper emergency fire truck is an efficient and practical professional fire truck. It adopts the Isuzu FVR GIGA 4x2 special chassis and is equipped with a 6HK1-TCG61 engine, which is powerful and stable. The body design is reasonable, with an equipment box in the front, a tank with a water capacity of 8000kg in the middle, and a pump room in the rear, equipped with a CB10/40 medium and low pressure fire pump. The PS8/40W on-board fire water cannon is installed on the roof, with a long range, adjustable pitch angle, and high fire extinguishing efficiency. In addition, the vehicle is also equipped with a variety of fire-fighting equipment to meet the fire-fighting and rescue needs of different fire scenes. The vehicle has excellent performance and strong adaptability. It can respond to the fire scene quickly and effectively control the fire. It is an ideal choice for the fire department and provides strong support for protecting people's lives and property.

● China best Isuzu water fire truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term

Feature

★ High quality lSUZU chassis;

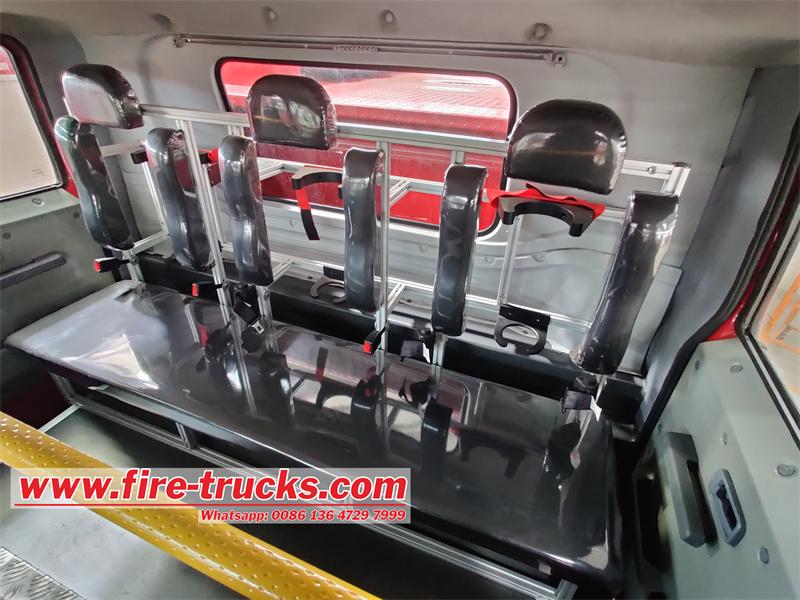

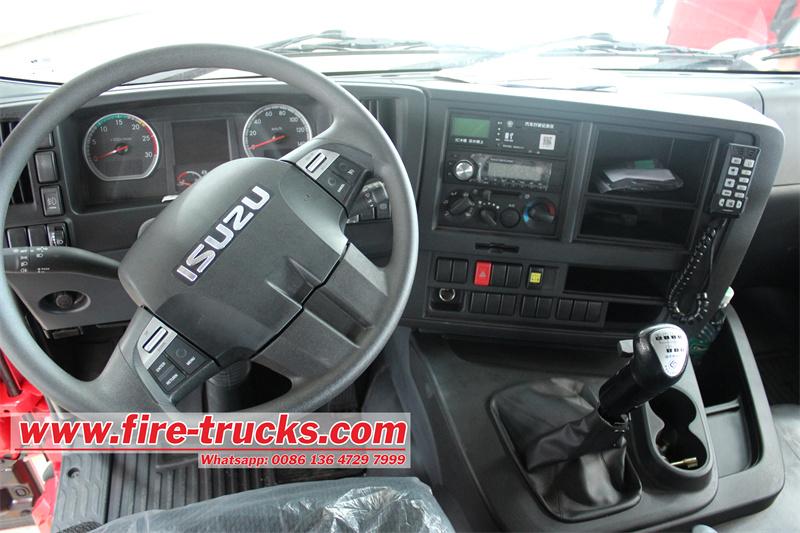

★ Spacious FVR truck cabin with A/C;

★ Powerful 240HP engine for tough road with reliable performance,

★ Continuously adjusted into fog, heavy rain, light rain and drizzle ;

★ Reliable chinese brand fire fighting pump and fire cannon.

Chassis and power system

• Chassis model: Isuzu FVR GIGA 4x2 fire truck chassis, designed for firefighting operations, with high reliability and passability.

• Engine: 6HK1-TCG61 engine, powerful and suitable for the special working conditions of fire trucks.

• Transmission: Matched with Fast 8-speed transmission, providing good controllability and adaptability, ensuring stable driving under different road conditions.

________________________________________

Body structure

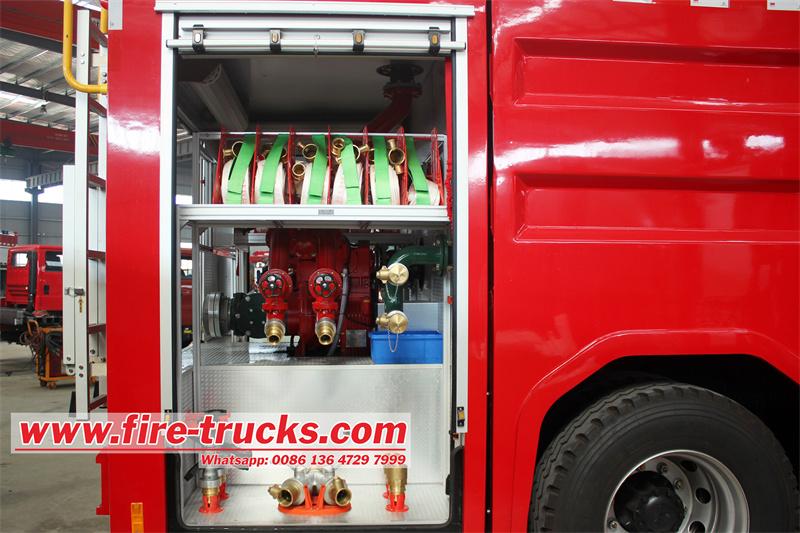

• Front equipment box: used to store firefighting equipment and rescue tools, with a reasonable layout and convenient and quick access.

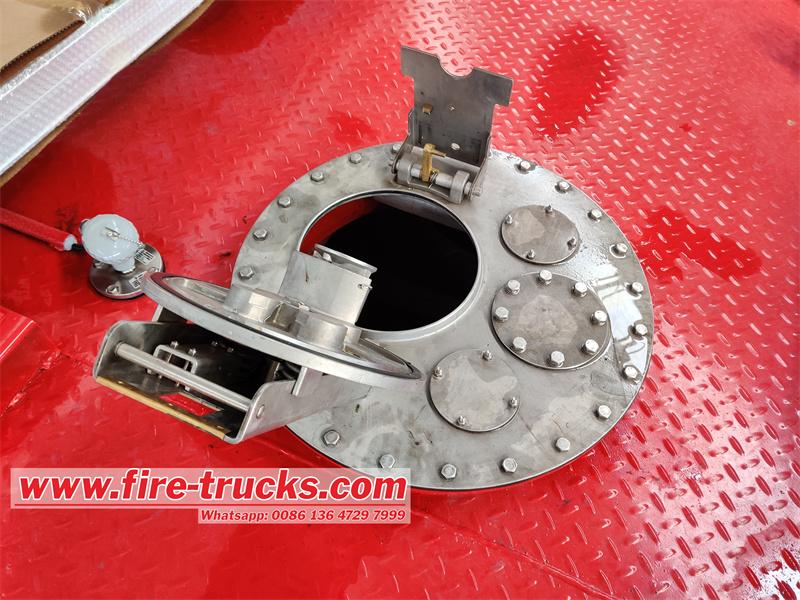

• Middle tank: The water tank has a capacity of 8000kg (8m³), which can carry a large amount of fire-fighting water and is suitable for the needs of medium and large fire fighting.

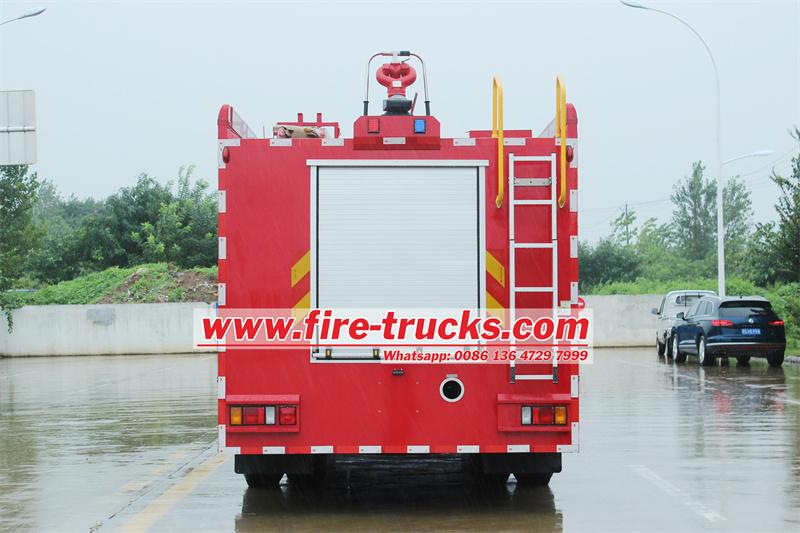

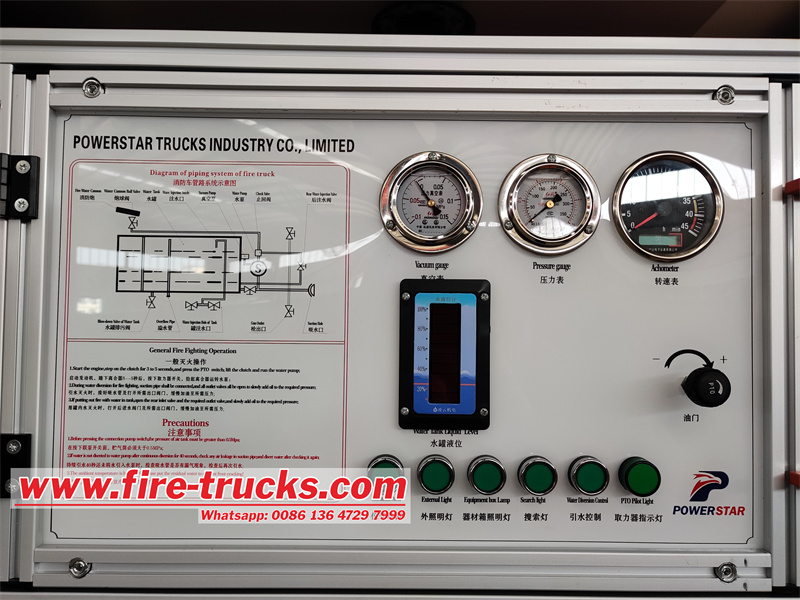

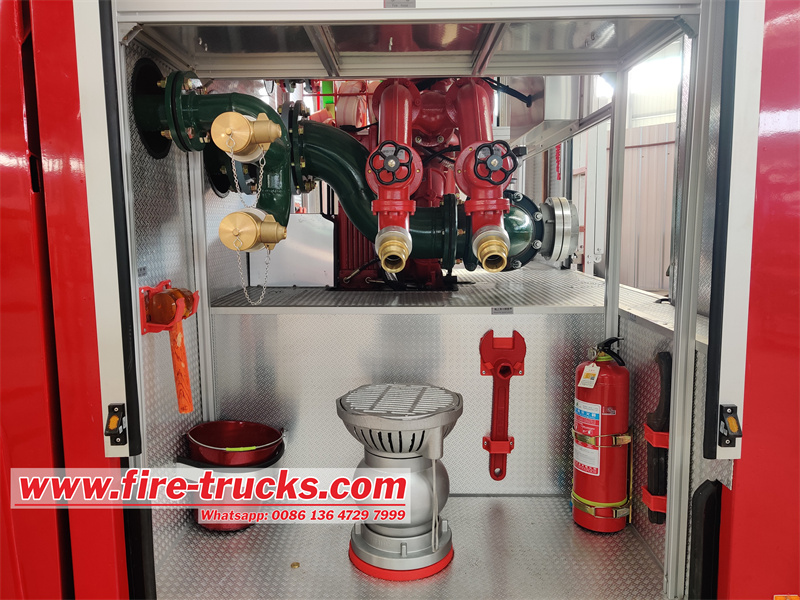

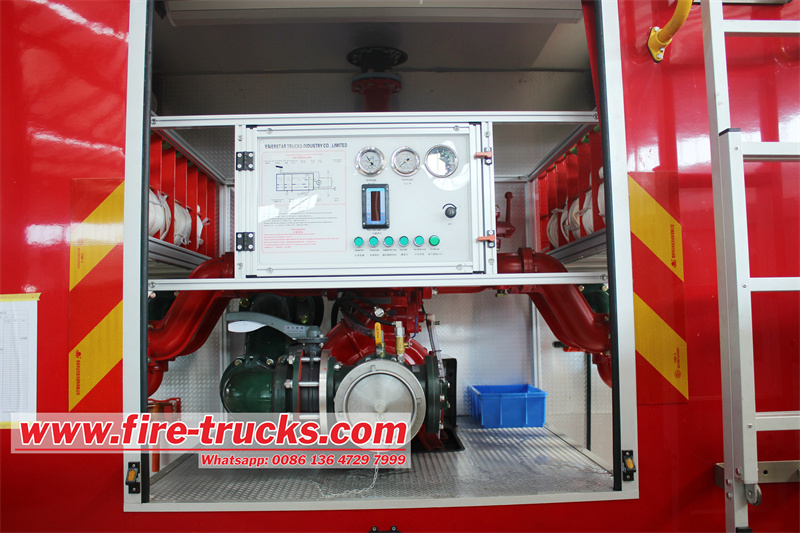

• Rear pump room: built-in CB10/40 medium and low pressure fire pump, providing stable water flow output.

________________________________________

Fire pump

• Fire pump model: CB10/40 medium and low pressure fire pump

• Rated flow: 40L/S

• Rated pressure: 1MPa

• Function: This fire pump can provide stable water flow output and is suitable for a variety of fire fighting scenarios, especially medium and low pressure fire fighting needs.

________________________________________

Vehicle-mounted fire water minitor

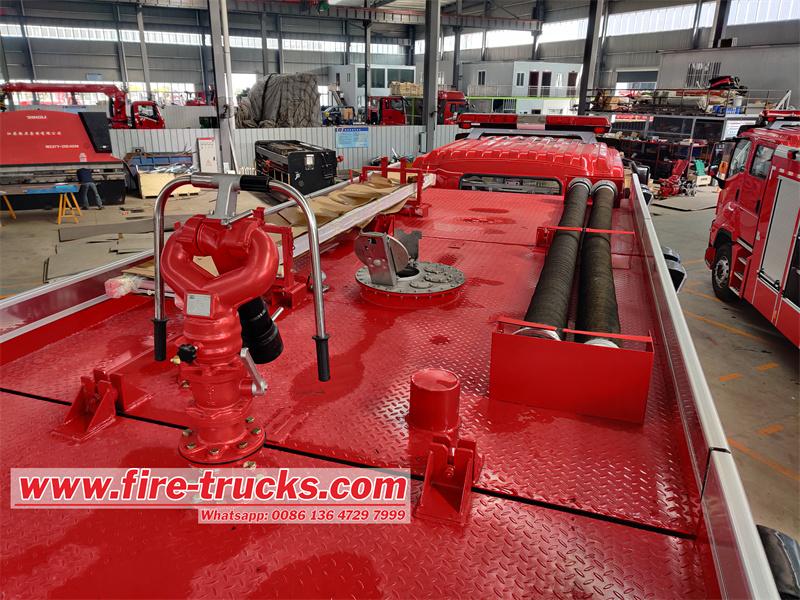

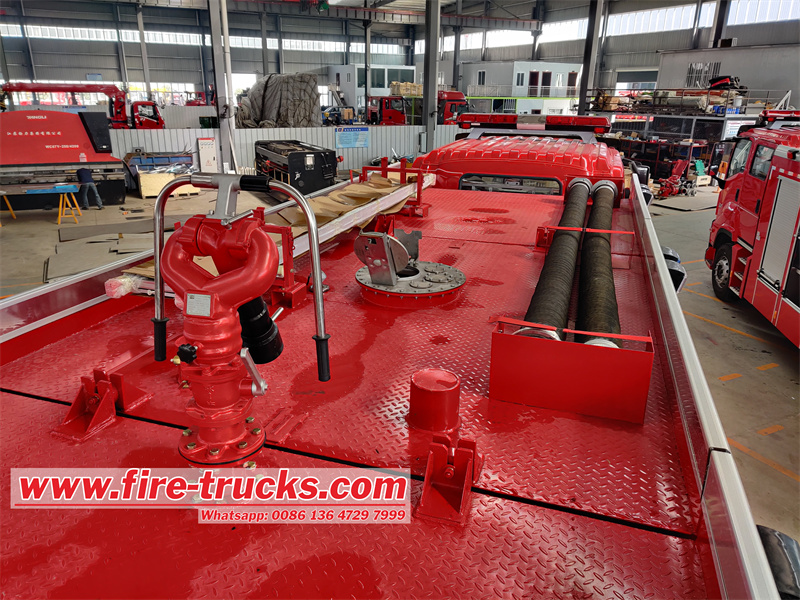

• Water cannon monitor: PS8/40W vehicle-mounted fire water cannon

• Rated flow: 40L/S

• Rated pressure: 0.8MPa

• Range: ≥65 meters, can cover a longer fire fighting range, suitable for high-rise buildings or large-area fire fighting.

• Pitch rotation angle: -30°～+70°, the water monitor can adjust the angle within a large range and flexibly respond to fire sources at different heights.

________________________________________

Firefighting equipment

The vehicle is equipped with a variety of firefighting equipment to meet the needs of different firefighting and rescue tasks, including but not limited to:

• Firefighting equipment: such as hoses, water guns, water collector, water filter, water distributor，etc., for close-range firefighting.

• Rescue tools: such as fire shears, shovels, pickaxes, hammers, fire collars, fire wrenches, etc., for rescuing trapped people.

• Personal protective equipment: such as fire suits, helmets, respirators, etc., to ensure the safety of firefighters.

• Other auxiliary equipment: such as lighting, warning lights, communication equipment, etc., to ensure the efficiency of operations at night or in complex environments.

________________________________________

Applicable scenarios

• Urban firefighting: Applicable to building fires, factory fires, etc. in cities.

• Industrial firefighting: Suitable for firefighting in flammable and explosive places such as chemical plants and oil depots.

• Forest firefighting: Although mainly used for urban and industrial firefighting, it can also be used for the initial firefighting of forest fires in some cases.

• Traffic accident rescue: The equipped demolition tools and rescue equipment can be used for vehicle demolition and personnel rescue in traffic accidents.

________________________________________

Advantages

• Large-capacity water tank: 8000kg water tank capacity ensures long-term firefighting capability.

• High-efficiency fire pump and water monitor: 40L/S flow rate and 65m range ensure efficient firefighting effect.

• Multifunctional design: reasonable body structure, scientific layout of equipment box, tank and pump room, meeting various firefighting needs.

• Diverse firefighting equipment: equipped with a variety of firefighting and rescue tools, capable of handling complex firefighting and rescue tasks.
