Shacman 4x4 water tender fire truck

Isuzu GIGA 4X2 foam fire truck is a fire truck that integrates water tank, foam tank, high-efficiency fire pump and advanced foam fire extinguishing system. It is equipped with powerful fire cannon, flexible and mobile, can quickly reach the fire scene and start fire fighting, and is an ideal equipment for extinguishing special fires such as oil and chemical products.   Working principle: The working principle of Isuzu foam water tank fire truck is mainly based on the coordinated work of fire pump and foam fire extinguishing system.   • Fire pump: The fire pump transfers energy to water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water. As a kind of high and low pressure series centrifugal pump, CB10/60 fire pump can output low-pressure or high-pressure water as needed, providing a stable water source for fire cannon and water gun.   • Foam fire extinguishing system: The foam fire extinguishing system is driven by a hydraulic pump, sucking the foam stock in the foam tank, and mixing it with high-pressure water in a certain proportion to form a stable proportion of foam liquid. The foam liquid is sprayed onto the fire source through a fire monitor(PL8/48 fire monitor) or water gun, quickly covering the surface of the burning object, isolating air and heat transfer, thereby achieving the purpose of fire extinguishing. How to use the suction pipe of the foam fire truck to absorb water correctly? 1. First park the fire truck next to the water intake point, as close to the water source as possible to shorten the use length of the suction pipe.   2. Connect the suction pipe head to tail according to the distance of water intake, and connect one end to the fire pump, and connect the other end to the water filter and put it into the water.   3. Start the engine of the fire truck. Step on the clutch pedal, hang up the power take-off (water pump switch).Slowly release the clutch pedal, and then start the vacuum pump to absorb water.   Precautions for using the suction pipe 1. Do not forcefully drag the suction pipe on the ground to avoid wearing the aluminum interface;   2. The interface must be tightly connected when using it. In order to prevent air leakage and water from being sucked up, when absorbing water from an open-air water source, a water filter should be installed at the end of the suction pipe, and the depth of the water filter from the water surface should be at least 20cm~30cm to prevent vortices from appearing on the water surface and sucking in air. At the same time, the water filter should be prevented from contacting the mud surface of the water source. To prevent the water pump from being damaged by the suction of a large amount of mud and sand, a water filter basket should be placed on the water filter when there are a lot of mud and sand debris in the water source.   3. The suction pipe should be laid as short and straight as p...

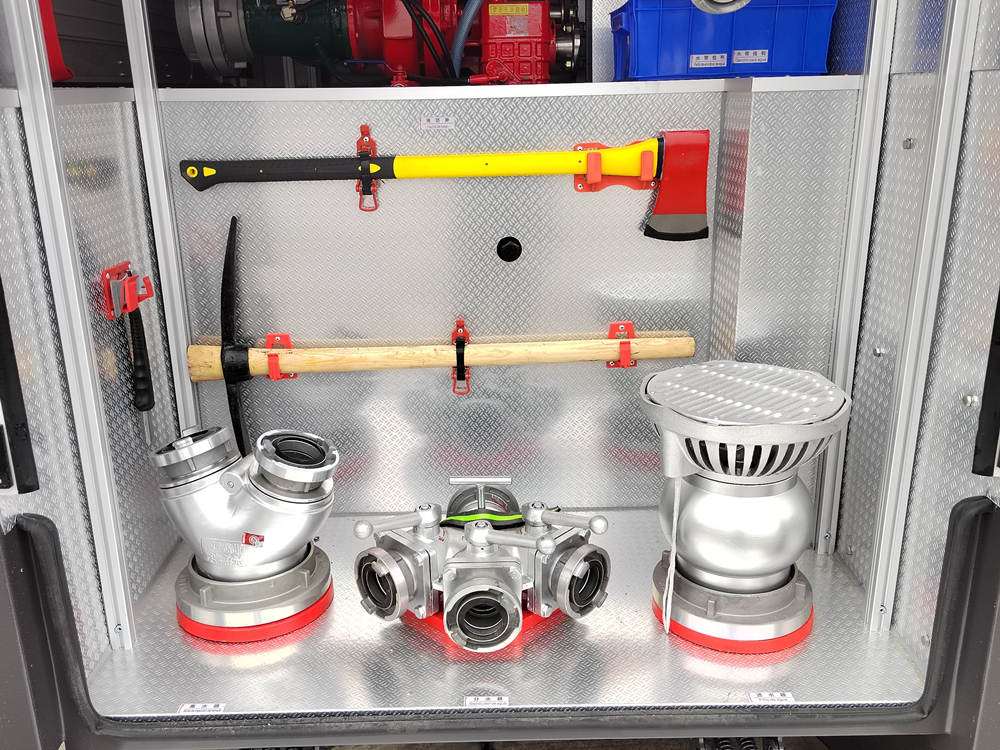

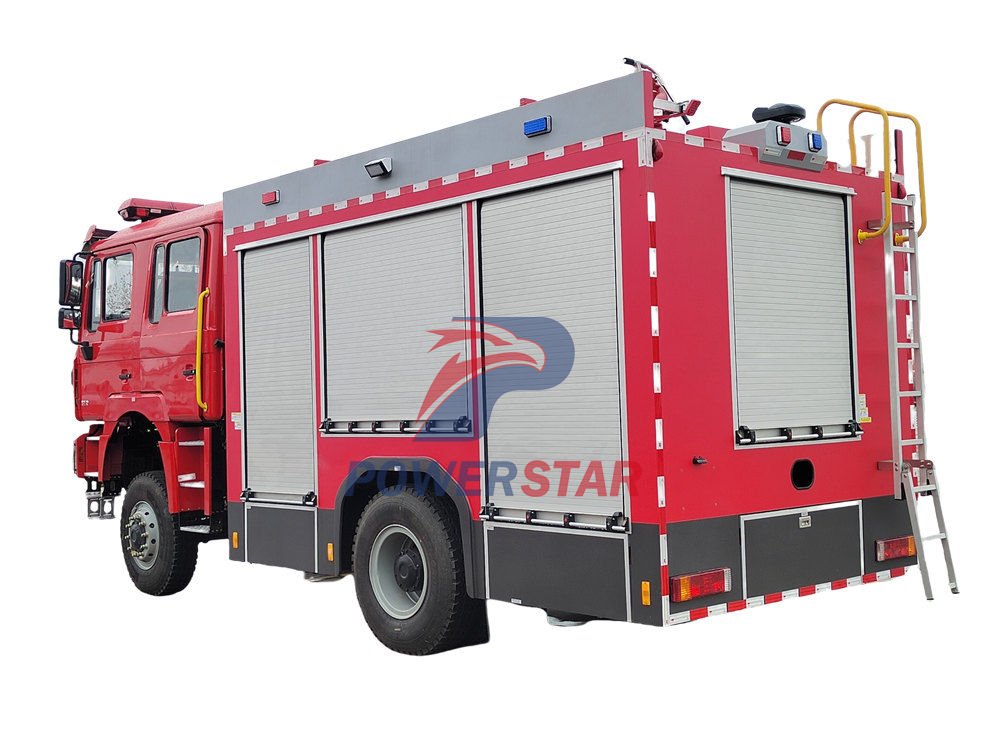

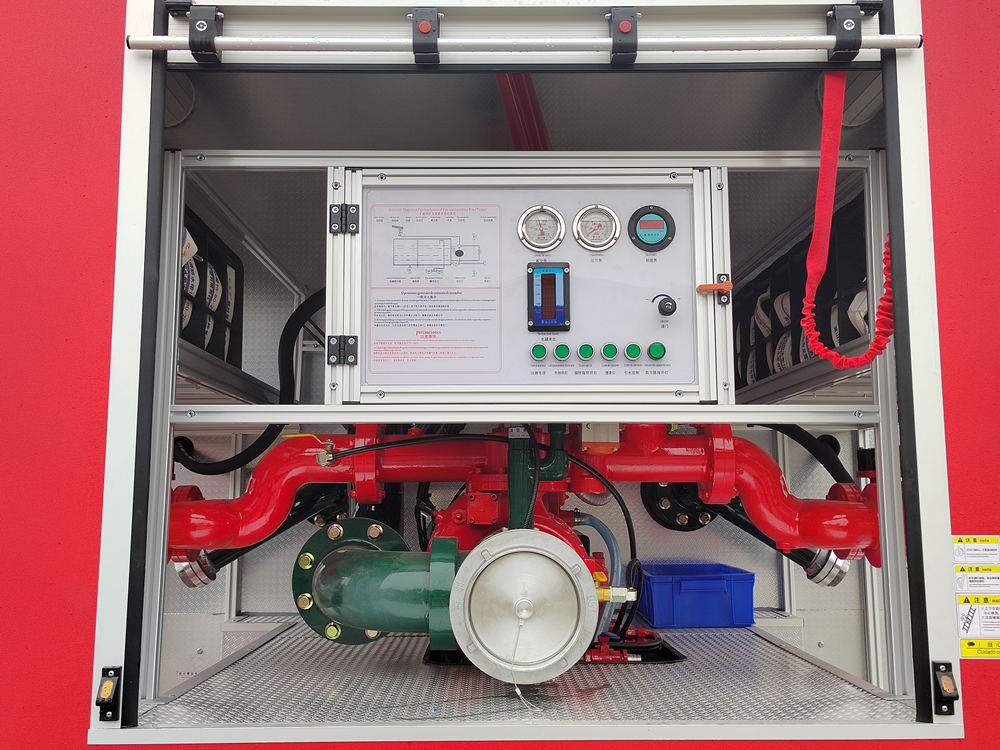

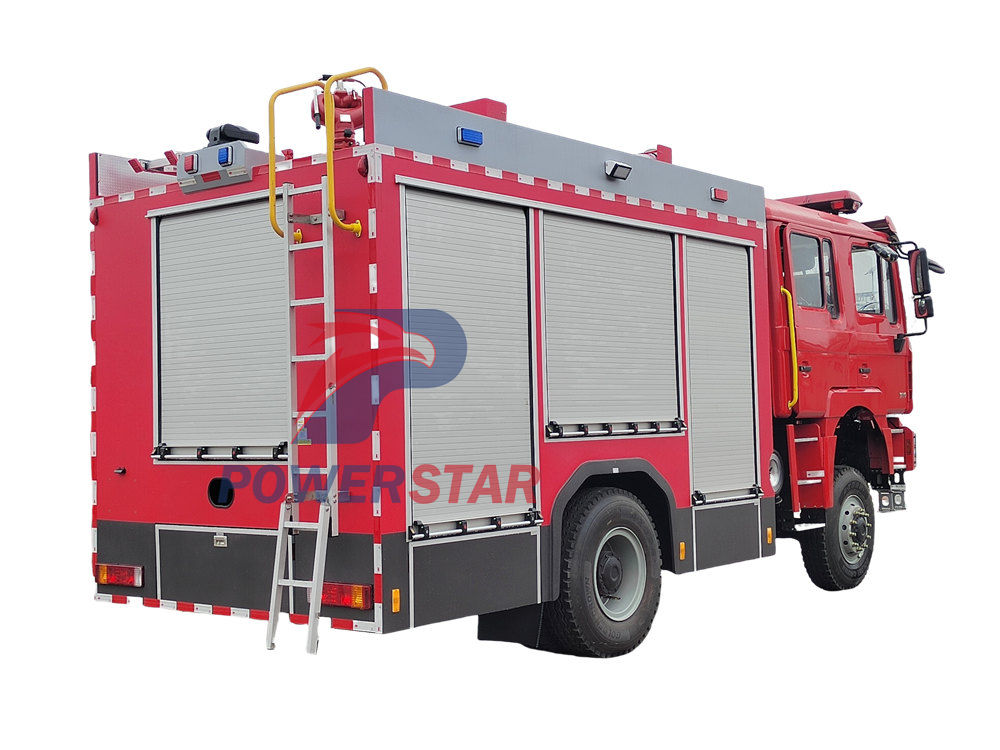

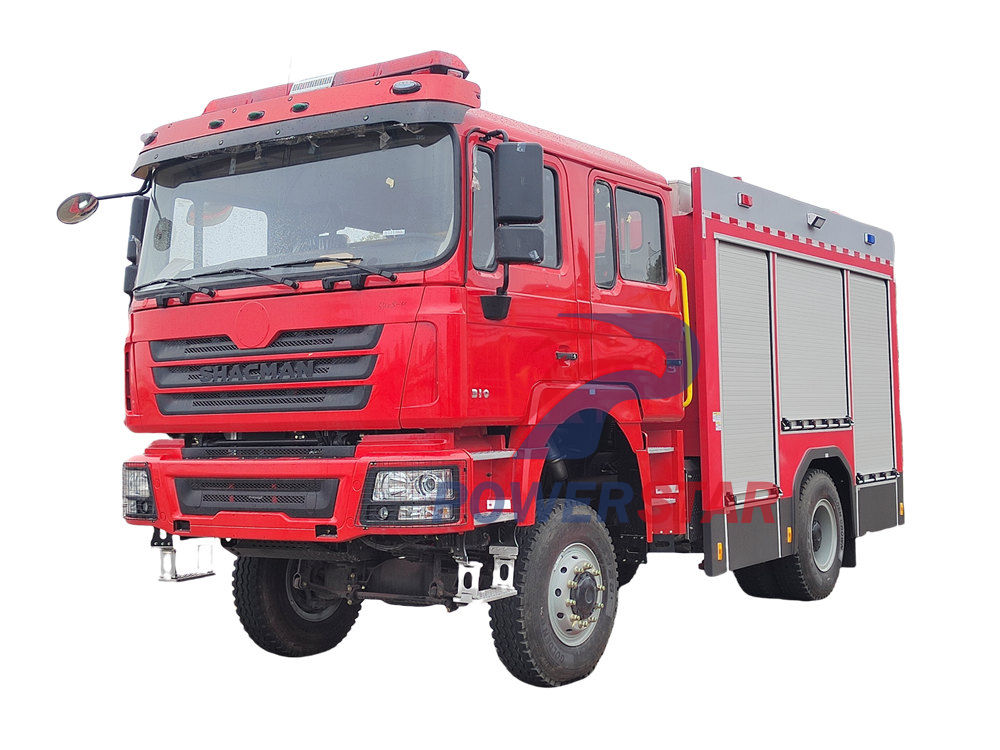

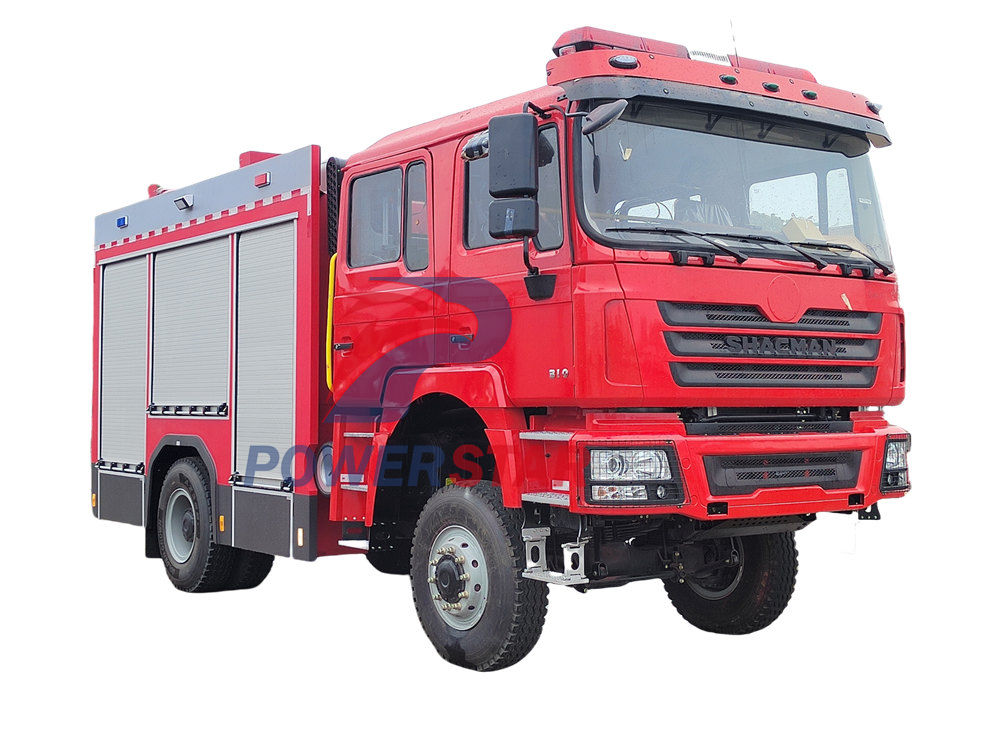

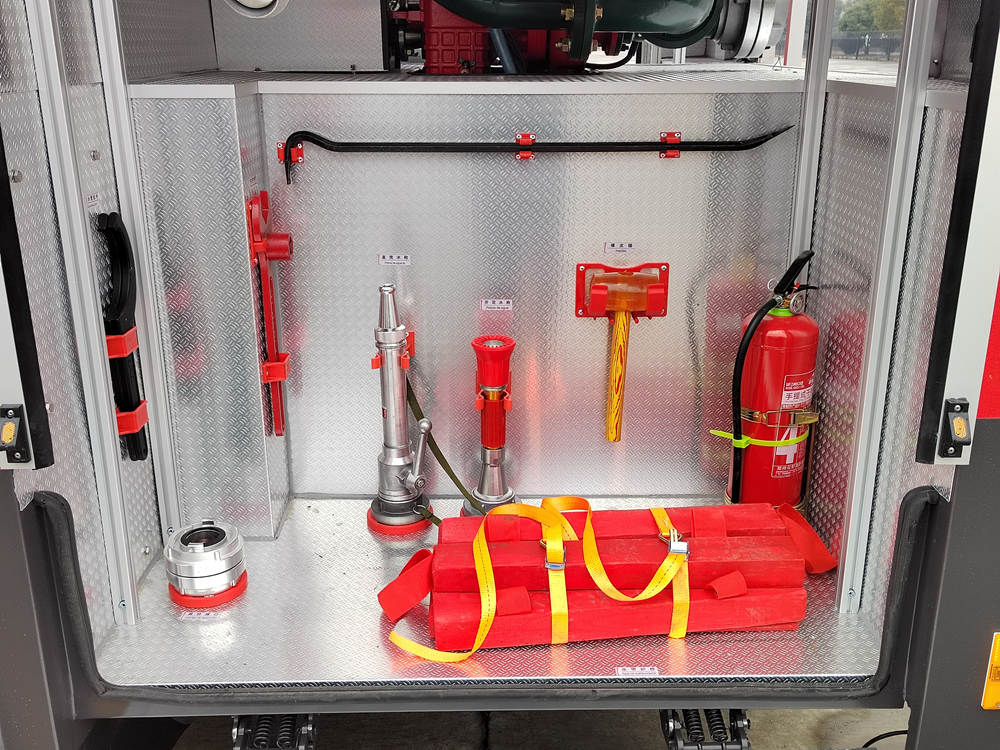

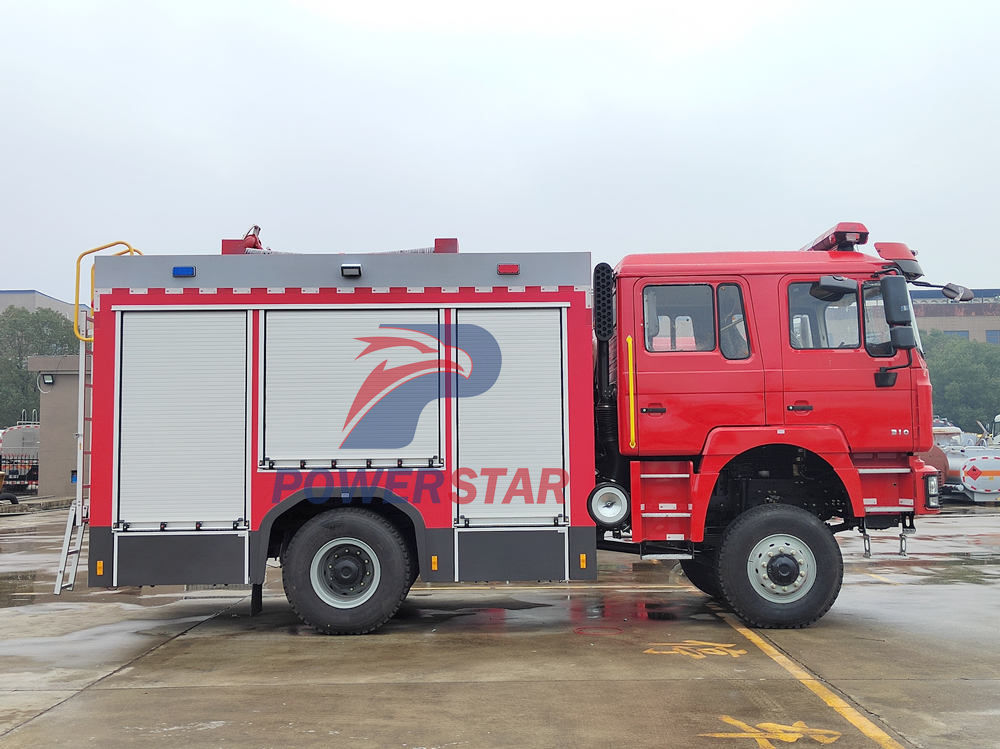

The Shacman 4x4 water tender fire truck is widely praised for its excellent performance and versatility. With 4x4 all-wheel drive, it has excellent off-road capabilities and passability, and can quickly reach various complex fire scenes. The Shacman water tender fire truck is equipped with a large-capacity water tank to meet the needs of long-term firefighting and is suitable for a variety of environments such as cities, rural areas and the wild. Its features include a powerful power system, a sturdy and durable body structure, and a flexible configuration of water tanks and firefighting equipment, ensuring that it can play an efficient firefighting role in various emergency situations. It is an indispensable and important equipment for the fire department. The Shacman 4x4 water tender fire truck is modified on the Shacman  4x4 chassis,with 4600mm wheelbase, WP10.310E32 diesel engine, FAST 9 speeds gearbox, the cab can accommodate five firefighters (2+3 seating arrangement), ensuring efficient teamwork.with A/C,USB,direction assistance.The truck equipped with 6cbm water tank, has a pump room(CB10/60 fire pump,fire equipment) a tool room,witch can assist firefighting operations. Product Name SHACMAN 4×4 water tender fire truck Driving Type 4×4, left hand drive WEIGHT Gross Vehicle Weight 18000 kg Curb Weight 11000kg Dimensions Wheelbase 4600 mm Overall Size 8500x2500x3650 mm Front/rear overhang 1765/1890 mm ENGINE Engine Model WP10.310E32 No of Cylinder 6 Displacement 9726ml Max Output 310HP (228KW) Emission Standard EURO 3 Rated Speed 2200 rpm Max. torque 1250 N.m DRIVE TYPE Transmission FAST 9 speeds gearbox, 9 forwards,1 reverse Steering With power steering Brake Air brake Front axle/rear axle 6.3T/13T CAB Cabin SHACMAN F3000 Configuration With A/C Seat quantity Double row, 2+3 seats TIRE Tire specification 12.00R20, 6+1 pcs Upper body Water Tank Capacity 6000 liters Tank Material Q235 carbon steel Pipe Material Q235 carbon steel Fire Pump Model: CB10/60 Type: Centrifugal fire pump Rated flow: 60L/s @1.0MPa Rated outlet pressure: 1.0 Mpa Max. suction depth: 7m Fire Monitor Model: PS8/60W Rated flow: 60L/s Rated pressure: 0.8 Mpa Elevation angle: ≥70° Depression angle: ≤-30° Range: ≥70 m   1.Shacman fire truck excellent off-road and stability  With 4x4 four-wheel drive system and enhanced suspension system, Shacman 4x4 water tender fire truck can easily cope with complex terrain and bad road conditions, ensuring that it can reach the fire scene stably and quickly in an emergency. High ground clearance and sturdy body structure further improve the vehicle's passability and durability.  2.Strengthened structure and durability Shacman water tender fire truck pays special attention to strengthening structure and durability in design. It adopts high-strength steel and advanced welding technology to withstand high-intensity pressure and impact in extreme working environments.  At the...

HOWO 6x4 heavy fire fighting truck is a versatile firefighting equipment designed for different types of fires. It combines the two technologies of foam fire extinguishing and dry powder fire extinguishing, which can not only effectively extinguish flammable liquid and solid fires, but also quickly control fires caused by electrical equipment and chemicals. HOWO heavy fire fighting truck is equipped with large-capacity foam and dry powder storage tanks, as well as an efficient injection system to ensure rapid response and fire extinguishing in emergency situations. Its design focuses on mobility and durability, and it is suitable for operation in various complex environments. It is an important tool for fire departments to cope with diverse fire challenges. HOWO foam powder fire truck also known as HOWO fire fighting truck, HOWO dry powder fire truck, HOWO heavy rescue fire truck, HOWO resuce fire truck, is an impressive firefighting weapon that combines advanced technology with powerful performance. HOWO foam powder fire truck adopts a 6x4 drive mode and is equipped, It adopts a spacious and comfortable double-row cab design with a HW19710 gearbox with power steering, with 4600+1350mm wheelbase,WP10.336 engine,Euro 3 diesel 9726ml emission, which has a strong power guarantee.     The core fire extinguishing device of the HOWO 6x4 12 cubic meters of foam powder fire truck is its 12 cubic meters of water foam mixing system, of which 10 cubic meters are used to store clean water and 1 cubic meters are used to store foam fire extinguishing agents and 1 cubic meters dry powder tank. This design fully considers the firefighting needs of different types of fires. As the most commonly used fire extinguishing medium, clean water is suitable for fires caused by most solid materials; while foam fire extinguishing agent is particularly suitable for oil fires. It can effectively isolate oxygen, inhibit the spread of fire, reduce the heat generated by combustion, and improve the efficiency of fire extinguishing.   Product Name HOWO 6x4 heavy fire fighting truck Driving Type 6x4 ,left /right hand drive WEIGHT Gross Vehicle Weight 25000 kg Kerb Weight 12500 kg Dimensions Wheelbase 4600+1350 mm Overall Size 10500x2550x3400mm ENGINE Engine Model WP10.336 No of Cylinder 6 Displacement 9726ml Max Output 247 KW Max. hose power 336 HP Emission Standard EURO 3 DRIVE TYPE Transmission HW19710 10 speeds,10 forwards and 2 reverse Steering ZF, With power steering Brake Air brake Front axle/rear axle front axle:HF9rear axles:ST16X2 CAB Cabin HOWO 76 new type Configuration with A/C Seat quantity Double row, 2+4 seats TIRE Tire specification 12.00R20,10+1 Superstructure Tank Capacity Water tank:10000litersFoam tank:1000liters Dry powder tank: 1 CBM Tank Material Water tank: Q235 carbon steel Foam tank: stainless steel Fire pump Model: CB10/60 Flow: 60L/s @1.0 Mpa Rated pressure: 1.0 Mpa Fire monitor Model: PL8/48 Flow: 48 L/s Max. working pressure: 0.8 Mpa Ran...

Isuzu ELF water foam fire truck is a special vehicle designed for fire fighting and rescue. Its main purpose is to quickly spray foam fire extinguishing agent at the fire scene to effectively extinguish fires of flammable liquids and solid materials. The characteristic of Isuzu ELF water foam fire truck is that it is equipped with an advanced foam ratio mixing system, which can ensure that the foam fire extinguishing agent and water are mixed in the best proportion to improve the efficiency of fire fighting. At the same time, it also has a powerful water pump system and high-pressure water cannon, which can spray foam from a long distance and cover a large area of ​​fire source. Its body design is sturdy and durable, adapting to various complex terrains and harsh environments, and is an indispensable fire extinguishing weapon for fire rescue teams.       The Isuzu water foam fire truck is modified on the Isuzu ELF 4x2 chassis,with 4475mm wheelbase,4HK1-TCG61 190HP diesel engine,Isuzu MLD 6speed gearbox,the cabin 2+3 person,with A/C,USB,direction assistance.The truck equipped with 4cbm water tank and 1cbm foam tank,has a pump room(CB10/40 fire pump,fire equipment) a tool room,witch can assist firefighting operations.     The Isuzu water foam fire truck has a sophisticated design, beautiful appearance, smooth lines, and a frame-type design structure. Various fire equipment are placed reasonably and fixed with special clamps. The rolling shutter door is made of high-strength aluminum alloy, opening and closing smoothly and reliably, and has good sealing performance. The fire truck has a compact structure and is suitable for fighting general fires and initial fires in complex terrain, urban streets, and narrow places. The most important thing is that it can directly absorb water from wild reservoirs, ponds, streams and other water sources for fire extinguishing work, or provide water supply to other fire extinguishing equipment.       Isuzu ELF water foam fire truck Manufacturer POWERSTAR Chassis Chassis model Isuzu NPR Drive model 4X2,left hand drive Wheel Base 4475mm Tyre size & number 235/75R17.5,6+1 wheel Transmission ISUZU MLD Manual, 6-speed forward, 1 reverse gears Color Red and white including tanker, standard. Engine Engine model 4HK1-TCG61 Horse power 190HP/139KW Displacement 5.193L Rotating speed 2600rpm Emission EURO 6 Fire performance Tank capacity water tank capacity:4000L foam tank capacity:1000L Fire pump Brand: Xiongzhen Model: CB10/40 Low-pressure:40L/S Fire monitor Brand: ChengDU West Model:PL36 Flow:36L/S Water jet distance:≥55m Foam jet distance:≥50m Standard configuration Have alarm rotating light and  which is mounted on top of the cabin , have ladder , have manhole   The Isuzu water foam fire truck is a firefighting vehicle specifically designed to respond to fires. In addition to being equipped wit...

Isuzu 12 wheels GIGA heavy duty fire engine is an important tool for rescue and fire fighting. It has a special structure and function to meet the needs of firefighters for rescue and fire fighting tasks. Isuzu fire engine is usually equipped with a large number of fire fighting equipment, such as water guns, foam guns and fire extinguishers, as well as a large amount of water or foam fire extinguishing agents. They usually have a large water carrying capacity and can provide long-term fire fighting operations.     The Isuzu GIGA fire engine is an impressive firefighting weapon that combines advanced technology with powerful performance. Isuzufire engine adopts a 8x4 drive mode and is equipped with a 12-speed gearbox, with 2100+4325+1370mm wheelbase,6WG1-TCG61 460HP engine,Euro 6 diesel 15.681L emission, which has a strong power guarantee.    The Isuzu fire fighting truck is equipped with a specialized foam suppression system that enhances its firefighting capabilities. Foam is an effective agent for extinguishing fires by smothering the flames and preventing reignition. The foam suppression system on this fire truck is integrated with the water pump and other firefighting equipment, allowing firefighters to deploy foam quickly and accurately to contain and extinguish fires effectively. The foam system can be adjusted to deliver different foam concentrations and volumes, depending on the type and size of the fire, making the Isuzu fire fighting truck a versatile and reliable firefighting vehicle.       Isuzu GIGA foam water fire truck Main specification Truck brand POWERSTAR Overall dimension(L*W*H) 11500x2540x3550mm Cabin Isuzu GIGA cab, one and half row, with air conditioner , electronic windows, USB GVW/Curb weight 35000/14500kg Chassis Chassis model Isuzu GIGA Drive model 8X4,left hand drive Wheel Base 2100+4325+1370mm Tyre size & number 295/80R22.5,12+1 wheel Transmission FAST gearbox, manual, 12 gears forwards with 2 reverse Color Red and white including tanker, standard. Engine Engine model 6WG1-TCG61 Horse power 460HP/338KW Displacement 15.681L Rotating speed 1500rpm Emission EURO 6 WATER TANK AND FOAM TANK SPECIFICATION Tank Capacity 12,000L water tank and 2000L foam tank and 1000L dry powder Material Water tank carbon steel,foam tank stainless steel Fire pump Model CB10/60 Pressure 1MPa Max working pressure 1.232MPa Flux 60L/s Max suction height 7m Rated speed 3286±50r/min Speed Ratio 1:1.44 Fire monitor Model PL8/48 Flow 48L/s Rated working pressure 0.8MPa Max working pressure 1.0MPa Range Water ≥70m Foam ≥60 Standard configuration Have alarm rotating light and  which is mounted on top of the cabin , have ladder , have manhole    Specifications Working Condition Flow Exit Pressure Rated Speed Shaft Power Suction Depth     CB10/60 1 60 1.0 3280±50 102 3 2 42 1.3 3519±50 106 3 3 30 1.0 3120±50 73 7   Model Flow（...
