Shacman 4x4 wildland fire engine

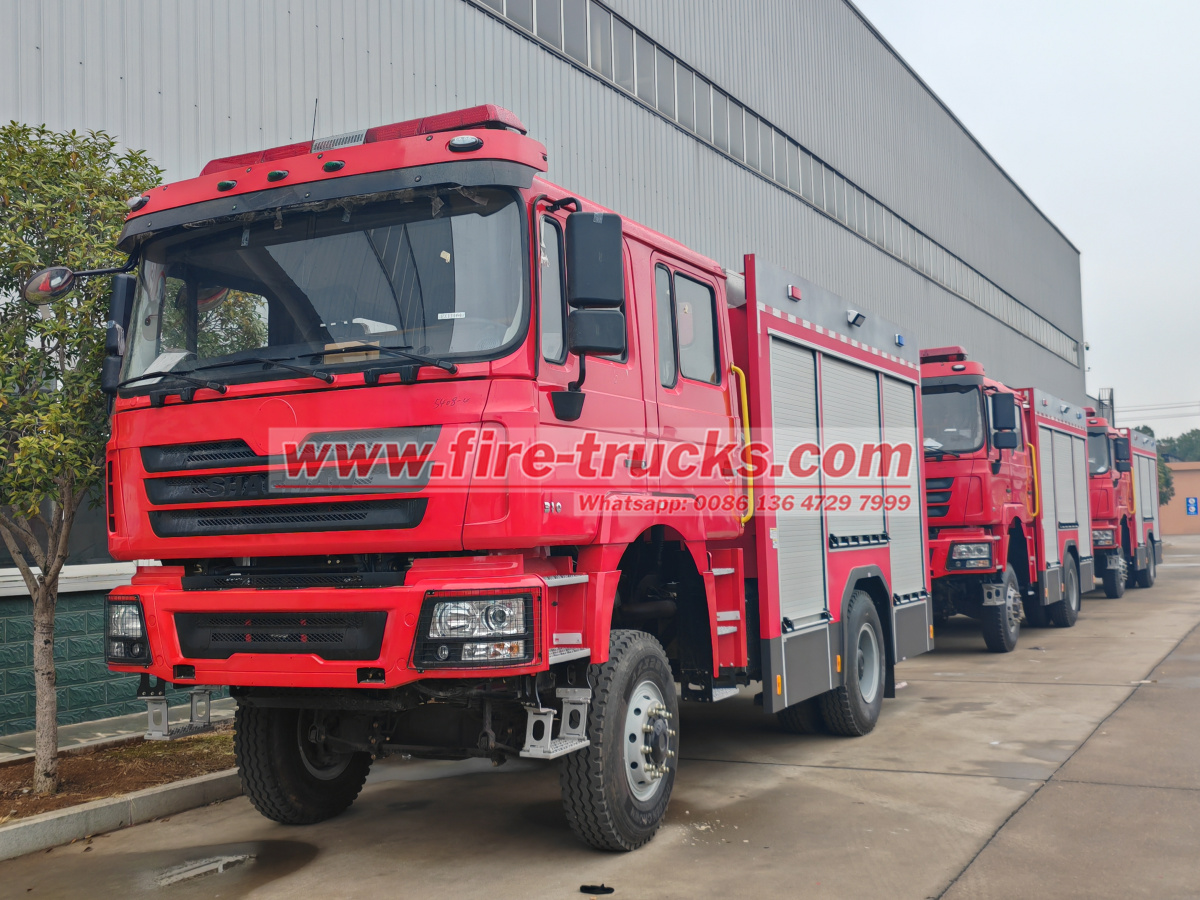

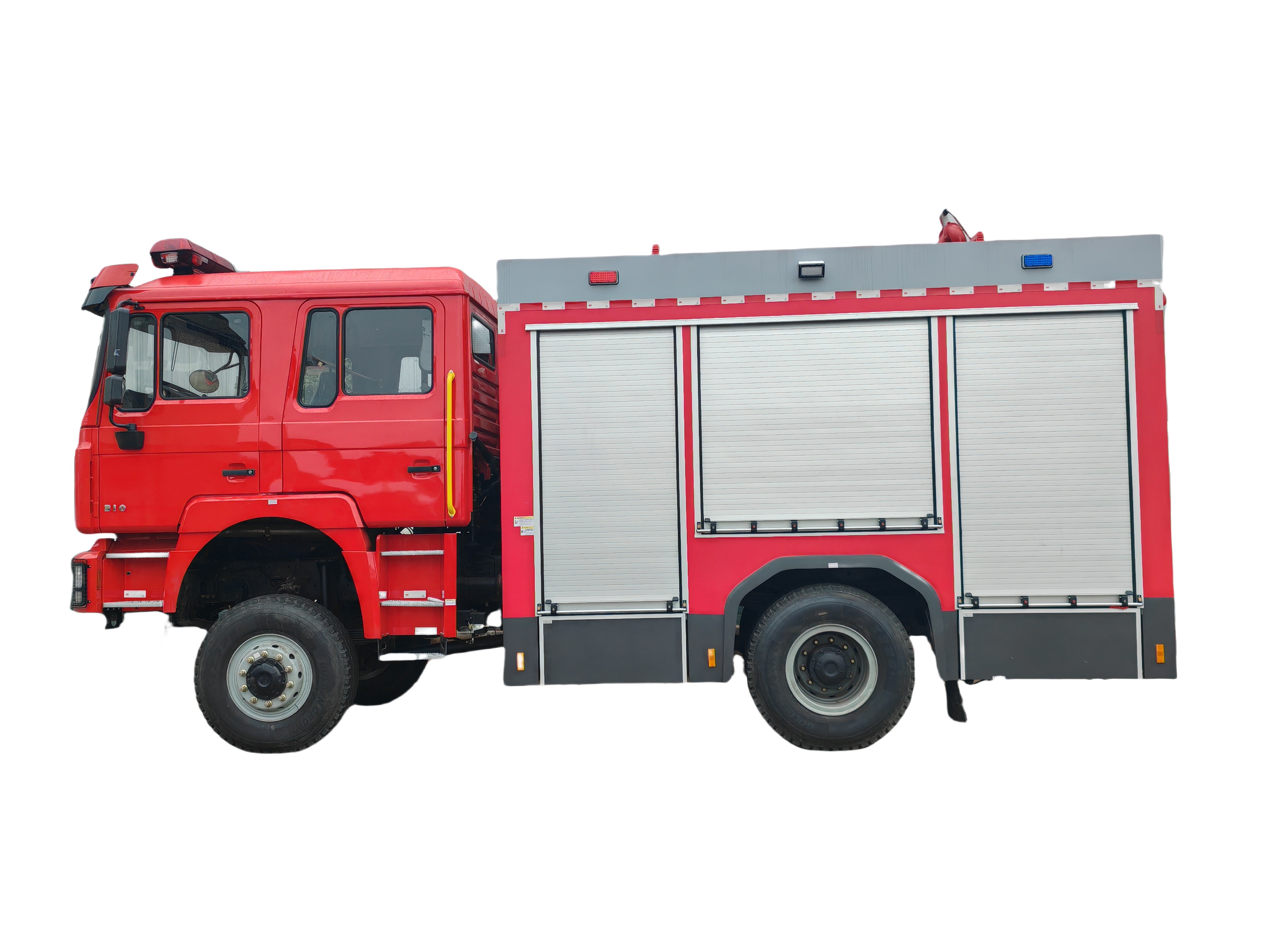

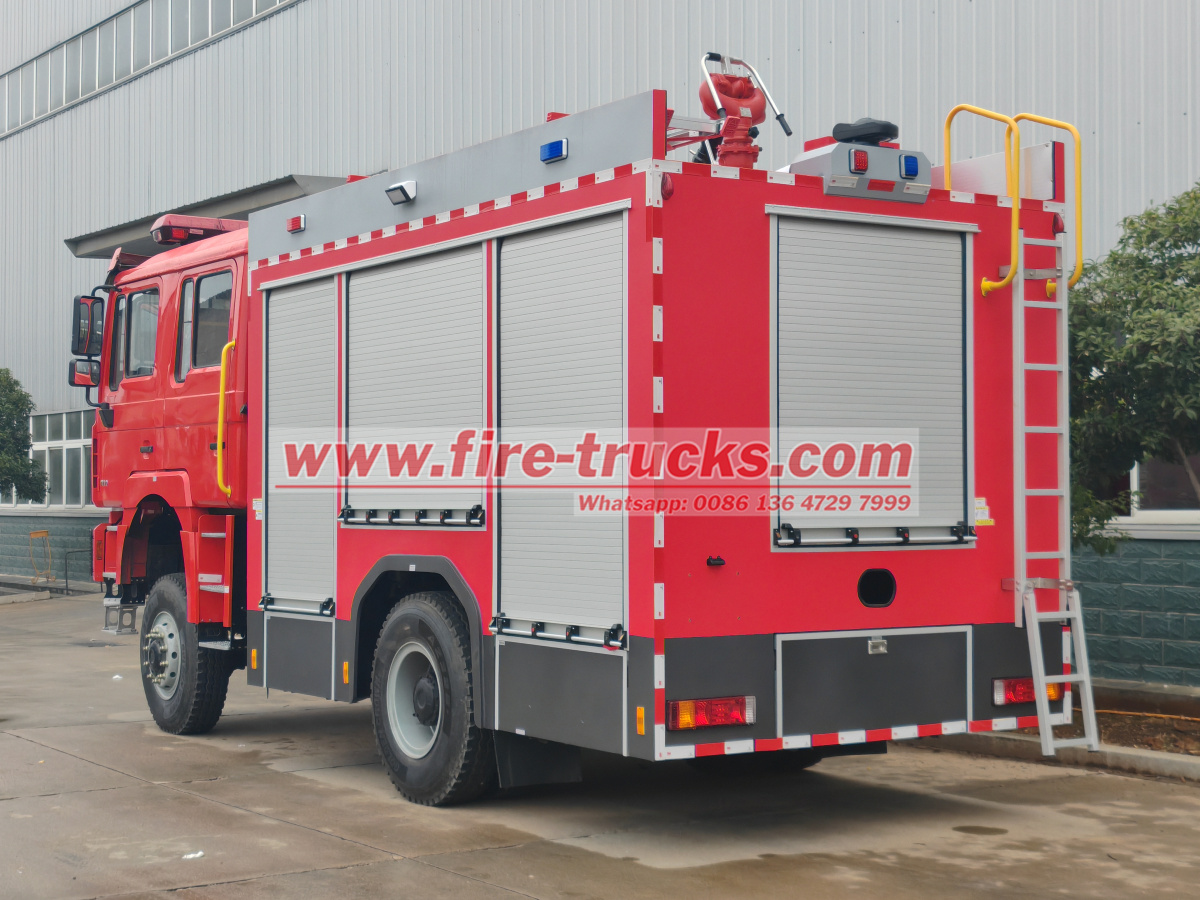

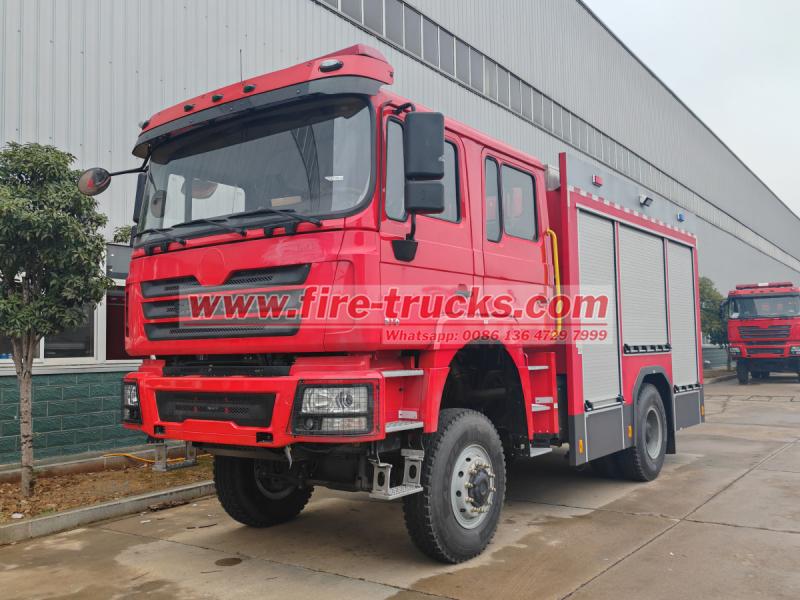

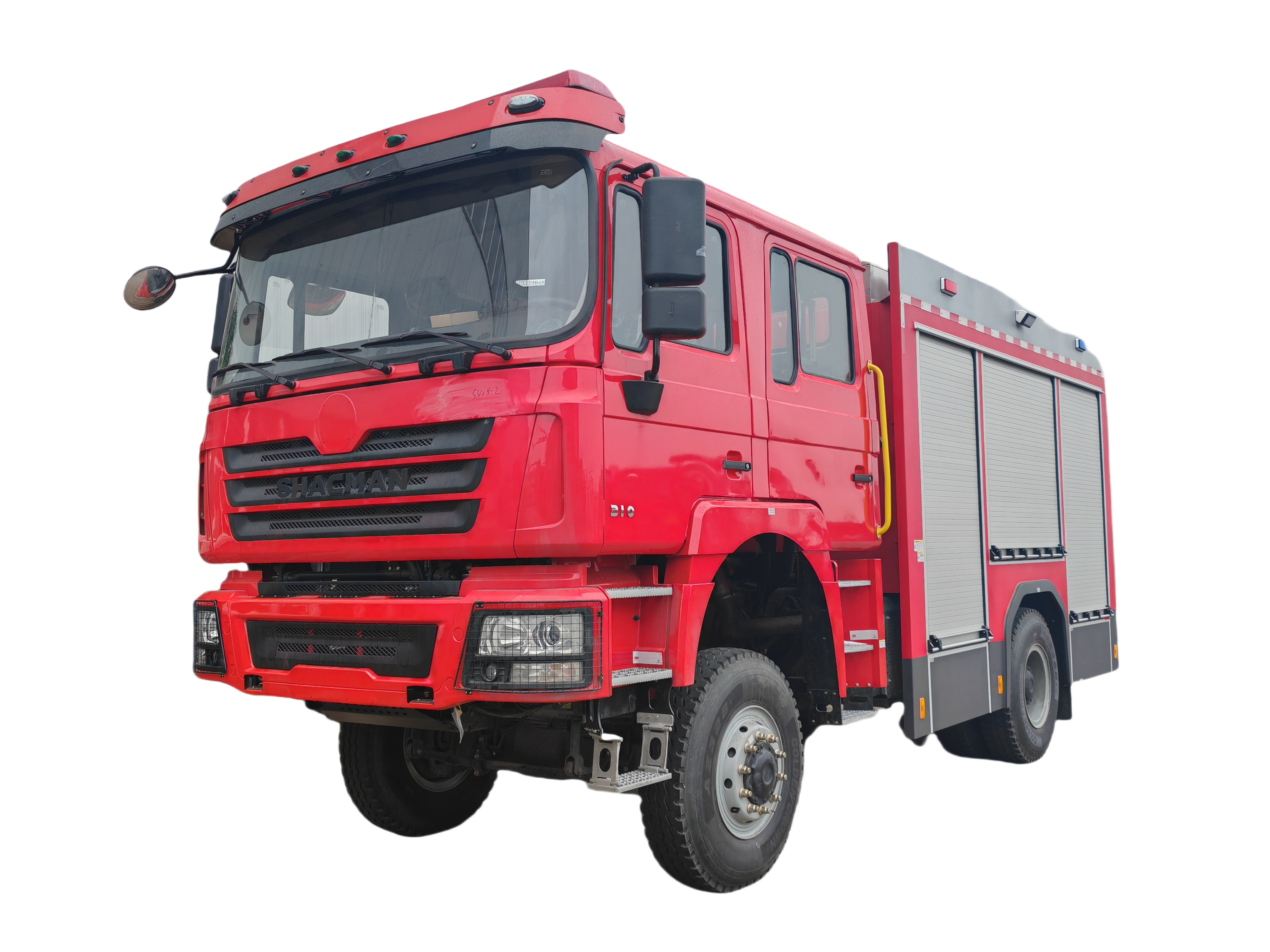

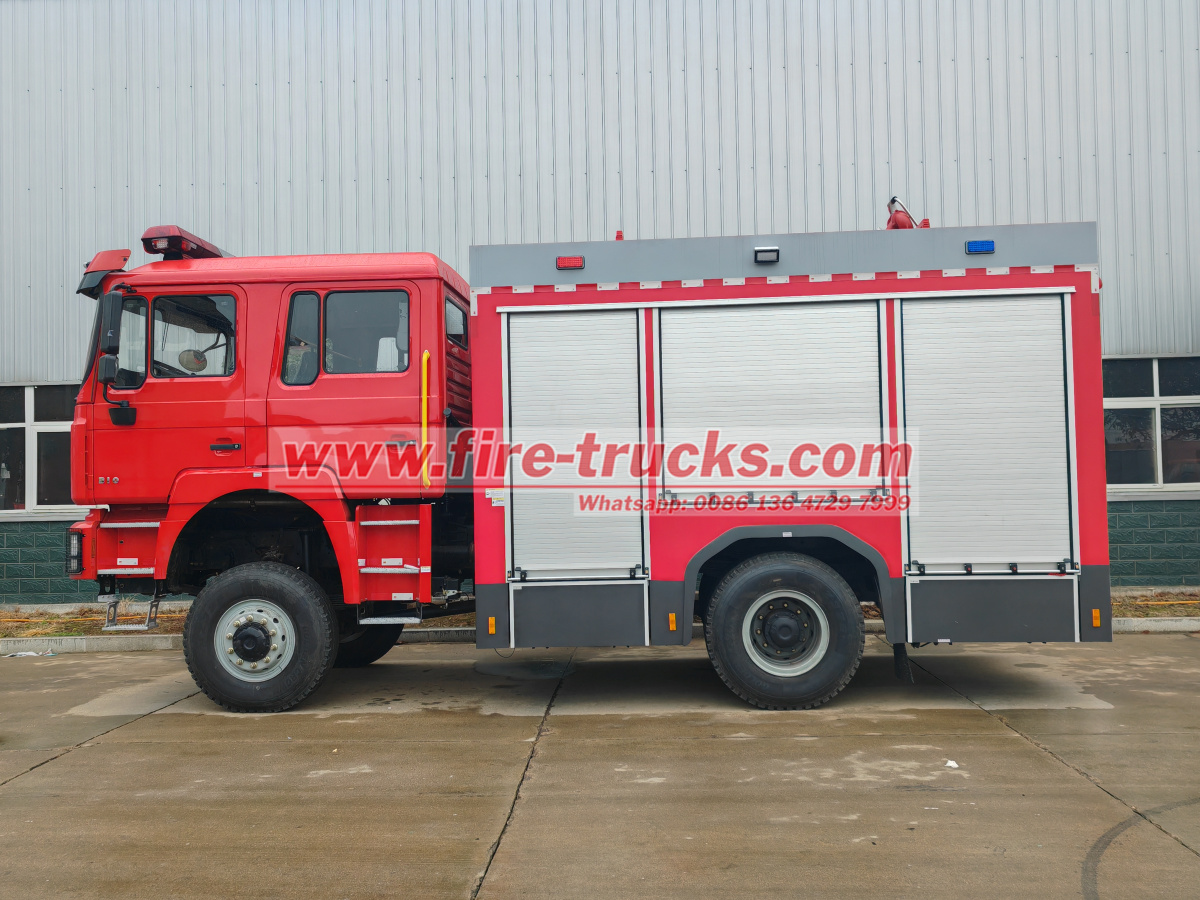

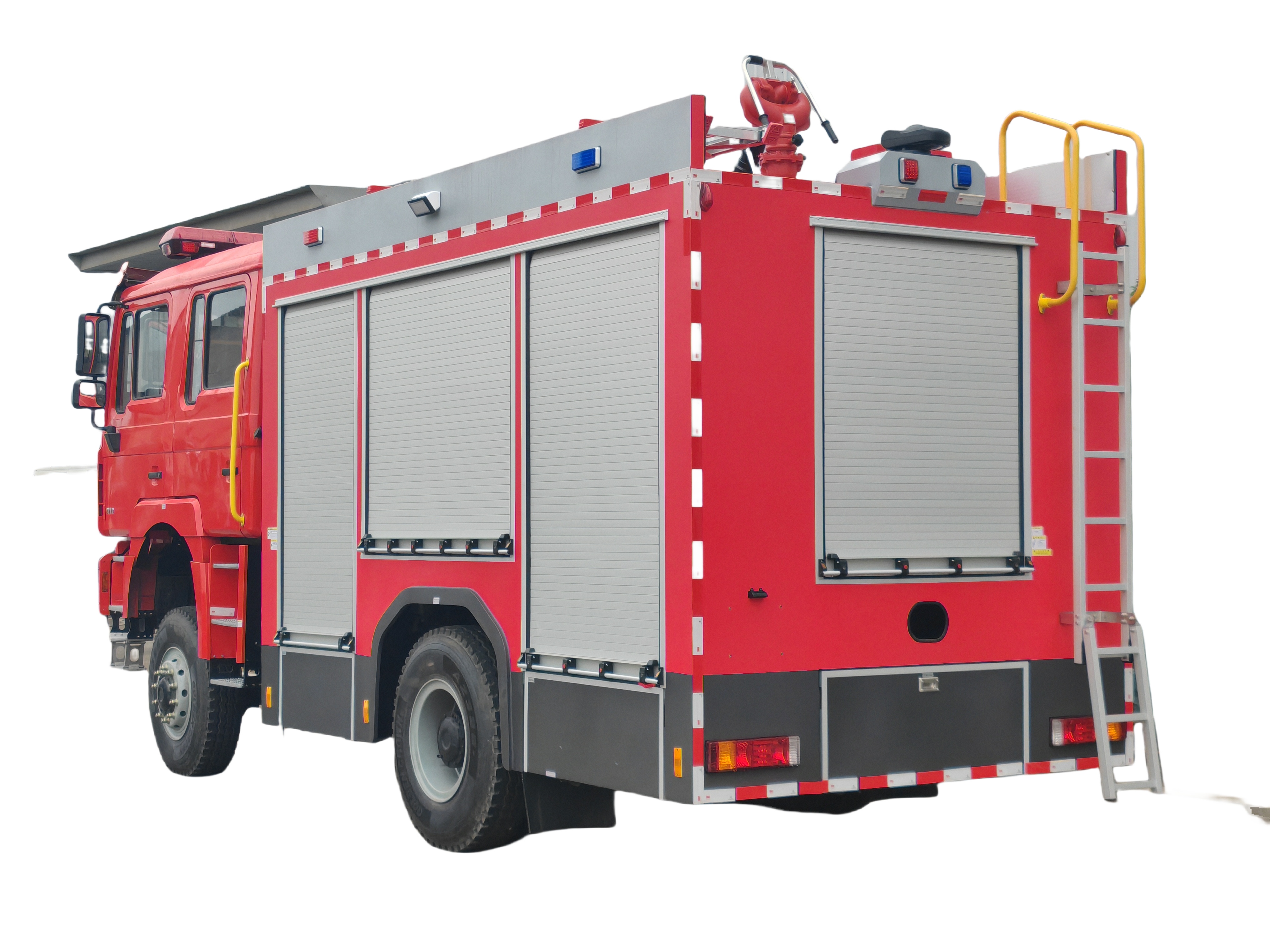

Shacman F3000 4x4 wildland fire engine, also named Shacman 4x4 water fire tender or Shacman rescue fire truck.Recently, the SHACMAN 4x4 Drive Double-row Cab 4-cubic-meter Water Tank Off-road Fire Truck developed by POWERSTAR TRUCKS was officially exported to Africa, marking an important step for China's high-end fire fighting equipment in the international market. This fire truck has won high recognition from African customers for its excellent off-road performance, strong design capabilities and precise customer needs, adding luster to Made in China on the international stage.

Shaanxi Automobile 4x4 All-wheel Drive Chassis: The Pinnacle of Off-road Performance

As the core component of this fire truck, the Shaanxi Automobile 4x4 All-wheel Drive Chassis demonstrates its excellent performance in the off-road field. The terrain in Africa is complex, with both vast deserts, rugged mountains and muddy jungles, which places extremely high demands on the passability and stability of fire trucks. With its powerful power system and advanced suspension technology, the Shaanxi Automobile 4x4 All-wheel Drive Chassis can easily cope with various complex road conditions.

First of all, the Shaanxi Automobile 4x4 all-wheel drive chassis is equipped with an efficient powertrain, equipped with a high-torque engine and an intelligent gearbox, ensuring that the vehicle can maintain strong power output when climbing at low speed and driving at high speed. Secondly, the chassis adopts a full-time four-wheel drive system, which can automatically distribute torque according to road conditions, ensuring that the vehicle still has excellent grip on slippery, muddy or soft roads. In addition, the chassis is also equipped with a high ground clearance and a reinforced suspension system, which effectively improves the vehicle's passability and impact resistance, allowing it to easily navigate the complex terrain of Africa.

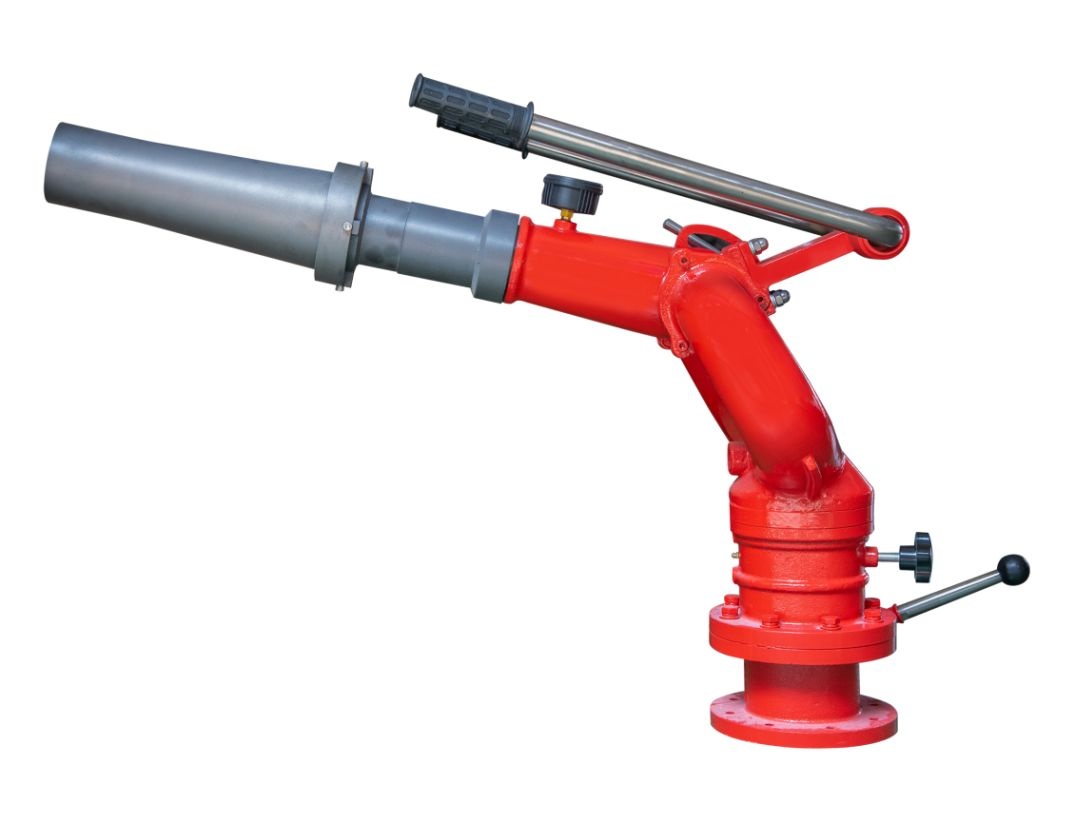

PL series foam fire monitor covers the flow range from 24L/s to 80L/s according to the characteristics of the medium. This series of monitor has the characteristics of long range, simple structure, stable and reliable performance, flexible operation and convenient maintenance. The monitor body can be rotated horizontally, and the liquid angle can be adjusted in pitch and locked reliably. This product is suitable for equipped with main battle fire trucks, fire ships, and can also be used as fixed fire extinguishing equipment for industrial and mining enterprises, warehouses, oil fields, and storage tanks. The main specifications, technical parameters and performance meet the requirements of the national standard “General Technical Conditions for Fire Monitors” (GB19156-2019).

2. Performance Parameter

Shacman F3000 4X4 off-road chassis is a chassis designed for off-road and special operations, with powerful power and excellent passability. Here are some key information:

Power system:

Equipped with Weichai WP13 engine, the maximum horsepower can reach 550, the displacement is 12.54L, and the peak torque is 2550N·m.

Equipped with imported Allison 4500 6AT gearbox with torque converter, transfer case is ZQC2000, which can reasonably distribute engine power according to working conditions.

Drive and suspension:

Adopt 4X4 full-time four-wheel drive mode, equipped with three differential locks (axle and wheel) to ensure the passability in various complex terrains.

The front and rear axles are Hande 9.5-ton front axle and 13.5-ton double-stage reduction axle, and the rear axle speed ratio is 4.262.

Tire and ground clearance:

Equipped with 14.00R20 off-road tires, the rolling radius is 590mm, which significantly improves the chassis's passability.

The ground clearance is extremely high, and the lowest pedal of the three-stage pedal is still half the height of the tire from the ground, which is suitable for off-road RVs.

Modification and adaptability:

The bumper is arranged at a high position to increase the approach angle. The left, middle and right three-stage design is easy to disassemble and repair. The internal trailer hook is integrated and the winch installation position is reserved.

The front, both sides and rear suspension of the chassis have reserved installation interfaces for special devices such as roller brushes, snow shovels, and snow blowers, which have good modification adaptability.

Driving and safety:

Support C1 driving license driving, equipped with a variety of safety systems, the chassis weight of the whole vehicle is 7.6 tons, and the fuel tank capacity is 400L.

Shaanxi Automobile F3000 4X4 off-road chassis has become the first choice for off-road RVs and special operation vehicles with its powerful power, excellent passability and wide modification adaptability.

The strong design capabilities of fire truck manufacturers: accurately meet customer needs

The successful export of this fire truck is inseparable from the strong design capabilities of fire truck manufacturers. During the research and development process, the manufacturer fully considered the actual needs of the African region, from functional design to detail optimization, and strived to provide customers with the most perfect solution.

First of all, the fire truck adopts a double-row cab design, which can accommodate 6 firefighters, greatly improving the efficiency of teamwork. The interior of the cab is spacious, equipped with comfortable seats and a humanized control system, ensuring that firefighters can still maintain an efficient working state during long-term operations. Secondly, the fire truck is equipped with 4 cubic water tanks, which can store a large amount of water to meet the needs of firefighting operations in Africa. The water tank is made of high-strength materials and has excellent corrosion resistance and impact resistance, ensuring stable operation in harsh environments.

In addition, the fire truck is also equipped with advanced firefighting equipment, including high-pressure water pumps, foam injection systems and multi-functional water cannons, which can quickly respond to various fire scenes. The manufacturer also added explosion-proof devices and thermal insulation layers to the vehicle according to customer needs, further improving the safety and reliability of the vehicle.

Perfectly meet customer needs: the international competitiveness of Made in China

The successful export of this fire truck not only demonstrates the technical strength of Shaanxi Automobile Group and fire truck manufacturers, but also highlights the competitiveness of Made in China in the international market. African customers highly praised the performance and design of the vehicle during the acceptance process, believing that this fire truck perfectly meets their needs and can effectively improve local fire emergency capabilities.

This cooperation has also laid a solid foundation for in-depth cooperation between Chinese companies and the African market. In the future, Shaanxi Automobile Group will continue to uphold the concept of "innovation-driven, quality first", launch more high-performance and high-reliability products, and help Chinese manufacturing go global.
