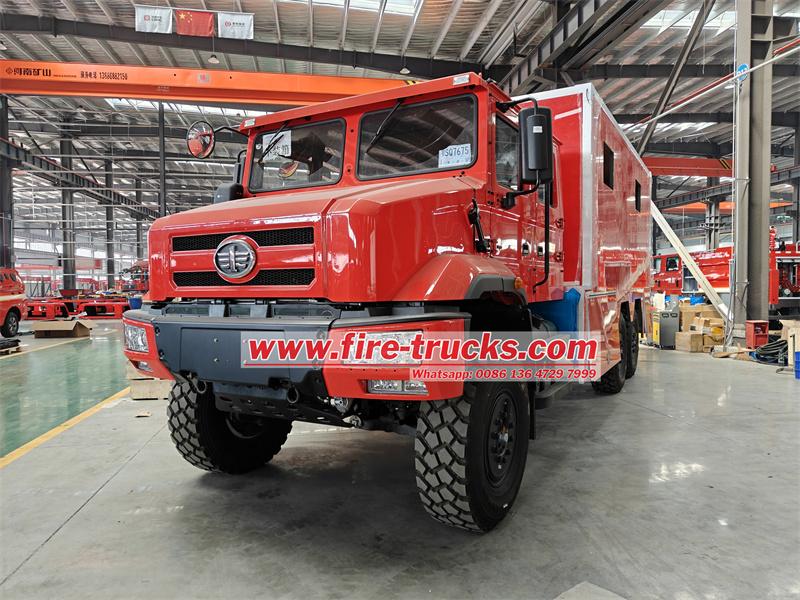

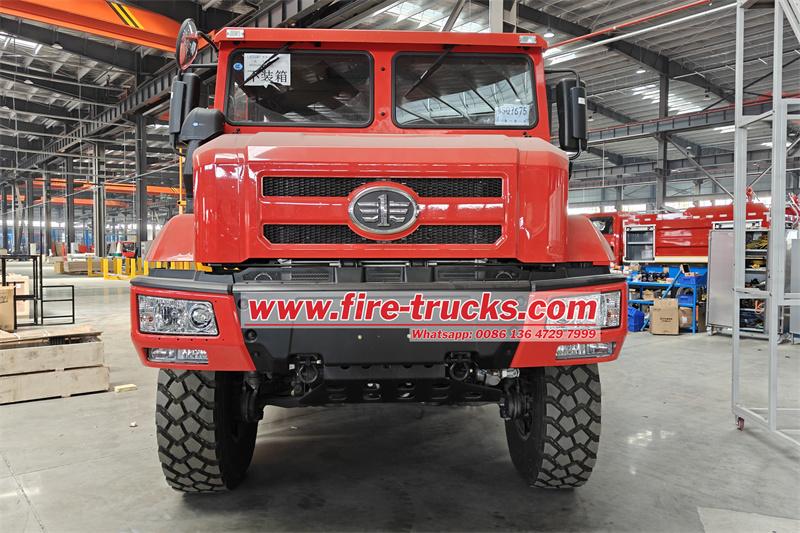

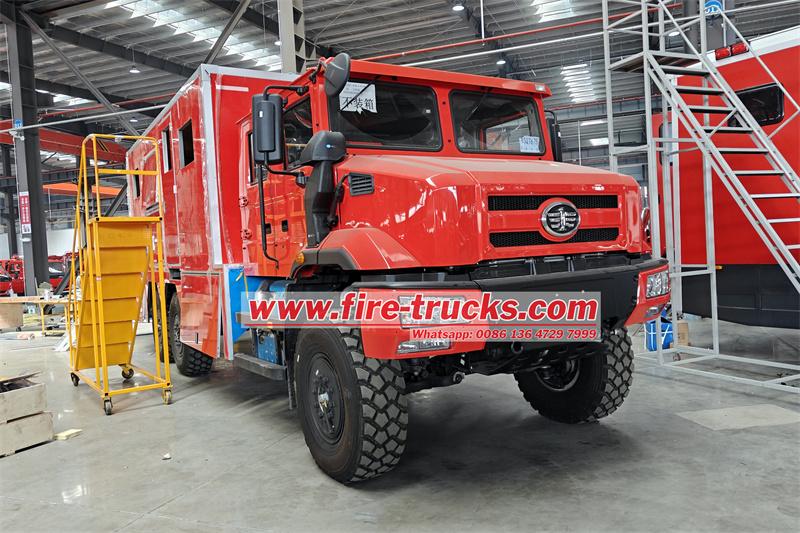

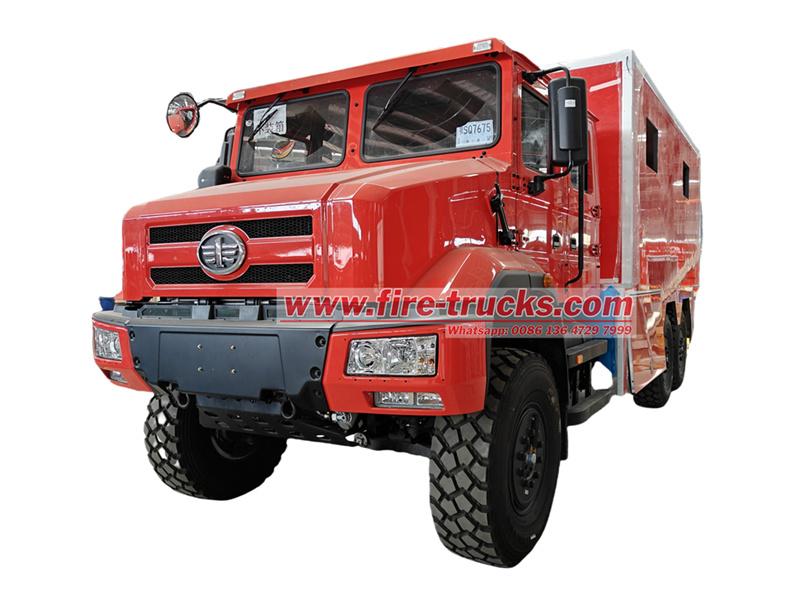

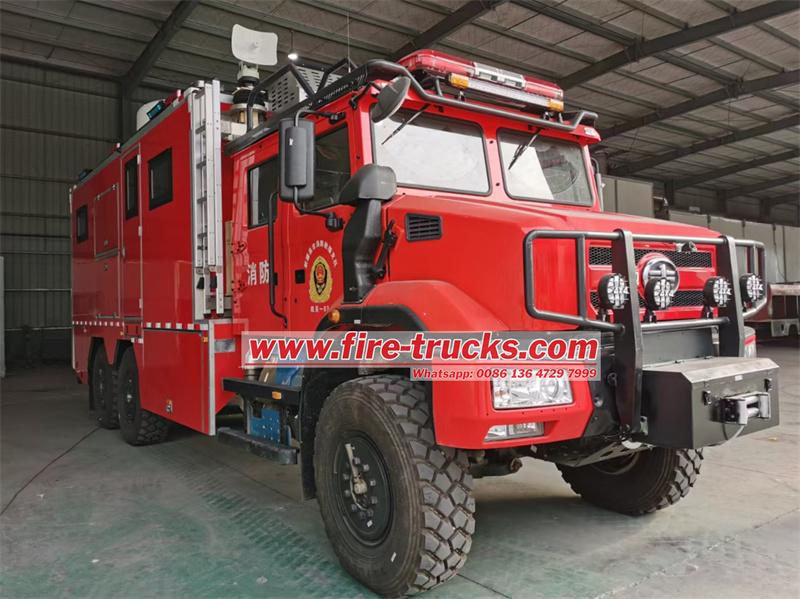

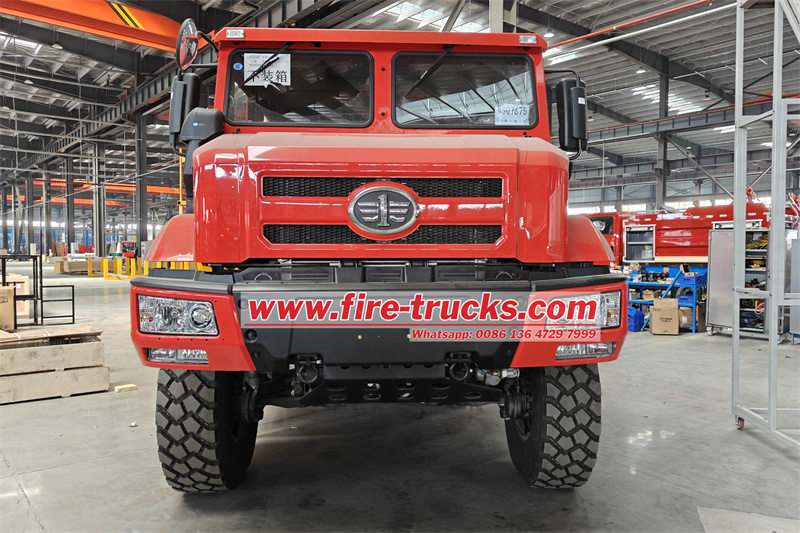

The 6x6 off-road forest fire command vehicle is built on a highly maneuverable all-wheels off-road chassis, designed for complex terrains, equipped with full-time six-wheel drive, differential locks and automatic tire inflation and deflation systems, with a maximum climbing gradient of over 60% and a wading depth of 1.5 meters, and can adapt to extreme environments such as mountains, swamps and plateaus. It is equipped with a high-power diesel engine, a dual power supply system (lithium battery + generator) and satellite communication equipment (Beidou/maritime satellite), supports multi-band fusion communication and real-time three-dimensional modeling of fire scenes, and realizes "air-space-ground" integrated command and dispatch.
Truck Model:
PST52809SLQXFTanker Structure:
15 tonsWork capacity :
5+6 personWheelbase:
5400+1350mmAxle drive:
6x6Engine Power:
420HPEngine Model:
CA6DM2-42E51Remark:
Fire forest command, Independent power supply systemThe 6x6 off-road forest fire command vehicle is built on a highly maneuverable all-wheels off-road chassis, designed for complex terrains, equipped with full-time six-wheel drive, differential locks and automatic tire inflation and deflation systems, with a maximum climbing gradient of over 60% and a wading depth of 1.5 meters, and can adapt to extreme environments such as mountains, swamps and plateaus. It is equipped with a high-power diesel engine, a dual power supply system (lithium battery + generator) and satellite communication equipment (Beidou/maritime satellite), supports multi-band fusion communication and real-time three-dimensional modeling of fire scenes, and realizes "air-space-ground" integrated command and dispatch. The vehicle body adopts a lightweight alloy structure, explosion-proof fuel tank and fire-proof coating. It’s equipped with drone relay, emergency material compartment and AI fire prediction module, taking into account mobility, protection and intelligent decision-making support, and is widely used in forest fire front-line command, post-disaster assessment and daily patrol tasks.
● China best fire rescue truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Specification:
FAW 6x6 Fire Command Support Truck |
|||
General |
Vehicle Brand |
Powerstar |
|
Chassis Brand |
Faw |
||
Overall Dimension |
9300*2530*3350mm |
||
GWW/ Kerb Weight |
28,300kg/13,220kg |
||
Painting |
Red color |
||

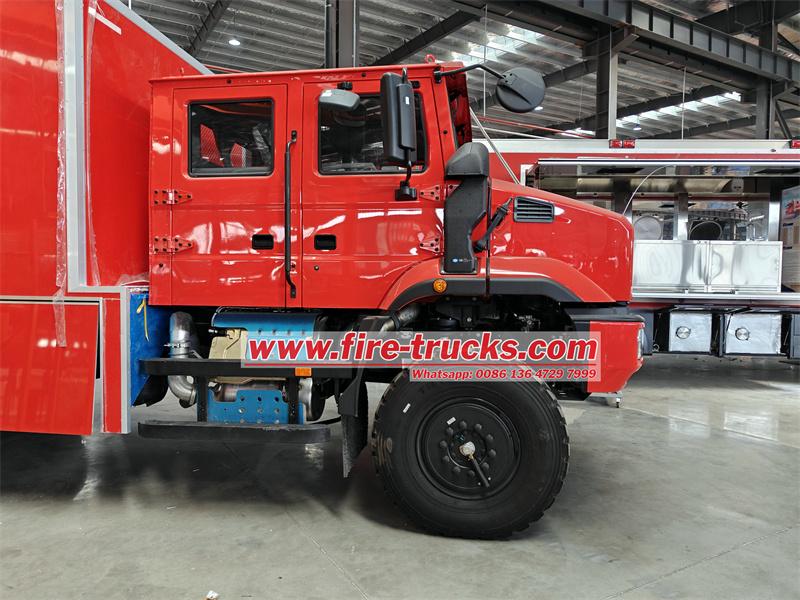

Cab |
Cab Capacity |
2+3 persons allowed |
|
Air Conditioner |
Air conditioner |
||
Engine |
Fuel Type |
Diesel |
|
Engine Model |
CA6DM2-42E51 |
||
Engine type |
Lnline 6-cylinder, turbocharged, inter-cooled diesel engine |
||
Power |
420 HP/312kW |
||
Displacement |
11.05L |
||
Emission Standard |
Euro 5 |
||
Chassis |
Drive Type |
6X6,left hand drive |
|
Transmission |
Fast 12-speed forward, 2 reverse |
||
Wheelbase/No.of axle |
5400+1350mm / 3 |
||
Tyre Specification |
315/80R22.5 |
||
Tyre Number |
10 tyres and 1 spare tyre |
||
Max Speed |
95 km/h |
||
Fuel Tank Capacity |
400L |
||
Auxiliary Engine |
Auxiliary engine to power onboard equipment |
||
Superstructure |
Modular Command Cabin |
6 Person |
|
Cabin material |
Lightweight alloy |
||
External Coating |
Apply fire-resistant and high-temperature resistant coatings (such as ceramic-based coatings) |
||
Command Communication System
|
Integrated |
U/VHF |
|
Satellite communications |
Beidou |
||
Public network |
4G/5G |
||
Support voice, data and video transmission |
|||
Situational Awareness Terminal |
Access to satellite remote sensing fire data |
||
Drone aerial footage |
|||
Ground sensor information |
|||
Generate a 3D fire scene situation map in real time through the GIS system |
|||
Mobile Command Room
|
Built-in multi-screen display console |
||
Support video conferencing system (compatible with fire protection special encryption protocol) |
|||
Electronic sand table simulation |
|||
Resource scheduling management software |
Feature:
Chassis and power system
High passability chassis: Adopts all-terrain off-road chassis 6x6, equipped with central charging and discharging system, differential lock, and high-torque engine, adapting to complex road conditions such as mountainous and muddy roads.
Power redundancy design: The FAW fire command support truck is equipped with a dual-engine system, with the main engine driving the vehicle and the auxiliary engine powering the on-board equipment to ensure continuous operation of the equipment under extreme conditions.
Vehicle structure

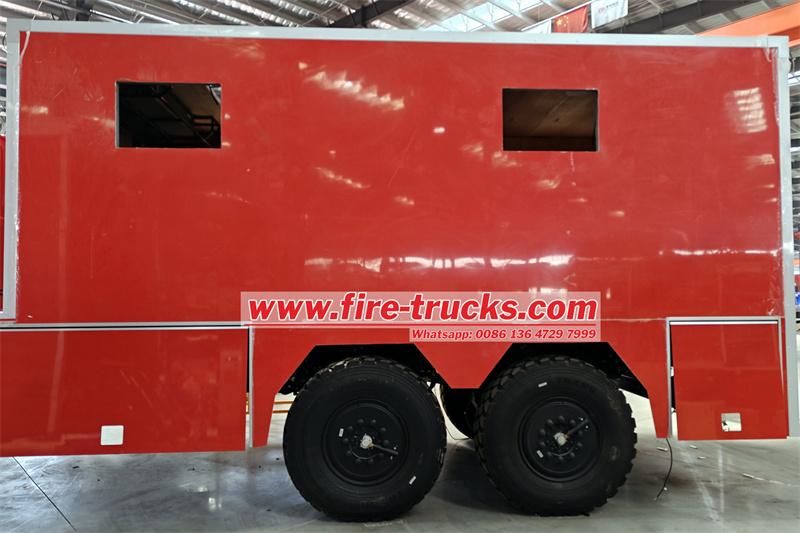

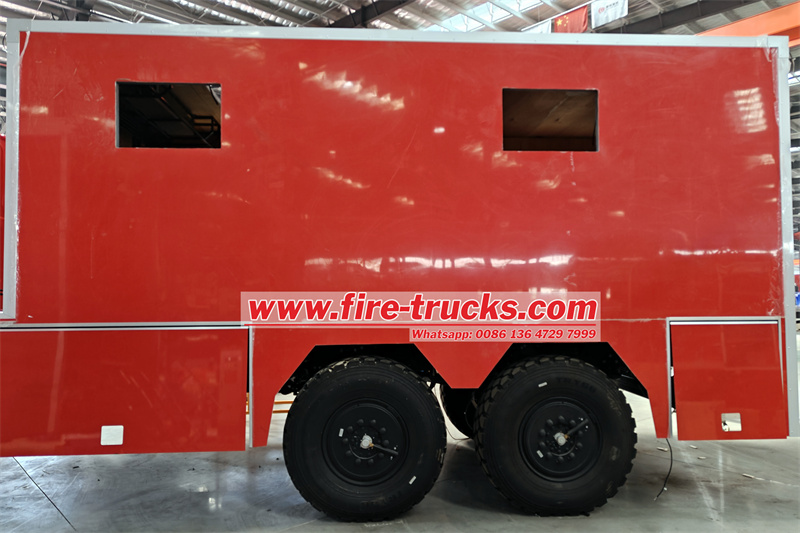

Modular cabin: Made of lightweight alloy or composite materials, the cabin is divided into driving area, command area, and equipment area. A panoramic observation window or a lifting observation platform is set on the top to facilitate fire situation observation.
Protection design: The exterior of the vehicle body is coated with a fireproof and high-temperature resistant coating (such as ceramic-based coating), the chassis is equipped with an explosion-proof fuel tank and puncture-proof tires, and the windows are multi-layer explosion-proof glass.
Command and communication system
Multi-band integrated communication: integrated ultra-short wave (U/VHF), satellite communication (such as Beidou, maritime satellite), public network (4G/5G), Mesh ad hoc network radio, supporting voice, data, and video transmission.
Situation awareness terminal: access to satellite remote sensing fire point data, drone aerial photography, ground sensor information, and generate a three-dimensional situation map of the fire scene in real time through the GIS system.

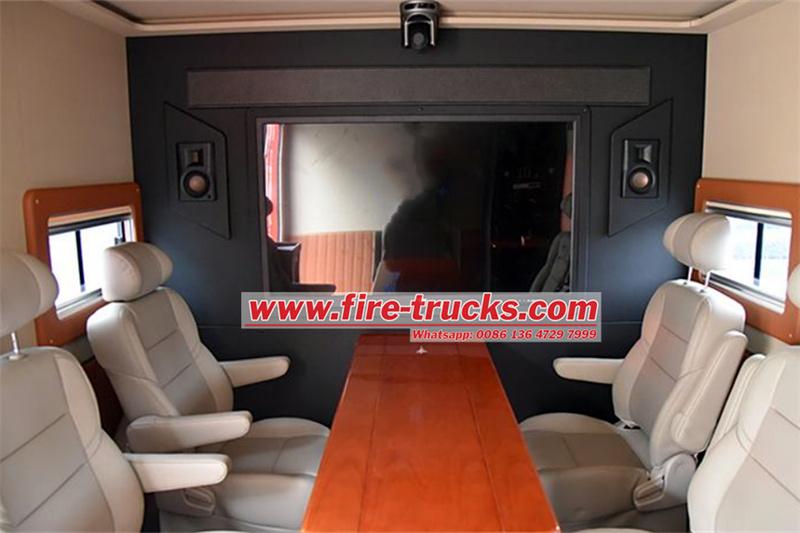

Mobile command platform: built-in multi-screen display console, support video conferencing system (compatible with fire-specific encryption protocol), electronic sand table simulation, and resource scheduling management software.
Auxiliary support system
Independent power supply system: equipped with large-capacity lithium battery pack + diesel generator, supporting off-grid operation for more than 72 hours, and some models are integrated with solar folding panels to supplement power supply.
Environmental adaptability equipment: The on-board air conditioner has dust filtration function, the internal positive pressure fresh air system prevents smoke intrusion, and is equipped with emergency oxygen device.
Material storage cabin: stores portable satellite stations, individual communication equipment, emergency medical kits, gas masks, etc. Some models are integrated with small fire-fighting robot transport cabins.
Advantage:
♦ Global communication capability:Through the three-dimensional networking of "air-space-ground", emergency communication links are built in areas without public network coverage, supporting seamless connection between the front-line command center and the rear command center.
♦ Dynamic decision support: Integrating AI fire prediction algorithms (such as those based on meteorological data and terrain combustion models), real-time calculation of the speed of fire spread, and generation of the best firefighting path and escape route.
♦ Mobile deployment efficiency: Adopting a rapid deployment design, the command system can be started, the drone can be ejected, and the communication antenna can be erected within 5 minutes after arriving at the scene, adapting to the rapid changes of the fire scene.
♦ System redundancy and safety: Key equipment (communication host, power supply) adopts dual-machine hot standby, and the communication link is encrypted multiple times (quantum encryption is optional) to prevent information interruption or malicious interference.
♦ Ecological adaptability design: Low-noise electric drive mode is optional to reduce disturbance to wild animals.The tires use degradable anti-skid materials to reduce damage to the surface of the forest area.
