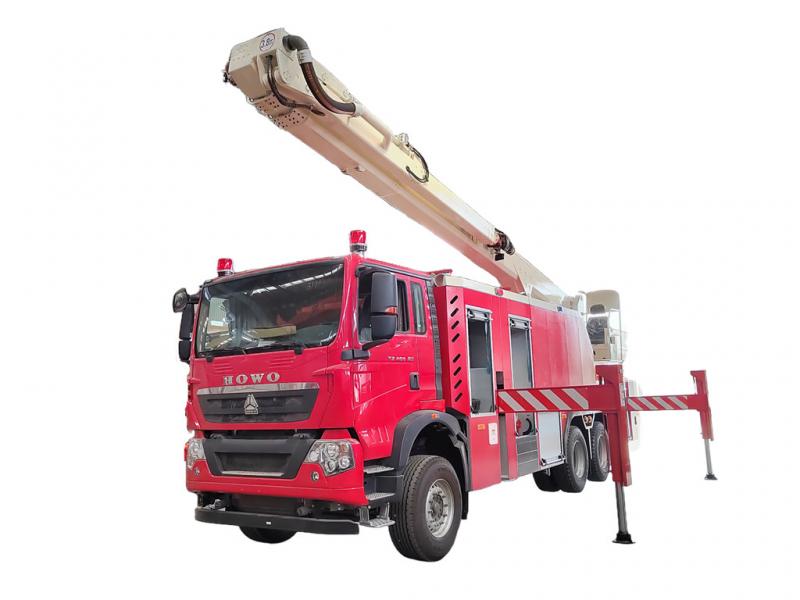

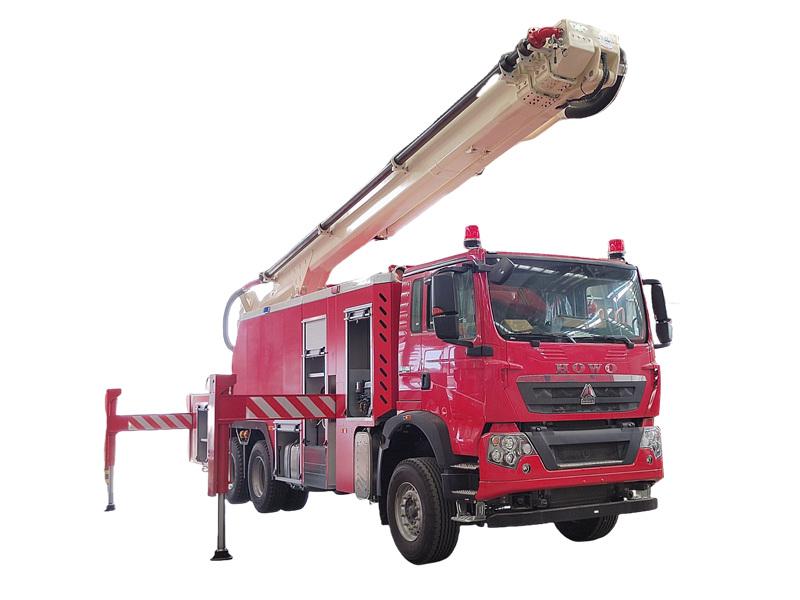

The HOWO 25-meter foam tower fire truck is a high-performance modern firefighting equipment, built on a Sinotruk 6×4 chassis and powered by an MC11.46 engine, delivering strong performance with a maximum speed of ≥95 km/h. The vehicle is equipped with a 9,000-liter water tank and a 3,000-liter foam tank, along with a CB10/100-TB fire pump and a PLKD8/80 electric fire monitor, ensuring high灭火 efficiency and long-range coverage. Featuring electro-hydraulic proportional control technology, the truck boasts flexible boom operation, precise control, and stable outriggers. It is suitable for complex scenarios such as high-rise building fires and petrochemical fires, combining practicality, stability, and safety, making it a vital asset in the field of fire rescue.
Truck Model:
PT5330JXFJPTanker Structure:
Stainless steelWork capacity :
25 metersWheelbase:
4600+1400 mmAxle drive:
6×4Engine Power:
460 HPEngine Model:
MC11.46Fire Pump:
CB10/100-TBFire Monitor:
PLKD8/80Remark:
9000L water tank and 3000L foam tankThe HOWO 25-meter foam tower fire truck is a state-of-the-art firefighting vehicle that integrates high-efficiency fire suppression, flexible operation, and advanced technology. Built on a Sinotruk HOWO 6×4 chassis and equipped with an MC11.46 engine rated at 341 kW, the truck achieves a maximum speed of over 95 km/h, offering exceptional power and off-road capability. With overall dimensions of 11170×2550×3870 mm and a gross vehicle weight of 33,460 kg, it features 10+1 tires sized 315/80R22.5 18PR, ensuring stability and safety on challenging terrains. Additionally, it has a minimum turning diameter of 26 meters, a maximum gradeability of 30%, and approach/departure angles of 19° and 9°, enabling it to adapt to various environments and meet fire rescue needs in both urban and suburban areas.
The core highlights of the HOWO 25-meter aerial tower fire truck lie in its powerful firefighting capabilities and flexible operational performance. The vehicle is equipped with a 9,000-liter water tank and a 3,000-liter foam tank, both made of stainless steel to ensure durability and corrosion resistance. The fire pump, model CB10/100-TB, delivers a rated flow rate of 100 L/s at a rated pressure of 1.0 MPa, with a water suction depth of over 7 meters and a priming time of no more than 80 seconds, enabling rapid response to fire emergencies. Additionally, the truck features a PLKD8/80 electric-controlled fire monitor with a rated flow rate of 64 L/s and a rated pressure of 0.8 MPa. It achieves a maximum range of 75 meters (water) and 70 meters (foam), with a horizontal rotation angle of 0° to 350° and an elevation/depression angle of -60° to +30°, providing extensive fire suppression coverage.

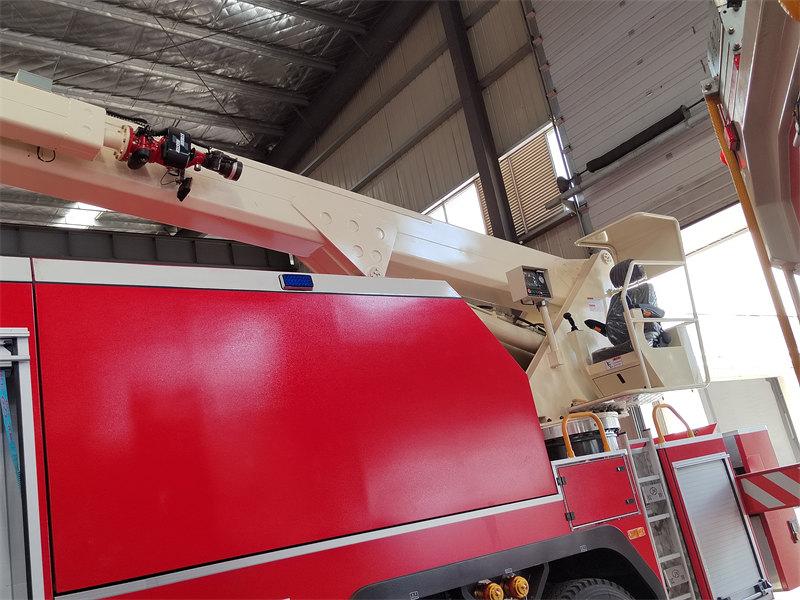

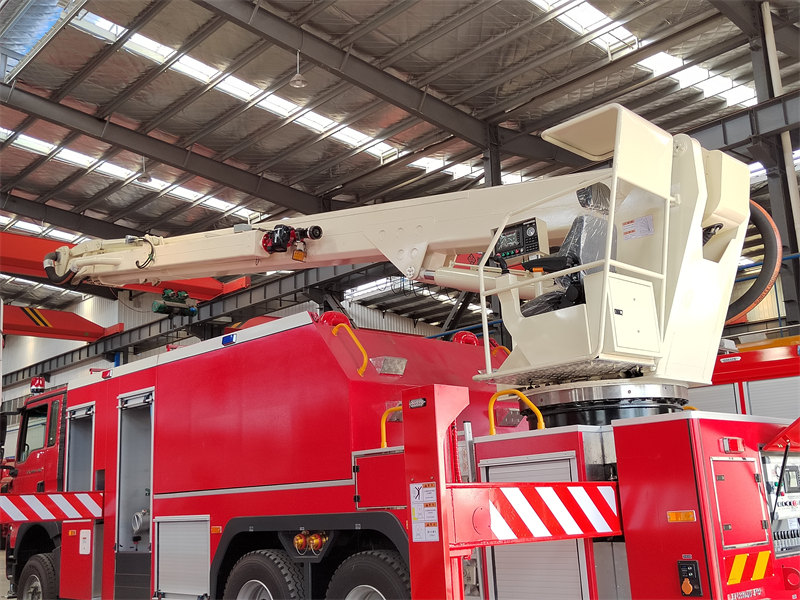

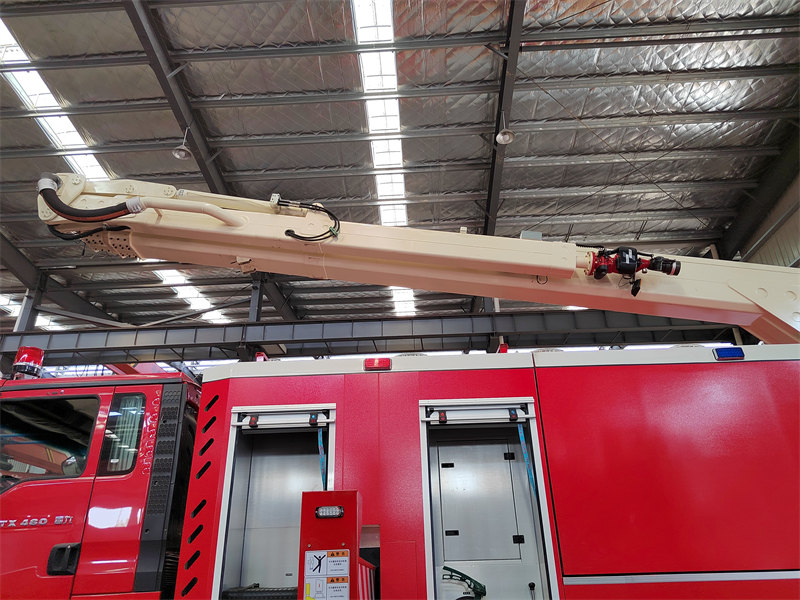

The boom system is another standout feature of the HOWO foam tower fire truck. The main boom has an amplitude range of 0° to +83°, with the middle boom forming an angle of 0° to 152° with the main boom and 0° to 69° with the horizontal plane. The small boom forms an angle of 85° to 180° with the middle boom. The boom movement time is no more than 130 seconds, and the rotation speed ranges from 0 to 2 rpm, allowing for quick and precise adjustment of firefighting angles and positions. Furthermore, the outriggers deploy in under 40 seconds, with a span of 6760×3570 mm, ensuring stability and safety during operations. These design features enable the HOWO foam tower fire truck to deliver outstanding performance in complex fire scenarios, such as high-rise building fires and petrochemical fires.
● 30 years experience in fire truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
HOWO 25m foam tower fire truck |
|||
Vehicle Parameters |
Overall Dimensions |
11170×2550×3870mm |
|
Gross Vehicle Weight |
33460Kg |
||
Max. driving speed |
≥95km/h |
||
Chassis Parameters |
Chassis |
HOWO |
|
Engine |
Model:MC11.46 |
||
Engine Rated Power |
341kW / 1900r/min |
||
Minimum Turning Diameter |
26m |
||
Maximum Gradeability |
30% |
||
Approach/ Departure Angle |
19/9° |
||
Front / Rear Overhang |
1500/2935mm |
||
Wheelbase |
4600+1400mm |
||
Wheel track |
2110/1850mm |
||
Number of Leaf Springs |
4/5 |
||

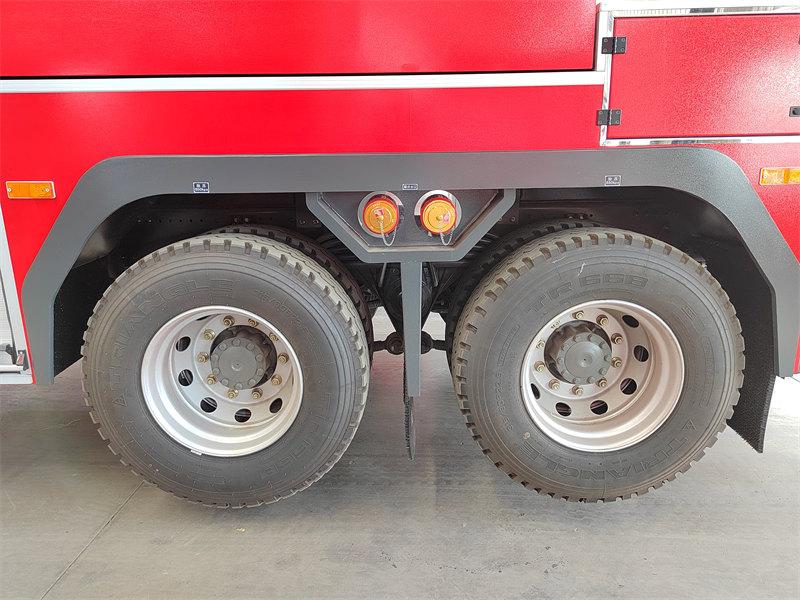

Tire |
315/80R22.5 18PR |
||
Number of Tires |
10+1 |
||
Cab Occupancy |
2 |
||
Upper Body Parameters |
Rated Working Height |
25m |
|
Maximum Working Radius |
12m |
||
Tank |
Water tank capacity |
9000 liters |
|
Foam tank capacity |
3000 liters |
||
Material |
Stainless steel |
||
Fire pump |
Model |
CB10/100-TB |
|
Rated Flow Rate |
100L/s |
||
Rated Pressure |
1.0MPa |
||
Water Suction Depth |
≥7m |
||
Priming Time |
≤80s |
||
Fire monitor
|
Model |
PLKD8/80 (Electric Control) |
|
Rated Working Flow Rate |
Rated Flow Rate: 64L/s, Rated Pressure: 0.8MPa |
||
Max. range |
Water≥75m, Foam≥70m (Range varies with flow rate) |
||
Horizontal rotation angle |
0°~350° |
||
Elevation/Depression Angle |
-60°~+30° |
||
Boom |
Boom Amplitude Range |
Main boom: 0~+83° |
|
Angle between Middle Boom and Main Boom:0~152° |
|||
Angle between Middle Boom and Horizontal Plane:0~69° |
|||
Angle between Small Boom and Middle Boom:85~180° |
|||
Boom Movement Time |
≤130s |
||
Boom Rotation Speed |
0~2r/min |
||

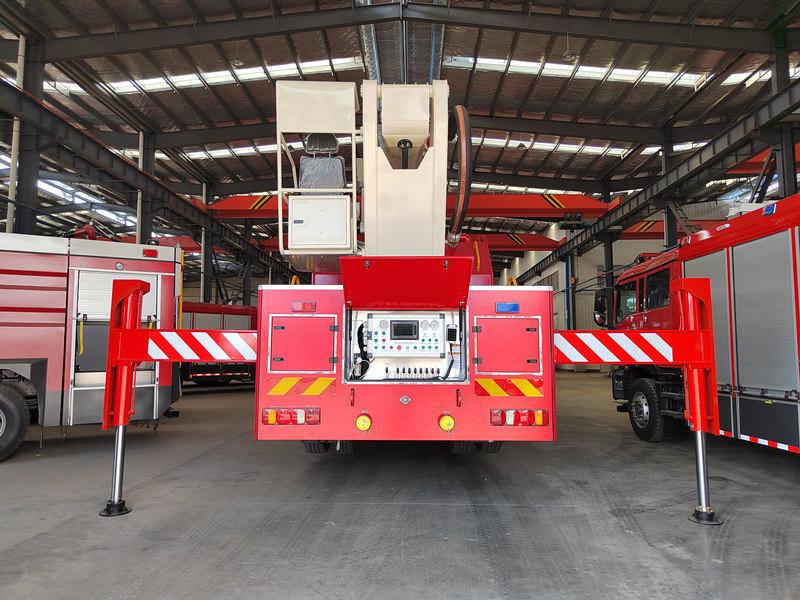

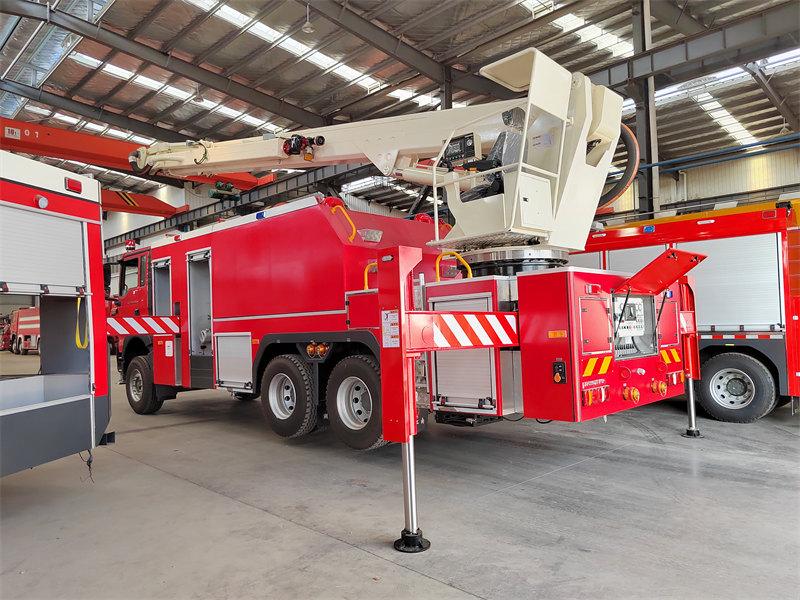

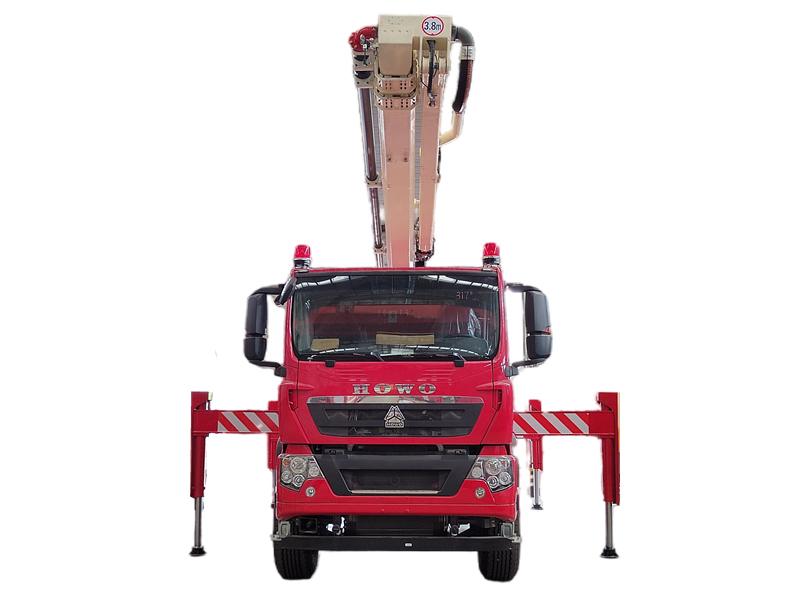

Outrigger |
Outrigger Deployment Time |
≤40s |
|
Outrigger Span (Longitudinal × Lateral) |
6760×3570mm |
Product Features
1. High Working Height and Extensive Coverage:
o The HOWO foam tower fire truck boasts a rated working height of 25 meters and a maximum working radius of 12 meters, enabling it to easily tackle fires in high-rise buildings, large warehouses, and other elevated structures, effectively covering a wide fire area.
2. Powerful Water and Foam Capacity:
o The vehicle is equipped with a 9,000-liter water tank and a 3,000-liter foam tank, providing sufficient capacity to meet prolonged and large-scale firefighting demands. The use of stainless steel material ensures the quality and safe storage of firefighting agents.
3. Advanced Fire Pump and Fire Monitor System:
o The CB10/100-TB fire pump features high-rated flow and pressure, enabling rapid delivery of firefighting agents to the scene.
o The PLKD8/80 (electric-controlled) fire monitor offers long-range coverage and flexible adjustment, meeting the diverse needs of different fire scenarios.
4. Flexible Boom System:
o The boom system is capable of flexible movement in three-dimensional space, reaching every corner of the fire scene. The wide angle adjustment range between the main boom, middle boom, and small boom ensures precise and efficient firefighting operations.

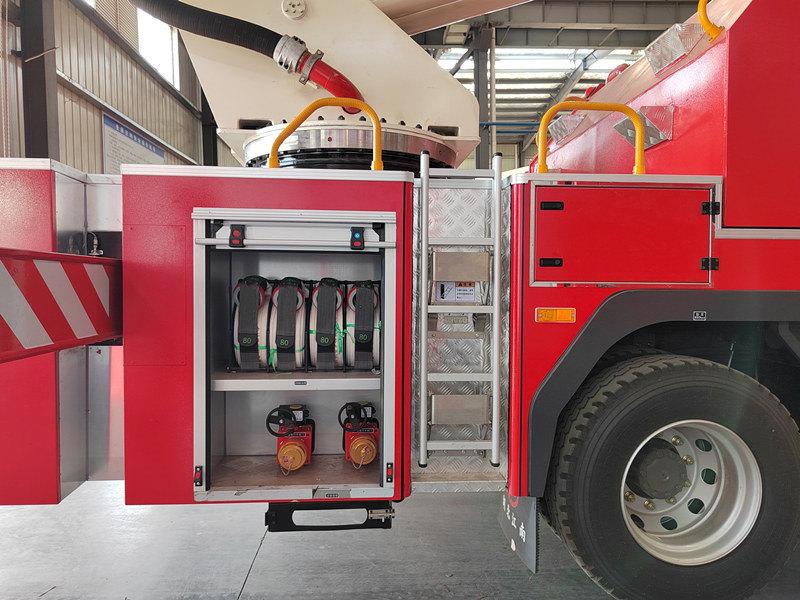

Product Details
