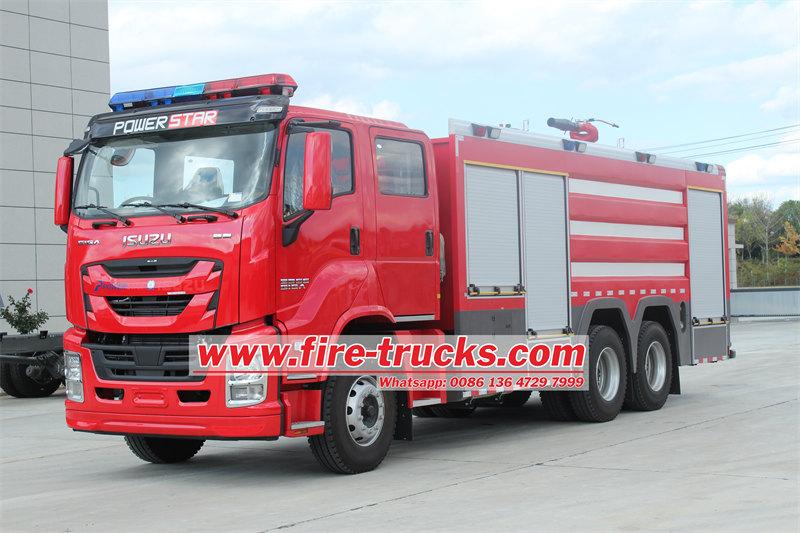

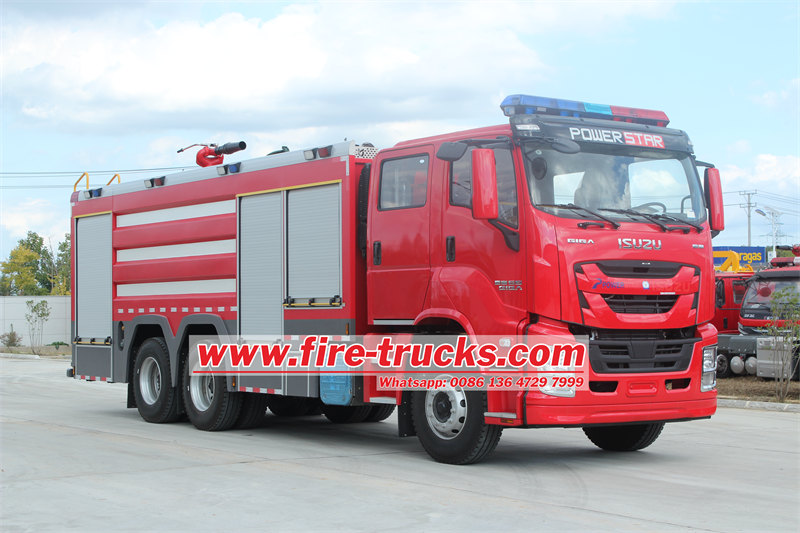

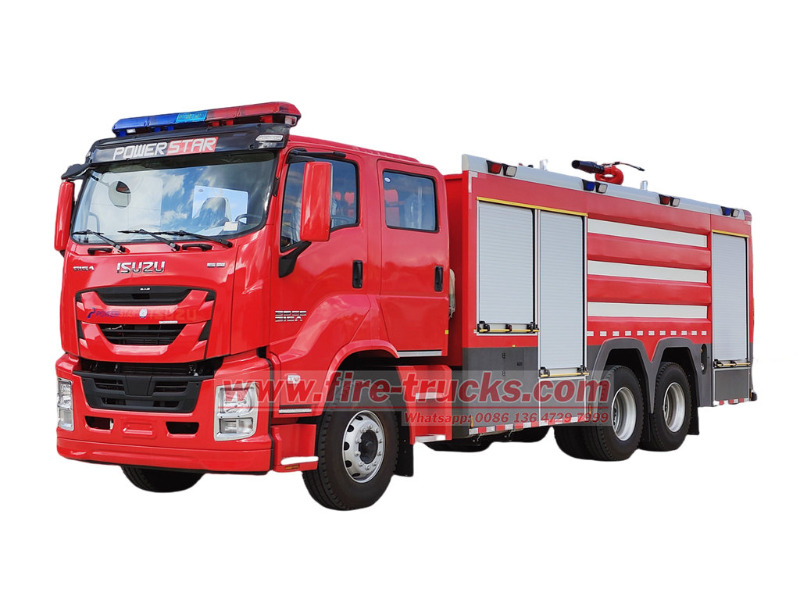

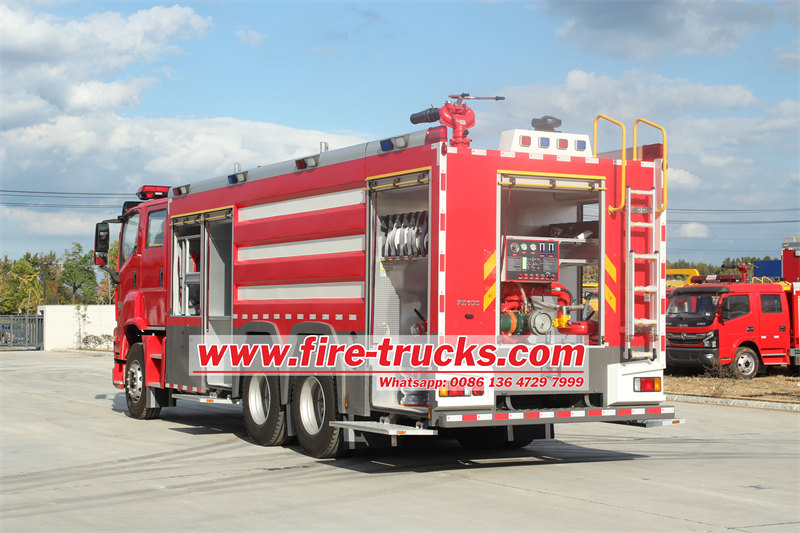

The ISUZU GIGA 6×4 heavy fire truck is a high-performance firefighting vehicle built on the ISUZU GIGA 6×4 chassis. It measures 10800×2550×3580 mm (L×W×H), with a curb weight of 17500 kg and a gross vehicle weight (GVW) of 35000 kg. Powered by the 6UZ1-TCG61 diesel engine, it delivers a maximum power of 380 HP. The vehicle is equipped with a 10000-liter water tank and a 2000-liter foam tank. The CB10/60 fire pump provides a flow rate of 60 L/s, while the PL48 fire monitor offers a range of ≥70 meters for water and ≥60 meters for foam. Suitable for urban, industrial, and wildland firefighting, it combines powerful performance with flexible operation.
Truck Model:
PT5350GXFPMTanker Structure:
Carbon steel and stainless steelWork capacity :
12000 litersWheelbase:
4600+1370 mmAxle drive:
6×4Engine Power:
380 HPEngine Model:
6UZ1-TCG61Fire Pump:
CB10/60Fire Monitor:
PL48, 48L/SRemark:
Large water tank and foam tank

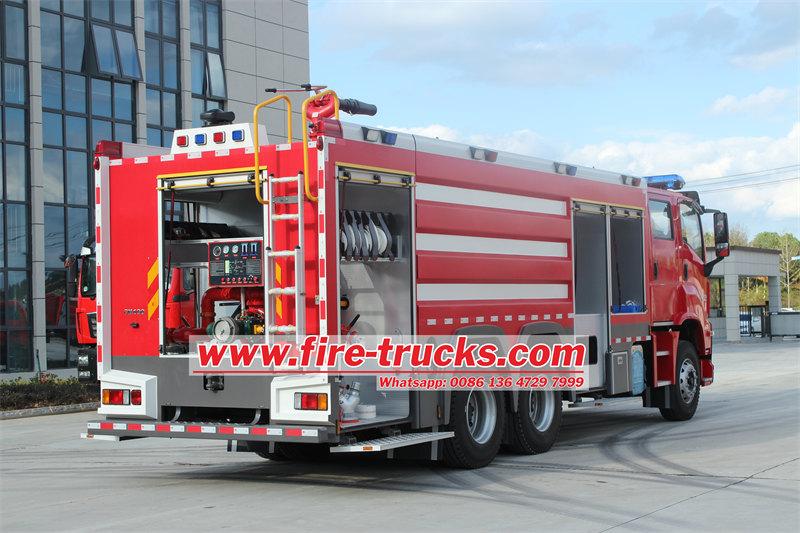

The ISUZU GIGA 6×4 heavy firefighting truck is a high-performance firefighting vehicle designed for large-scale fire scenarios, suitable for urban, industrial, and wildland firefighting tasks. Built on the ISUZU GIGA VC61 chassis, the vehicle measures 10800×2550×3580 mm (L×W×H), with a curb weight of 17500 kg and a gross vehicle weight (GVW) of 35000 kg, offering strong load-bearing capacity and stability. It is powered by the ISUZU 6UZ1-TCG61 diesel engine, with a maximum output of 380 HP (279 kW) and a displacement of 9839 ml, delivering robust power and high fuel efficiency. The double-row cabin accommodates 2+4 crew members, making it suitable for prolonged operations at large fire scenes.

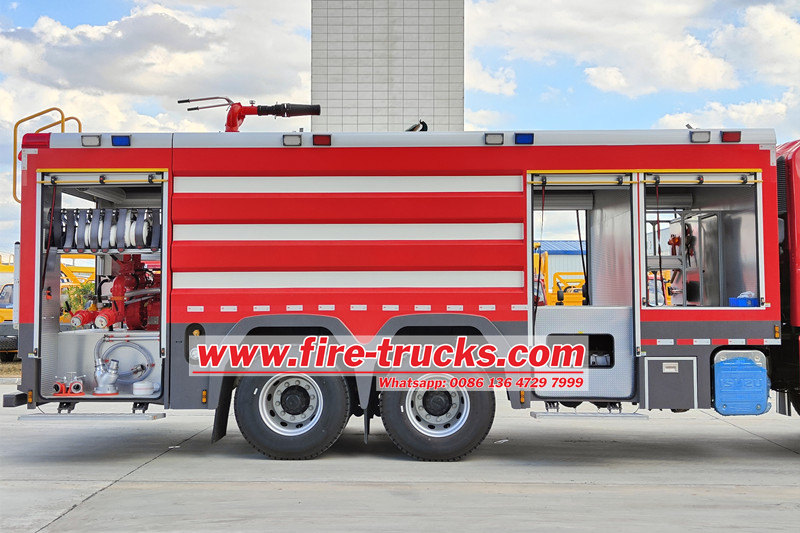

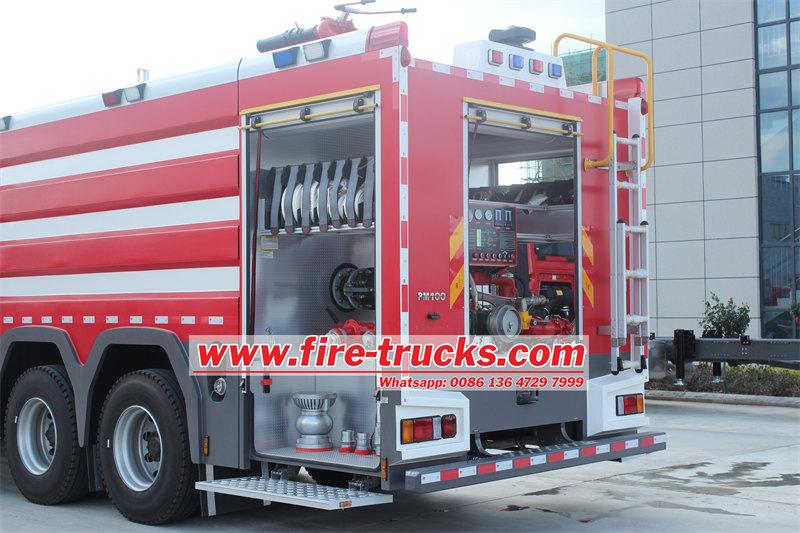

The ISUZU GIGA 6×4 fire truck is equipped with a 10000-liter water tank and a 2000-liter foam tank, made of carbon steel and stainless steel, respectively, ensuring high corrosion resistance and durability for long-term use. The design of the tanks balances the need for sufficient firefighting media with the vehicle's stability and safety. The water tank is ideal for extinguishing large fires, while the foam tank is suitable for oil or chemical fires, meeting the demands of various fire scenarios.

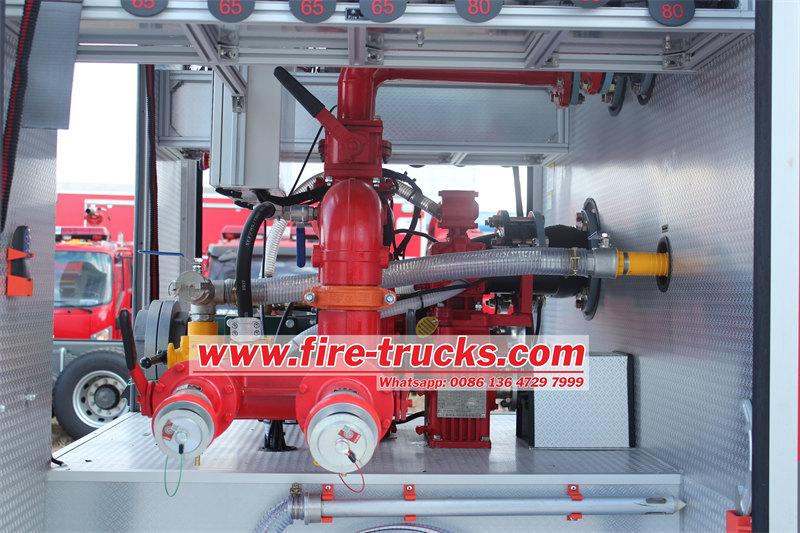

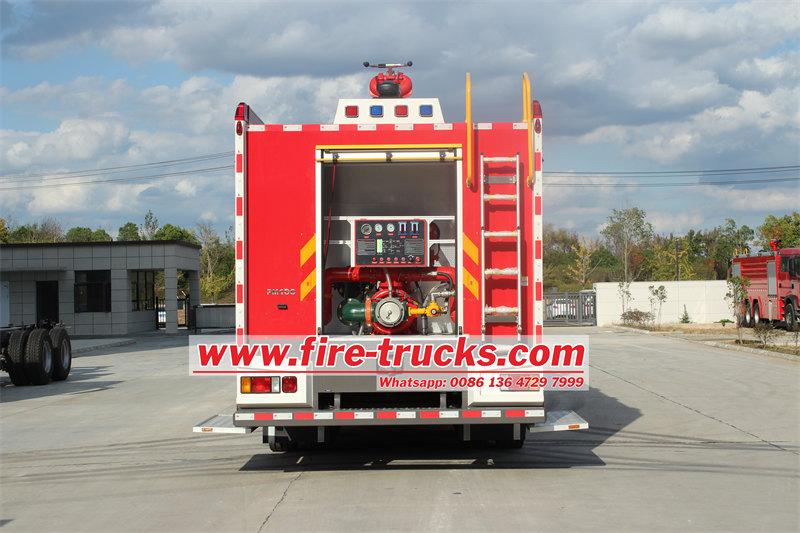

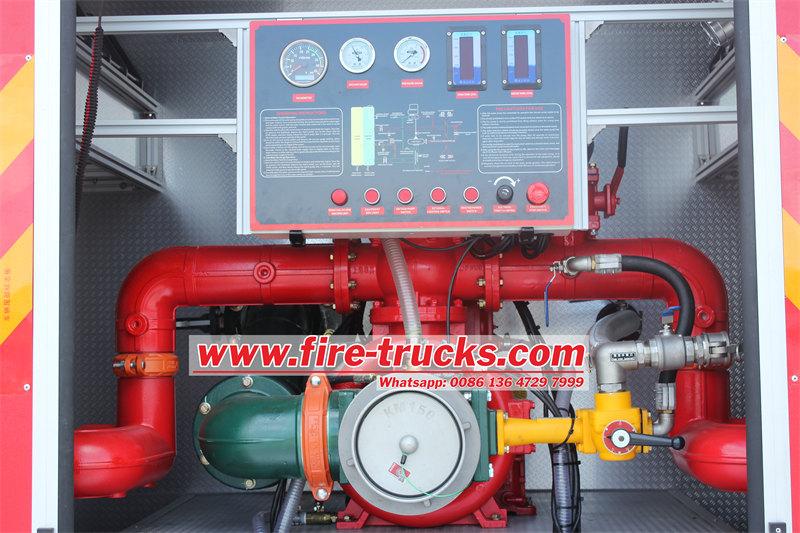

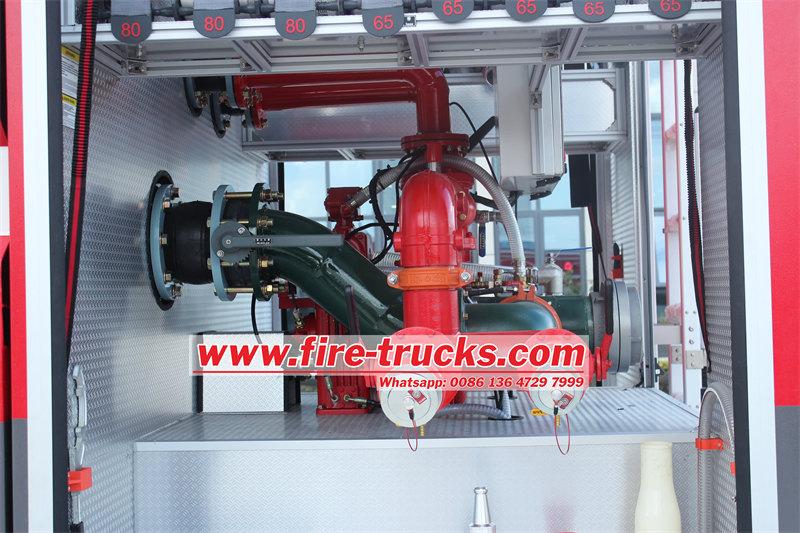

The ISUZU GIGA heavy fire truck features a CB10/60 normal-pressure fire pump, with a maximum flow rate of 60 L/s, a rated pressure of 1.0 MPa, and a maximum suction depth of 7 meters. The priming time is no more than 50 seconds, ensuring rapid water supply at fire scenes. The pump supports both normal and low-pressure modes, allowing flexible adjustment of water pressure and flow to meet the needs of large-scale firefighting operations.

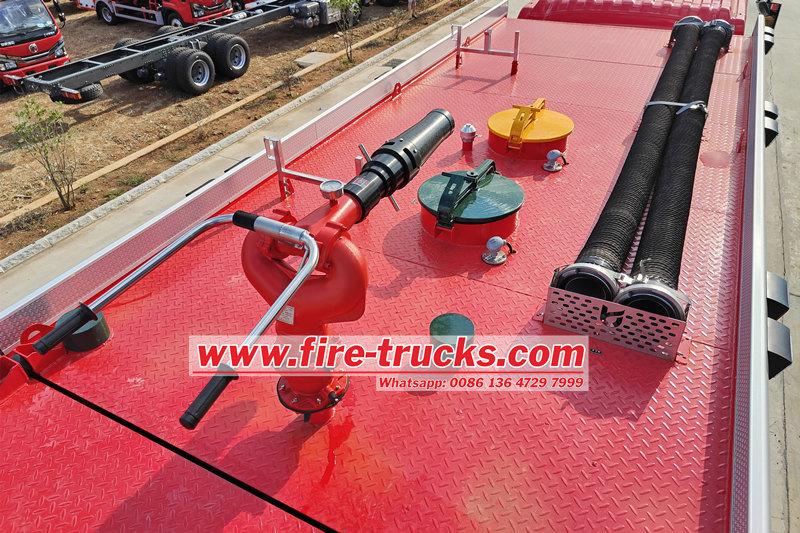

The fire monitor, model PL48, has a flow rate of 48 L/s, with a range of over 70 meters in water mode and over 60 meters in foam mode. It features a pitching rotation angle of -45° to +70° and a horizontal rotation angle of 0° to 360°, providing extensive coverage. The fire monitor's flexibility and long-range capabilities make the ISUZU GIGA fire engine highly effective in extinguishing large fires, particularly in urban building fires and industrial fire scenarios.
● China best Isuzu firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery， any order is welcome.
Product Specifications
|
ISUZU GIGA 6×4 Heavy Fire Engine Technical Specification |
|||
|
|
Item |
Unit |
Parameters |
|
Chassis |
Chassis brand |
/ |
ISUZU |
|
Model |
/ |
QL5350 |
|
|
Drive type |
/ |
6x4 left hand drive |
|
|
Cabin |
/ |
ISUZU GIGA VC61, double row, 2+4 seats |
|
|
Overall dimension(L*W*H) |
mm |
10800*2550*3580 |
|
|
GVW |
kg |
35000 |
|
|
Curb weight |
kg |
17500 |
|
|
Wheel Base |
mm |
4600+1370 |
|
|
Front /rear suspension |
mm |
1015/1890 |
|
|
Approach/departure angle |
(°) |
24/12 |
|
|
Spring No. |
/ |
8/6+5 |
|
|
Tyre No. |
pcs |
10+1 |
|
|
Type & Size of Tyre |
/ |
315/80R22.5 |
|
|
Axle No. |
/ |
3 |
|
|
Steering wheel |
/ |
left hand drive |
|
|
Gear box |
/ |
FAST, 12 speed forward and 2 reverse, manual |
|
|
Engine |
Engine model |
/ |
6UZ1-TCG61 |
|
Engine brand |
/ |
ISUZU |
|
|
Engine type |
/ |
6 cylinders in line |
|
|
Maximum power |
HP/kw |
380/279 |
|
|
Fuel type |
/ |
Diesel |
|
|
Displacement |
ml |
9839 |
|
|
Emission Standard |
/ |
Euro VI |
|
|
Tanker |
Water tanker |
/ |
10000 liters, carbon steel |
|
Foam tanker |
/ |
2000 liters, stainless steel |
|
|
Fire pump |
Model |
/ |
CB10/60, Normal pressure pump |
|
Outlet Rated Pressure |
Mpa |
1.0 |
|
|
Max suction height |
m |
7 |
|
|
Flow |
L/S |
60 |
|
|
Rated speed |
r/min |
3280 |
|
|
Priming time (s) |
s |
≤50 |
|
|
Fire monitor |
Model |
/ |
PL48 |
|
Range |
m |
Water ≥70 |
|
|
m |
Foam ≥60 |
||
|
Flow |
L/S |
48 |
|
|
Rated Working pressure |
Mpa |
0.8 |
|
|
|
Pitching rotation |
° |
-45～+70 |
|
|
Horizontal rotation |
° |
0～360 |

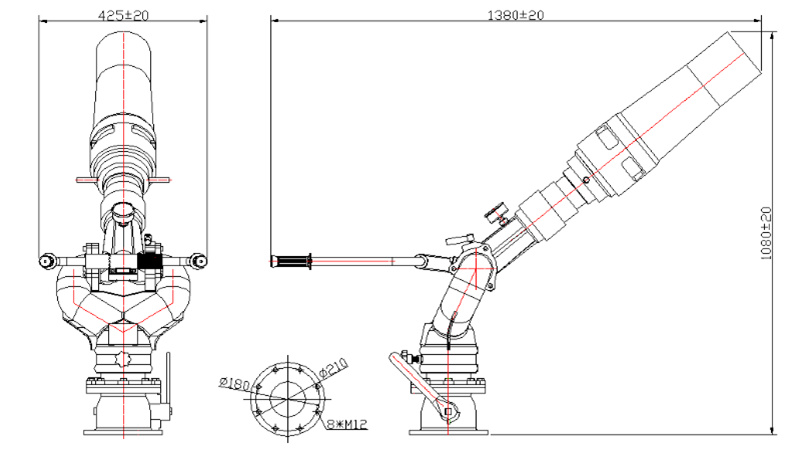

Technical Drawing

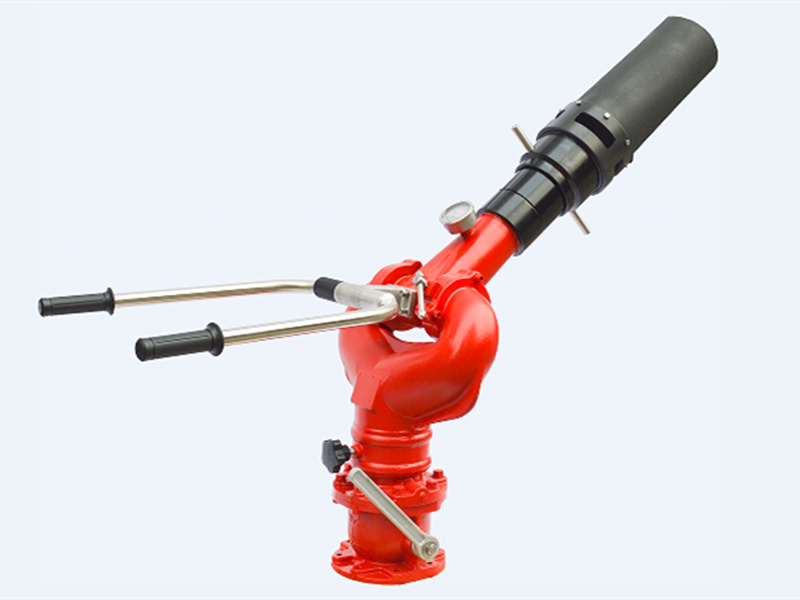

Features of the PL48 Fire Monitor Installed on the ISUZU GIGA Fire Truck:
• Versatile and Simple Design: The fire monitor is multifunctional, with a simple and innovative structure.
• Stable Performance and Easy Maintenance: It offers reliable performance and is easy to repair.
• Low Inlet Pressure: Operates efficiently with low inlet pressure requirements.
• Dual-Function Capability: Can spray water or foam; the foam tube can be removed to function as a water monitor. It also features both spray and straight stream modes.
• Lightweight and Durable: Made of precision-cast aluminum, ensuring lightweight and durability.
• Automatic Drain Valve: Equipped with an automatic drain valve for convenience.
• Adjustable Handle Angle: The operating handle angle can be adjusted for ease of use.
• Locking Function: Features horizontal and pitching locking mechanisms for stability during operation.
• Long Range and High Efficiency: Offers long-range coverage, concentrated streams, high foam expansion, and large protection areas.
• Flexible Operation: The monitor can rotate horizontally and vertically, providing flexible and convenient operation.
