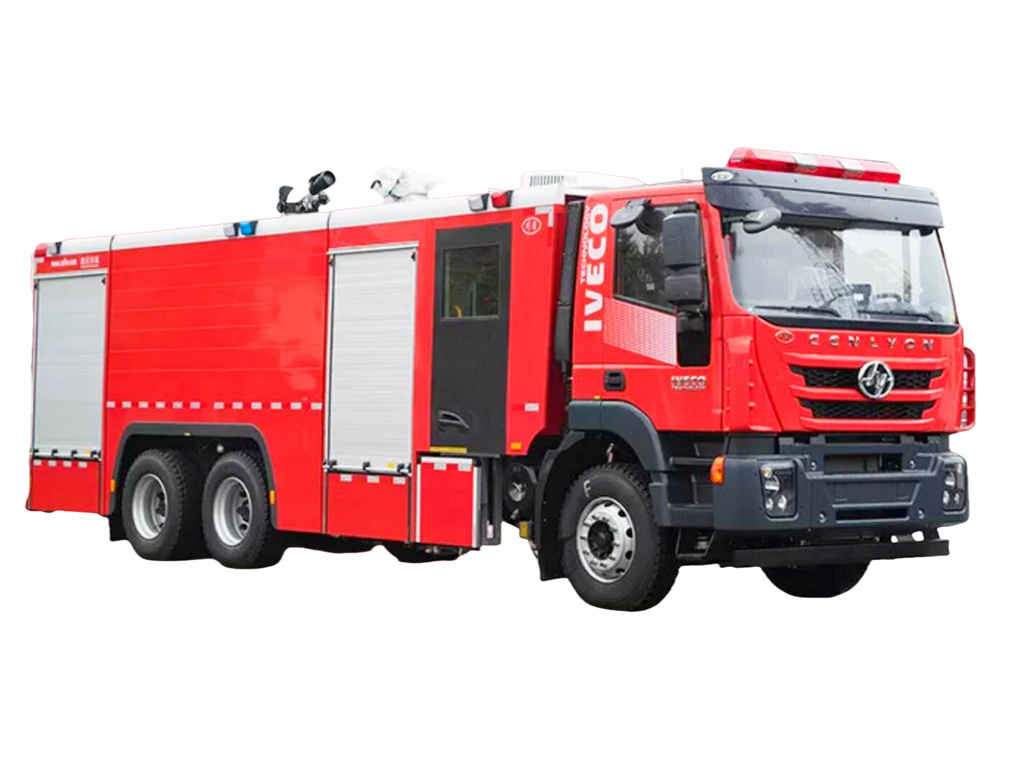

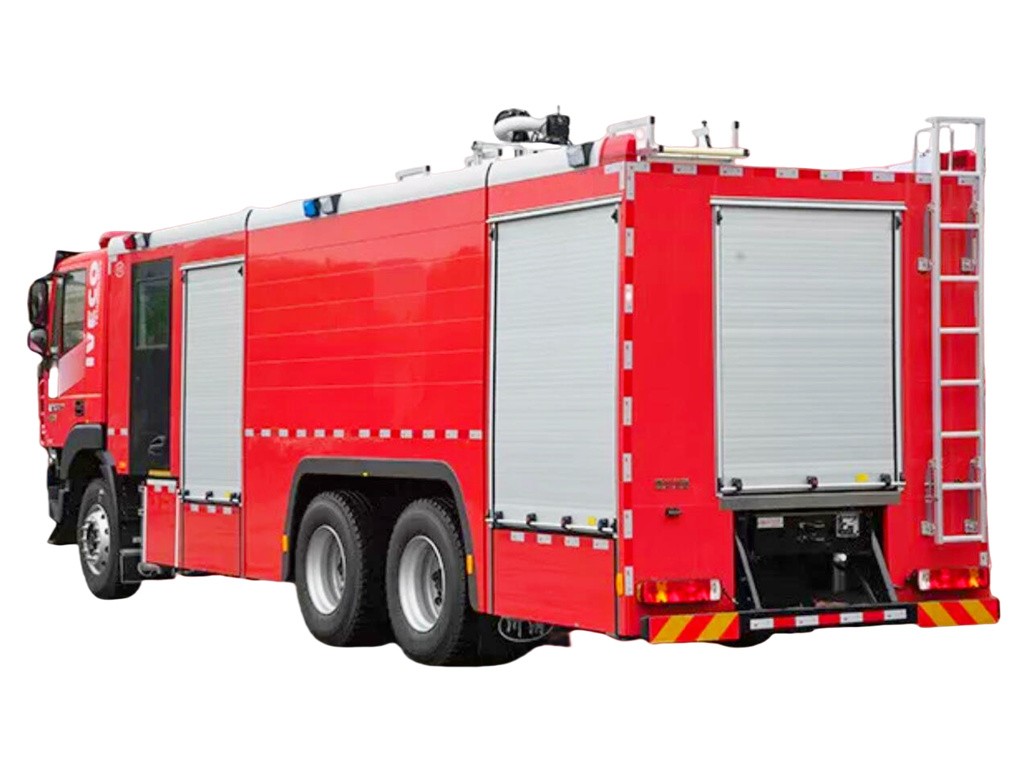

Iveco heavy duty water foam fire apparatus

Iveco heavy duty water foam fire apparatus

SAIC-IVECO water foam tank fire truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly. Customized IVECO brand fire truck can be optional as water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck, aerial ladder fire truck. All POWERSTAR trucks equipped with ABS system for safety driving. As for truck cabin, which can be customized modify as double cabin with 2+4 SCBA seats for air apparatus, also optional independent cabin for fire fighters.

  • Truck Model:

    PT5270GXF
  • Tanker Structure:

    Stainless Steel Tanker Structure
  • Work capacity :

    10000Liters Water and 2000Liters Foam
  • Wheelbase:

    4700+1400 mm
  • Axle drive:

    6×4
  • Engine Power:

    380 HP
  • Engine Model:

    CA6DL6-35E68
  • Fire Pump:

    CB10/60
  • Fire Monitor:

    PL48
  • Remark:

    Optional Polypropylene material as PP tank
Facebook Linkedin Youtube Twitter Pinterest

Hongyan Genlyon IVECO Fire Fighting Truck, which is also called Iveco water fire engine, IVECO water foam fire truck, Iveco fire fighting equipment, Iveco fire appliance truck, which is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly. Iveco water foam fire engine is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, energy companies, wineries, airports, and urban professional fire brigades. IVECO Fire Tender Rescue Equipment is a main emergency rescue vehicle composed of Hongyan Genlyon 6x4 truck chassis and its engine, power generation lighting system, winch traction system and various rescue equipment and protective equipment. Iveco fire apparatus is mainly suitable for highway traffic accidents, building collapses, and dangerous chemicals. Handling of sudden public safety accidents in various places such as product accidents, personnel in distress and social assistance.

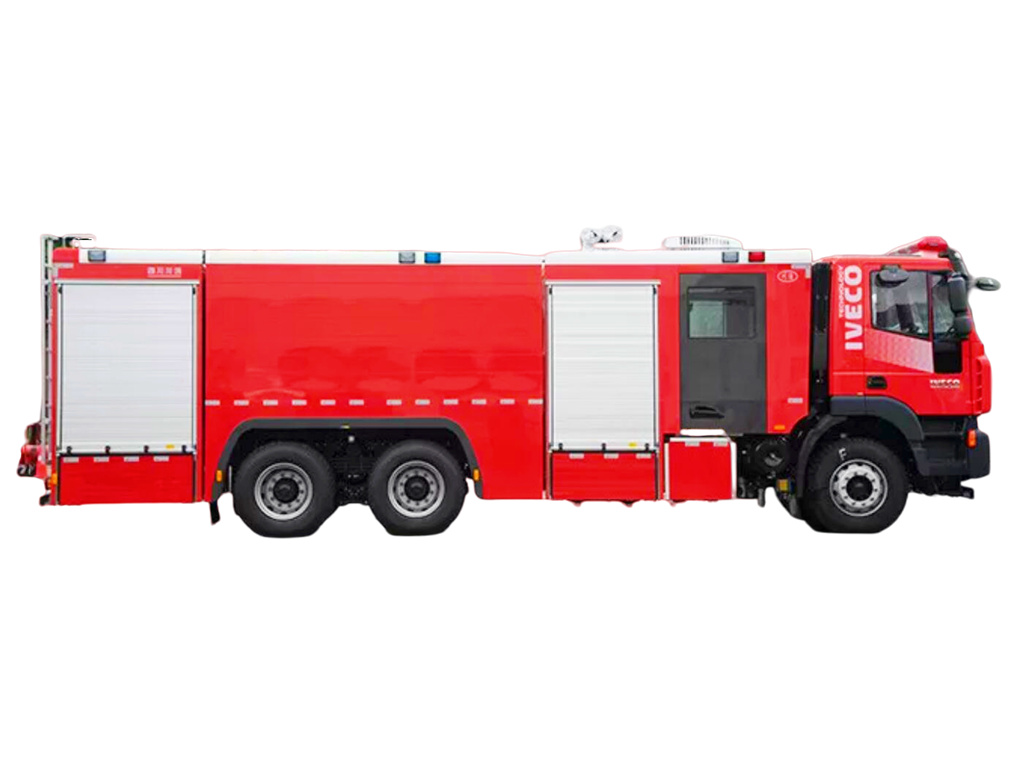

SAIC IVECO fire fighting truck



● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

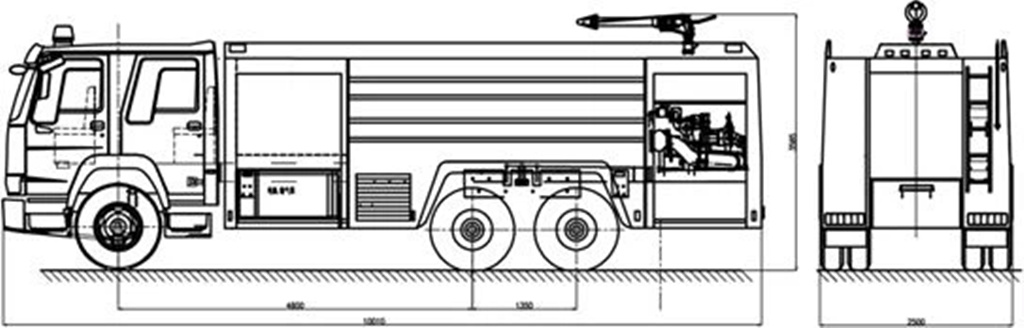

Iveco fire engine truck drawing



TECHNICAL SPECIFICATION
Main specification Chassis brand IVECO
Chassis model CQ1254HMG
Overall dimension(L*W*H) 10700x2500x3800mm
Water tank volume 10,000 LITRES
Foam tank volume 2,000 LITRES
Cabin crew cabin, with air conditioner ,electronic windows, USB,
Total mass 27,000 kg
Chassis Drive modle 6X4 left hand drive
Wheelbase 4700+1400mm
Front axle loading 7500 kg
Rear axle loading 13000 kg*2, in total 26000kg
Brake air brake
Front/rear suspension 1335/1900 mm
Approach/departure angle 26/15 (°)
Spring number 8/12
Tyre size & number 12.00R20, with one spare tyre
Max speed 90km/h
Engine Model  Curso
Engine Type six-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling
Horse power  380hp
Displacement 8709ml
Emission Euro 3,4,5,6
TANK SPECIFICATION
Fire pump Model / CB10/60
Low Pressure working Bar 10
L/M 3600
High Pressure working Bar 40
L/M 350
Max suction height m 7
Rated speed r/min 3000
Time of drawing water (s) s ≤35
Input diameter mm 125
Outlet diameter mm 4xΦ65
Fire monitor Model  / PL48
Fire fighting nozzle range Water (m) ≥65
Foam (m) ≥50
Flux  L/M 2400
Rated Working pressure Mpa 0.7-1.2
Rotation angle (°) 360
Standard  configuration 1. Have alarm rotating light and  which is mounted on top of the cabin
2. Have two side light per side ( four in each sides plus rear pump working lights ) ,
3. Have 2 ladders on rear left and right side of the tank
4. Have manhole
5. Have 2x60m high pressure hose reel .
6. All piping will be manufactured from stainless steel material
7. Have CB10/60 Centrifugal pump and PL48 manual monitor
8. Have standard inlets and discharge couplings , the couplings are all BS model with blind clap.
9. Have telescopic lighting, powered 220V by diesel generator
10. Have standard fire equipments as below list

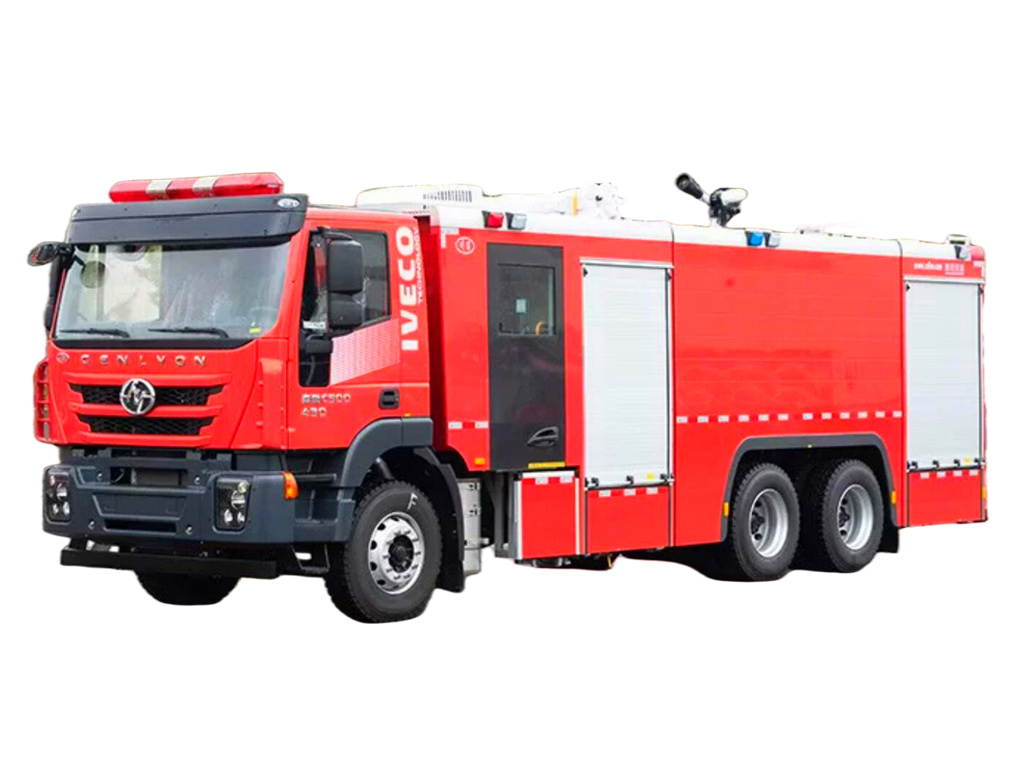

IVECO industrial fire truck



How does the CB10/60 fire pump working, operation instruction and safety notice:

aPriming water

As for fire fighting trucks from POWERSTAR, below can help the operator better understanding the process for usage.

If using water from tank, we can push the butterfly valve toward to the fire pump shaft direction in order to pull the pin out from pin-hole. Then pull the handle to horizontal position and open the butterfly valve, after that, water will be flowing into the pump.

If using water from hydrant, we can connect the suction pipe to the hydrant, and then the water will be flowing into the pump from the hydrant

If using water from pond, we need to use a piston primer pump for priming water. In this situation, firstly we can put the suction pipe into the pond; secondly start the low pressure fire pump; thirdly turn the pump rotational speed to 2500r/min in a short time; fourthly pull the control handle down and the piston primer pump begin to work. The water priming will be finished in 35 seconds, then the fire pump begin to work and the piston primer pump stop working automatically, after that ,we can push the control handle up to normal position, if the water priming are not finished in 60 seconds, please check whether there is air leakage in the system.



bLow pressure work condition

Open the ball valve which is in the low pressure outlet, and then turn the reflux ball valve to “low pressure” position.

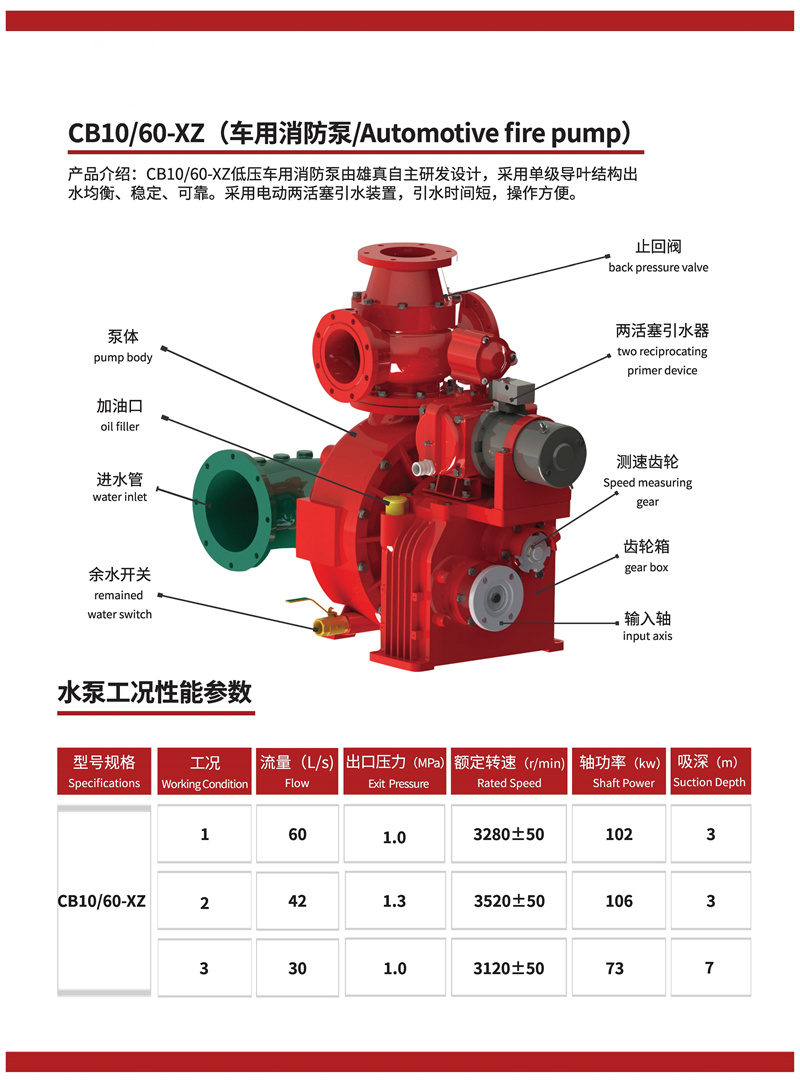

Fire pump details



cSafety notice

1. Do not bend the suction pipe excessively.

2. Make sure the bending part not higher than the inlet of fire pump.

3. Do not make the water-strainer touch the bottom of pond or river to prevent sundries.

4. Make sure there is not air leakage at all joint, otherwise the water will not be primed

5. Turn off all valves, making the transmission in neutral. Start the engine, push the clutch, press the PTO switch, then release the clutch slowly until the fire pump runs.

6. Press the priming button, adjust the manual throttle simultaneously, making the rotation of pump around 2200r/min-2500r/min, get the vacuum gauge at around 0.5-0.8MPa.

7. After water getting in the pump, make the priming button back reset.

8. While the pressure gauge points at 0.25MPa open the water injection valve, adjust the manual throttle to the necessary pressure until the tank is full.

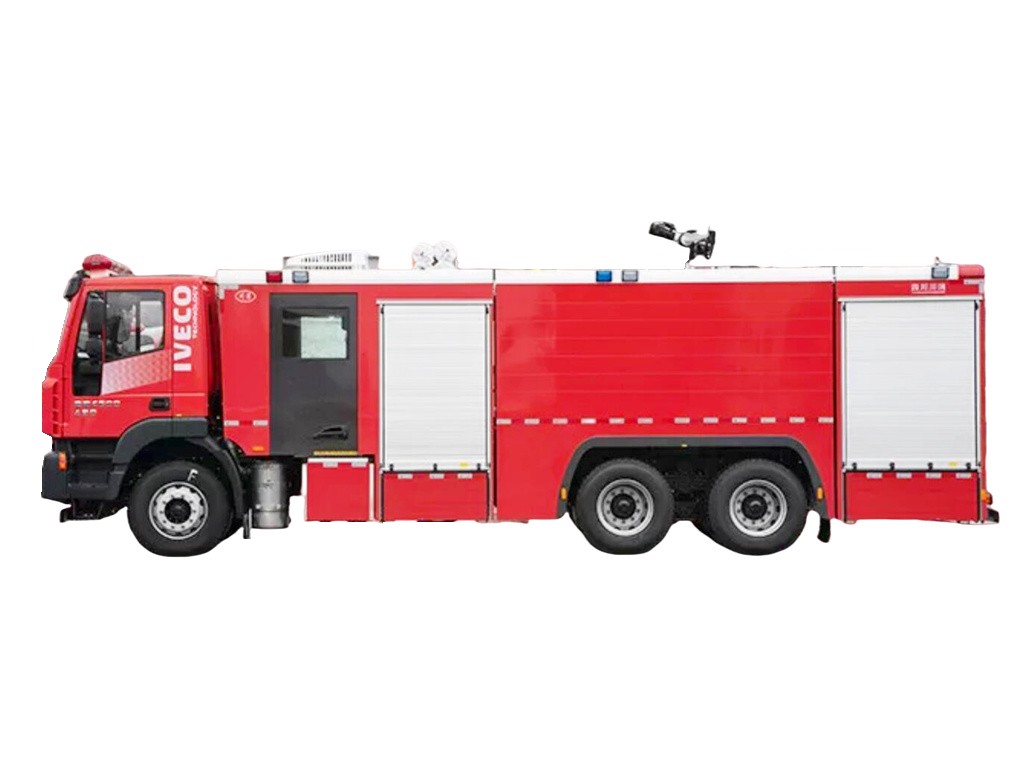

IVECO fire fighting truck



IVECO fire fighting truck

Attention and Notice for SAIC IVECO water foam fire fighting truck:

1. Make sure the clutch is detached completely and the engine speed is low when the PTO is approaching or departing.

2. Fire pump running without water for more than 3 minutes or at a high speed are not allowed.

3. When the system is running, before all the water outlet valves have been closed, it must reduce the pump speed. Fire pump running in over rated pressure for a long time is not allowed.

4.  After water priming finished, reset the priming handle.

5. After PTO working over 10 minutes in hot weather, it must turn on the water cooling stopcock, otherwise it may cause problems, the water must be drain out when the work is over.

6. If using seawater, sewage, corrosive liquid or foam, please run the fire pump with clear water to clean the fire pump .If using in cold weather, make the piston pump run for a while to drain out the remaining water to prevent it from freezing.

7. It is equipped with a breather valve on the top of foam tank. When using foam to extinguish fire, the foam liquid level will decline, the breather can suck air to make sure the ratio of water and foam are not change.

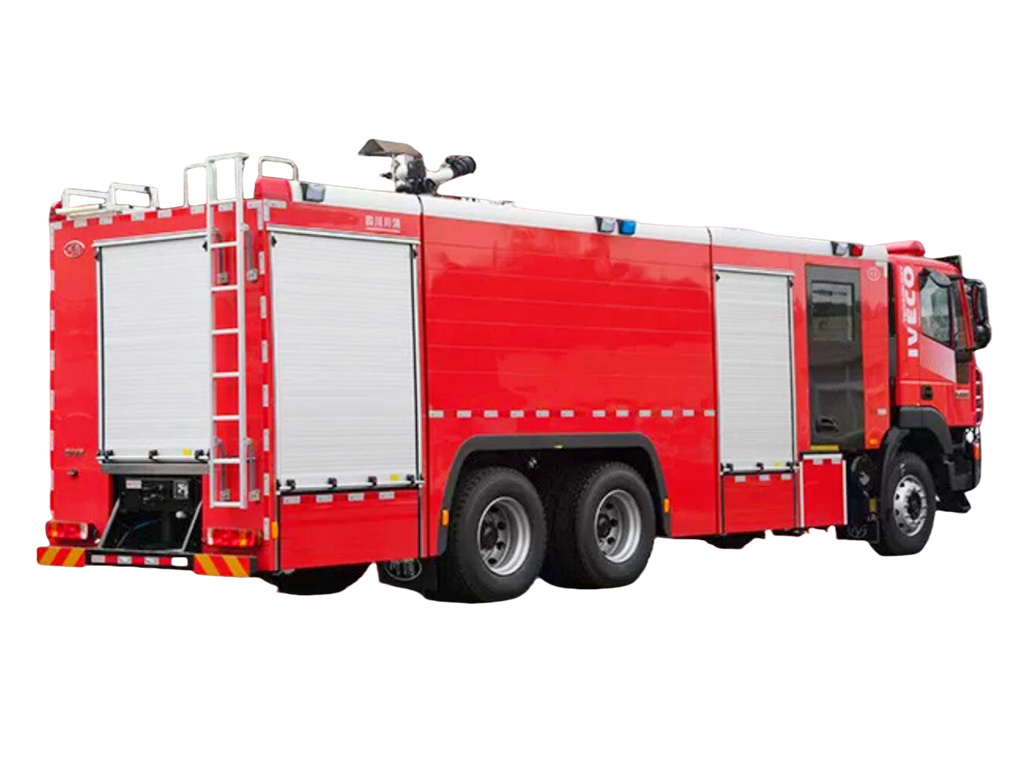

IVECO fire fighting truck



IVECO fire fighting truck
