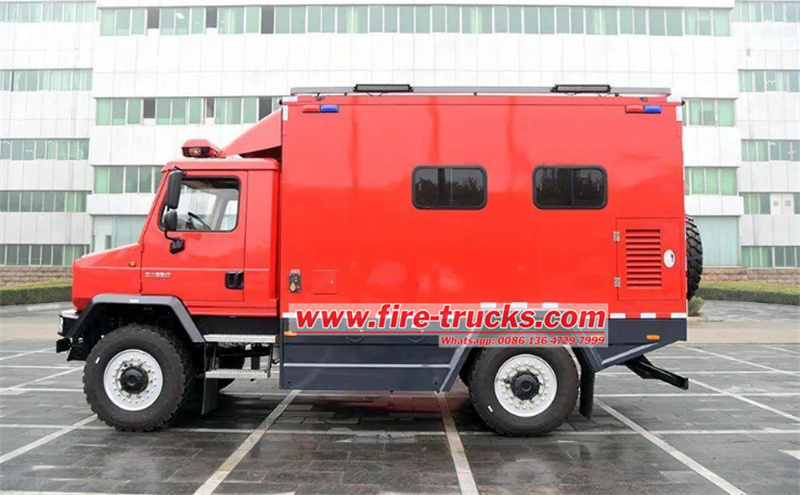

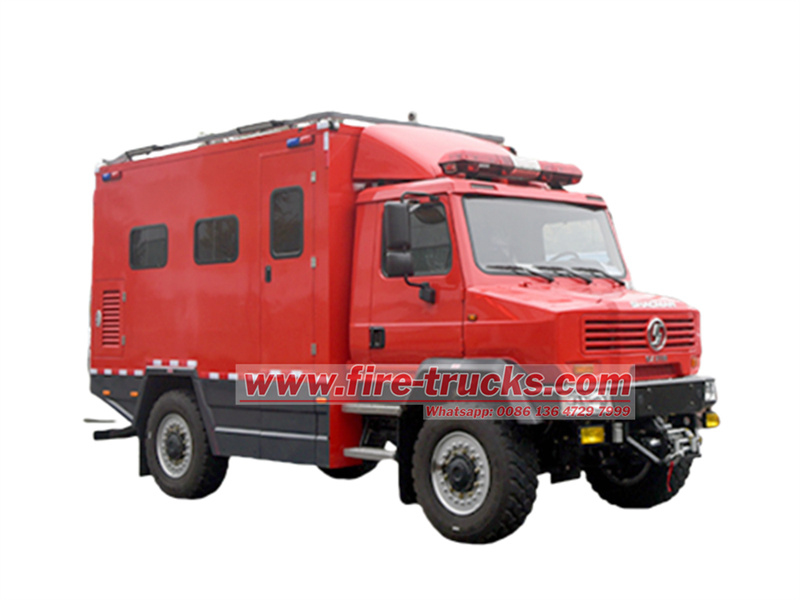

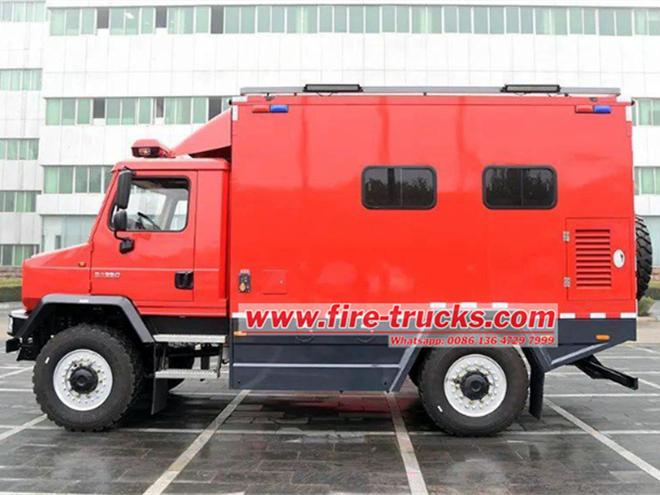

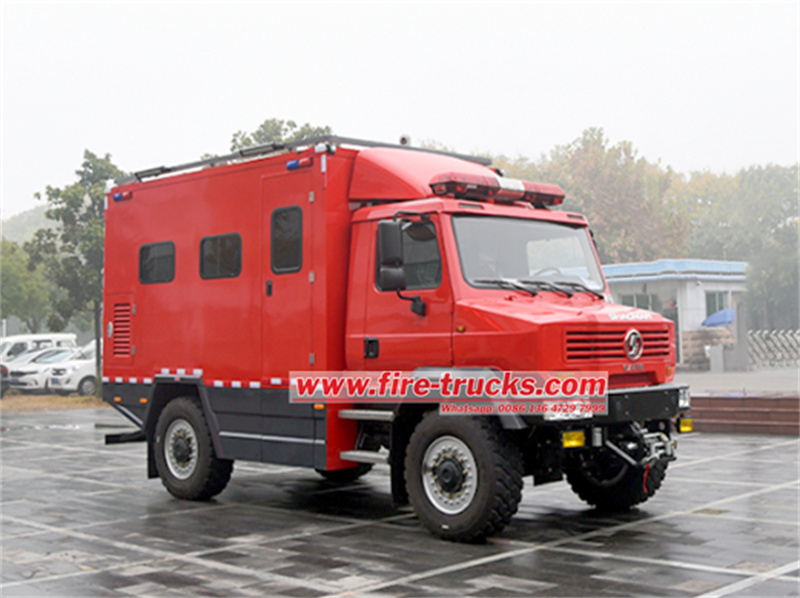

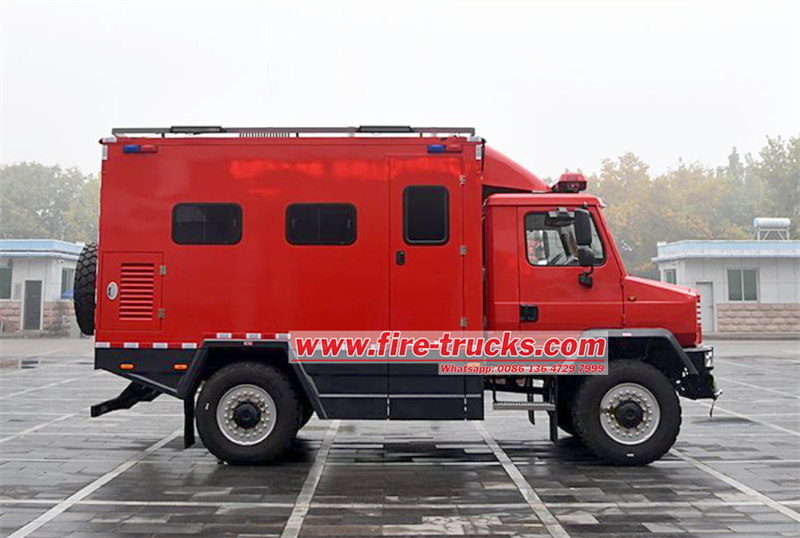

Shacman AWD Fire Command Support Truck

Shacman AWD Fire Command Support Truck

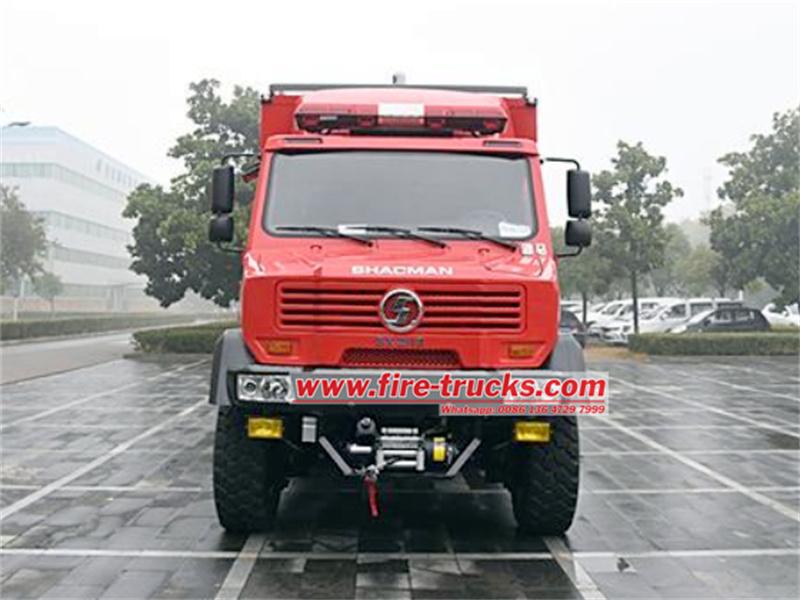

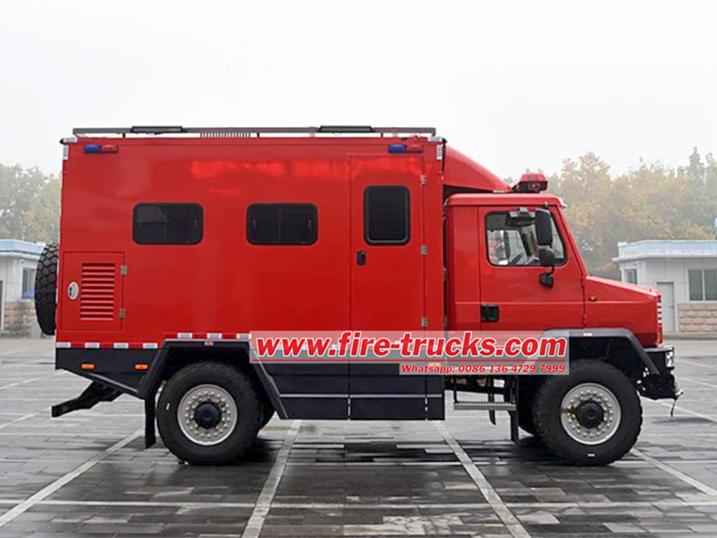

The Shacman 4x4 off-road forest fire command vehicle is built on a highly maneuverable all-wheels off-road chassis, designed for complex terrains, equipped with all-drive, differential locks and automatic tire inflation and deflation systems, with a maximum climbing gradient of over 60% and a wading depth of 1.5 meters, and can adapt to extreme environments such as mountains, swamps and plateaus. It is equipped with a high-power diesel engine, a dual power supply system (lithium battery + generator) and satellite communication equipment (Beidou/maritime satellite), supports multi-band fusion communication and real-time three-dimensional modeling of fire scenes, and realizes "air-space-ground" integrated command and dispatch.

  • Truck Model:

    PST52209SLQXF
  • Tanker Structure:

    10 tons
  • Work capacity :

    5+6 person
  • Wheelbase:

    5600mm
  • Axle drive:

    4x4
  • Engine Power:

    400HP
  • Engine Model:

    WP10H400E62
  • Remark:

    Fire forest command, Independent power supply system
Facebook Linkedin Youtube Twitter Pinterest

The Shacman 4x4 off-road forest fire command vehicle is built on a highly maneuverable all-wheels off-road chassis, designed for complex terrains, equipped with all-drive, differential locks and automatic tire inflation and deflation systems, with a maximum climbing gradient of over 60% and a wading depth of 1.5 meters, and can adapt to extreme environments such as mountains, swamps and plateaus. It is equipped with a high-power diesel engine, a dual power supply system (lithium battery + generator) and satellite communication equipment (Beidou/maritime satellite), supports multi-band fusion communication and real-time three-dimensional modeling of fire scenes, and realizes "air-space-ground" integrated command and dispatch. The Shacman off-road fire body adopts a lightweight alloy structure, explosion-proof fuel tank and fire-proof coating. It’s equipped with drone relay, emergency material compartment and AI fire prediction module, taking into account mobility, protection and intelligent decision-making support, and is widely used in forest fire front-line command, post-disaster assessment and daily patrol tasks.Shacman 4x4 Fire Command Support Truck

● China best fire rescue truck factory

 More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

 24 month quality guarantee term



Specification:



Shacman 4x4 Fire Command Support Truck



Shacman 4x4 Fire Command Support Truck

General

Vehicle Brand

Powerstar

Chassis Brand

Shacman

Overall Dimension

7800*2530*3150mm

GWW/ Kerb Weight

22,300kg/11,220kg

Painting

Red color

Cab

Cab Capacity

2+3 persons allowed

Air Conditioner

 Air conditioner

Engine

Fuel Type

Diesel

Engine Model

WP10H400E62

Engine type

Lnline 6-cylinder, turbocharged, inter-cooled diesel engine

Power

400 HP/294kW

Displacement

9.5L

Emission Standard

Euro 5

Chassis

Drive Type

4X4,left hand drive

Transmission

Fast 8-speed forward, 2 reverse

Wheelbase/No.of axle

5600mm / 2

Tyre Specification

315/80R22.5

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Fuel Tank Capacity

200L

Auxiliary Engine

Auxiliary engine to power onboard equipment























Superstructure

Modular Command Cabin

6 Person

Cabin material

Lightweight alloy

External Coating

Apply fire-resistant and high-temperature resistant coatings (such as ceramic-based coatings)

Command Communication System



Integrated

U/VHF

Satellite communications

Beidou

Public network

4G/5G

Support voice, data and video transmission

Situational Awareness Terminal

Access to satellite remote sensing fire data

Drone aerial footage

Ground sensor information

Generate a 3D fire scene situation map in real time through the GIS system

Mobile Command Room



Built-in multi-screen display console

Support video conferencing system (compatible with fire protection special encryption protocol)

Electronic sand table simulation

Resource scheduling management software



Feature:



Shacman 4x4 Fire Command Support Truck

Chassis and power system

High passability chassis: Adopts all-terrain off-road chassis 4x4, equipped with central charging and discharging system, differential lock, and high-torque engine, adapting to complex road conditions such as mountainous and muddy roads.

Power redundancy design: The Shacman fire command support truck is equipped with a dual-engine system, with the main engine driving the vehicle and the auxiliary engine powering the on-board equipment to ensure continuous operation of the equipment under extreme conditions.



Shacman 4x4 Fire Command Support Truck

Vehicle structure

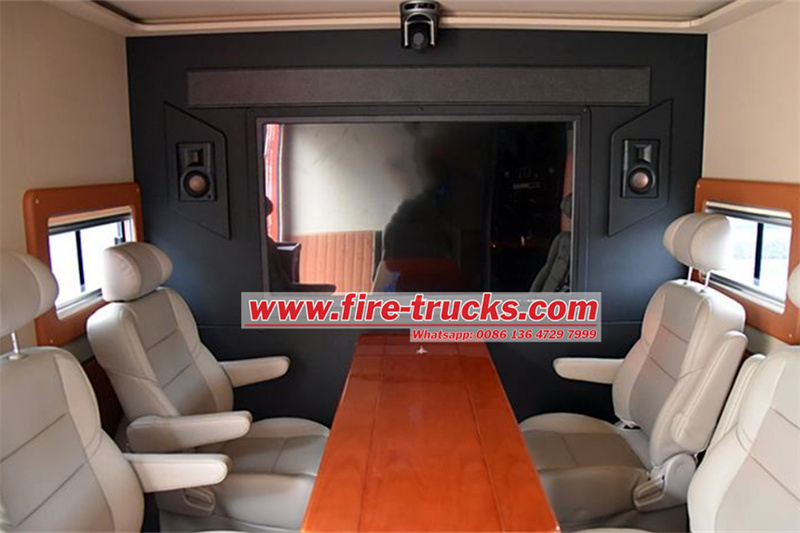

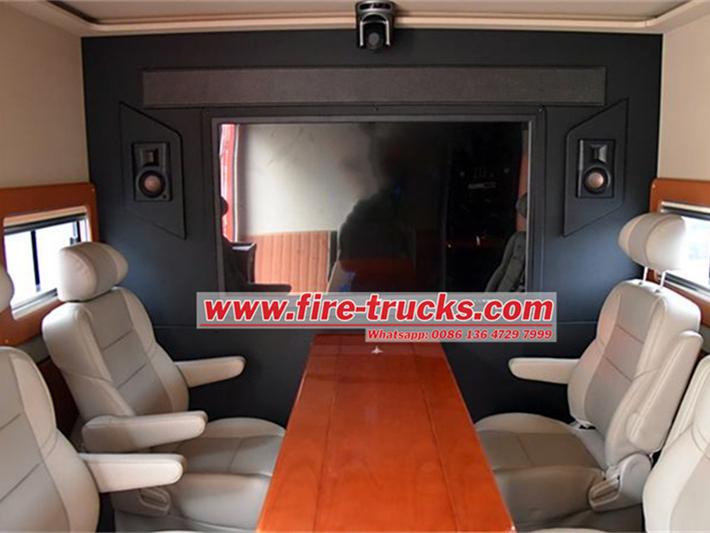

Modular cabin: Made of lightweight alloy or composite materials, the cabin is divided into driving area, command area, and equipment area. A panoramic observation window or a lifting observation platform is set on the top to facilitate fire situation observation.

Protection design: The exterior of the vehicle body is coated with a fireproof and high-temperature resistant coating (such as ceramic-based coating), the chassis is equipped with an explosion-proof fuel tank and puncture-proof tires, and the windows are multi-layer explosion-proof glass.

Shacman 4x4 Fire Command Support Truck

Command and communication system

Multi-band integrated communication: integrated ultra-short wave (U/VHF), satellite communication (such as Beidou, maritime satellite), public network (4G/5G), Mesh ad hoc network radio, supporting voice, data, and video transmission.

Situation awareness terminal: access to satellite remote sensing fire point data, drone aerial photography, ground sensor information, and generate a three-dimensional situation map of the fire scene in real time through the GIS system.

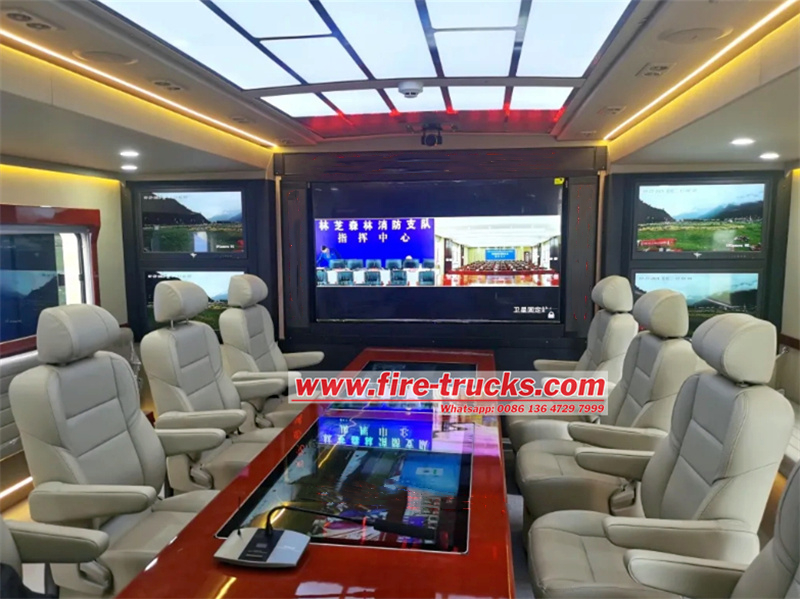

Mobile command platform: built-in multi-screen display console, support video conferencing system (compatible with fire-specific encryption protocol), electronic sand table simulation, and resource scheduling management software.

Shacman 4x4 Fire Command Support Truck

Auxiliary support system

Independent power supply system: equipped with large-capacity lithium battery pack + diesel generator, supporting off-grid operation for more than 72 hours, and some models are integrated with solar folding panels to supplement power supply.

Environmental adaptability equipment: The on-board air conditioner has dust filtration function, the internal positive pressure fresh air system prevents smoke intrusion, and is equipped with emergency oxygen device.

Material storage cabin: stores portable satellite stations, individual communication equipment, emergency medical kits, gas masks, etc. Some models are integrated with small fire-fighting robot transport cabins.

Advantage:



Shacman 4x4 Fire Command Support Truck



Global communication capability:Through the three-dimensional networking of "air-space-ground", emergency communication links are built in areas without public network coverage, supporting seamless connection between the front-line command center and the rear command center.

Dynamic decision support: Integrating AI fire prediction algorithms (such as those based on meteorological data and terrain combustion models), real-time calculation of the speed of fire spread, and generation of the best firefighting path and escape route.

Mobile deployment efficiency: Adopting a rapid deployment design, the command system can be started, the drone can be ejected, and the communication antenna can be erected within 5 minutes after arriving at the scene, adapting to the rapid changes of the fire scene.

System redundancy and safety: Key equipment (communication host, power supply) adopts dual-machine hot standby, and the communication link is encrypted multiple times (quantum encryption is optional) to prevent information interruption or malicious interference.

Ecological adaptability design: Low-noise electric drive mode is optional to reduce disturbance to wild animals.The tires use degradable anti-skid materials to reduce damage to the surface of the forest area.
