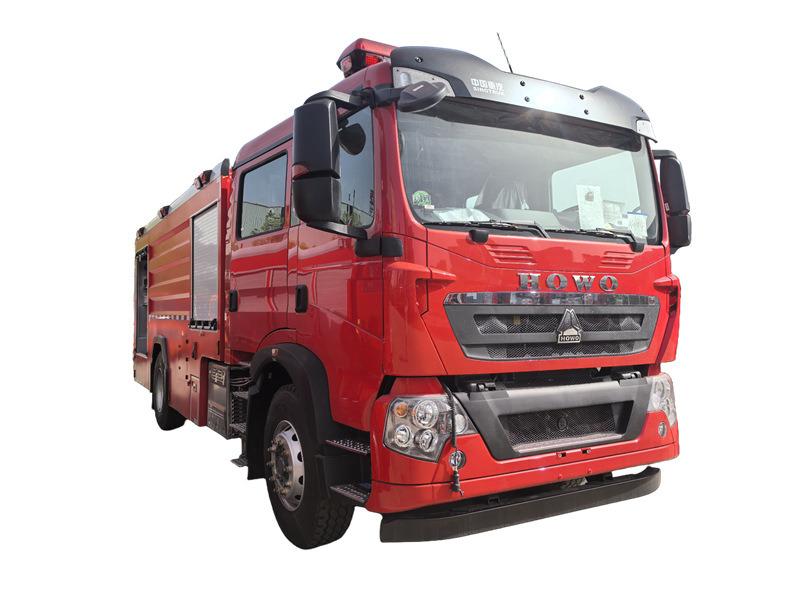

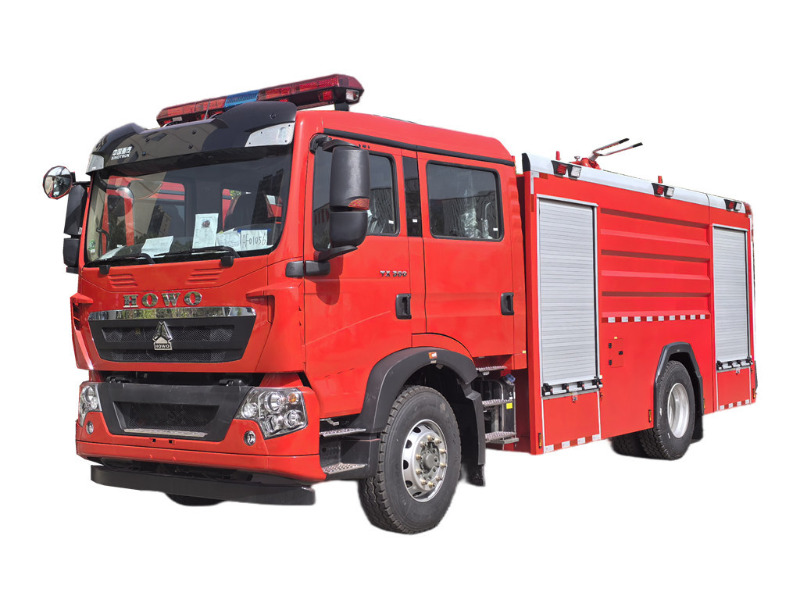

The HOWO Heavy-duty Foam Fire Truck is a professional firefighting apparatus built on a SINOTRUK 4×2 chassis. Powered by a 336HP diesel engine paired with a 10-speed transmission, it achieves a top speed of 101km/h. Equipped with a 6,000L carbon steel water tank and a 2,000L stainless steel foam tank, it features a CB20.10/30.60 medium-low pressure fire pump with a maximum flow rate of 60L/s. The roof-mounted PL8/48 fire monitor delivers a 60m water jet range (55m for foam) with 360° rotation. The double-row cabin accommodates 6 crew members, and its dimensions (8,600×2,540×3,600mm) make it ideal for petrochemical plants, airports, and other specialized scenarios, combining powerful performance, high-efficiency fire suppression, and operational convenience.
Truck Model:
PT5190GXFPMZ6Tanker Structure:
Carbon steel and stainless steelWork capacity :
8000 litersWheelbase:
4700 mmAxle drive:
4×2Engine Power:
336 HPEngine Model:
MC11.36Fire Pump:
CB20.10/30.60Fire Monitor:
PL8/42Remark:
Stainless steel water tank is optionalThe HOWO Heavy Rescue Fire Truck, developed on a HOWO 4×2 chassis, is a professional firefighting apparatus integrating large-capacity liquid storage, high-efficiency fire suppression, and rapid response. With overall dimensions of 8600×2540×3600 mm and a wheelbase of 4700 mm, it features a double-row cab design accommodating six firefighters, providing ample manpower support for large-scale fire scenes. Powered by a 336-horsepower MC11.36-40 engine paired with a 10-speed transmission, it achieves a top speed of 101 km/h, ensuring swift arrival at the scene. The combination of a 6000-liter water tank and a 2000-liter foam tank, along with a high-flow fire pump (60 L/s), makes it an ideal firefighting solution for specialized environments such as petrochemical facilities and airports.
The superstructure system of the HOWO Pumper Fire Truck is meticulously designed, with each component reflecting the technical sophistication of professional firefighting equipment. The 6000-liter water tank, constructed from 4 mm high-quality carbon steel plates, incorporates anti-sloshing baffles to ensure liquid stability during high-speed travel. The 2000-liter foam tank, made of 304 stainless steel, offers excellent corrosion resistance. Both tanks are equipped with rapid-fill inlets and overflow ports for easy maintenance.

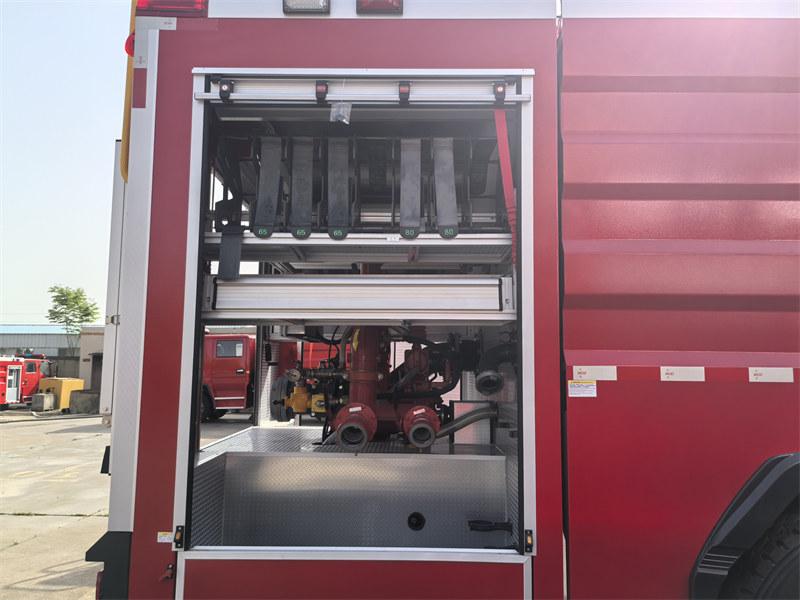

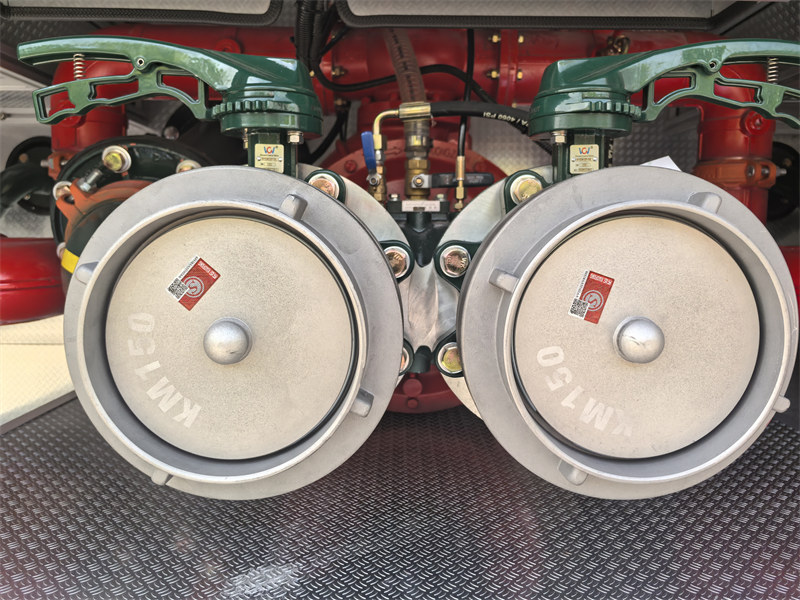

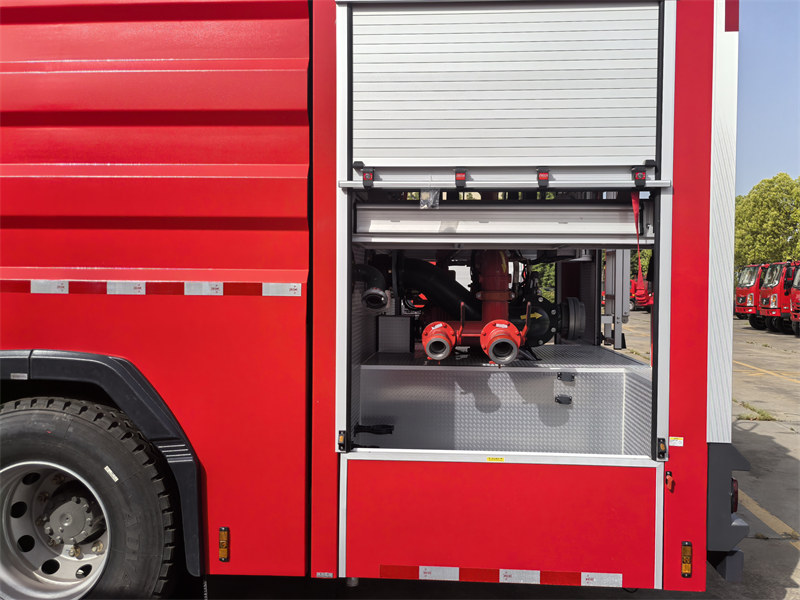

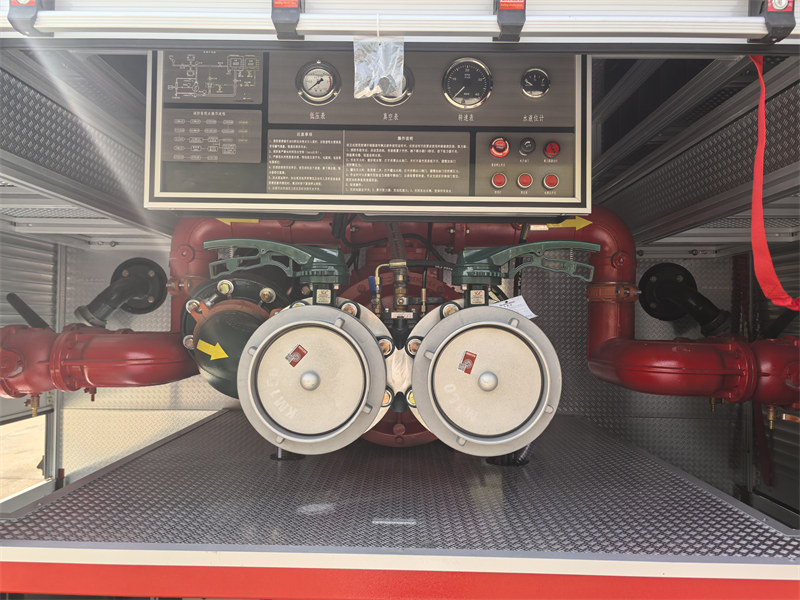

The CB20.10/30.60 medium-low pressure fire pump, installed in the pump compartment, serves as the core component of the HOWO Foam Fire Truck. Driven by the chassis power take-off (PTO) system, it delivers a stable output of 60 L/s at 1.0 MPa pressure and maintains 30 L/s even under high-pressure conditions (2.0 MPa). The pump features an automatic priming device with a maximum suction depth of 7 meters and a priming time of under 50 seconds. The roof-mounted PL8/48 fire monitor boasts a range of 60 meters (water)/55 meters (foam), with 360° horizontal rotation and -15° to +70° elevation adjustment. Its remote-control functionality allows firefighters to precisely direct firefighting operations from a safe distance.
In practical applications, the HOWO Fire Tanker Truck demonstrates three standout advantages:
1. High Fire Suppression Efficiency – The high-flow pump system, combined with a professional foam delivery system, enables rapid control of oil-based fires.
2. Extended Operational Capability – A total liquid capacity of 8000 liters supports prolonged firefighting missions.
3. Exceptional Adaptability – Stable performance across ambient temperatures ranging from -15°C to 45°C.
These features make it particularly suitable for firefighting demands in oil storage areas, chemical plants, airports, and other specialized environments, as well as a primary standby vehicle for urban fire brigades.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We have strong professional design team
Product Specifications
Product Name |
HOWO Heavy rescue foam fire truck |
|
Vehicle Main Dimensions |
L x W x H (mm) |
8600×2540×3600 |
Wheel base (mm) |
4700 |
|
Approach/Departure angle(°) |
19/10 |
|
Weight in KGS |
Tare Weight |
11200 |
GVW |
20100 |
|
Cabin |
Double row cabin, 2+4 seats |
|
Max. driving speed(km/h) |
101 |
|
Engine |
Brand |
SINOTRUK |
Model |
MC11.36-40 |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Horse Power(HP) |
336HP |
|
Emission standard |
Euro II |
|
Gearbox |
HW19710, 10 forwards & 2 reverse |
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|
Steering Gear |
ZF 8098, power steering, hydraulic steering with power assistance |
|
Number of leaf springs |
11/9+8 |
|
Front/rear wheel track (mm) |
1950/1848 |
|
Tire |
315/80R22.5 radial tire, 7 pieces including one spare tire |
|
Brakes |
Service brake: dual circuit compressed air brake |
|
Superstructure |
||
Tank |
Water tank capacity |
6000 liters |
Water tank material |
Carbon steel |
|
Foam tank capacity |
2000 liters |
|
Foam tank material |
Stainless steel |
|
Fire Pump |
Model |
CB20.10/30.60 |
Type |
Low and normal pressure fire pump |
|
Rated flow |
60L/s @1.0MPa ;30L/s @2.0MPa |
|
Outlet rated pressure |
1.0 Mpa |
|
Max. suction height |
7 m |
|
Water diversion time |
≤ 50s at max. suction depth |
|
Fire monitor |
Model |
PL8/48 |
Rotation angle |
360 ° horizontal rotation |
|
Elevation/depression angle |
-15 °~+70 ° |
|
Flow |
48L/s |
|
Range |
Foam≥55m; water≥60m |
Product Features
1. Large Firefighting Capacity – Equipped with a 6000-liter water tank and a 2000-liter foam tank (total 8000 liters), this HOWO fire pumper truck supports extended fire suppression, ideal for large-scale fire scenes. Both tanks feature anti-sloshing designs for stability during high-speed transit.
2. Powerful Powertrain – Powered by a 336-hp MC11.36-40 turbocharged diesel engine and a 10-speed transmission, it delivers robust performance with a top speed of 101 km/h, meeting urgent rescue timelines.
3. High-Efficiency Fire Suppression – The CB20.10/30.60 medium-low pressure fire pump delivers a maximum flow of 60 L/s, while the PL8/48 fire monitor achieves ranges of 60 m (water)/55 m (foam), enabling rapid fire containment.
4. Professional Chassis Design – Built on a dedicated HOWO heavy-duty chassis with triple braking systems and 315/80R22.5 large tires, it excels in off-road capability and stability across complex terrains.

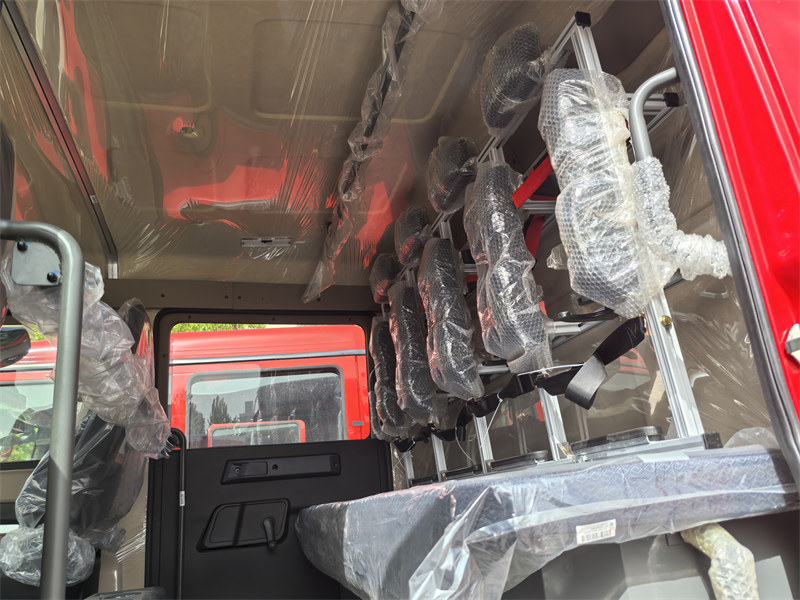

5. Ergonomic Operation – The double-row cab seats six firefighters, featuring a user-friendly control platform and multiple firefighting tools for efficient, high-performance operations.

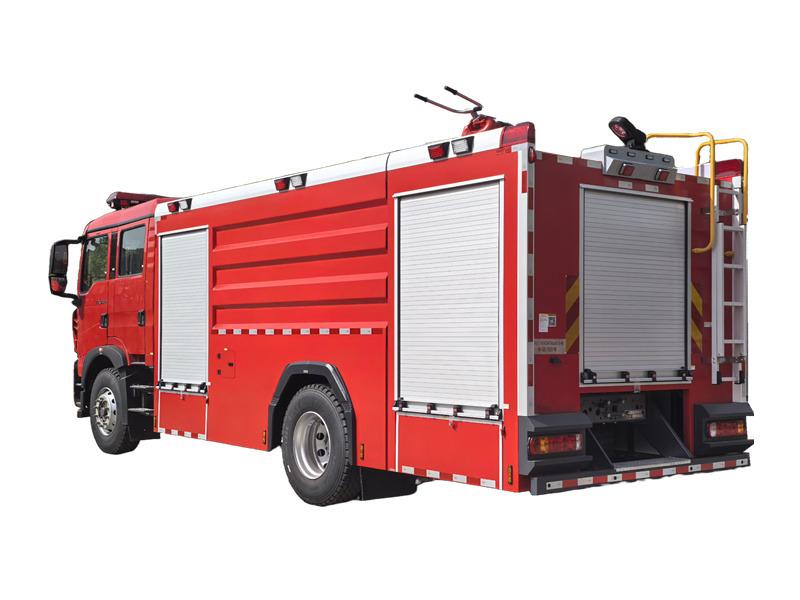

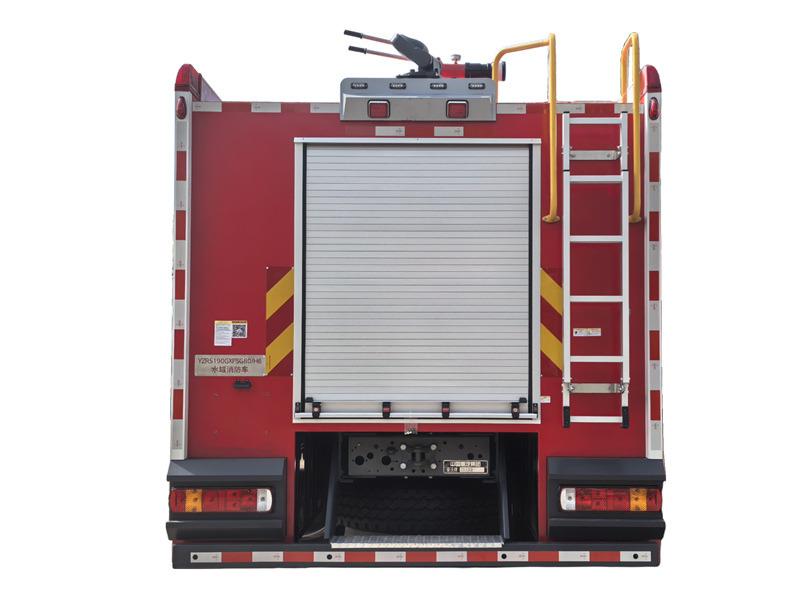

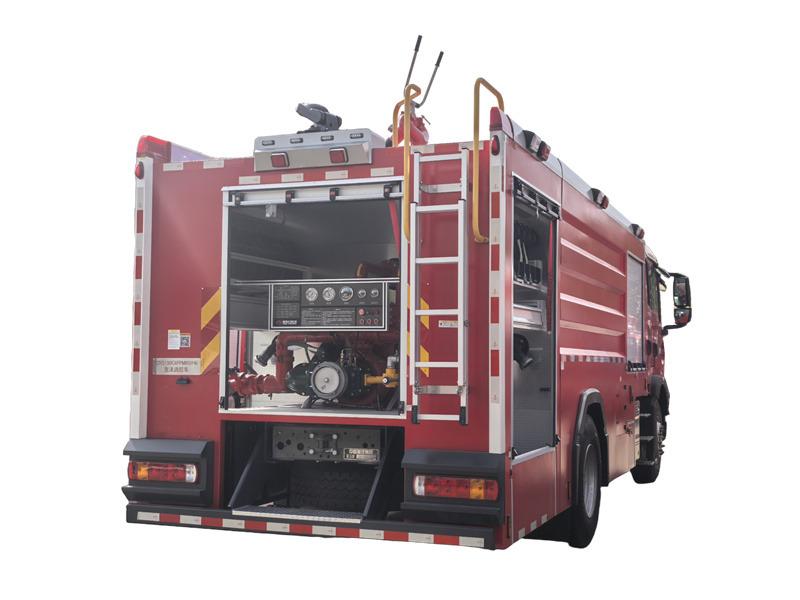

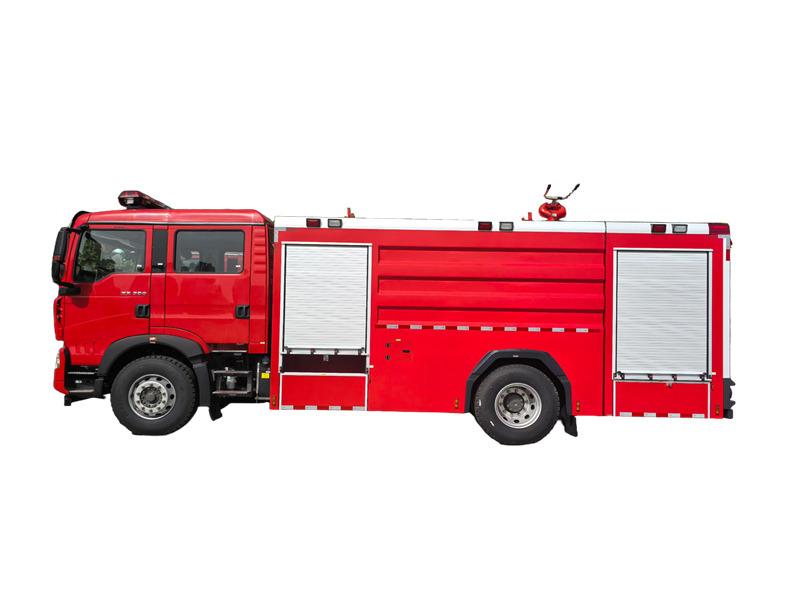

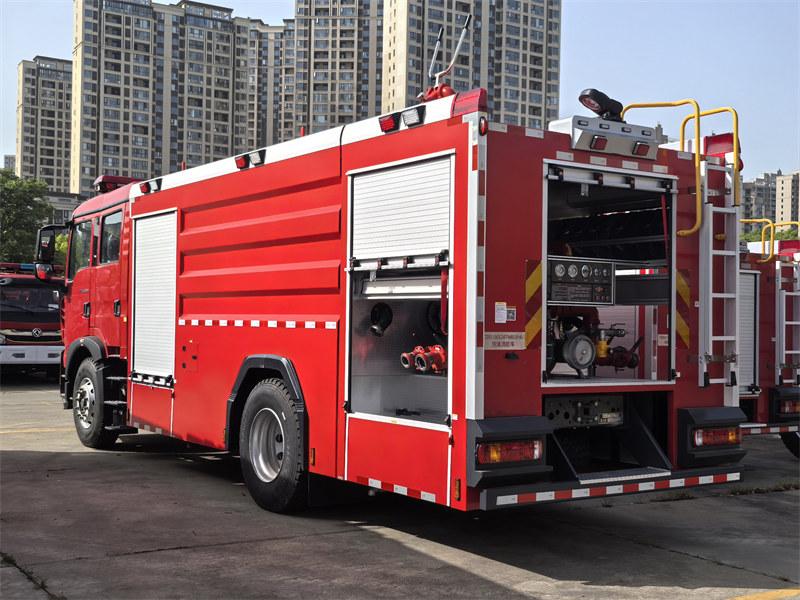

Detailed Pictures
