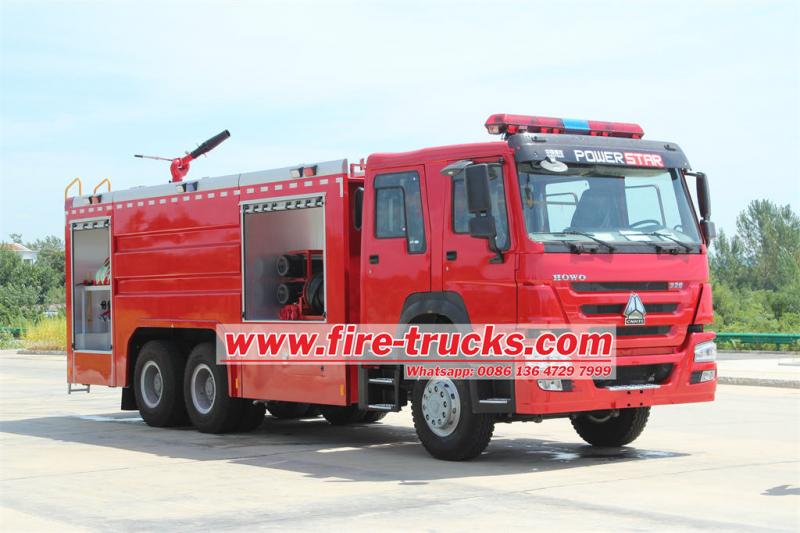

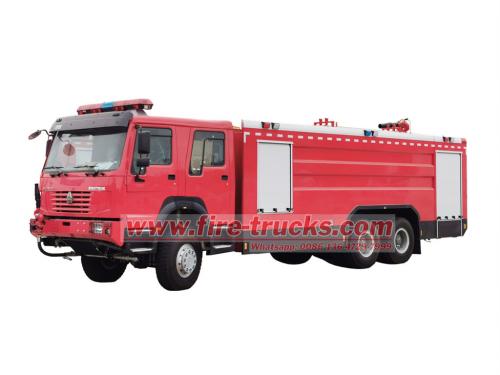

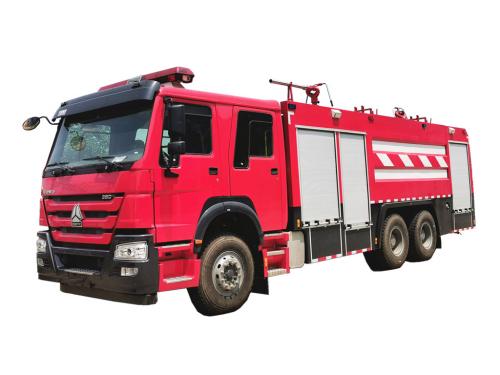

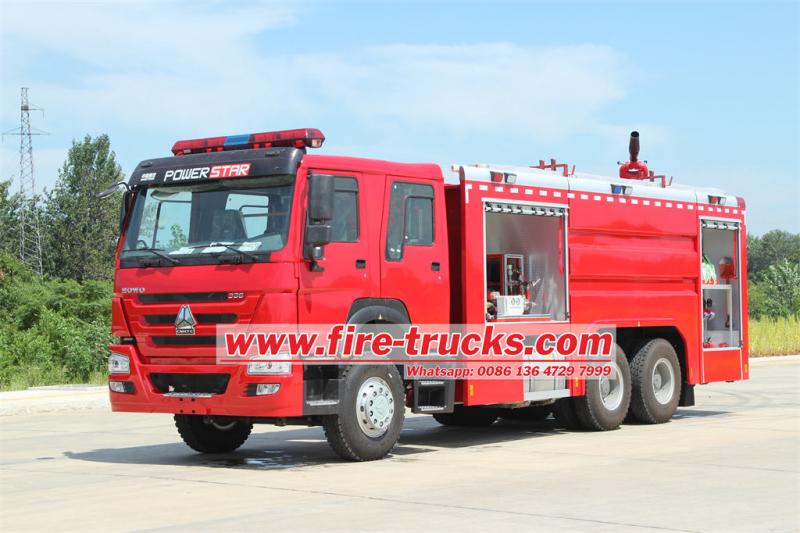

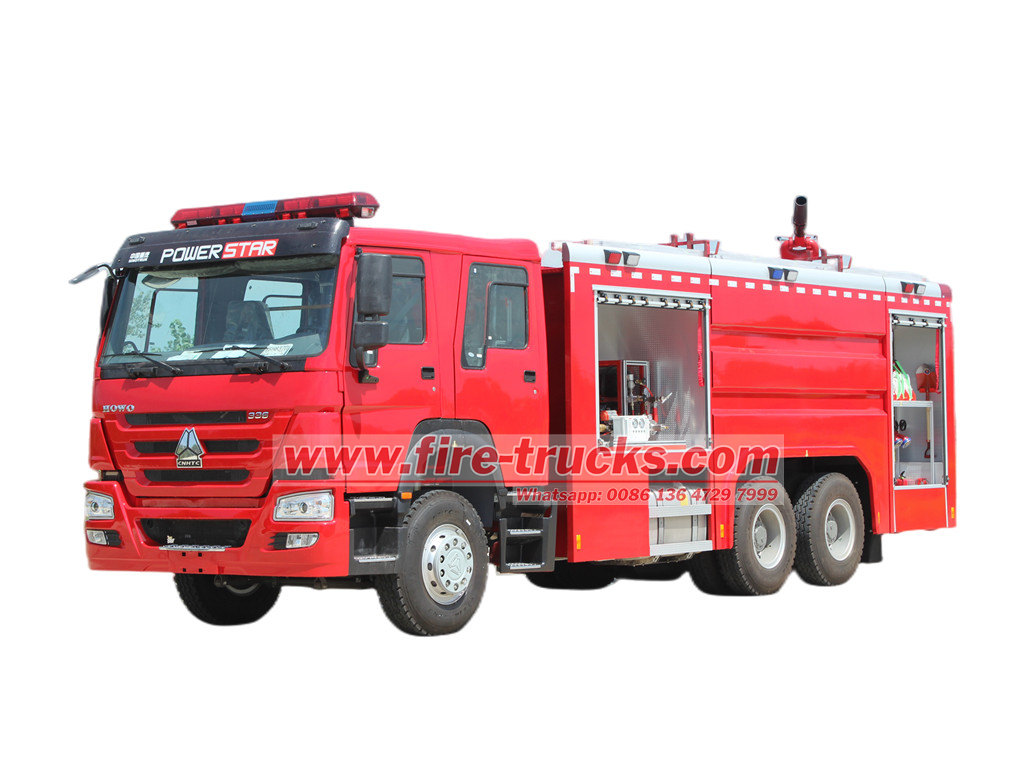

In modern firefighting equipment, fire trucks serve as the core tools for fire suppression and rescue operations, with their performance and functionality directly impacting the efficiency and success of firefighting efforts. The HOWO 6×4 fire truck is a heavy-duty dry powder,water and foam dual-purpose firefighting vehicle modified from the HOWO 6×4 chassis. With its exceptional liquid-carrying capacity, flexible maneuverability, and ease of maintenance, it has become an ideal choice for public security fire departments, industrial and mining enterprises, communities, docks, and other locations.
Truck Model:
PT5250GXFGLTanker Structure:
Carbon steel and stainless steelWork capacity :
12000 litersWheelbase:
4600+1350 mmAxle drive:
6×4Engine Power:
336 HPEngine Model:
WP10.336Fire Pump:
CB10/60Remark:
Water, foam and dry powder fire truckThe HOWO 6×4 fire truck is a multifunctional firefighting vehicle specifically designed to combat large-scale oil fires and general material fires. Built on the HOWO 6×4 chassis and equipped with advanced firefighting technology, it features the combined capability of using water, foam, and dry powder as extinguishing agents, making it suitable for a variety of fire scenarios. The vehicle's standout features include its large liquid-carrying capacity, excellent maneuverability, and ease of maintenance. It is widely used by public security fire departments, industrial and mining enterprises, communities, docks, and other locations, making it an essential component of modern firefighting equipment.
As a dry powder, water, and foam dual-purpose fire truck, the HOWO 6×4 fire engine not only excels in quickly extinguishing fires but also plays a critical role in emergency rescue operations. For example, in chemical spill incidents, the vehicle's dry powder system can effectively control the spread of hazardous substances. During natural disasters, its large-capacity water tank can provide emergency water supply to affected areas. This versatility gives the HOWO 6×4 fire truck immense practical value in real-world scenarios.
Product Specifications
Product Name |
HOWO 6x4 firefighting truck |
Driving Type |
6x4 ,left /right hand drive |
WEIGHT |
|
Gross Vehicle Weight |
25000 kg |
Kerb Weight |
12500 kg |
Dimensions |
|
Wheelbase |
4600+1350 mm |
Overall Size |
10500x2550x3400mm |
ENGINE |
|
Engine Model |
WP10.336 |
No of Cylinder |
6 |
Displacement |
9726ml |
Max Output |
247 KW |
Max. hose power |
336 HP |
Emission Standard |
EURO 3 |
DRIVE TYPE |
|
Transmission |
HW19710 10 speeds,10 forwards and 2 reverse |
Steering |
ZF, With power steering |
Brake |
Air brake |
Front axle/rear axle |
front axle:HF9 |
CAB |
|
Cabin |
HOWO 76 new type |
Configuration |
with A/C |
Seat quantity |
Double row, 2+4 seats |
TIRE |
|
Tire specification |
12.00R20,10+1 |
Superstructure |
|
Tank Capacity |
Water tank:10000liters Dry powder tank: 1 CBM |
Tank Material |
Water tank: Q235 carbon steel Foam tank: stainless steel |
Fire pump |
Model: CB10/60 Flow: 60L/s @1.0 Mpa Rated pressure: 1.0 Mpa |
Fire monitor |
Model: PL8/48 Flow: 48 L/s Max. working pressure: 0.8 Mpa Range: Water≥60m; Foam≥55m |
Dry powder system |
Dry powder tank: 1 CBM Powder gun model: PF5~15/30 Control mode: Manual Jetting intensity: 30kg/s Working pressure: 1.4 Mpa Reel: 30 meters, DN25 Nitrogen cylinder: 6 pcs, 70L capacity |
Features of the HOWO Fire Truck's Superstructure
The HOWO 6×4 firefighting truck boasts a scientifically designed and rational upper body structure, divided into two main parts: the firefighter crew cabin and the upper body. This modular design not only optimizes space utilization but also ensures rapid response during firefighting operations, meeting the demands of various fire scenarios.
1. Firefighter Crew Cabin

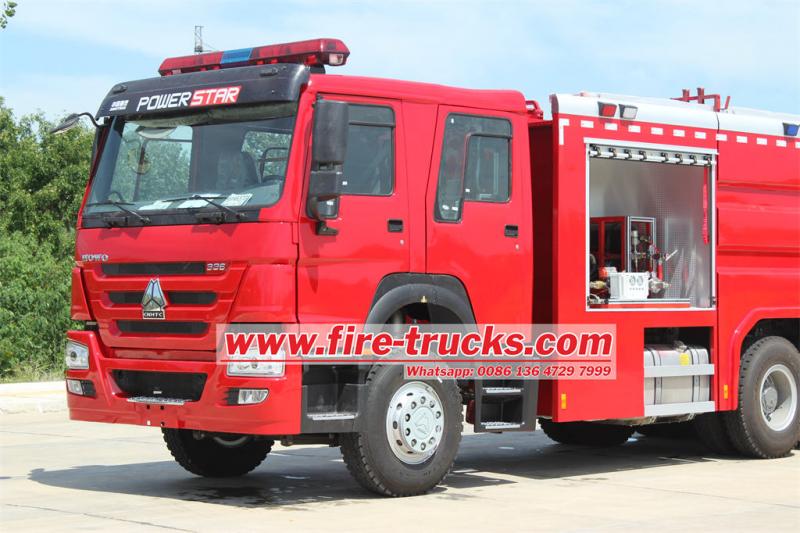

The crew cabin is one of the core areas of the fire truck, providing firefighters with a comfortable seating space and a convenient operating environment. The HOWO 6×4 heavy fire truck's crew cabin features an original double-row design, accommodating 2+4 personnel, which meets the needs of multi-person collaborative operations. The double-row seating design not only enhances comfort but also ensures that firefighters can deploy quickly in emergencies.
The crew cabin is equipped with an air conditioning system, providing a suitable working environment for firefighters whether in the heat of summer or the cold of winter, thereby improving operational efficiency. Additionally, the cabin is outfitted with essential communication devices and control systems, enabling firefighters to monitor the vehicle's status and fire conditions in real time during operations.

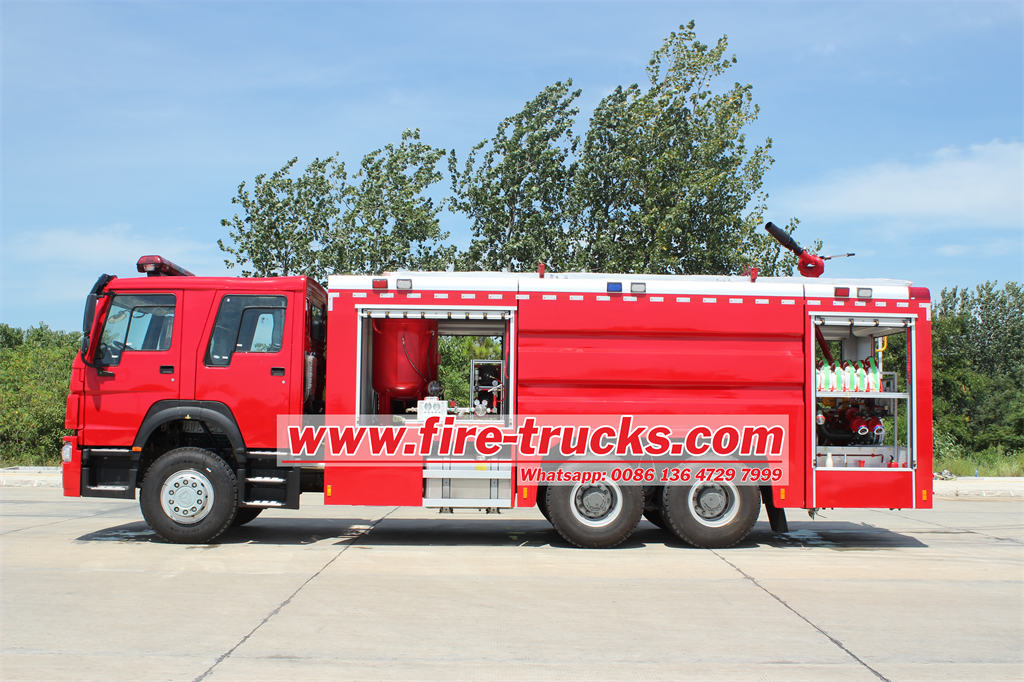

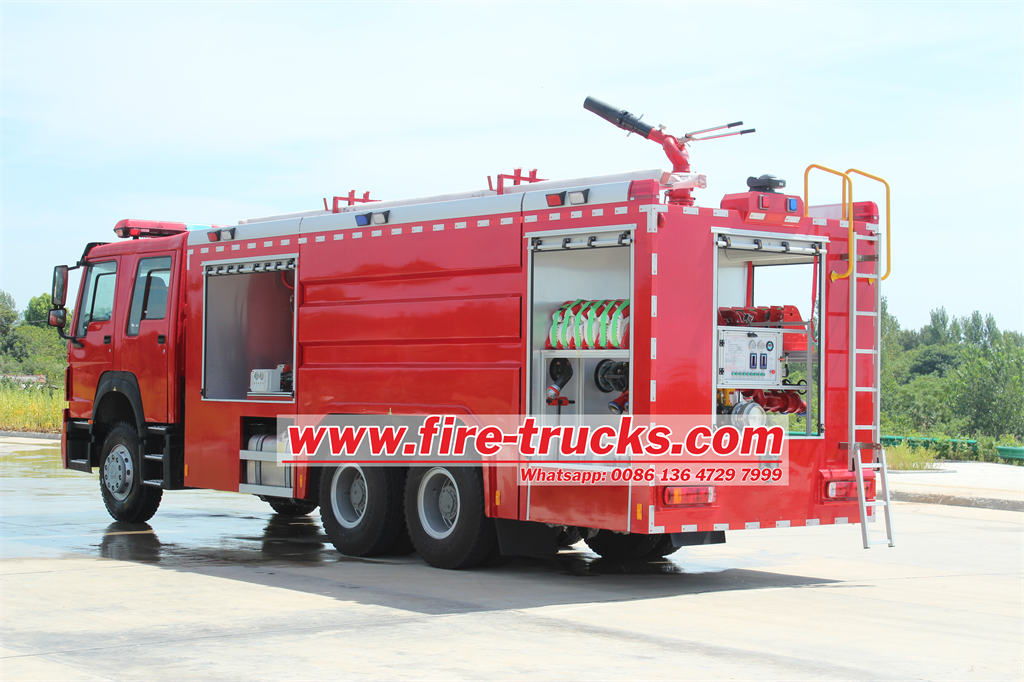

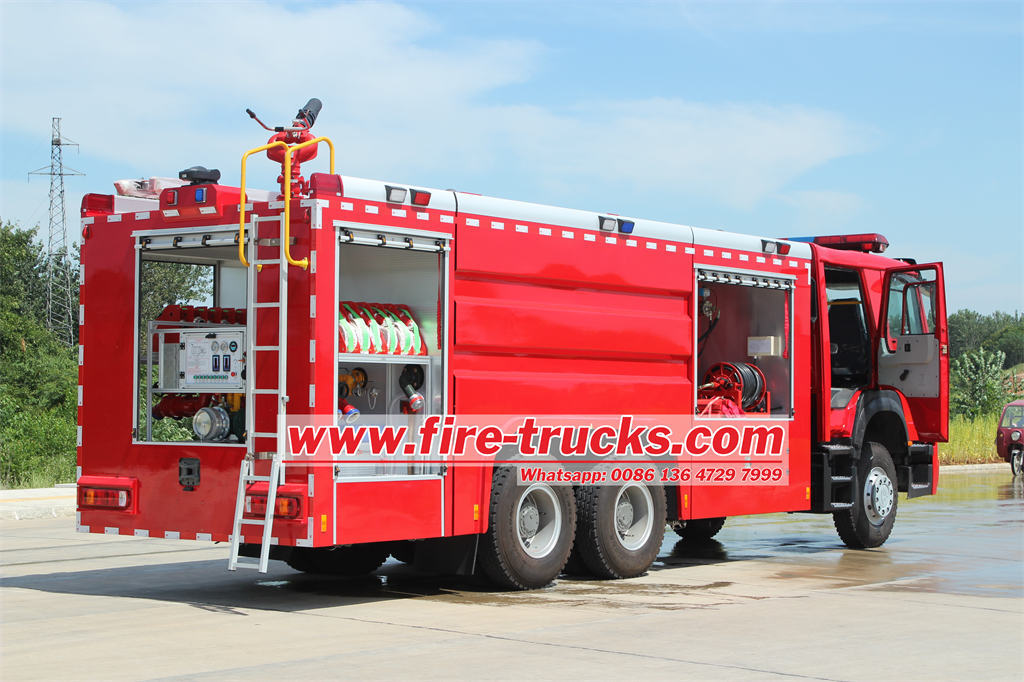

2. Upper Body Structure
The body is the functional core area of the HOWO 6×4 fire engine, featuring an tank structure divided into three functional zones: front, middle, and rear. This zoned design not only optimizes space utilization but also ensures rapid response during firefighting operations, meeting the demands of various fire scenarios.

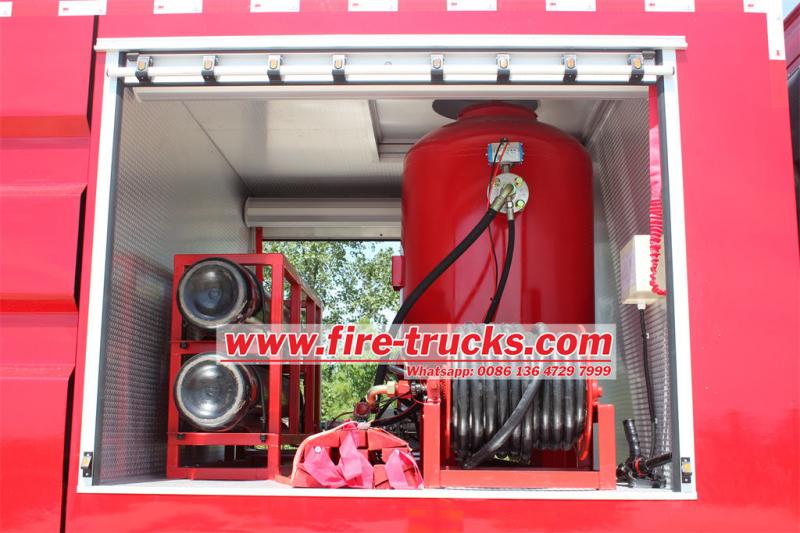

• Front Equipment Compartment: The front part of the body houses the equipment compartment, primarily used to store the dry powder tank, nitrogen cylinders, and dry powder system. These devices are critical for extinguishing oil and electrical fires, and the compartment's design allows for quick access, enhancing firefighting efficiency.
• Middle Tank Section: The middle part of the body contains the tank section, used for carrying water, foam and dry powder. The water tank has a capacity of 10,000 liters, the foam tank can hold 2,000 liters, tank dry powder tank has a capacity of 1CBM, meeting the needs of prolonged and large-scale firefighting operations. The tanks are constructed from high-quality carbon steel and stainless steel, offering excellent corrosion resistance and durability.

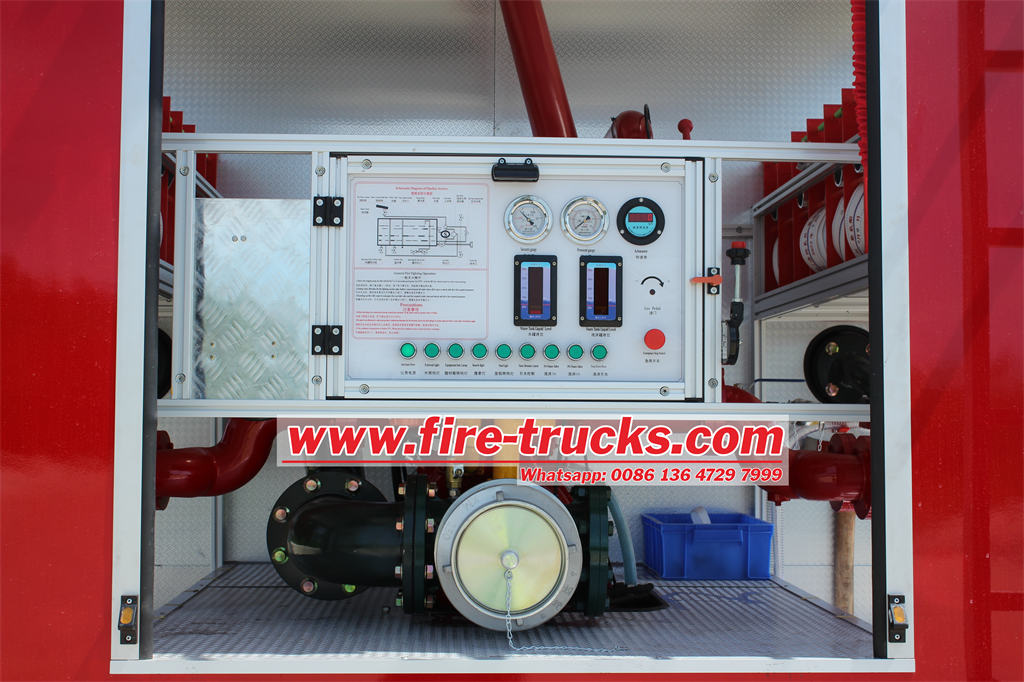

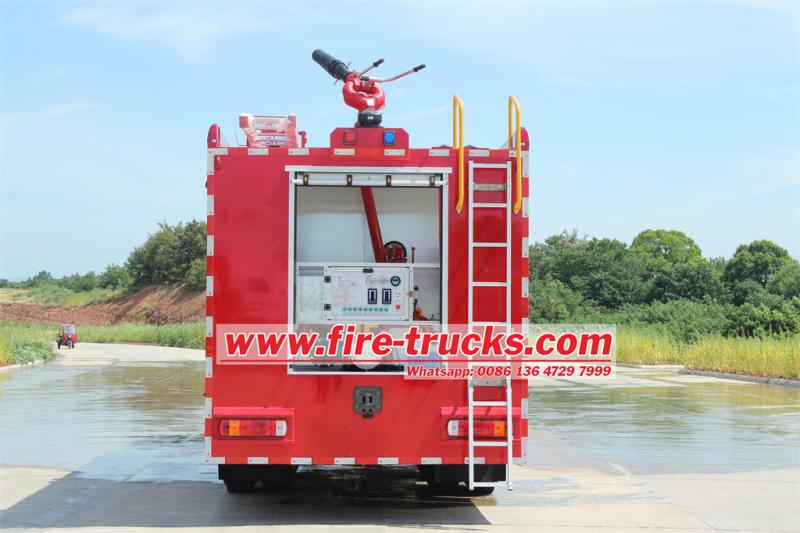

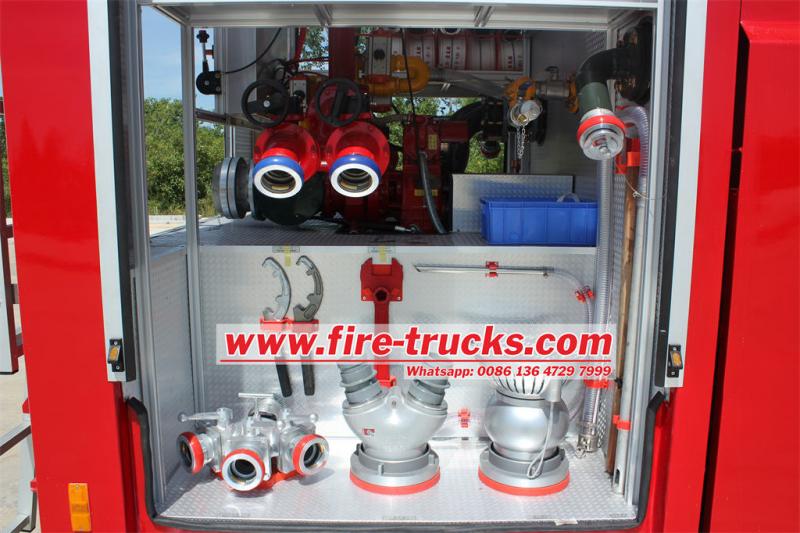

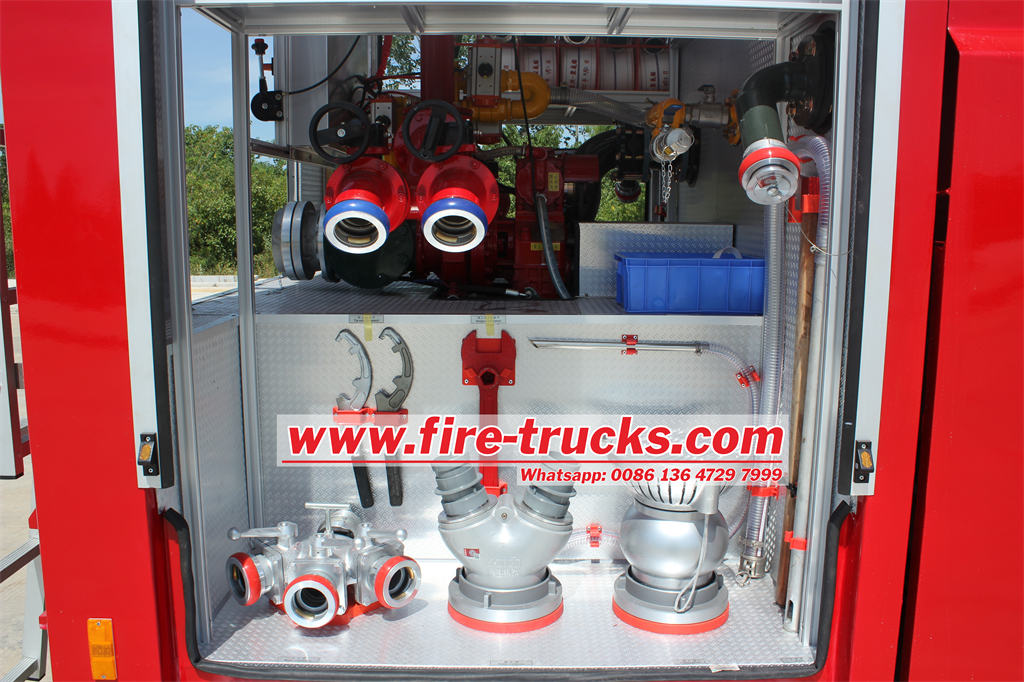

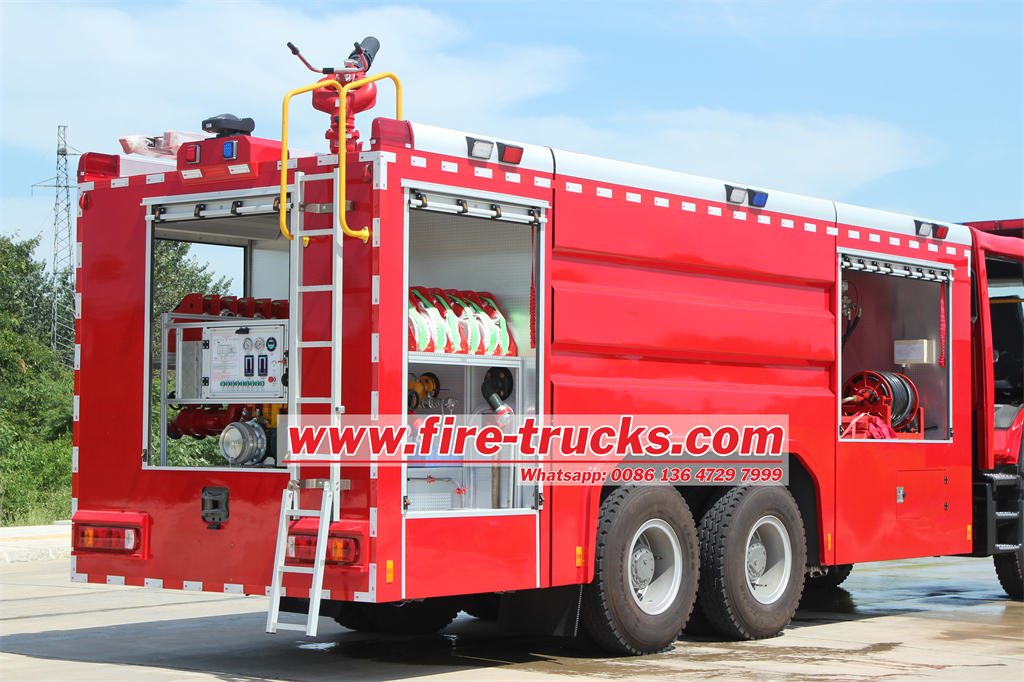

• Rear Pump Room: The rear part of the body houses the pump room, which contains the fire pump and related control systems. The pump room is equipped with a CB10/60 medium-low pressure fire pump, with a rated flow of 60L/s and a rated pressure of 1.0 MPa, enabling the rapid delivery of large quantities of extinguishing agents to meet the demands of high-intensity firefighting operations.
Product Advantages

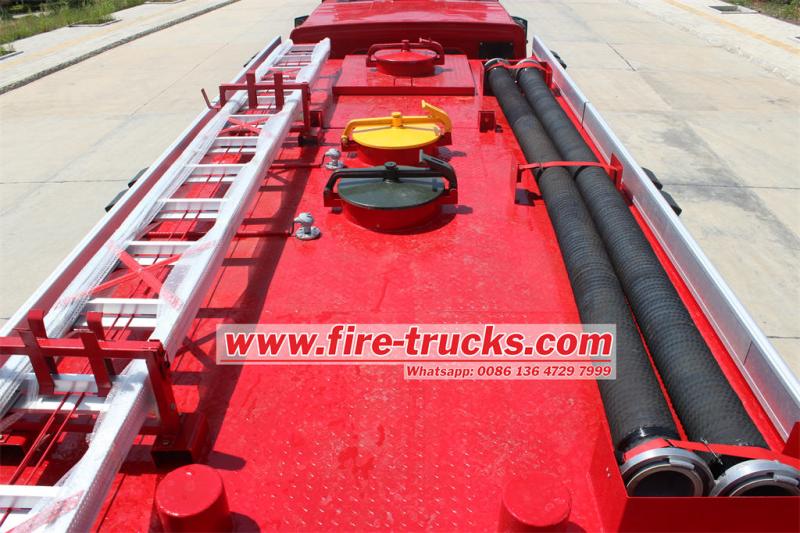

1. The main frame structure is constructed using high-quality square tubes welded together, with external decorative panels made of carbon steel plates. The roof features anti-slip tread plates for walkability, and both sides are equipped with flip-down steps designed for anti-slip functionality.
2. It is equipped with a well-known Chinese brand fire pump, model CB10/60, which is compact in structure, easy to operate, highly durable, and low in maintenance costs, making it suitable for various fire scenarios.

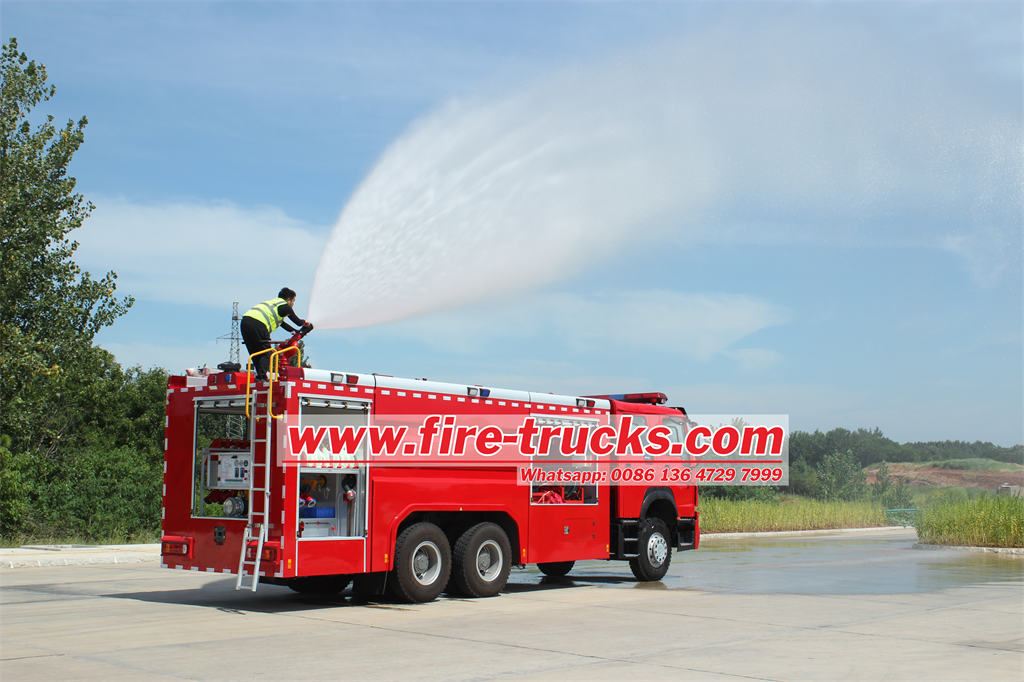

3. The roof is fitted with a renowned Chinese brand PL8/48 dual-purpose water and foam fire monitor, capable of 360° rotation. It is simple to operate, has a long range, and is reliable and durable in quality.
4. The vehicle is equipped with various firefighting equipment, secured using specialized fixtures that are resistant to rust, vibration, detachment, and scratching. The equipment is arranged in a reasonable, compact, and secure manner, with clear labeling.
