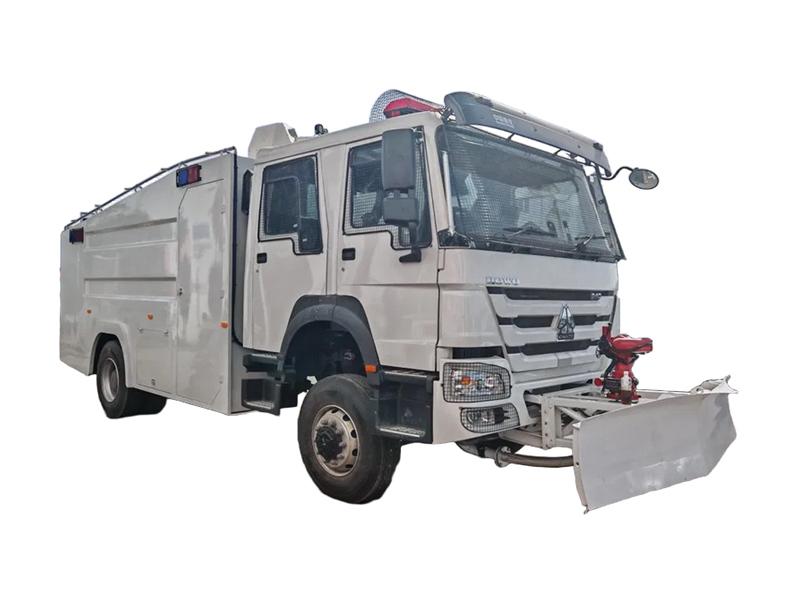

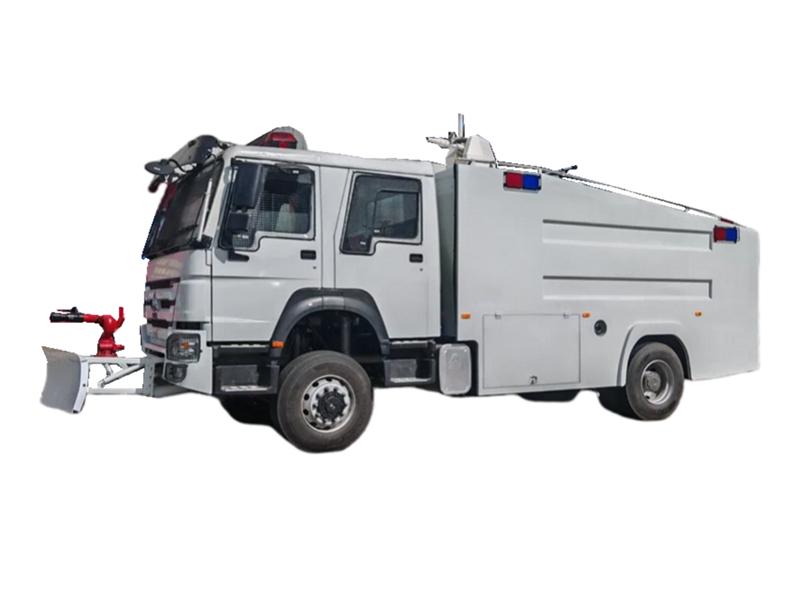

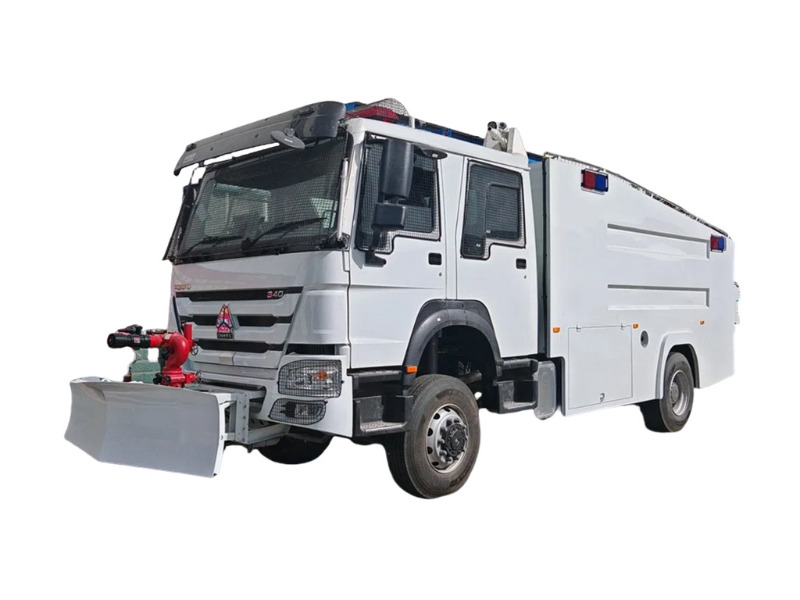

The HOWO Riot Control Water Cannon Vehicle is built on the SINOTRUK HOWO 4×2 heavy-duty chassis and is equipped with a roof-mounted riot control water cannon, a front-mounted water cannon, a spray protection system, an antifreeze protection system, a hydraulic obstacle-clearing system, a video surveillance system, a broadcast system, a protective mesh system, and a warning light system. This vehicle is an ideal tool for public security and armed police forces to handle sudden mass incidents.
Truck Model:
PT5180GXFFBTanker Structure:
Carbon steel water tankWork capacity :
8000 litersWheelbase:
4600 mmAxle drive:
4×2Engine Power:
266 HPEngine Model:
WD615.62Fire Pump:
China famous water pumpFire Monitor:
High pressure water cannonRemark:
Equipped with electronically controlled riot control water cannonThe HOWO Riot Control Water Cannon Vehicle is a special-purpose vehicle modified from the SINOTRUK HOWO 4x2 chassis, specifically designed to address mass incidents and maintain public order. The vehicle features a water tank capable of holding 8 tons of water, with a continuous spraying duration of up to 8 minutes. It is equipped with two high-pressure water cannons on the roof, offering multiple modes such as single-shot, continuous spray, and mist spray, with a range of up to 65 meters. Additionally, the vehicle can disperse dye and pepper spray to non-lethally deter individuals threatening public safety.
Furthermore, the vehicle is fitted with an auxiliary water cannon at the front, with a range of 35 meters, specifically designed for close-range riot control. Inside the vehicle, there are 9 riot control launchers capable of firing tear gas canisters, smoke grenades, and other non-lethal projectiles, effectively targeting threats within 150 meters.
The HOWO Anti-riot Water Cannon Truck is also equipped with a hydraulic obstacle-clearing blade, capable of removing obstacles weighing 3-5 tons. The vehicle features 11 high-pressure fire extinguishing nozzles that can rotate and tilt flexibly, significantly reducing blind spots and effectively extinguishing fires on the vehicle body.
The front of the HOWO Armored Anti-Riot Truck is reinforced with perforated blast-proof steel plates and anti-riot mesh to prevent rioters from throwing stones, sharp objects, or fire sources. The smooth design of the vehicle body also effectively prevents rioters from climbing onto the vehicle. Additionally, the vehicle is equipped with high-intensity lighting and loudspeakers on the roof, providing illumination and broadcast support for nighttime operations.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We have strong professional design team
Product Specifications
Main technical information |
|||
Product Name |
HOWO 4x2 Anti-riot Water cannon |
||
Chassis Parameters |
|||
Chassis Brand |
SINOTRUCK HOWO |
||
Drive type |
4X2 |
||
Cabin |
HOWO 76 cabin, double row, left hand drive |
||
Engine |
WD615.62, 266HP, Euro2 |
||
Bumper |
Low level bumper |
||
Transmission box |
HW19710 |
||
Front Axle |
HF7 |
||
Drive Axle |
ST16 (Single rear axle ) |
||
Steering |
ZF8198 |
||
Frame |
Double layer frame ( 8+5/300) |
||
Exhaust system |
Standard exhaust system |
||
Tire Specification |
295/80R22.5 |
||
Upper-body Parameters |
|||
Tanker |
Water tanker |
1set |
Water capacity ≥ 8m3, equipped with manholes that can quickly lock emergency opening devices, built-in vertical and horizontal anti-sway plates, equipped with overflow ports, water replenishment ports, sewage outlets, tank liquid level sensors, and special anti-rust treatment in the tank cavity |
Pump room |
1set |
Insulation cotton is attached to the inner wall of the pump room, and an antifreeze heating device is installed |
|
Water cannon |
DC water cannon |
2set |
Shoot range≥65m, DN80, electronically controlled pan and tilt |
Water cannon control |
Manipulate handle |
2set |
|
Control box assembly |
1set |
Homemade, the control panel can be rotated and adjusted |
|
Mobile control box |
1set |
|
|
Liquid level display panel |
1set |
LED display + integrated printed circuit board |
|
Waterway system |
Water pump |
1set |
Vehicle center mounted, medium and high pressure fire-fighting pump, 1.6Mpa, 50L/S |
Main waterway system |
1set |
National standard seamless galvanized pipe, pneumatic control stainless steel ball valve group, low temperature flexible joint, standard steel flange, manual butterfly valve, gate valve |
|
Airway control system |
1set |
Air storage tank, air pipeline and electromagnetic air control valve |
|
Sprinkler System |
Truck roof spray |
1set |
6 pcs |
Undercarriage spray |
1set |
6 pcs |
|
Skirt spray |
1set |
|
|
Additive Blending |
Foaming agent |
1set |
Stainless steel tank storage, volume 100L |
Dye |
1set |
Stainless steel tank storage, volume 100L |
|
Gas liquid |
1set |
Stainless steel tank storage, volume 100L |
|
Circuit control |
PLC |
1set |
Siemens programmable controller |
Digital Expansion Module |
1set |
Siemens |
|
Power box |
1set |
|
|
Control box |
1set |
|
|
Additional lamps |
High headlights |
2set |
60/55W |
Side marker lights |
6set |
|
|
Position light |
4set |
|
|
Warning system |
Strobe cylindrical warning light |
4pcs |
Star brand, high quality pulse xenon lamp, 25W, red and blue |
Square alarm light |
6pcs |
Star brand, imported high-brightness LED light-emitting tube, red and blue |
|
Alarm host |
1pcs |
Star brand,300W |
|
Alarm trumpet |
2pcs |
Star brand,150W |
|
Reversing safety |
Reversing camera |
1set |
Standard definition |
Reversing display |
1set |
7inch |
|
Publicity broadcast |
Car DVD |
1pcs |
Card-readable, USB, single-disc playback |
Window guard |
Front windshield |
1set |
Stainless steel wire mesh |
Door side window |
1set |
Stainless steel wire mesh, screwed fixed and detachable |
|
Wrecker Shovel |
Hydraulic pump |
1set |
20MPa,16ml/r |
Multi-way valve |
1set |
Double loop |
|
Strong Wrecker Shovel |
1set |
4mm high-strength steel plate group welding, V shape |
|
Hydraulic cylinder |
1set |
China famous brand |
|
Hydraulic pipeline |
1set |
Precision rolling seamless steel pipe, hydraulic control valve, Hefei Changyuan hydraulic lock |
Product Structure
1. Vehicle Chassis: The HOWO Riot Control Water Cannon Vehicle is built on the HOWO 4×2 heavy-duty chassis, ensuring stability and reliability during operations.
2. Water Cannon System: This is the core equipment of the HOWO Riot Control Water Cannon Truck. The high-pressure water cannons can eject high-speed water jets, effectively stopping violent behavior and dispersing crowds. The water cannon system typically rotates 360 degrees, providing full coverage.
3. Protective Shields: To protect the vehicle and its driver, the riot control water cannon vehicle is equipped with sturdy protective shields. These shields can withstand thrown objects such as bricks and bottles, ensuring the safety of the driver.
4. Surveillance System: To monitor and record riot scenes in real time, the HOWO Anti-riot Water Cannon Truck is equipped with high-definition cameras, infrared night vision systems, and monitoring screens.
5. Audio Warning System: Warnings are a crucial means of maintaining public order. The HOWO armored water cannon truck is equipped with a powerful audio system for issuing warnings, commands, and other announcements.
Product Details

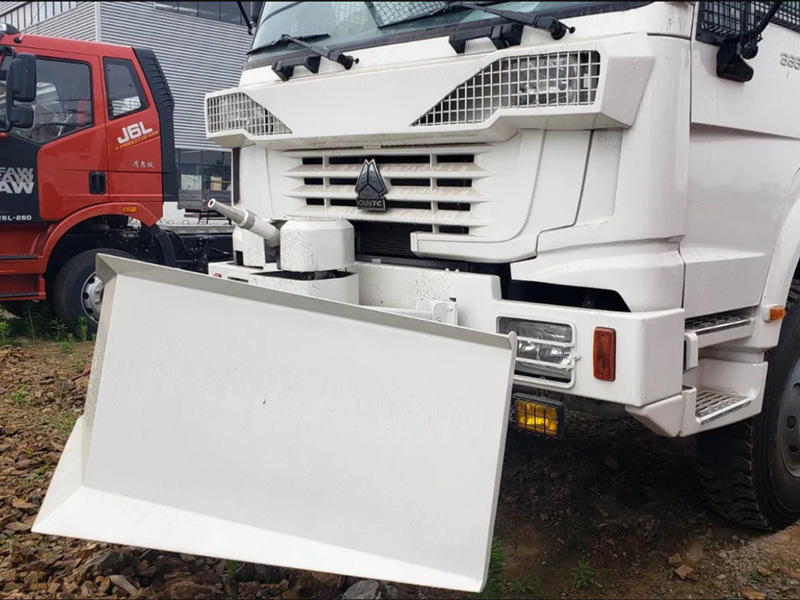

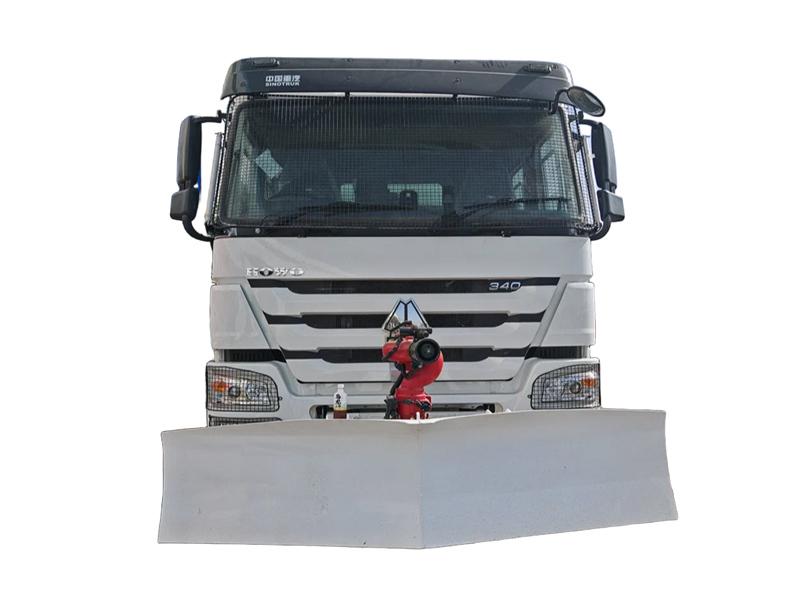

Equipped with a hydraulic obstacle-clearing blade, capable of removing obstacles weighing 3-5 tons.

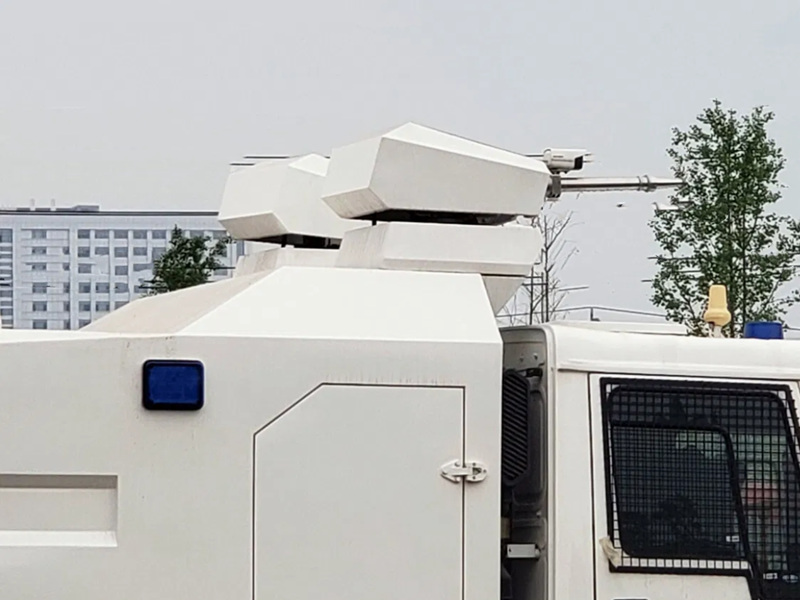

The roof is equipped with two high-pressure water cannons capable of single-shot, continuous spray, and mist spray, with a maximum range of 65 meters.

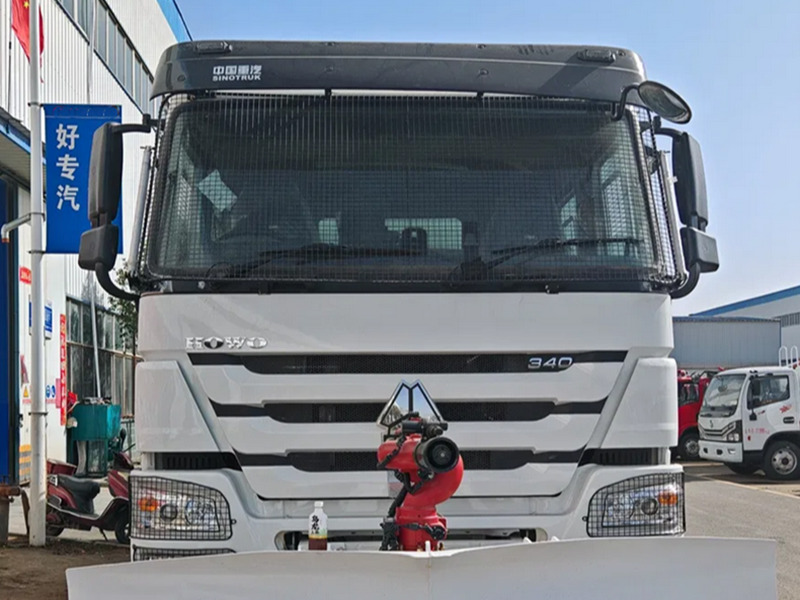

The vehicle features stainless steel mesh protection for the lights and window glass. The front windshield protective mesh can be positioned within a range of 0° to 70° and is controlled from inside the cabin.
