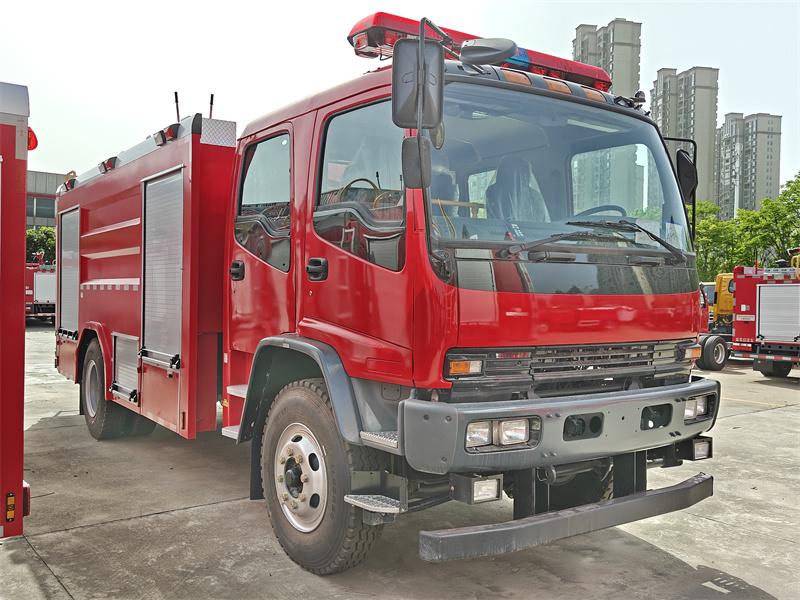

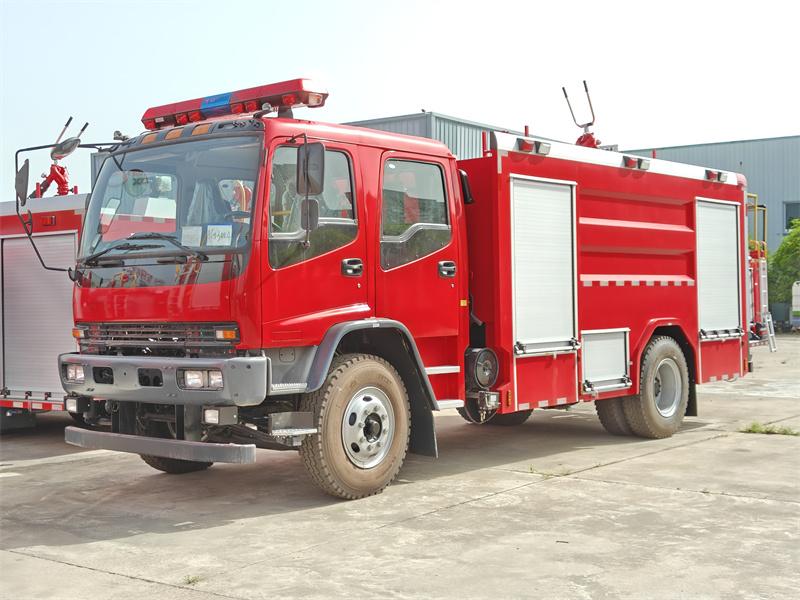

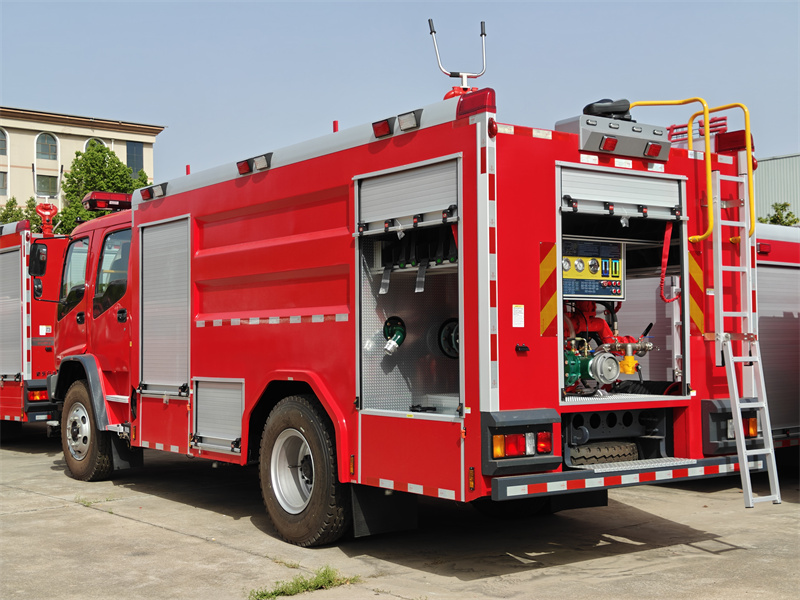

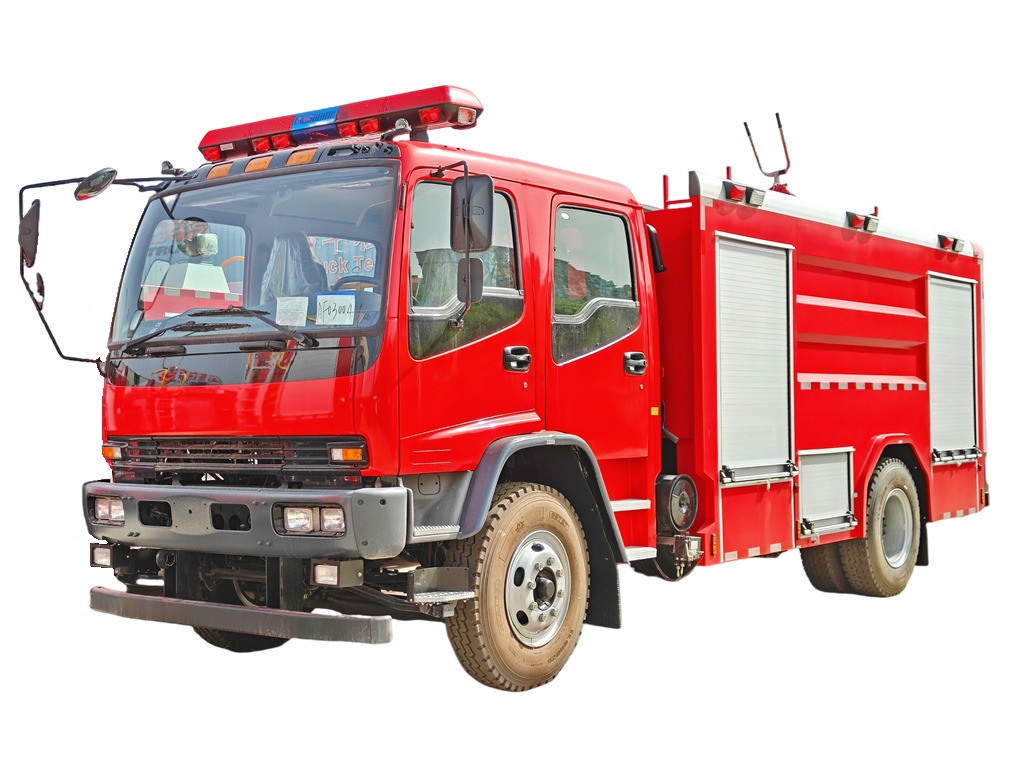

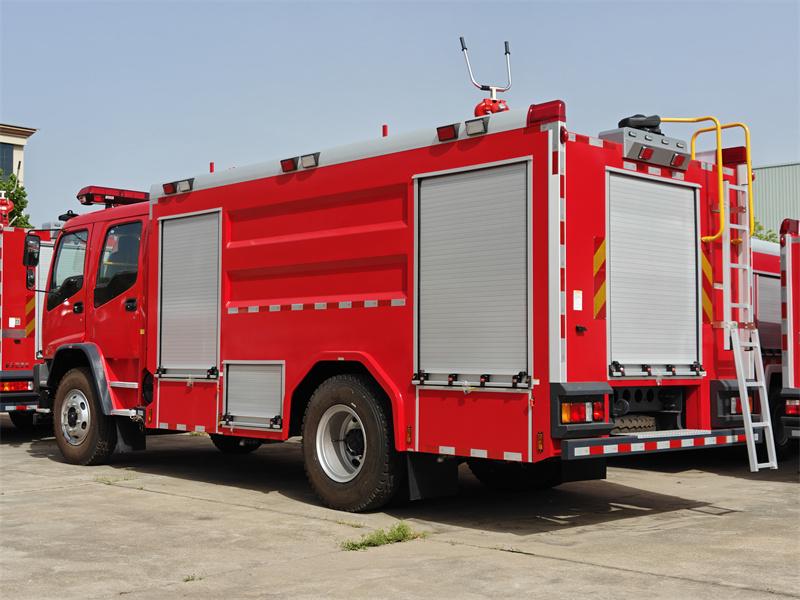

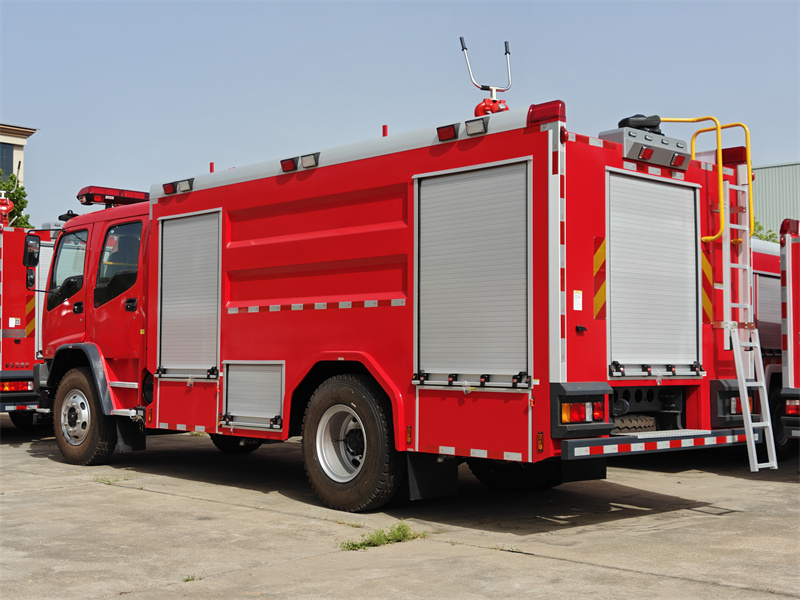

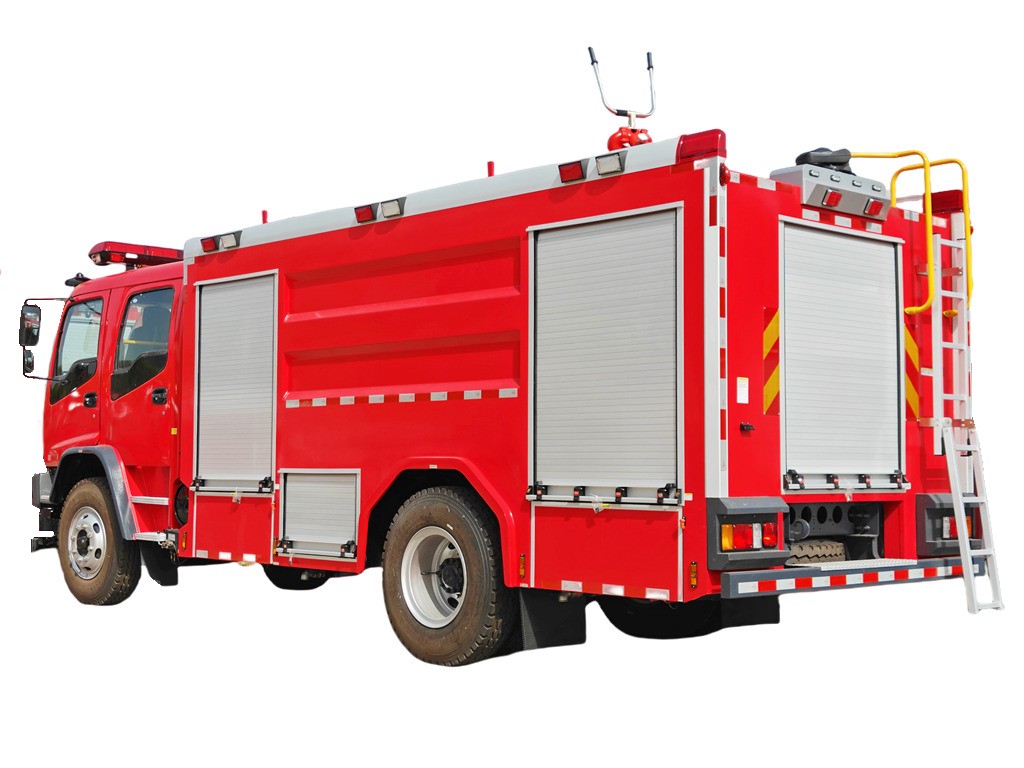

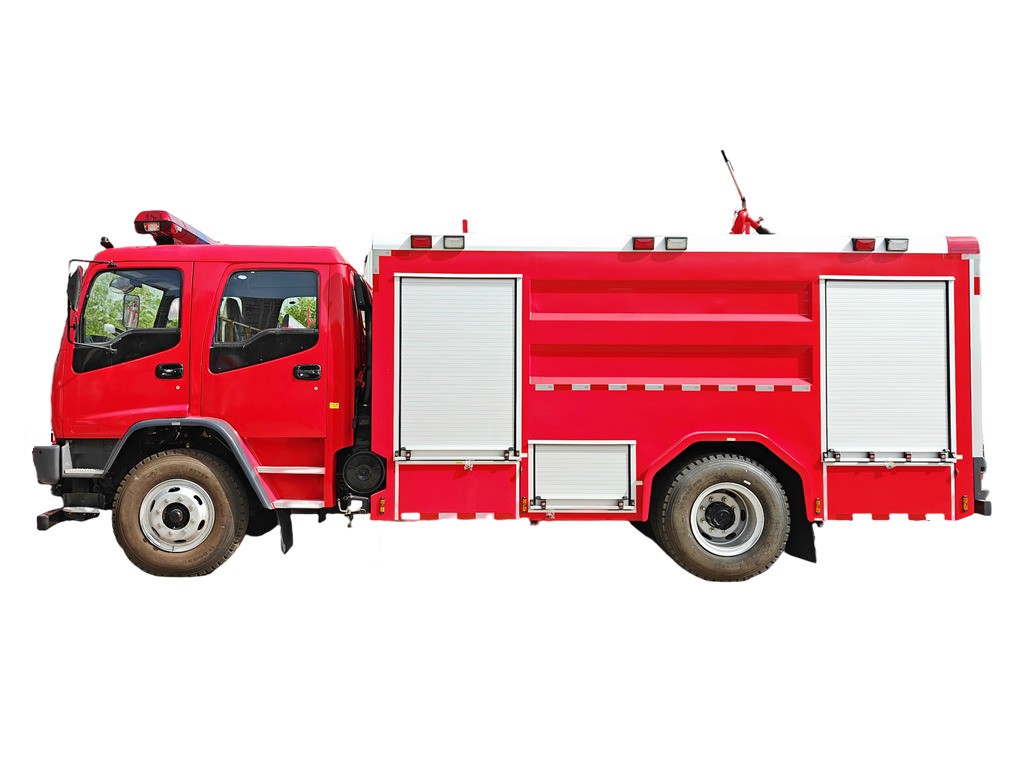

ISUZU heavy duty FVR 240HP Water Foam Tanker Fire Truck is built on an ISUZU classical F series 4×2 chassis and equipped with a EURO 5 model 6HK1-TCL 240HP 6 cylinder diesel engine, with emission 7790cc. ISUZU fire pumper truck equipped with full stainless steel tanker device including 5cbm water tank and 1cbm foam tank to meet prolonged firefighting demands. The core components include a CB10/60 fire pump with 60L/s flow rate and top mounted PL48 fire monitor with 48L/s flow rate, water range 65m and foam range 60m, ensuring outstanding fire suppression capabilities. This fire truck is ideal for urban firefighting, industrial zones, and various fire scenarios.
Truck Model:
PT5180GXFPMTanker Structure:
Stainless Steel Tanker StructureWork capacity :
5000L water + 1000L foamWheelbase:
4500 mmAxle drive:
4×2, left hand driveEngine Power:
240 HPEngine Model:
6HK1-TCLFire Pump:
CB10/60Fire Monitor:
PL48Remark:
Optional FVR cabinet or GIGA 5X cabinet
Isuzu water tank foam fire truck is a special fire truck modified based on Isuzu QL1180XMFRY type II automobile chassis. Isuzu 240HP FVR tanker fire apparatus is specially designed for fire fighting and rescue tasks. It combines water tank and foam tanker, matched with fire extinguishing CAFS system and has rapid response, efficient fire fighting and multi-functional operation capabilities. Isuzu fire tender is equipped with a dual-media storage system of water tank and foam liquid tank, and integrates fire pump, water cannon, pipeline system and rescue equipment. It is suitable for fighting various types of fires.
The customized ISUZU FVR 6ton firefighting truck equipped the double-row cabinet, with a crew of 2 + 4 SCBA seats for people, and the fire engine is comfortable and light. The tanker upper body kit are equipped with water and foam tanks, the fire tanker vehicle liquid capacity is 5000kg and the foam is 1000kg. The equipment box is made of high-quality aluminum alloy roller shutter door. Chassis equipped with diesel engine model is 6HK1-TCL, the maximum power of 177kW / 240HP, through the cardan coupling to drive the Shanghai Xiongzhen CB10/60 atmospheric fire pump installed in the rear pump room of the fire apparatus, can stably output 60L/s flow at 1.0MPa; The roof is installed with the PL8/48 fire cannon produced by Chengdu West Fire Equipment Co., Ltd., with a flow rate of 48L/s, a corresponding pressure of 0.8MPa, a maximum pressure of 1.3MPa, and a range of 70m water ≥≥ 60m foam , which can be rotated 360°. At the same time, the car has the characteristics of high specific power, strong comprehensive performance, and simple control.
The main frame of the Isuzu 240HP FVR pumper fire apparatus is welded by high-quality #304 stainless steel welded to ensure that the overall skeleton structure is strong, firm and reliable; The internal equipment box is made of high-strength aluminum alloy profiles to build the main frame, the skirt adopts overall protection, flips the pedal structure, beautiful and reliable, and the inner surface of the box is made of anodized aluminum alloy plate with large patterns to cover the surface, and the angle aluminum edging is processed to ensure the performance of the equipment box at the same time, it has the characteristics of beautiful and lightweight.
Isuzu tanker fire engine is in accordance with the needs of fire fighting, according to the fire operation procedures, humanized design, the use of anti-rust, anti-vibration, anti-shedding, anti-scratch special fixtures to fix all the equipment with the vehicle, the equipment layout is reasonable, compact, clamping firm, eye-catching, two actions can be used in any equipment, can be achieved near the nearest pick-and-place, multi-person operation, do not interfere with each other.
The topcoat adopts the spraying method and uses high-quality topcoat, which meets the R03 red requirements in the GB/T3181 "Paint Film Color Standard" stipulated in GB7258. The color is fire red for the cab and car body, light gray for the interior of the equipment room, aluminum for the aluminum roller shutter door, black for the chassis frame, silver for the rims, and gray for the fenders and bumpers. The fire performance of the whole vehicle meets the requirements of GB7956 and widely export all over the world.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements

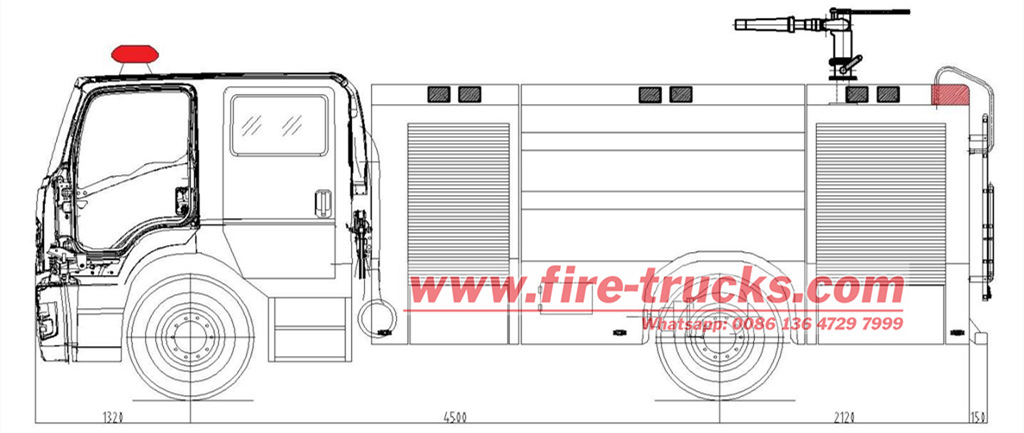

The main parameters of the whole vehicle
|
Outer dimensions |
8140×2550×3470mm |
|
Maximum total mass |
17000kg |
|
Fluid carrying capacity |
The water load is 4650kg, and the foam load is 1950kg |
|
Top speed |
95km/h |
|
Fire pump rated flow |
60L/s@1.0MPa; |
|
Rated flow rate of fire cannons |
48L/s 1.0MPa |
|
Fire cannon range |
Water ≥ 70m Foam ≥ 60m |
|
Specific power |
177/17=10.41 |
|
Approach/Departure Angle |
20°/10° |
The main parameters of the ISUZU FVR truck chassis
|
Model |
QL1180XMFRY |
|
manufacturer |
ISUZU Technology |
|
Engine model |
Japanese ISUZU technology diesel engine 6HK1-TCL |
|
Engine power rating |
177kw |
|
Engine displacement |
7790ml |
|
Engine emission standards |
GB17691-2018 China V. |
|
Drive form |
4×2 |
|
wheelbase |
4500mm |
|
Maximum allowable gross weight |
18000kg |
|
Minimum turning radius |
≤19m |
|
Gearbox |
Manual |
|
Power take-offs |
Sandwich power take-off |

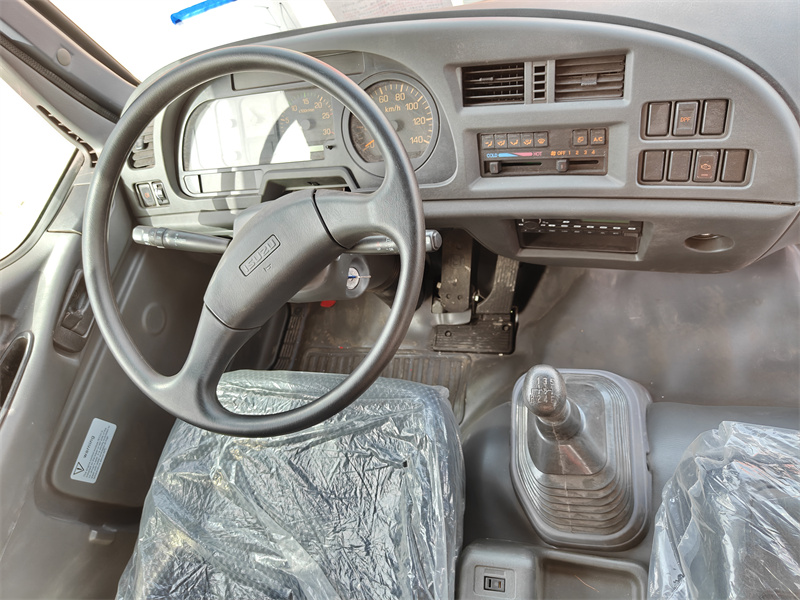

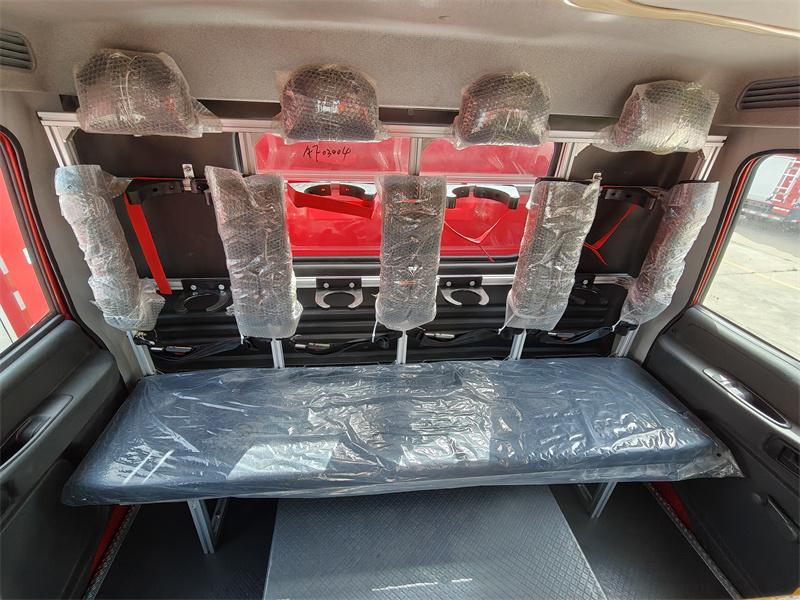

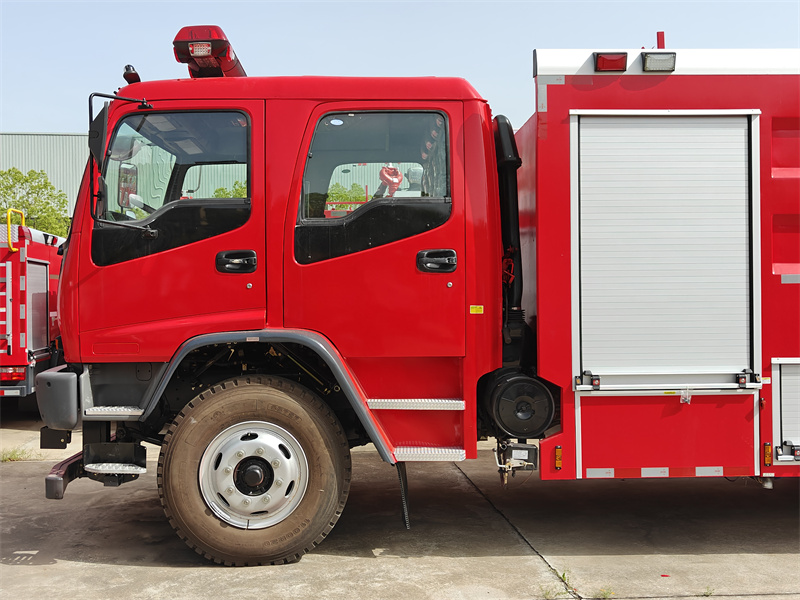

Crew compartment for ISUZU FVR fire tanker truck:
|
structure |
Flat-headed, four-door, restructured double-row cab |
|
Number of drivers and passengers |
2+4 seats with CBA type |
|
Driver's position |
Left side |
|
equipment |
The original vehicle dashboard is equipped with a fire operation dashboard and a warning light control box, which is installed 1、Siren; 2、power take-off control switch and indicator light; 3、additional power switches; |
Bodywork structure and performance parameters
|
General arrangement |
The vehicle is composed of two major parts of the firefighter cabin and the body, and the body layout adopts a three-point structure, the front part is the equipment box, the middle part is the water tank, the rear part is the pump room, and the tank body is the parallelepiped box type tank. |
Equipment box for all type rescue equipment and fire fighting tools
|
structure |
The main frame structure is welded with high-quality square tubes, the outer decorative plate is welded with carbon steel plates, the roof is non-slip and walkable, and the lower part of the equipment box on both sides is provided with flip pedals and aluminum alloy anti-skid plates. |
|
Equipment box |
The equipment box is located at the rear of the crew compartment and has aluminum roller shutters on both sides with lights. Storage boxes are set up in the equipment box according to needs. There are tool boxes and roller shutters on the side lower skirts for small tools |
|

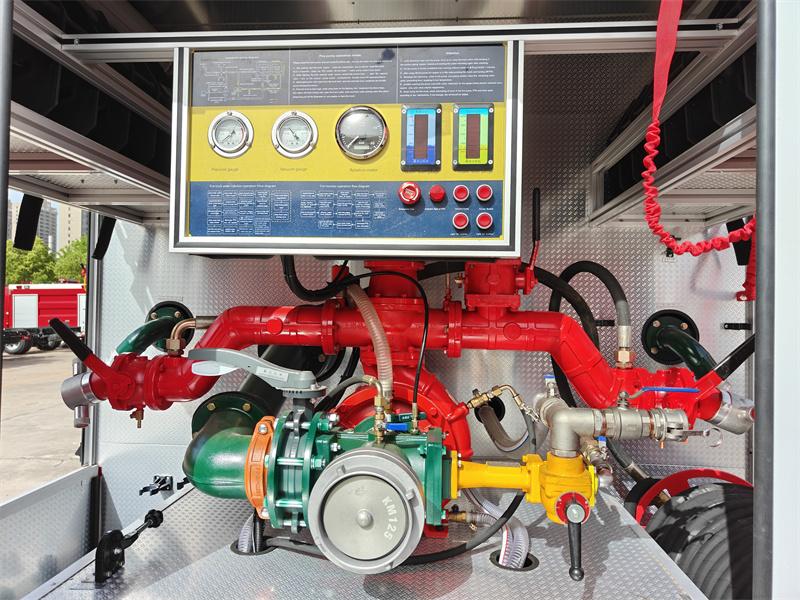

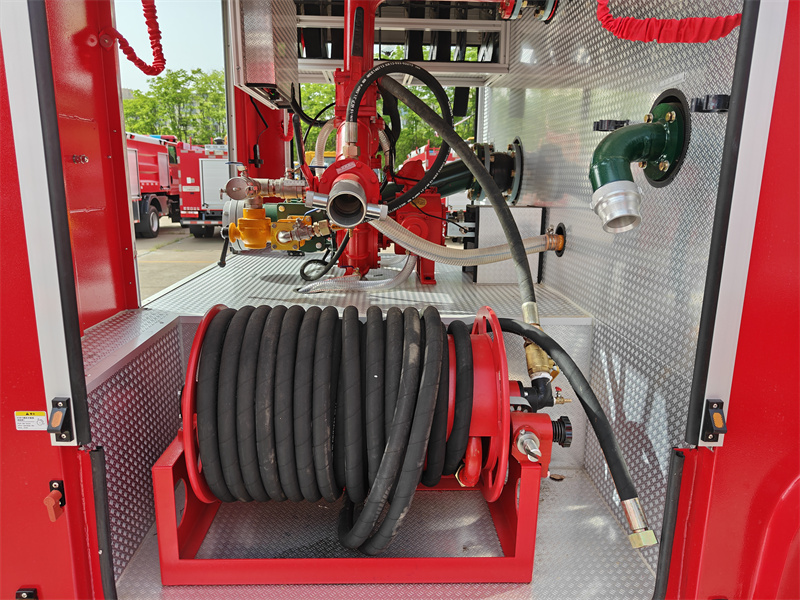

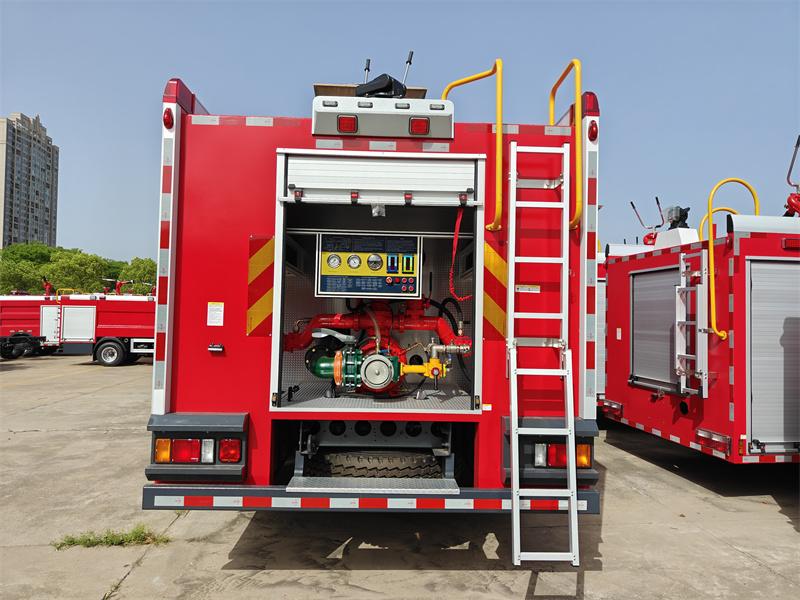

Pumping station |
The pump room is located at the rear of the vehicle, with aluminum alloy shutter doors on both sides and behind, with lights inside, and some commonly used equipment can be placed on both sides of the pump room |
|
Holding position: Install fuel heater (optional according to customer needs). |
|
|

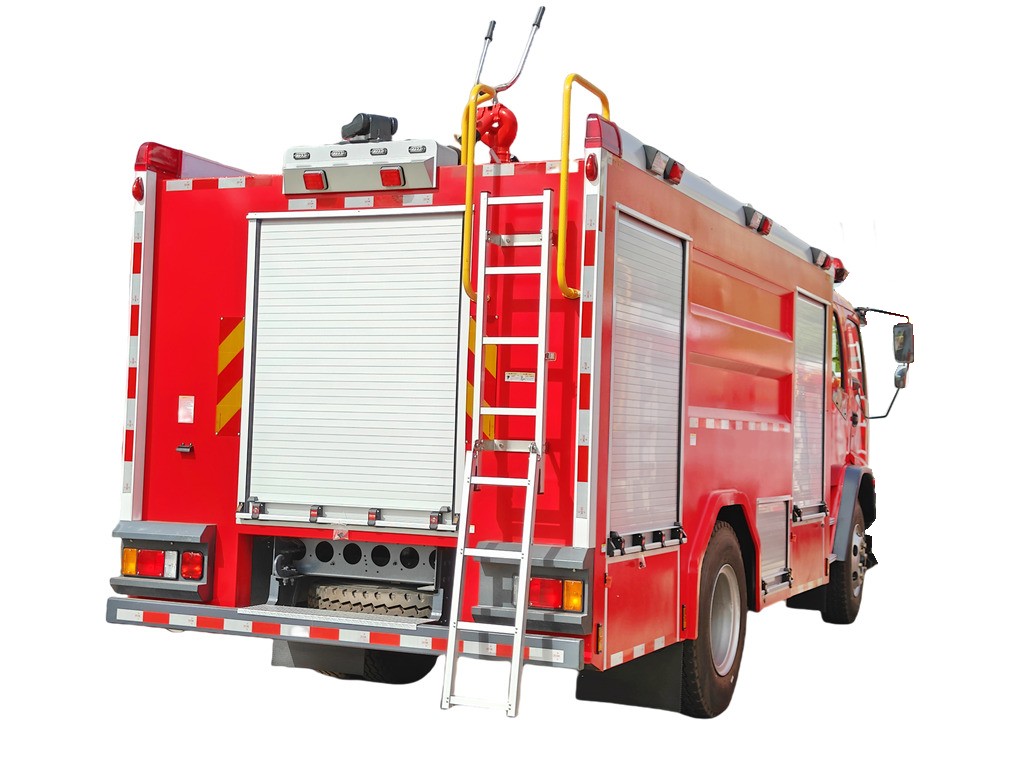

Climb the ladder and get on the car |
The rear ladder is made of aluminum alloy two-section flip ladder, which is used and does not exceed 350mm above the ground when used. |
Stainless Steel #304 material water tanker
|
Capacity |
5000kg |
|
Material |
High-quality 304 stainless steel with a thickness of 5mm |
|
The tank is fixed |
Elastic connection with chassis frame |
|
Tank settings |
Manhole: 1 DN470 manhole, with quick locking/opening device |
|
Overflow port: 1 DN65 overflow port |
|
|
Residual water outlet: Set up 1 DN40 water tank residual water outlet, equipped with ball valve |
|
|
Water inlet: connect one DN65 interface on the left and right sides of the tank |
|
|
Water inlet and outlet: 1 water tank to pump inlet pipe, DN150 valve, pneumatic and manual control, 1 water pump to water tank filling pipe, DN65 valve, pneumatic and manual control |
Stainless Steel #304 material foam tanker
|
capacity |
1000kg |
|
Material |
304 stainless steel with a thickness of 5mm |
|
The tank is fixed |
Elastic connection with chassis frame |
|
Tank settings |
Manhole: 1 DN470 manhole, with quick locking/opening device |
|
Overflow port: 1 DN65 overflow port |
|
|
Residual water outlet: Set up 1 DN40 water tank residual water outlet, equipped with ball valve |
|
|
Water inlet: connect one DN65 interface on the left and right sides of the tank |
|
|
Water inlet and outlet: 1 water tank to pump inlet pipe, DN150 valve, pneumatic and manual control, 1 water pump to water tank filling pipe, DN65 valve, pneumatic and manual control |
Water foam fire pump
|
Model |
CB10/60 fire pump for atmospheric vehicles |
|
Form |
Low-pressure centrifugal type |
|
Rated flow rate |
60L/s @1.0MPa |
|
Outlet pressure rating |
1.0MPa |
|
Maximum suction depth |
7m |
|
Water diversion device |
Comes with a sliding vane pump |
|
Diversion time |
The maximum suction depth ≤ 50s |
Pipeline system for Isuzu FVR fire tanker truck
|
Pipe Material |
High-quality seamless steel pipes |
|
Suction lines |
There is a DN150 suction port at the rear of the pump room |
|
Water injection lines |
A DN65 water injection port is set on the left and right sides of the water tank, and a DN65 water pump is provided in the pump room to inject water into the tank |
|
Outlet lines |
There is one DN65 atmospheric water outlet on the left and right sides of the pump room, with a shut-off valve and a cover |
|
Cooling water lines |
Cooling water line and control valve with cooling power take-off |
Water Foam proportional mixer
|
Model |
PH48 |
|
Material |
The housing is cast aluminium and the overflow section is stainless steel |
|
form |
Negative pressure ring pump type with flushing device |
|
Mixing ratio |
3-6% |

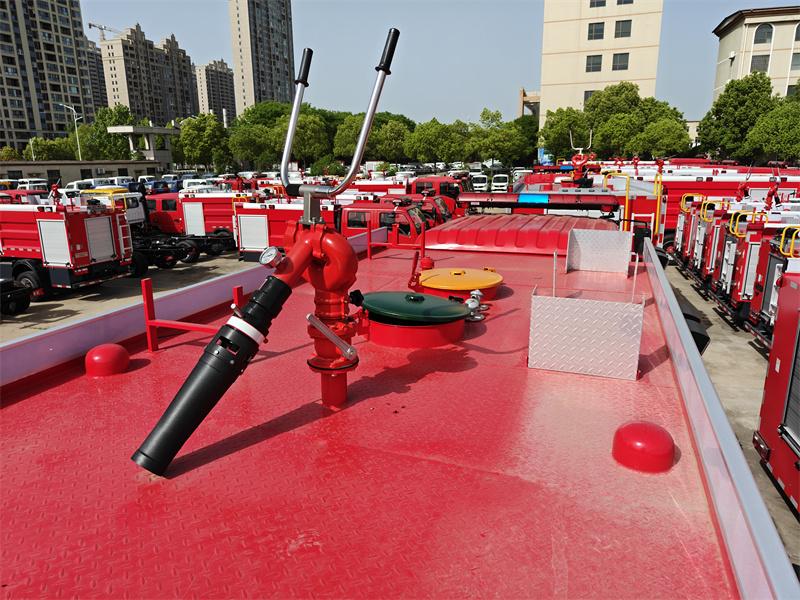

Fire Vehicle mounted firefighting foam and water dual-purpose cannons
|
Model |
PL8/48 foam, water dual-purpose cannon |
|
manufacturer |
Chengdu West Fire Equipment Co., Ltd |
|
Rated flow rate |
48L/S |
|
Rated pressure |
0.8 MPa |
|
elevation |
≥70° |
|
angle of depression |
≤-30° |
|
Range (m). |
Water ≥ 70m Foam ≥ 60m |
|
Horizontal rotation angle |
≥360° |
Fire control system: The control panel mainly includes two parts: cab control and pump room control
|
In-cab controls |
Pump off-gear, alarm light alarm, lighting and signal device control, etc |
|
Pump in-room control |
Bodywork main power switch, parameter display, status display |
Electrical equipment
|
Additional electrical |
Set up independent circuits |
|
Auxiliary lighting |
The firefighter room, the pump room and the equipment box are respectively equipped with lights, and the control panel is equipped with lighting and indicator lights |
|
Strobe lights |
Red and blue strobe lights are installed on both sides of the body |
|
Warning devices |
Long row of all-red police lights, mounted on top of the cab |
|
Siren, the control box of which is under the front of the driver |
|
|
Lighting of the fire ground |
One 35W fire searchlight is installed at the rear of the bodywork |
Surface treatment for Painting and Logo
|
Top coat |
High-quality domestic lacquer |
|
color |
The main color of the outer surface of the car is RO3 firefighting red, optional blue, yellow, gray, etc |
Arrangement and equipment of fire-fighting equipment with vehicles
|
1 |
According to the actual needs of fire fighting, according to the fire operation procedures, pick up and place nearby. |
|
2 |
It is fixed with a special clamp that is anti-rust, anti-vibration, anti-shedding, and anti-scratching. |
|
3 |
The signs are eye-catching, multi-person operation, and do not interfere with each other. |
List of on-board firefighting equipment for ISUZU foam fire truck
|
Serial number |
Name |
Specifications |
Quantity |
Unit |
Remarks |
|
1 |
Suction tube |
KDK150×4 m |
2 |
root |
cassette |
|
2 |
Water filter |
FLF150 |
1 |
item |
cassette |
|
3 |
Water separators |
FII80/65×3-1.6 |
1 |
item |
cassette |
|
4 |
Water collectors |
JII150/80×2-1.0 |
1 |
item |
cassette |
|
5 |
Hoses |
13-65-20 |
6 |
tray |
cassette |
|
6 |
Hoses |
13-80-20 |
6 |
tray |
cassette |
|
7 |
Odd-shaped interfaces |
65Male/80Female；65Female/80Male |
2 |
item |
cassette |
|
8 |
Wrap the hose with a cloth |
DT-SB |
4 |
item |
|
|
9 |
Hose hooks |
|
4 |
item |
|
|
10 |
Above-ground hydrant wrench |
QT-DS1； Length 400 |
1 |
item |
|
|
11 |
Underground hydrant wrench |
Long 860 |
1 |
item |
|
|
12 |
Suction pipe wrench |
FS150 |
2 |
item |
|
|
13 |
DC switch water gun |
QZG3.5/7.5;65 |
1 |
branch |
cassette |
|
14 |
DC flowering water gun |
QZK3.5/7.5;65 |
1 |
branch |
cassette |
|
15 |
fire extinguisher |
3 kg/ABC |
1 |
tool |
|
|
16 |
Fire axe |
GFP890 |
1 |
item |
|
|
17 |
Rubber hammer |
|
1 |
item |
|
|
18 |
Hose bridge protection |
FH80 |
2 |
deputy |
|
|
19 |
Fire buckets |
|
1 |
piece |
|
|
20 |
Air foam gun (with gun pipette) |
QP4/0.7Z；65 |
1 |
branch |
cassette |
|
21 |
Foam external suction tube |
Φ40×2700 |
1 |
root |
|
