Isuzu NPR 800gallons small water fire truck

Isuzu NPR 800gallons small water fire truck

Newly produced ISUZU NPR NQR water tanker fire truck is a lightweight professional firefighting vehicle built on the ISUZU QL1110 NPR truck chassis, equipped with a 4HK1-TCG61 diesel engine with 190HP and 5193cc emission, also we POWERSTAR can customized to remove the DPF and ADBlue to make truck working as Euro 3 or Euro 4, specially for Africa market. ISUZU small fire truck equipped with a 800gallons water tank based on stainless steel material, along with a CB10/30 fire pump delivering 30L/s flow and a PS30 water fire monitor with a 50-meter range for rapid fire suppression. Also with full rescue equipment making it ideal and optimal choice for initial fire response.

  • Truck Model:

    PT5100GXFPM
  • Tanker Structure:

    Stainless steel #304 material
  • Work capacity :

    800 gallons
  • Wheelbase:

    3815 mm
  • Axle drive:

    4×2, left hand drive
  • Engine Power:

    190 HP
  • Engine Model:

    Isuzu 4HK1-TCG61
  • Fire Pump:

    CB10/30
  • Fire Monitor:

    PS30
  • Remark:

    Customized to be ISUZU 4x4 offroad fire engine
Facebook Linkedin Youtube Twitter Pinterest

ISUZU 700P water tank fire truck is a special fire truck modified based on the Isuzu 700P series second-class chassis. It is mainly used to extinguish general solid material fires and is widely used in urban firefighting, industrial and mining enterprises, and emergency rescue. Japanese Isuzu NPR small fire truck is the emergency rescue fire truck which could be water fire truck, water and foam fire truck, CAFS fire truck, it could be equipped with different series of ISUZU truck chassis to reach different demand. Pumper fire truck is special purposed vehicle to carrying out the task of conflagration, but also with the usage of emergency rescue. Brand newly customized fire engine could be transport the firemen to the fire field and provide different kinds of rescue tools. The normal fire truck could be divided into: water tank fire truck, foam tank fire truck, pumping fire truck, fire rescue truck, ladder fire truck, aerial fire truck, etc.

ISUZU 800gallons fire fighting truck



● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire fighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service



Isuzu ELF fire engine is a small firefighting vehicle modified from the ISUZU NPR ELF NQR truck chassis, the superstructure of this ISUZU light fire engine truck is meticulously engineered to maximize functionality within a compact space. Isuzu pumper fire truck includes 800gallons water tank, as for the fire pump system, a core component of the ISUZU NPR fire truck, features a reliable CB10/30 normal pressure fire pump with a maximum flow rate of 30L/s and a suction lift of 7 meters, it ensures rapid water supply for firefighting operations. The top-mounted PS30 fire monitor delivers a water range of ≥50 meters, with 360° rotation for comprehensive fire coverage. The pump room rear mounted with lighting system to make it working more convenient and friendly, with all controls centralized on an intuitive panel for easy operation, even for beginners.

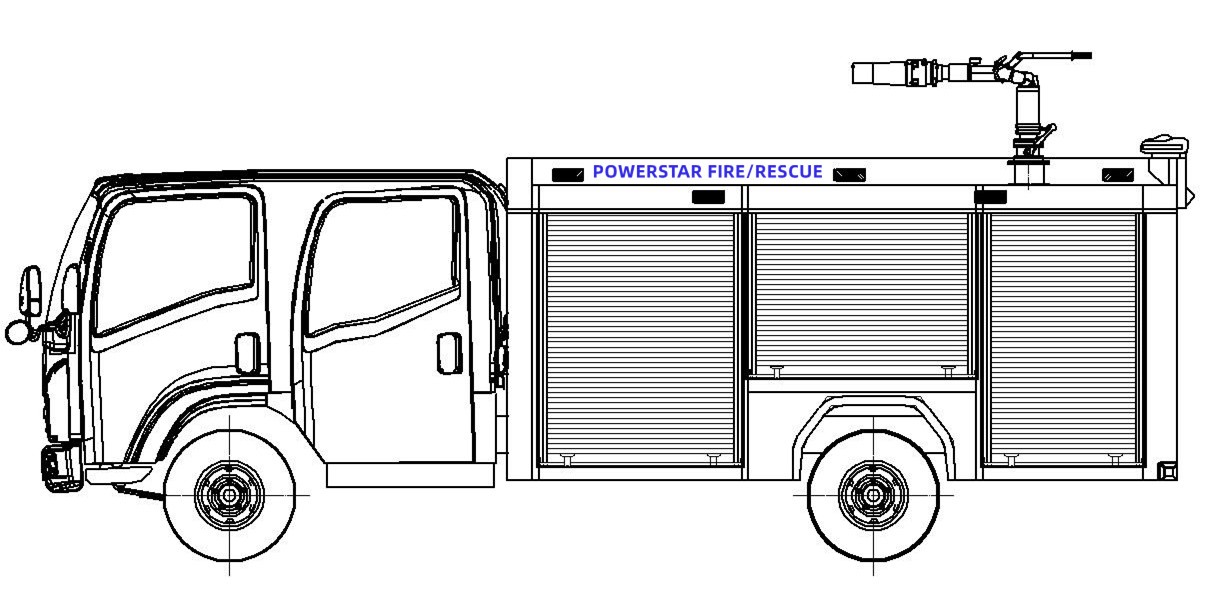

Isuzu NPR fire tanker truck drawing



ISUZU NPR Fire Truck Parameters
Item Specifications Item Specifications
Name ISUZU brand new fire truck for sale
Gross Weight (kg) 10550 Overall dimensions (mm) 7150*2280*3140
Payload Weight (kg) 4250 Tank Volume(cbm/t) Water 800 gallons
Curb Weight (kg) 6300 Wheelbase (mm) 3815
Isuzu Diesel Engine Parameter
Model Diesel 4HK1-TCG61 Brand ISUZU
Power/Displacement  190HP/5193ML Emission Level Euro 6
Isuzu NPR Truck Chassis Specification
Max speed (km/h) 90 Front Track (mm) 1680
Cab 2+3 Rear Track (mm) 1650
Leaf Spring 8/10+6 Front/Rear Overhang (mm) 1110/2050
Number of Tyres 6 Approach /  Departure Angle(°) 21/13
Tyre Specification 235/75R17.5-16PR Axle Load (kg) 2700/7075
Number of axles 2 Brake ABS for safety
Isuzu fire tanker truck upper kit Special Function
Tank Capacity (L/T) Water 800 gallons
Fire Monitor Model: PS30 rate of flow:30L/S/1MPa,water range:≥50m
Fire Pump 1.Normal pressure model: CB10/30,rate of flow:30L/s, pressure:1.0MPa
2.Water diversion time ≤35s (7m absorbing depth) water ring sandwich type full power PTO



ISUZU 800gallons fire engine truck



ISUZU 800gallons tanker fire truck



Isuzu fire truck, also known as Isuzu fire engine, Isuzu fire tender, which is a specially designed vehicle used to combat fires. These vehicles typically carry water, foam, dry powder, rescue equipment, and firefighters to fire scenes, and are essential for fire suppression and rescue operations. The primary purposes of Isuzu fire engine include transporting firefighters and water to an incident as well as carrying equipment for firefighting operations in a fire drill.  Some fire engines have specialized functions, such as wildfire suppression and aircraft rescue and firefighting, and may also carry equipment for technical rescue.



ISUZU tanker fire truck mounted on NPR truck chassis


Brand newly design fire fighting truck is build based on Japanese brand ISUZU NPR truck chassis, equipped with 4HK1-TCG61 model diesel engine with 190HP or 4HK1-TCG60 model diesel engine with 205HP, optional to be MLD 6 shift manual gearbox or AMT automatic gearbox. Normally truck engine is EURO 6 standard, but we POWERSTAR can be customized to remove DPF and ADBlue, then make truck working as EURO 3 or 4. Customized 4x2 model for good road condition requirement or 4x4 offroad model for tough road condition, which also named as Isuzu wildland fire truck.

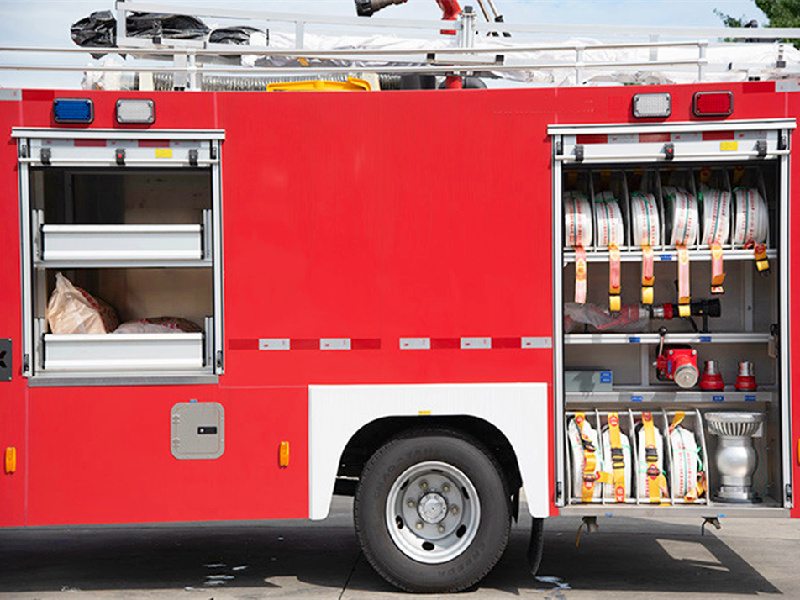

ISUZU fire tanker truck with rescue equipment

The equipment compartment is located behind the crew cabin, which on two sides of the fire truck tanker body, equipped with aluminum alloy roller shutters on both sides and interior lighting for night working. Storage boxes are arranged inside the compartment according to operational requirements. Also the  pump room is positioned at the rear of the Isuzu fire tender truck, surrounded by aluminum alloy roller shutters on both sides and the rear, with interior lighting. And the English control panel for convenient operation.

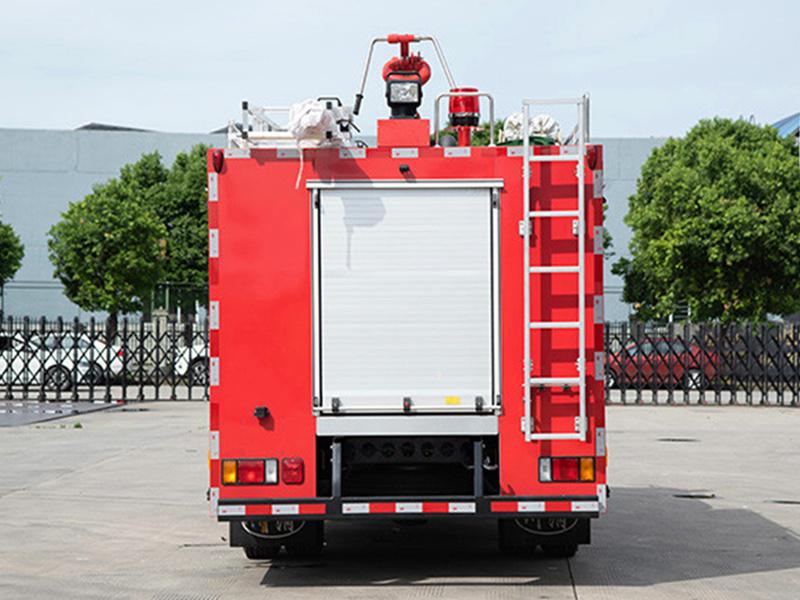

ISUZU pumper tanker fire truck

As for the back view of the Isuzu NPR fire fighting truck, which equipped with Aluminium alloy material ladder, which can climbing to the top of the fire engine for operation of the PS30 fire monitor. Also mounted with towing hook for normally safety rescue.



Isuzu tanker firefighting truck
