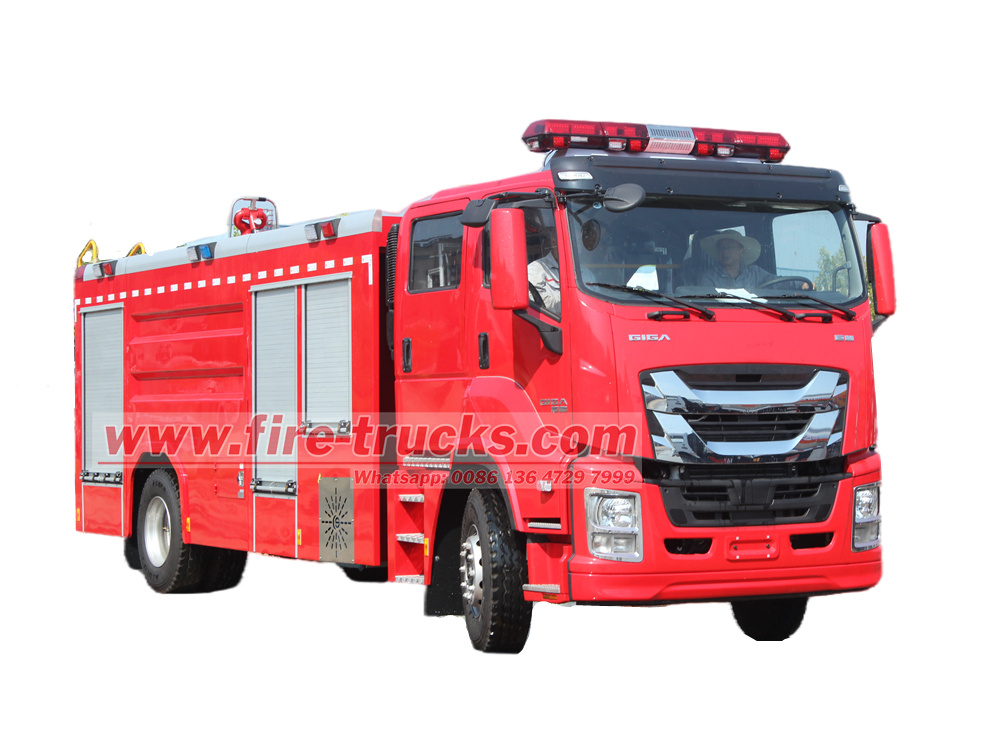

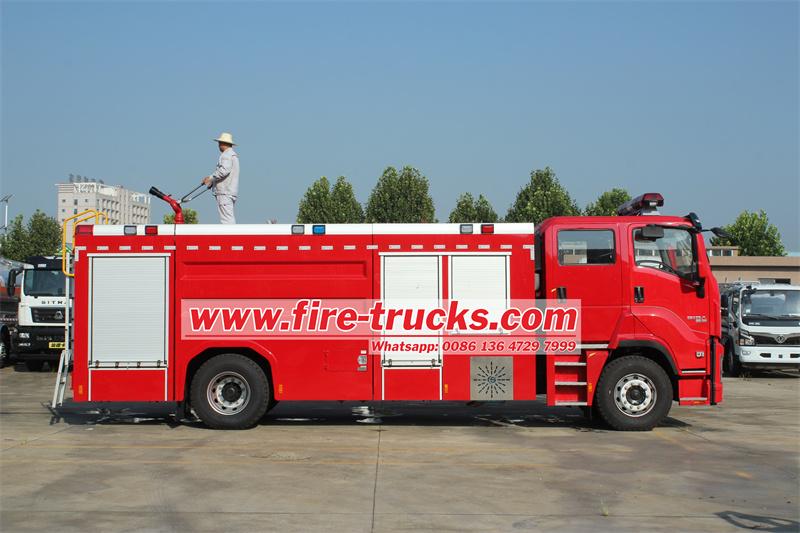

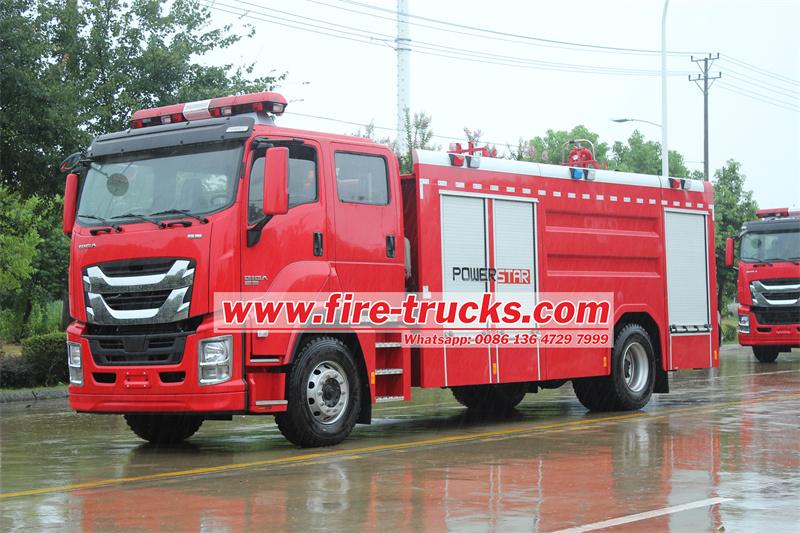

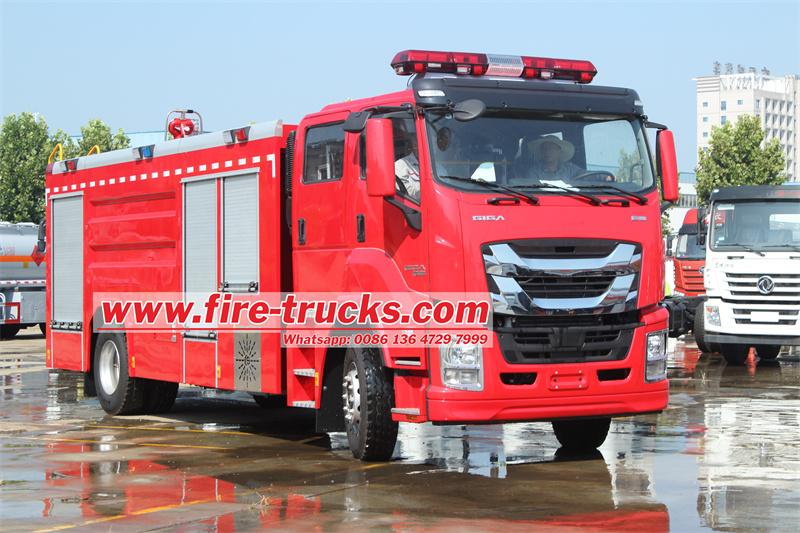

Isuzu FVR 8 cubic water fire truck, the vehicle is modified on the basis of Isuzu new FVR 4X2 chassis, 4500mm wheelbase, 2+3 seats, equipped with Isuzu 6HK1-TCG61 240HP diesel engine, Euro 6 7780ml displacement, Fast 8-speed gearbox. The upper body is an 8 cubic carbon steel water tank, equipped with CB10/40 fire pump and PS8/40W fire water cannon, the vehicle tool room and pump room are equipped with a series of firefighting equipment to assist in firefighting.
Truck Model:
8CBMTanker Structure:
Carbon steel water tankWork capacity :
8cbm water tankWheelbase:
4500mmAxle drive:
4x2,LHDEngine Power:
240HPEngine Model:
Isuzu 6HK1-TCG61Fire Pump:
CB10/40, 40L/sFire Monitor:
PS8/40W, 40L/sRemark:
Customizable,tank capacity optionalThe Isuzu FVR government surplus fire truck is a high-performance fire truck modified based on the Isuzu FVR GIGA 4X2 chassis, designed for rapid response and efficient firefighting. It is equipped with a large-capacity water storage tank of 8 cubic meters to ensure sufficient water supply in emergency situations. The vehicle adopts the Isuzu GIGA series chassis, with strong power, adapting to various complex road conditions, and ensuring rapid arrival at the fire scene. It is equipped with an efficient water spray system that can quickly pressurize and accurately spray water, effectively covering the fire source and controlling the spread of the fire. The vehicle design focuses on practicality and durability, and is easy and flexible to operate, providing strong firefighting support for firefighters, and is suitable for a variety of scenarios such as urban firefighting and industrial firefighting.
● More than 30 years professional Water Fire truck manufacturer experience.
● Be designed according to your requirements
● We have strong professional design team
● Build strict QC team to guarantee the quality
● Prompt delivery, any order is welcome
● 24 month quality guarantee term
Isuzu FVR GIGA 8cbm water fire truck |
||
Chassis |
Chassis brand |
ISUZU |
Drive type |
4x2 left hand drive |
|

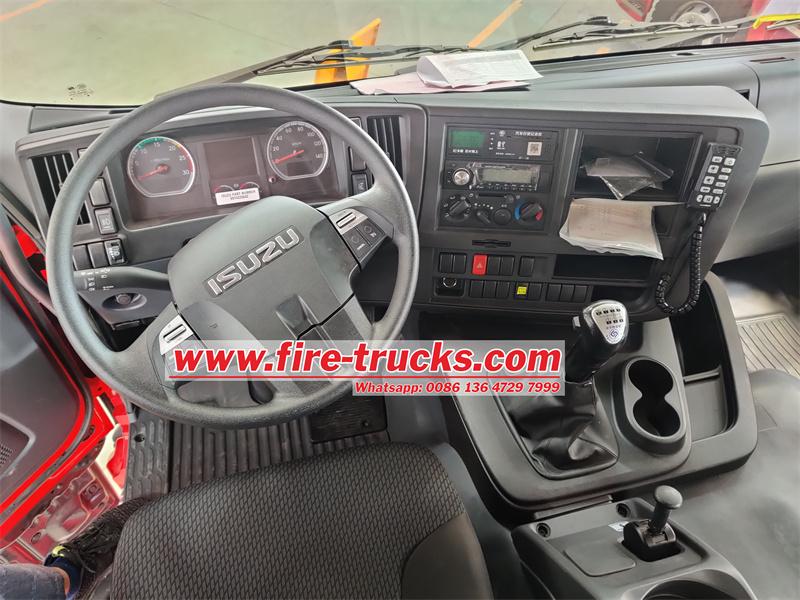

Cabin |
Isuzu GIGA chassis,one row and a sleeper,with A/C,USB,direction assistance |
|
Overall dimension(L*W*H) |
8350*2540*3500mm |
|
GVW |
18000kg |
|
Rated Loading capacity |
8tons |
|
Wheel Base |
4500mm |
|
Tyre No. |
6, (front 2, rear 4) |
|
Type & Size of Tyre |
295/80R22.5 |
|
Axle No. |
2 |
|
Gear box |
FAST ,8-speed, manual |
|
Engine |
Engine model |
6HK1-TCG61 |
Engine brand |
ISUZU |
|
Engine type |
6 cylinders in line |
|
Maximum power |
240HP/177Kw |
|
Fuel type |
Diesel |
|
Displacement |
7780ml |
|
Emission Standard |
Euro VI |
|
Tanker |
Water tanker |
8000Liters,carbon steel |
Fire pump |
Model |
CB10/40 |
Pressure |
≥1.0MPa |
|
Max suction height |
7m |
|
Flux |
40L/s |
|
Rated speed |
3135r/min |
|
Time of drawing water |
≤35 s |
|
Input diameter |
125mm |
|
Outlet diameter |
2xΦ75mm |
|
Fire monitor |
Model |
PS8/40W |
Flux |
40L/s |
|
Rated Working pressure |
0.8MPa |
|
Range |
≥65m |
|
Pitch rotation |
-30°~+70° |
|
Horizontal rotation |
0~360° |
Vehicle configuration
• Chassis model: Isuzu FVR GIGA 4x2, with excellent stability and off-road performance, can quickly reach the fire scene.
• Engine: Adopts Isuzu's original 6HK1 engine, which is powerful, emission meets the National VI standard, environmentally friendly and energy-saving.
• Drive mode: 4x2 rear-wheel drive, ensuring stable driving under various road conditions.
• Tire: Adopts 295/80R22.5 high-performance tires, with excellent wear resistance and grip, ensuring stable driving of the vehicle in emergency situations.

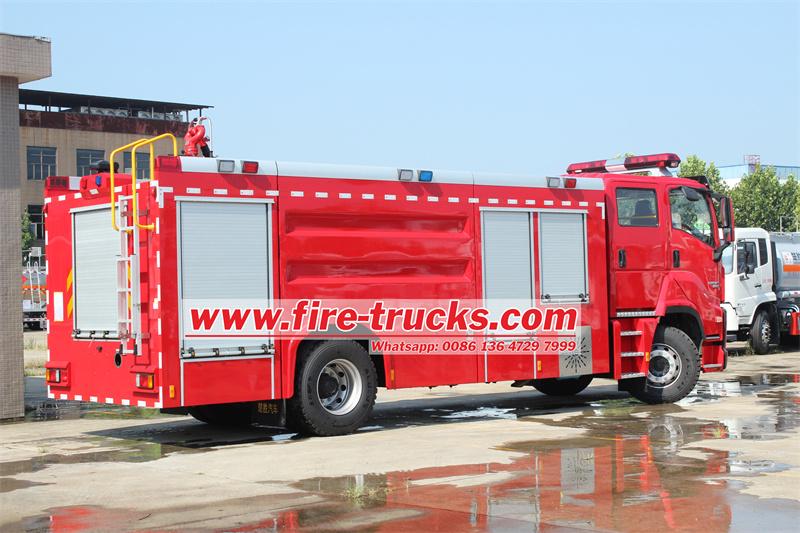

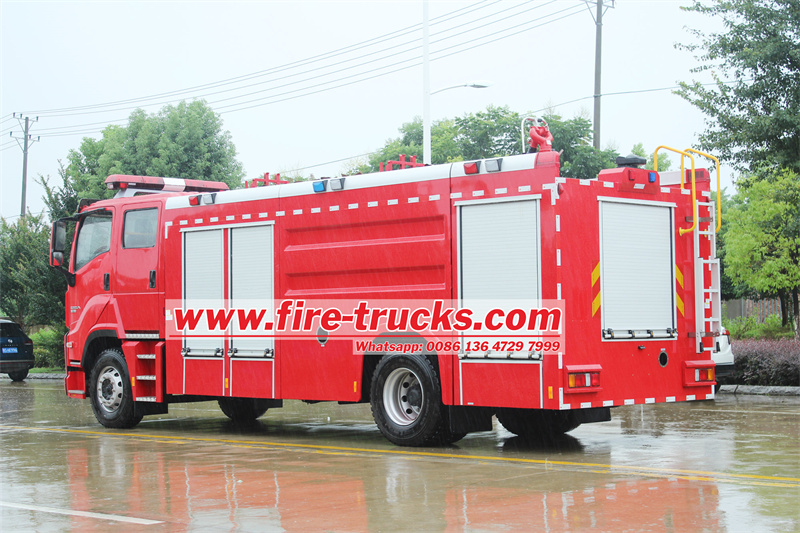

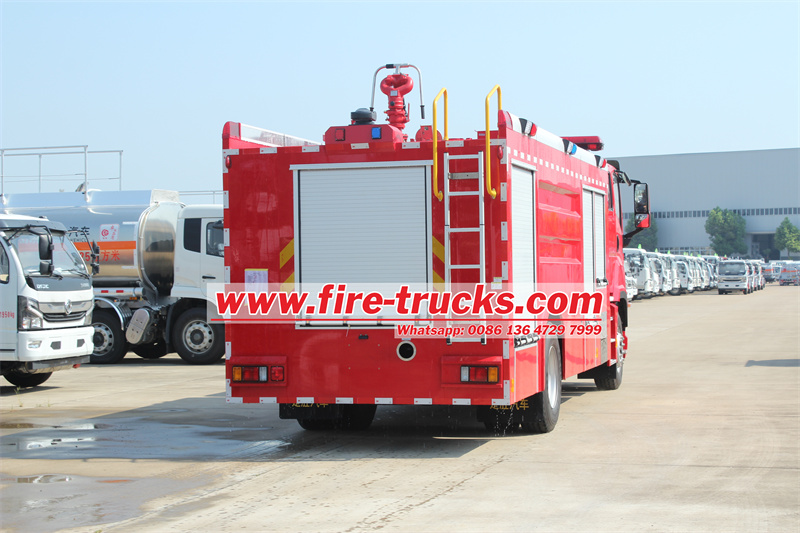

Body design
• Appearance: The whole vehicle adopts a streamlined design, with a novel appearance, maneuverability and flexibility, and can flexibly shuttle in narrow streets and complex environments.
• Tank volume: 8 cubic meters, which can carry enough water to meet the needs of long-term and high-intensity firefighting.
• Material: The tank body is welded with high-strength steel plates, and the interior is treated with anti-corrosion to ensure long-term use without deformation and corrosion.

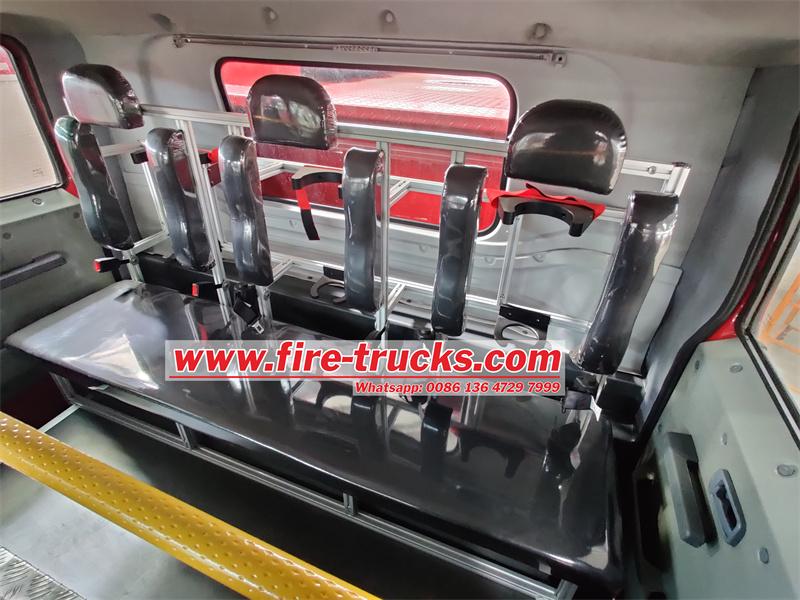

• Structure: Double-row integral structure, wide field of vision, large number of passengers, can accommodate multiple people, and facilitate teamwork.
Firefighting performance
• Fire pump system: Equipped with high-performance CB10/40 fire pump, with large flow, high head and high pressure, it can quickly and effectively spray water to extinguish fires.

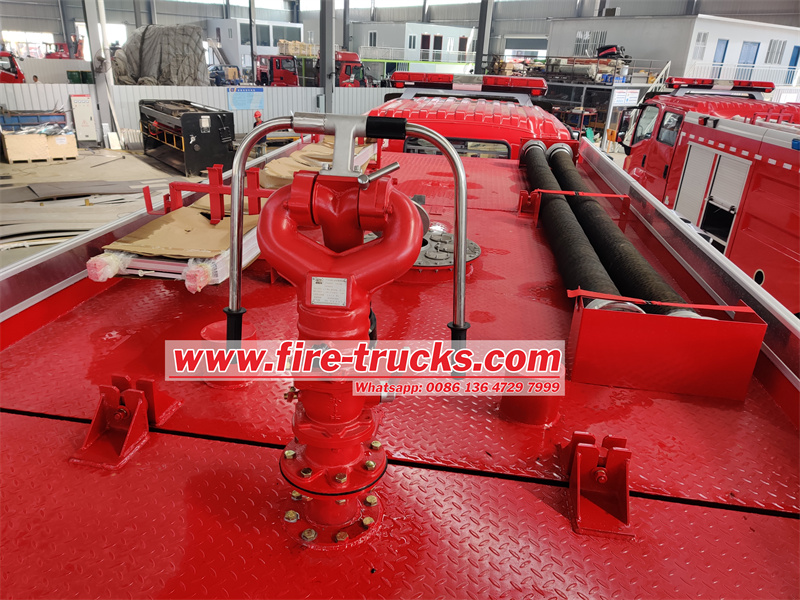

• Fire monitor: Equipped with PS8/40W high-performance fire water monitor, with long range, high pressure and adjustable spray angle, it can accurately strike the fire source and improve fire extinguishing efficiency.
• Tool box: The tool box is located on the left and right sides behind the cab. There are lighting and equipment in the box, and aluminum alloy rolling shutter doors outside the box. The equipment rack partition materials are all made of high-strength aluminum alloy profiles, which are beautiful and generous, and various equipment are placed reasonably, which is convenient for firefighters to quickly use.
Firefighting equipment

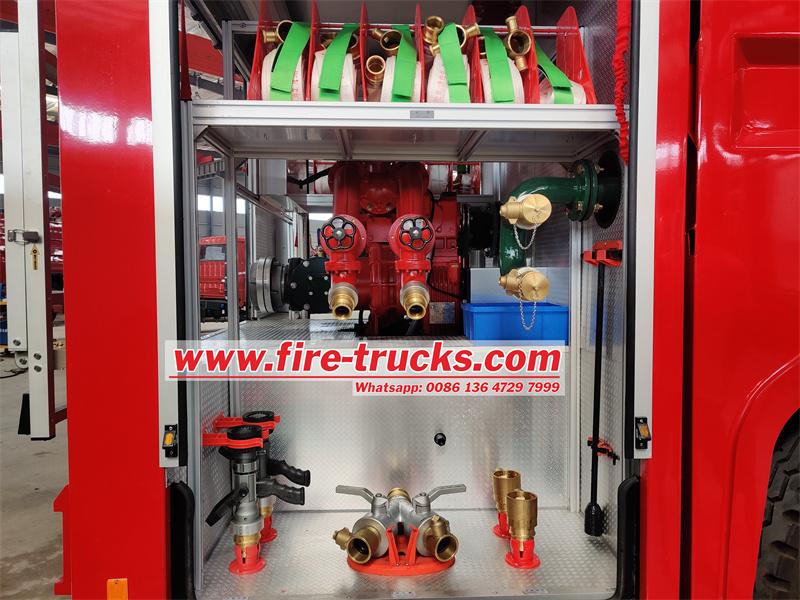

• Tool room: is equipped with a series of professional firefighting tools, including fire axes, fire shovels, fire wrenches, demolition tools, etc., to meet various rescue needs.

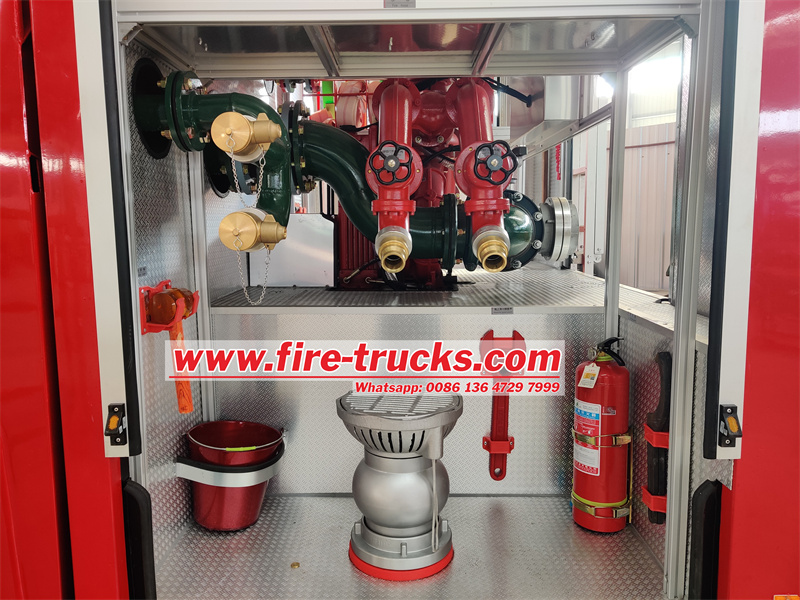

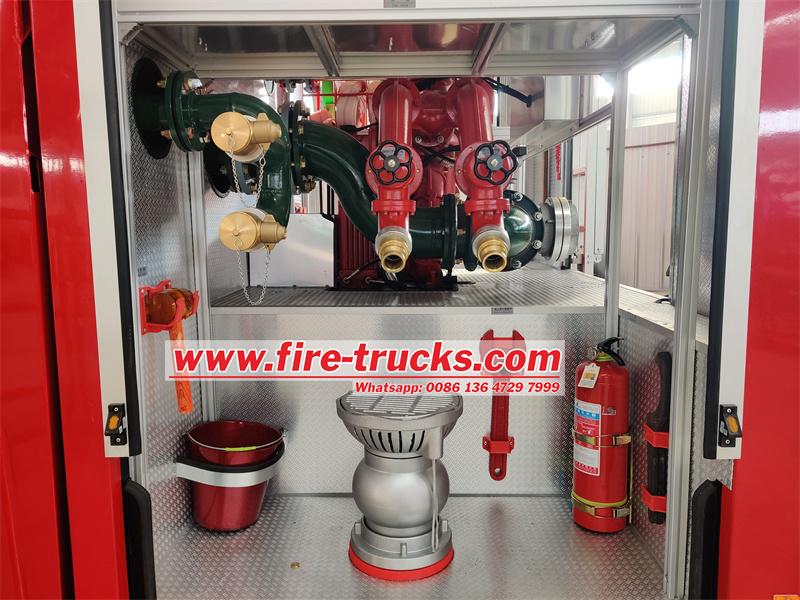

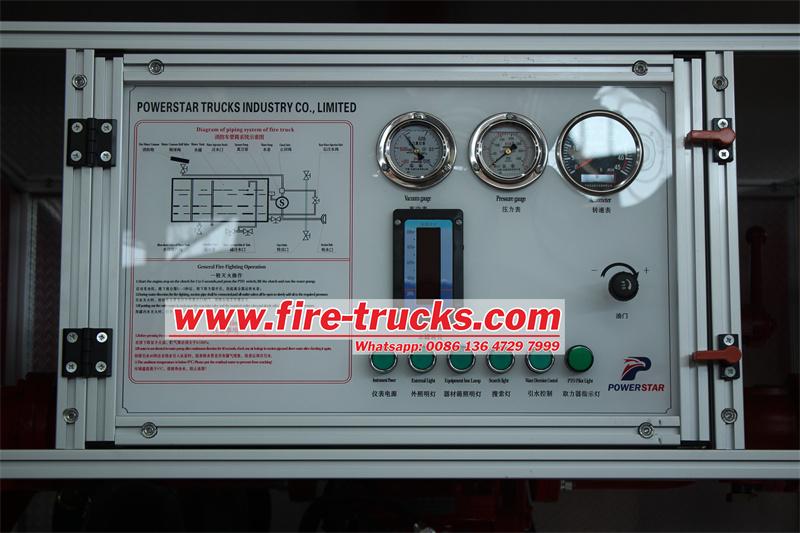

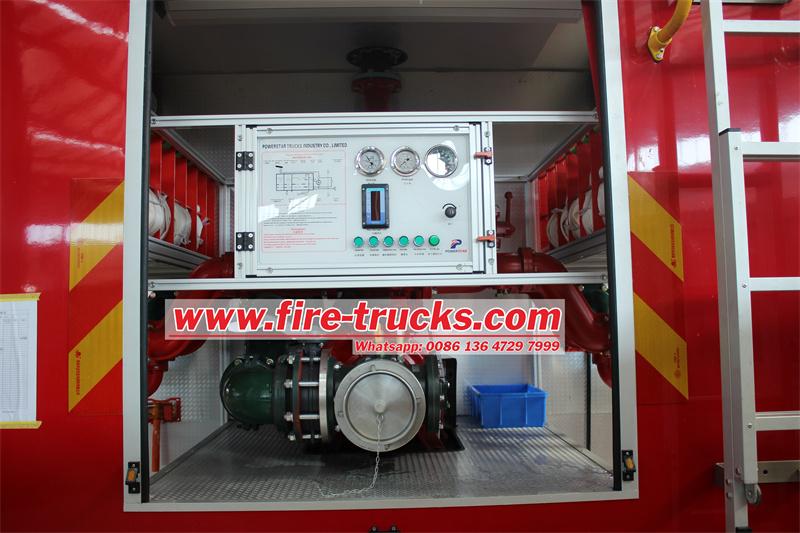

• Pump room: equipped with fire hoses, fire hoses, water collectors, water distributors, fire extinguishers and other equipment, which can be quickly accessed.
• Other auxiliary equipment: The vehicle is also equipped with auxiliary equipment such as lighting systems, alarm systems, and communication equipment to ensure that fire fighting and rescue tasks can be carried out smoothly at night or in complex environments.
Water spraying and fire extinguishing system of water tank fire truck
The water spraying and fire extinguishing system of water tank fire truck is one of its core functions. The system is mainly composed of water pumps, pipelines, valves, water diversion devices and water spraying devices, which work together to achieve efficient fire extinguishing effects.
The water pump is the power source of the water spraying and fire extinguishing system of the water tank fire truck, which is responsible for pressurizing the water in the water tank and delivering it to the water spraying device.
The pipeline system is mainly composed of water pump suction pipeline, rear water inlet pipeline, check valve, upper water outlet pipeline, side water outlet pipeline, medium and high pressure water outlet pipeline, etc. These pipelines are responsible for delivering the water pressurized by the water pump to the water spraying device, and adjusting the flow direction and flow rate of the water flow as needed. The valve is used to control the opening and closing of the pipeline, as well as to adjust the flow rate and pressure of the water flow. Common valves include ball valves, gate valves, etc.
The water diversion device is an important part of the water tank fire truck's water spraying and fire extinguishing system. It is used to suck the air in the fire pump and the water suction pipeline to form a vacuum in the pump, thereby introducing water from the low-level water source into the pump.
The water spray device is the terminal actuator of the water tank fire truck's water spraying and fire extinguishing system. It is responsible for spraying pressurized water onto the fire source in an appropriate form. Common water spray devices include water guns, water cannons, etc. Water guns are usually used for close-range firefighting, and the spray angle and flow rate can be adjusted; while water cannons are suitable for long-range firefighting, with a larger spray range and stronger impact. These water spray devices can adjust the spray mode according to the fire and the on-site conditions, such as direct spray, spray, etc., to adapt to different types of fire scenes.
Working principle
When the water tank fire truck arrives at the fire scene, the firefighters will first start the water pump and introduce the water from the low-level water source into the pump through the water diversion device. Then, according to the fire and the situation on the scene, select the appropriate water spray device and spray mode. By adjusting the opening and closing status of the pipeline and valves, and adjusting the speed and pressure of the water pump and other parameters, firefighters can control the direction, flow and pressure of the water flow, and spray the pressurized water in an appropriate form to the fire source. During the firefighting process, firefighters need to pay close attention to the fire scene and be ready to adjust the water spray device and spray mode at any time to ensure the firefighting effect.
