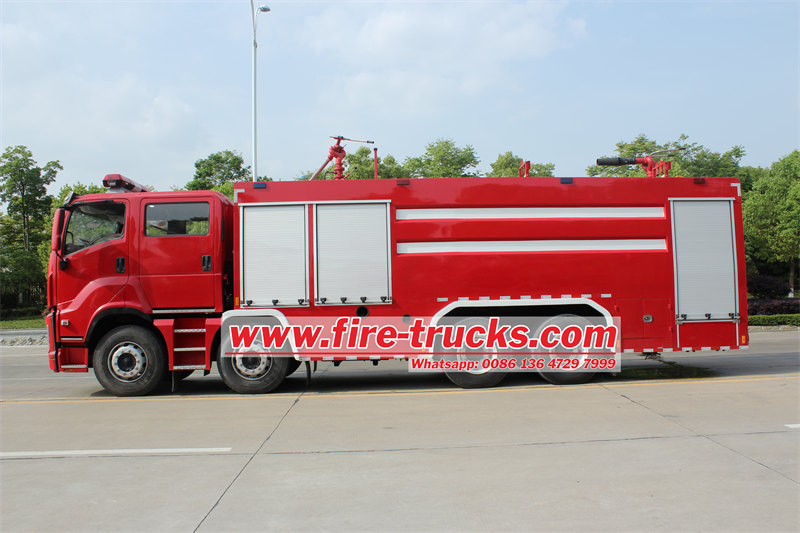

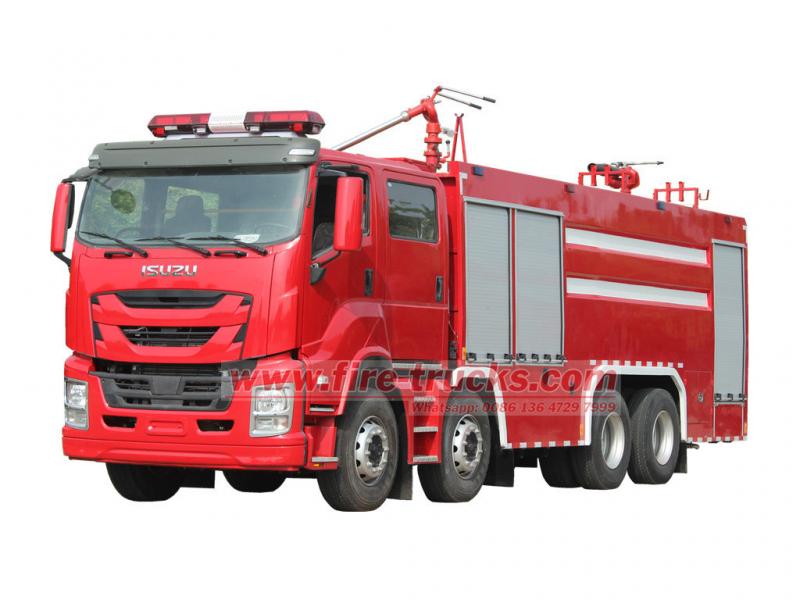

In the modern urban firefighting system, fire trucks, as core equipment, directly impact the efficiency and success rate of fire rescue operations. The ISUZU GIGA 8×4 Dry Powder Fire Truck (Model: PT5310GXFGL) is a multifunctional fire truck that integrates water, foam, and dry powder extinguishing agents. With its powerful firefighting, it has become the ideal choice for tackling various fire scenarios. Whether it's industrial fires, oil fires, or electrical fires, this fire truck can provide efficient and precise firefighting capabilities, safeguarding urban safety.
Truck Model:
PT5310GXFGLTanker Structure:
Carbon steel and stainless steelWork capacity :
10000L water+2000L foam+1CBM dry powderWheelbase:
1850+4575+1370Axle drive:
8×4Engine Power:
380 HPEngine Model:
6UZ1-TCG50Fire Pump:
CB10/60Fire Monitor:
PL48Remark:
Equppied with PF40 dry powder monitorThe ISUZU GIGA 8×4 Dry Powder Fire Truck is a professional firefighting vehicle designed to handle various complex fire scenarios. It incorporates ISUZU's advanced chassis technology and is equipped with a high-performance engine and transmission system, ensuring excellent driving performance and stability in all road conditions. Powered by the 6UZ1-TCG50 diesel engine, which features turbocharging and intercooling technology, it delivers a maximum output power of 279 KW (380 HP). Paired with a 12-forward and 2-reverse manual transmission, the vehicle offers robust power output and superior handling performance. This enables the fire truck to quickly reach fire scenes under various complex road conditions, saving valuable time for firefighting and rescue operations.
The core strength of the ISUZU GIGA 8×4 Fire Tender Truck lies in its multifunctional combined system. The vehicle is equipped with a 10,000-liter water tank (made of carbon steel), a 2,000-liter foam tank (made of stainless steel), and a 1,000-liter dry powder tank. It can swiftly switch between extinguishing agents based on different fire types, ensuring efficient firefighting. The material selection for the water and foam tanks not only guarantees the safe storage of extinguishing agents but also extends the vehicle's service life.

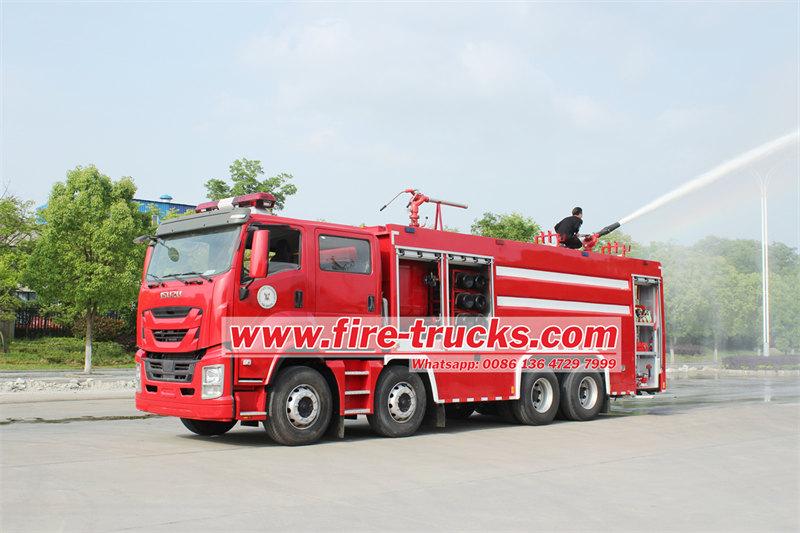

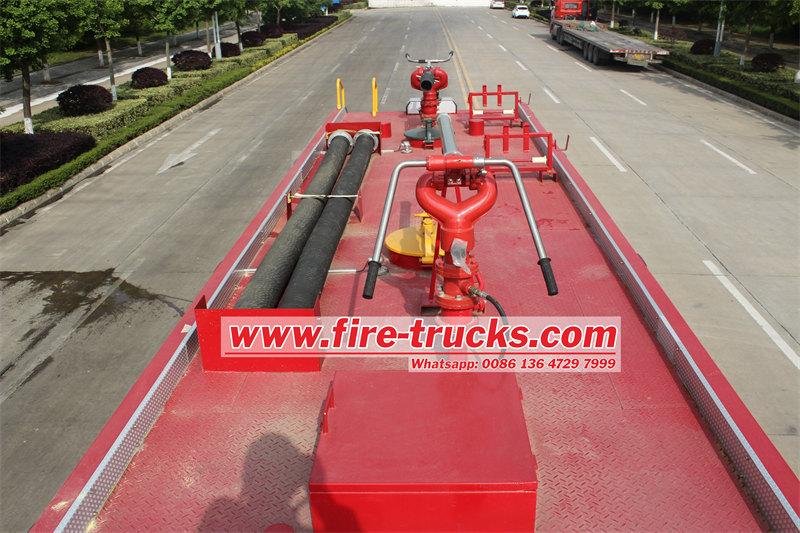

In terms of the firefighting system, the ISUZU 8×4 fire truck is equipped with a CB10/60 fire pump, which delivers a flow rate of up to 60L/s and an outlet pressure of 1.0 Mpa, enabling the rapid delivery of large quantities of extinguishing agents to the fire scene. Additionally, the fire pump has a suction depth of 7 meters, ensuring efficient water intake even in complex water source conditions. The vehicle also features a PL48 foam water monitor with a rated working pressure of 0.8 Mpa and a flow rate of 48L/s. It offers a pitch rotation range of -45° to +70° and a horizontal rotation range of 0° to 360°, providing full coverage with a range of ≥70 meters for water and ≥60 meters for foam, effectively controlling large-scale fires.

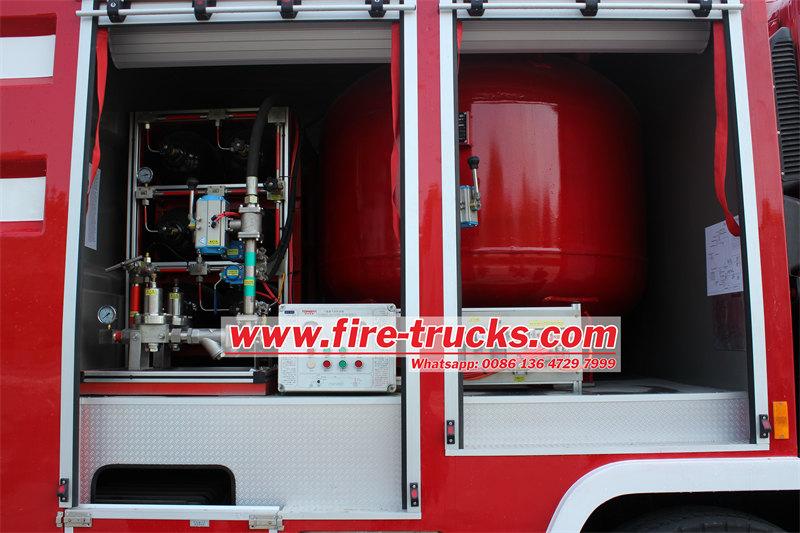

For oil fires and electrical fires, the ISUZU GIGA 12 wheeler fire engine is equipped with a PF40 dry powder monitor, which has a rated working pressure of 1.5 Mpa and an injection rate of up to 40kg/s. With a range of over 40 meters and a pitch angle range of -85° to +90°, it can quickly extinguish flammable liquid and gas fires, minimizing fire damage.
● 30 years experience in firefighting truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● Be designed according to your requirements
Product Specifications
Item |
Unit |
Description |
|
Model |
|
PT5310GXFGL |
|
Dimension |
mm |
11500*2550*3650 |
|
Curb Weight |
kg |
15500 |
|
G.V.W |
kg |
31000 |
|
Wheel Base |
mm |
1850+4575+1370 |
|
F/R wheel track |
mm |
2060/2060; 1860/1860 |
|
F/R Axle-Load |
Kg |
6500 / 6500/18000 |
|
Approach/Departure angle |
° |
27/12 |
|
Traction system |
Type |
8*4 |
|
Max speed |
Km/h |
89 |
|
Tire Specification/Number |
Type |
315/80R22.5, 12+1 pcs |
|
Engine |
Model |
6UZ1-TCG50 |
|
Type |
Diesel, 6 cylinders, turbocharge, Inter- cooling |
||
Max. output power |
279 KW |
||
Horse power |
380 Hp |
||
Rated speed |
2000 rpm |
||
Max. torque |
1800 N.m |
||
Gearbox |
Type |
12F&2R, Manual |
|
Brand |
FAST |
||
Fuel Tank |
Liter |
400 |
|
Electronic |
V |
24 |
|
Cabin |
Passenger |
2+4 |
|
Type |
Double row |
||
Steering |
Power asistant, LHD |
||
Installing |
Mp3, Radio, Air conditioner |
||
Tank |
Water tank |
10000 liters (carbon steel) |
|
Foam tank |
2000 liters (stainless steel) |
||
Dry powder tank |
1000 liters |
||
Fire pump |
Model |
CB10/60 |
|
Flow |
60L/s |
||
Outlet pressure |
1.0 Mpa |
||
Rated speed |
3280 rpm |
||
Suction depth |
7m |
||
Fire monitor |
Model |
PL48 |
|
Type |
Foam water monitor |
||
Flow |
48L/s |
||
Rated working pressure |
0.8 Mpa |
||
Pitch rotation |
-45~+70° |
||
Horizontal rotation |
0~360° |
||
Range |
Water ≥70m; Foam ≥60m |
||
Dry powder monitor |
Model |
PF40 |
|
Rated working pressure |
1.5 Mpa |
||
Rated injection rate |
40kg/s |
||
Range |
≥40 m |
||
Pitch angle |
-85~+90° |
||

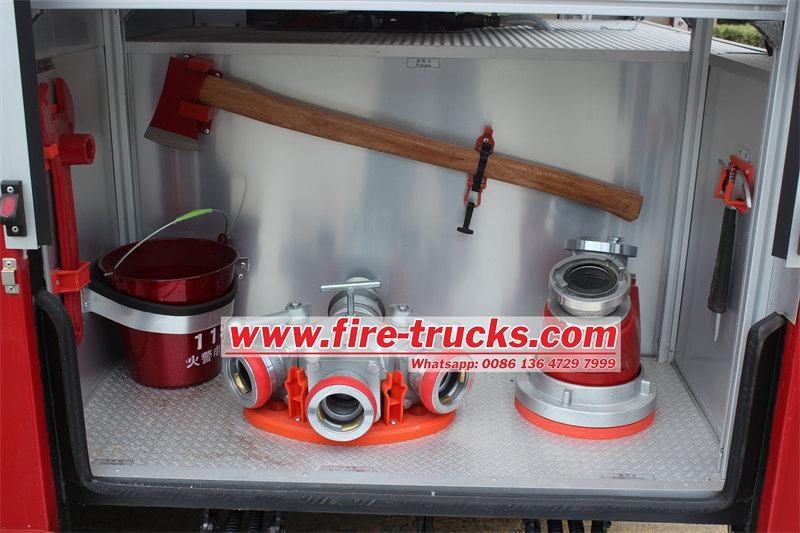

Standard Fire Equipment List |
|||
Fire Hose |
DN 65 x 8 Units |
Fire Hose |
DN 80 x 4 Units |
Fire Pipe Length |
20 m |
||
Fire pipe protector |
4 |
Fire Pipe storage |
1 |
Fire Pipe Hocker |
4 |
Fire extinguisher |
1 |
Fire bucket |
1 |
Fir axe |
1 |
Fire Crowbars |
1 |
Iron collars |
1 |
Liquid port Connector |
5 Unit, Y type, U type, X Type |
||
Fire spanner |
2 Units, Above ground fire hydrant, underground hydrant. |
||
Spanner |
2 Units, for the suction pipe |
||
Optional Item |
Fire cloth, additional foldable aluminum alloy ladder, safety cabling. |
Application Scenarios and Advantages of the ISUZU GIGA 8×4 Dry Powder Fire Truck
Application Scenarios
1. Industrial Fires
This vehicle is particularly suitable for firefighting in industrial settings such as chemical plants, oil depots, and natural gas stations. Its dry powder extinguishing system can quickly suppress fires involving flammable liquids and gases, while the foam system effectively controls oil fires, preventing the spread of flames.
2. Urban Fires
In urban environments, such as high-rise buildings, commercial complexes, and residential areas, the ISUZU GIGA 8×4 Fire Truck's high-flow water cannon and long-range foam monitor can rapidly control fires, reducing property damage and casualties.
3. Special Fires
For special scenarios like tunnel fires, airport fires, and forest fires, the vehicle's multifunctional combined system and large-capacity extinguishing agent storage enable it to operate continuously in complex environments, ensuring efficient firefighting.
Advantages
1. Multifunctional Combined System
The ISUZU GIGA fire engine integrates water, foam, and dry powder extinguishing agents, allowing flexible switching based on fire types to meet diverse firefighting needs.
2. High-Efficiency Firefighting Capability
Equipped with a CB10/60 fire pump with a flow rate of up to 60L/s, a PL48 foam water monitor with a range exceeding 70 meters, and a PF40 dry powder monitor with an injection rate of 40kg/s, it ensures rapid fire control.
3. Extended Operational Capability
With a 10,000-liter water tank, a 2,000-liter foam tank, and a 1,000-liter dry powder tank, the ISUZU GIGA 12-wheeler fire truck provides ample extinguishing agent reserves, meeting the demands of prolonged firefighting operations.
4. Reliability and Adaptability
Constructed with high-quality materials and advanced manufacturing processes, the vehicle ensures stable performance in various harsh environments and adapts to complex road conditions and extreme weather.
Product Details

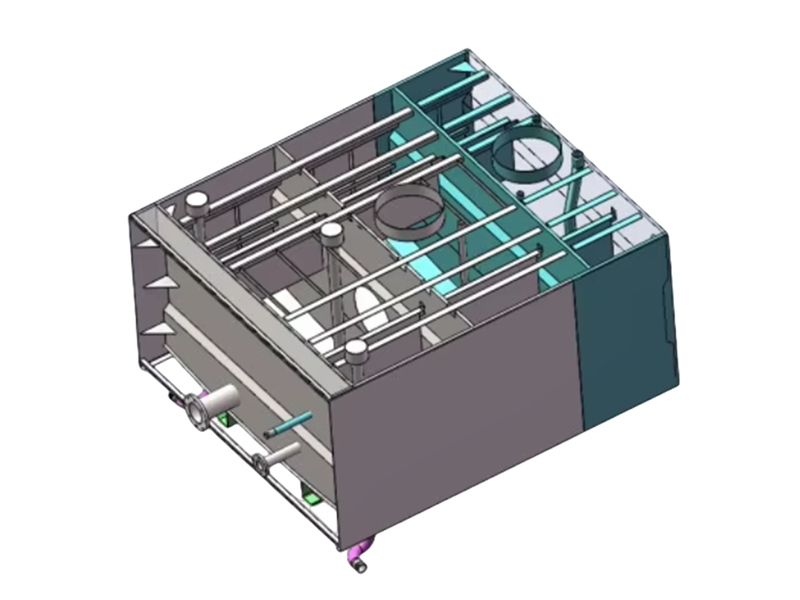

Water tank and foam tank
The water tank is made of high-quality carbon steel plate with internal corrosion protection. The foam tank is constructed from premium stainless steel plate. The base plate of the water tank is 5mm thick carbon steel plate, while the side plates and sealing plate are 4mm thick carbon steel plate, and the top plate is 3mm thick checkered carbon steel plate. For the foam tank, the base plate is 5mm thick stainless steel plate, the side plates and sealing plate are 4mm thick stainless steel plate, and the top plate is 3mm thick checkered stainless steel plate.

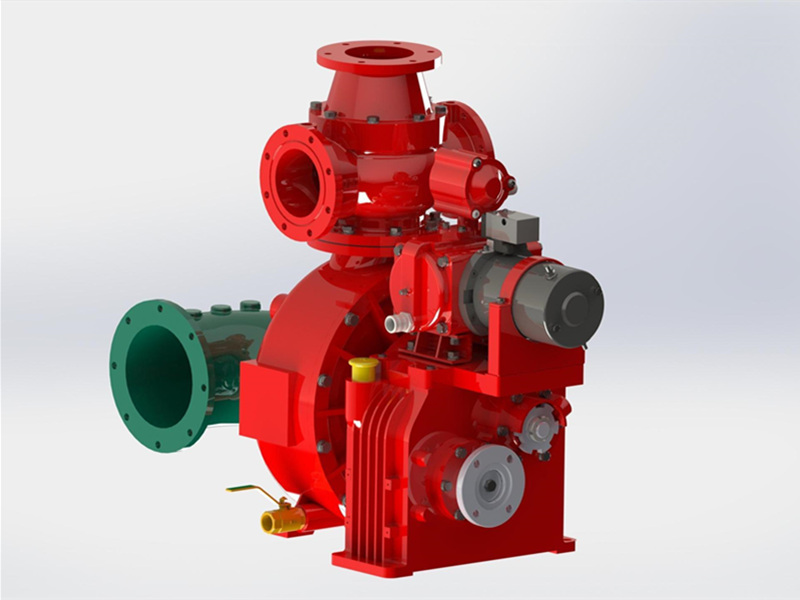

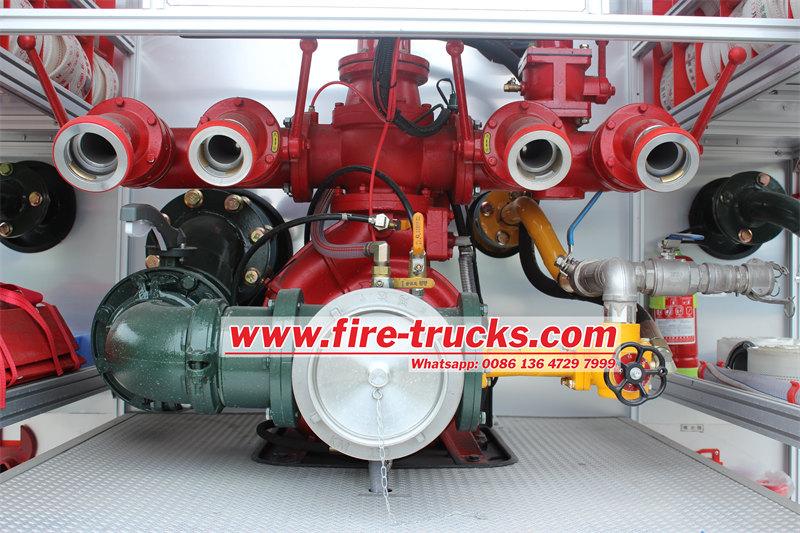

Fire pump
Model: CB10/60 atmospheric fire pump
Flow: 60L/s/1.0Mpa
Maximum suction depth: 7m
Priming time: ≤50s
Vacuum pump type: piston type
Installation mode: rear-mounted

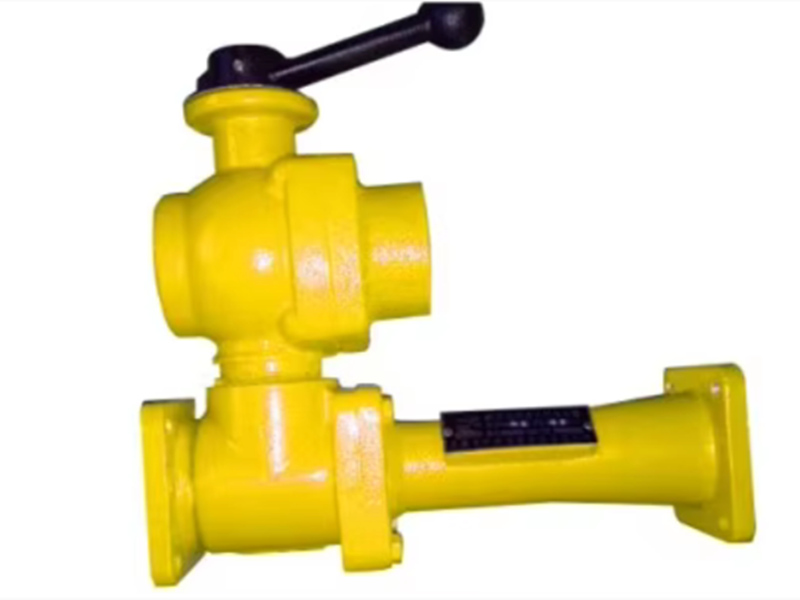

Foam proportioner
Model: PH64
Mixing ratio: 6%
Maximum mixed flow: 64L/s
Structure: ring pump type

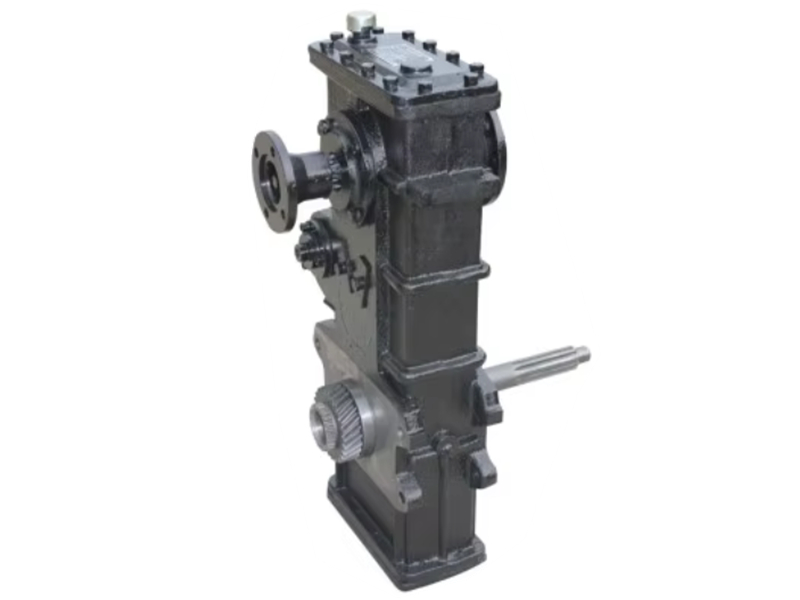

PTO
Type: Sandwich type (full power)
Operation: solenoid valve control (electric control)
Cooling method: forced adjustable water cooling
Lubrication method: splash lubrication
