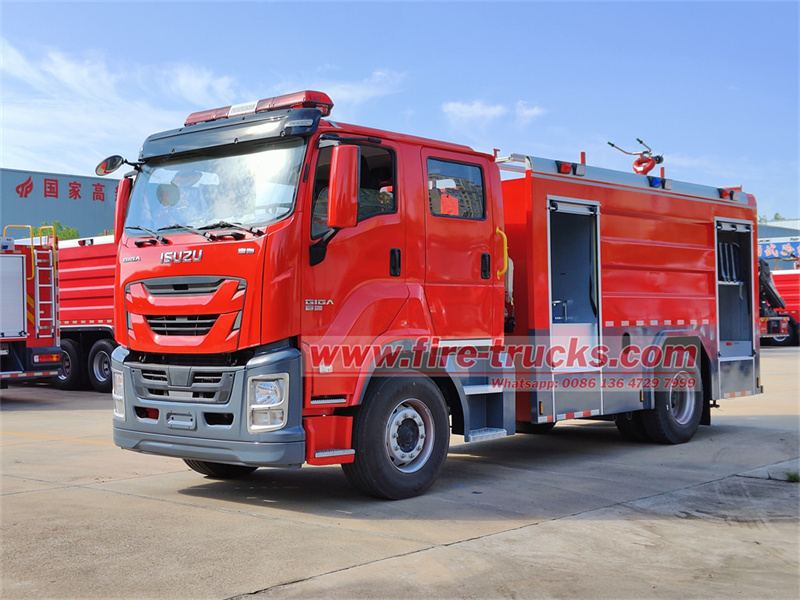

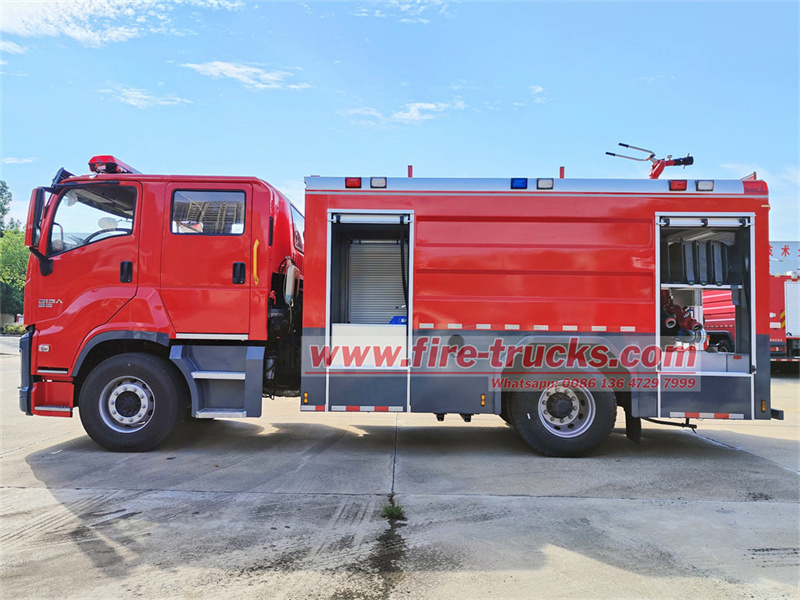

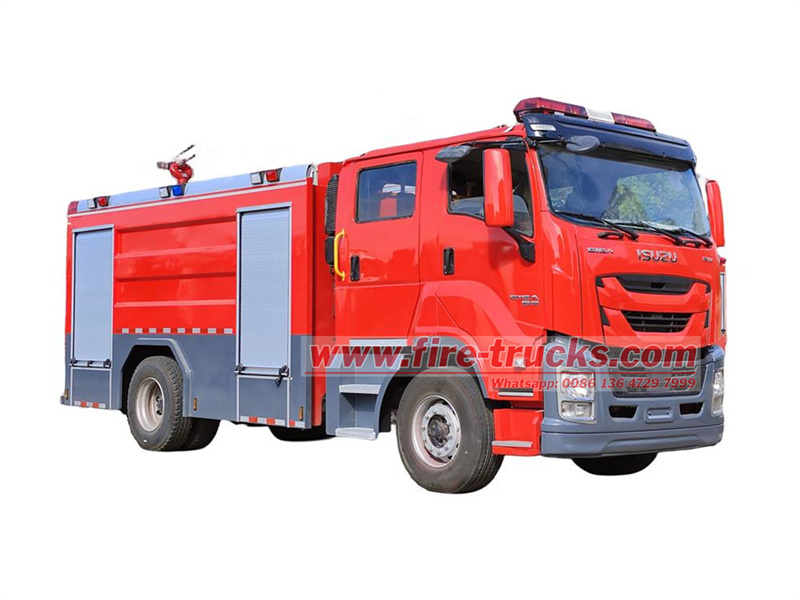

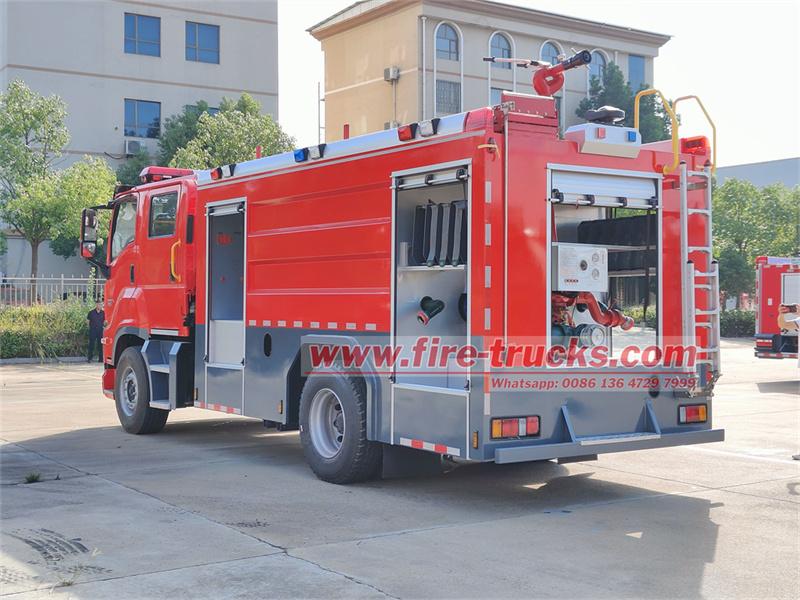

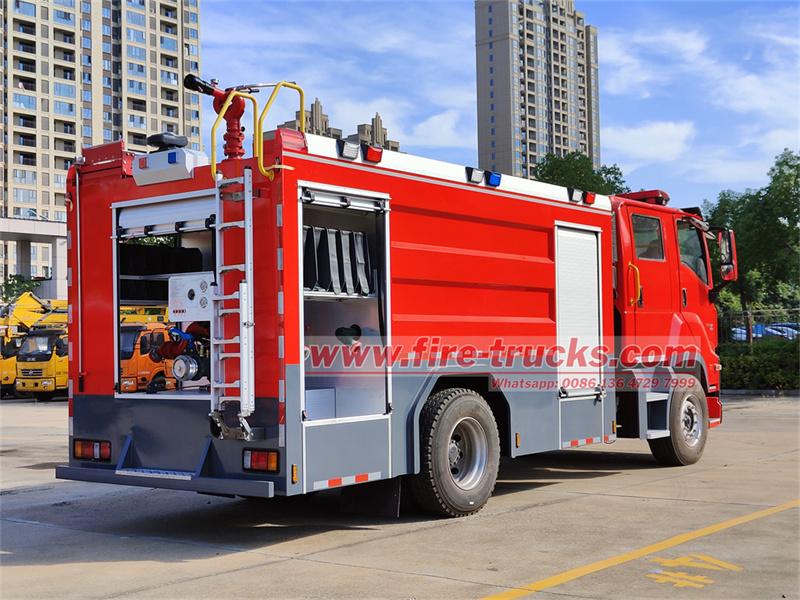

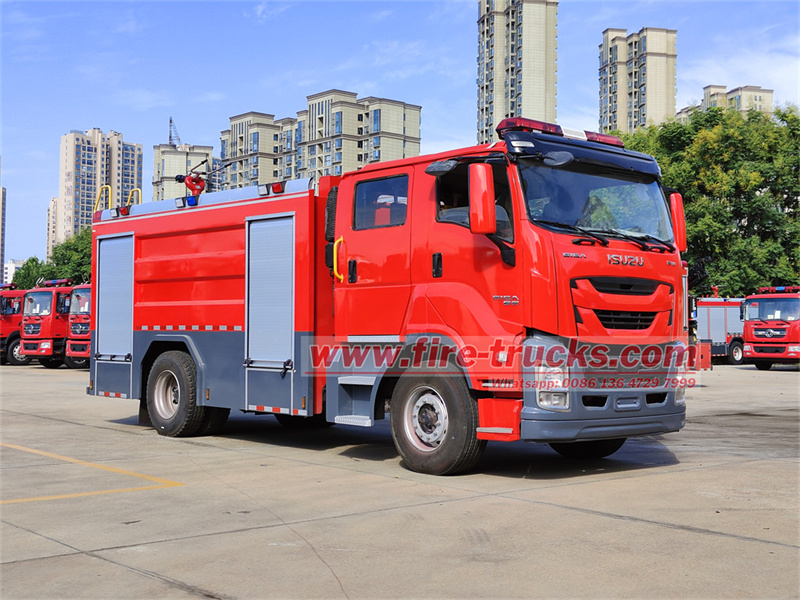

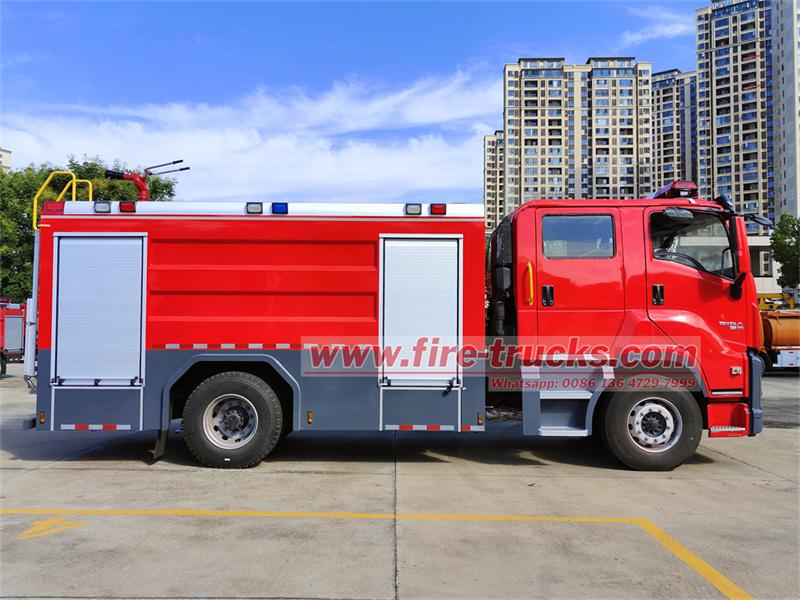

The Isuzu off-road GIGA fire fighting truck is built on the sturdy ISUZU GIGA all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 8000-liter large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs.
Truck Model:
PST52506QXFTanker Structure:
High quality Q235A carbon steelWork capacity :
8000L WaterWheelbase:
4600mmAxle drive:
4x4Engine Power:
380HPEngine Model:
6UZ1-TCG61Fire Pump:
CB10/60, 1600L/minFire Monitor:
PL62, Flow Rate 62 L/SRemark:
Off-road system, Stainless Steel avaiable
The Isuzu off-road GIGA fire fighting truck is built on the sturdy ISUZU GIGA all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 8000-liter large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu GIGA fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.
● China best off-road water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Specification:
|

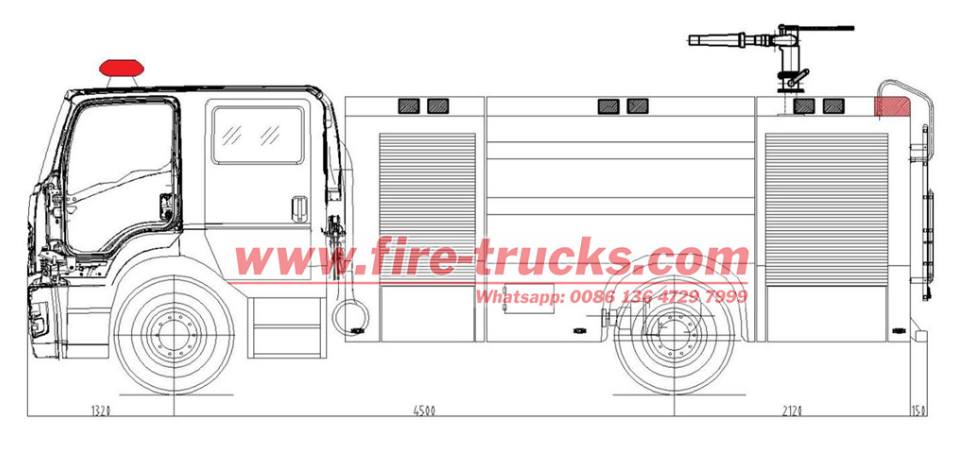

ISUZU GIGA 4x4 fire truck |
|||
|
General |
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
8300*2280*2750mm |
||
|
GWW/ Kerb Weight |
25,000kg/9,220kg |
||
|
Painting |
Red color |
||
|

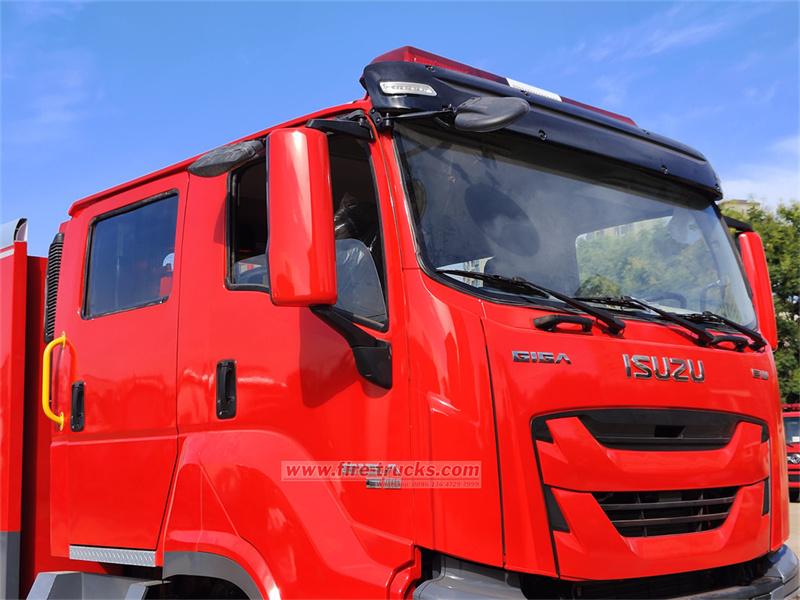

Cab |
Cab Capacity |

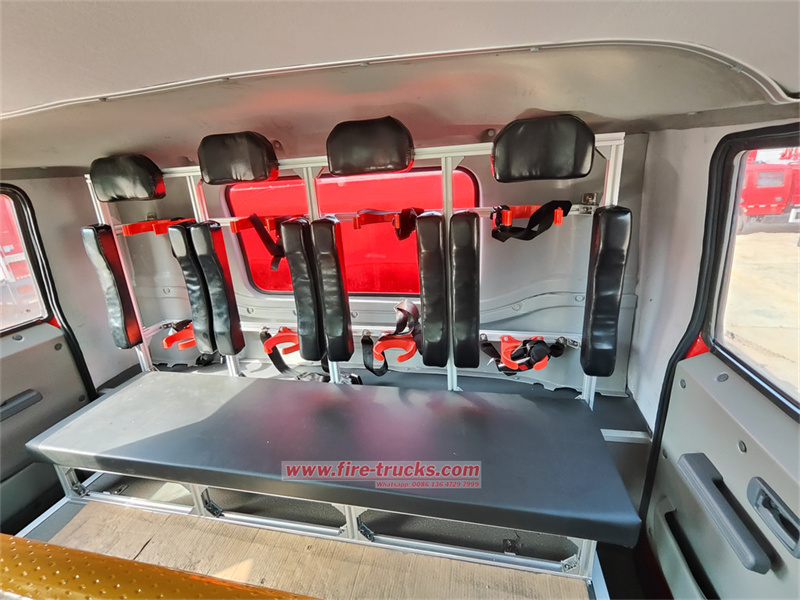

2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
ISUZU engine ,6UZ1-TCG61 |
||
|
Engine type |
Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
380 HP |
||
|
Displacement |
9.839L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X4,left hand drive |
|
|
Transmission |
Fast 12-speed forward, 2 reverse |
||
|
Wheelbase/No.of axle |
4500 mm/2 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95 km/h |
||
|
Fuel tank capacity |
200L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Water Tank Capacity |
8,000 Litres |
|
|
Tank Material |
stainless steel |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |

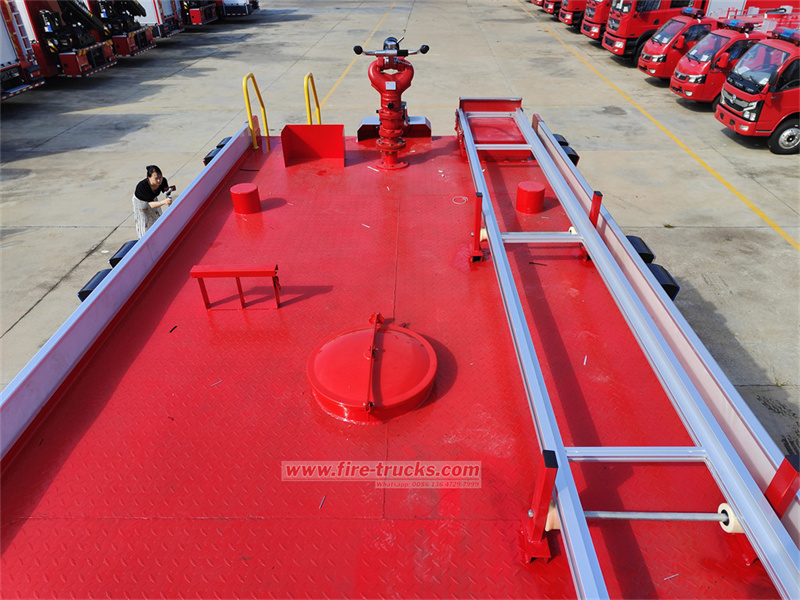

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|

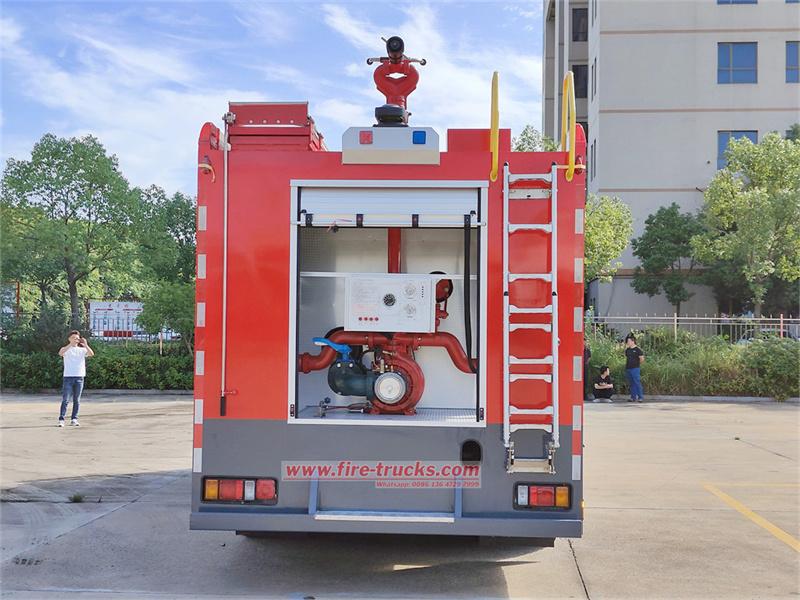

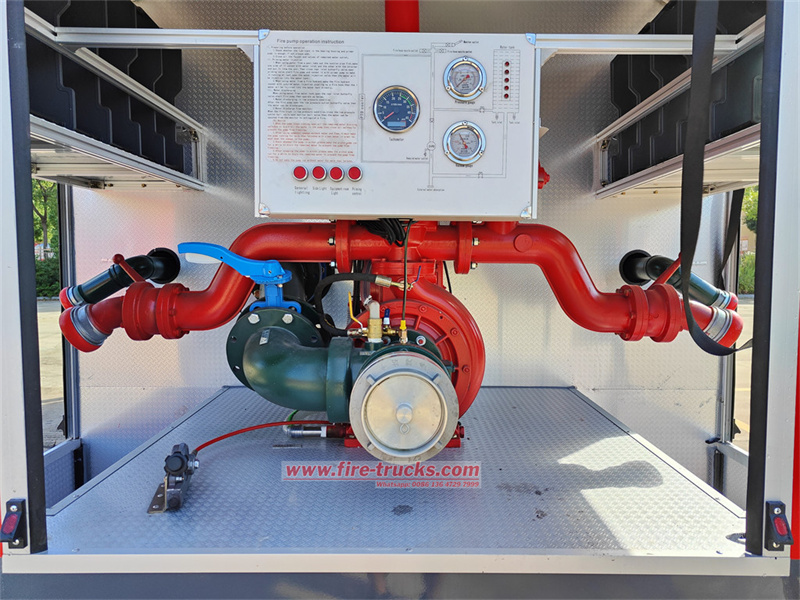

Fire Pump |
Brand |
China TOP Brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
60L / s |
||
|
Suction Height |
9m |
||
|

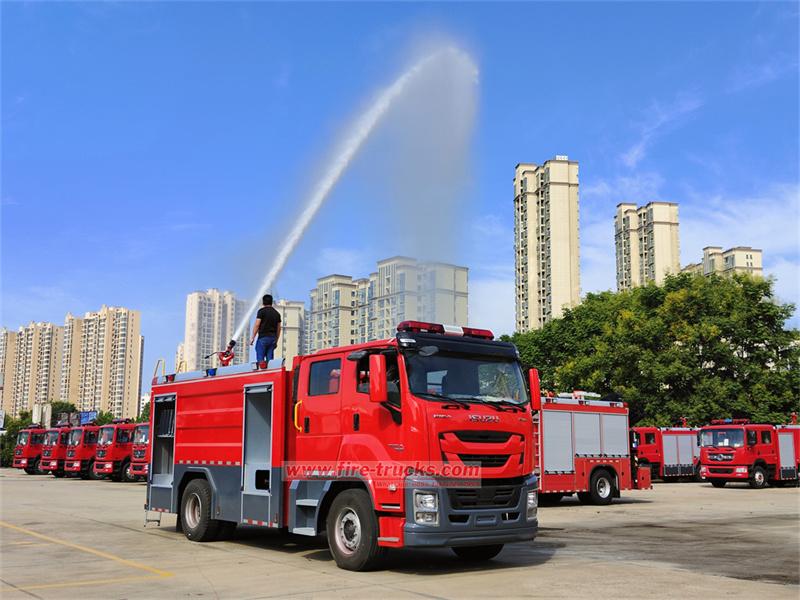

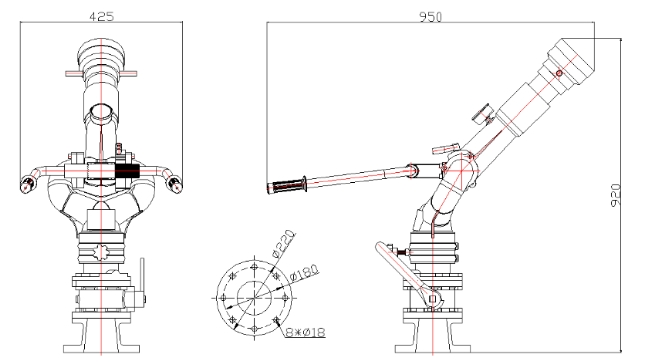

Fire Cannon |
Flow speed |
60L /s |
|
|
Range |
65 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional |
||
Feature:
Powerful Power System:
• Equipped with a high-power engine(6UZ1) to ensure rapid response under complex road conditions.
• Isuzu All-wheel drive system improves passability on rugged or slippery roads.
Efficient Firefighting Equipment:
• Large-capacity water tank to meet long-term firefighting needs.
• High-pressure water pump to provide strong water flow and range.
Strong Body Structure:
• Adopt high-strength materials to improve impact resistance and fire resistance.
• Roll cage and seat belts to ensure passenger safety.
Multifunctional Rescue Equipment:
• Equipped with hydraulic shears, expanders and other demolition tools for rescuing trapped people.
• Lighting equipment, such as liftable lighting, ensures operation at night or in low-light environments.
Humanized Design:
• Comfortable cab to reduce fatigue from long-term operation.
• Easy-to-operate equipment layout to improve emergency response speed.
Performance advantage:
1. Firefighting efficiency: Tactical advantages of high flow and long range
♦ Large-capacity water storage system:
The 6000L stainless steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

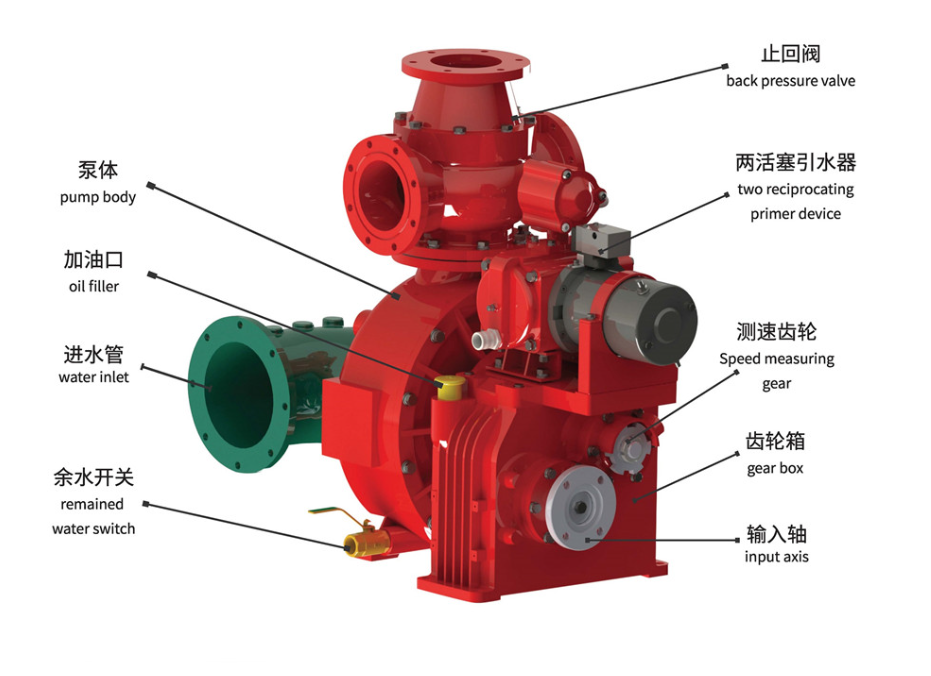

♦ Efficient pump system:
Standard CB10/60 mid-mounted centrifugal pump (60L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 60L/s), water cannon range of 65m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
2.Comprehensive application scenario advantages
♦ Urban firefighting: compact wheelbase (4600mm) supports 9m turning radius, suitable for narrow streets.
♦ Industrial fire: foam system is compatible with AFFF/AR-AFFF, which can cope with fires in petrochemical facilities.
♦ Field rescue: all-wheel drive system + wading hose (800mm depth) to achieve multi-terrain coverage.
