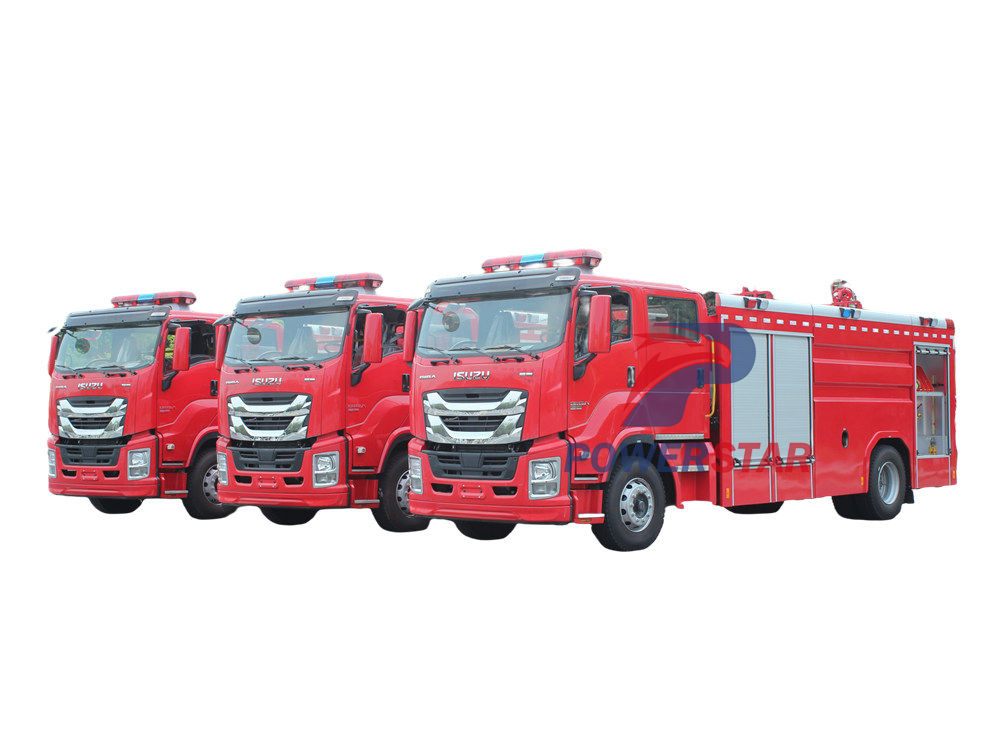

The Isuzu GIGA 10,000L fire fighting truck is a powerful firefighting equipment with a wide range of uses and remarkable features. It is mainly used for fire rescue in urban fire departments, especially in areas with high fire risks such as high-rise buildings and commercial areas, and can quickly provide a large amount of water to extinguish flames. The Isuzu GIGA fire fighting truck is also suitable for industrial areas, mining areas, forests, as well as rural areas, effectively responding to fires in various complex terrains and environments. Its features include a large-capacity water tank, an efficient fire pump system, and a good driving field of vision, ensuring the efficiency and safety of firefighting and rescue.
Isuzu GIGA 8000L water fire truck also known as Isuzu fire fighting truck, Isuzu fire engine, Isuzu resuce fire truck, Isuzu emergency rescue fire truck, is an impressive firefighting weapon that combines advanced technology with powerful performance.

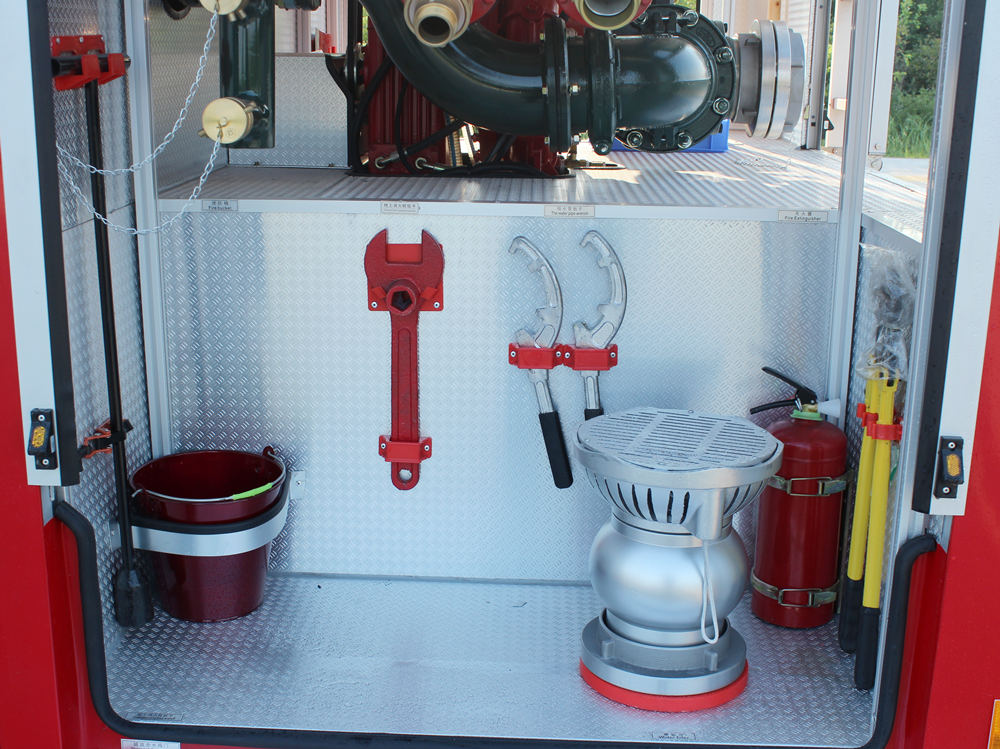

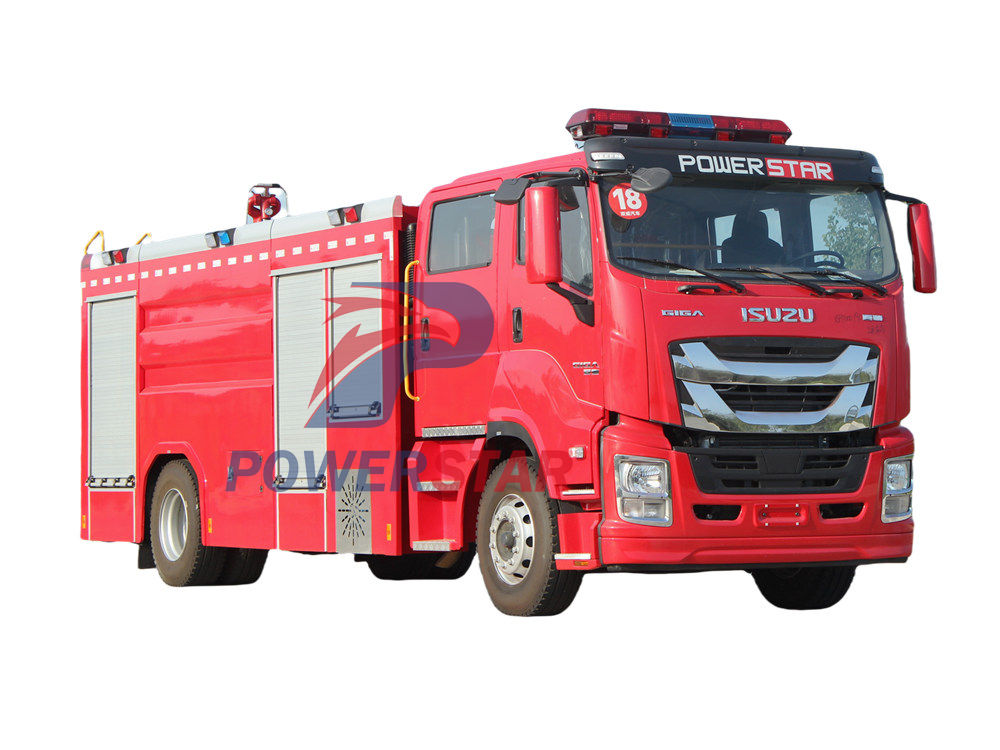

The Isuzu GIGA water fire truck is modified on the Isuzu GIGA 4x2 chassis,with 5600mm wheelbase,Isuzu 6WG1-TCG60 420HP diesel engine,with a 12-speed gearbox,the cabin 3+3 person,with A/C,USB,direction assistance.The truck equipped with 10cbm carbon steel water tank,has a pump room(CB10/60 fire pump,fire equipment) a tool room,witch can assist firefighting operations.
1.Configuration and performance of Isuzu GIGA fire truck
Large-capacity water tank: The vehicle is equipped with a 10,000L large-capacity water tank, which ensures that sufficient water can be continuously provided during long-term and high-intensity firefighting operations.
Efficient fire pump: Equipped with a high-performance fire pump system, it has the characteristics of high pressure and large flow, which can pressurize a large amount of water flow in a very short time and accurately deliver it to the fire source, quickly controlling the fire.

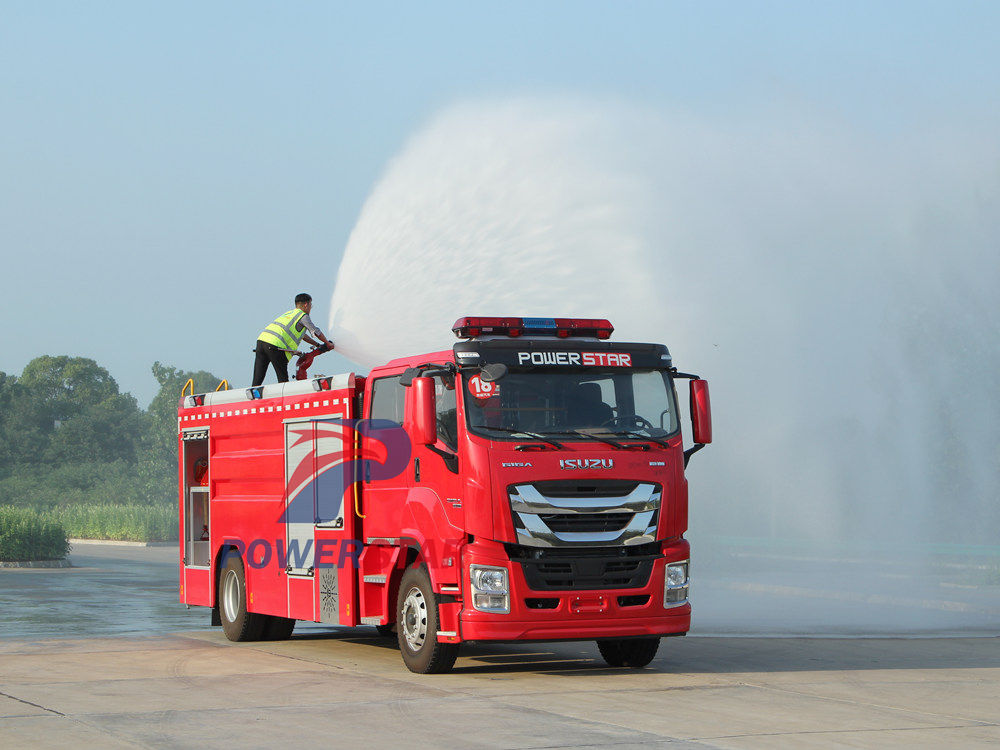

Advanced injection system: The injection system has a variety of injection modes, such as direct injection and spray, which can be flexibly adjusted according to the type of fire source and the size of the fire to achieve accurate fire extinguishing. At the same time, the injection distance is long and the coverage is wide, which further improves the fire extinguishing efficiency.
2.Efficient firefighting and sustained combat capability

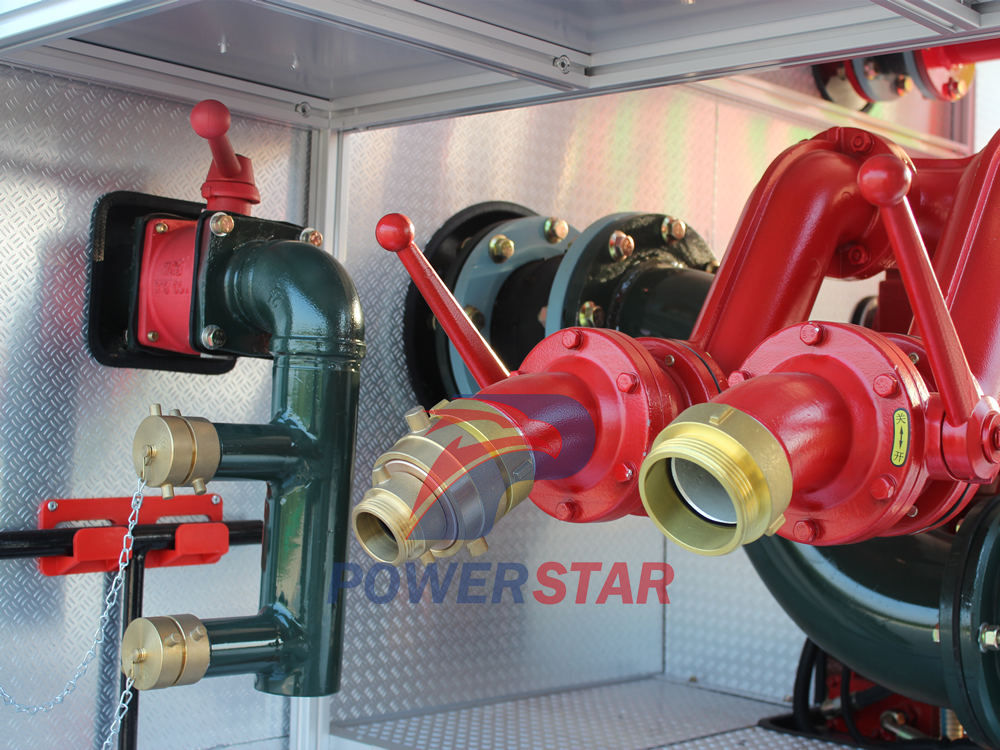

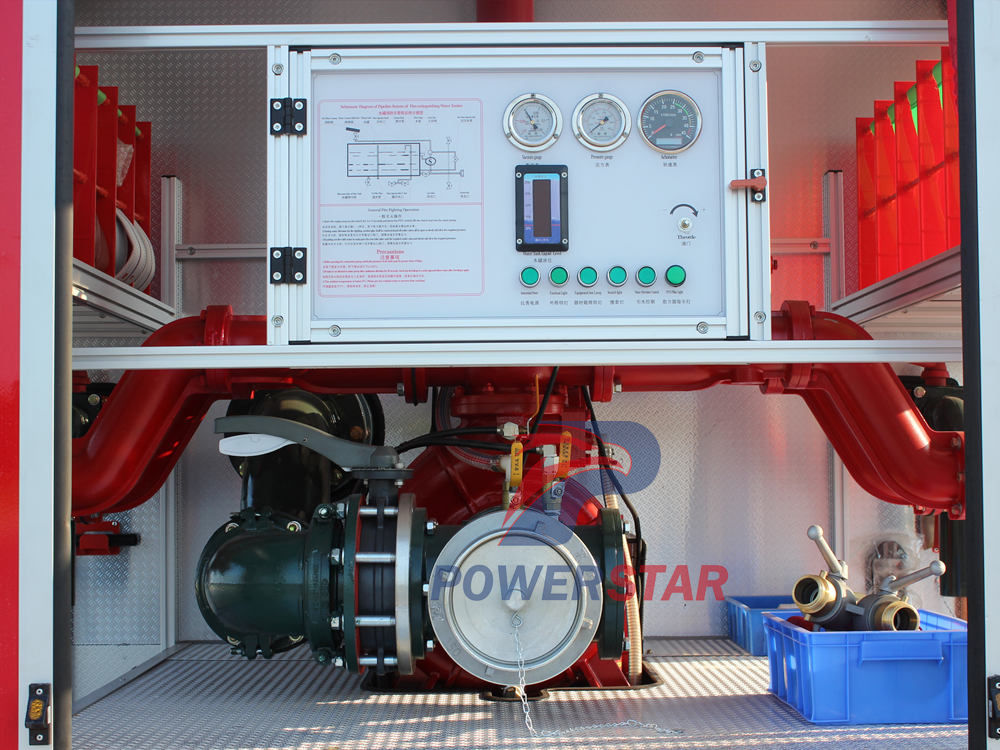

The vehicle is equipped with a 10,000L ultra-large capacity water tank and an efficient fire pump system, which can quickly spray a large amount of water to the fire source and effectively control the spread of the fire. The CB10/60 fire pump is a medium-high pressure fire pump with excellent water flow output capacity and stable operational performance. It has a rated flow of 60 liters per second and a rated pressure of 1.0 MPa (10 bar), capable of delivering a large amount of water in a short period to meet the emergency needs at fire scenes. Its injection system has a variety of injection modes, which can be flexibly adjusted according to the size of the fire, the type of fire source, etc., to ensure the fire extinguishing effect.
3.Wide application and efficient rescue
Multiple rescue scenarios: Isuzu GIGA10,000L fire fighting truck is not only suitable for fire rescue in high-risk areas such as urban high-rise buildings, commercial centers, industrial parks, but also for fire fighting operations in remote areas such as villages and forests. In addition, it can also be used for various non-fire scenarios such as post-disaster rescue, road cleaning, and spraying pesticides, showing extremely high practicality and flexibility.
Quick response and efficient rescue: With its powerful fire extinguishing ability and large-capacity water tank, Isuzu GIGA fire rescue truck can quickly respond to various fire rescue tasks, provide sufficient water sources and efficient fire extinguishing means, and provide strong support for rescue operations.
