ISUZU 5X GIGA 6UZ1 fire rescue truck is a professional rescue vehicle equipped with a large-capacity water storage tank and an efficient fire pump system. It is equipped with an 8,000-liter water tank, which can quickly respond to the fire scene and provide sufficient water for fire fighting. Isuzu fire rescue truck is also equipped with a high-pressure fire pump and a variety of spray devices, which can be flexibly adjusted according to the type of fire source and the size of the fire to achieve precise fire fighting.
The Isuzu GIGA fire rescue truck is modified based on the Isuzu GIGA 4x2 chassis, with a wheelbase of 4,600 mm. It is equipped with a powerful Isuzu 6UZ1-TCG61 diesel engine with a maximum power of 380 horsepower and a 12-speed gearbox to ensure that the vehicle can operate efficiently under various road conditions. The cab adopts a 2+3 seat layout and is equipped with air conditioning, USB interface and steering assist system to provide a comfortable working environment for firefighters.

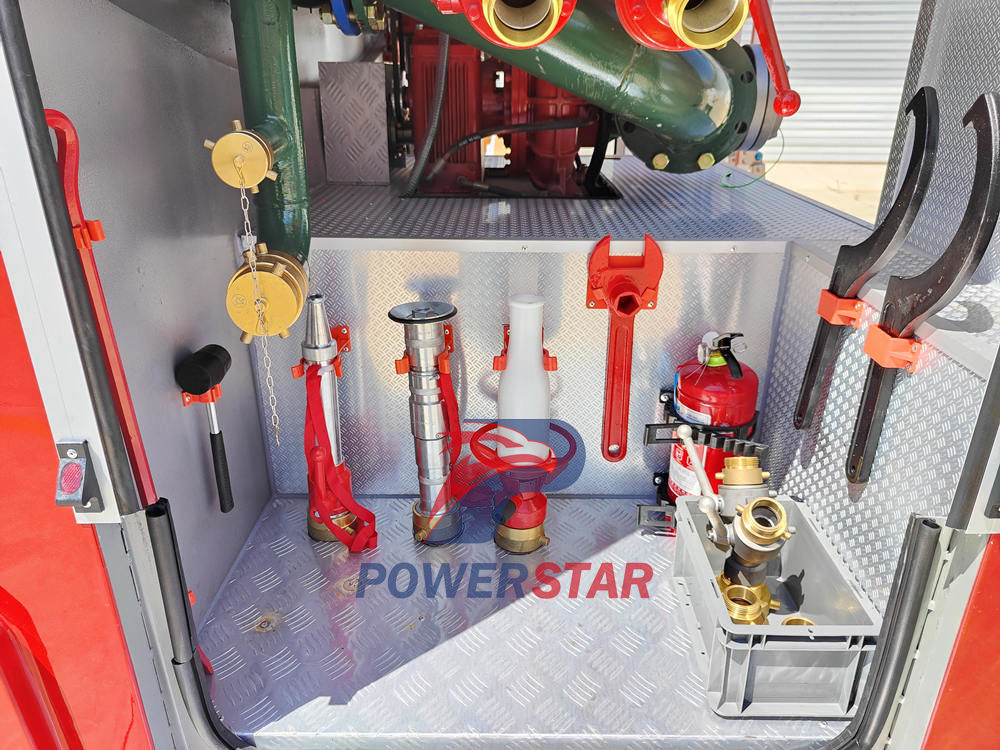

The rescue fire truck made by Isuzu GIGA chassis is also equipped with a water collector, a water filter, a water distributor, a variety of water guns and foam guns, fire hoses and personal protective equipment, etc., providing comprehensive support for firefighters. the core configuration of the vehicle includes a water tank with a capacity of 8 cubic meters, and an independent pump room with a built-in CB10/60 fire pump and necessary firefighting equipment.The intelligent control panel and rich monitoring instruments make operation more convenient and improve the efficiency of fire fighting.
1.High-strength material and durable design
Isuzu GIGA fire fighting truck adopts high-strength steel and advanced manufacturing technology to ensure that the vehicle can maintain excellent performance in harsh environments. The body structure has been specially reinforced with excellent impact resistance and deformation resistance, which can protect the safety of equipment and personnel in the vehicle in complex rescue environments.
In addition, the shell and key components of the vehicle have been treated with anti-corrosion, which can effectively resist the erosion of water, chemicals and high temperature, and extend the service life. This high-strength material design not only improves the durability of the vehicle, but also reduces maintenance costs, making it a reliable equipment in the fire rescue team.

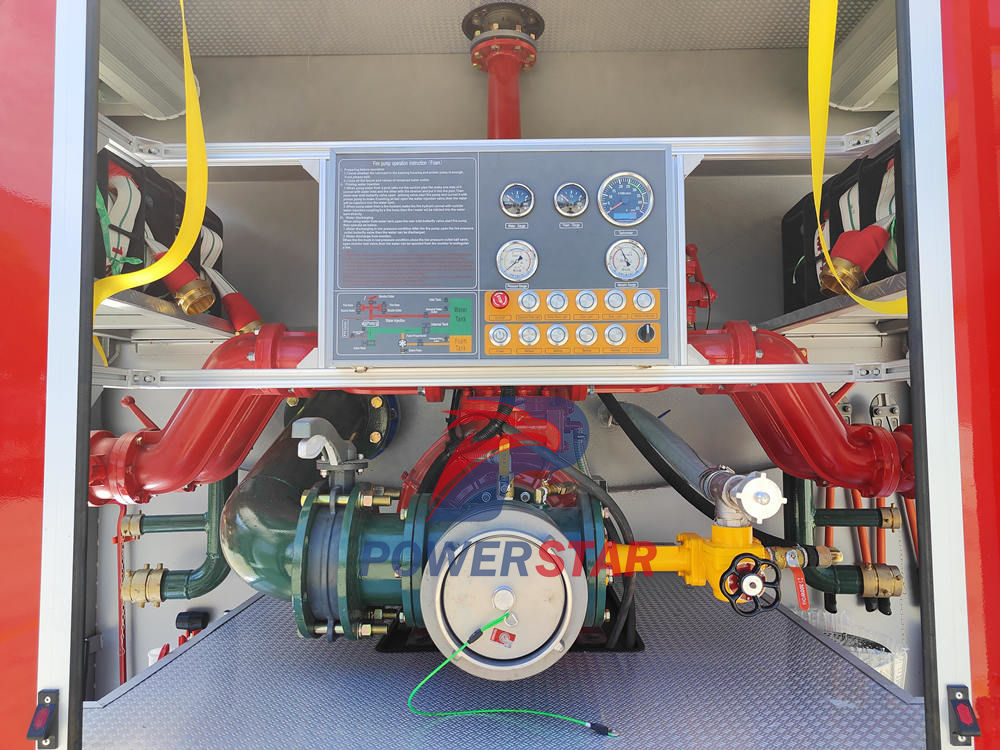

2.CB10/60 fire pump: the core of efficient and stable water supply
The CB10/60 fire pump is one of the core components of Isuzu fire rescue truck, and is known for its efficient and stable performance. The rated flow rate of this fire pump is 60 liters/second and the rated pressure is 1.0 MPa, which can meet the water supply needs of most fire scenes. It has a compact design, easy operation, and supports multiple spray modes, including direct spray, spray and blooming water flow, which can flexibly respond to different types of fire scenes. The CB10/60 fire pump also has the characteristics of fast start-up and stable operation, and can maintain efficient performance even in long-term and high-intensity operations. In addition, the fire pump is equipped with an intelligent control system that can monitor water pressure and flow in real time to ensure the safety and efficiency of firefighting operations.

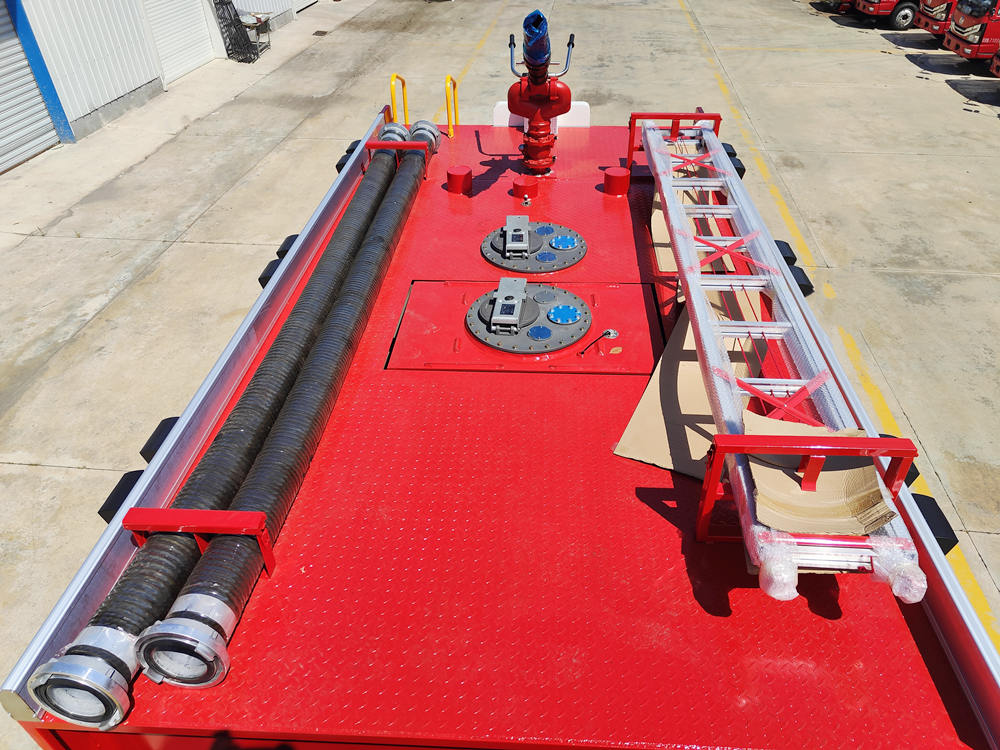

3.PL8/48 fire monitor: a precise and efficient fire extinguishing weapon
The PL8/48 fire monitor is an important fire extinguishing equipment of Isuzu rescue fire truck, with precise and efficient fire extinguishing capabilities. The rated flow rate of this fire monitor is 48 liters/second, and the range can reach more than 80 meters, which can cover a wide range of fire areas. Its design adopts an advanced hydraulic drive system, which is flexible to operate and can achieve 360-degree horizontal rotation and vertical pitch adjustment from -15 degrees to +75 degrees, ensuring that firefighters can accurately control the direction of the spray. The PL8/48 fire monitor supports multiple spray modes, such as direct current, spray and mixed spray, which can adapt to different types of fire scenes. In addition, the fire monitor is made of high temperature and corrosion resistant materials, which can operate stably in extreme environments and significantly improve the efficiency of fire extinguishing.
