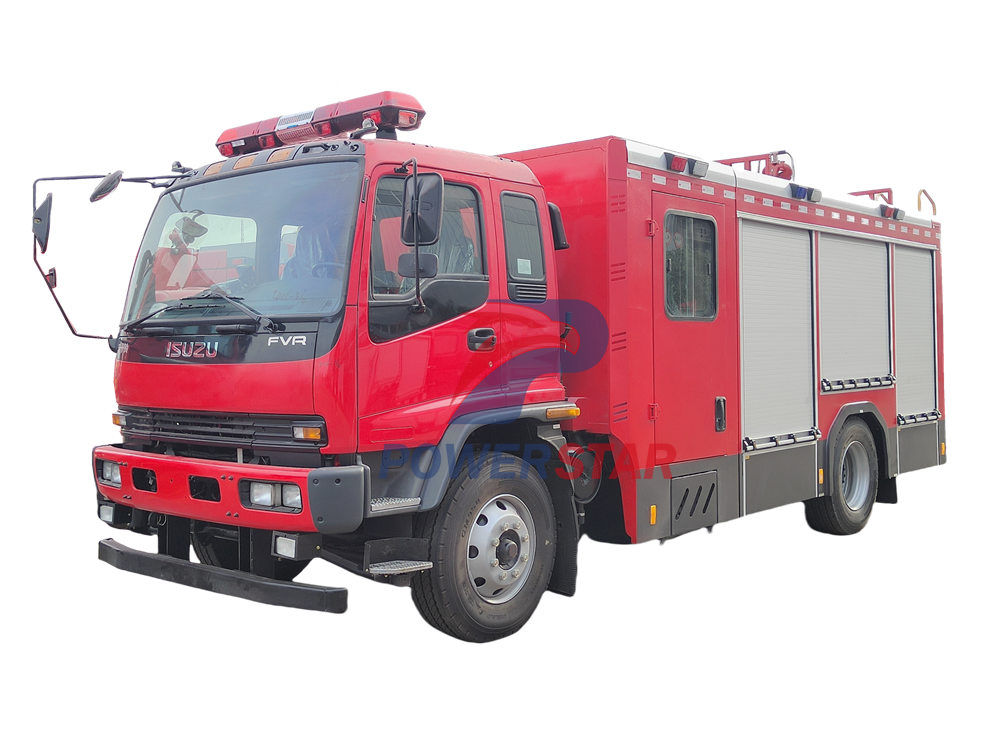

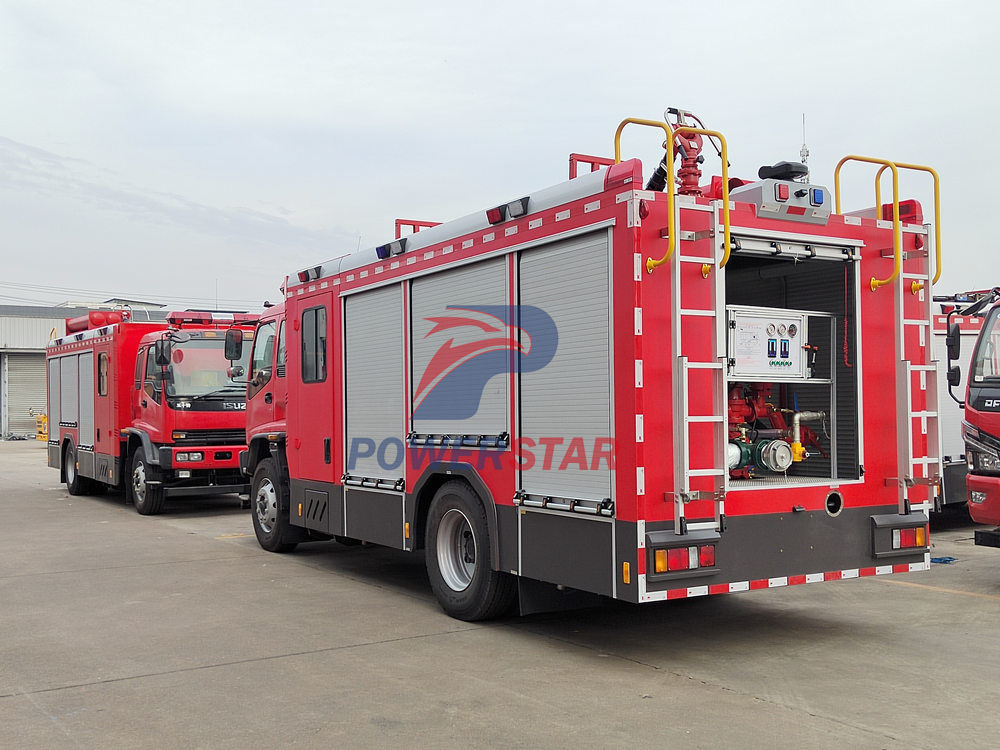

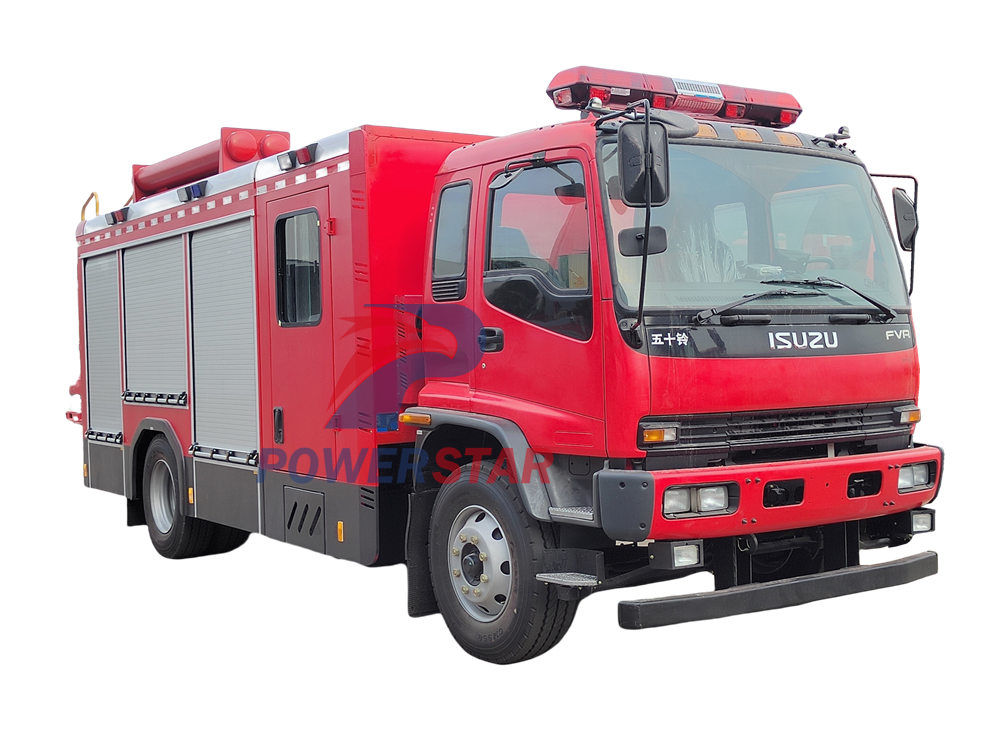

ISUZU FVR 10CBM fire rescue truck is a multifunctional firefighting equipment, which integrates water tank and foam fire extinguishing system. It is suitable for extinguishing various fires, especially for flammable liquid fires such as oil and chemicals. Water and foam fire extinguishing agents can be used at the same time. The foam can quickly cover the fire source, isolate oxygen, and effectively control the spread of the fire.
The vehicle is equipped with a large-capacity water tank and foam liquid tank to ensure long-term combat capability. In addition, the vehicle has strong mobility, can quickly reach the fire scene, is flexible to operate, and can adapt to complex terrain. The advanced injection system and remote control function improve the efficiency and safety of fire extinguishing, and it is an important equipment for modern firefighting teams.

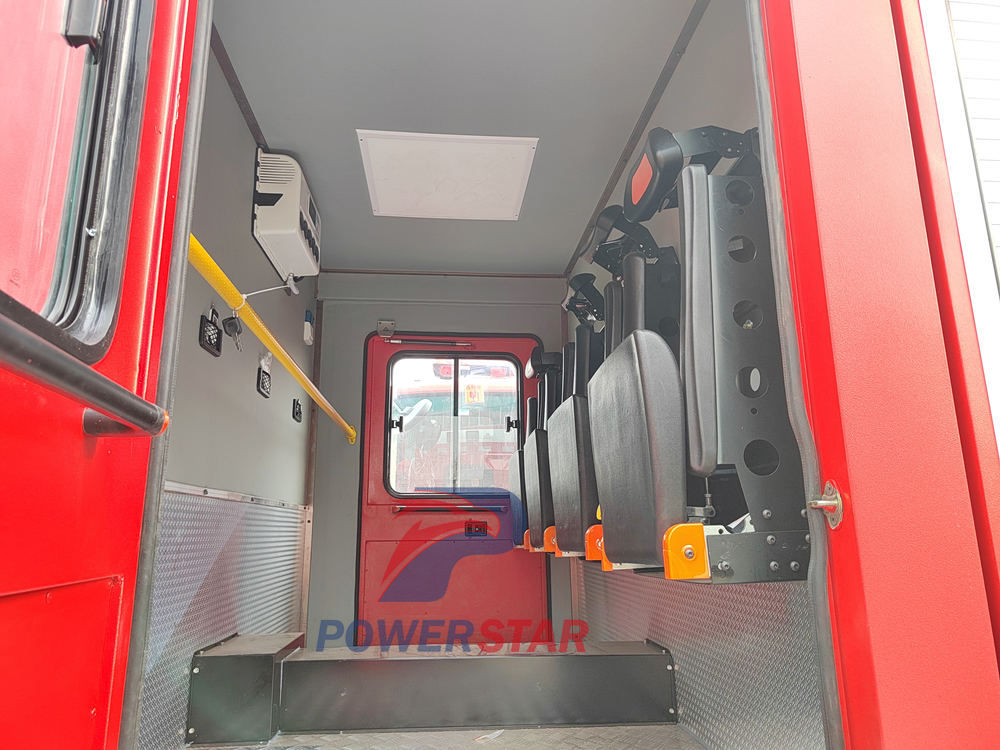

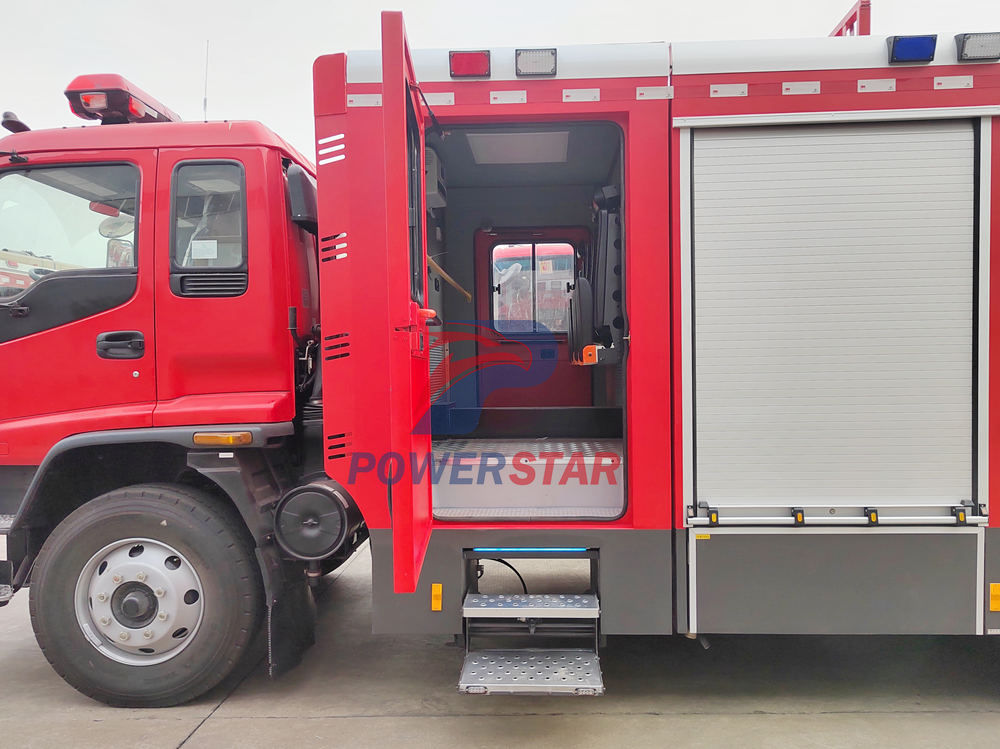

The Isuzu FVR foam water tank fire truck is modified based on the Isuzu FVR 4x2 chassis, with a wheelbase of 4500 mm. It is equipped with a powerful Isuzu 6HK1 diesel engine with a maximum power of 240hp and an Isuzu MLD 6-speed gearbox to ensure that the vehicle can operate efficiently under various road conditions. The cab adopts a 3+4 seat layout and is equipped with air conditioning, USB interface and steering assist system to provide a comfortable working environment for firefighters.

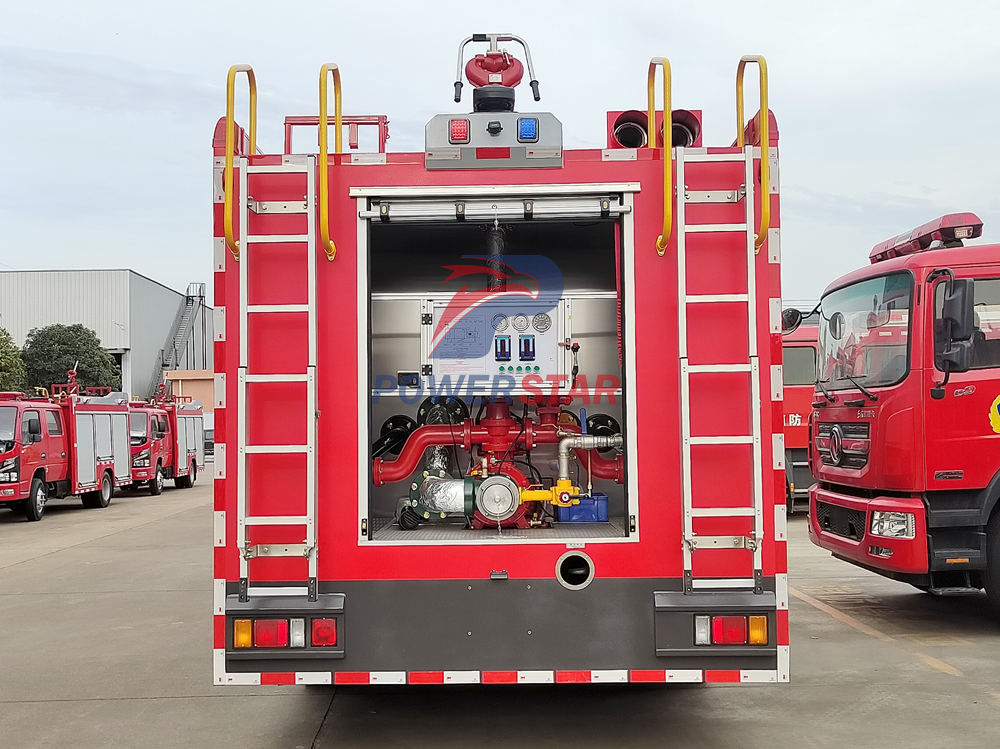

The core configuration of the Isuzu FVR foam water tank fire truck includes a 7 cubic meter water tank and a 3 cubic meter foam box, as well as an independent pump room with a built-in CB10/40 fire pump and PL8/32 fire monitor. In addition, there is a tool room on the vehicle to store rescue tools, further improving the efficiency and flexibility of firefighting operations.
1.Material of Isuzu FVR fire rescue truck
The body of Isuzu fire rescue truck is usually made of high-strength steel to ensure the durability and corrosion resistance of the vehicle in harsh environments. The exterior of the vehicle body has undergone special anti-corrosion treatment and can adapt to complex environments such as high temperature and humidity. Water tanks and foam liquid tanks are mostly made of stainless steel or fiberglass, which are corrosion-resistant and high-pressure-resistant, and can store water and foam liquid for a long time without deterioration. In addition, the chassis of the vehicle is usually a heavy-duty truck chassis, which has good load-bearing capacity and off-road performance, and can maneuver quickly in complex terrain.

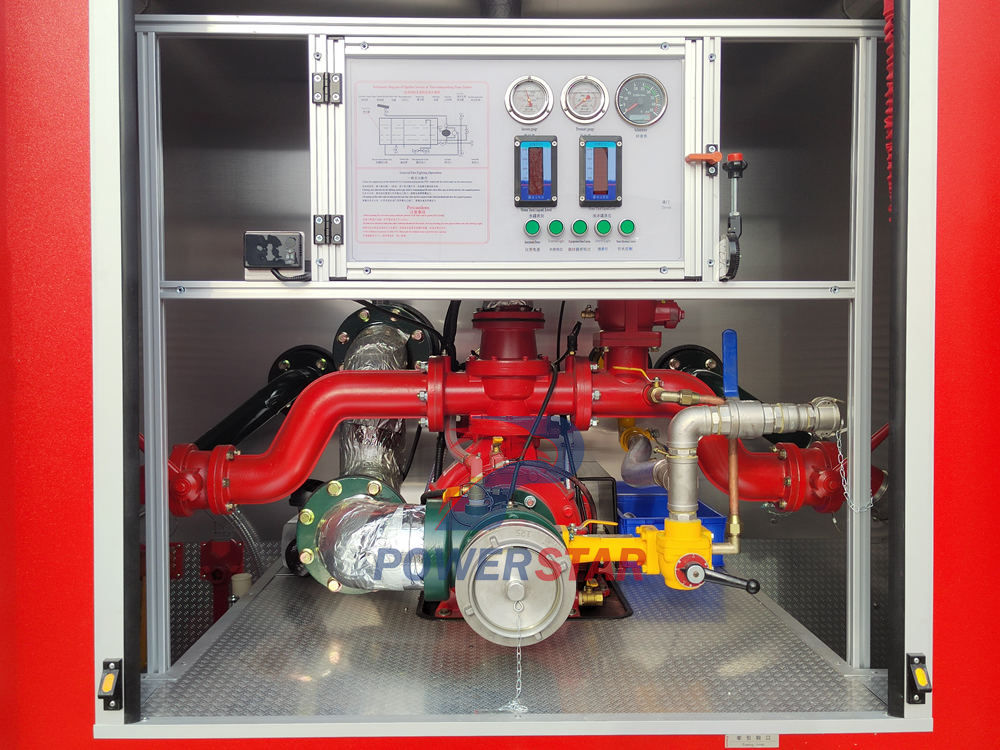

2.CB10/40 fire pump of Isuzu fire fighting truck
The CB10/40 fire pump is one of the core components of Isuzu fire fighting truck, with high efficiency and stable performance. The pump has a rated flow of 40 liters/second and a rated pressure of 1.0 MPa, which can provide a large amount of water in a short time to meet the needs of fire fighting. The CB10/40 fire pump adopts a centrifugal design, compact structure, smooth operation, low noise, and self-priming function. It can directly absorb water from natural water sources (such as rivers and lakes), which improves the efficiency of fire fighting. In addition, the pump is also equipped with overheat protection and automatic lubrication system to ensure reliability during long-term operation.

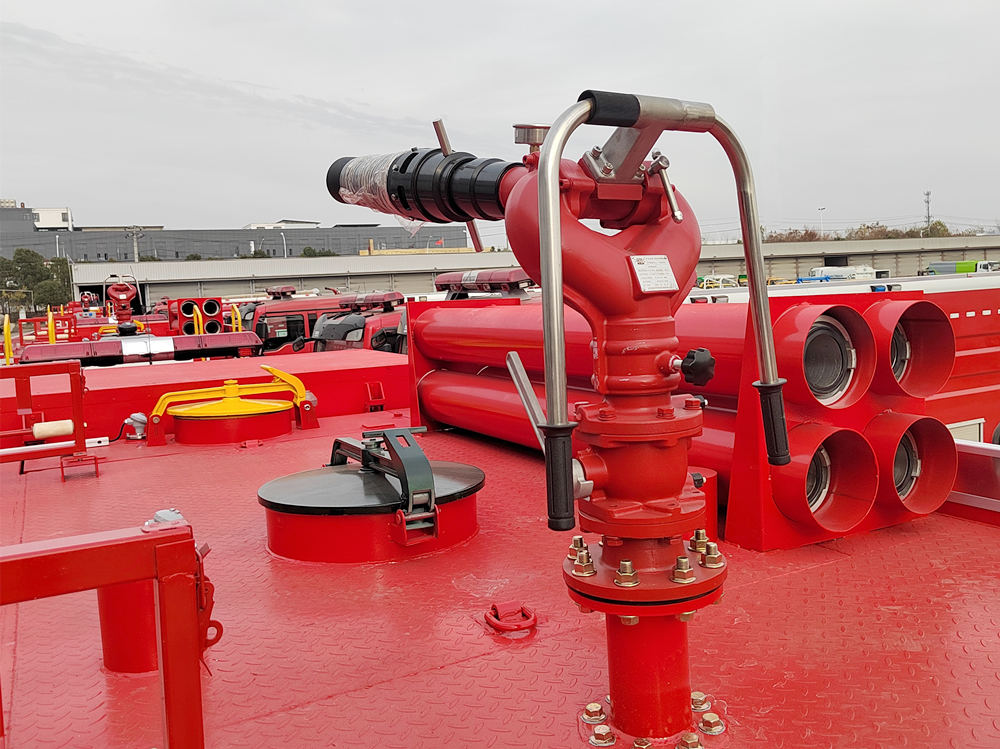

3. PL8/32 fire cannon of Isuzu foam fire truck
PL8/32 fire cannon is another important equipment of Isuzu foam fire truck, which is mainly used for long-distance spraying of water and foam mixture. The rated flow rate of this fire cannon is 32 liters/second, and the range can reach more than 60 meters, which can cover a large area of fire source. PL8/32 fire cannon is made of all copper or stainless steel, which is resistant to high temperature and corrosion, and can work stably in extreme environments. Its design is flexible, and it can be operated manually or remotely to adjust the spray angle and flow rate to adapt to different fire extinguishing scenarios. In addition, the fire cannon is also equipped with a foam proportion mixer, which can automatically adjust the foam mixing ratio according to the fire situation to improve the fire extinguishing efficiency.
4.Features of ISUZU FVR 10CBM fire rescue truck
Versatility: It can use both water and foam fire extinguishing agents, and is suitable for extinguishing fires of flammable liquids such as oils and chemicals.
Efficient fire extinguishing: Foam fire extinguishing agents can quickly cover the source of fire, isolate oxygen, and effectively control the spread of fire, especially suitable for large-scale fires.
Large-capacity liquid storage: Equipped with large-capacity water tanks and foam liquid tanks to ensure long-term combat capability and reduce the frequency of replenishment.
Strong mobility: It adopts a heavy-duty chassis with good off-road performance, can quickly reach the fire scene, and adapt to complex terrain.
Flexible operation: Equipped with advanced remote control systems and automation equipment, it is easy to operate and improves fire extinguishing efficiency and safety.
High reliability: Key components are made of high-quality materials and have been rigorously tested to ensure stable operation in extreme environments.
