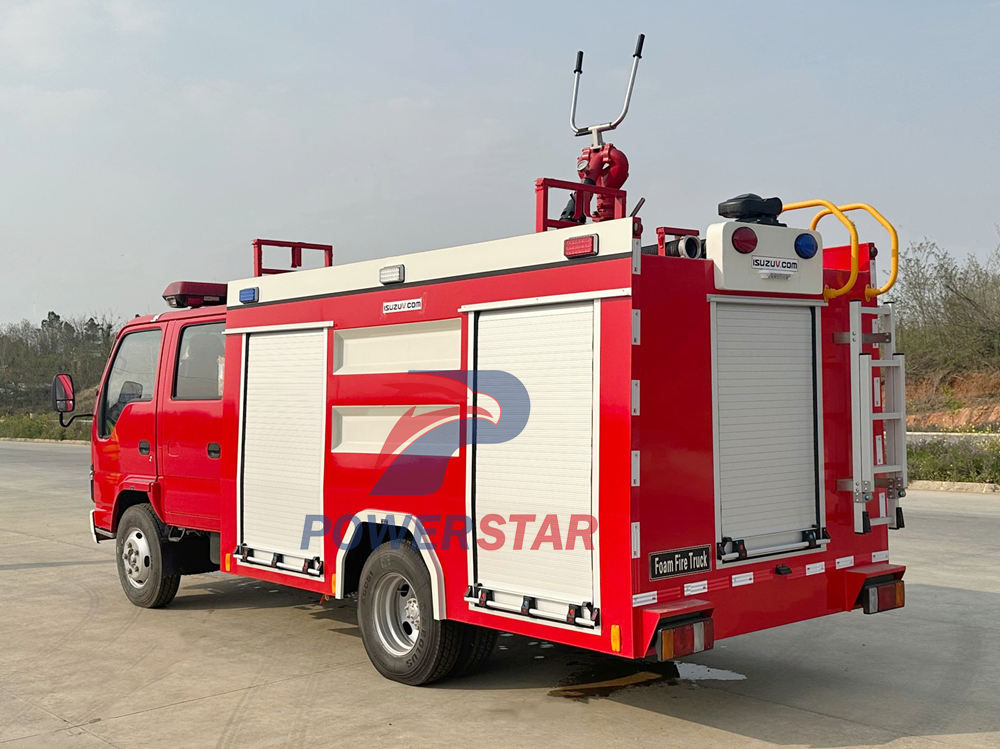

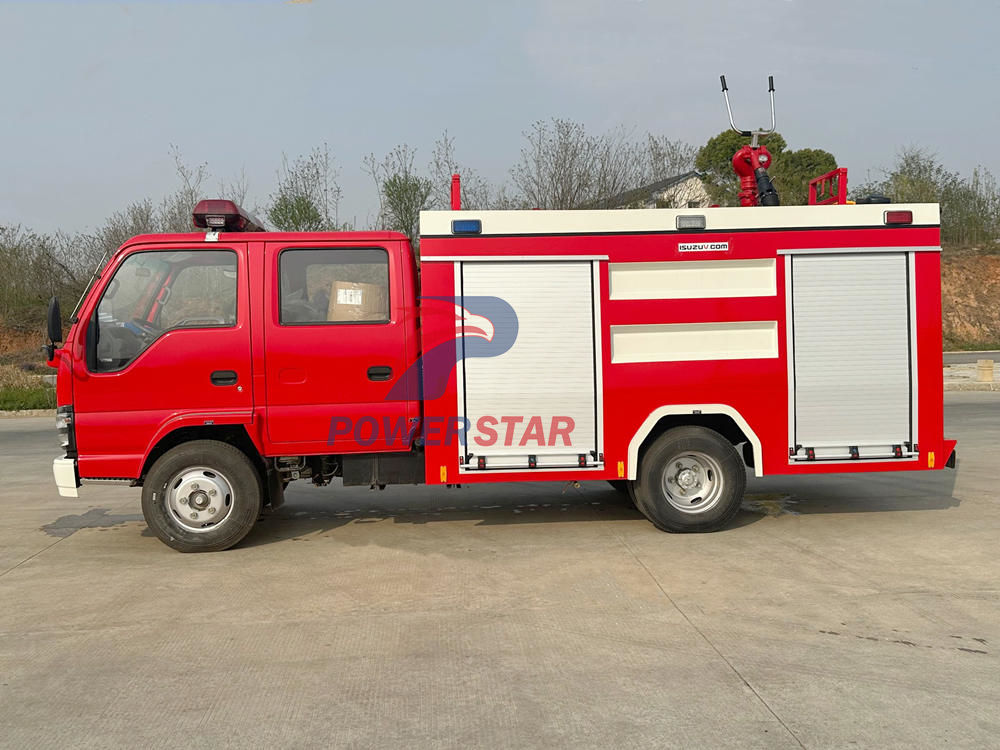

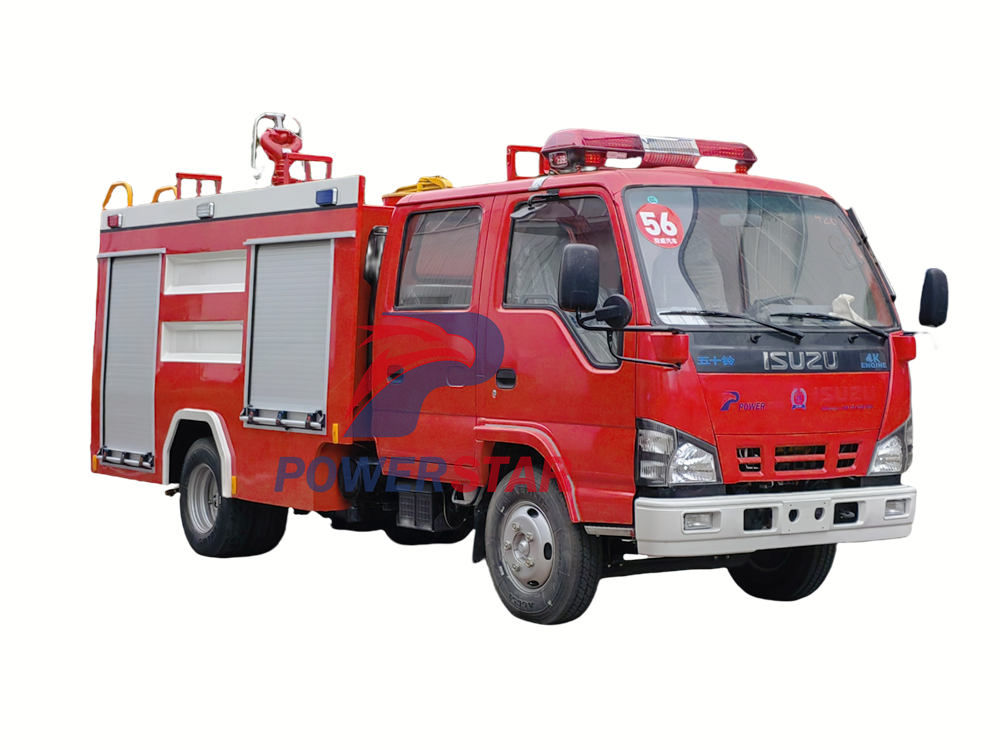

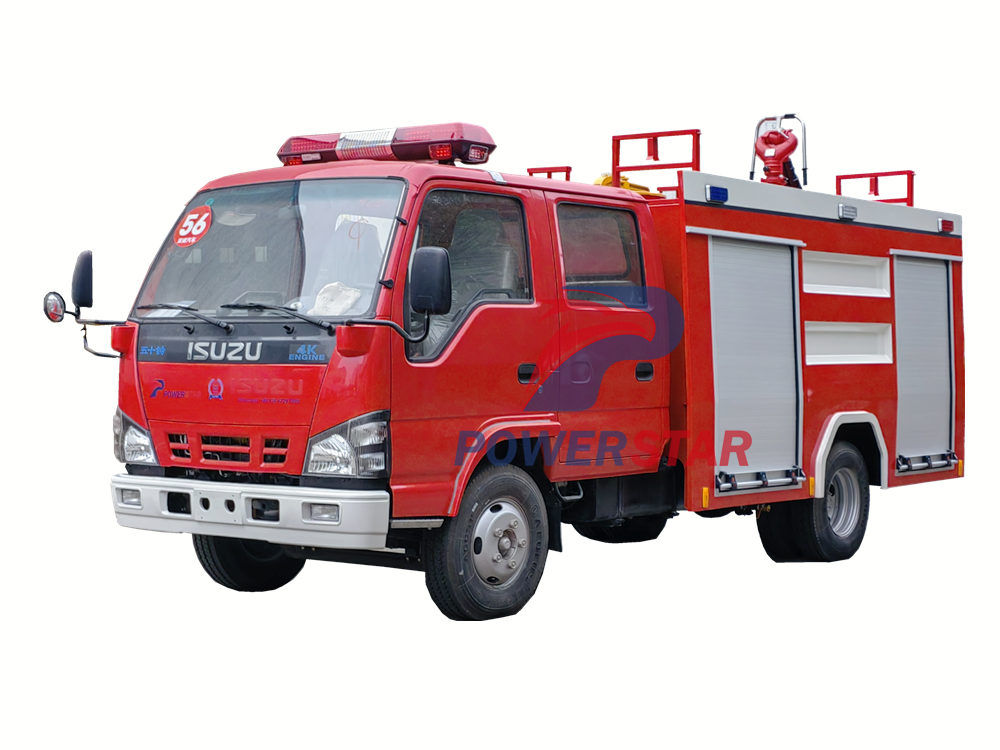

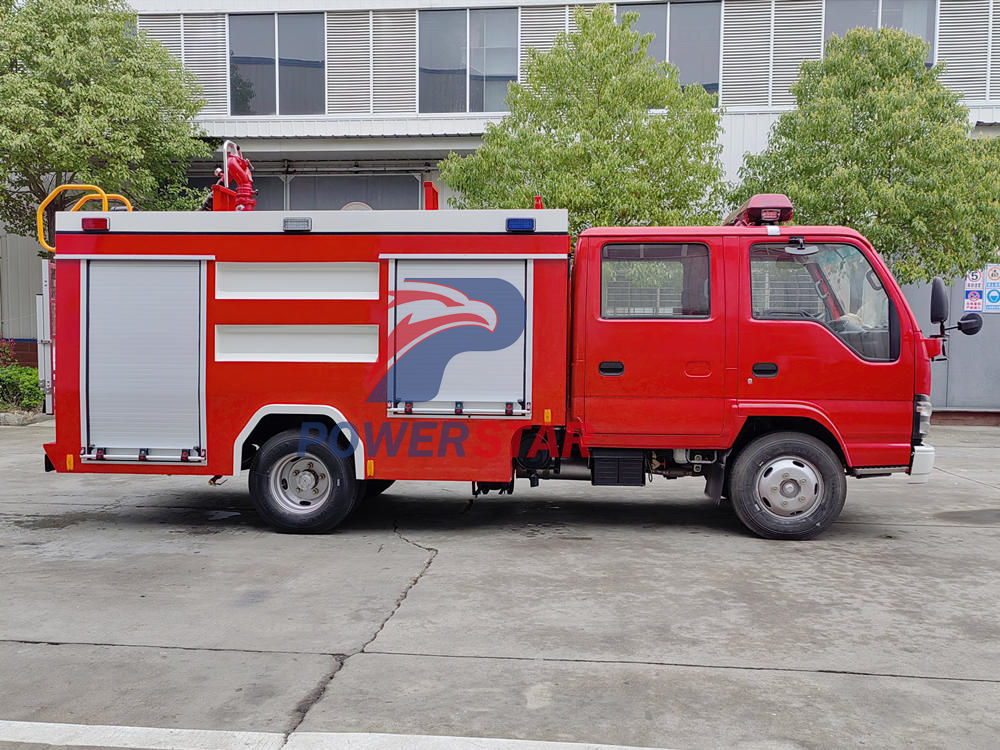

Isuzu NKR fire water tank truck is an efficient and reliable fire fighting equipment, known for its excellent performance and flexibility. The vehicle adopts Isuzu 600P chassis and is equipped with a powerful diesel engine, which is powerful and fuel-efficient, suitable for long-term operations. The vehicle body has a solid structure and is equipped with a large-capacity water tank to ensure sufficient water supply. Its fire pump has excellent performance, can quickly absorb water and spray it over a long distance, and has high fire extinguishing efficiency.
Isuzu NKR 3000L fire water tank truck also known as Isuzu fire fighting truck, Isuzu fire tender, Isuzu resuce fire truck, Isuzu water foam fire truck, is an impressive firefighting weapon that combines advanced technology with powerful performance.
The Isuzu fire water tank truck is modified on the Isuzu NKR 4x2 chassis,with 3360mm wheelbase,Isuzu 4KH1CN6LB 120HP diesel engine, with Isuzu MSB 5-speed gearbox,the cabin 2+3 person,with A/C,USB,direction assistance.The truck equipped with 2cbm carbon steel water tank and 1 cubic meter foam box,has a pump room(CB10/30 fire pump,fire equipment) a tool room,witch can assist firefighting operations.
1.Material of Isuzu fire water tank truck
The body of Isuzu NQR fire water tank truck is usually made of high-strength steel or aluminum alloy, which has excellent pressure resistance, corrosion resistance and impact resistance, and can adapt to various complex environments. The exterior of the body has undergone special anti-corrosion treatment and can be used for a long time under harsh conditions such as high temperature and humidity. Water tanks and foam tanks are mostly made of stainless steel or fiberglass to ensure long-term storage of water and foam liquid without deterioration.
2.2000L water tank and 1000L foam tank
Isuzu fire fighting truck is equipped with 2000L water tank and 1000L foam tank, which can store water and foam fire extinguishing agent at the same time to meet various fire fighting needs. The water tank is made of stainless steel, and the interior is treated with anti-corrosion to ensure the clean water quality; the foam tank is used to store foam stock, which is mixed with water through a proportioning mixer to form a foam fire extinguishing agent. This design enables the vehicle to use water alone to extinguish fires, and to use foam to extinguish flammable liquid fires such as oils and chemicals, and has a wide range of applications.
3.CB10/30 fire pump
CB10/30 fire pump is one of the core components of Isuzu fire water tank truck, with high efficiency and stable performance. The pump has a rated flow of 30 liters/second and a rated pressure of 1.0 MPa, which can provide a large amount of water in a short time to meet the needs of fire fighting. CB10/30 fire pump adopts centrifugal design, compact structure, smooth operation, low noise, and self-priming function. It can directly absorb water from natural water sources (such as rivers and lakes), which improves the efficiency of fire fighting.
