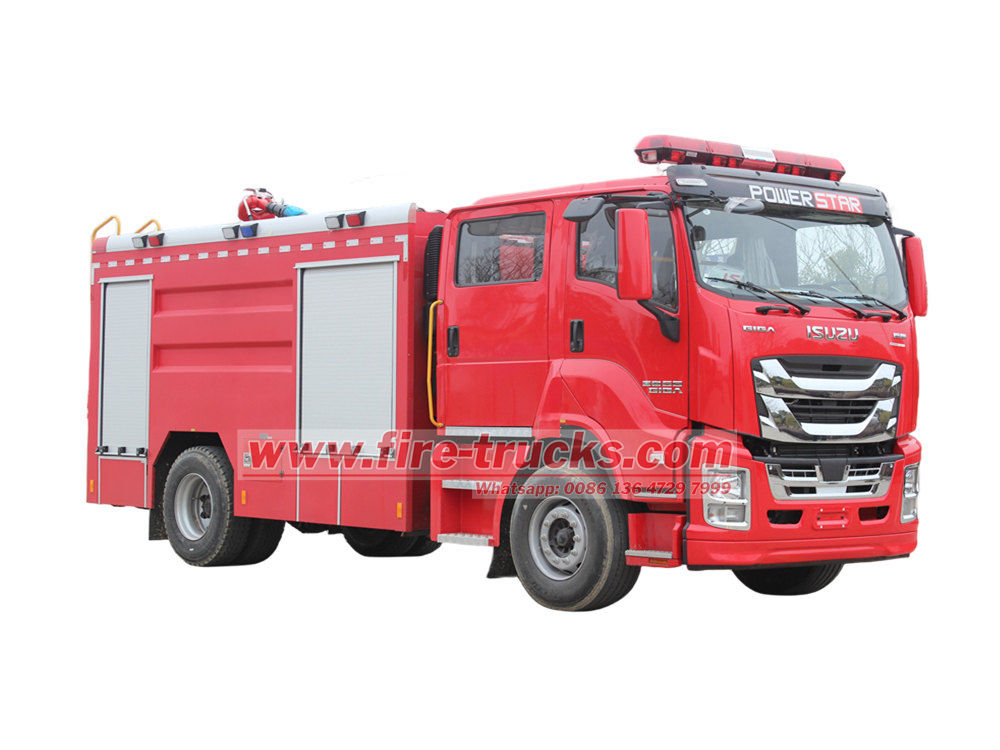

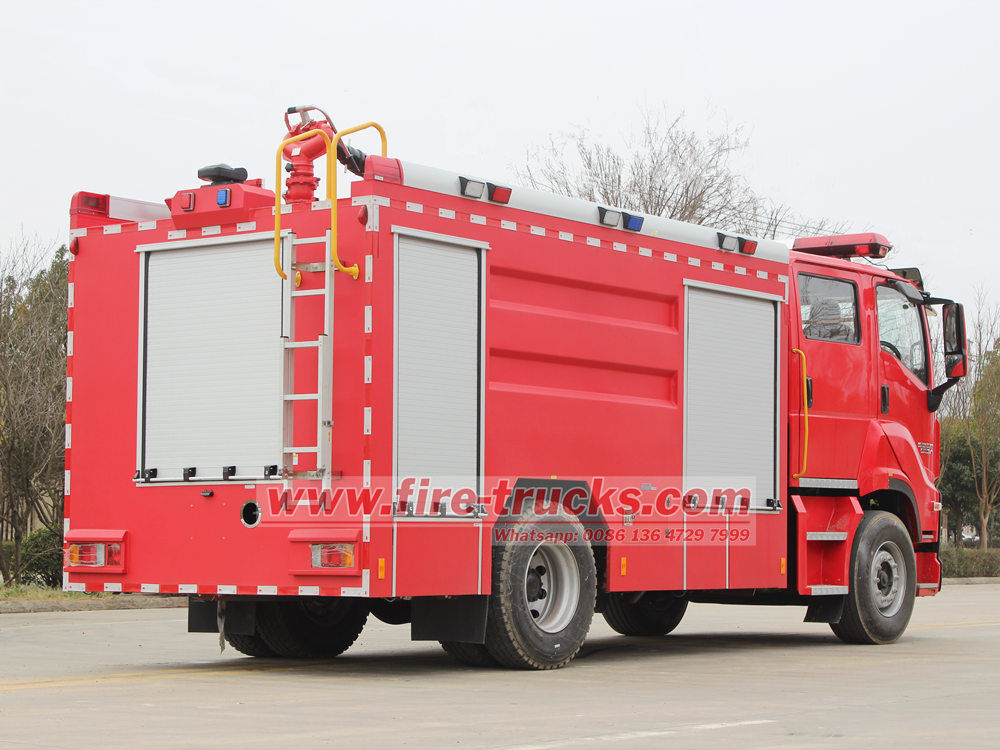

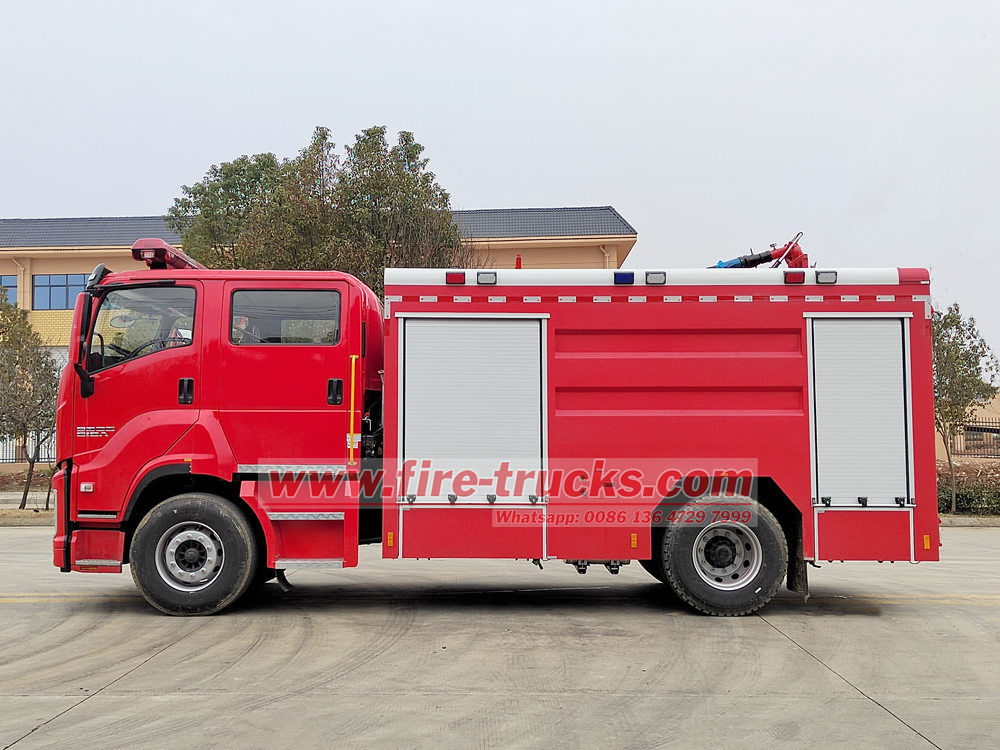

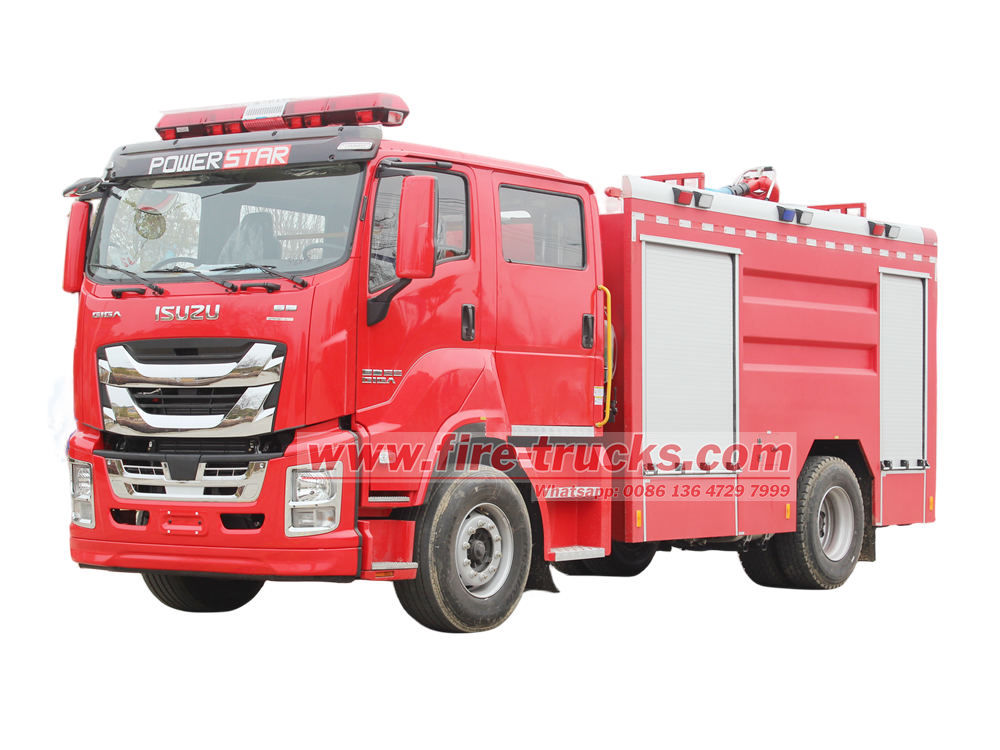

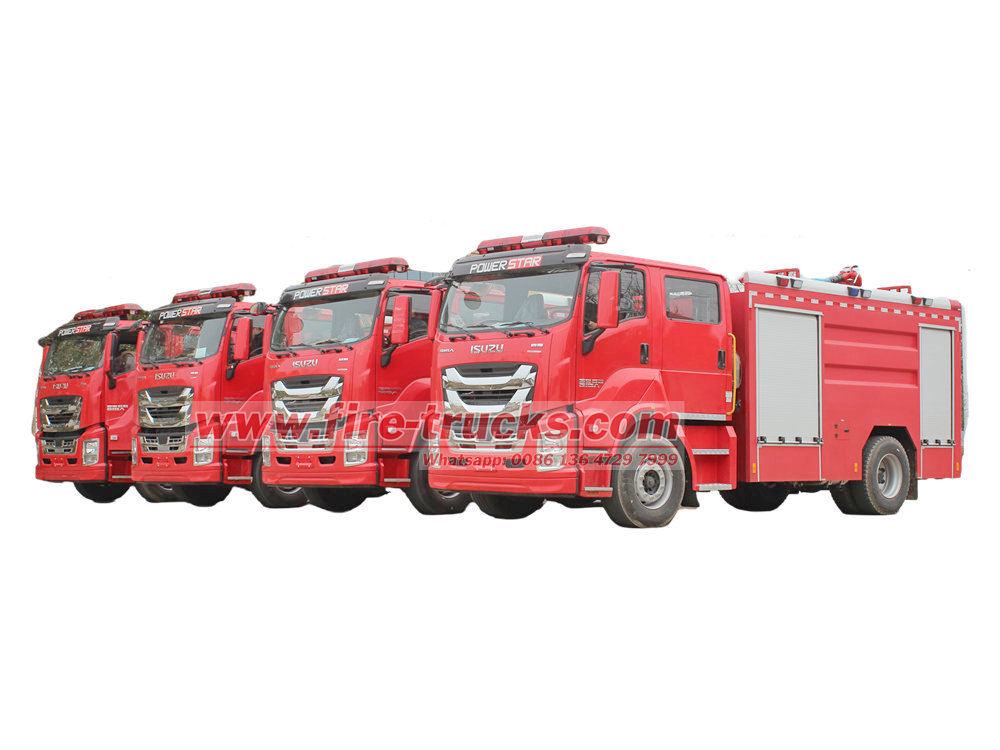

ISUZU GIGA 8000 liters water foam fire truck is a multifunctional firefighting vehicle that integrates a water tank and a foam fire extinguishing system. It is widely used to extinguish various fires, especially flammable liquid fires such as oils and chemicals.
It is characterized by being equipped with independent water tanks and foam liquid tanks. Through high-pressure water pumps and foam proportioning mixers, it can spray water and foam fire extinguishing agents simultaneously or separately to meet various fire extinguishing needs. The vehicle is equipped with adjustable spraying devices such as foam cannons and water guns, which can extinguish fires at a long distance and accurately.

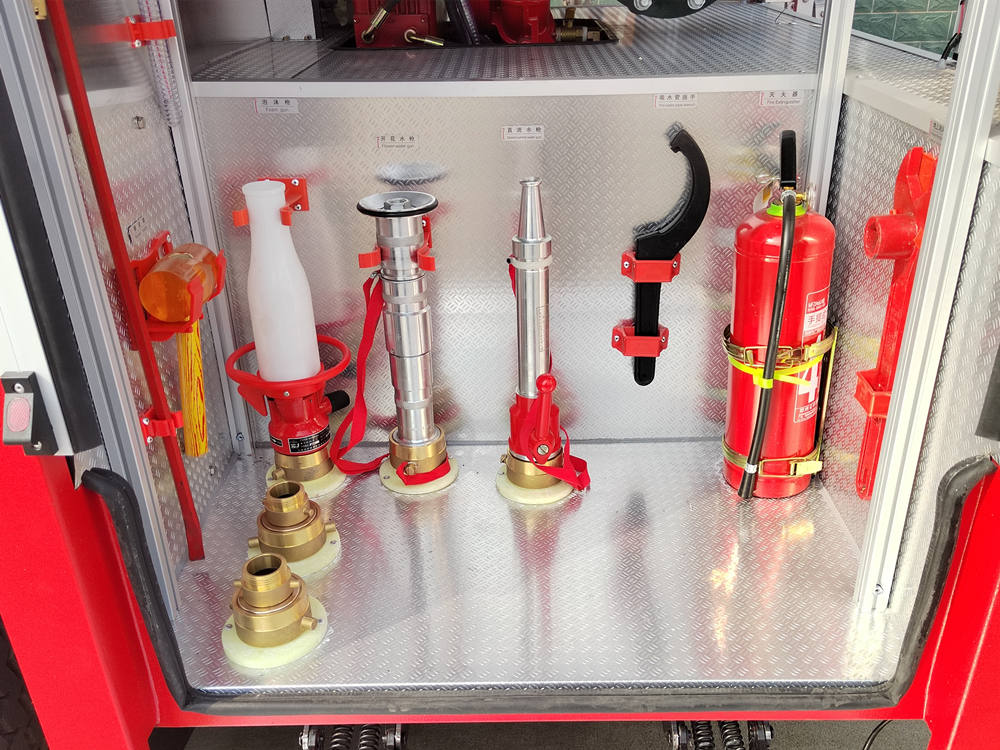

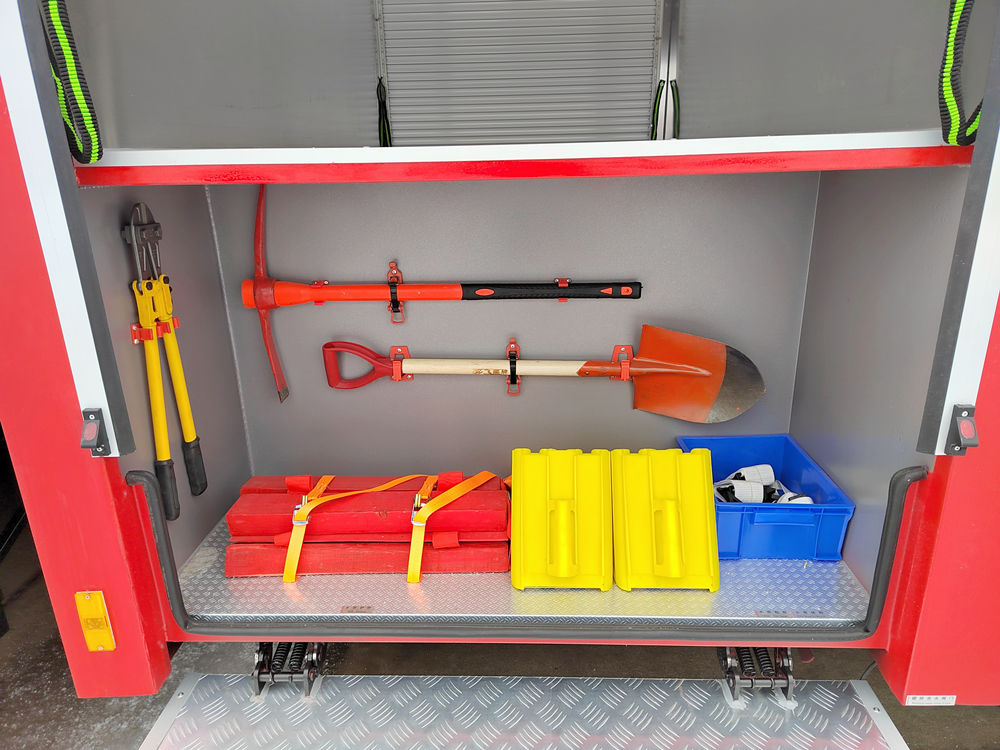

Isuzu GIGA 8000L water foam fire truck also known as Isuzu fire fighting truck,Isuzu foam powder fire truck, Isuzu resuce fire truck, Isuzu emergency rescue fire truck, is an impressive firefighting weapon that combines advanced technology with powerful performance. The rescue fire truck made by Isuzu GIGA chassis is also equipped with a water collector, a water filter, a water distributor, a variety of water guns and foam guns, fire hoses and personal protective equipment, etc., providing comprehensive support for firefighters.
The Isuzu GIGA water foam fire truck is modified on the Isuzu GIGA 4x2 chassis,with 4500mm wheelbase,Isuzu 6UZ1-TCG61 380HP diesel engine,with a 12-speed gearbox,the cabin 3+3 person,with A/C,USB,direction assistance.The truck equipped with 6cbm carbon steel water tank and 2cbm 304 stainless steel foam tank,has a pump room(CB10/60 fire pump,fire equipment) a tool room,witch can assist firefighting operations.
1. Materials and design of Isuzu fire fighting truck
The materials used in Isuzu GIGA fire fighting truck focus on strength, corrosion resistance and lightness to ensure its durability and efficiency. The body is made of high-strength steel or aluminum alloy, which not only ensures the stability of the structure, but also reduces the weight of the whole vehicle and improves maneuverability. Water tanks and foam tanks are mostly made of stainless steel or anti-corrosion coated carbon steel to prevent water and foam liquid from corroding the tank body and extend the service life.
2. Core equipment of Isuzu fire truck

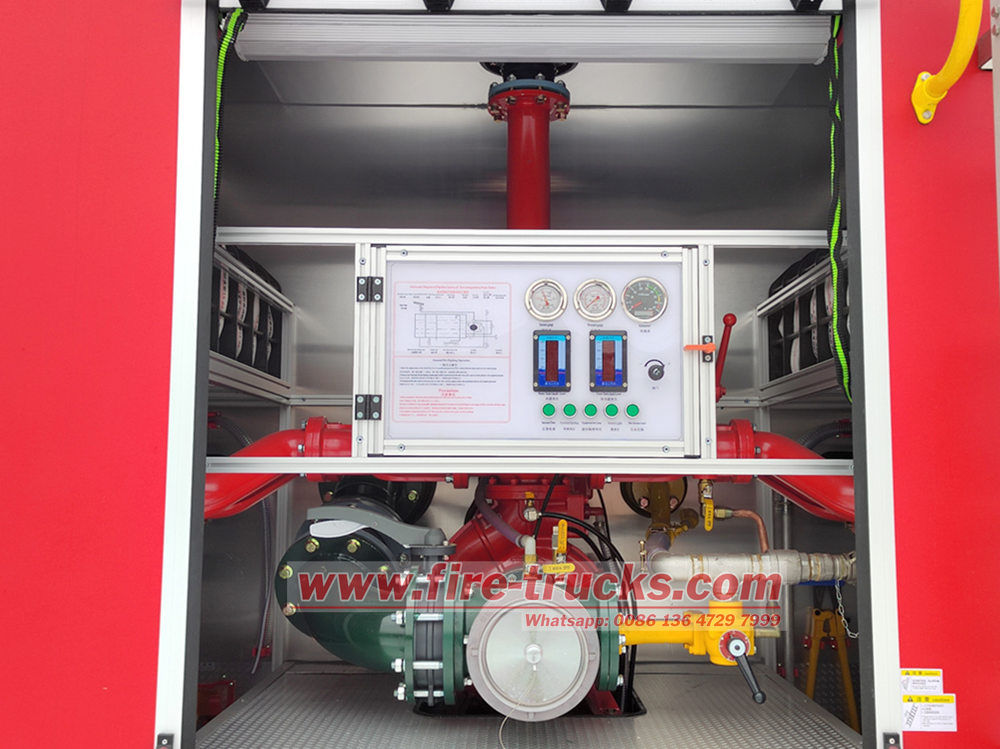

The CB10/60 fire pump and PL8/48 fire monitor of Isuzu GIGA fire truck are its core firefighting equipment with excellent performance. Made of high-strength corrosion-resistant materials, the CB10/60 fire pump has a flow rate of up to 6,000 liters per minute and a pressure of up to 1.0 MPa. It can quickly deliver a large amount of water and foam mixture to meet the needs of high-intensity firefighting. It has a compact design, stable operation, and adapts to various complex environments.
The PL8/48 fire monitor has long-distance, large-flow spraying capabilities, with a maximum range of up to 80 meters and a flow rate of 4,800 liters per minute. It can flexibly adjust the spray angle and mode to achieve a variety of firefighting methods such as direct current and spray. The two work together to significantly improve the efficiency of firefighting, which is the key guarantee for the efficient operation of Isuzu fire truck.
3. Wide range of uses, suitable for a variety of fire scenarios
Isuzu water foam fire truck is mainly used to extinguish solid fires (such as building and wood fires) and liquid fires (such as oil and chemical fires). Its uniqueness lies in the ability to use water and foam fire extinguishing agents simultaneously or separately, so it has extremely high flexibility in dealing with different types of fires. For example, when extinguishing oil fires, foam fire extinguishing agents can effectively isolate the air and suppress the spread of fire; while when extinguishing ordinary solid fires, water is the most direct and economical fire extinguishing medium.
