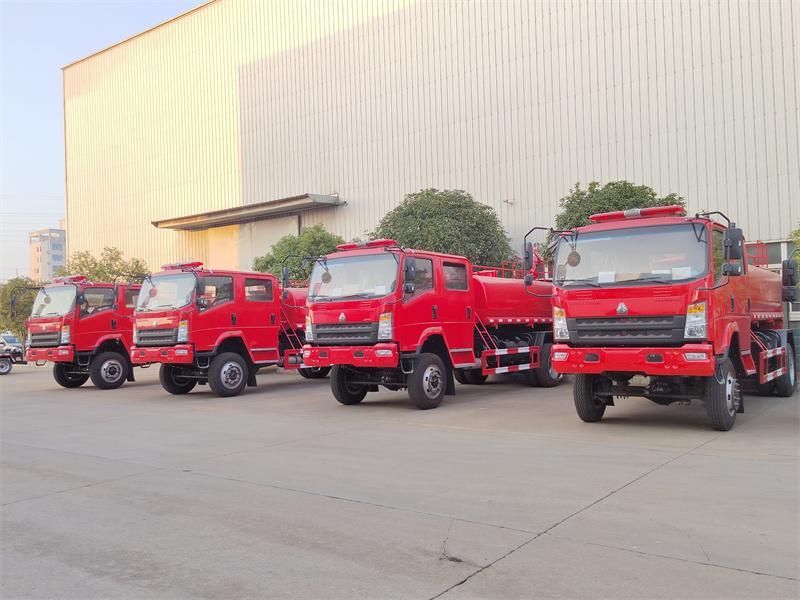

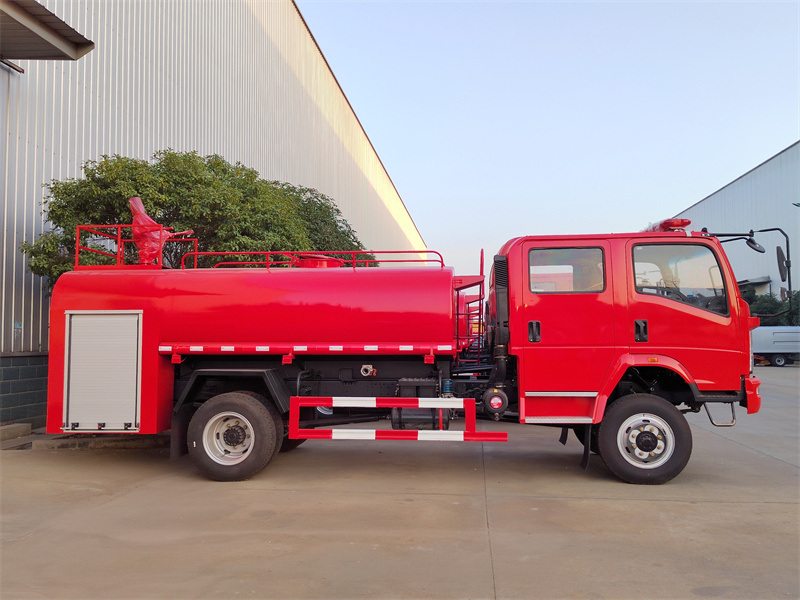

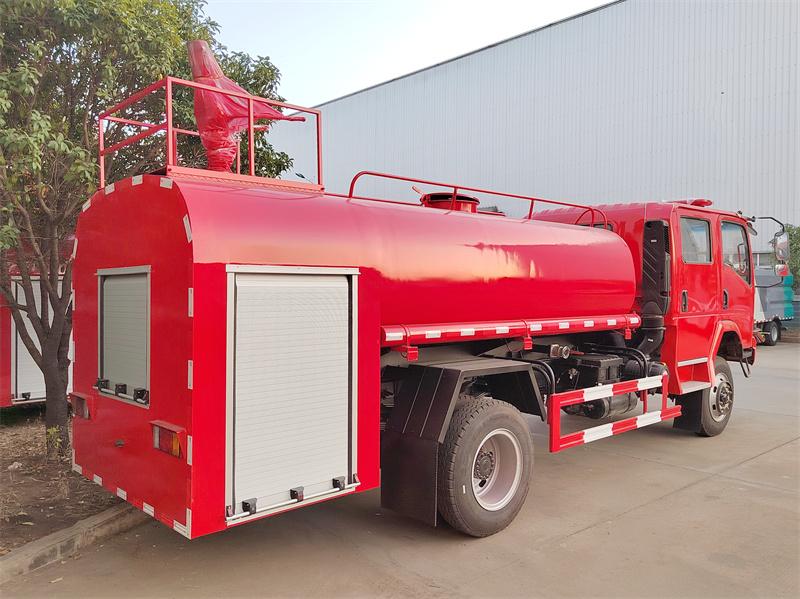

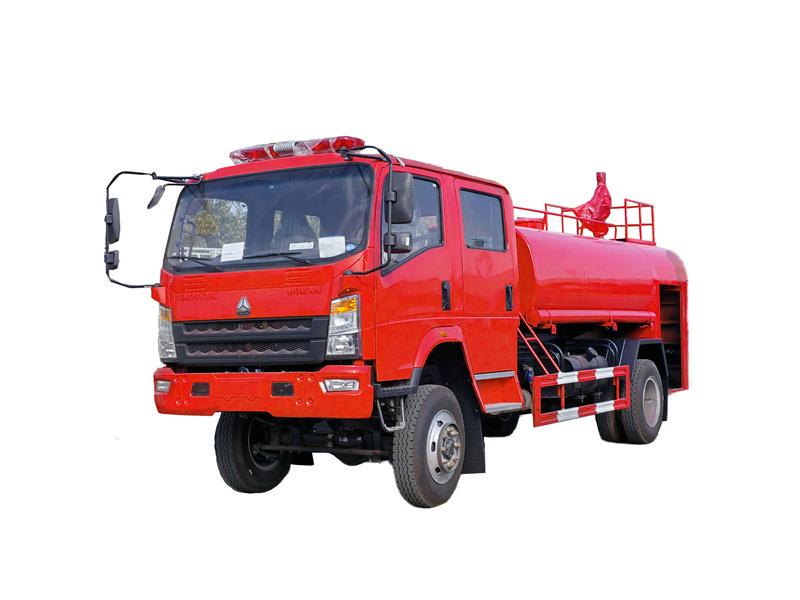

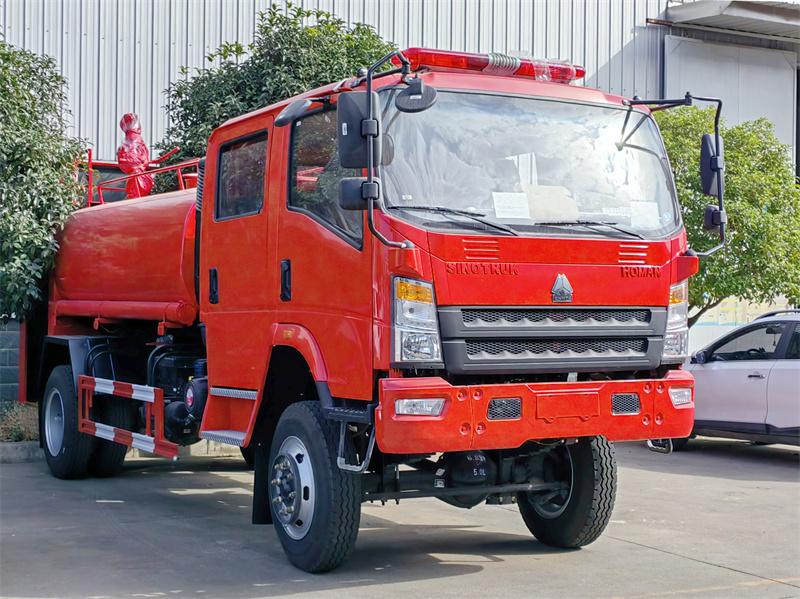

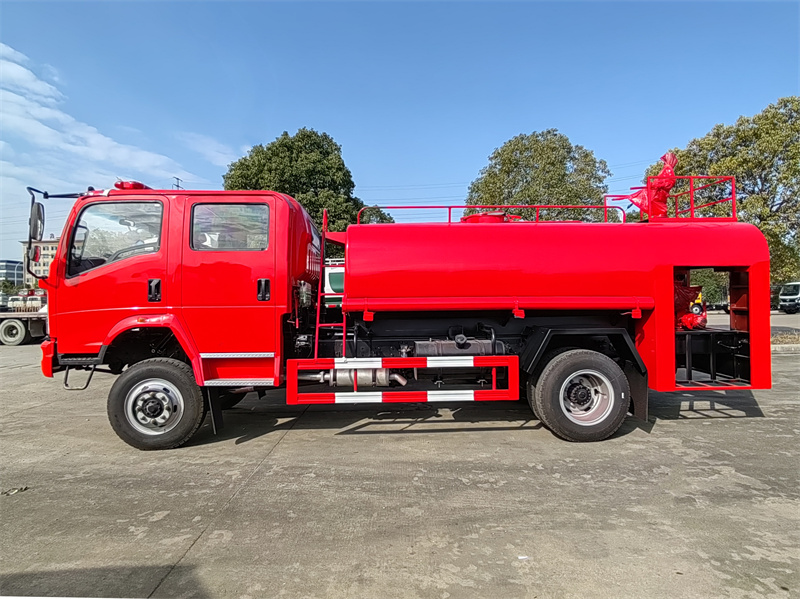

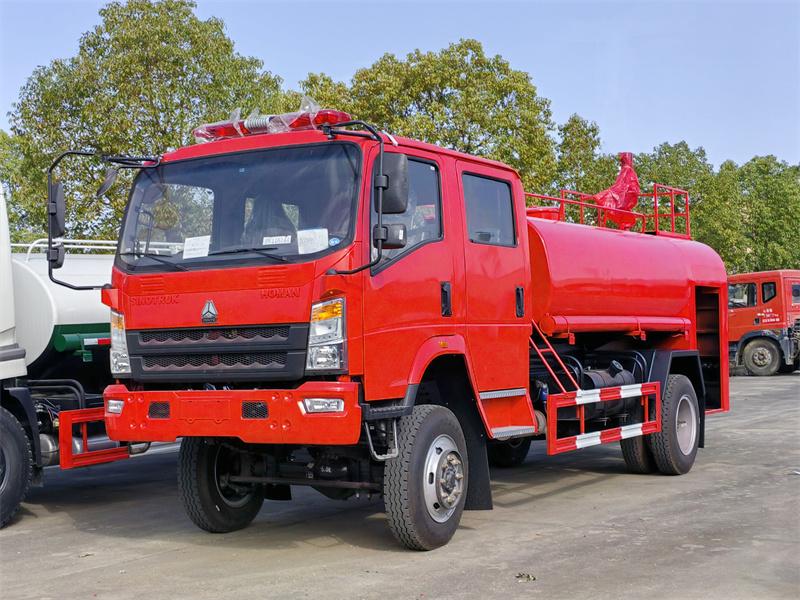

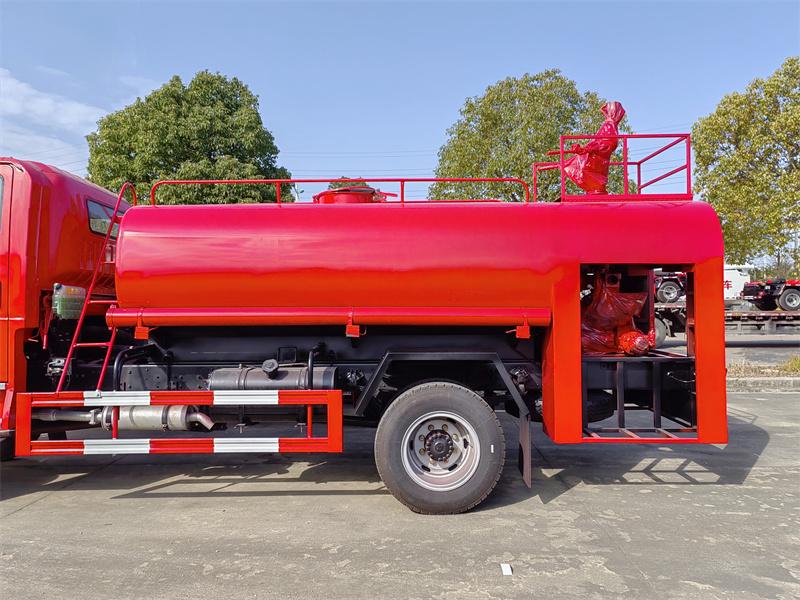

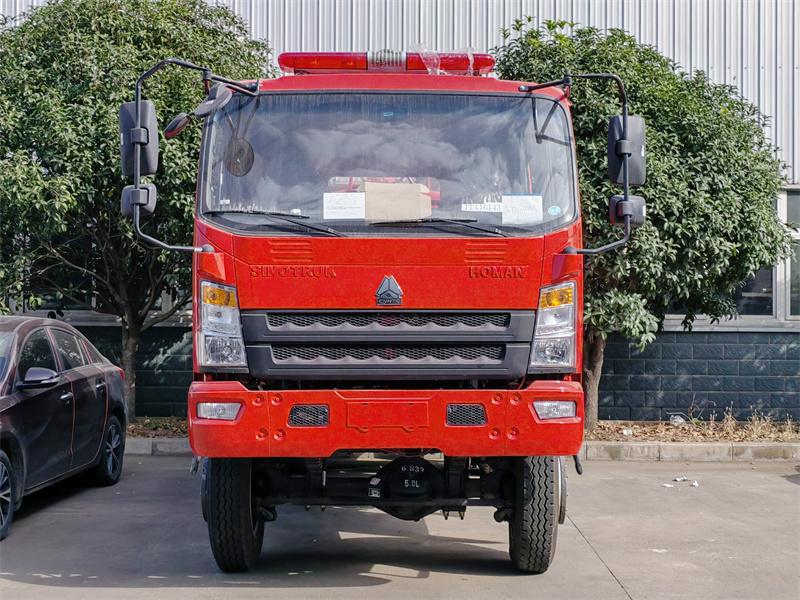

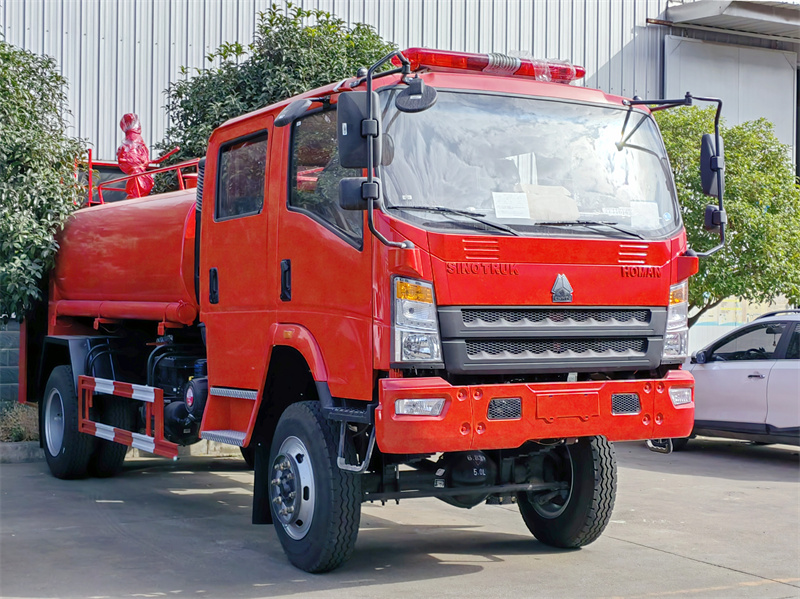

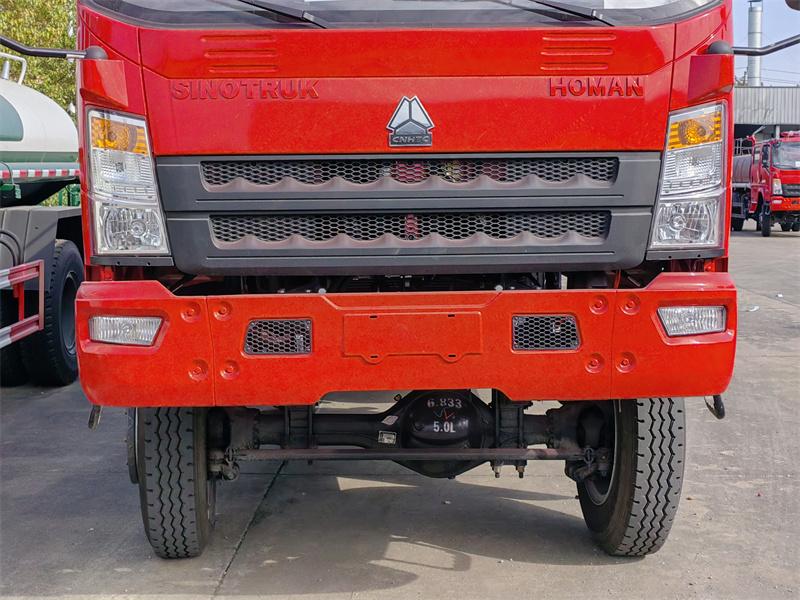

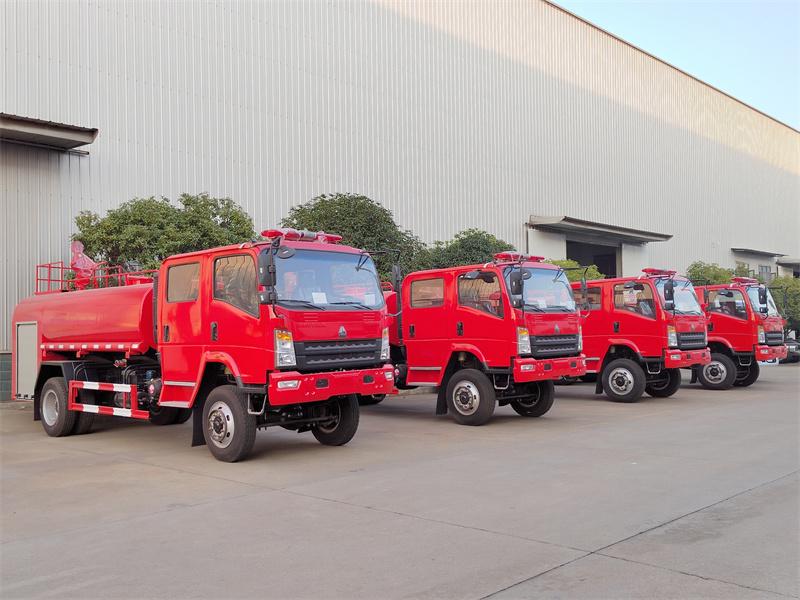

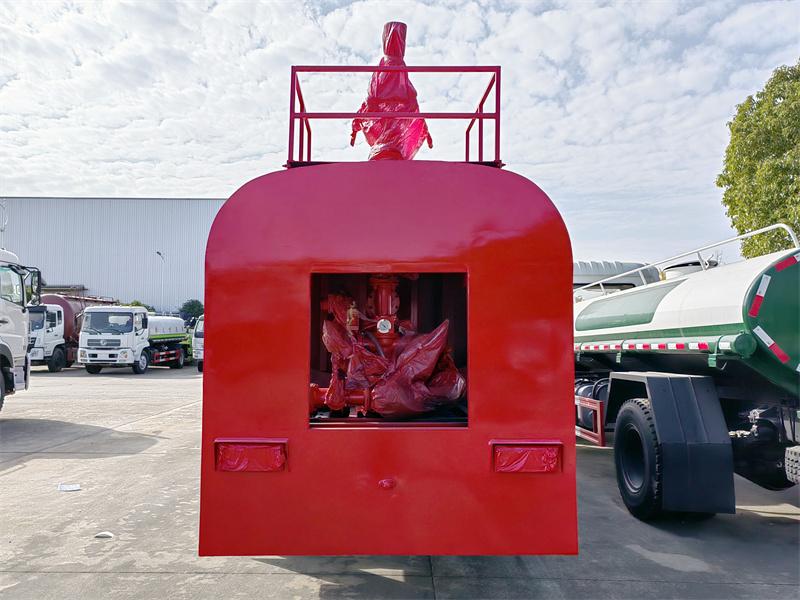

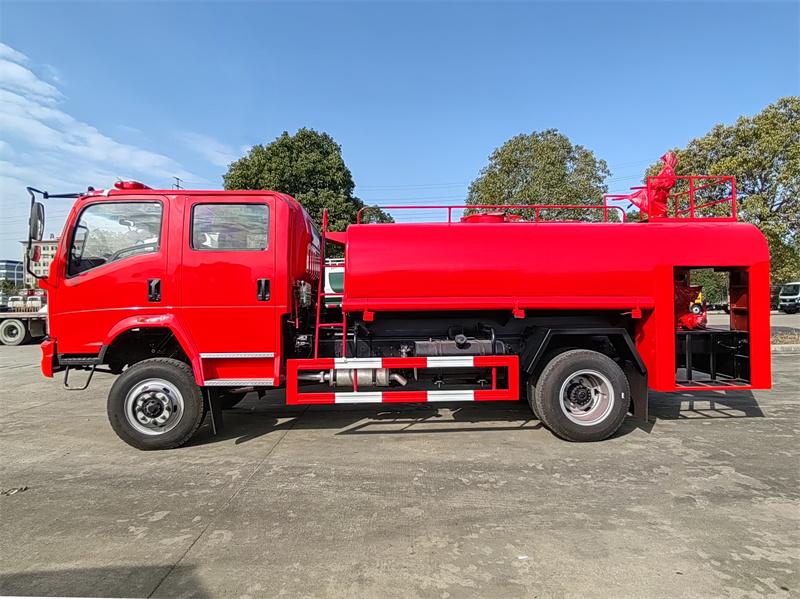

The HOWO 4X4 Rescue Fire water tanker is a professional firefighting vehicle designed to respond to emergency fire situations. It is equipped with the HOWO 4X4 chassis and can accommodate 3+3 passengers. Equipped with a ISF3.8S3154 engine, the output power reaches 154 horsepower, meeting the power needs of the HOWO 4X4 Rescue Fire fighting truck. The Howo fire adopts EURO Level 6 emission standards, and the emissions are clean and environmentally friendly. Equipped with 8.25R16 tires to ensure stable driving in emergency situations. In terms of fire protection performance, the Howo off-road Fire fighting truck has a water tank capacity of 6000 L. It is equipped with CB10/40 XZ fire pump and PS40 fire cannon, and can provide 36L/S@1.0MPa With a rated flow rate of 32L/S@2.0MPa and a range of more than 45 meters, it ensures effective fire extinguishing operations.
Truck Model:
PST51107QXFTanker Structure:
High quality Q235A carbon steelWork capacity :
6000LWheelbase:
4200mmAxle drive:
4x4Engine Power:
154 HPEngine Model:
ISF3.8S3154Fire Pump:
CB10/40, 1800L/minFire Monitor:
PL8/40, Flow rate 40 L/S at 0.8 MpaRemark:
off-road system, Stainless Steel avaiable
The HOWO 4X4 Rescue Fire water tanker is a professional firefighting vehicle designed to respond to emergency fire situations. It is equipped with the HOWO 4X4 chassis and can accommodate 3+3 passengers. Equipped with a ISF3.8S3154 engine, the output power reaches 154 horsepower, meeting the power needs of the HOWO 4X4 Rescue Fire fighting truck. The Howo fire adopts EURO Level 6 emission standards, and the emissions are clean and environmentally friendly. Equipped with 8.25R16 tires to ensure stable driving in emergency situations. In terms of fire protection performance, the Howo off-road Fire fighting truck has a water tank capacity of 6000 L. It is equipped with CB10/40 XZ fire pump and PS40 fire cannon, and can provide 36L/S@1.0MPa With a rated flow rate of 32L/S@2.0MPa and a range of more than 45 meters, it ensures effective fire extinguishing operations.
In addition, the Howo off-road Fire water tank truck is also equipped with a series of standard configurations, such as "U"-shaped subframe, safety protection facilities, cab work lights, top lift work lights, rear work lights, generators, and a full set of fire protection equipment. Equipment, grab rails, mudguards and rubber fenders, as well as English operating manual, spare parts list and all necessary export documents. In addition, users can also choose optional configurations such as rear knuckle boom crane, front heavy-duty trailer winch or front snow removal equipment as needed to meet different emergency rescue needs. The Howo off-road Fire water tank truck integrates the reliability of the Howo 4x4 truck series and professional firefighting equipment, making it an ideal choice for responding to fire emergencies.
● China best off-road water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Specification:
|
Howo 4X4 fire fighting Water Bowser |
||
|
General |
Vehicle Brand |
Powerstar Trucks |
|
Chassis Brand |
Howo |
|
|
Overall Dimension |
7300 * 2350 * 3150 mm |
|
|
GVW / Kerb Weight |
13,055kg / 7,300kg |
|
|
Cab |
Cab Capacity |
3+3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
Cummins |
|
|
Model |
ISF3.8S3154 |
|
|
Power |
154 HP (115 KW) |
|
|
Displacement |
3760 ml |
|
|
Emission Standard |
Euro 3 |
|
|
Chassis |
Drive Type |
4X4 (left or right hand drive) |
|
Transmission |
6-speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4200 mm / 2 |
|
|
Tire Specification |
8.25R16 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Tank Capacity |
6,000 L Water tank |
|
Tanker Material |
Carbon Steel |
|
|
Fire pump |
CB10/40, 36L/S |
|
|
Fire pump location |
Center or rear |
|
|
Fire monitor |
Water jet distance: ≥45m |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… |
||
|
Optional |
** Backup alarm can be equipped. |
|
Performance Feature:
1. Powerful off-road and passing capabilities
►All-wheel drive chassis (4X4): Adapts to complex terrain (such as mountains, mud, ruins, etc.), ensures quick arrival at the scene under adverse road conditions, and shortens rescue response time.
►8.25R16 tires: Enhance grip and stability, ensure safe handling under high-speed driving or rugged terrain.
►Optional front trailer winch/snow removal equipment: Expands self-rescue and rescue capabilities in extreme environments (such as snowstorms, trapped vehicles).
2. High-efficiency fire extinguishing performance

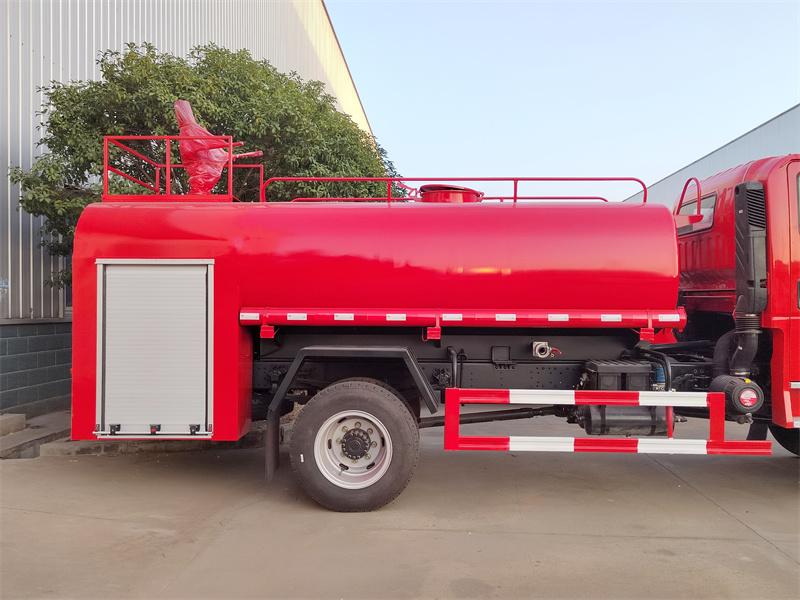

►Large-capacity water tank (6000L): Provides independent fire extinguishing resources, especially suitable for water-scarce areas or initial fire control, reducing dependence on external water supply.
►High-pressure fire pump and gun combination:
● 36L/S@1.0MPa flow rate: High flow rate quickly covers the fire scene and suppresses the fire.
● Range of more than 45 meters: Long-distance precise fire extinguishing, protecting the safety of firefighters, suitable for high-risk scenarios such as high-rise buildings or chemical fires.
● 32L/S@2.0MPa rated flow rate: Maintains stable output under high-pressure conditions to cope with high-intensity fires.
3. Versatility and scene adaptation
►Modular optional configuration:
● Rear folding arm crane: used for traffic accident rescue, obstacle clearing or equipment lifting.
● Front snow removal equipment: expand winter disaster rescue capabilities.
● Winch system: vehicle towing or rescue of trapped personnel/materials.
► Comprehensive standard configuration:
● Multi-directional working lights (cab, top, rear): ensure safe operation at night or in low-light environments.
● Generator and full set of firefighting equipment: ensure power supply and tools are available to support long-term operations.
● Safety protection facilities and anti-collision design (U-shaped subframe, rubber fender): improve occupant safety and vehicle durability.
4. Examples of actual application scenarios
►Forest/mountain fires: AWD chassis and high-range water cannons can break through complex terrain restrictions and suppress fires remotely.
►Urban high-rise fires: Large-flow water pumps with a 45-meter range can effectively cover medium and high-rise buildings.
►Natural disasters (floods, snowstorms): winches, snow removal equipment and cranes support multiple types of rescue missions.
►Industrial fires: Large-capacity water tanks and high-pressure pumps can deal with chemical leaks or explosions in the early stages.
