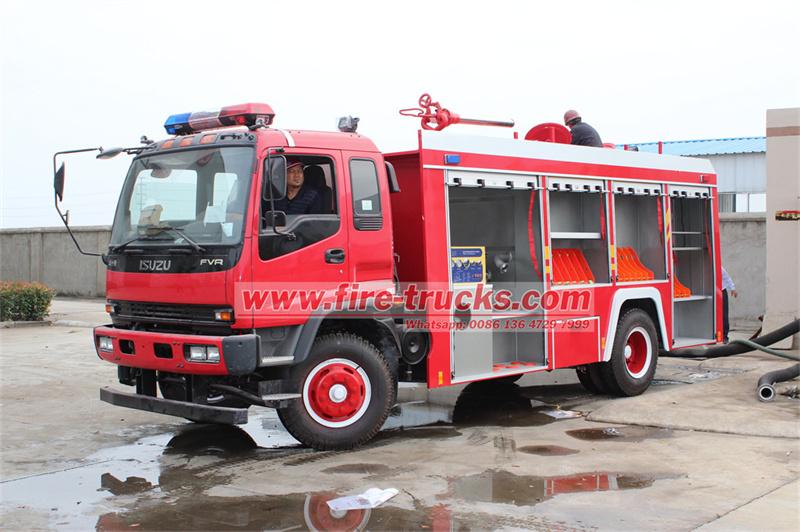

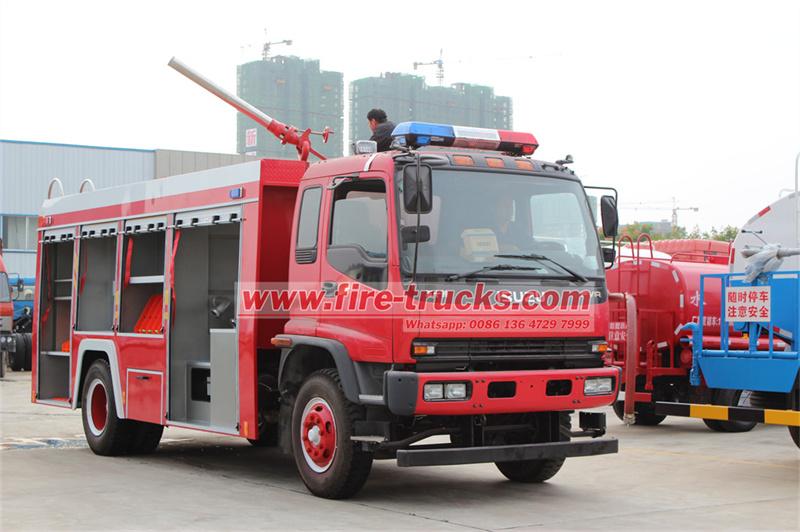

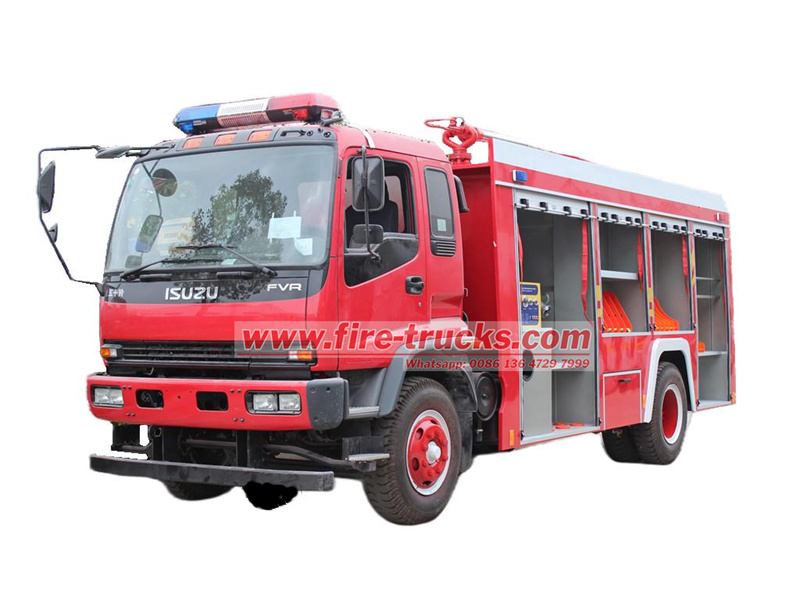

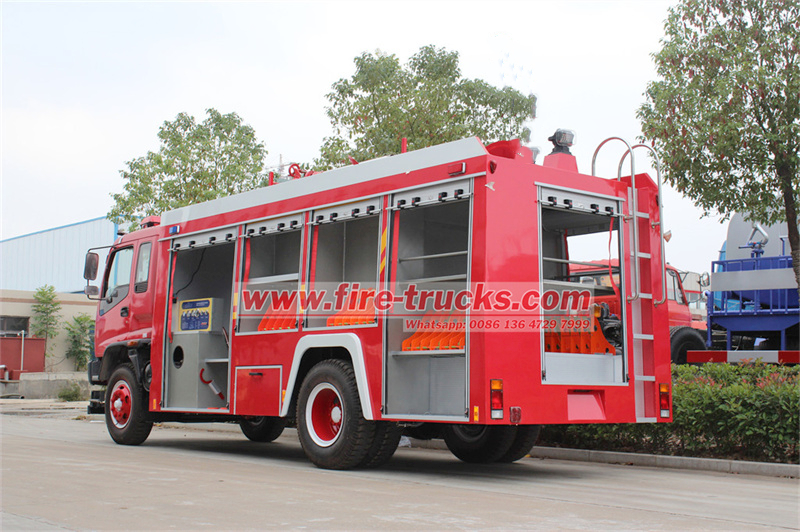

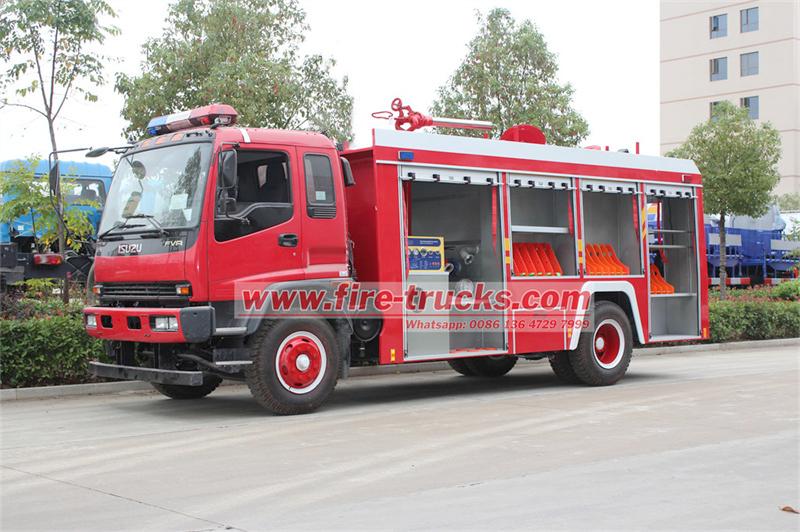

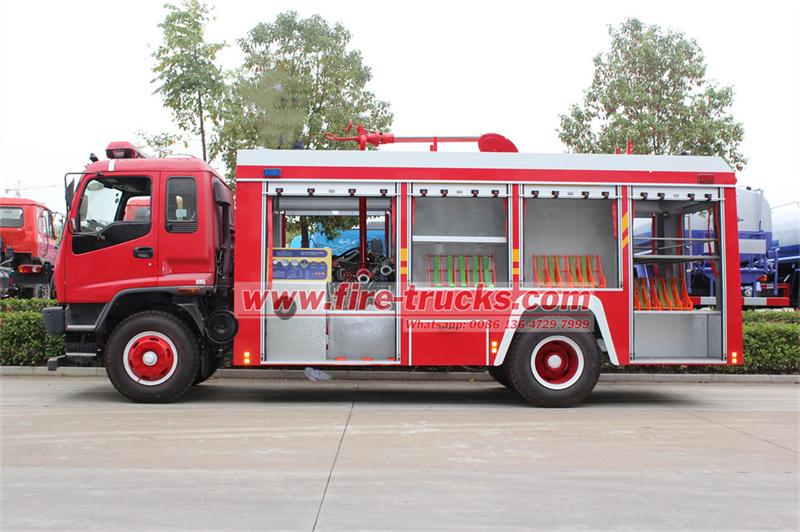

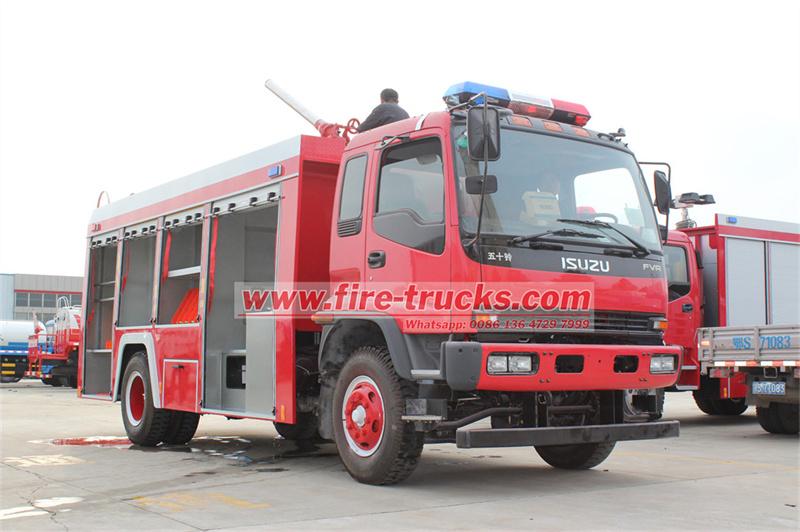

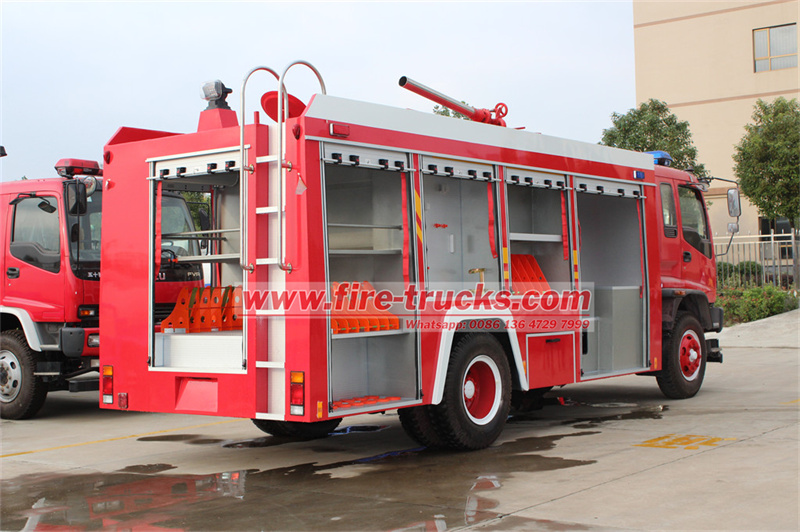

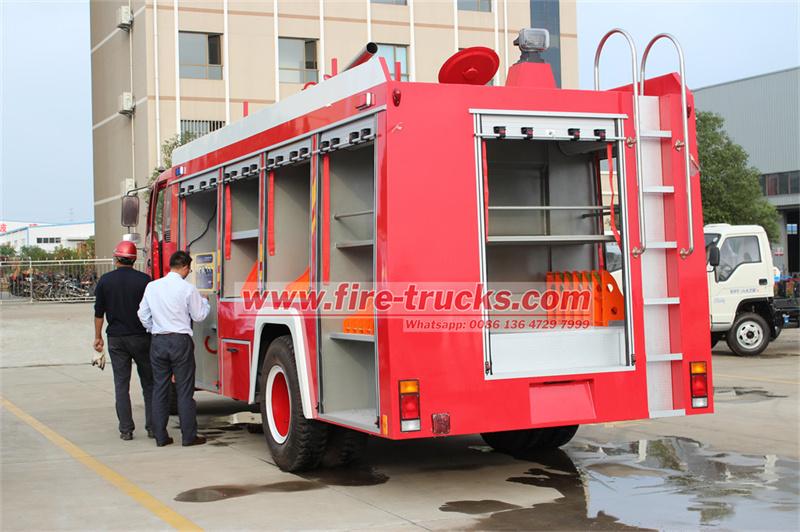

The Isuzu off-road FVR fire fighting truck is built on the sturdy ISUZU FVR all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 6000-liters large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs.
Truck Model:
PST52206QXFTanker Structure:
High quality Q235A carbon steelWork capacity :
6000L WaterWheelbase:
4500mmAxle drive:
4x4Engine Power:
240HPEngine Model:
6HK1-TCG61Fire Pump:
CB10/40, 1600L/minFire Monitor:
PS8/48, 48L /sRemark:
Off-road system, Stainless Steel avaiable
The Isuzu off-road FVR fire fighting truck is built on the sturdy ISUZU FVR all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 6000-liter large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu FVR fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.
● China best off-road water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term

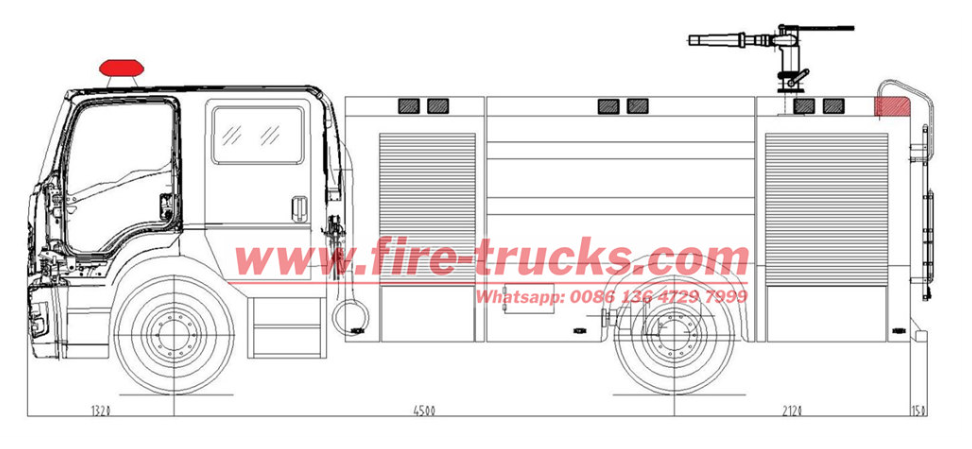

Specification:
|
ISUZU FVR 4x4 fire truck |
|||
|
General |
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
8300*2280*2750mm |
||
|
GWW/ Kerb Weight |
22,300kg/9,220kg |
||
|
Painting |
Red color |
||
|
Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
ISUZU engine ,6HK1-TCG61 |
||
|
Engine type |
Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
240 HP |
||
|
Displacement |
5.19L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X4,left hand drive |
|
|
Transmission |
Fast 8-speed forward, 2 reverse |
||
|
Wheelbase/No.of axle |
4500 mm/2 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95 km/h |
||
|
Fuel tank capacity |
200L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Water Tank Capacity |
6,000 Litres |
|
|
Tank Material |
carbon steel |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|
Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
45L / s |
||
|
Suction Height |
9m |
||
|
Fire Cannon |
Flow speed |
45L /s |
|
|
Range |
65 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional |
||
What standards are required to make high-quality ISUZU 4x4 fire truck?
1. Strengthening process of chassis and all-wheel drive system
♦High-precision welding and reinforcement: Robot welding technology is used to reinforce the key load-bearing parts of the FVR all-wheel drive chassis (such as beams and suspension brackets) in multiple layers to ensure torsional strength and durability under rugged road conditions.
♦Precision assembly of four-wheel drive system: core components such as transfer cases, differential locks, and drive shafts must pass dynamic balance tests and match full-time four-wheel drive logic to ensure traction distribution on complex roads.
♦Anti-corrosion treatment: The chassis is electrophoresis coated + multi-layer anti-rust sprayed, and passes the salt spray test to cope with the corrosive environment where fire trucks are frequently exposed to water and chemical agents.
2. Integration of special upper structure and functional components
♦ Manufacturing of large-capacity water tanks:
Material selection: Use high-quality stainless steel or high-strength composite materials, with antibacterial coating on the inner wall and anti-collision frame on the outer wall.
Dynamic stability design: The center of gravity distribution under full load should be simulated during installation, and the hydraulic damping bracket should be combined to reduce the impact of water sway during driving on the control of the ISUZU 4x4 fire truck.

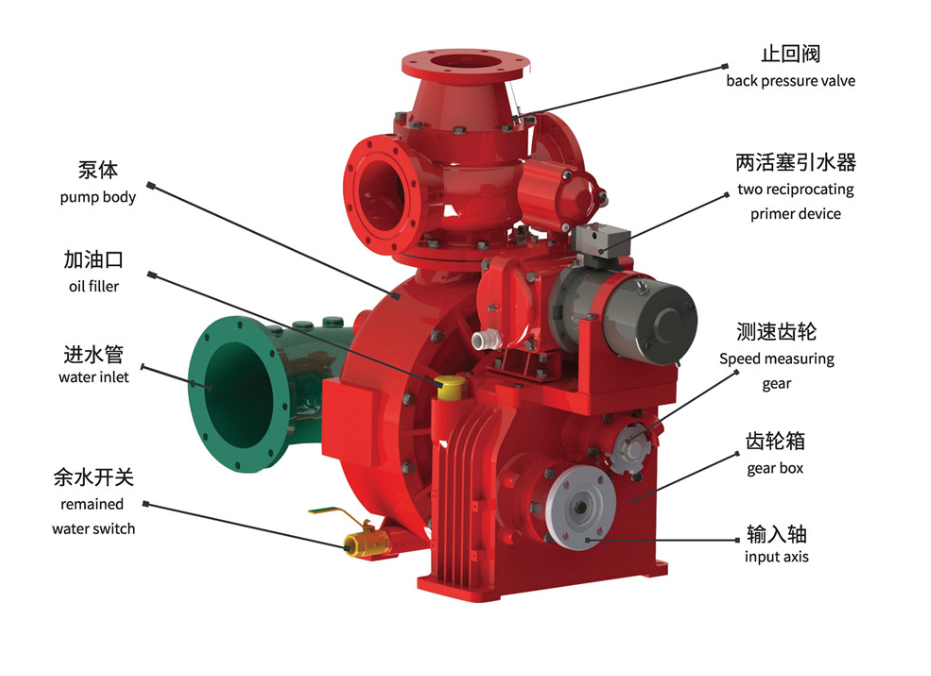

♦ Fire pump system matching:
High-pressure pipeline integration: Use aviation-grade aluminum alloy pipelines, laser welding of interfaces to ensure sealing, and the pump pressure must pass the ISO 9001 certified test bench for 72 hours of continuous full-load testing.
Intelligent control integration: The control panel must support multi-language real-time switching, and the electrical circuit adopts a redundant design and has an IP67 waterproof rating.
4. Intelligent and data traceability management
♦Digital process control:
Key components (such as pumps, valves, and sensors) are implanted with RFID chips to achieve full-cycle data traceability from production to service to maintenance. The AR-assisted assembly system is used to ensure zero-error installation of complex pipelines.
♦Remote operation and maintenance support:
Pre-installed Internet of Vehicles terminals monitor vehicle status in real time and provide fault warnings, and support OTA upgrades of fire pump control algorithms.
Advantage:
High-efficiency Power and Environmental Protection:
Equipped with ISUZU brand 6HK1-TCG61 diesel engine, it not only provides powerful power up to 240 horsepower, but also meets the EU 6 emission standards, achieving a perfect combination of power and environmental protection.
Excellent Driving And Handling:
With 4X2 left-hand drive layout and FAST 8-speed forward and 2-speed reverse manual transmission, equipped with hydraulic steering system, the fire truck can show excellent driving and handling performance on urban roads or complex terrain.
With a large capacity design of 6000 liters water tank, combined with CB10/40 high-efficiency fire pump and PL32 fire cannon, the ISUZU FVR 4X4 fire truck can cope with various types of fires and achieve fast and effective firefighting and rescue.
Advanced safety braking system:
It adopts multiple braking systems such as compressed air braking, spring energy storage parking brake and engine exhaust auxiliary braking to ensure safe and reliable parking in various emergency situations.
