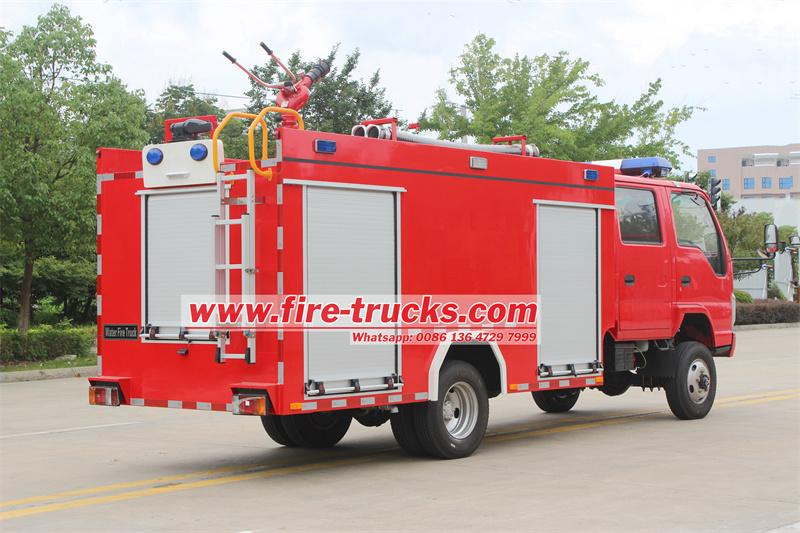

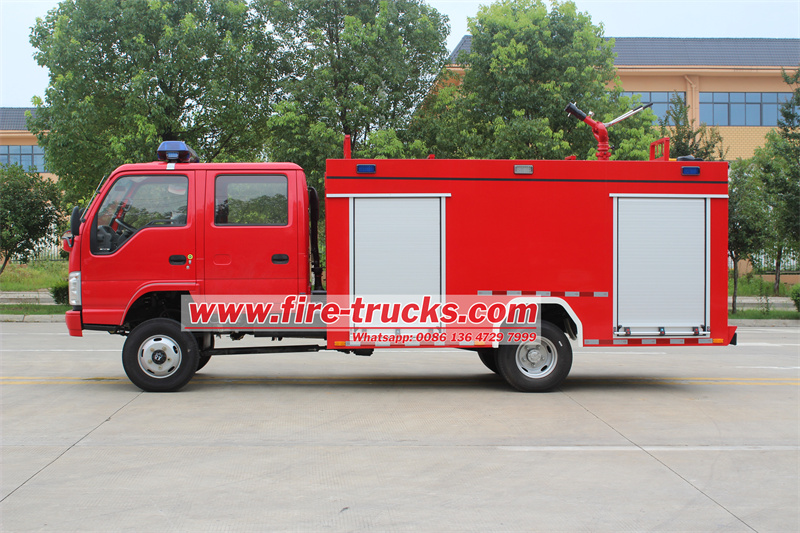

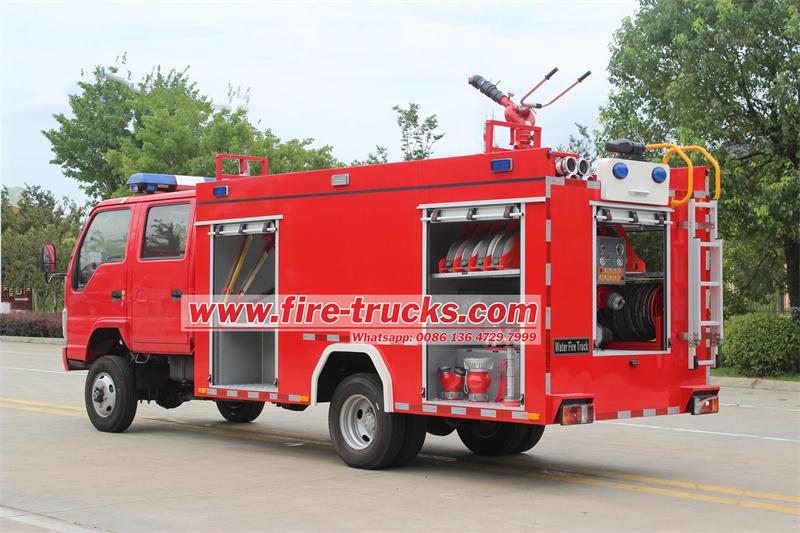

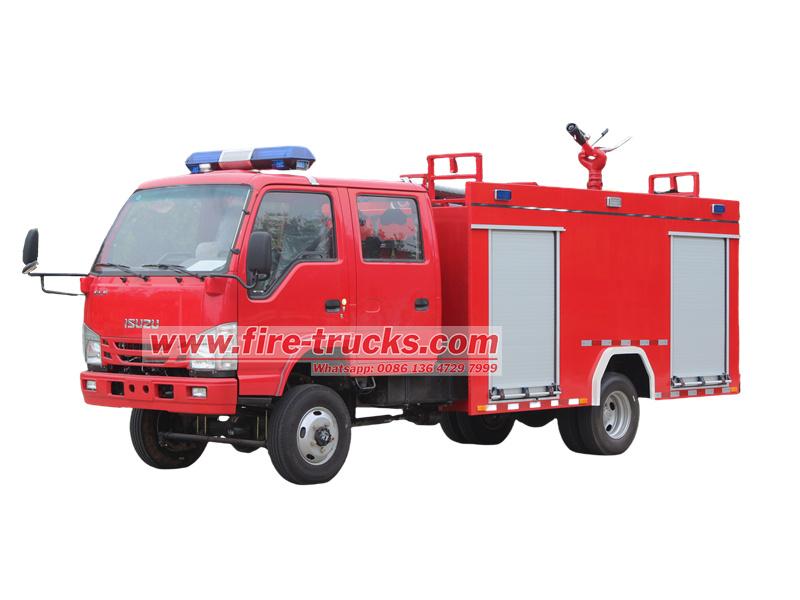

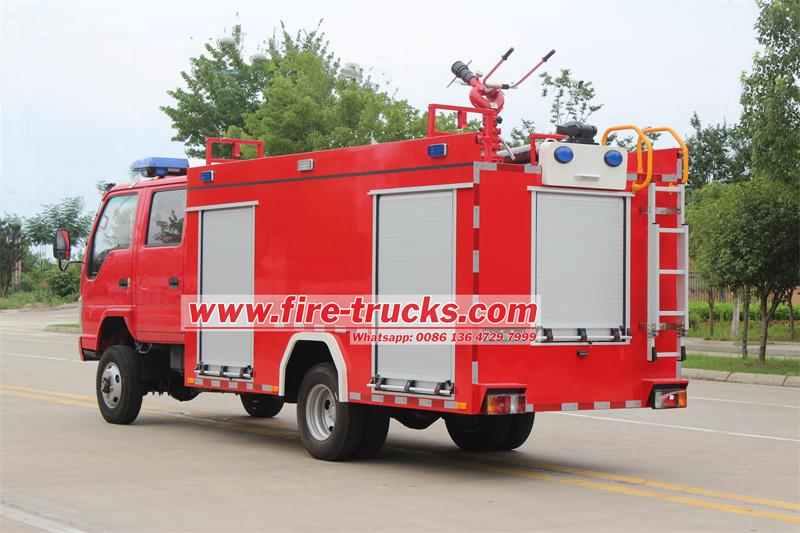

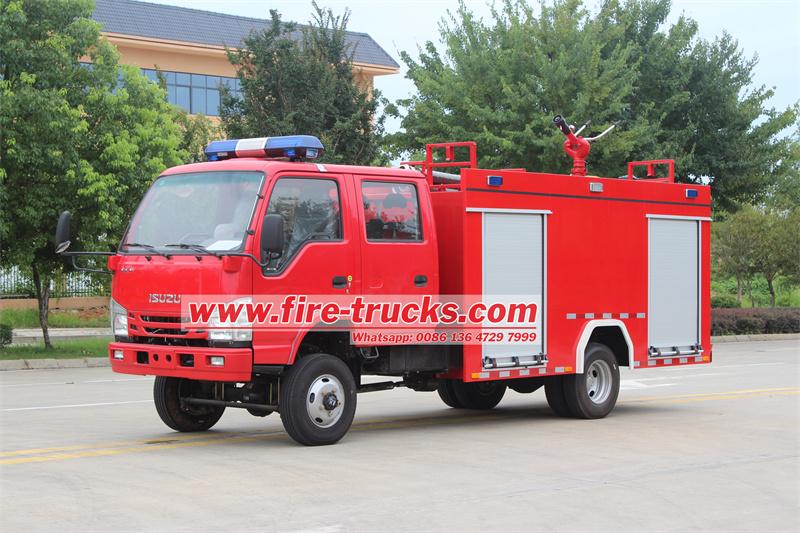

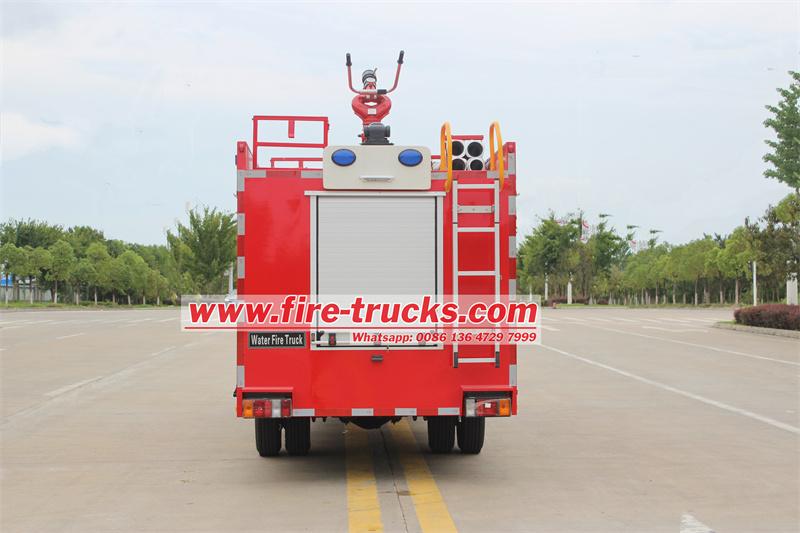

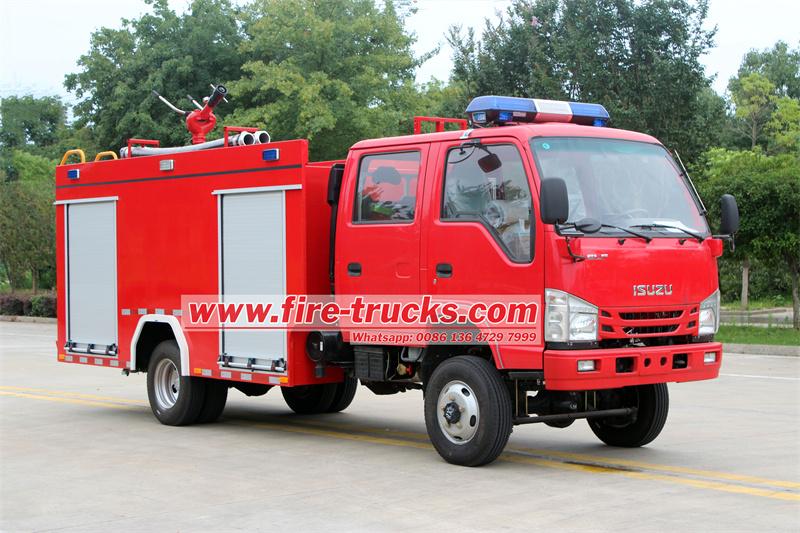

The Isuzu 4X4 NKR fire fighting truck is built on a sturdy Isuzu chassis, combining excellent power and environmentally friendly emissions. It has 4X4 all-wheel drive capability, a 3,000-liter large-capacity water tank and a professional fire pump, long spraying distance, optional control panel language, and a variety of optional configurations to meet different needs. This Isuzu 4X4 fire water truck provides solid protection for fire safety and demonstrates excellent performance and flexibility.
Truck Model:
PST50407QXFTanker Structure:
High quality Q235A carbon steelWork capacity :
3000LWheelbase:
3360mmAxle drive:
4x4Engine Power:
120HPEngine Model:
4KH1CN6LBFire Pump:
CB10/30, 1600L/minRemark:
off-road system, Stainless Steel avaiable
The Isuzu 4X4 NKR fire fighting truck is built on a sturdy Isuzu chassis, combining excellent power and environmentally friendly emissions. It has 4X4 all-wheel drive capability, a 3,000-liter large-capacity water tank and a professional fire pump, long spraying distance, optional control panel language, and a variety of optional configurations to meet different needs. This Isuzu 4X4 fire water truck provides solid protection for fire safety and demonstrates excellent performance and flexibility.

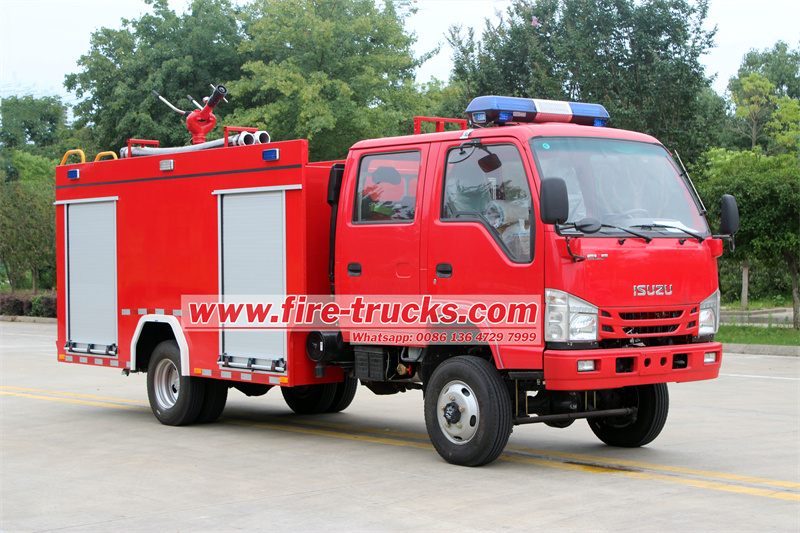

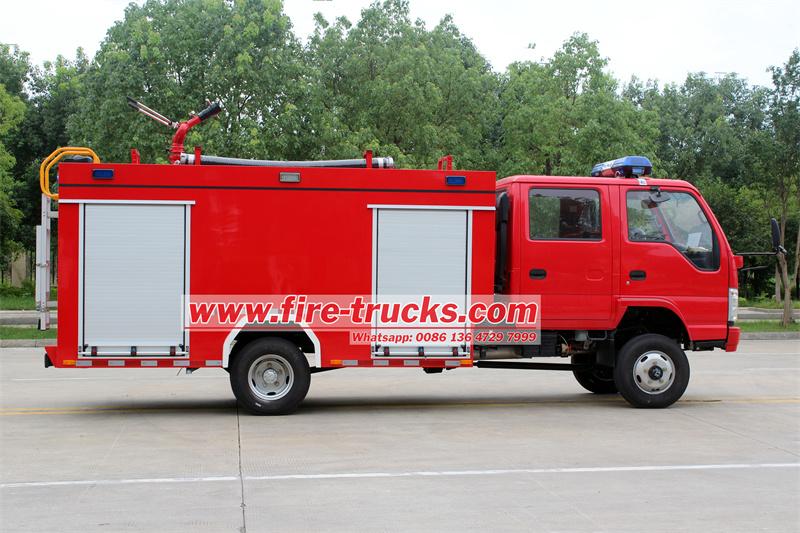

This Isuzu 4X4 fire fighting truck is a professional firefighting vehicle built on Isuzu's sturdy chassis. The Isuzu 4X4 NPR fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.

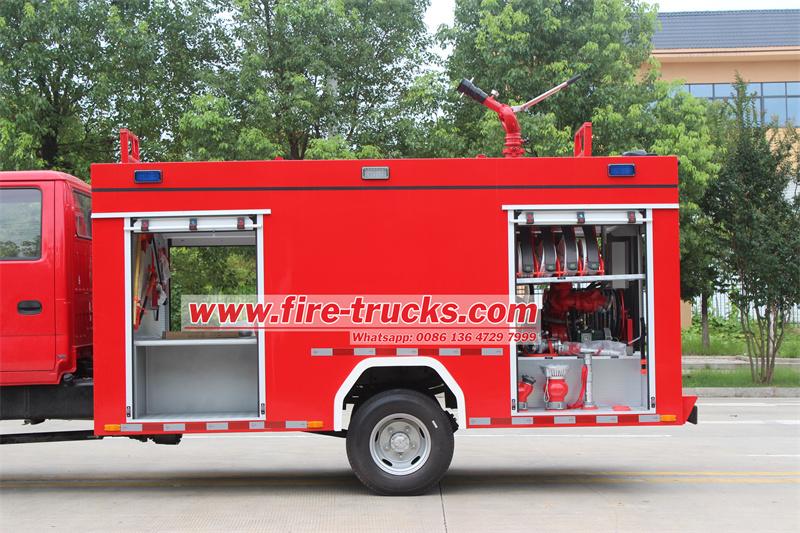

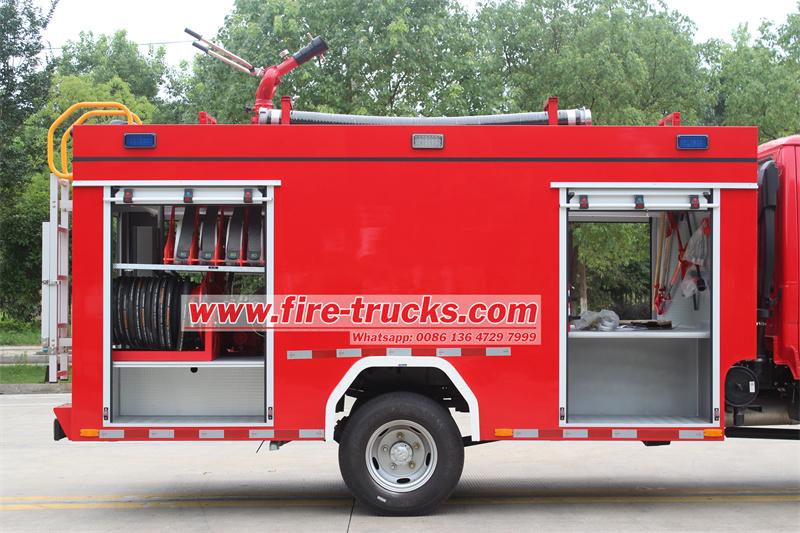

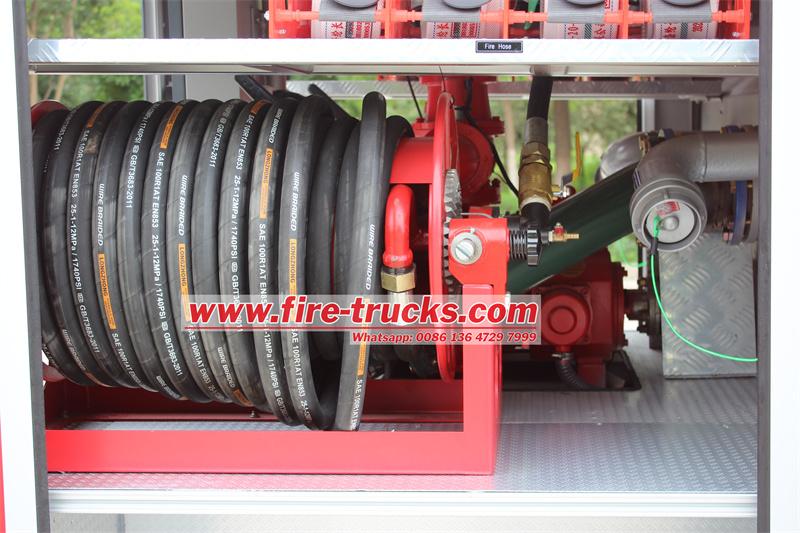

The Isuzu NKR 4X4 fire fighting truck is equipped with a 3,000-liter water tank made of carbon steel. The fire pump is a CB10/30 type with a flow rate of 30 liters/second. The fire pump can be installed in the middle or rear of the Isuzu 4X4 NKR fire fighting truck to suit different operational needs. The water cannon can spray at a distance of more than 45 meters, while the foam cannon can spray at a distance of more than 40 meters. The control panel can choose English or other languages, which is convenient for firefighters from different countries. In addition, the ISUZU fire truck is also equipped with standard accessories such as fire hoses, filters, couplers, wrenches, water guns, basic tool kits and English manuals.
In order to meet the needs of different customers, the Isuzu 4X4 fire fighting truck also offers a variety of optional configurations. For example, it can be equipped with a rear alarm and a camera to enhance the safety of the vehicle; water tanks made of carbon steel and stainless steel are available; and fire pumps can also choose American or German brands.
● China best off-road water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Specification:
|
ISUZU NKR 4x4 fire truck |
|||
|
General |
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
6300*2280*2750mm |
||
|
GWW/ Kerb Weight |
8,300kg/4,220kg |
||
|
Painting |
Red color |
||
|
Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
ISUZU engine ,4KH1CN6LB |
||
|
Engine type |
Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
120 HP |
||
|
Displacement |
2.99L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X4,left hand drive |
|
|
Transmission |
MSB 5-speed forward, 1 reverse |
||
|
Wheelbase/No.of axle |
3360 mm/2 |
||
|
Tyre Specification |
700 R16 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95 km/h |
||
|
Fuel tank capacity |
70L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Water Tank Capacity |
3,000 Litres |
|
|
Tank Material |
carbon steel |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |

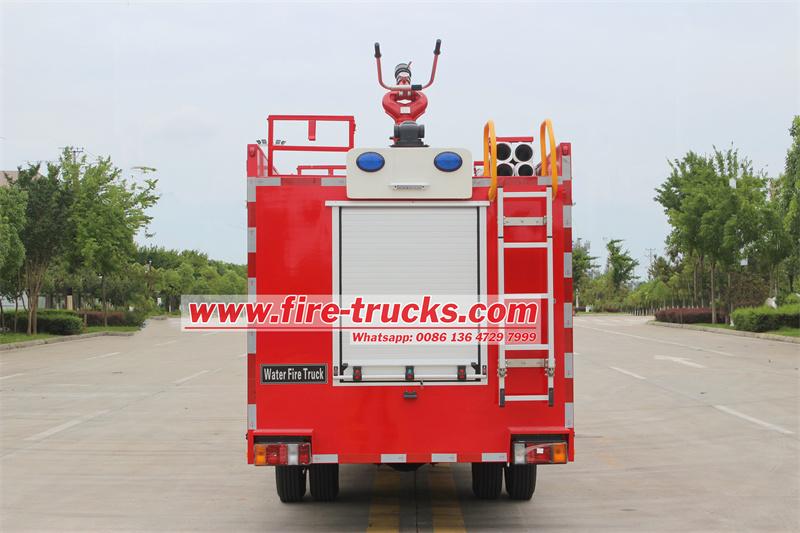

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|

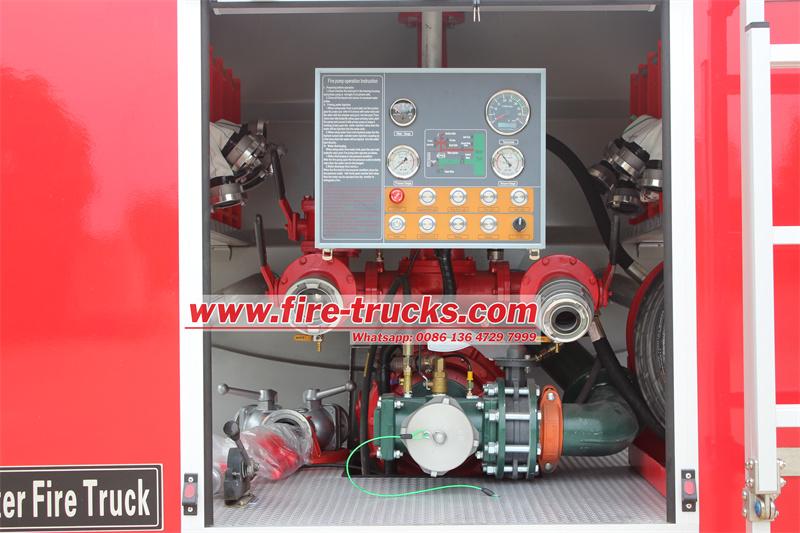

Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
36L / s |
||
|
Suction Height |
7m |
||
|

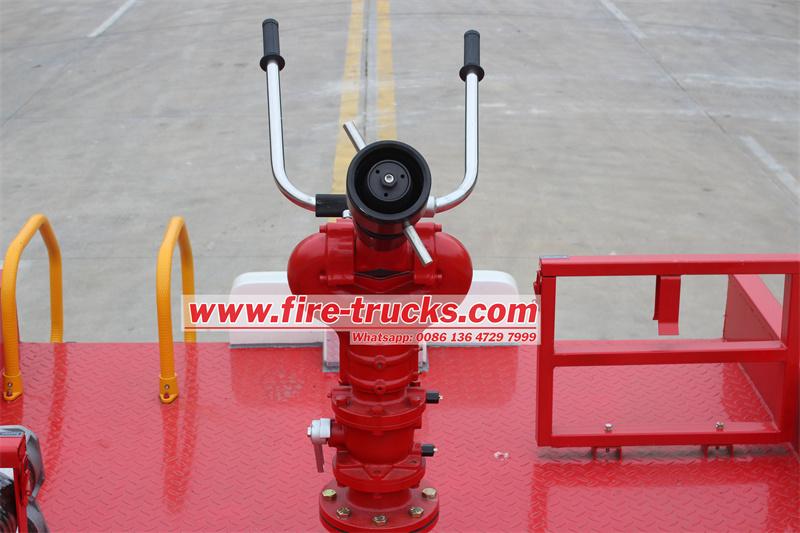

Fire Cannon |
Flow speed |
32L /s |
|
|
Range |
45-55 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional |
||
Application Advantage:
1. Power and terrain adaptability: reliable mobility in complex environments

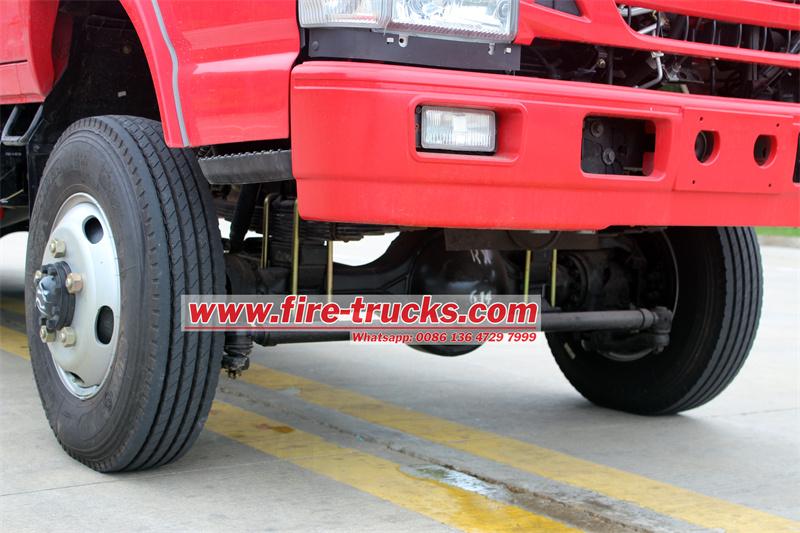

——4X4 all-wheel drive system: Adopting Isuzu non-load-bearing chassis and equipped with a part-time four-wheel drive system, it can cope with extreme terrains such as mountains, mud, ice and snow. The minimum ground clearance is optimized to 250mm, and the approach angle/departure angle are 30° and 20° respectively, ensuring the vehicle's passability in collapsed buildings or wild fire scenes.
——Power chain matching: Equipped with a 4KH1CN6LB turbocharged diesel engine (120PS/290N·m), matched with a 5-speed synchronous meshing gearbox, the low-speed torque distribution efficiency is improved by 15%, and it can still maintain a highway cruising speed of 80km/h under full load (GVW 7.5 tons) conditions to meet the needs of rapid response.
2. Firefighting efficiency: Tactical advantages of high flow and long range
——Large-capacity water storage system: The 3000L carbon steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

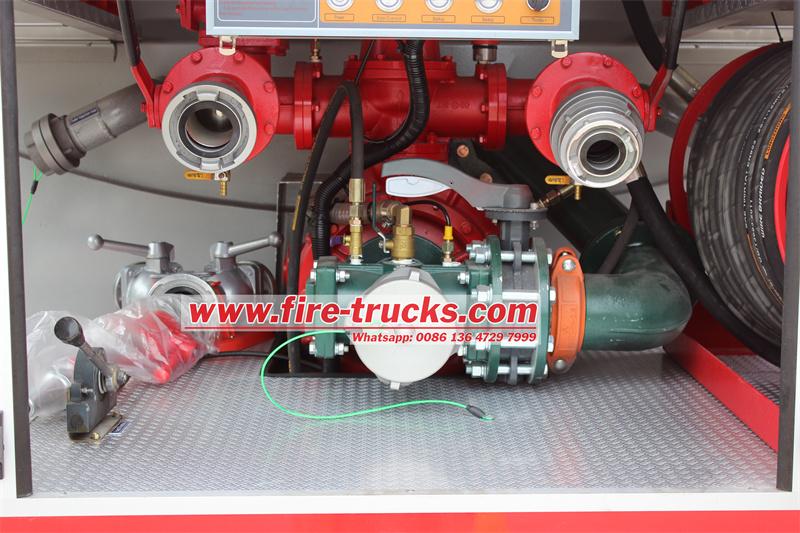

——Efficient pump system: Standard CB10/30 mid-mounted centrifugal pump (30L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 40L/s), water cannon range of 45m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
——Tactical flexibility: The modular pump position design supports mid-mounted or rear-mounted installation. Combined with the quick-release hose interface (DN80 Storz standard), it can complete the water supply of multiple vehicles in series within 90 seconds, expanding the total water supply to 12,000L.
3. Ergonomics and safety: continuous combat capability under high-intensity tasks
——Double-row cab design: Complies with ECE R29 collision standards, the 5-person cabin layout integrates air suspension seats (shock absorption efficiency 60%), equipped with dual-zone automatic air conditioning and positive pressure fresh air system, ensuring that the CO concentration is less than 50ppm under 60 minutes of closed working conditions.

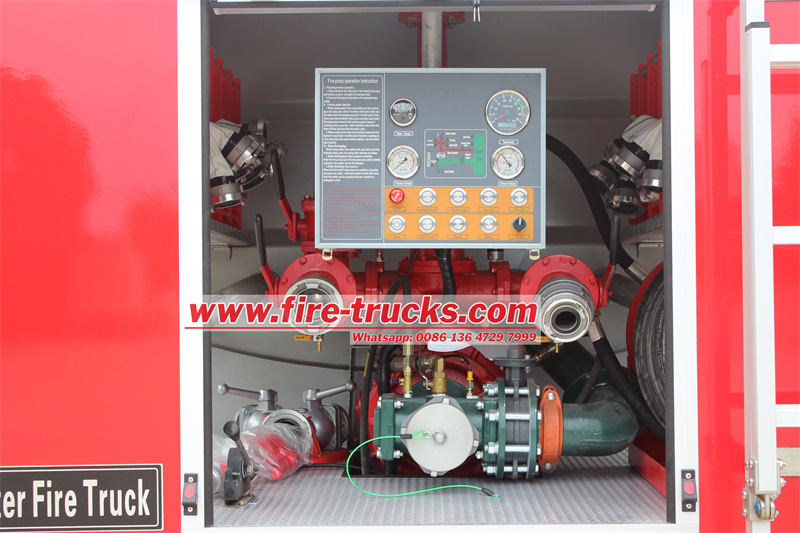

——Intelligent control terminal: The 7-inch IP67 explosion-proof touch screen supports multi-language switching (including EN/FR/ES presets), real-time monitoring of pump pressure, liquid level, GPS positioning and fault diagnosis codes, and operation response delay <200ms.
——Active safety configuration: Optional 360° surround view image (2 million pixel thermal imaging), AEBS automatic emergency braking and ESC body stability system, the braking distance is shortened by 12% (60km/h-0) compared with similar models.
4. Customized configuration: meet the needs of multiple scenarios
——Functional expansion: Optional front winch (5 tons pulling force), roof searchlight set (4×100W LED) and VHF emergency communication relay, suitable for complex rescue scenarios such as earthquakes/floods.
——Environmental compliance: The engine meets Euro V/VI emission standards, and can be equipped with DPF+SCR post-treatment system, NOx emissions <0.4g/kWh, suitable for operations in densely populated urban areas and ecologically sensitive areas.
5. Comprehensive application scenario advantages
Urban firefighting: compact wheelbase (3815mm) supports 7.5m turning radius, suitable for narrow streets.
Industrial fire: foam system is compatible with AFFF/AR-AFFF, which can cope with fires in petrochemical facilities.
Field rescue: all-wheel drive system + wading hose (800mm depth) to achieve multi-terrain coverage.
