Isuzu FTR 4x4 all-drive fire truck has all-terrain adaptability, combined with ISUZU FTR chassis high mobility chassis, and equipped with large-capacity firefighting system and high-pressure water cannon, which can achieve rapid response and efficient operation. Isuzu FTR off-road fire fighting truck is an ideal choice for urban and outdoor complex fire rescue, taking into account rapid response, continuous operation and personnel safety protection, and meeting the diverse needs of modern firefighting forces.
Truck Model:
PST51806QXFTanker Structure:
High quality Q235A carbon steelWork capacity :
5000L WaterWheelbase:
4500mmAxle drive:
4x4Engine Power:
205HPEngine Model:
4HK1-TC60Fire Pump:
CB10/40, 1600L/minFire Monitor:
PS8/48, 48L /sRemark:
Off-road system, Stainless Steel avaiable
Isuzu FTR 4x4 all-drive fire truck has all-terrain adaptability, combined with ISUZU FTR chassis high mobility chassis, and equipped with large-capacity firefighting system and high-pressure water cannon, which can achieve rapid response and efficient operation. Isuzu FTR off-road fire fighting truck is an ideal choice for urban and outdoor complex fire rescue, taking into account rapid response, continuous operation and personnel safety protection, and meeting the diverse needs of modern firefighting forces.
● China best off-road water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Sepcification:
|
ISUZU FTR 4x4 fire truck |
|||
|
General |
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
8300*2280*2750mm |
||
|
GWW/ Kerb Weight |
18,300kg/7,220kg |
||
|
Painting |
Red color |
||
|

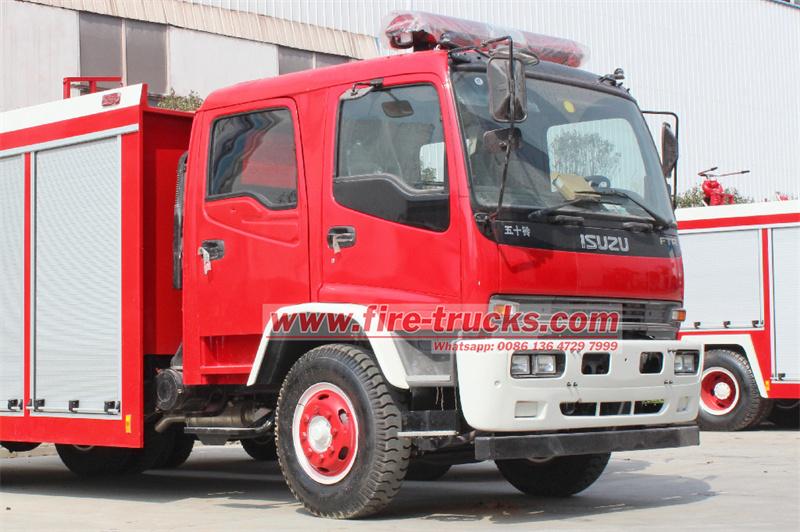

Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
ISUZU engine ,4HK1-TC60 |
||
|
Engine type |
Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
205 HP |
||
|
Displacement |
5.19L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X4,left hand drive |
|
|
Transmission |
MLD 6-speed forward, 1 reverse |
||
|
Wheelbase/No.of axle |
4500 mm/2 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95 km/h |
||
|
Fuel tank capacity |
200L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Water Tank Capacity |
3,000 Litres |
|
|
Tank Material |
carbon steel |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |

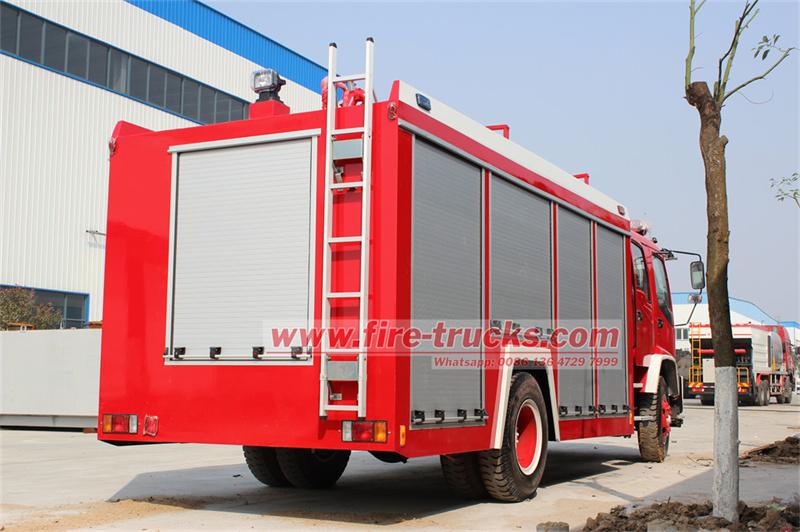

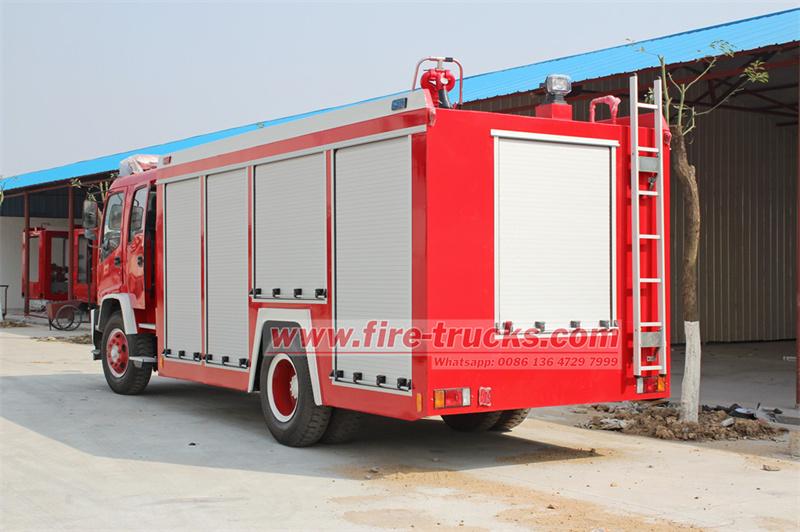

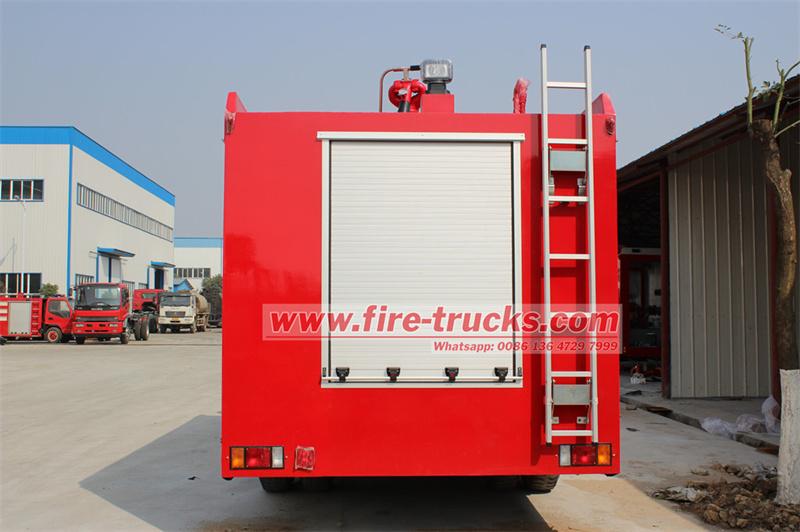

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|

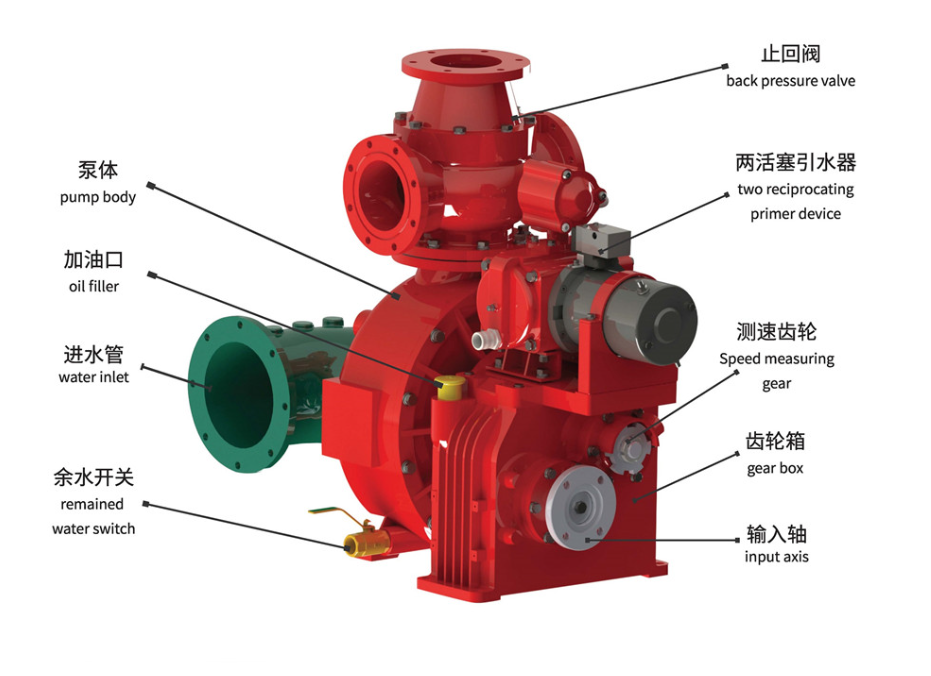

Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
45L / s |
||
|
Suction Height |
9m |
||
|
Fire Cannon |
Flow speed |
45L /s |
|
|
Range |
65 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|

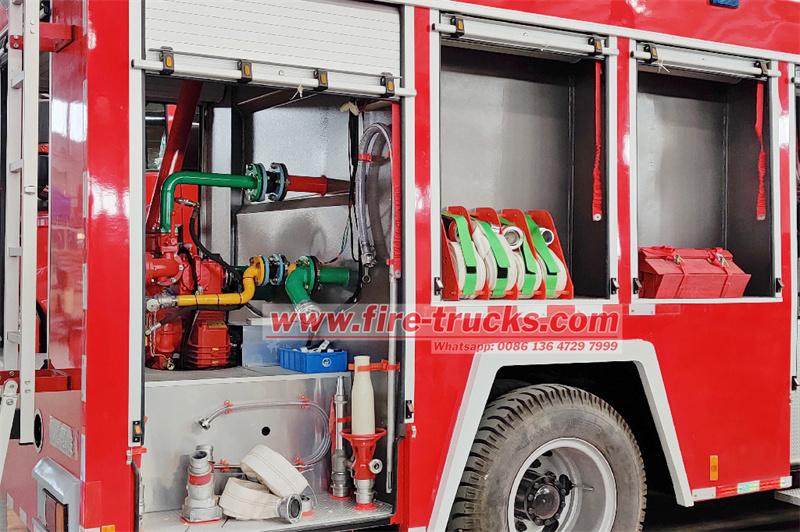

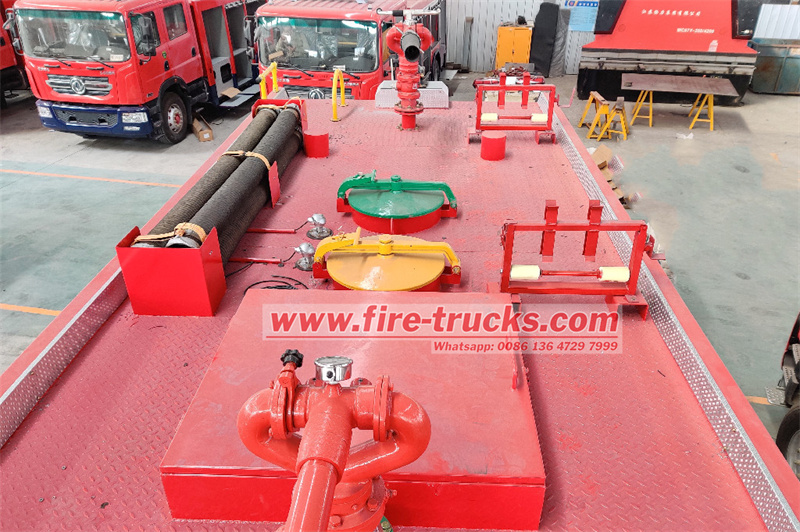

All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional |
||
Advantage:
1. Power and terrain adaptability: reliable mobility in complex environments
►4X4 all-drive system: Adopting Isuzu non-load-bearing chassis and equipped with a part-time four-wheel drive system, it can cope with extreme terrains such as mountains, mud, ice and snow. The minimum ground clearance is optimized to 350mm, and the approach angle/departure angle are 33° and 23° respectively, ensuring the truck's passability in collapsed buildings or wild fire scenes.
►Power chain matching: Equipped with a 4HK1-TC60 turbocharged diesel engine (205PS/550N·m), matched with a 5-speed synchronous meshing gearbox, the low-speed torque distribution efficiency is improved by 15%, and it can still maintain a highway cruising speed of 80km/h under full load (GVW 18.5 tons) conditions to meet the needs of rapid response.
2. Firefighting efficiency: Tactical advantages of high flow and long range
►Large-capacity water storage system: The 5000L carbon steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.5MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).
►Efficient pump system: Standard CB10/40 mid-mounted centrifugal pump (45L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 40L/s), water cannon range of 65m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
►Tactical flexibility: The modular pump position design supports mid-mounted or rear-mounted installation. Combined with the quick-release hose interface (DN80 Storz standard), it can complete the water supply of multiple vehicles in series within 90 seconds, expanding the total water supply to 15,000L.
3. Ergonomics and safety: continuous combat capability under high-intensity tasks
►Double-row cab design: Complies with ECE R29 collision standards, the 5-person cabin layout integrates air suspension seats (shock absorption efficiency 60%), equipped with dual-zone automatic air conditioning and positive pressure fresh air system, ensuring that the CO concentration is less than 50ppm under 60 minutes of closed working conditions.

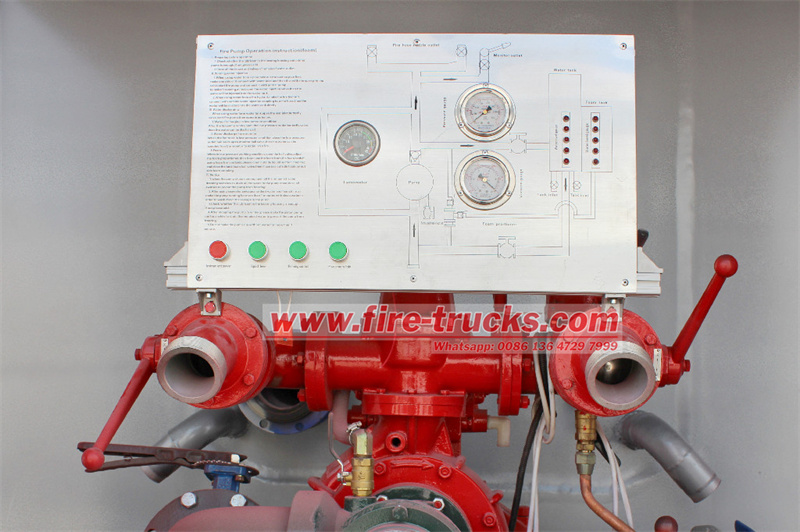

►Intelligent control terminal: The 7-inch IP67 explosion-proof touch screen supports multi-language switching (including EN/FR/ES presets), real-time monitoring of pump pressure, liquid level, GPS positioning and fault diagnosis codes, and operation response delay <200ms.
►Active safety configuration: Optional 360° surround view image (2 million pixel thermal imaging), AEBS automatic emergency braking and ESC body stability system, the braking distance is shortened by 12% (60km/h-0) compared with similar models.
4. Customized configuration: meet the needs of multiple scenarios
►Functional expansion: Optional front winch (5 tons pulling force), roof searchlight set (4×100W LED) and VHF emergency communication relay, suitable for complex rescue scenarios such as earthquakes/floods.
►Environmental compliance: The engine meets Euro V/VI emission standards, and can be equipped with DPF+SCR post-treatment system, NOx emissions <0.4g/kWh, suitable for operations in densely populated urban areas and ecologically sensitive areas.
5. Comprehensive application scenario advantages
►Urban firefighting: compact wheelbase (4500mm) supports 9m turning radius, suitable for narrow streets.
►Industrial fire: foam system is compatible with AFFF/AR-AFFF, which can cope with fires in petrochemical facilities.
►Field rescue: all-wheel drive system + wading hose (800mm depth) to achieve multi-terrain coverage.
